ABACO 40
Yacht for Sale

Length: 40′ 0″ / 12.19m | Builder: Bruckmann | Year: 2022
Abaco 40 Yacht for Sale

Abaco 40 Yacht for Sale - 40′Bruckmann

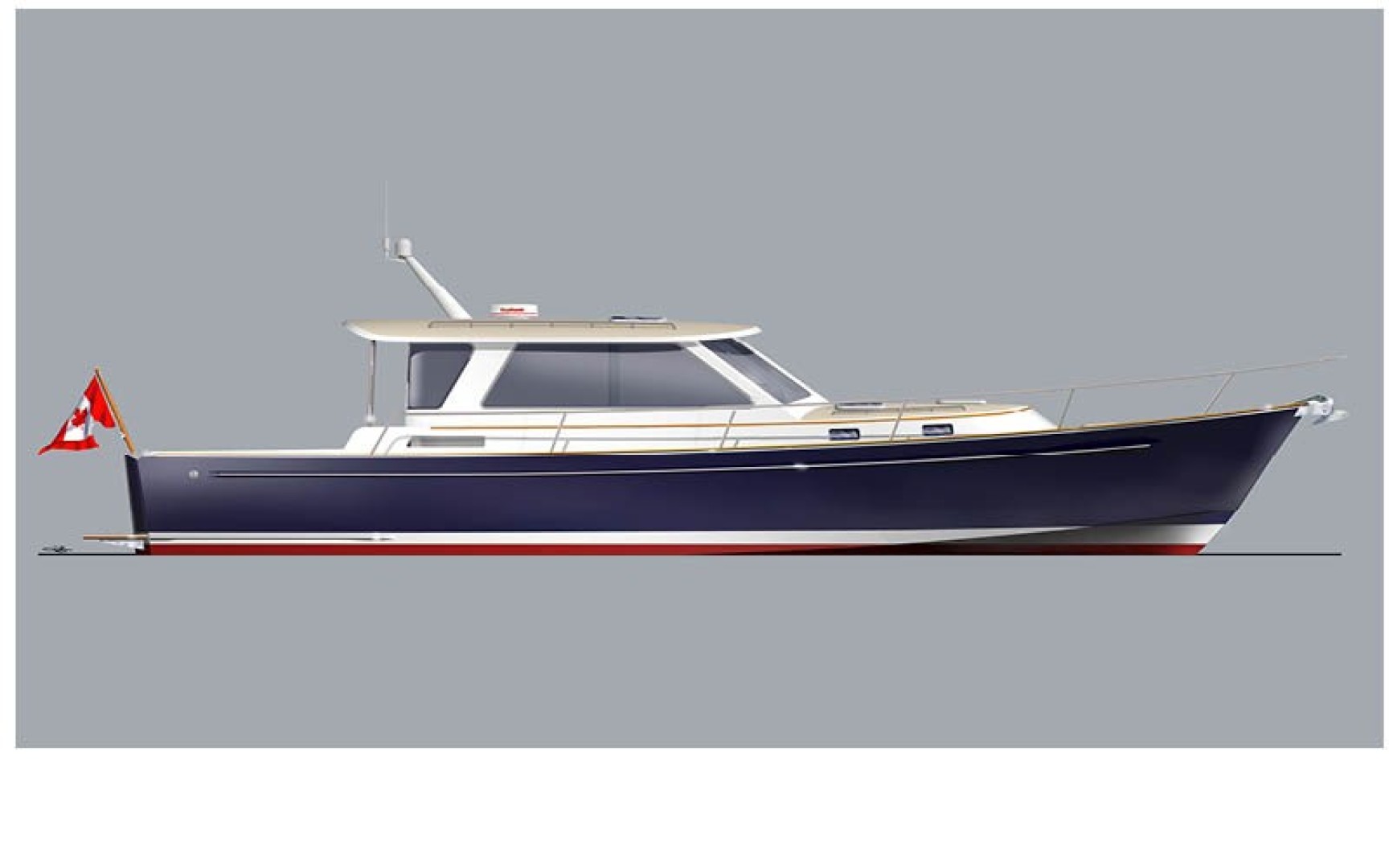

Designed by Mark Ellis, the Abaco 40 is a stylish but practical day cruiser, providing stability, an easy ride and fuel efficiency. A centerline skeg provides directional stability and tracking performance as well as grounding protection. 2022 models are being built on a limited series basis.

Type: Open/Non-Exclusive
Category: Motor Yachts
Condition: New
Length: 40′ 0″ (12.19m)
Beam: 12′ 9″ (3.89m)
Builder: Bruckmann
Draft: 3′ 11″ (1.19m)
Build Year: 2022
Location: Newport
Staterooms: 1
Sleeps: 4
PDF: PDF Brochure
Price: Price On Application
Abaco 40 yacht for sale
Abaco 40 Worth Avenue Yachts
Yacht for sale Abaco 40
Abaco 40
Abaco 40

Contact Us For More Information

    Preferred method of contact:
    This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

    Detailed Information

    Conceived as a stylish but practical day cruiser with accommodation for occasional longer ventures, the Abaco 40 finds favor with those who want fine sea keeping and performance in a boat with classic aesthetics.


    The hull configuration utilizes broad chine flats aft on a modified deep vee form that provides characteristic stability and an easy ride and motion. The Abaco 40 is powered by a single Cummins 670 HP diesel that cruises in low 20 knot range with a top speed of approximately 30 knots and a propeller and rudder protected by a skeg. Also available in twin engine pod drive form with a top speed in the high 30’s.


    Accommodations are generous with ample galley space, storage, machinery access and cockpit.


    The Abaco 40 is being build on a limited series basis.


    • Fiberglass roving & unidirectional E-glass reinforced structural grid with limber holes providing longitudinal floors forming engine beds with transverse frames

    • Vinylester resin throughout

    • Single piece vacuum bagged Core-Cell cored fiberglass molding

    • Extra reinforcing as required

    • Core removed in way of al thru-hulls, shaft log, rudder port & center line

    • FRP centerline prop protecting skeg for single engine installation

    • Awlgrip hull finish

    • Single piece foam cored fiberglass molding with non-skid pattern on all working surfaces

    • Sand-textured non-skid surfaces finished in choice of color

    • Core phased out in way of all deck fittings

    • Overlapping hull/deck joint bonded and fastened every 4”

    • Swim platform with swim ladder

    • Transom door to platform

    • Cummins 670 H.P. diesel engine with electronic display

    • Digital engine instrument panel for tach, oil pressure, fuel consumption etc.

    • Dual density engine sound insulation

    • Isolated bilge area under engine

    • Raw water cooled exhaust with muffler

    • 2” Aqua Met propeller shaft with zinc anode

    • (4) blade bronze propeller • Sidepower bow thruster

    • Dripless shaft seal • Bronze rudder

    • Dual engine room ventilation

    • (2) 150 US gallon vented fuel tanks with level indicator at helm

    • Dual Racor fuel filters

    • Raw water intake with strainer

    • Hydraulic steering

    • Electronic throttle shift control

    • Bennett trim tabs

    • Stainless steel steering wheel

    • Pressure water with hot & cold faucets in head/shower and galley

    • Cockpit shower

    • Water heater, 11 gallon, 110V & engine heat exchanger

    • (80) US gallon water tank with level indicator at helm

    • Polished stainless steel sinks in galley & head

    • Single lever chromed brass faucets

    • Rigid colour coded PVC plumbing

    • Vacuflush head with 30 US gallon holding tank

    • Holding tank overboard discharge with 12 volt macerator

    • All sea cocks Marelon

    • (2) 1500 gallon per hour bilge pumps with float switches

    • Integrated manual bilge pump

    • All wiring sized & colour coded to ABYC specs.

    • 12V DC custom distribution panel with digital meters

    • 110V AC custom power distribution panels with digital meters & polarity indicator

    • 110V 30amp. shore power with 50’ cord

    • 110V outlets in galley, head, fwd. cabin & engine room with ground fault protection

    • AGM engine starting battery

    • (2) 200 amp hour AGM house batteries

    • (2) Explosion proof master battery selection switches

    • Inverter/battery charger

    • Front opening 12V refrigerator

    • Separate top access 12V freezer

    • Two burner ceramic cooktop

    • Microwave oven

    • Chrome overhead lights in galley, dinette, head & V berth

    • Chrome swivel reading lights in V berth

    • Engine room lighting

    • Halon extinguishing system in engine room

    • (3) windshield wipers/washers with independent on/off switches at helm

    • Running lights & anchor light

    • Courtesy lights in cockpit, saloon and interior

    • Light at compass

    • Fire extinguishers in cabin & cockpit

    • Main bulkheads and faces laminate covered marine plywood fiberglassed to hull & deck

    • Satin varnished interior wood trim

    • Cabin & locker doors solid wood framed

    • Varnished teak & holly cabin sole

    • Removable overhead panels in satin white

    • All exposed interior fiberglass in locker interiors covered with ply, cedar or gelcoat

    • Spacious forward cabin with v-berth or optional island double berth with overhead “aircraft” lockers, bureau with drawers and hanging locker

    • Head with large separate shower

    • Corian countertops in galley & head with under mounted sinks

    • Double sink at galley with drawers for utensils. Sliding door storage outboard of galley. Tilt out trash bin under sink, dish storage locker above Galley is open to pilothouse for greater light and ventilation

    • All latches, hinges, catches & pulls are chromed bronze or brass

    • Mirror in head

    • Towel rack and cup holder

    • 5” foam upholstered cushions in helm area & 6” foam in V berth

    • All deck hardware & fittings 316 stainless steel

    • Bow fitting with anchor roller

    • Windlass w/SS anchor and 250’ chain/rope

    • (6) stainless steel 10” mooring cleats

    • (4) custom inline toe rail chocks

    • 1¼” stainless steel bow rail extending aft to cockpit

    • Large molded hull rub rail at chine aft with stainless steel half round

    • Solid teak caprail on bulwarks extending aft to cockpit

    • Stainless steel striker on hull at sheer to protect teak caprail

    • (2) stainless steel handrails on hardtop

    • (2) stainless steel handrails on cabin top

    • (4) stainless steel opening ports w/screens

    • Large windows in pilothouse with sliding vents port and starboard

    • Large sliding doors to aft cockpit from enclosed pilothouse

    • Teak cabin nosing

    • (4) Lewmar aluminium anodized hatches with Oceanair screens and shades

    • Molded fiberglass 6’ 6” settees port and starboard in pilothouse with hinged storage access

    • Pedestal mount helmsman and co-pilot seats forward

    • Chart table and co-pilot seat

    • Drop leaf dining table to port

    • Overhead handrails in pilothouse

    • Hatches in pilothouse floor for engine access

    • Hatches in cockpit sole for storage and access

    • 4” foam upholstered cockpit cushions

    • (4) fenders and dock lines
