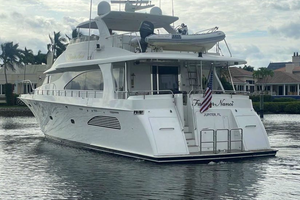

FANCIER NANCI
Yacht for Sale
Length:
74′ 0″ / 22.56m
| Builder: Cheoy Lee
| Year: 2002

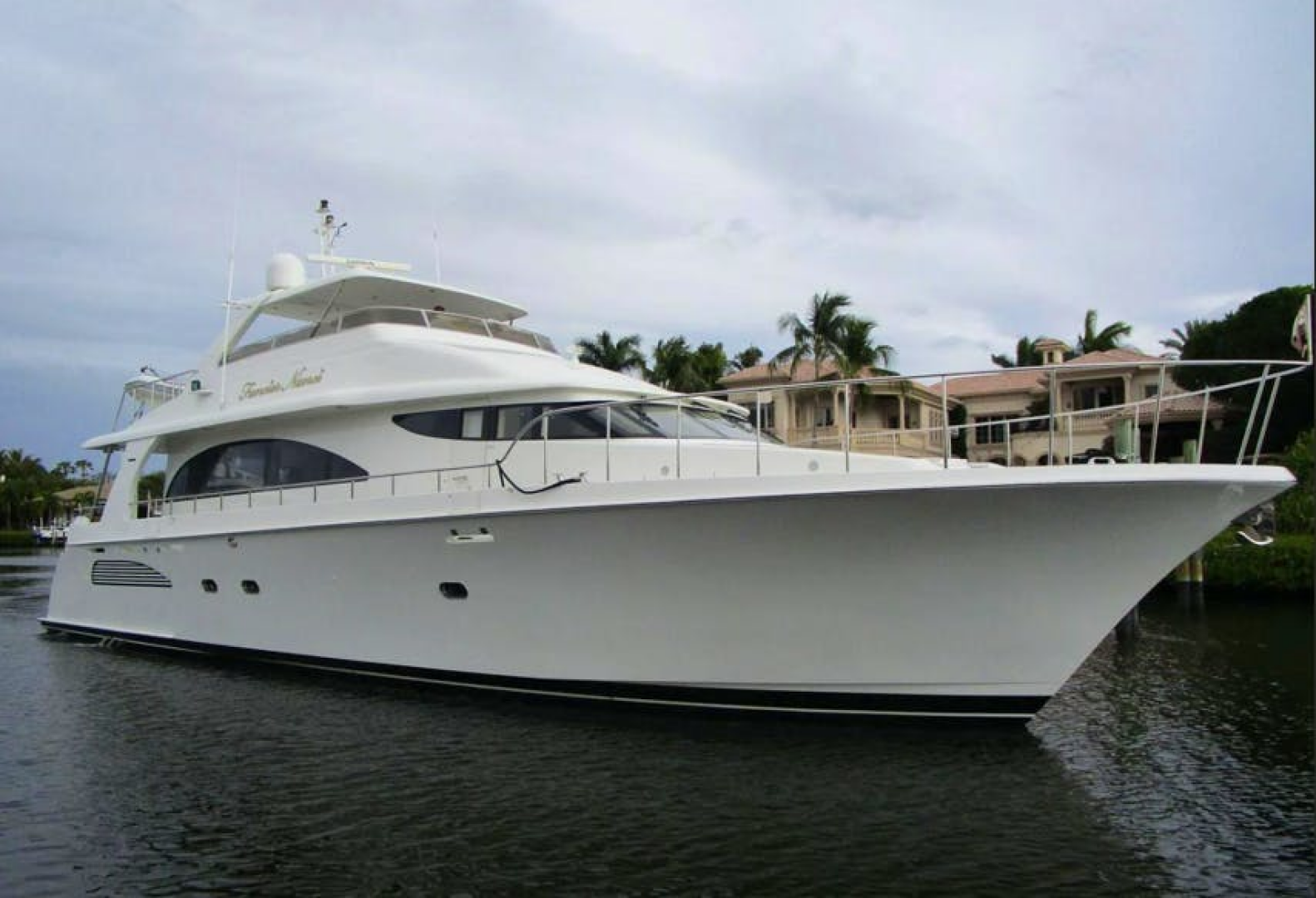

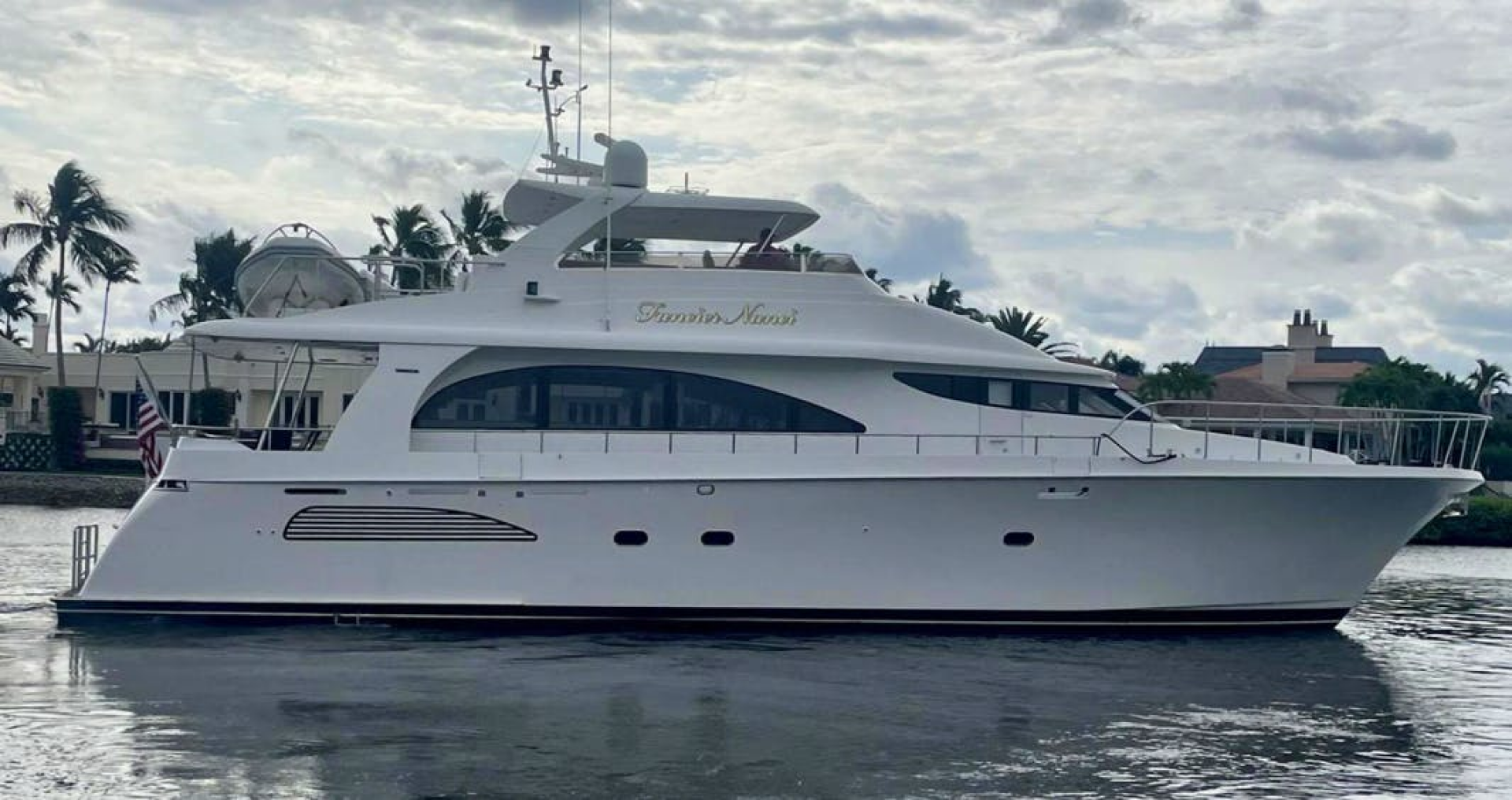

FANCIER NANCI Yacht for Sale - 74 Cheoy Lee
Contact Us For More Information
Detailed Information
Accomodations/Walkthrough

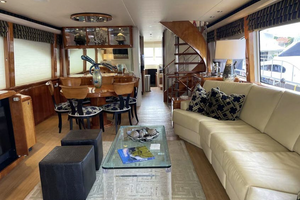

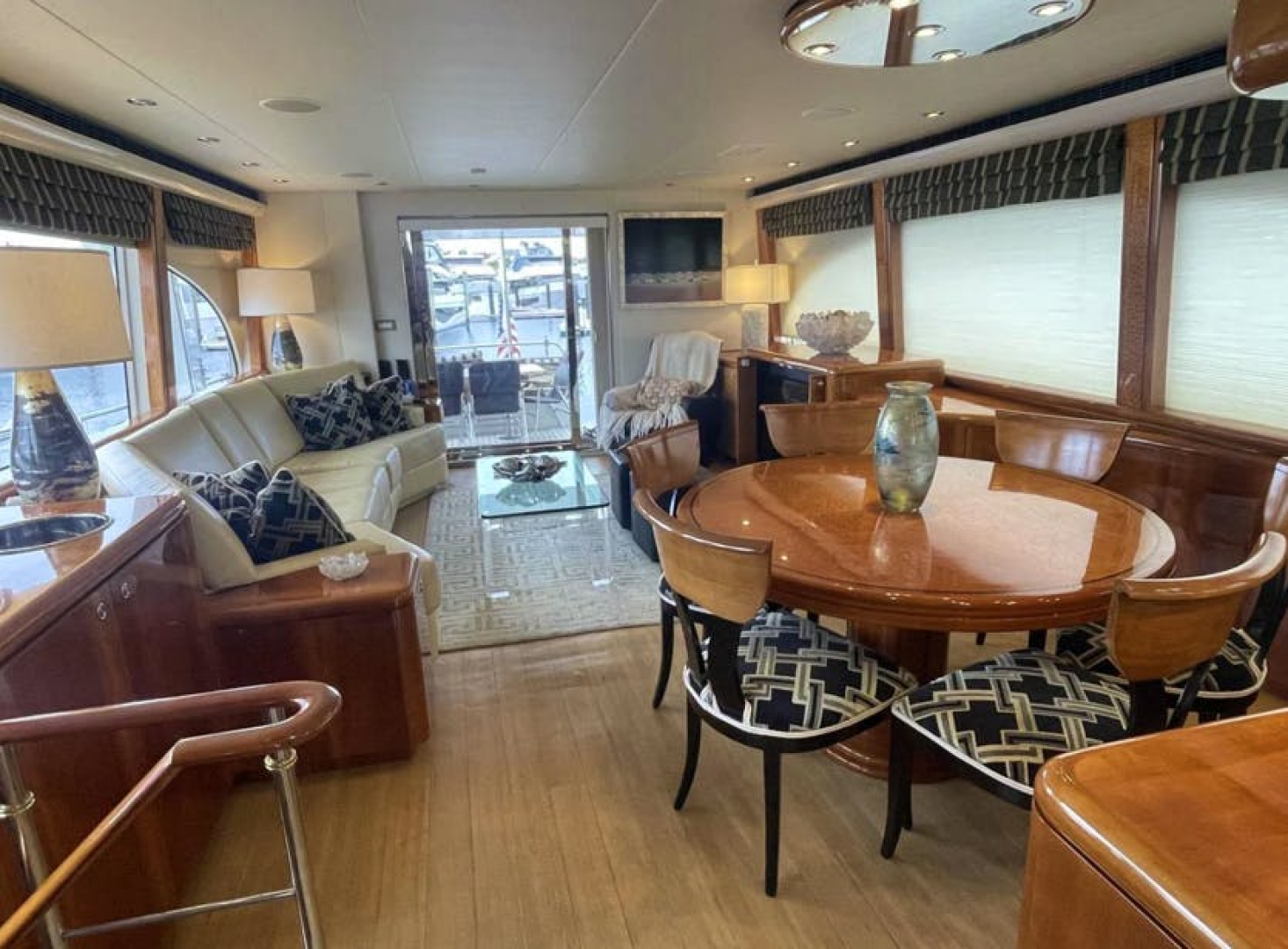

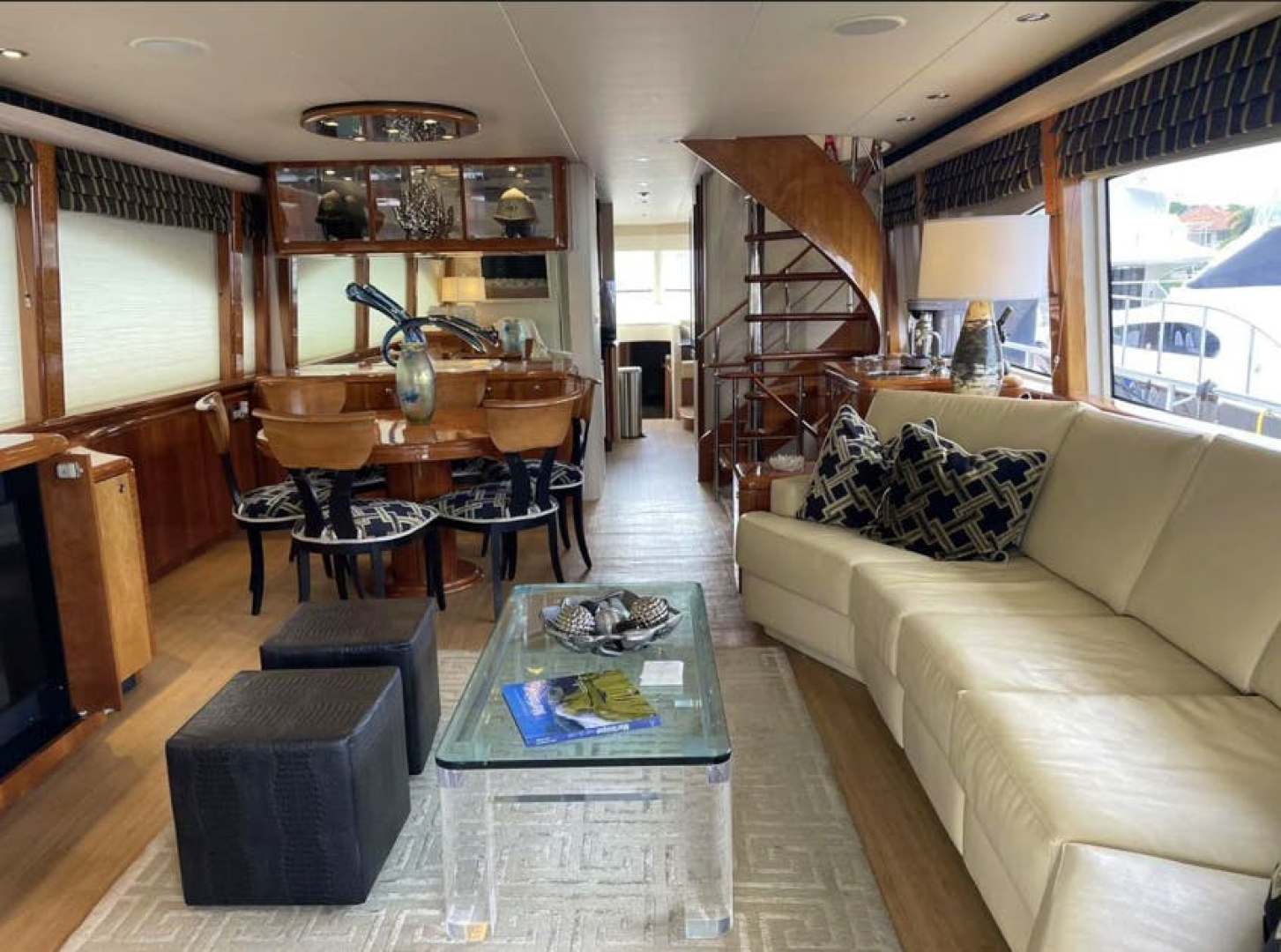

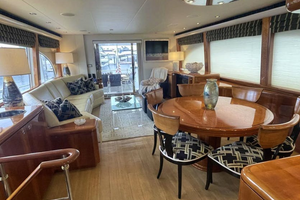

Salon
Upon entering from the aft deck, the spacious salon is approximately 13’ wide and nearly 19’ long with a headroom of 6’10”.
Beautifully appointed, open and airy with excellent views from the large port and starboard windows. The joinery is principally high gloss cherry with Pommele burl accents.
Along the starboard side is a recently upholstered light tan ultra-leather 10’ sofa with storage below and built-in end tables with a on at either end. A Lucite coffee table lies in front along with two upholstered stools.
To port, starting aft is an upholstered easy chair and a series of cabinet doors flanking the raised center cabinet with a Samsung 42” TV behind retractable doors. Within the aft cabinetry is a Denon AV receiver, Blue Ray player, KVH TracVision controls, Direct TV receiver and speaker selector. The forward most cabin has storage within.
Also in the Salon is a Amtico planked sole, five channel stereo speakers, digital A/C controls, Duette shades with upholstered valances above. Air conditioning is delivered via a full length soffit both sides. Overhead are 14 Halogen mini spots. There is an accordion shade for the aft sliding entry door.

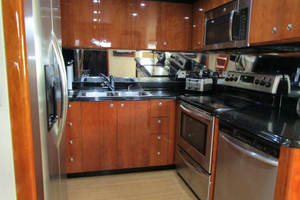

Galley

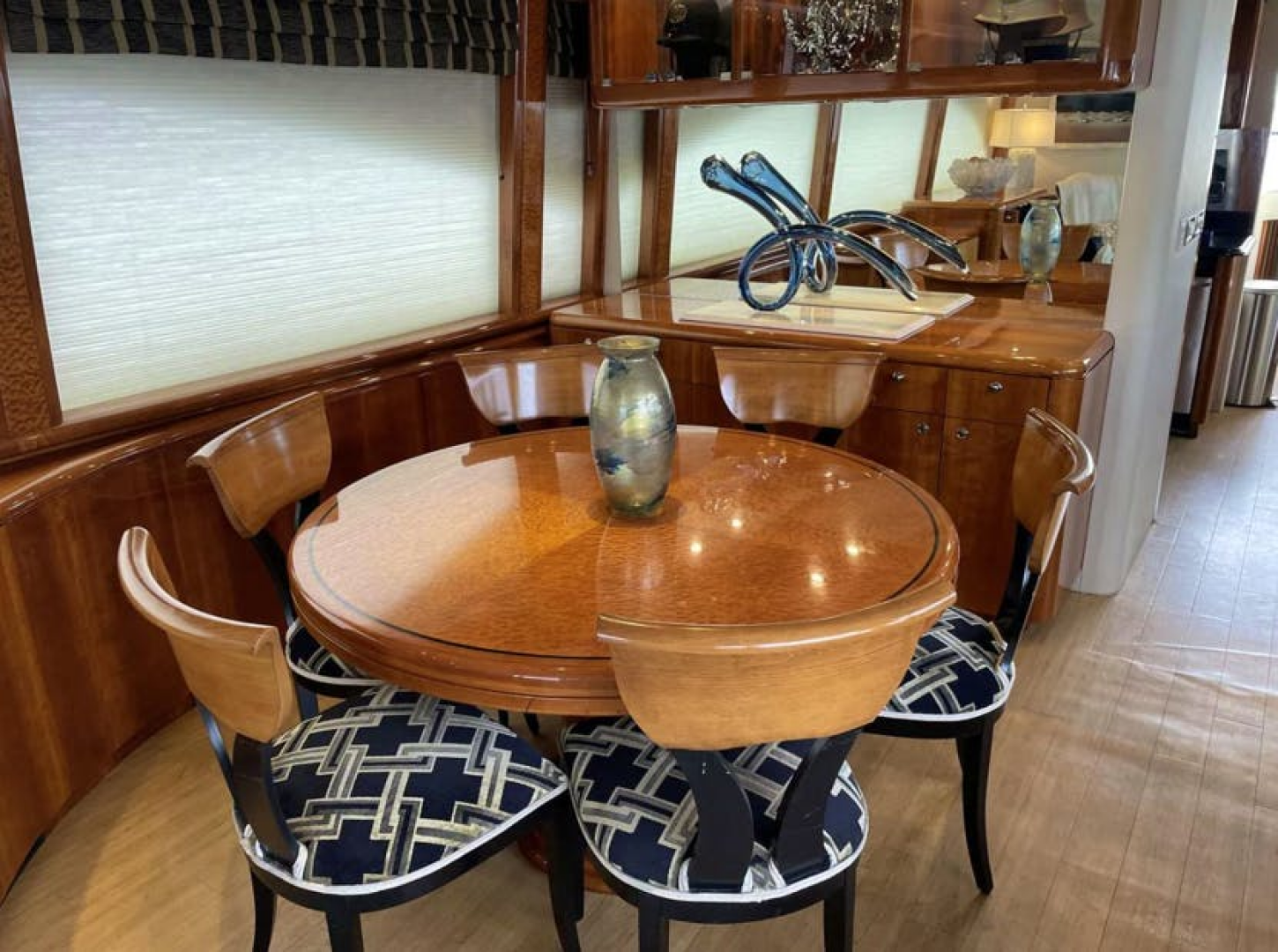

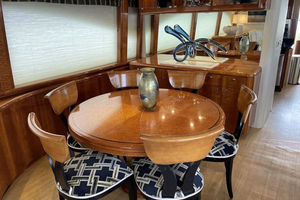

The Galley is located immediately forward of the dining area on the port side. The space is in a U-shaped configuration. The counters are black Avonite “midnight sky” and the sole is the Amtico continuing in from the Salon. Between the cherry cabinets and Avonite counters the backsplash is mirrored to enhance the feeling of spaciousness. A/C delivery is via a three-side soffit for even distribution.
Galley features include:
- Frigidaire 24 cu ft stainless steel Gallery series fridge/freezer with water and ice thru the door
- Frigidaire glass top stainless-steel stove and oven with warming drawer
- GE stainless steel microwave convection oven with vent hood
- Double stainless-steel sink
- Frigidaire full-size stainless-steel dishwasher
- Kitchen Aid garbage disposal
- (14) cherry cabinets
- (8) cherry drawers
- Soap dispenser
- Smoke/fire alarm
Pilothouse

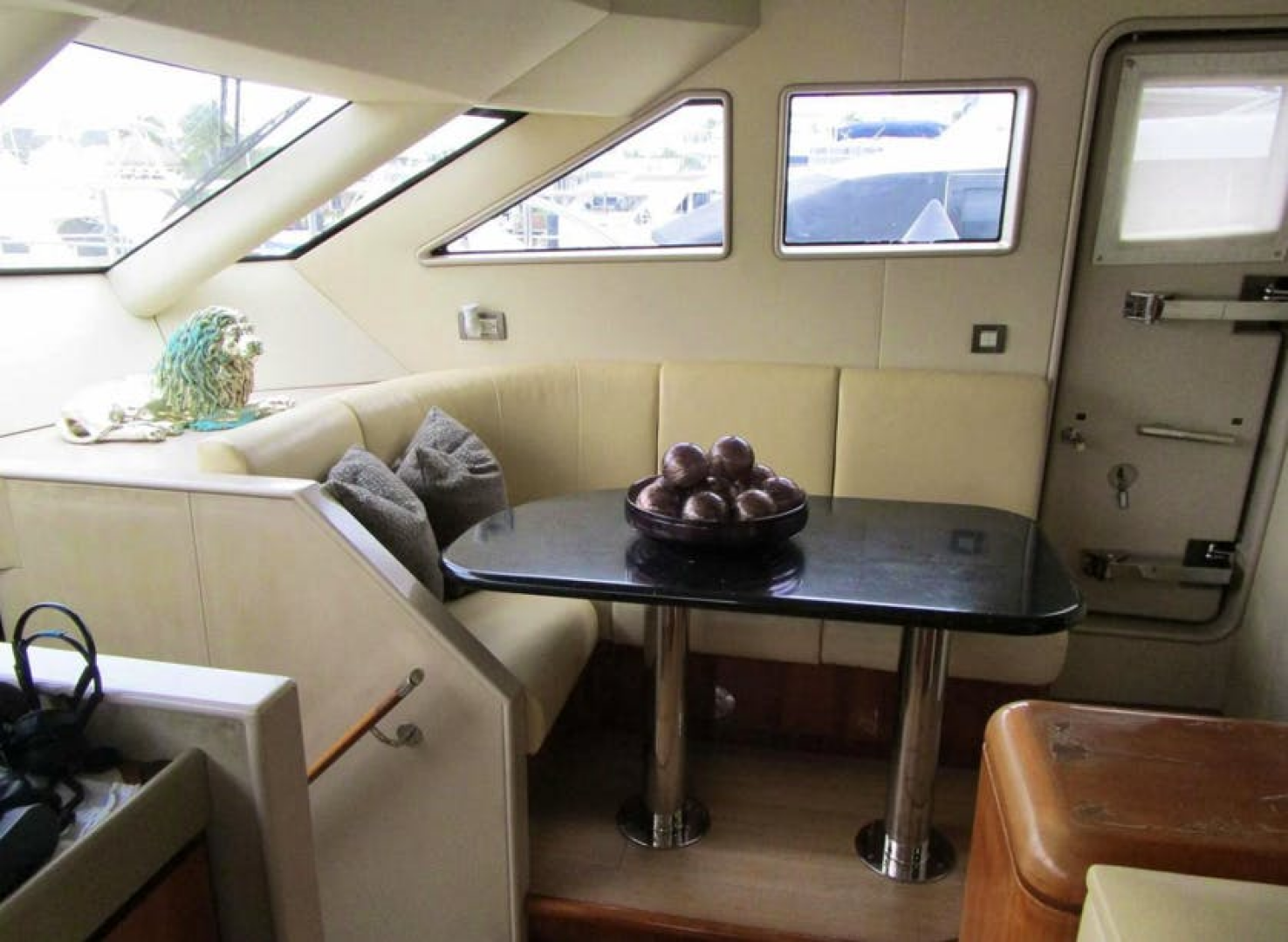

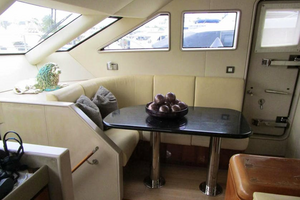

Outboard are port and starboard Pantograph doors to the wide side decks. Just aft of the dinette are two pantry doors.
The lower helm is offset to the port side. A two person helm seat in light tan ultra-leather is aft with four chart drawers below.

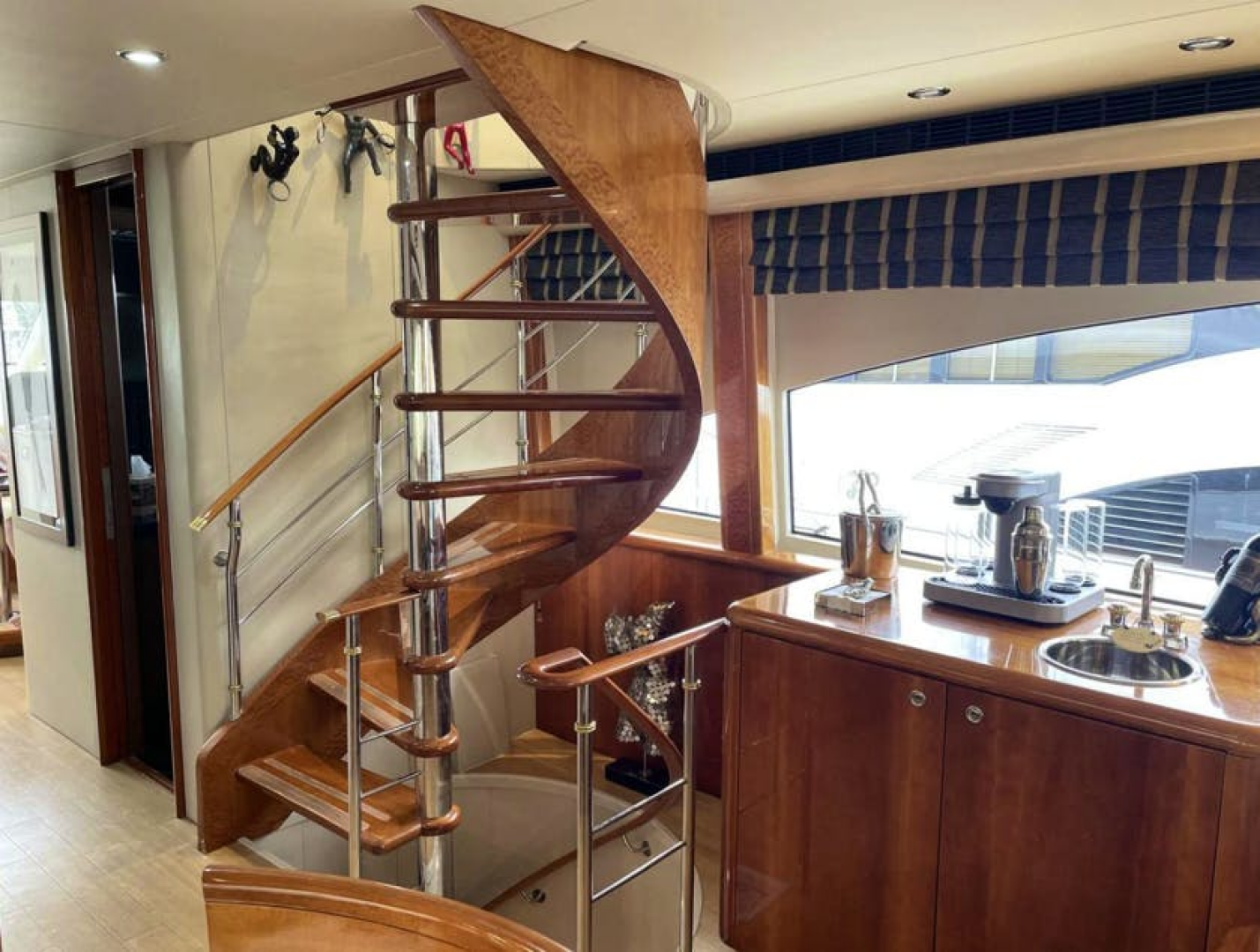

Centerline are stairs to the two forward cabins.
Lower Helm Equipment
Garmin 7616 touch screen plotter/radar
(2) CAT LCD engine monitors
(2) Garmin 4” digital instrument displays
Standard Horizon VHF with DSC
Simrad auto pilot
VDO rudder angle indicator
Twin disc single lever engine controls
(2) dual Headhunter tank Sentry LED gauges for 4 fuel tanks
Key start/stop switches
ACR RCL +100 point pad searchlight control
Battery parallel switch
EPIRB
6” Danforth Constellation magnetic compass on binnacle
Naiad stabilizer control
Windshield wiper/washer controls
Digital A/C control
PLC controls for wipers, bilge pumps, alarms, etc.
Joystick bow thruster control
8” Ritchie magnetic compass in chrome binnacle
IRIS camera selector
Forward Accommodation
Captains Quarter
Forward VIP Cabin
Overhead is an escape hatch, stereo speakers, smoke/fire alarm and a 10 LED light fixtures.
The sole is carpeted. This cabin also has stereo speakers and digital A/C controls.

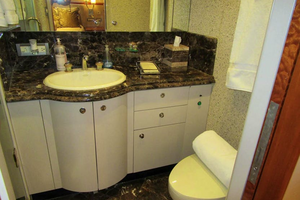

Forward Shared Head

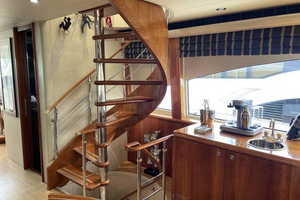

Lower Companionway

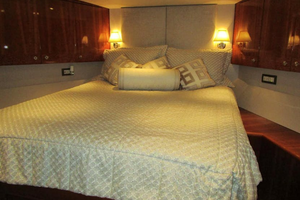

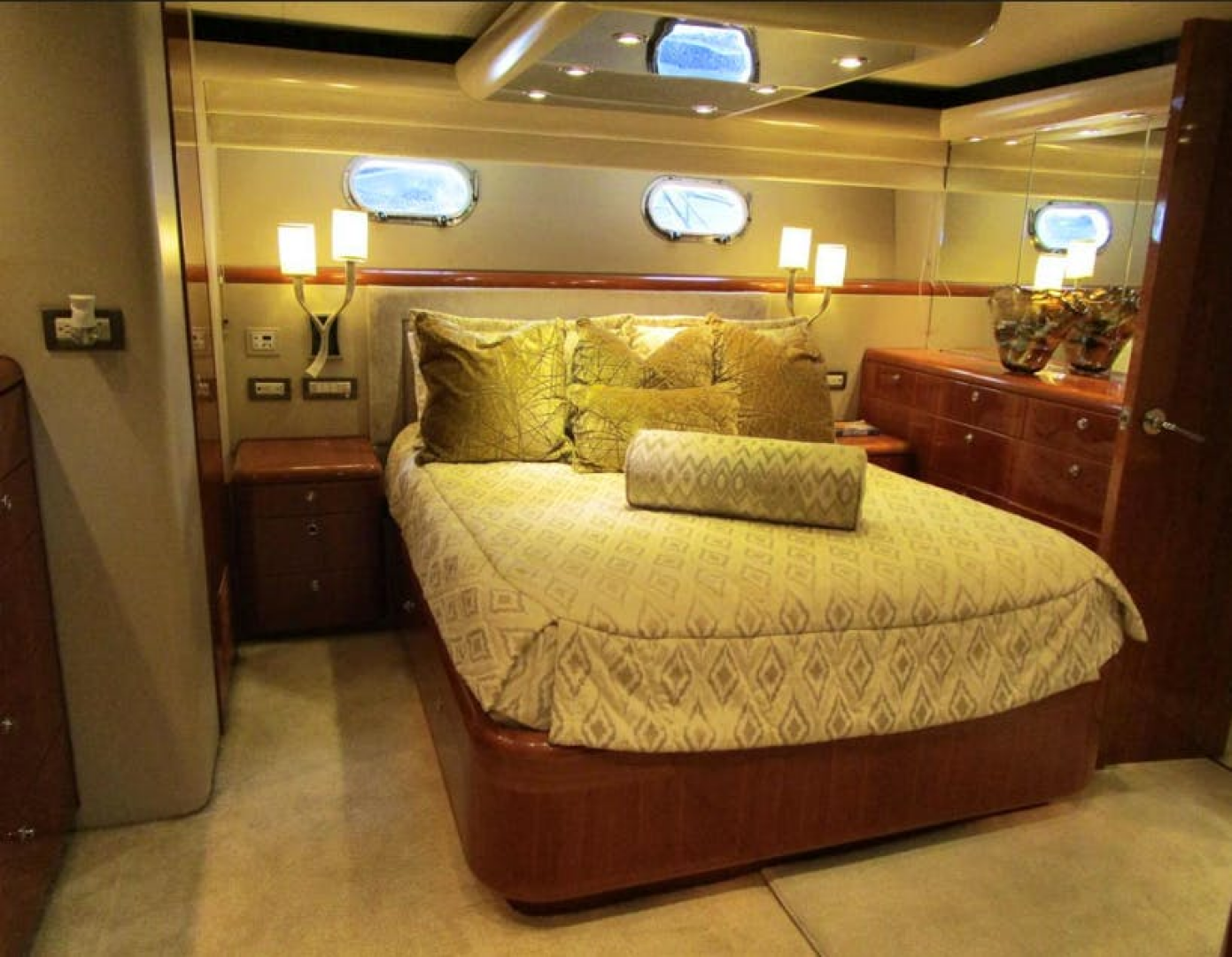

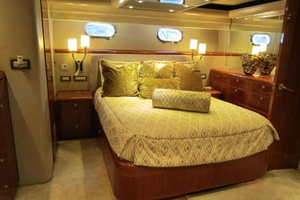

Master Stateroom and Head

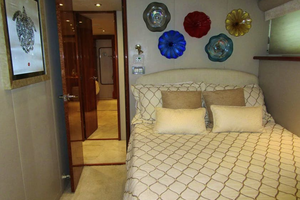

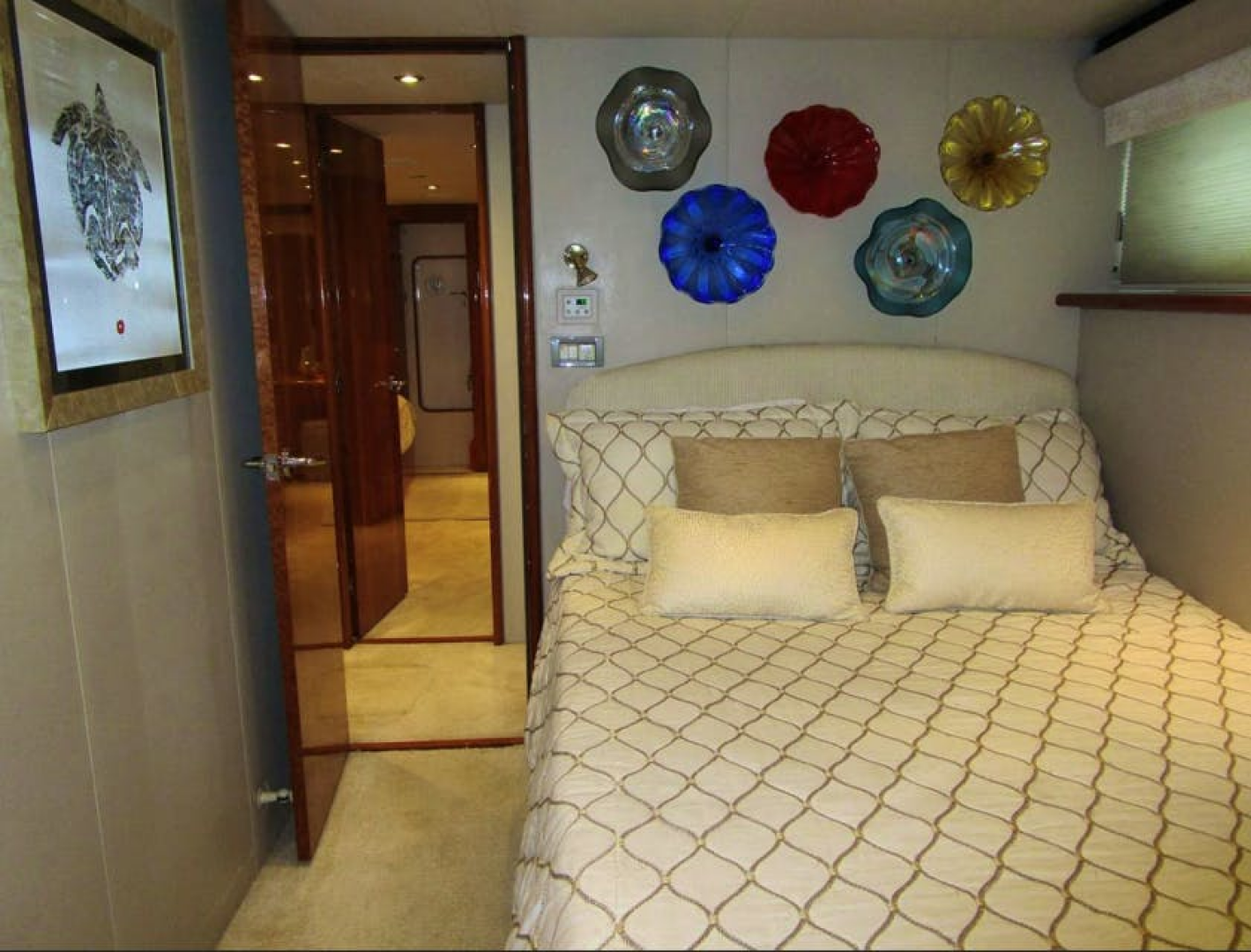

Port Queen Berth

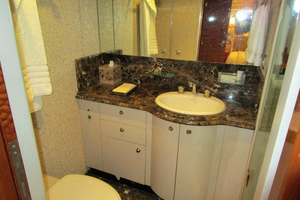

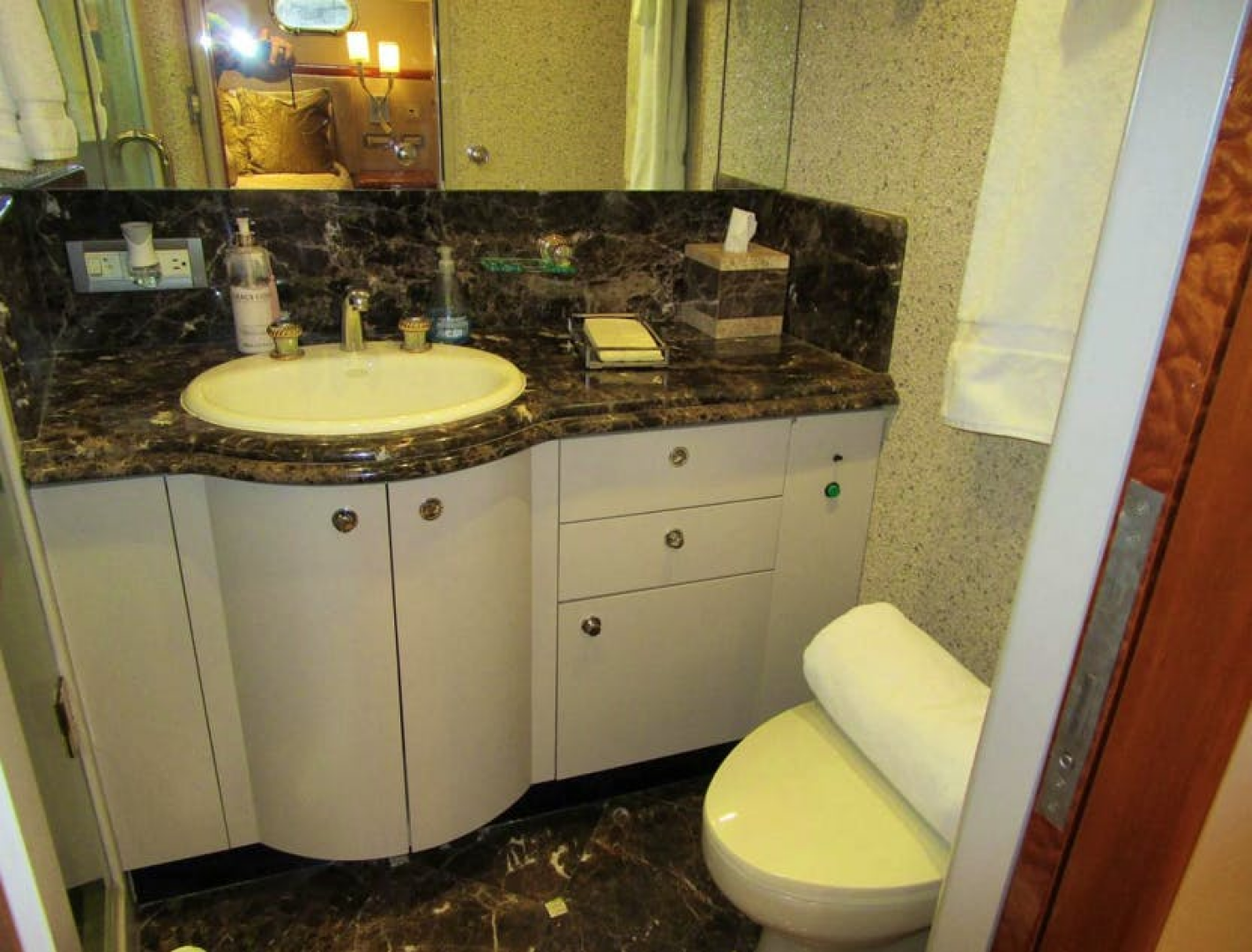

Port Guest Head

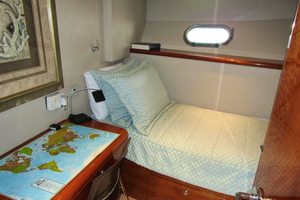

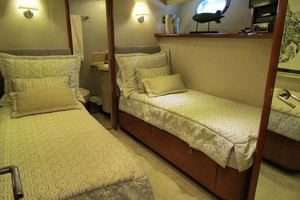

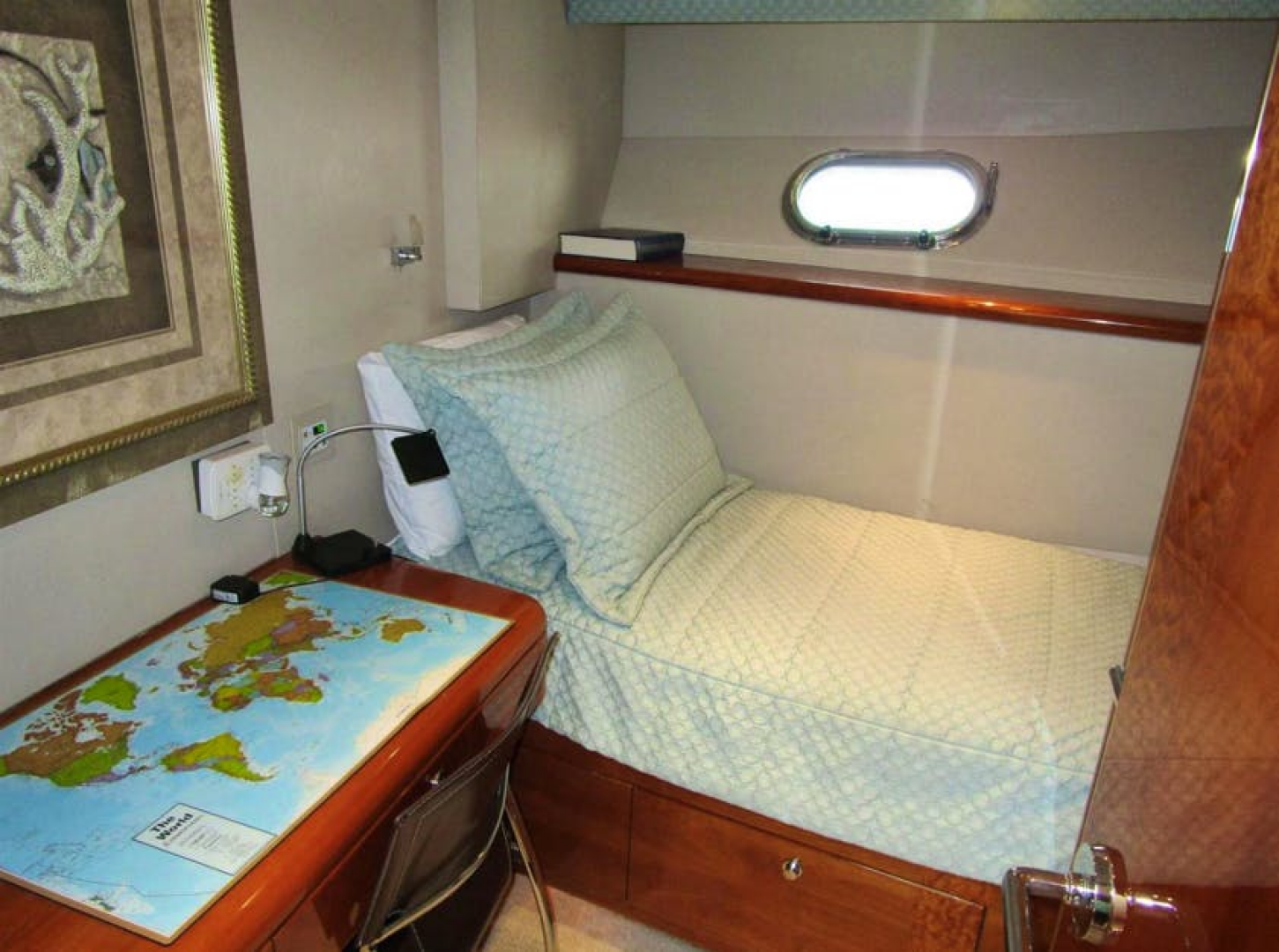

Starboard Twin Cabin

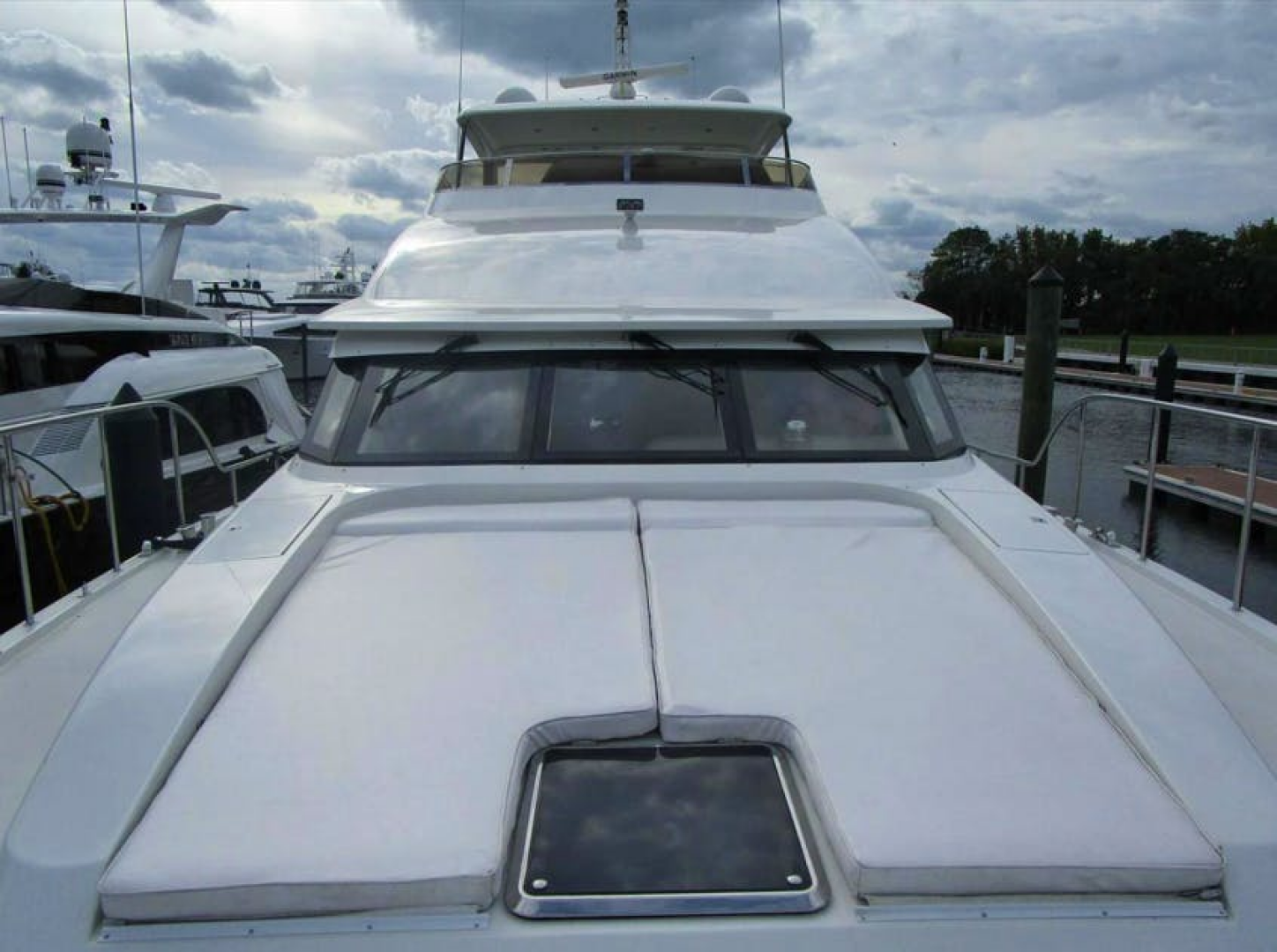

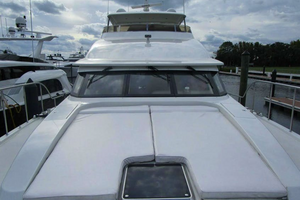

Foredeck and Side Decks
- Painted non-skid decking
- Maxwell model 3500 DC windlass
- 110 lb. stainless steel Bruce anchor
- Stainless steel anchor roller
- Deck mounted up and down windlass switches
- Hinged covers for windlass area for a clear, safe foredeck area
- 1 ¼” stainless steel bow rails with vertical stanchions
- (4) Hull side boarding gates all with boarding ladder fittings
- (3) Windshield wipers/washers
- International navigation lights
- Partially covered side decks with 5 overhead lights each side
- Low level courtesy lights
- Textilene windshield cover
- Fresh water washdown spigot
- Frameless house side window
- Foredeck port and starboard storage locker
- Bow sun cushions
- 3 steps up to foredeck
- Large upholstered sun pad area
- Marquipt storage pins
- Dual spring line cleats
Aft Deck
- Teak over fiberglass decking
- 7 step Marquipt boarding ladder
- 1” Lucite hinged wing doors port and starboard
- Starboard side built-in FRP bench seat for four with removable cushions, covers and storage below.
- (4) Deck chairs around dining table
- Port side built-in FRP small seat for two with removable cushions, covers and storage below
- Aft cleats under seating area both port and starboard
- (2) Stainless steel support poles to boat deck
- (9) Overhead lights
- (2) stereo speakers
- (2) aft facing hailer horns
- 7 step ladder to boat deck
- Fully covered aft deck via boat deck above
- Engine control remote plug-in
- Low level courtesy lights
- (3) stainless steel clamp on rod holders
- Ample size freeing ports
- Port side FRP cabinet
- Trend stainless steel trimmed salon sliding door
- Fresh water wash down
- Aft facing camera

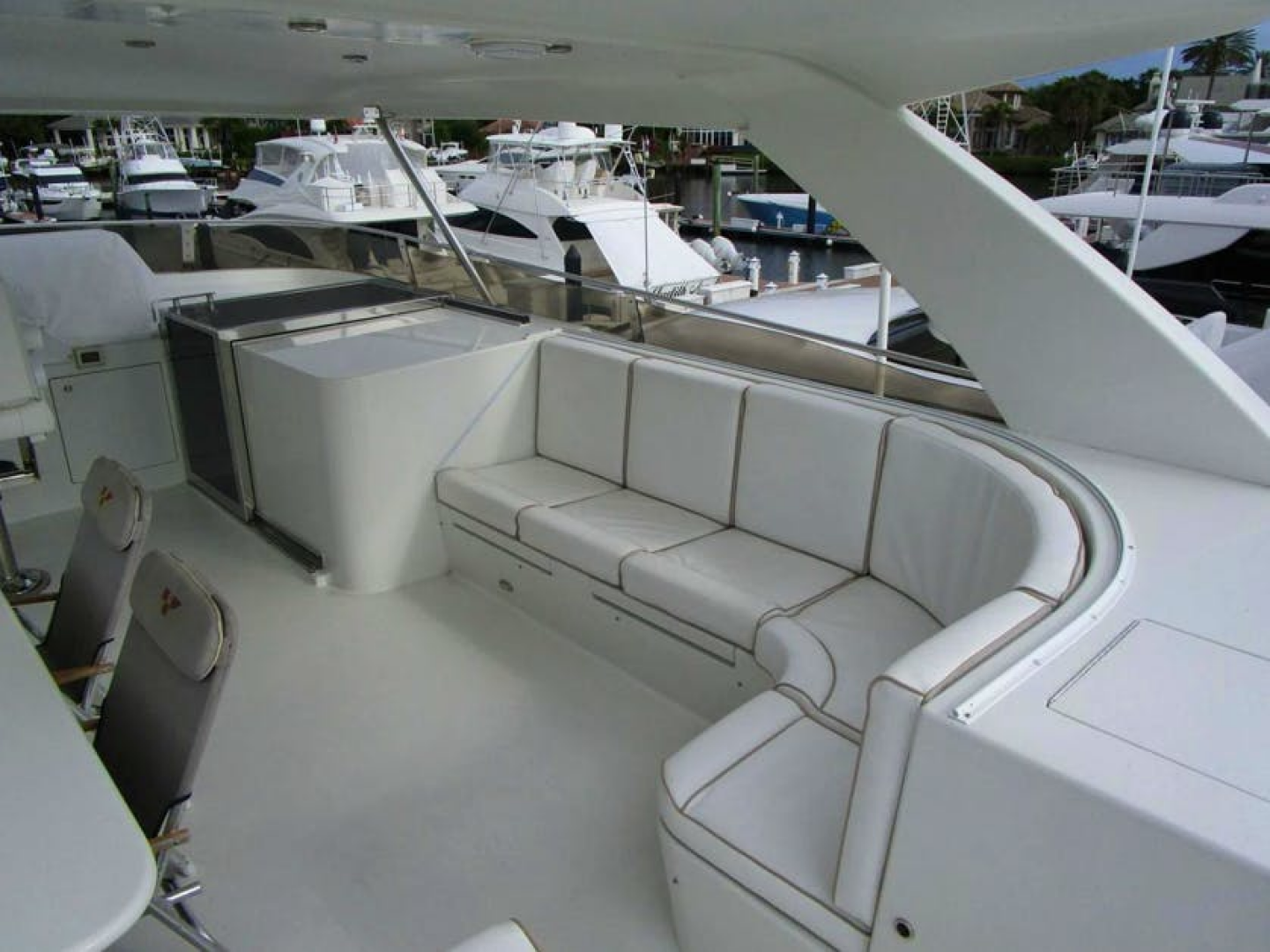

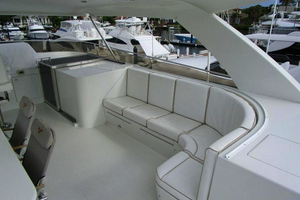

Flybridge
- Center helm
- Stainless steel railing at sliding entry door
- Fiberglass non-skid decking
- Port side L-shaped seating with removable cushion cover, storage below plus a Corian table on twin stainless steel pedestal
- Starboard side L-shaped seating with removable cushion covers and storage below
- Venturi windshield with stainless steel railing
- (12) overhead lights
- (2) stereo speakers in arch
- Low level deck lighting
- Access to area under helm
- Custom hinged radar mast on top of arch
- Hinged gate to boat deck
Flybridge Helm
- Centered helm area
- 16” Garmin MFD, radar, plotter, depth
- (2) 4” Garmin depth/speed/log/position
- (2) CAT LCD engine monitors
- VDO rudder angle indicator
- Twin Disc Power Commander single lever engine controls
- Garmin 7612 MFD radar/plotter/depth
- Standard Horizon Explorer VHF
- Naiad bow thruster joystick control
- Fusion Bluetooth stereo
- Engine start/stop switches
- Helm wheel
- Naiad stabilizer remote panel
- Simrad auto pilot
- Platinum Yacht Seating helm seat
- (2) person Pompanette companion bench
- Full helm cover
- 5” Ritchie magnetic compass
Boat Deck
- Fiberglass non-skid decking
- Port side FRP cabinet with Jenn air electric grill and stainless steel clear ice icemaker
- Starboard side FRP cabinet with sink and storage
- Safety railing around boat deck
- Port side railing removable for tender launching
- Nautical Structures EZ 1500 lb. hydraulic davit
- Railing at aft deck ladder

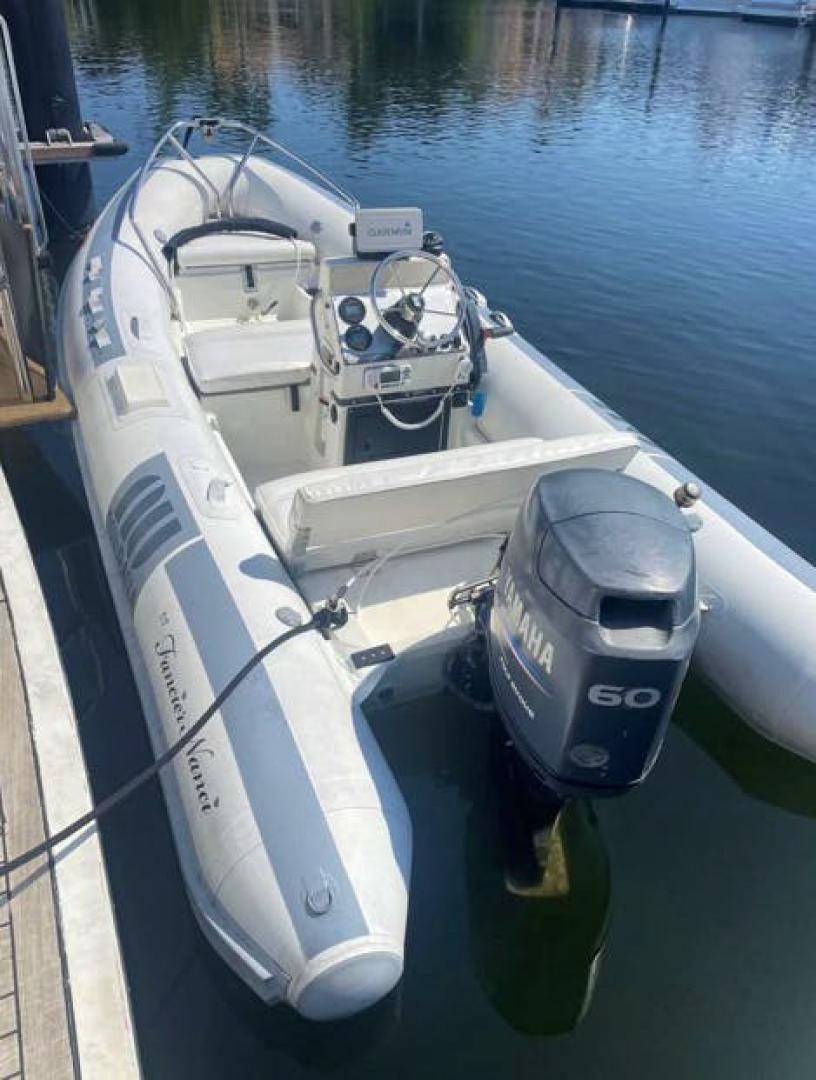

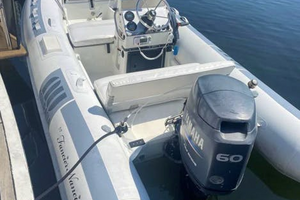

Tender
- Novurania 2003 430DL deluxe 14’ tender
- Yamaha 60 HP four-stroke outboard
- Side console helm steering
- 7” Garmin MFD
- ICOM VHF
- Bow rail
- Bench seat aft, full bench seat ahead of console
- Forward seat
- (2) Yamaha engine gauges
- Navigation lights
- Battery with shut off switch
- Lifting bridle
- Tender cover
- Battery charger inlet

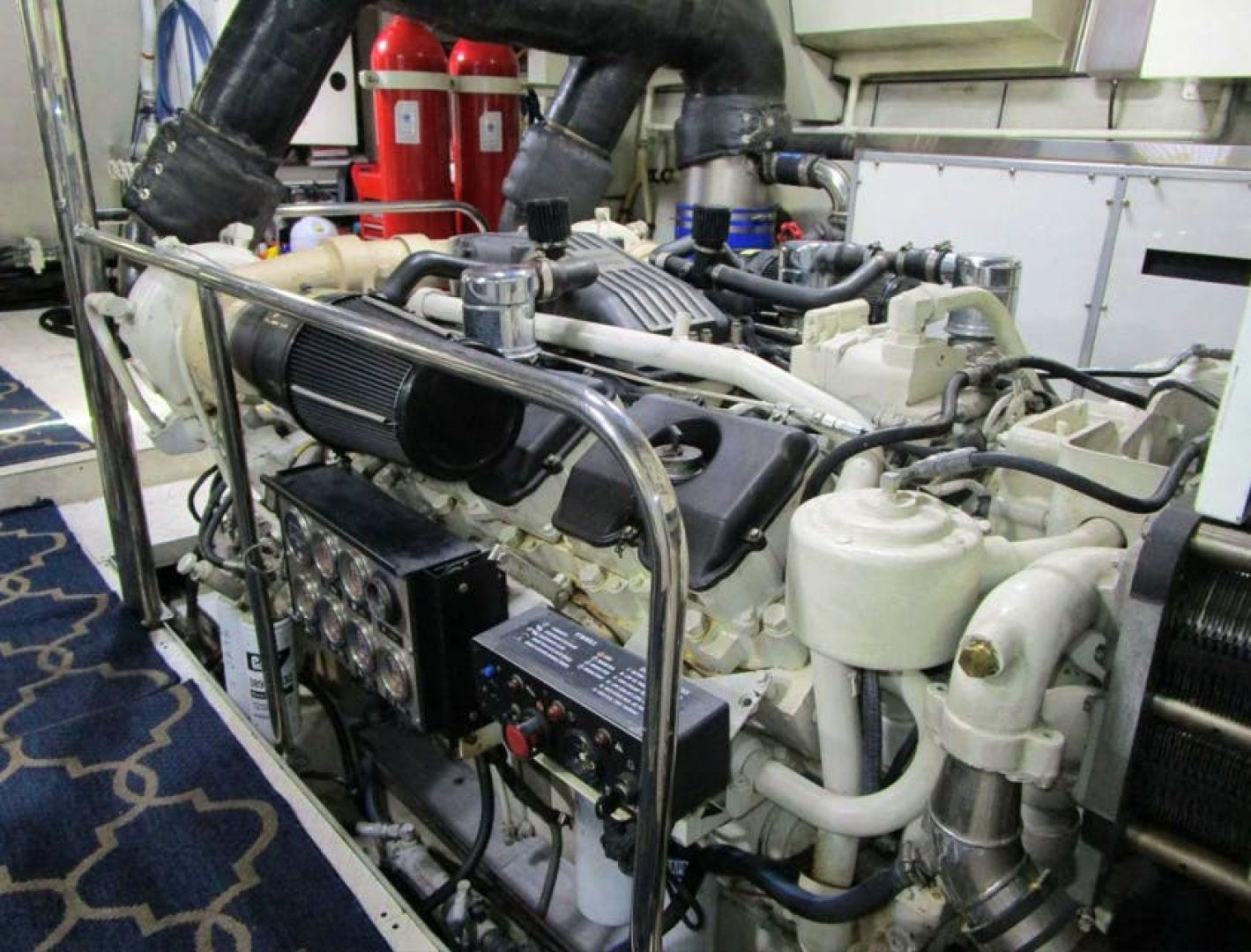

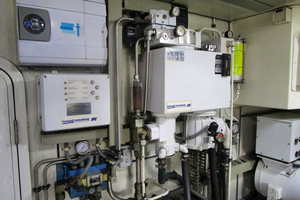

Engine and Mechanical Equipment

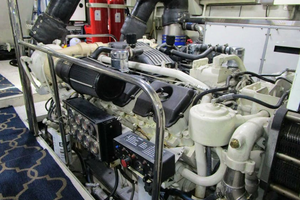

- Twin CAT 3412’s main engines
- Port engine 5306 hrs (4/28/2025)
- Starboard engine 5285 (4/28/25) on meter – Long block replaced at 3973 hrs on 7/3/2019
- Engine driven emergency bilge pump

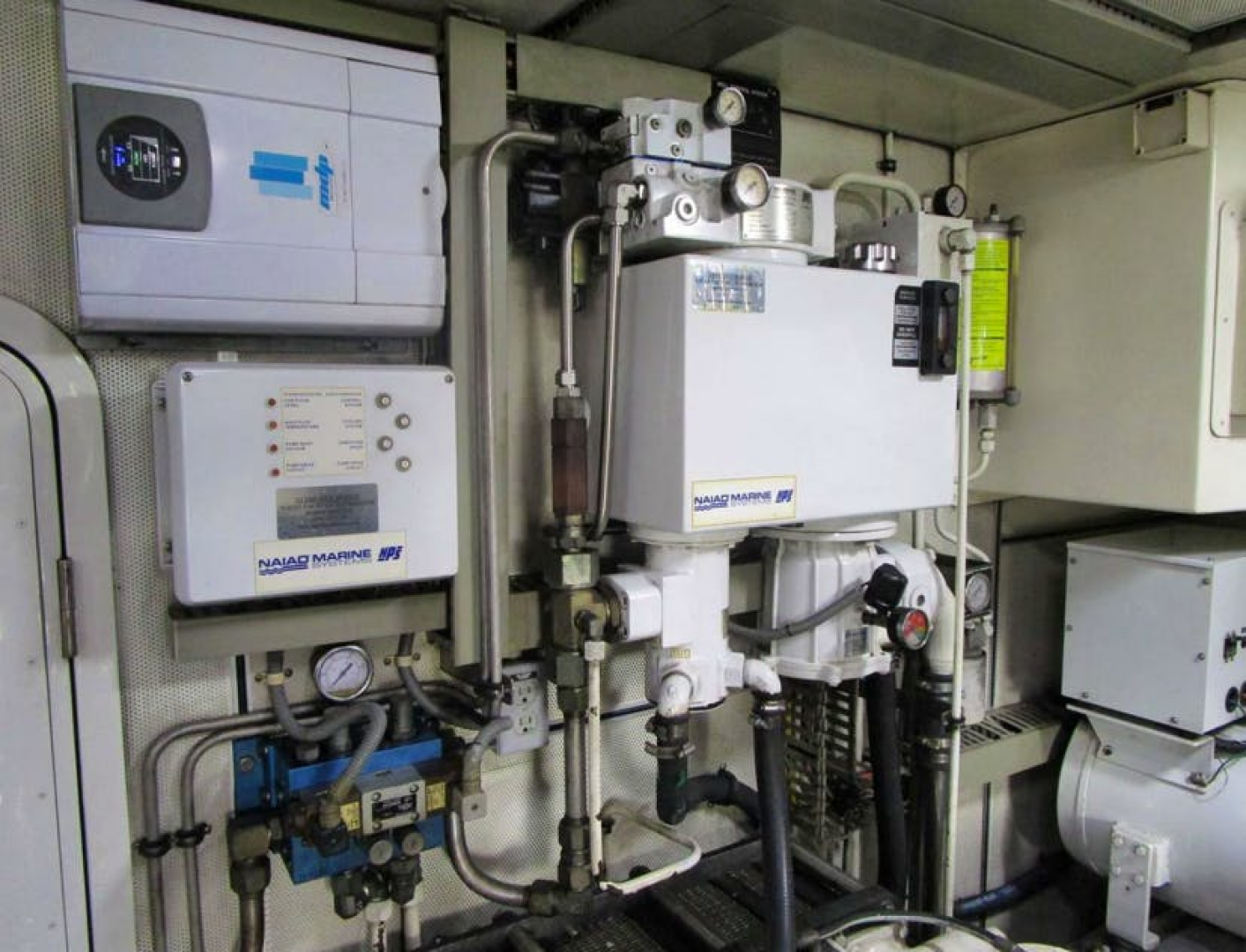

- Naiad hydraulic system for thruster and stabilizers
- Triple Racor 1000 filters for main engine
- Generator Racor filters
- Underwater main engine exhaust with transom bypass
- 220V engine room forced air ventilation with auto fire doors for fire suppression system
- Transmission ZF 1950 with 2.030 to 1 reduction gears
- 3 ½” stainless steel Aquamet 22 shafts
- Dripless shaft seals
- Pantograph engine room door at transom
- Fuel transfer pump with fill Rite meter
- Fuel transfer manifold
- Single fuel fill (both sides) with fill valves for 5 tanks
- Galley Maid fresh water head system
- (2) 4-ton Marine Air reverse cycle chilled water A/C compressor
- Twin Disc Power Commander engine controls
- Ansul CO2 fire system with auto engine shut down
- CAT manual engine gauges in engine room
- Five blade Nibral propellers
- Naiad 302 stabilizer system
- Hynautic power steering system
- Soundown engine room insulation
- Fuel coolers
- 118 gallon black water pump with macerator and deck pump out fittings
- 127 gallon grey water tank
- Lube oil change system (6 part)
- Engine room camera
- Hart tank tender for 8 tank level readings
- Underwater lights
- Hard epoxy wrapped exhaust system
- Hydraulic PTO off starboard gen set
- Aircept crankcase ventilation system
- (2) 30 gallon Rheem water heaters
- Coolant recovery bottles main engines
- Fuel tanks as follows:
- 486 gallons port midship
- 489 gallons stbd midship
- 248 gallons port aft
- 251 gallons stbd aft
- 300 gallons between engines
Electrical
- 12V/24 Vdc electrical system
- 120V/240V AC electrical system
- 100 amp shore power inlet aft with Cable Master with approx.. 90’ of cord
- MPD 24 volt 60 amp battery charger
- Sentry 12 volt 20 amp battery charger
- (6) 8D 220 amp hour batteries for engine starting and ship’s service
- (2) 180 amp hour generator batteries
- Acme 25 kVA shore power transformer
- Battery parallel system
- 32 kW Northern Lights generator with hydraulic PTO and 5458 hrs (4/28/25) in sound shield
- 20 kW Northern Lights generator with 6575 hrs (4/28/25) in sound shield
- 50 amp Mastervolt 24 volt charger
- Electrical bonding system
- 110 amp Vanner battery equalizer
- Shore/Gen 1/Gen 2 switches
- 220V analog volt, amp, HZ meters (2 sets)
- German magnetic circuit breakers
- Dometic tank level monitor for waste system
- 12 volt panel with analog volt, amp meters and battery shut off switches
- 24 volt panel with analog volt, amp meters and battery shut off switches
