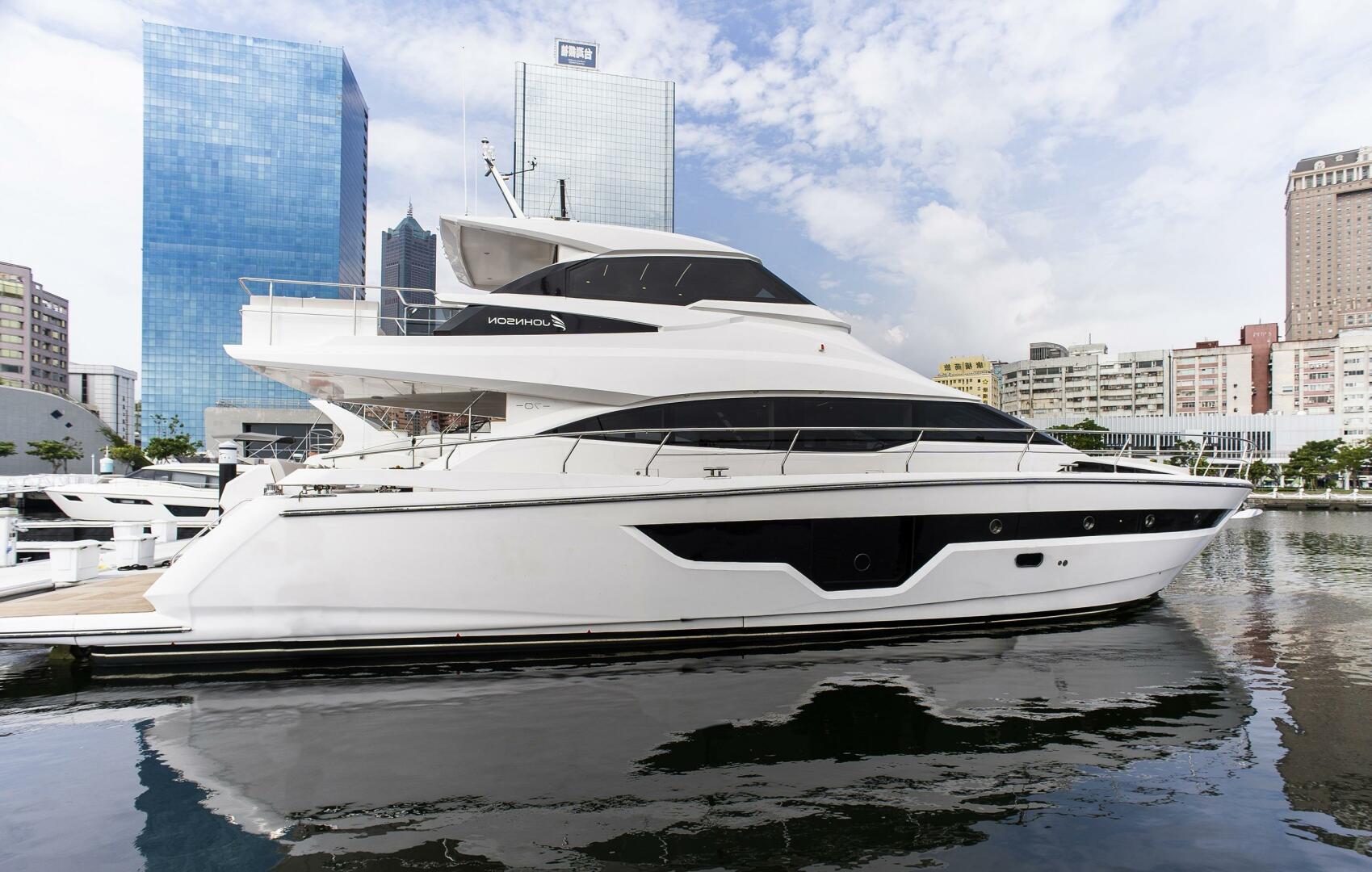

70′ JOHNSON SKYLOUNGE 2026
Yacht for Sale

1. DNV Type approved fiber / resin & sandwich core material applied

2. Isophthalic white gelcoat finish for hull above waterline, exterior decks and furniture

3. Vacuum assistance resin infusion cored lamination for hull deck and superstructure to improve strength and less weight

4. High-density foam cored hull bottom

5. High-density foam cored hull sides, decks, and superstructure

6. Stringers with high density form coring

7. Interior structural components all properly bonded to hull

8. Anti-fouling bottom paint

9. Shaft tunnels for reduced draft

1. 14 MM Main deck non-skid floor

2. Stainless integral rollers & chain stopper for anchor chain

3. 250 feet galvanized chain (3/8”)

4. Maxwell hydraulic RC12-12 windlass

5. Maxwell VC2500 W/D capstan at aft deck

6. Stainless Steel 120lb. anchor x 1

7. Heavy duty 316 # S/S Handrail & Stanchions

8. Heavy duty 316# cleats and fairleads

9. Medium tinted safety glass

10. Manual stainless steel saloon sliding door

11. Stainless steel rubrail with rubber insert around hull & deck joint

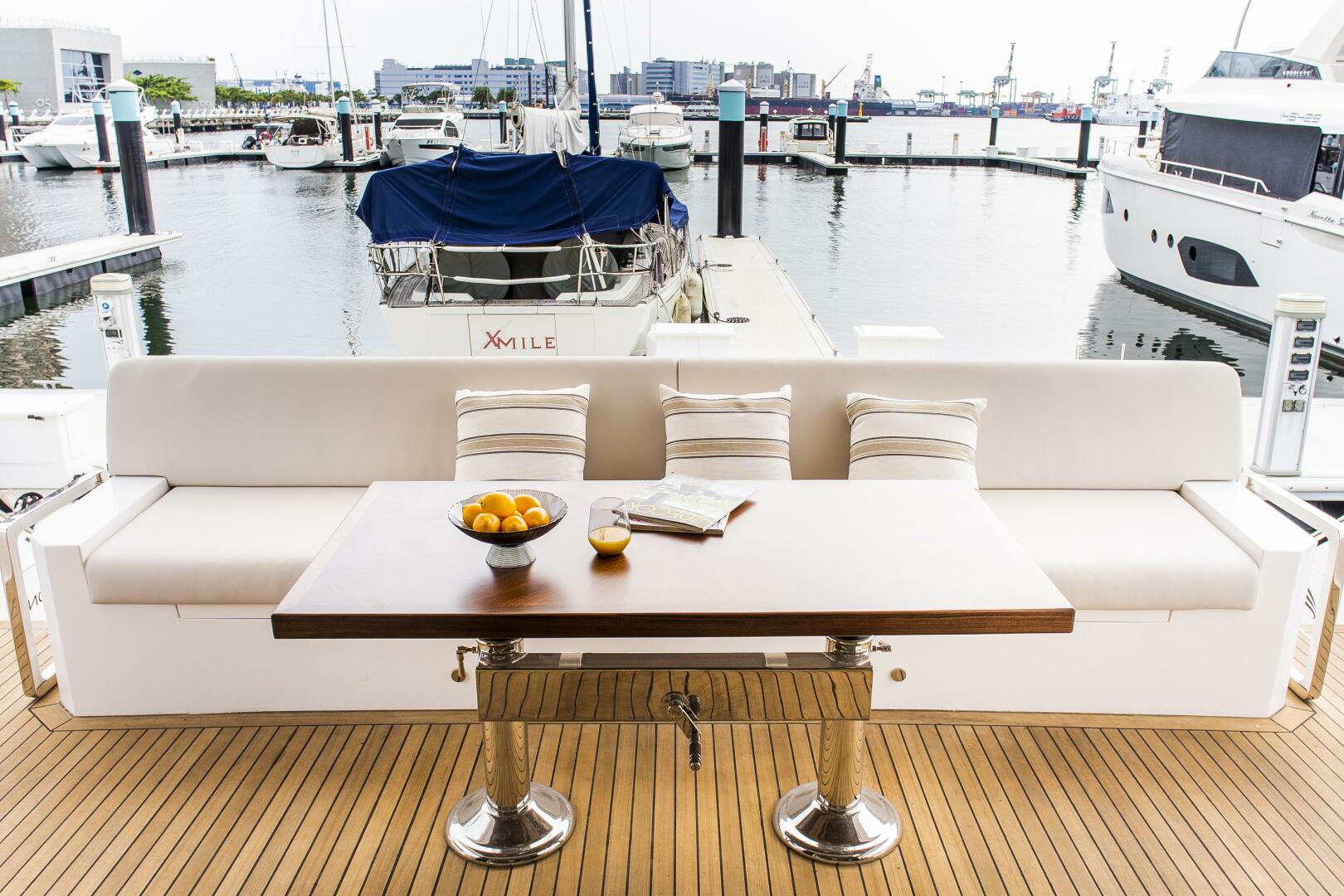

12. Aft deck seating built in with cushion

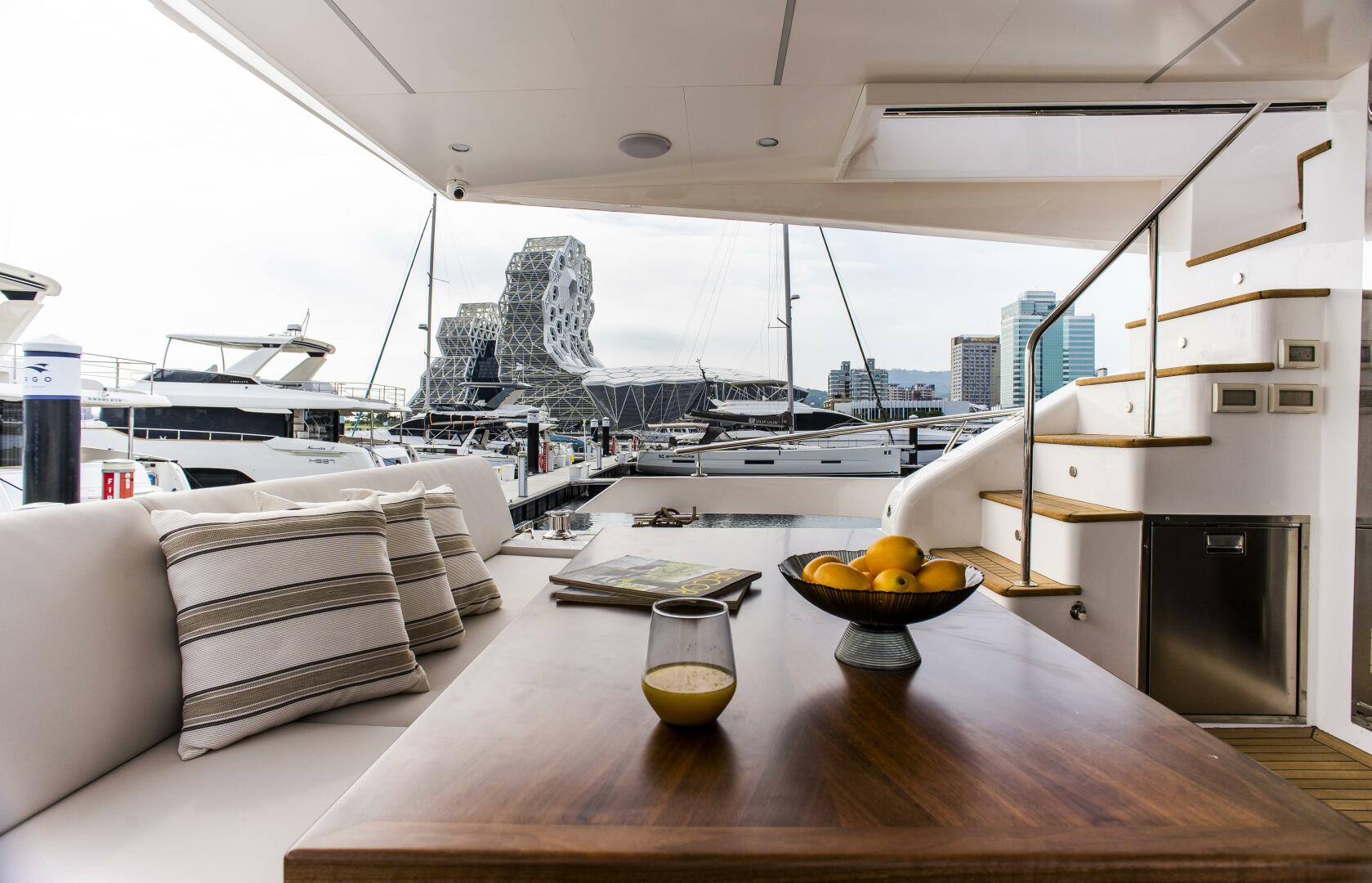

13. Aft deck table wooden table with protective cover. LED low level courtesy lights on side deck

14. LED low level courtesy lights on aft deck

15. Stair to flybridge

16. Hot & cold transom shower

17. Stainless steel swimming ladder

18. Water fill deck fitting

19. Diesel fill deck fitting

20. Jabsco Q420J-118n-3A deck wash down pump

21. LED floodlights for cockpit

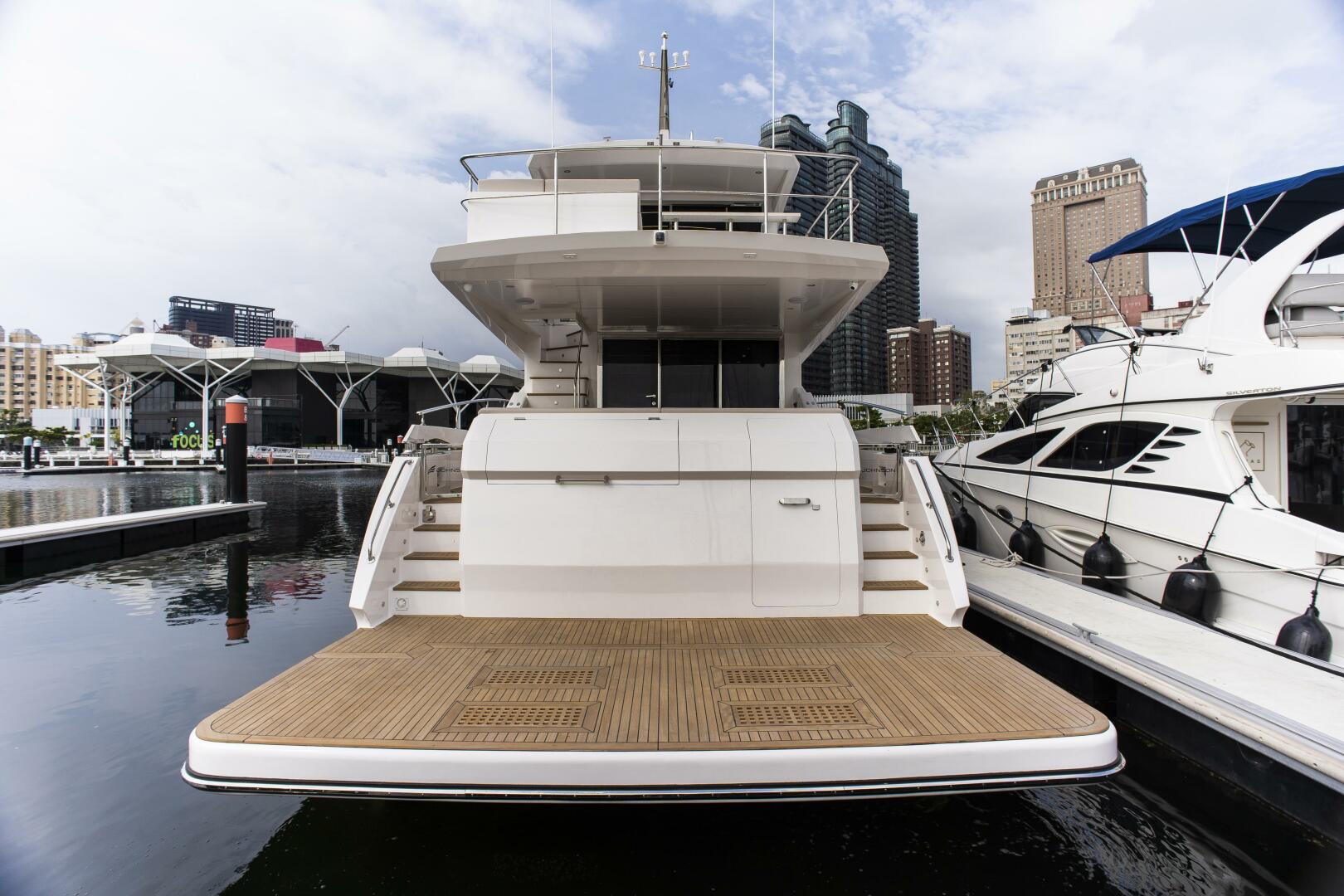

22. Aritex hydraulic swimming platform with lifting capacity of 1000 kg

1. 4 blade bronze propellers

2. Bronze p-brackets

3. Stainless steel Aquatech 22 HS 3” diameter shafts

4. 3” Tides shaft and rudder seals

5. Boot top stripe size 3” color black, blue or red

6. Full cathodic bonding system to zinc anodes

7. Seawater strainers for engines, genset and air conditioning

8. Seacocks on all underwater fittings

9. Underwater exhaust with bypass

10. Ocean LED underwater light Sport series x $

11. Seahawk anti-fouling bottom paint

1. Floor: wood floor

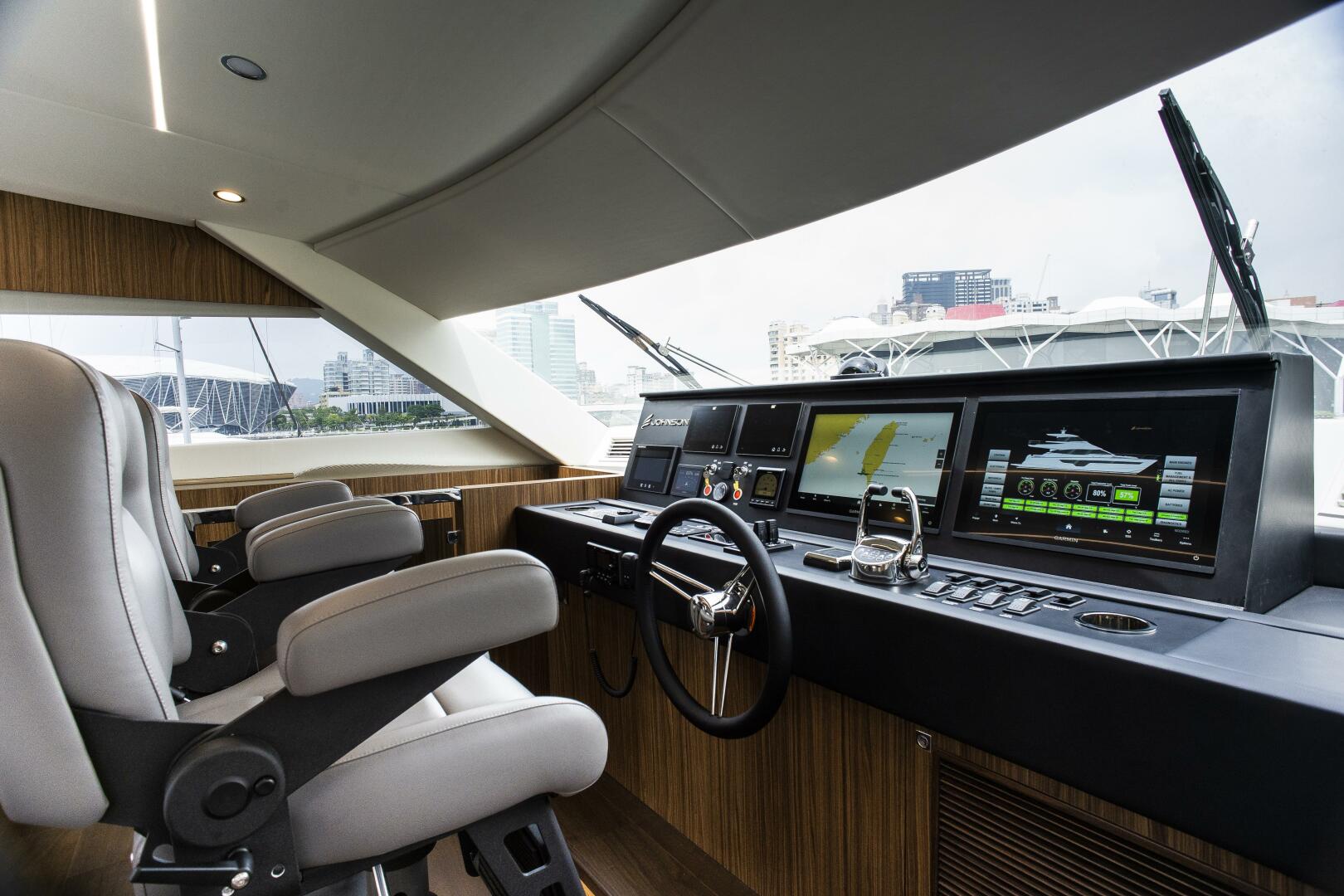

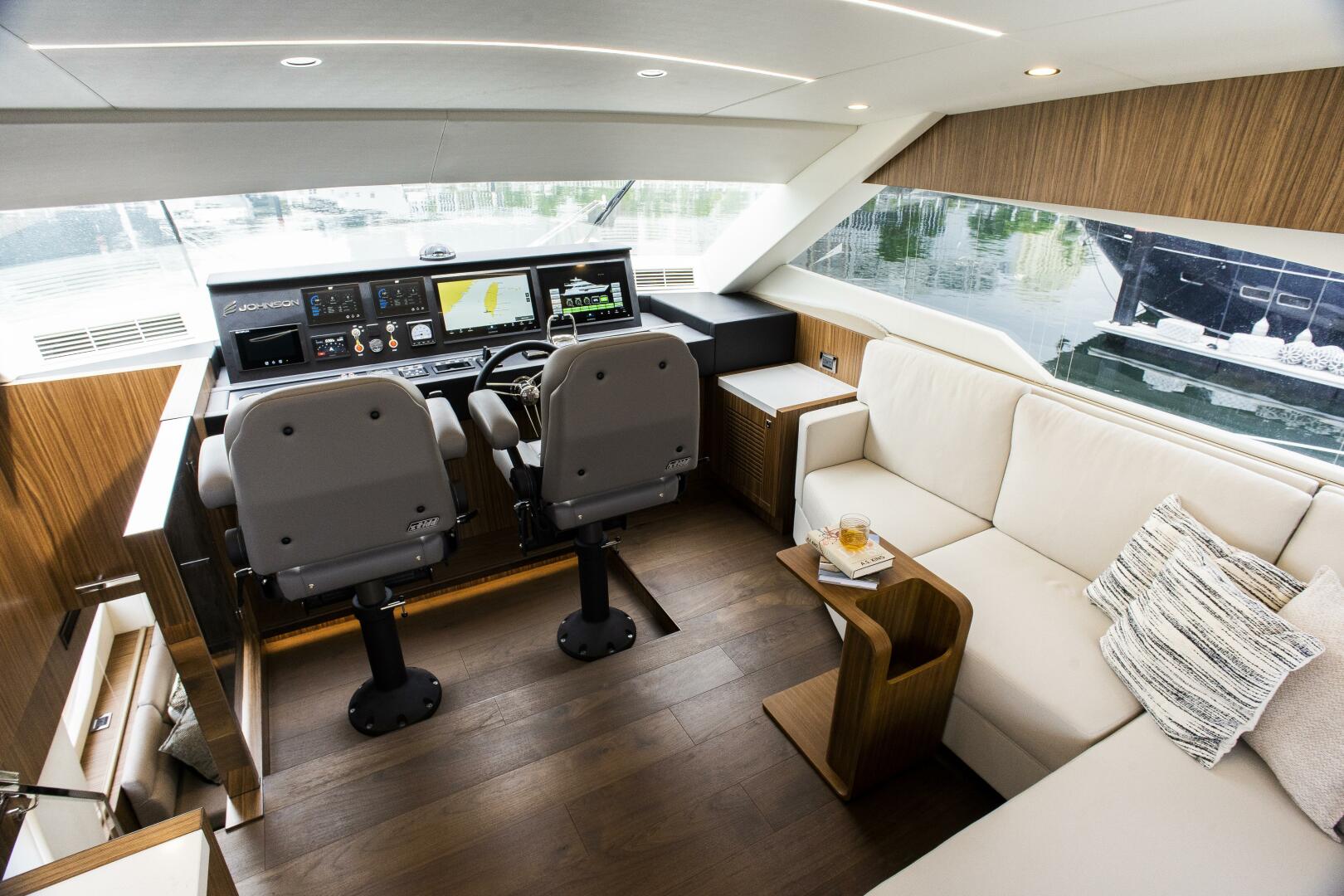

2. Instrument console

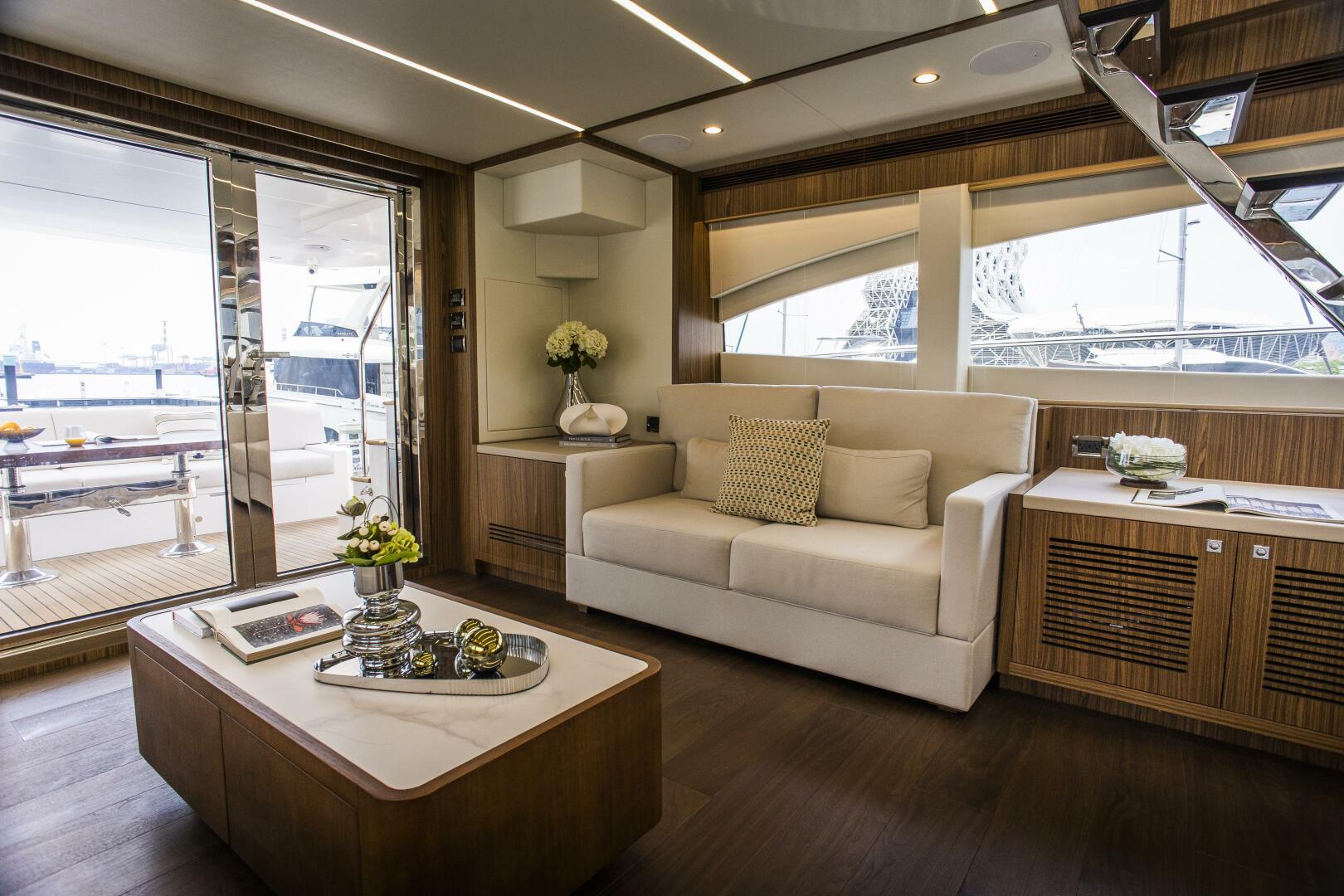

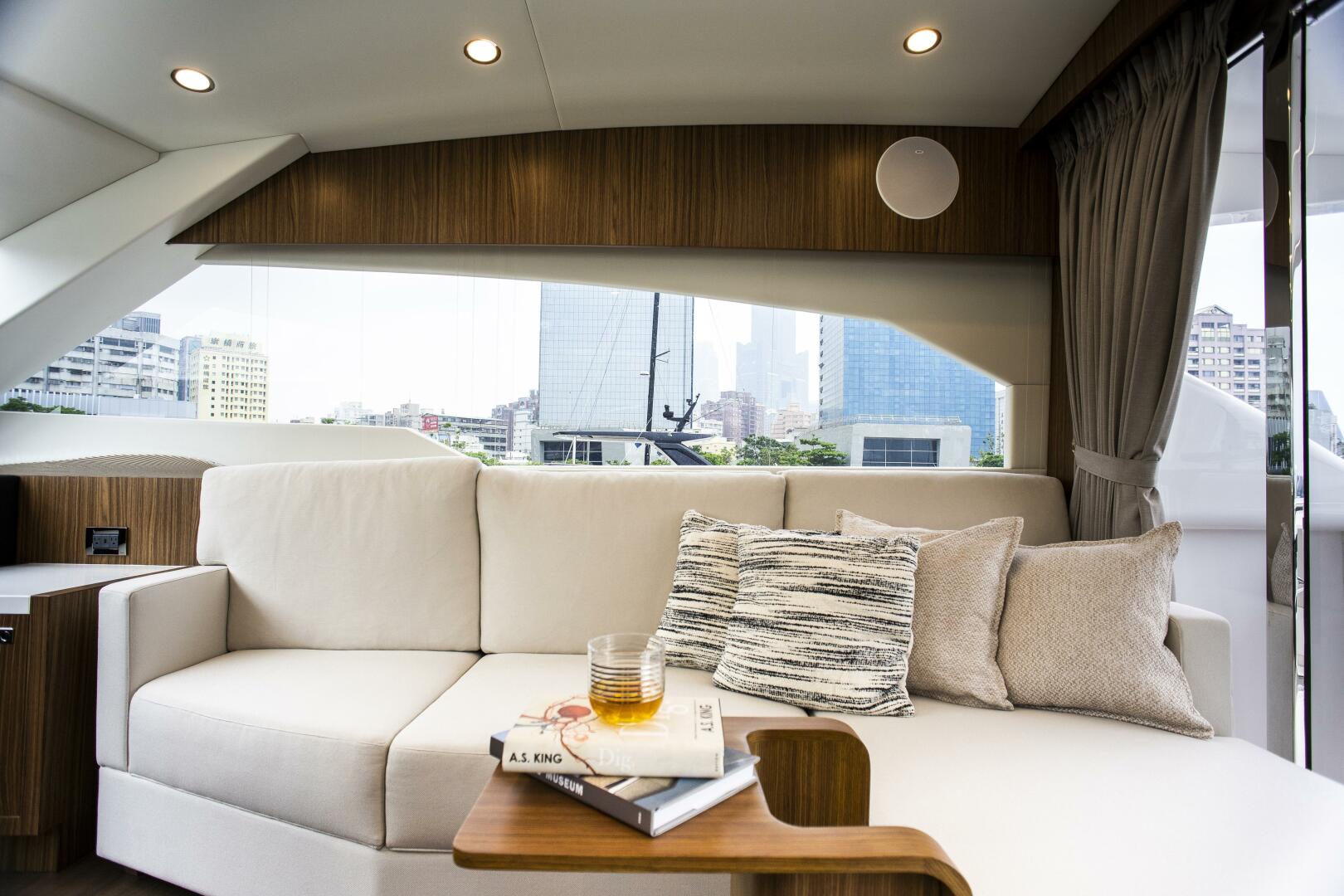

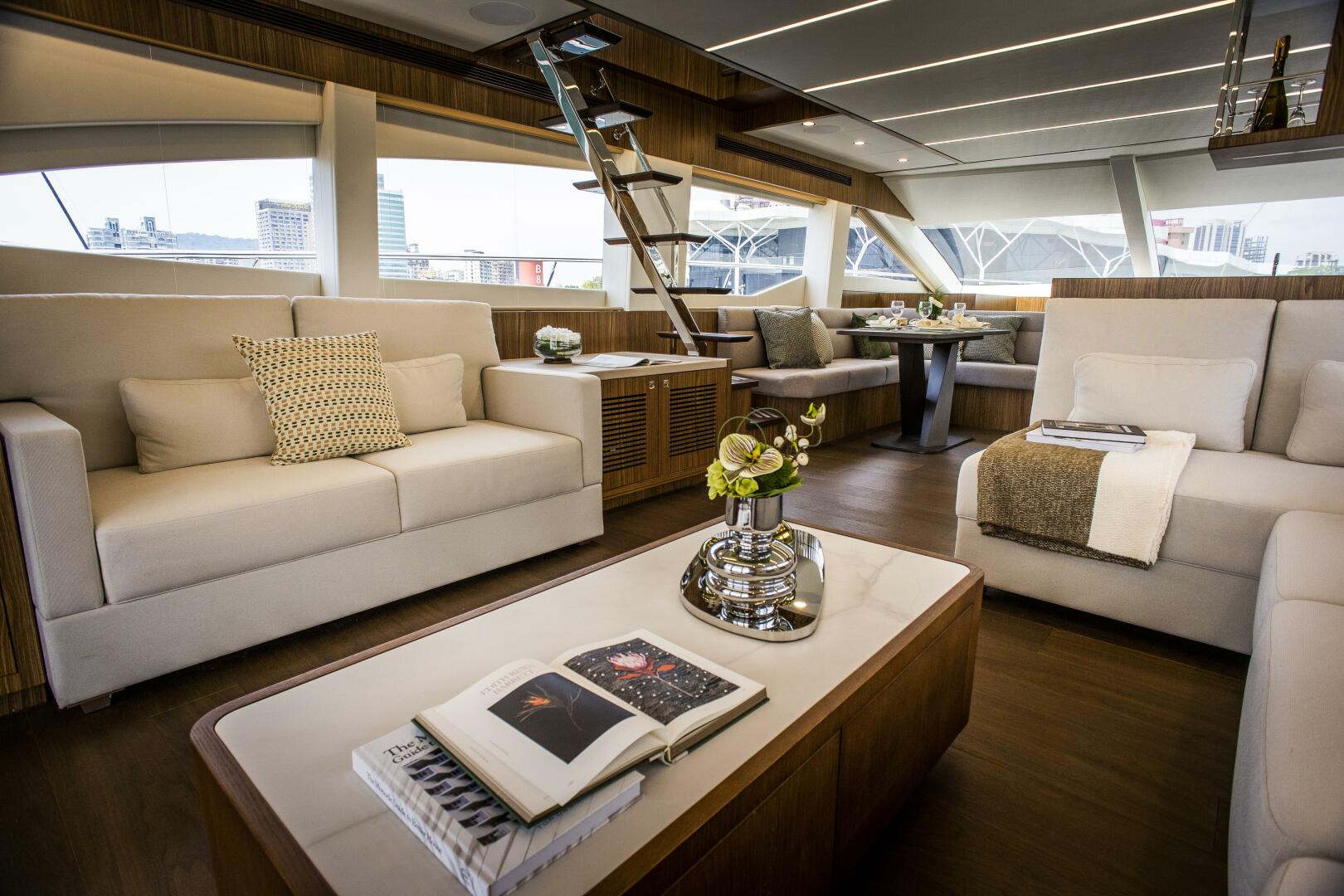

3. Leather sofa & coffee table

4. Indel Marine IM-5S21A14A00000 refrigerator/ice maker

5. Rudder Indicator

6. Magnetic compass

7. Stainless steel guard rails and grab rails

8. Low level courtesy lights 24V

9. ACR Search light

10. Buell airhorn

11. Stidd 500-M-X2 helm seat X 1

12. Stainless steel steering wheel

13. CCTV system with 4 cameras (engine room, saloon door, aft deck port & stbd)

14. One shipset LED navigation lights

15. Fusion stereo system

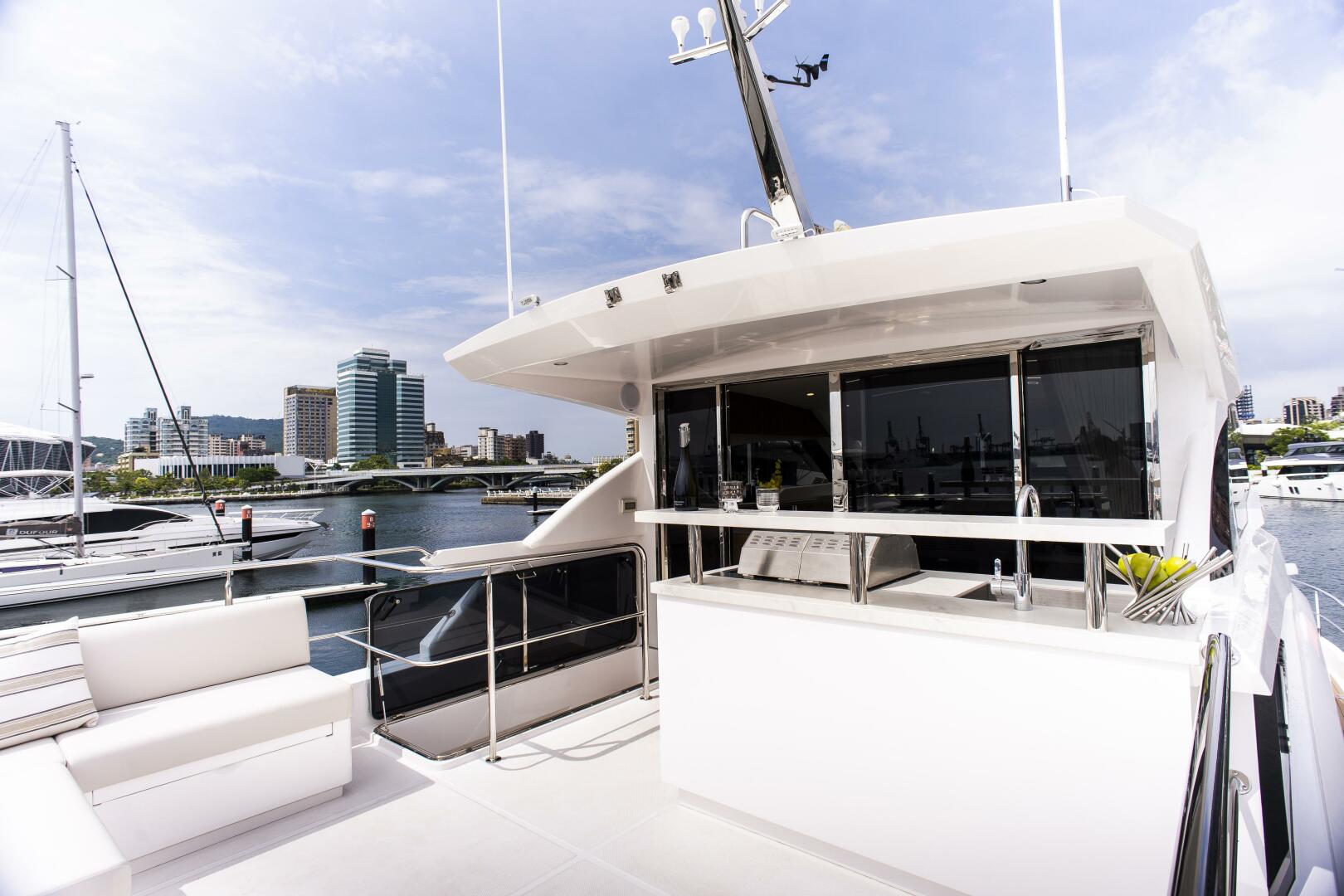

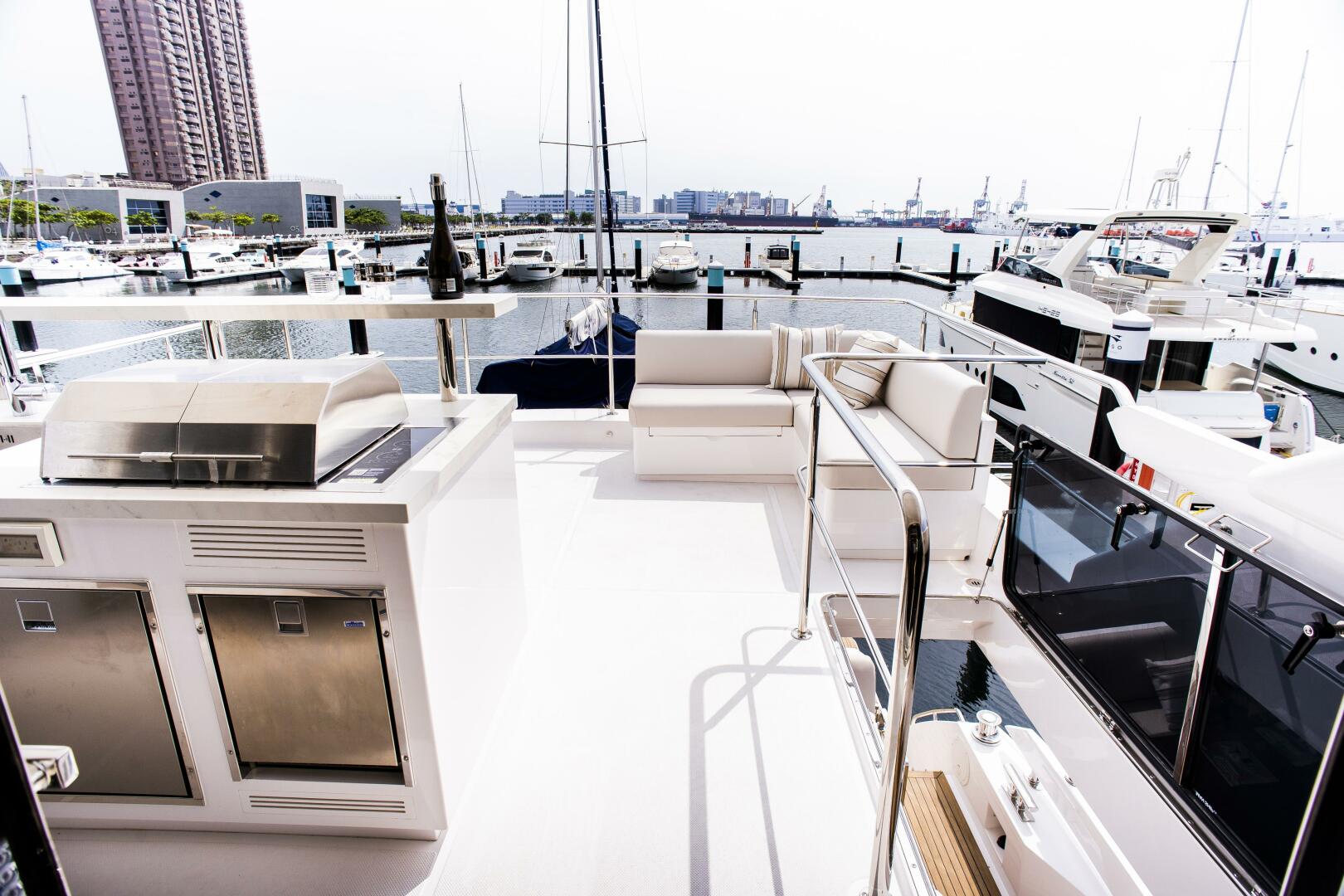

16. Flybridge aft BBQ stand with stone countertop, sink and refrigerator/freezer combo

1. Engine room clean designed with lightweight honeycomb floor

2. Soundproofing throughout engine room

3. Heavy-duty insulated engine room door

4. Stainless steel grab rails on each side of engine

5. Engine room LED ceiling lights

6. Engine compartment ventilation blowers

7. Engine room demisters

8. Caterpillar C-18 Acert 1150 HP engine x 2

9. Hydraulic steering system

10. Engine load distributed through flexible mountings on stainless steel engine bed bonded to FRP hull girder

11. Engine alarm system

12. Air compressor

13. Trident hose or equivalent for engine exhaust

14. Sleipner SPS55B/800 Vector Fins M Stabilizers x 2

15. ABT -12” 30HP bow thruster

1. 110V / 220V AC electrical system

2. DC 24V system

3. Color-coded wiring for easy identifications

4. Main electric panel includes AC & DC circuit breakers

5. AC volt receptacles located sockets throughout the boat

6. GFI protection for all AC outlets in exterior, heads, galley, and engine room

7. Fiberglass water / exhaust separator for generator

8. Electrolysis bonding system

9. Cathodic protection with zinc anodes for shafts, struts, etc.

10. Indirect lighting under valance in saloon, staterooms and galley

11. Dimmer system for LED ceiling lights in aft deck, and flybridge

12. Dimmer system for LED ceiling lights in saloon, master and VIP stateroom

13. Italian Vimar switches for lighting system

AC/DC MAIN POWER SYSTEM

1. Onan generator 29kW (60Hz) with sound shield x 1

2. Battery charger for 24V

3. Battery charger for 12V

4. Alternator split charging system

5. 25.6V / 100ah Victron lithium ship service batteries x 4.

6. 255 amp/hr. gel cell sealed engines start batteries x 4

7. 210 amp/hr. gel cell sealed generator start batteries x 1

8. All batteries enclosed with proper fixtures

9. 2 shore power connections wired with 2 units of 50-amp automatic isolating & booster transformers

10. 4kW inverter x 1

1. Garmin GPS

2. Garmin Radar x 1

3. Garmin 17” multifunction displays x 2

4. Garmin Autopilot System.

5. Garmin AIS.

6. Garmin VHF radio

Price for equivalent specification for Furuno or Raymarine system is available upon request

FUEL OIL SYSTEM

1. Fuel tanks with sight and electric gauges and capacity as specified in Principal Dimension above.

2. Racor dual fuel filter / water separator for each engine

3. Racor fuel filter / water separator for generator

4. Oil changing pump for engine, generator and clutches

FRESH WATER SYSTEM

1. Stainless steel water tank with electric gauge and capacity as specified in Principal Dimension above

2. Marco UPI4/E-DX electronic dual pump system

3. Marine grade lines for freshwater system

4. Torrid TormvS-20/240V 60HZ/50HZ 20 gallons water heater x 2

5. Hot water circulation pump

6. Dockside freshwater inlet

7. Water maker 700 GPD

SANITARY SYSTEM

1. Holding tank with macerator pump

2. Holding tank level indicator

3. Y-valve for holding tank with deck fitting for dockside pump out

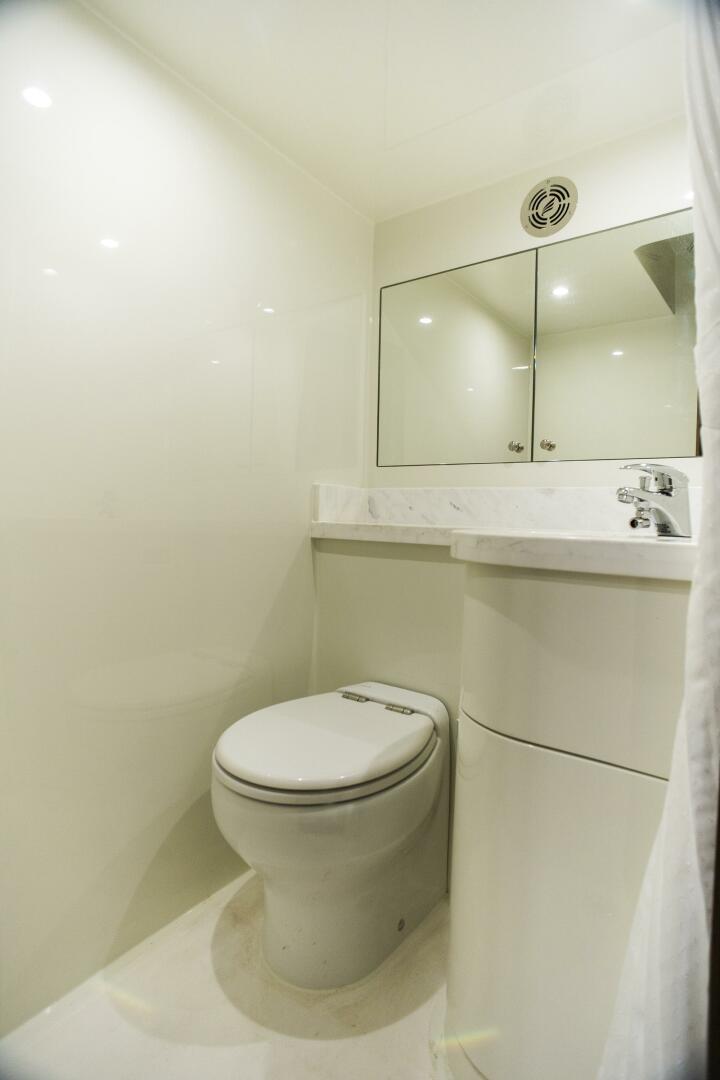

4. Planus toilet system

5. Sump pumps for shower water

BILGE WATER SYSTEM

1. DC 24V Rule 3700 bilge pumps x 6

2. Jabsco 29270-0000 Manual bilge pump in engine room

3. Highwater level bilge alarm system x 6

4. Bilge exhaust ventilation fans

AIR CONDITIONING SYSTEM

1. Cruisair chilled water air conditioning system with 48000 BTU Compressor x 2

2. Air handlers throughout boat

1. Fire insulation in engine room

2. Auto shutdown system

3. Automatic/manual Sea-Fire fire extinguisher system

4. Intergraded fire alarm system in helm station, with smoke detector in each cabin

INTERIOR DECORATION

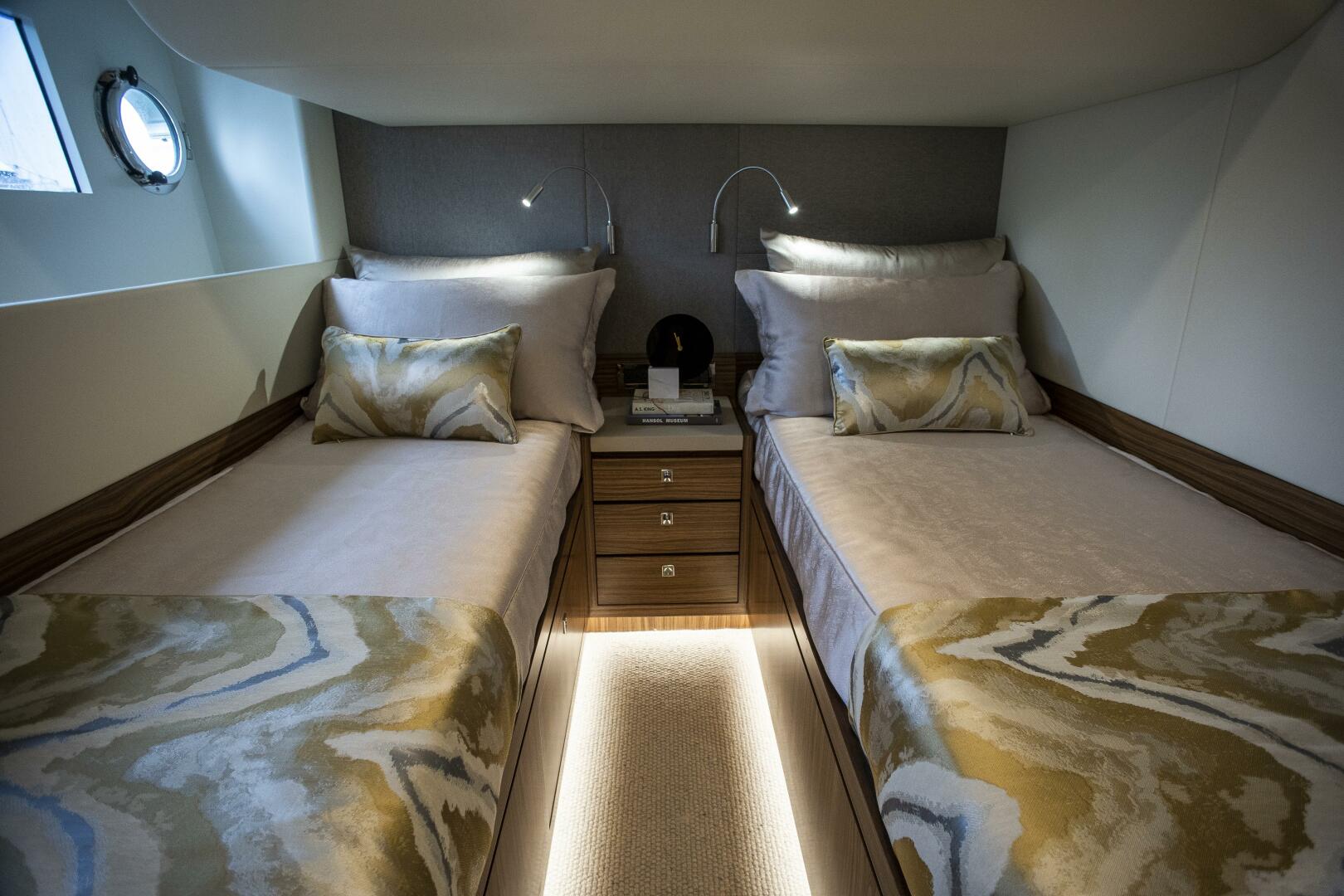

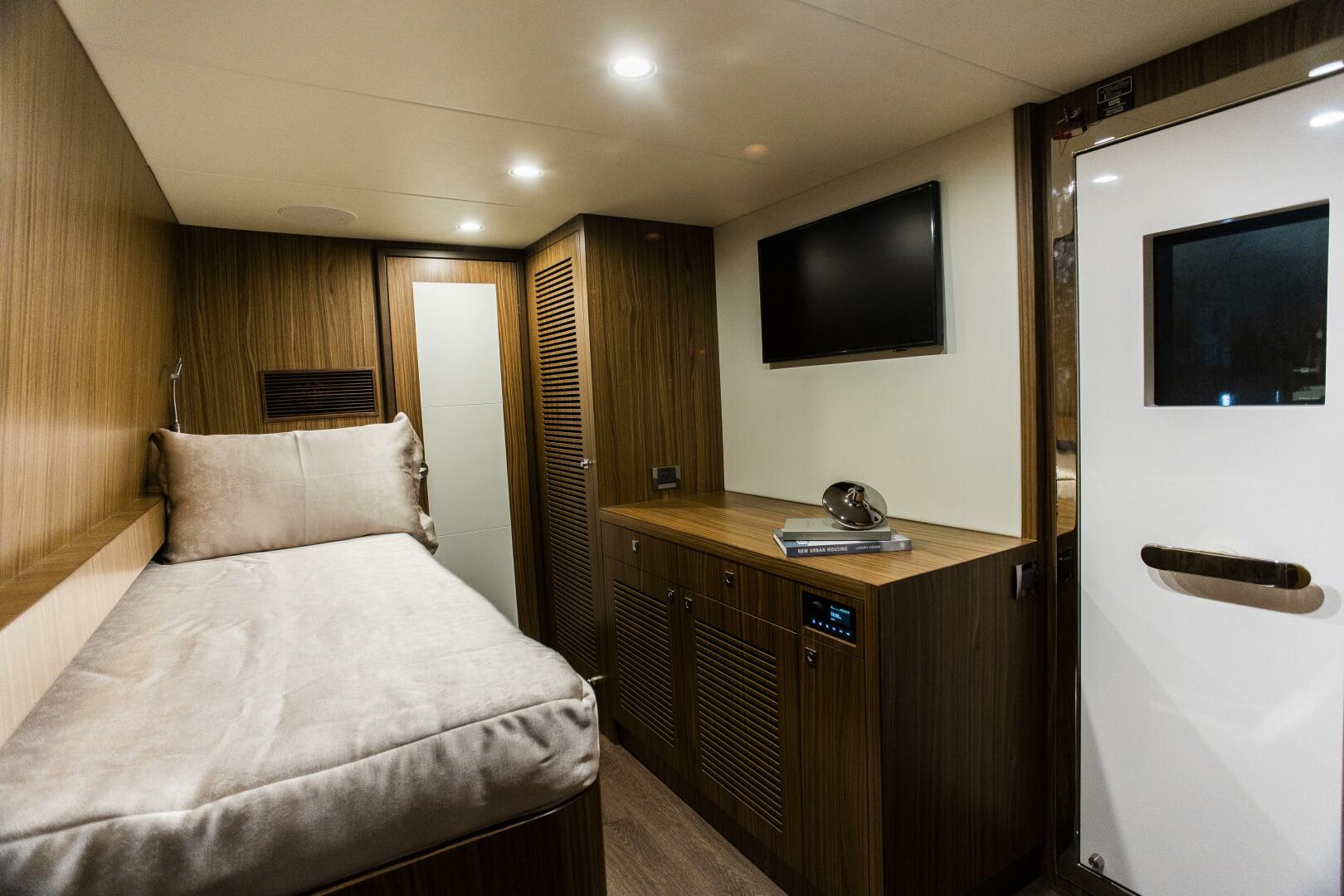

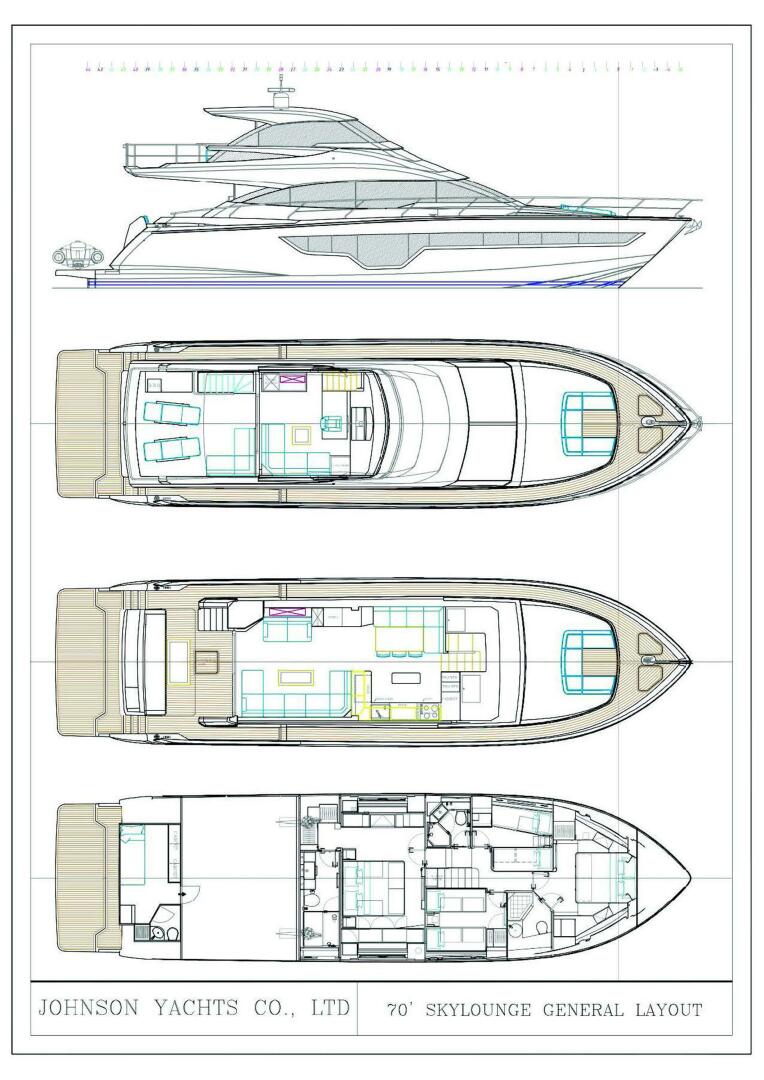

1. Standard layouts: Master stateroom plus 3 guests cabins and 1 crew cabin

2. Standard collection of wood for interior

3. Standard collection of carpet except in wood floor areas

4. Standard collection of interlocking vinyl ceiling panels throughout

5. Standard collection of wood or carpet floor for skylounge version only

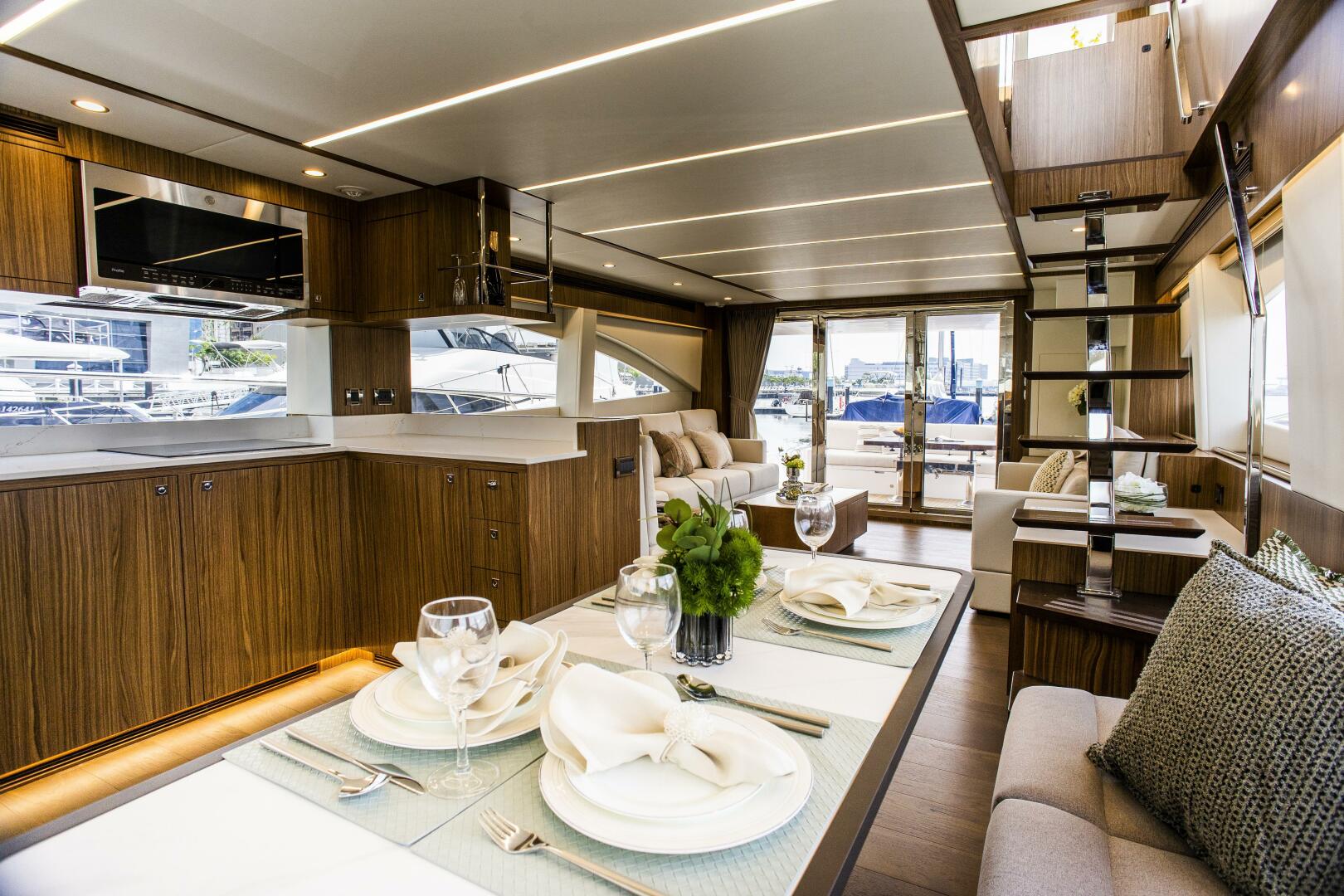

6. Choice of marble/granite/wood floors in galley from standard collection

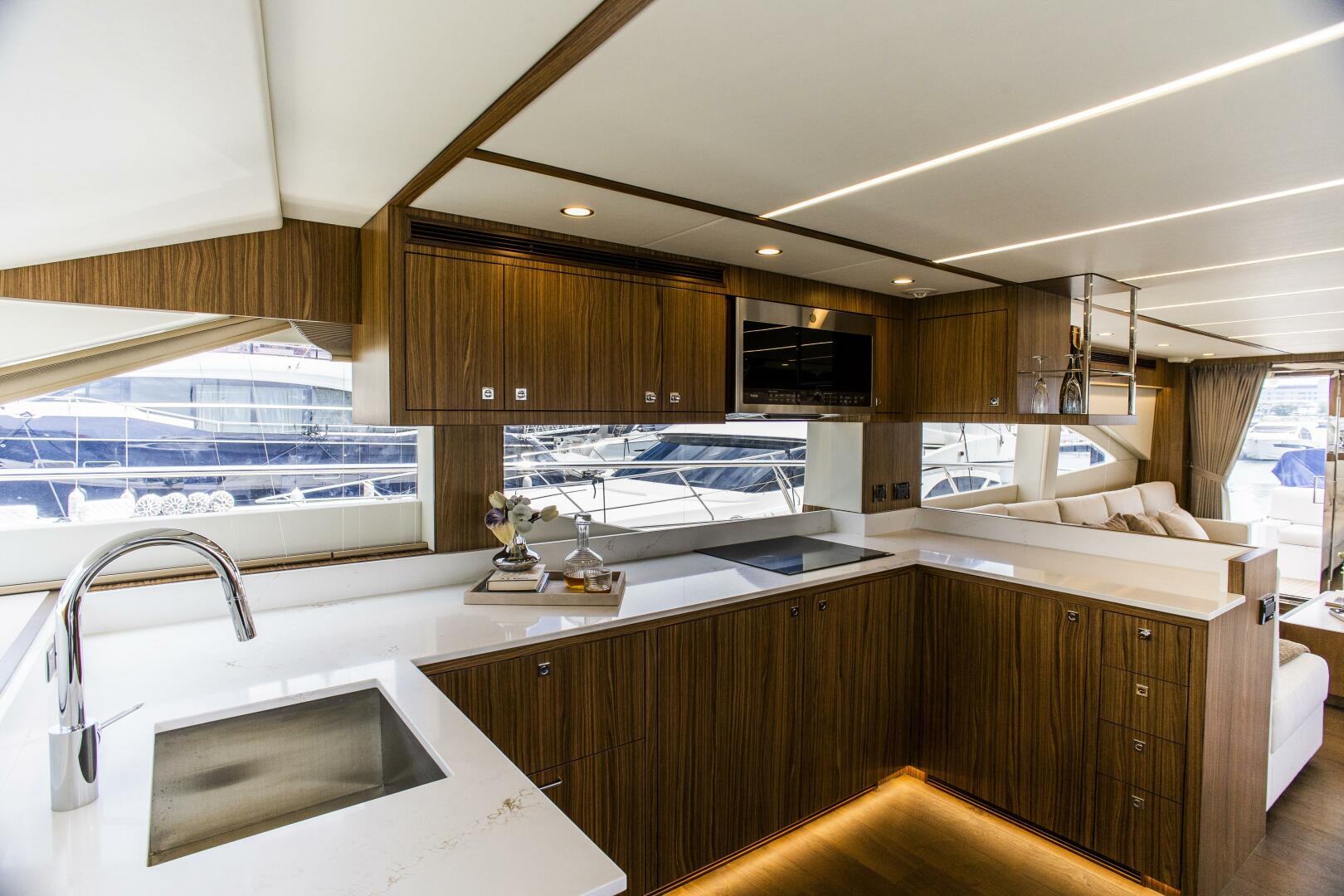

7. Choice of granite/glass/quartz stone for galley

8. countertop and backsplash from standard collection

9. Standard choice of fabrics for bedspreads, decorative pillows and sheet set (flat sheet, fitted sheet, pillow cases) one set per berth

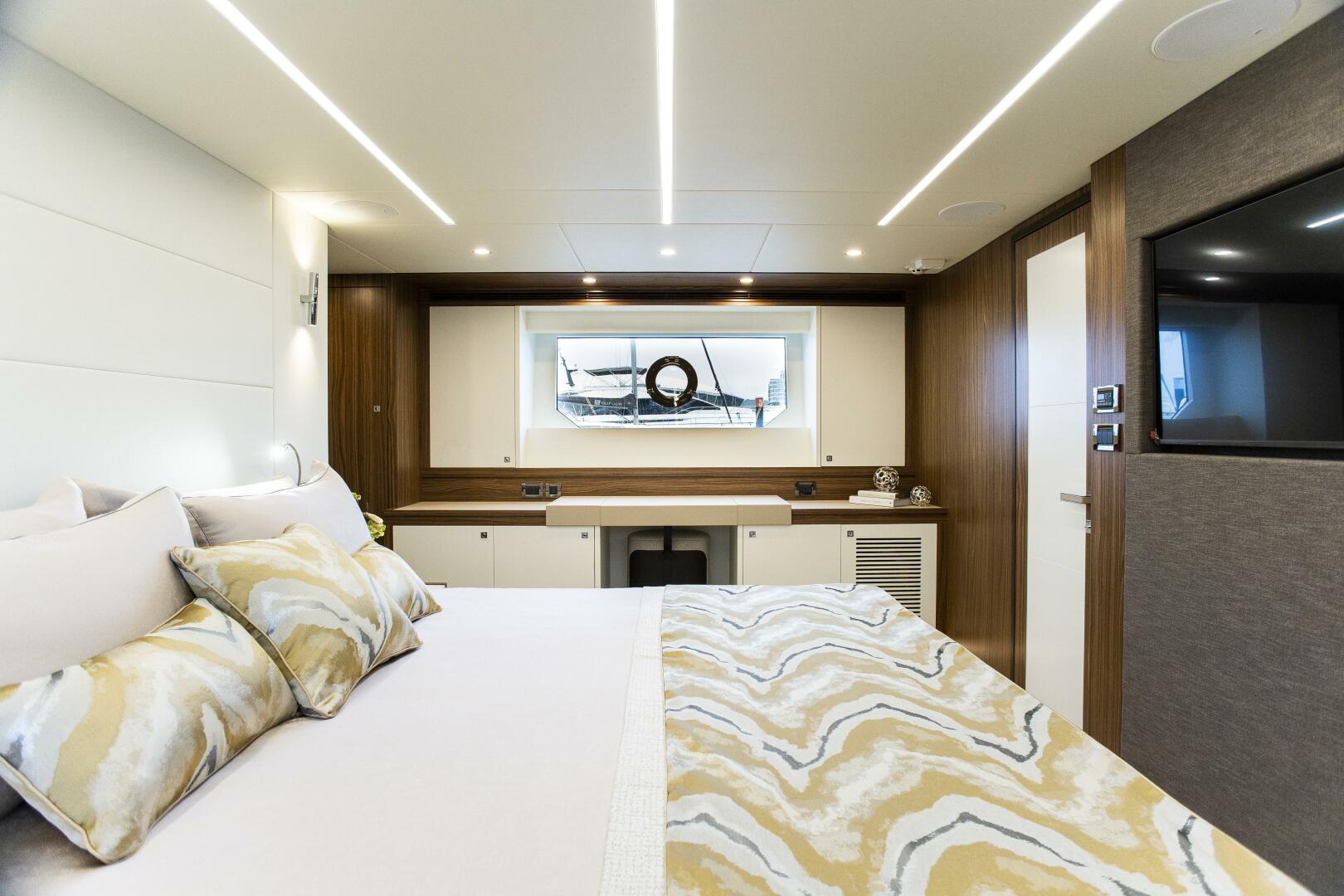

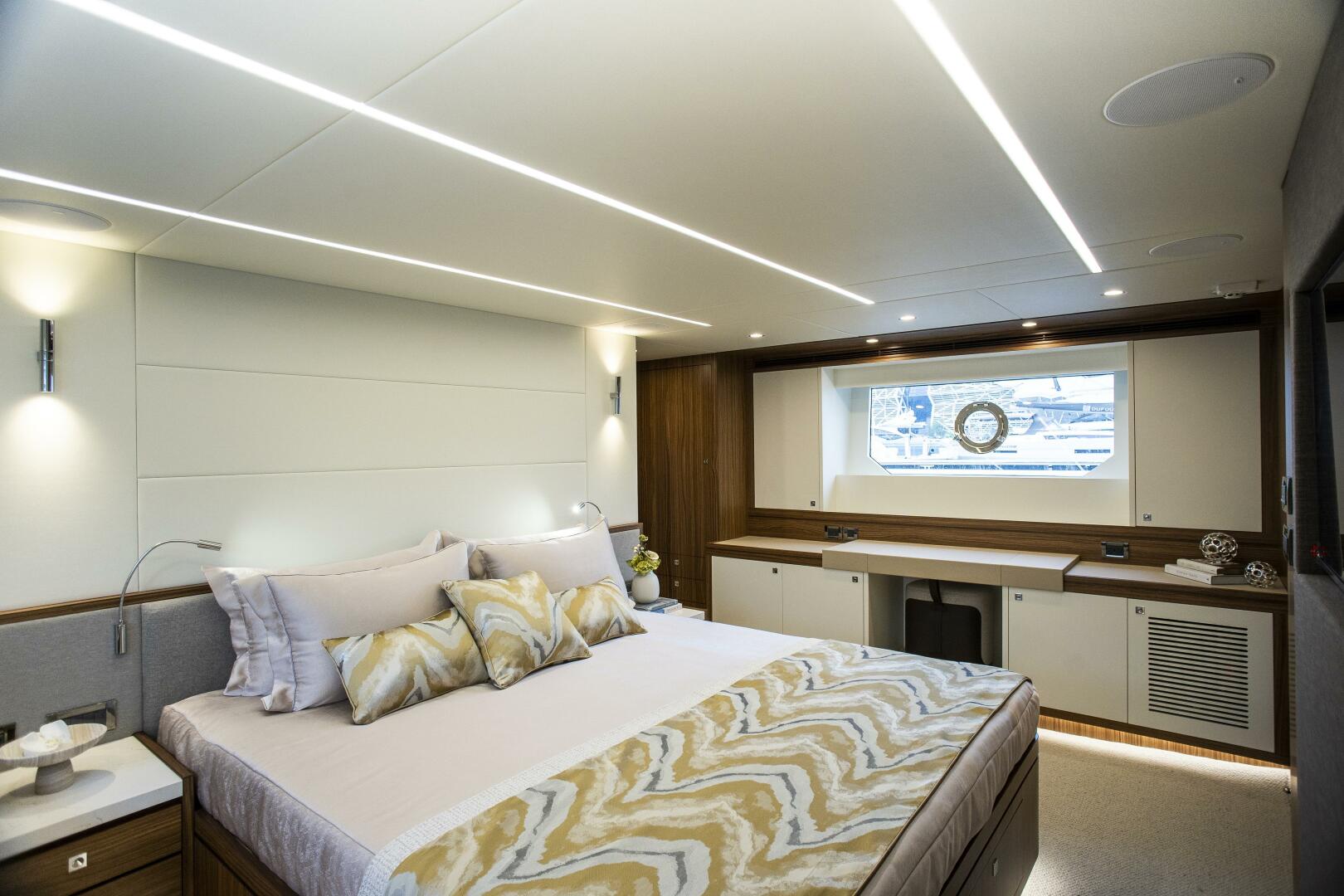

10. King size bed in master stateroom

11. Upholstered headboard for master stateroom, VIP stateroom, and guest cabins

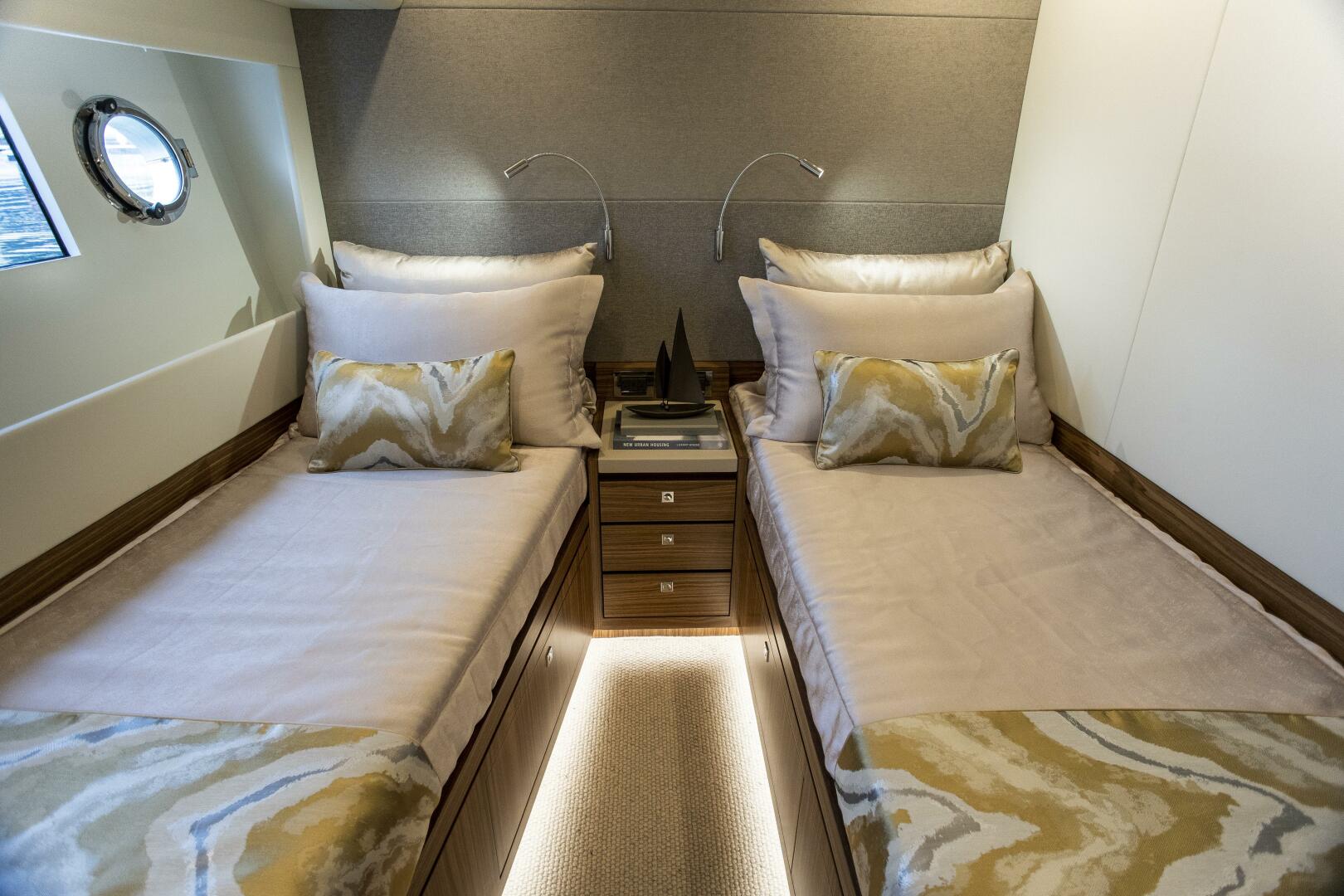

12. Wood or upholstered bed frames in all cabins

13. Hanging lockers in all staterooms

14. Quick KAI XP-LP 6W LED ceiling lightings

15. Indirect lighting system under bed and valances

16. 24V Reading lights in each cabin

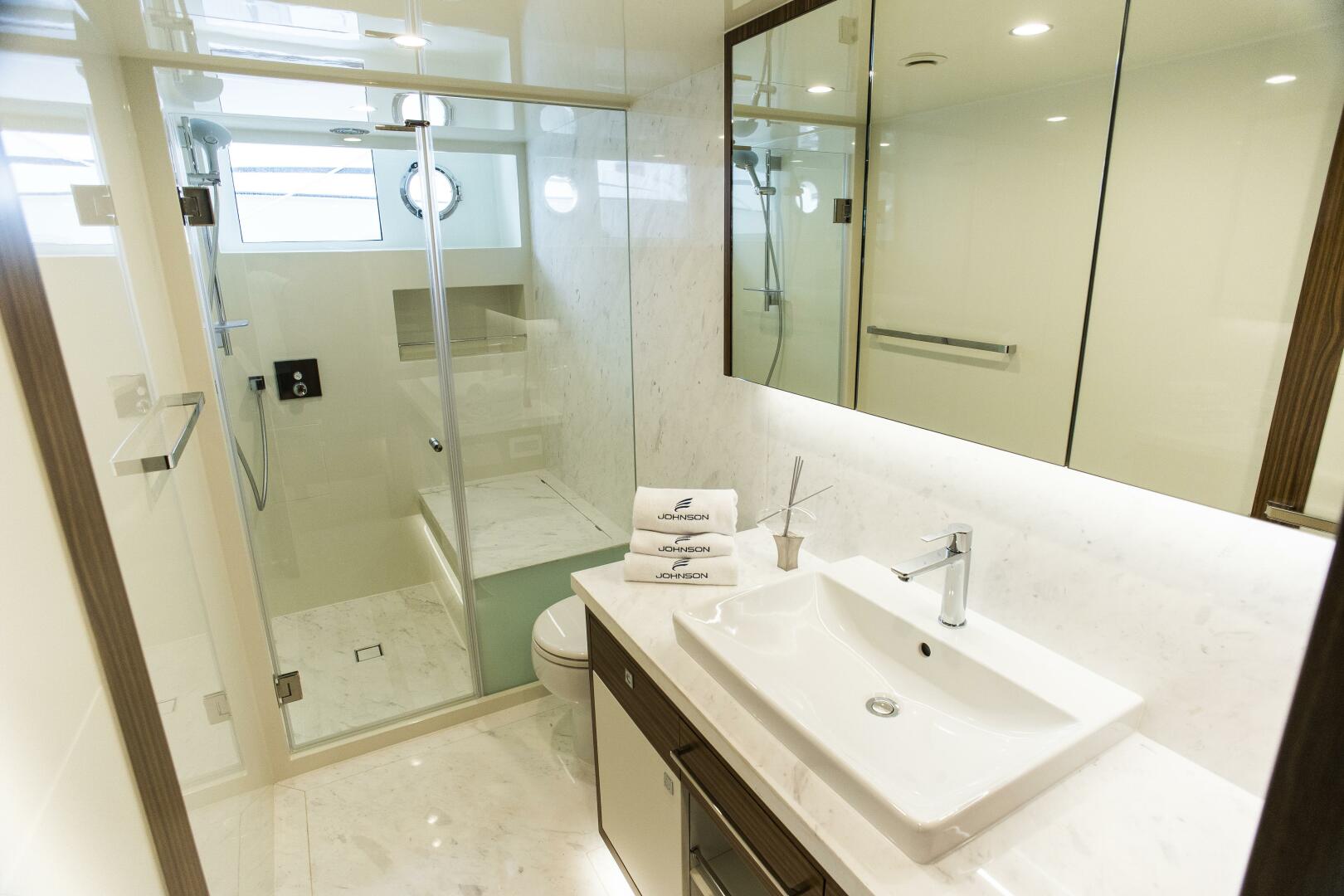

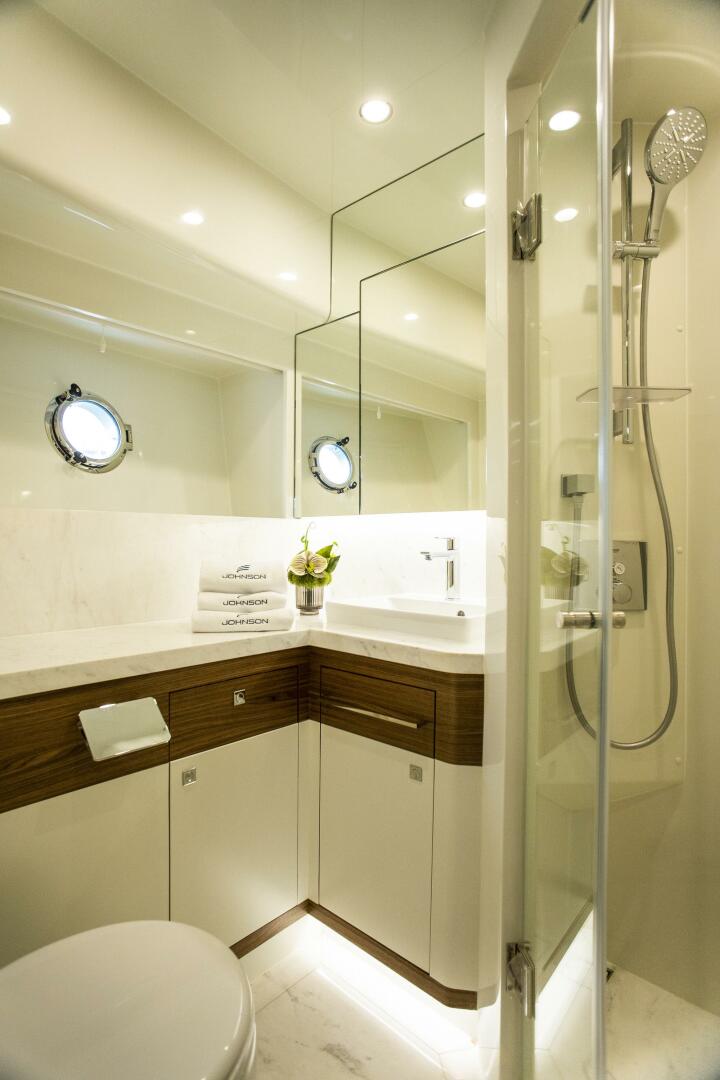

17. Choice of marble/granite/mosaic/glass/quartz stone for countertop and backsplash in all heads from shipyard collection

18. Choice of marble/granite/wood floor in all heads from shipyard collection

19. Glass/Dishes/Plate holders if sample provided

20. Grohe faucets, towel bars, towel rings, cup/brush/soap holders, toilet roll holders all heads

21. Toto or equivalent basins

22. Lacquer finish above basin countertop

23. Wood finish below basin countertop

24. Exhaust blower for each head

25. Standard choice of mosaic finish for all shower wall except for crew which is to be finish in lacquer

26. Mirror and mirror ceiling for all head

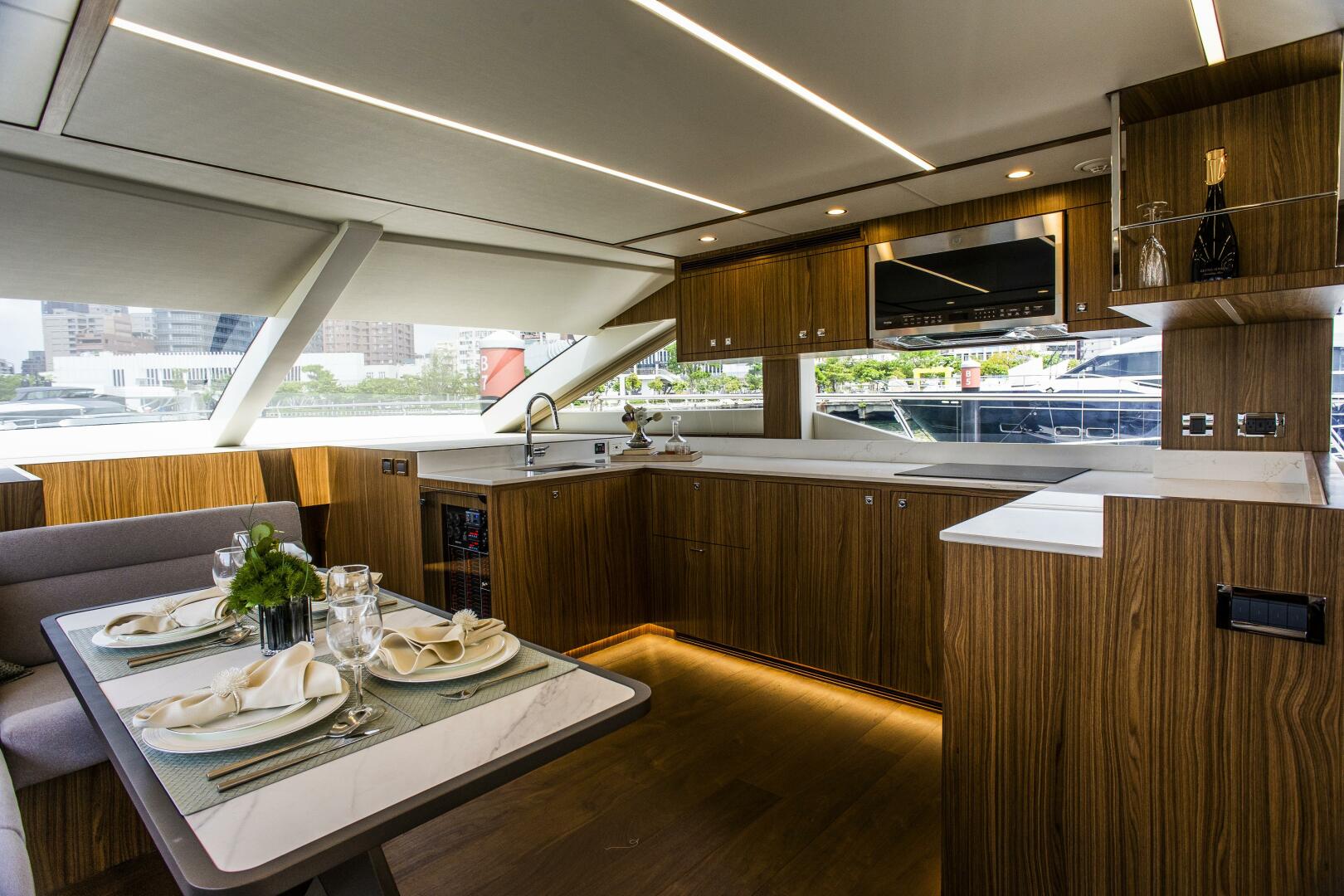

APPLIANCES

1. GE. under counter refrigerator x 1

2. GE under counter freezer x 1

3. GE dishwasher x 1

4. GE microwave with extractor fan x 1

5. GE electric induction cook top

6. Stainless steel sink per layout

1. TV antenna on top of radar arch

2. Wi-fi booster system with wireless routers onboard

3. Flybridge Fusion marine Stereo x 1 and speakers x 2

4. Saloon 55” LCD TV with home stereo entertainment system

5. Master Stateroom 43” LCD TV with home stereo entertainment system

Not included are pieces of free standing furniture and lamps, special designer-specified lighting, art work, cooking utensils, cutlery and flatware, soft goods and the design fees attendant to personalizing the owner’s interior arrangement plan and design.

Performance statistics, weight, draft, freeboard and height are estimated only and are not warranted, and actual figures will vary depending on tolerances achieved during the vessel’s construction process and the equipment, supplies and stores on board, as well as operational and sea conditions. Johnson Yachts reserves the right to substitute equipment and materials stated herein to others which it believes to be of equal or superior quality and to make such design and dimensional changes as it believes are necessary to improve the vessel’s performance and function. Special treatment of interior fit-out and/or use of non-standard soft furnishings required by the purchaser may be subject to additional charges.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
