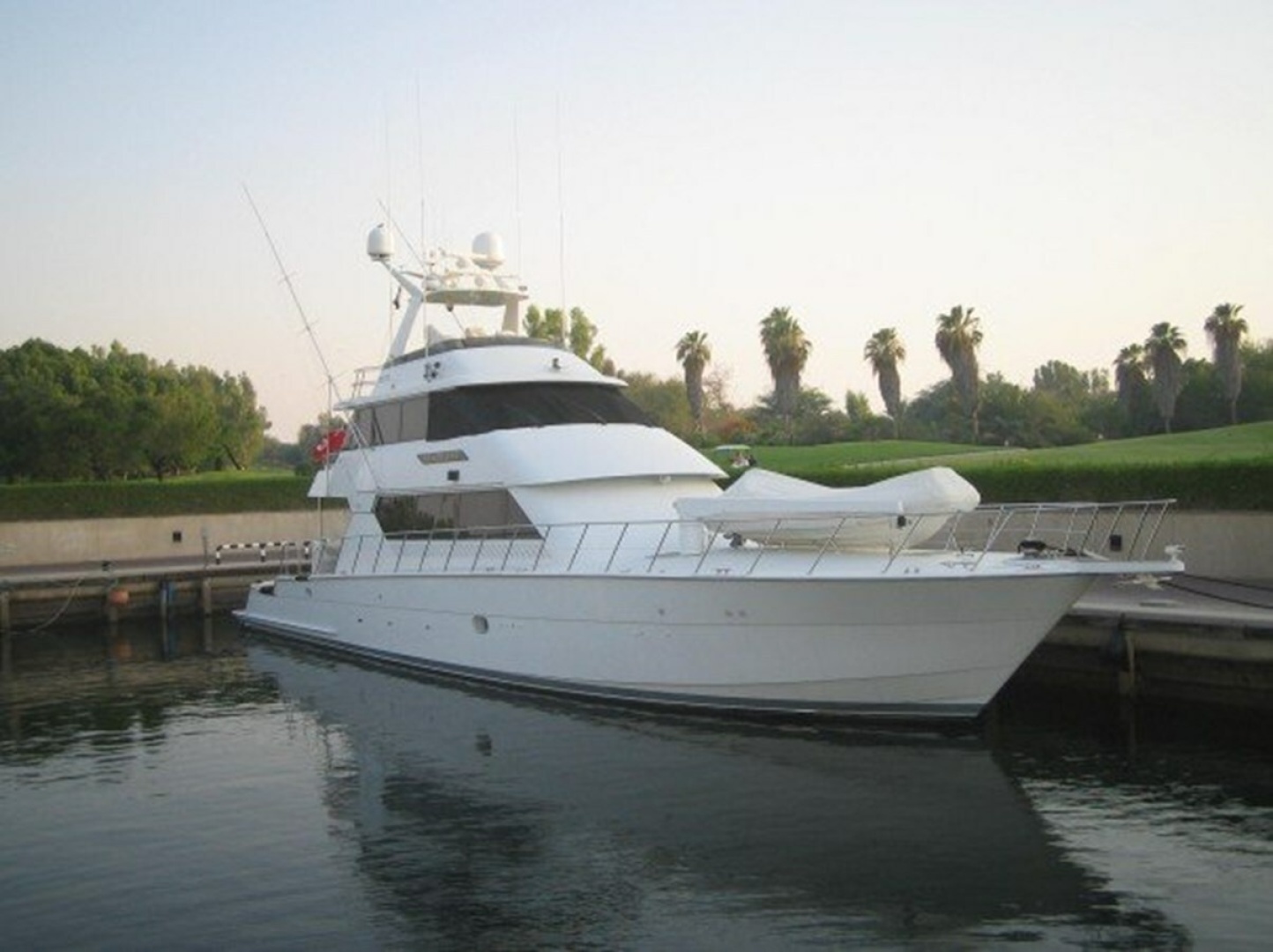

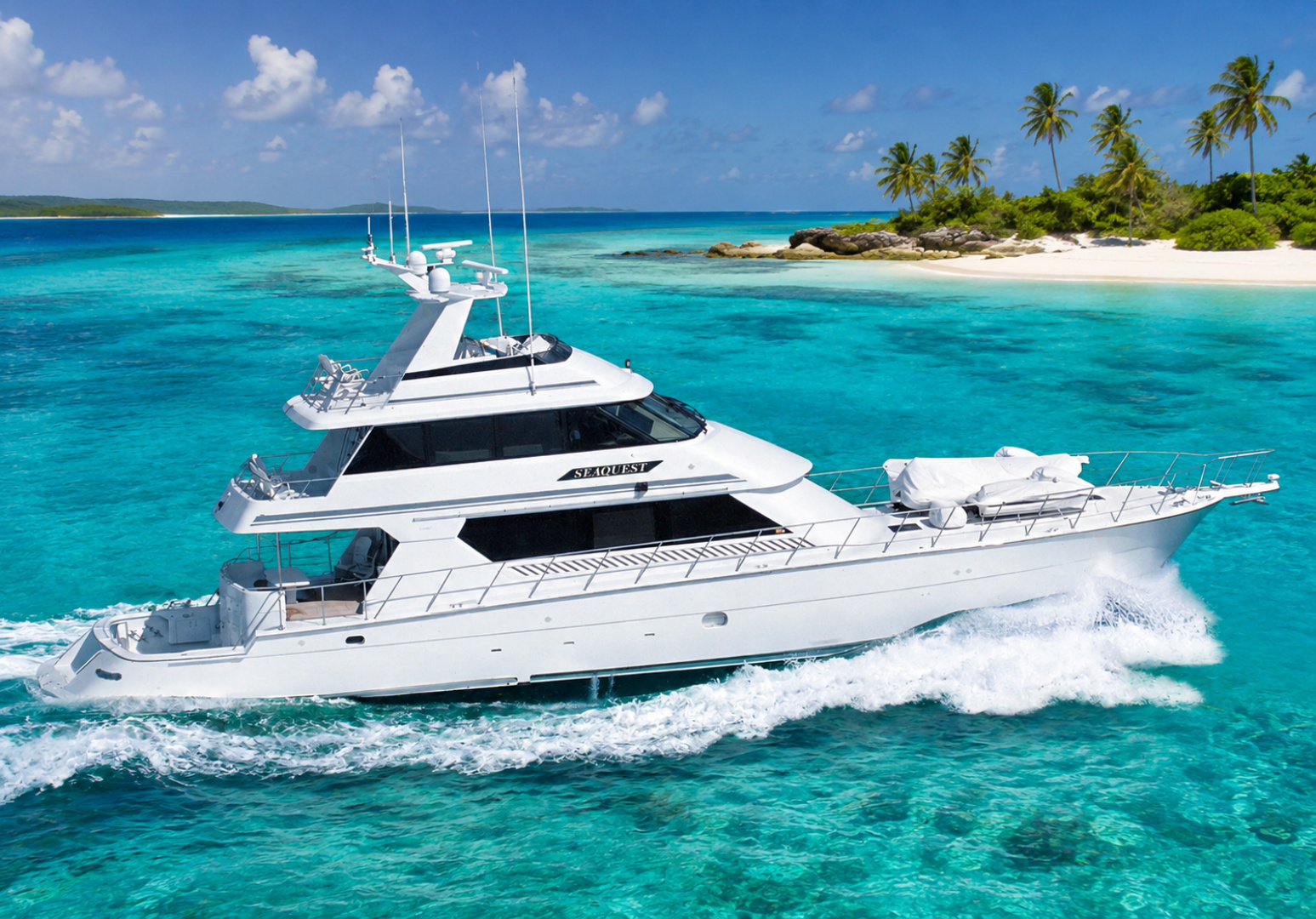

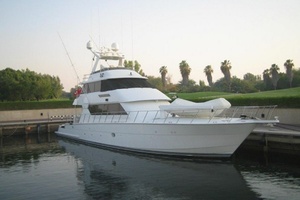

92FT (28.04M) HATTERAS
Yacht for Sale

Fiberglass hull and superstructure, teak decks on Bridge deck Aft Deck and Flybridge

General

Length Overall (L.O.A.): 92.00 feet (28.04 meters)

Beam (molded): 22.00 feet ( 6.71 meters)

Draft (loaded): 6.05 feet ( 1.98 meters)

Tonnage: 130.00 Gross tonnage

Capacities

Fuel Capacity: 4,963 US Gallons (18,786.99 liters)

Water Capacity: 840 US Gallons (3,179.75 liters)

Watermakers: 1,500 US Gallons per day (5,678,12 liters)

Lube Oil: 120 US Gallons (454.25 liters)

Waste Oil: 120 US Gallons (454.25 liters)

Holding Tank: 220 US Gallons (832.79 liters)

RPM / Speed /Consumption per hour / Range

RPM              SPEED                       FUEL GPH per Engine           Range NM

  700             10.0 knots                       23 US Gallons /hr.            1,800

  800             12.0 knots                       38 US Gallons /hr.            1,300

  900              13.0 knots                       51 US Gallons /hr.             1,103

1,000             14.0 knots                       70 US Gallons /hr.                875

1,100             15.0 knots                       92 US Gallons /hr.                781

1,200             16.5 knots                     120 US Gallons /hr.               608

1,300             19.0 knots                     146 US Gallons /hr.               577

1,400             21.0 knots                      190 US Gallons /hr.               482

1,860              28.0 knots                                  ----                                ----

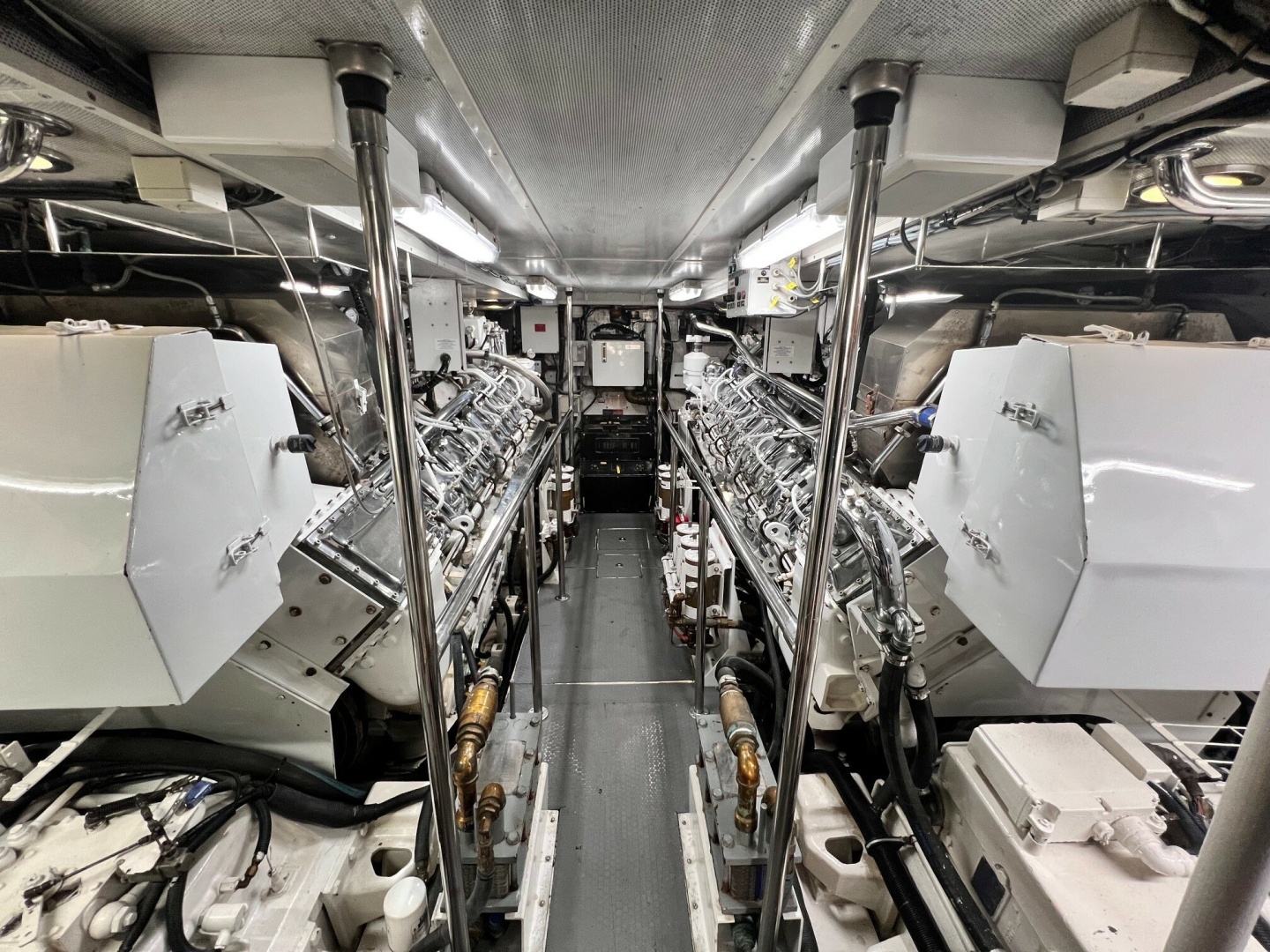

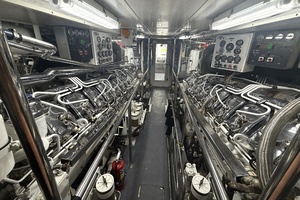

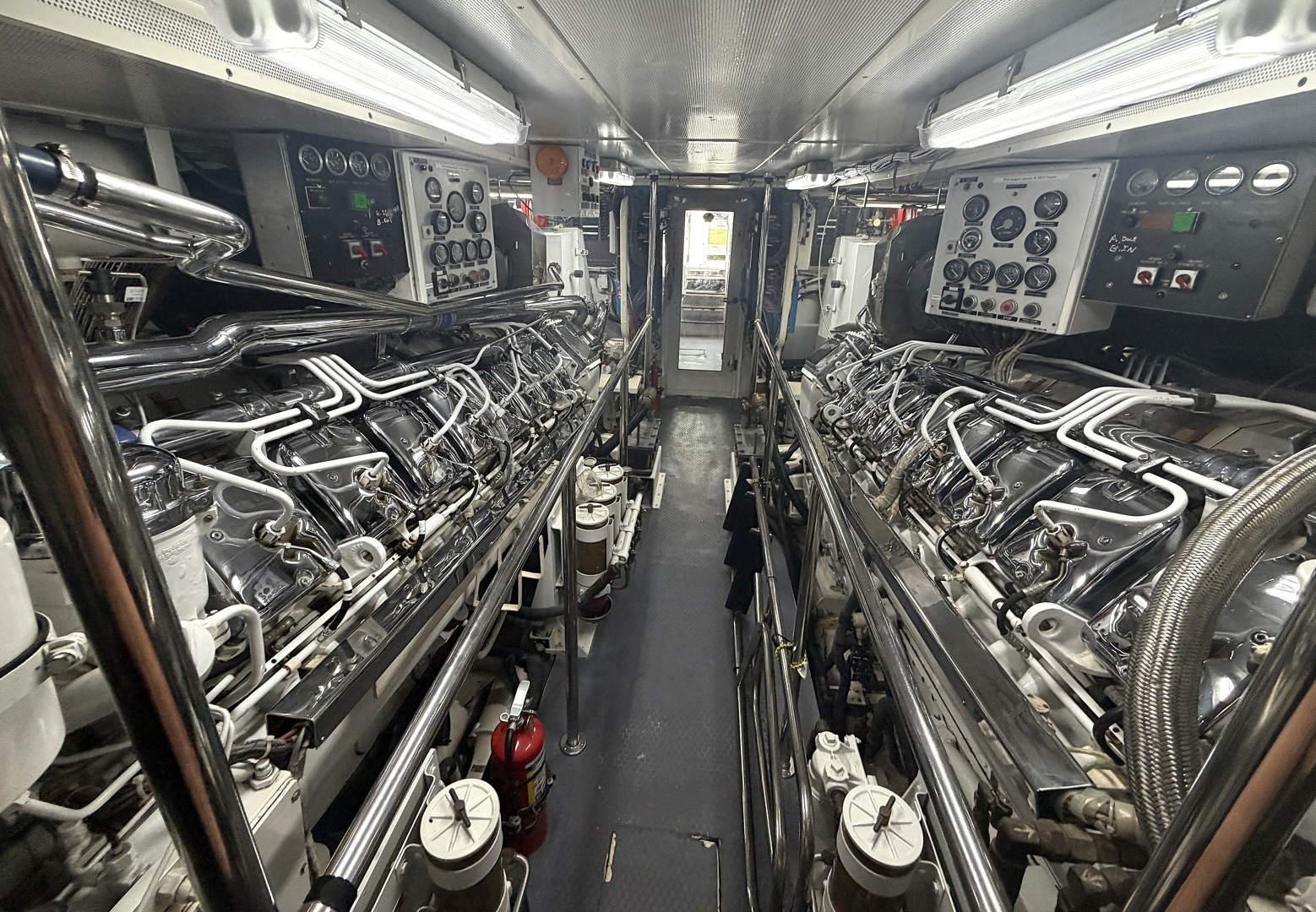

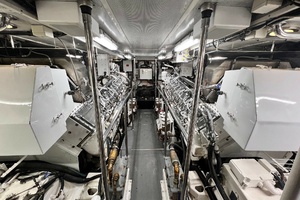

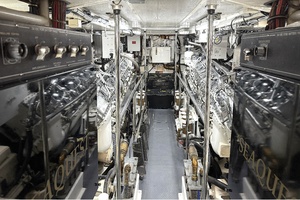

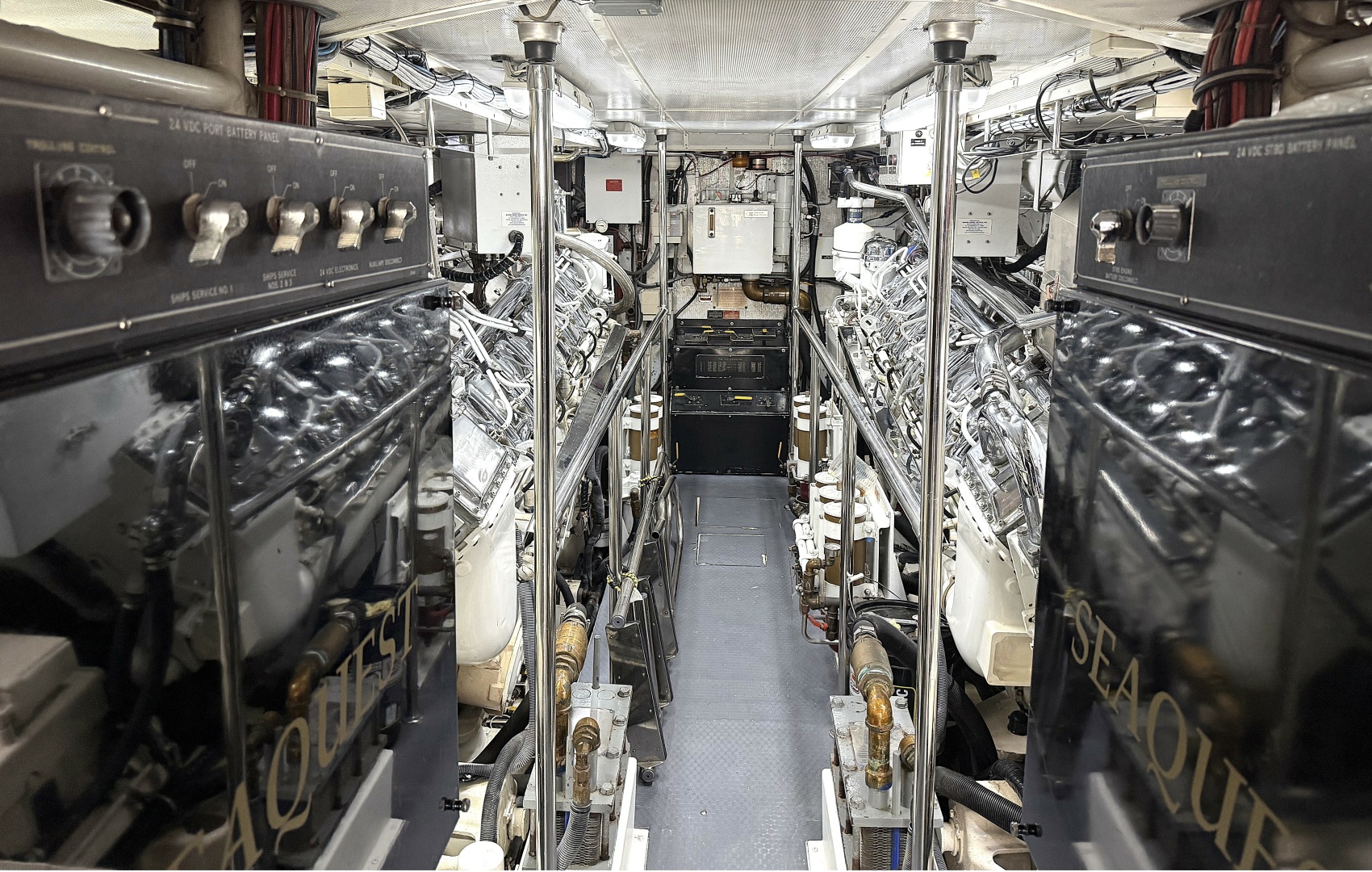

Main Engines

Engine Type: (2) Deutz TBD 620 V16 Diesel’s @ 2,700 Hp each

Engine Hours:

Port: 4,217 total hrs. as of August 04, 2026

407 hrs. as of August 04, 2026, since rebuilt at 3,810 hrs.

Engine rebuilt in 2012

Starboard: 4,252 total hrs. as of August 04, 2026

392 hrs. as of August 04, 2026, since rebuilt at 3,860 hrs.

Engine rebuilt in 2012

Gearboxes for Main Engines: ZF transmissions 3.2:1 reduction

Drive: Straight

Generators & Electricity

Output:  240/110 A/C - 24 D/C - 60 Hz

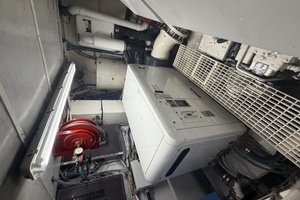

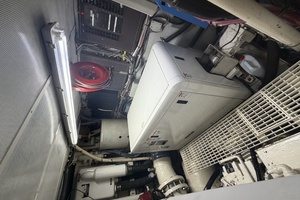

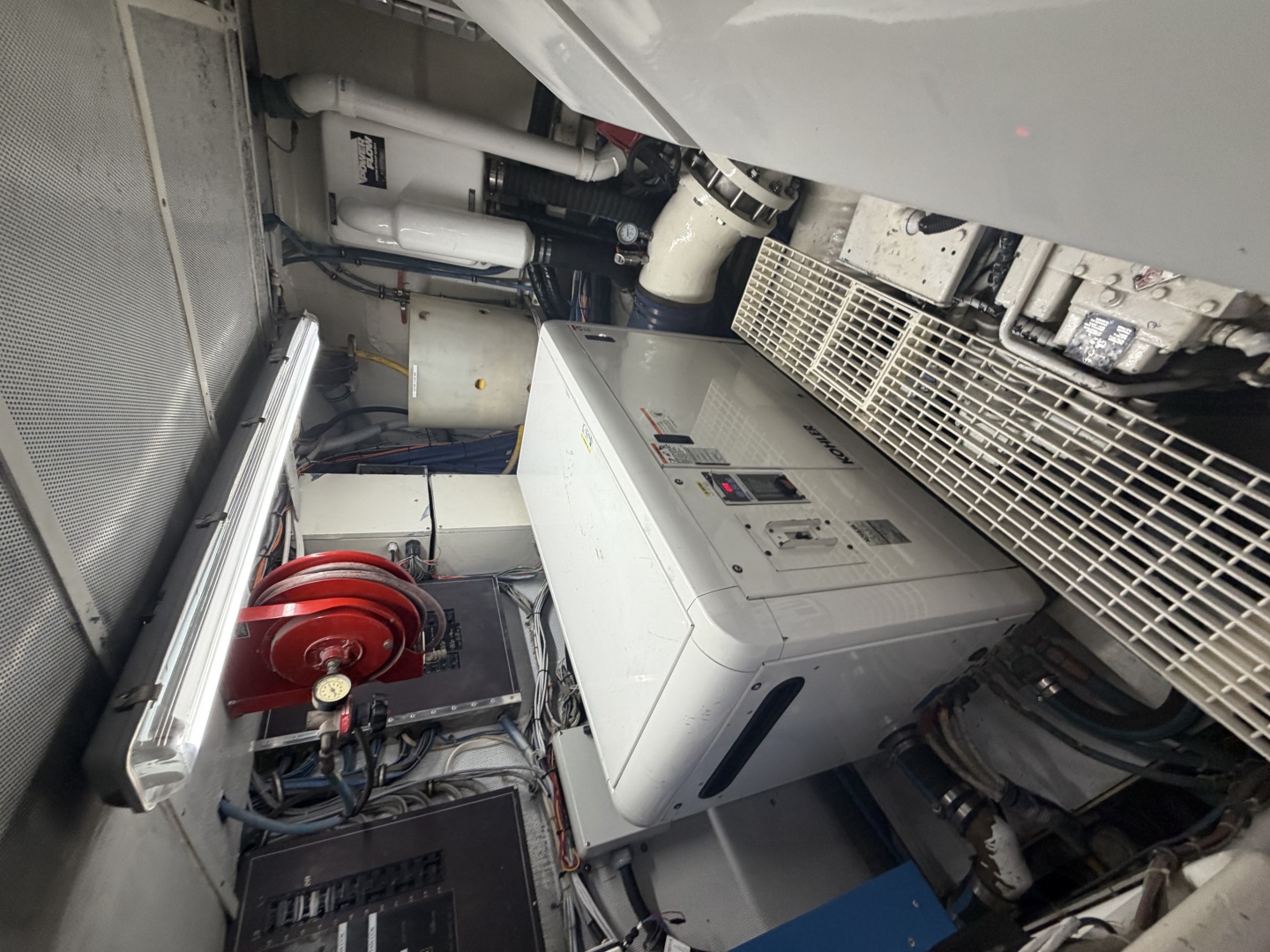

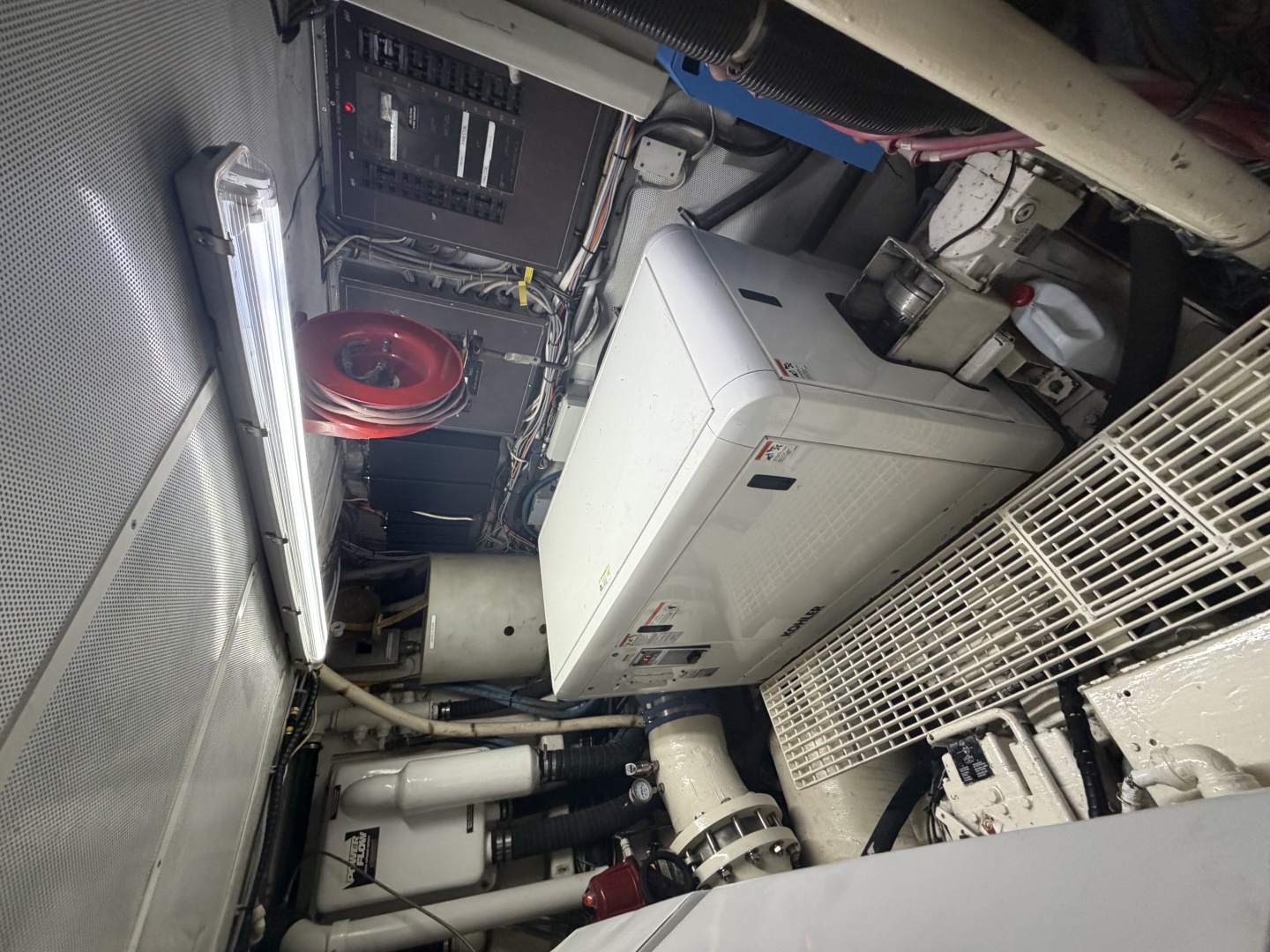

Generators: (2) Kohler 32EOZD 32kW Generators

Port Generator Hours: 499 hrs. as of August 04, 2026

New in 2012

Starboard Generator Hours: 224 hrs. as of August 04, 2026

New in 2012 – Bow Thruster PTO

Generator Fuel Consumption: Fuel burn range calculated at 4,500 gallons useable fuel and 2 GPH generator fuel consumption

Shore Power: (2) Single phase 100-amp cords with cable master

Batteries: (4) 8D Batteries – 24 Volts - Each battery bank is located outboard of the main engines in fiberglass enclosures

AC Converters: ASEA Voltage/Frequency Converter – New 2023

Air Conditioning

Type:  “CTM” CW-60Hz Chilled Water A/C System

(3) 60,000 BTU Compressors - New 2026

New air handlers and controls

Other Machinery

Watermakers: 1,500 GPD watermaker (Need service)

Stabilizers: Naiad 12 square feet

Bow Thruster: American Hydraulic

Steering System: Hynautic

Fuel Separator & Filtration: Dual Racor 900 MA filters

Head System: Headhunter

Fresh Water System: Charcoal canister on tanks

Bilge Water Filtration: Yes

Marine Exhaust: (1) Completely new exhaust by Design Engineered Solutions (D.E.S.) - $130,000 - 2023

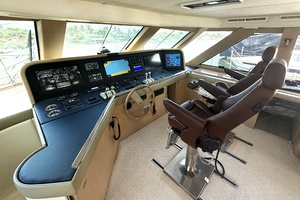

Bridge Deck Helm – Navigation and Communication Systems

All New 2026

VHF/AIS: (2) Icom IC M605 with built-in AIS

AIS: (1) Furuno FA-170 safety beacon transmitter

(1) Scanstrut ROKK Wireless Edge (SC-CW-05E)

Radar, Plotter, Depth Sounder, Autopilot Interface, Fish Finder:

(3) 16” Garmin GPSMAP 8600 multifunction series with 72nm autopilot

(4) 9” Garmin GPSMAP 8616xsv multi-screen, video & sonar capable – backup system

GPS: (1) Furuno commercial-grade GPS position sensor

Systems Monitor: (1) 18” Technics BV

Magnetic Compass: (1) 8” Ritchie compass

Auto Pilot: (1) Garmin GHC 50 – helm

(1) Garmin GHC 50 – overhead

Spotlight: (2) ACR RCL-100 LED Searchlight with controllers

Flybridge – Navigation and Communication Systems

 All New 2026

GPS, Plotter, Depth Sounder: (3) 16” Garmin GPSMAP 8600 multifunction series

(2) Garmin GPSMAP 743 – back up system

Stabilizer Controls: Naiad

Bow Thruster Control: Yes

Other:

(1) Furuno MCU-004 remote control joystick for chart plotter radar

Garmin GRID 20 interface w/ entire bridge navigation system – helm chair

VHF: (1) Icon

Spotlight Controls: ACR

Displays: Digital ACR displays

Entertainment System:

Video Equipment

TV’s:

(1) 55” TV - Main Salon - New 2026

(1) 50” TV - Galley - New 2026

(1) 50” TV - Master Stateroom - New 2026

(1) 32” TV - VIP Port Stateroom - New 2026

Audio Equipment

Stereo’s:  Aft deck speakers with controls

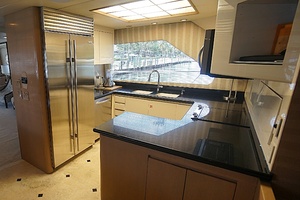

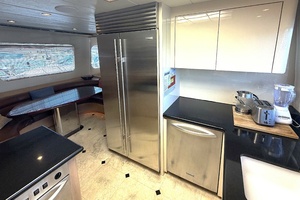

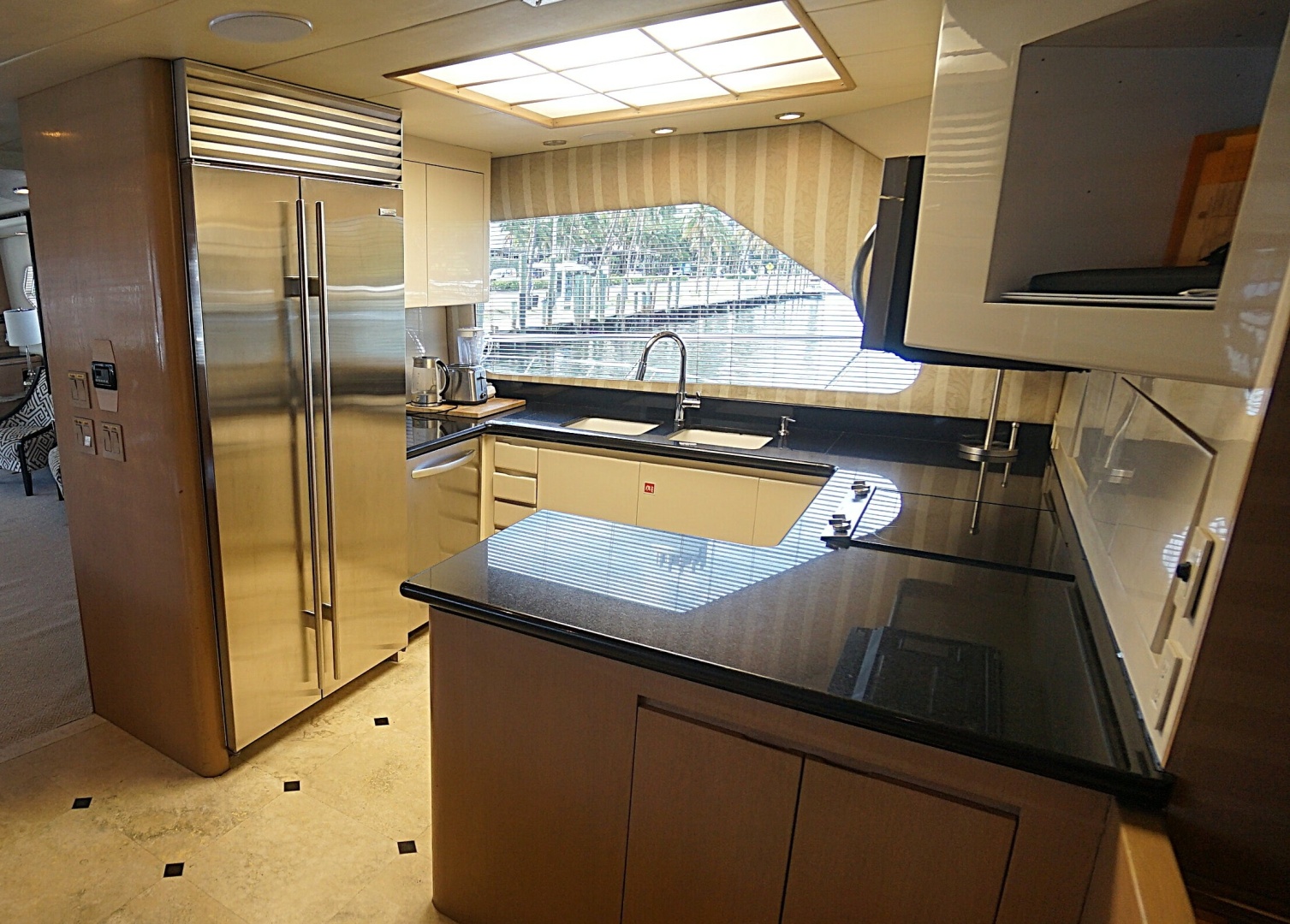

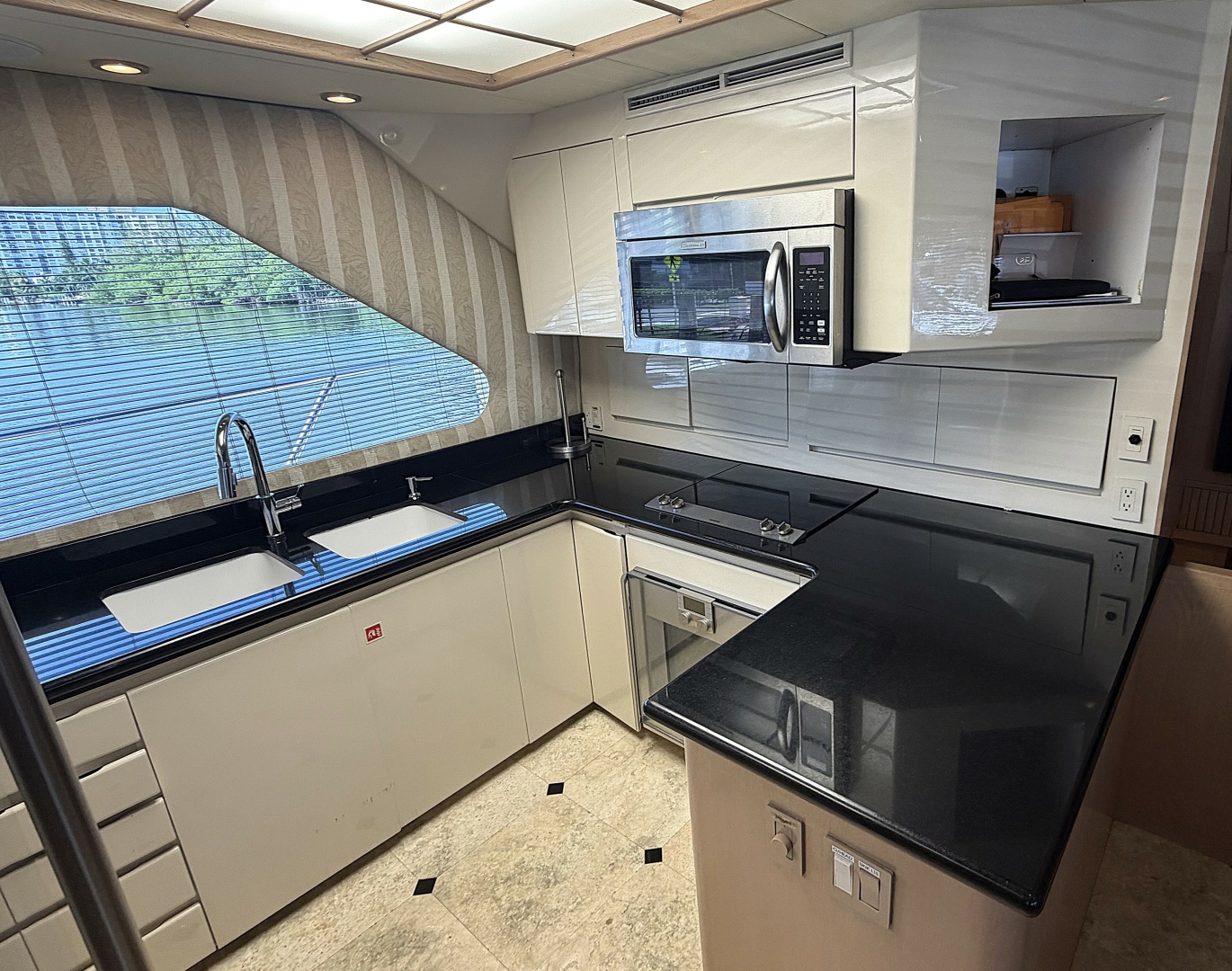

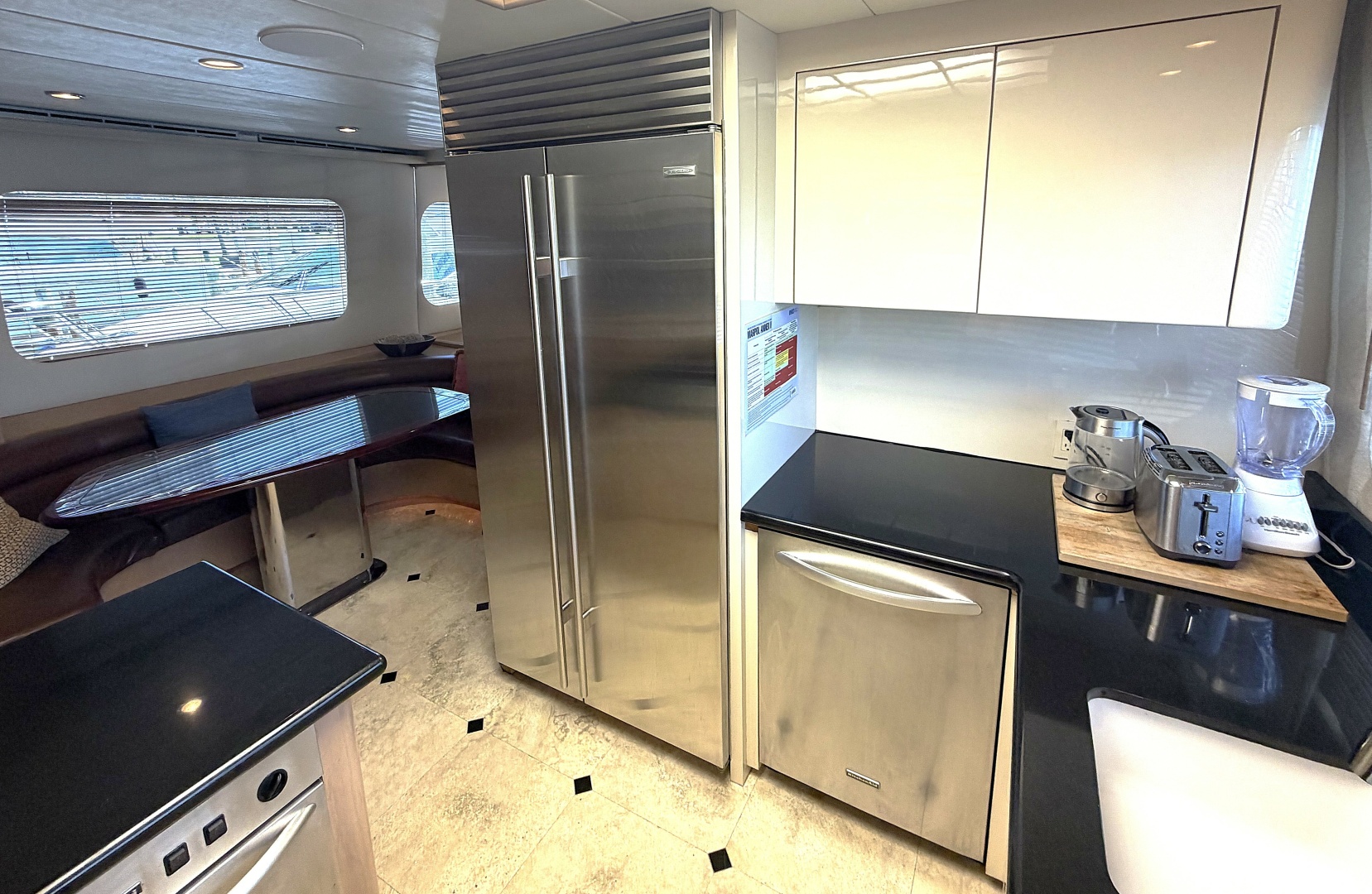

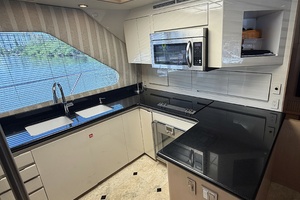

Main Galley Cooking Equipment

(1) 24" Gaggenau BI SGL oven

(1) 24" Gaggenau electric cooktop with 4 burners

(1) Kitchen Aid microwave oven

(1) Kitchen Aid 2.0CF microhood combo

Refrigeration/Freezer:

(1) Sub-Zero refrigerator/freezer

(1) 18" Kitchen Aid icemaker

Dishwasher: (1) 24" Kitchen Aid dishwasher

Other:

(1) Double recessed sink

(1) In-Sink-Aerator garbage disposal

(1) Kitchen Aid trash compactor

(1) Large pantry

(1) Kitchen Aid icemaker – Salon

5.2 Crew Galley/Mess Equipment

Cooking Equipment: (1) Panasonic microwave

Refrigeration/Freezer: (1) Scotsman icemaker

Additional Galley Equipment

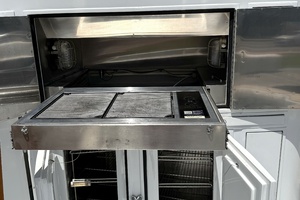

Cooking Equipment: (1) Pull-out Kenyon electric grill – New 2026

Refrigeration/Freezer:  (1) Front-loading refrigerator/freezer – Cockpit

New compressor

Other:  (1) Wet bar with sink & storage – Aft Deck

Laundry Equipment

Main Laundry Equipment:

Whirlpool Stacked Washer and Dryer (Replaced) – Guest hallway

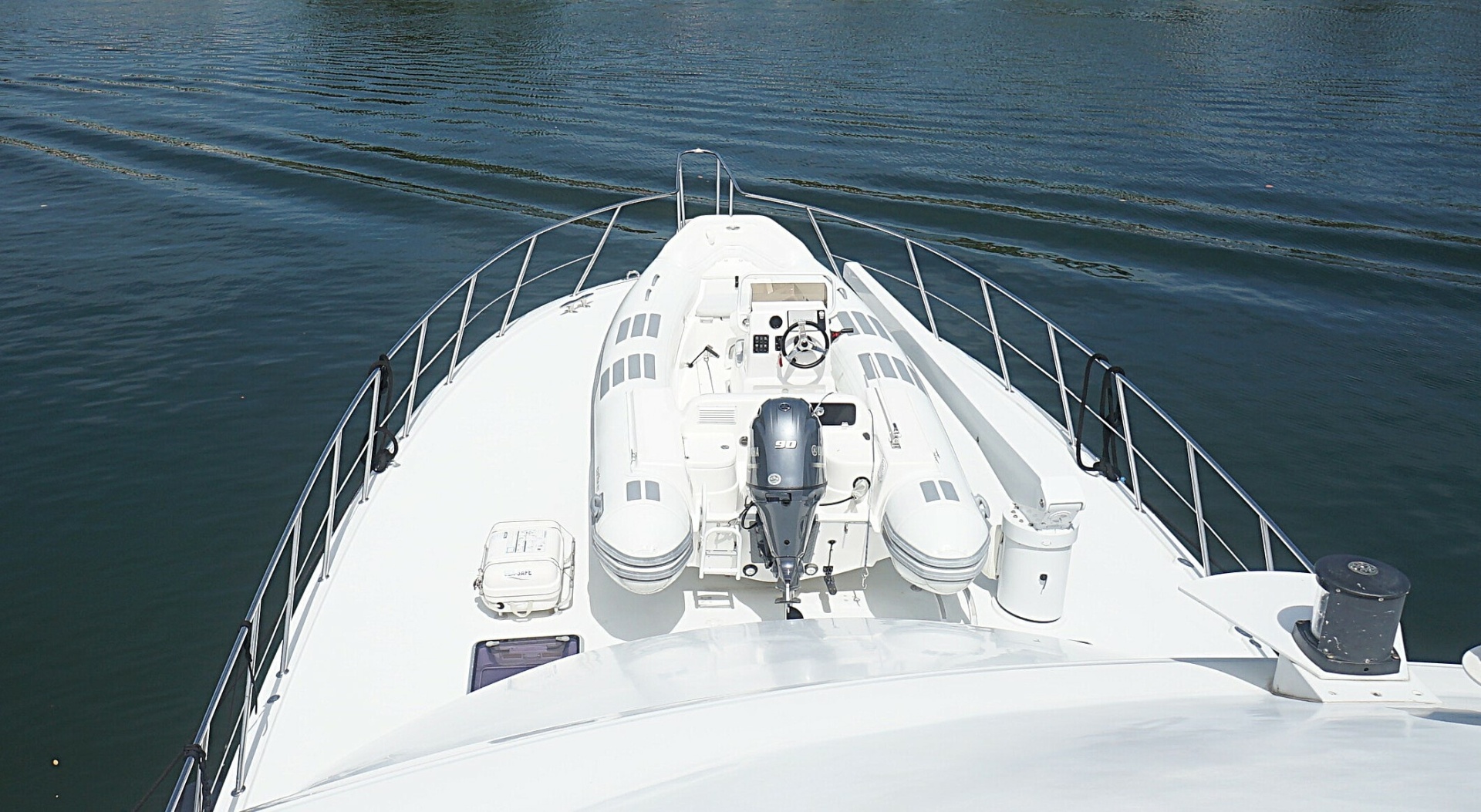

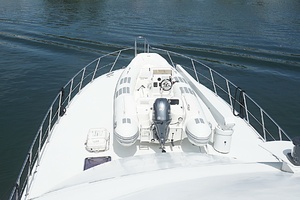

Tenders: (1) 17” DL Caribe with Yamaha 90 Hp, 2023 - (Excluded)

Anchor Windlass System: Maxwell 4,500 windlass

Anchors: (1) Anchor

Anchor Chain: 200’

Boat Crane and Davits: MarQuipt 2,500 lb. low profile davit

Swimming Platform: Yes, with ladder

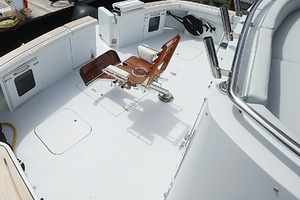

Fighting Chair: Side mounted

Outriggers: Rupp

Live Bait Wells:

Pull-outs in each corner of Cockpit

Fish box in Cockpit Deck

Security Equipment

CCTV System: Garmin with Tera Rated

Cameras: (9) Cameras

Monitors: (1) Monitor

Fire Fighting Equipment

Fire Control System: Automatic

Fire Extinguishers:

(2) 300 LD FE 36

(2) ABC Dry Chemical handheld

Air Ventilation: Engine Room

(4) Delta T Systems supplies marine-grade 230V AC axial supply fans with fire dampers

Safety Equipment

Life Rings: (2) Life rings

Flares: (1) Flare in box

Other:

(2) ACR RCL-100 LED Searchlights with controller

Dual air horn

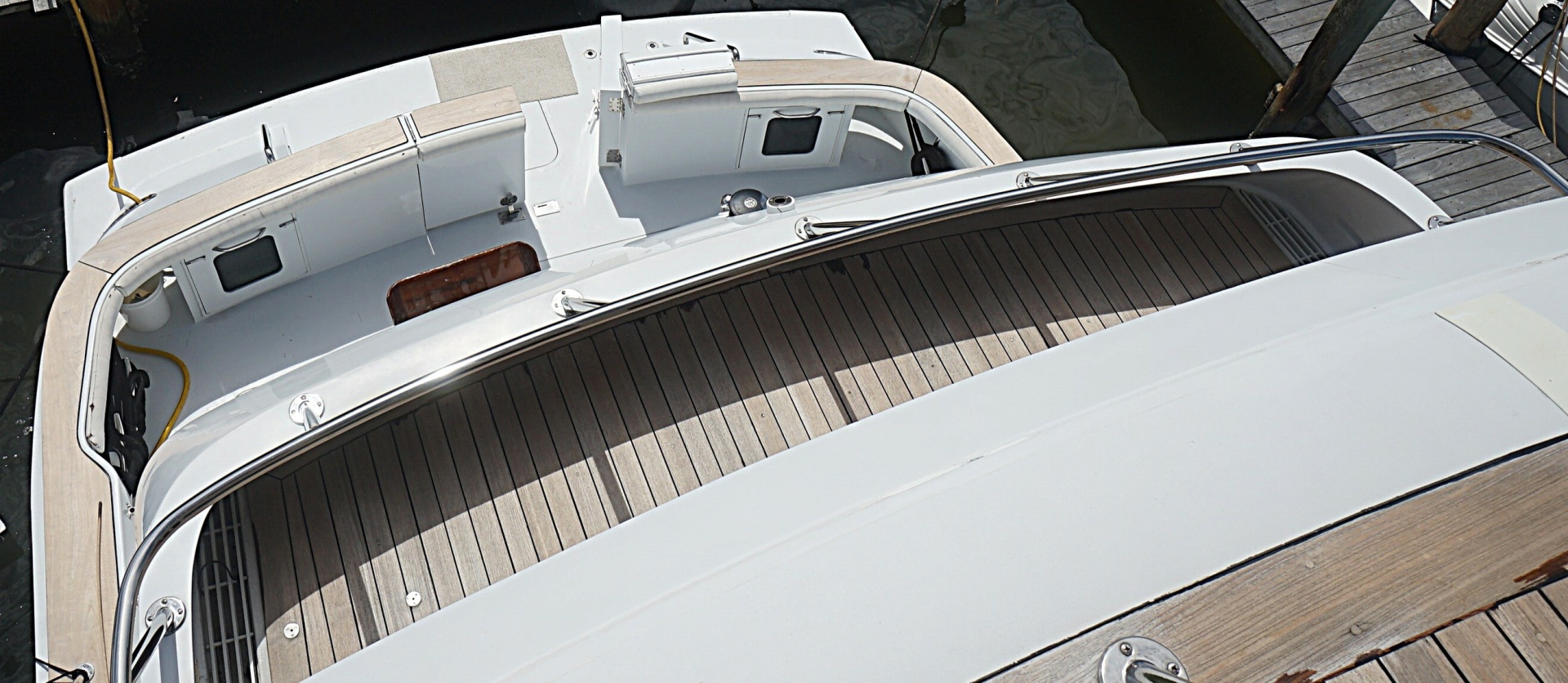

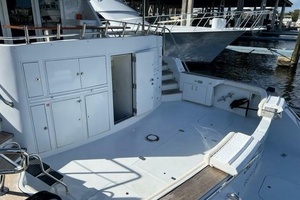

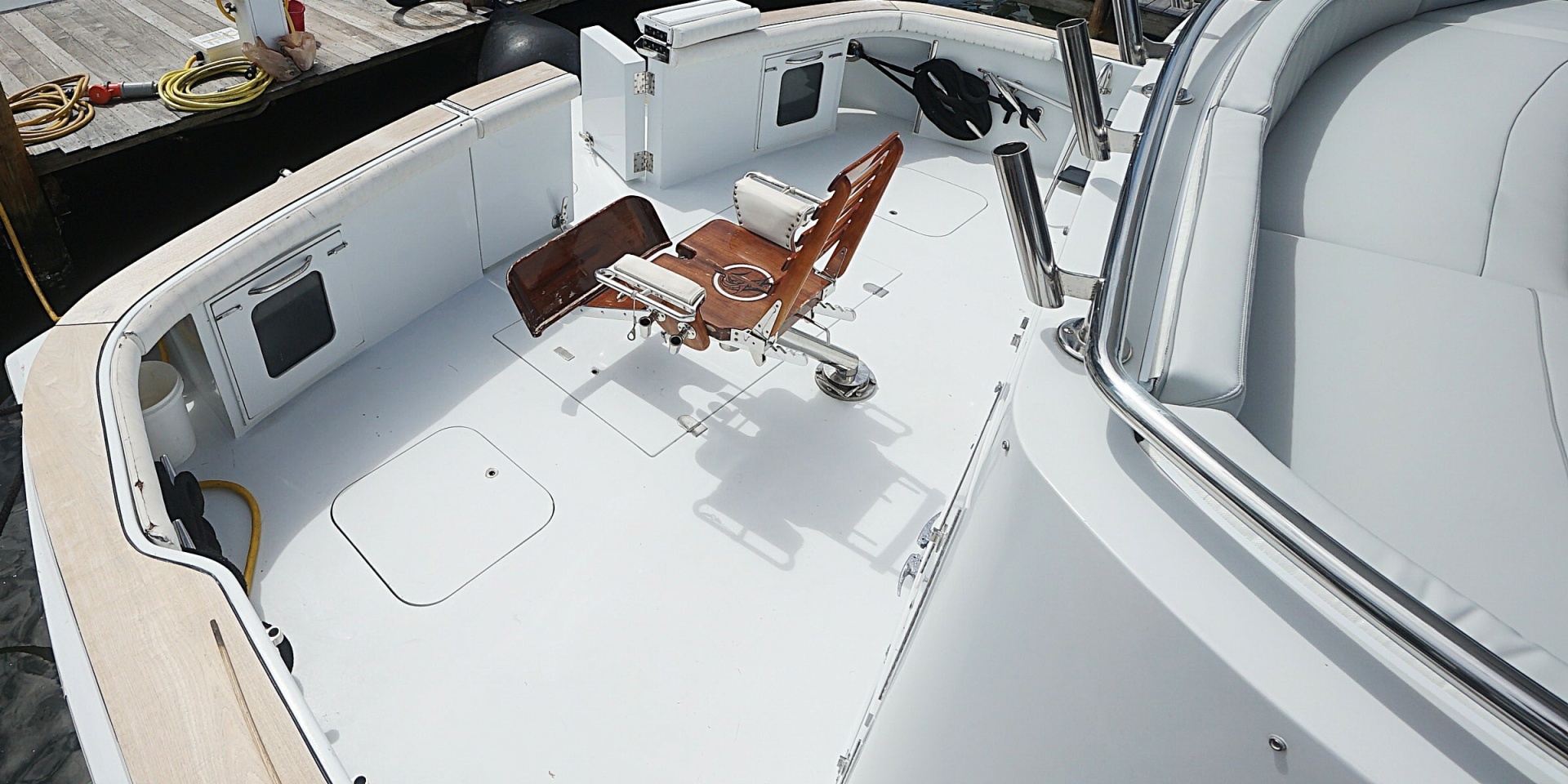

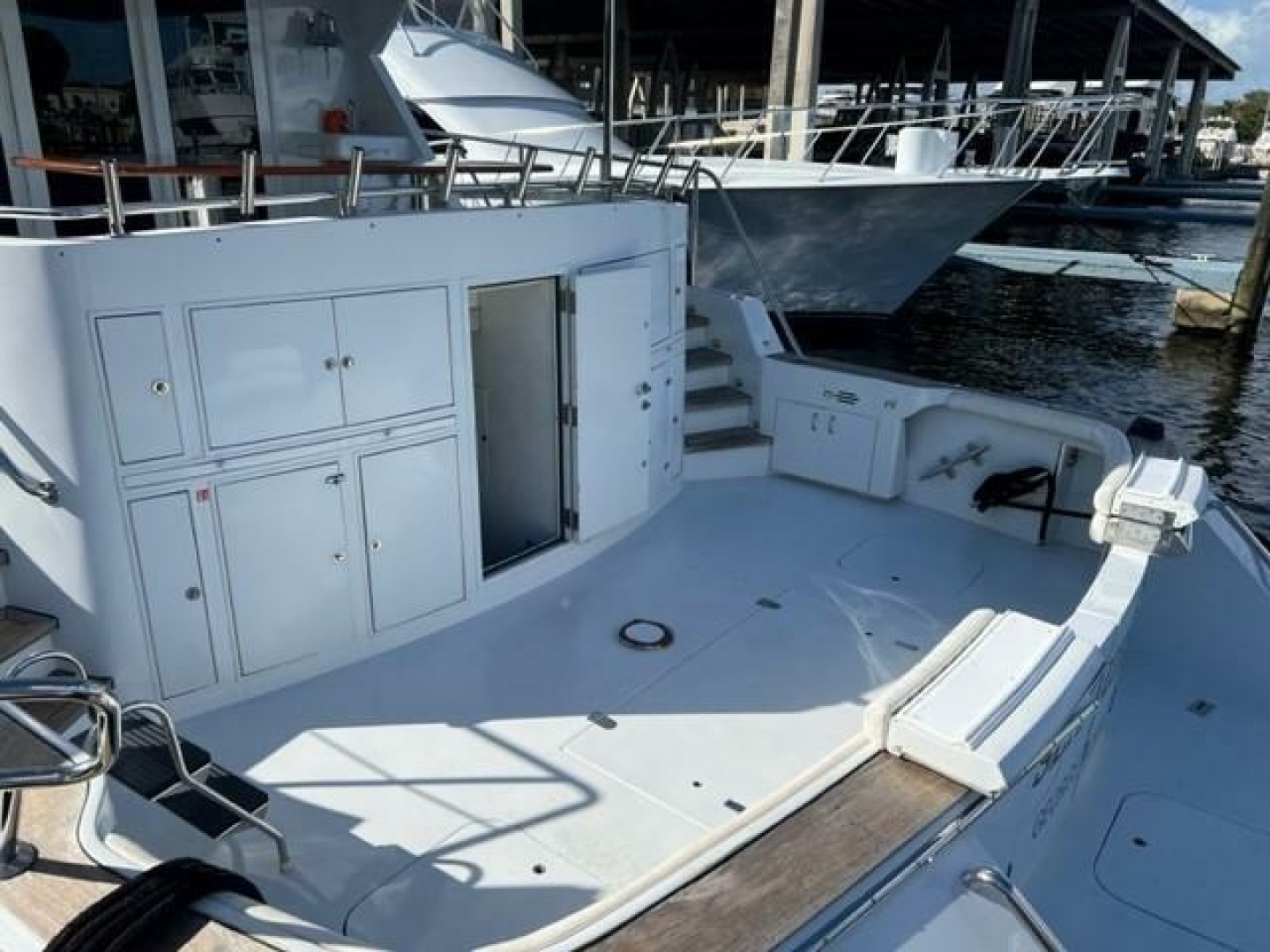

  COCKPIT

•   Molded Live Bait Wells in Transom

•   Transom doors

•   Storage cabinets with (2) sets tackle drawers

•   Fish box in deck

•   Cockpit coaming lights

•   Swim platform with ladder

•   Seawater and freshwater wash-down

•   Front-loading refrigerator/freezer with new compressor

•   Access door to engine room and crew quarters

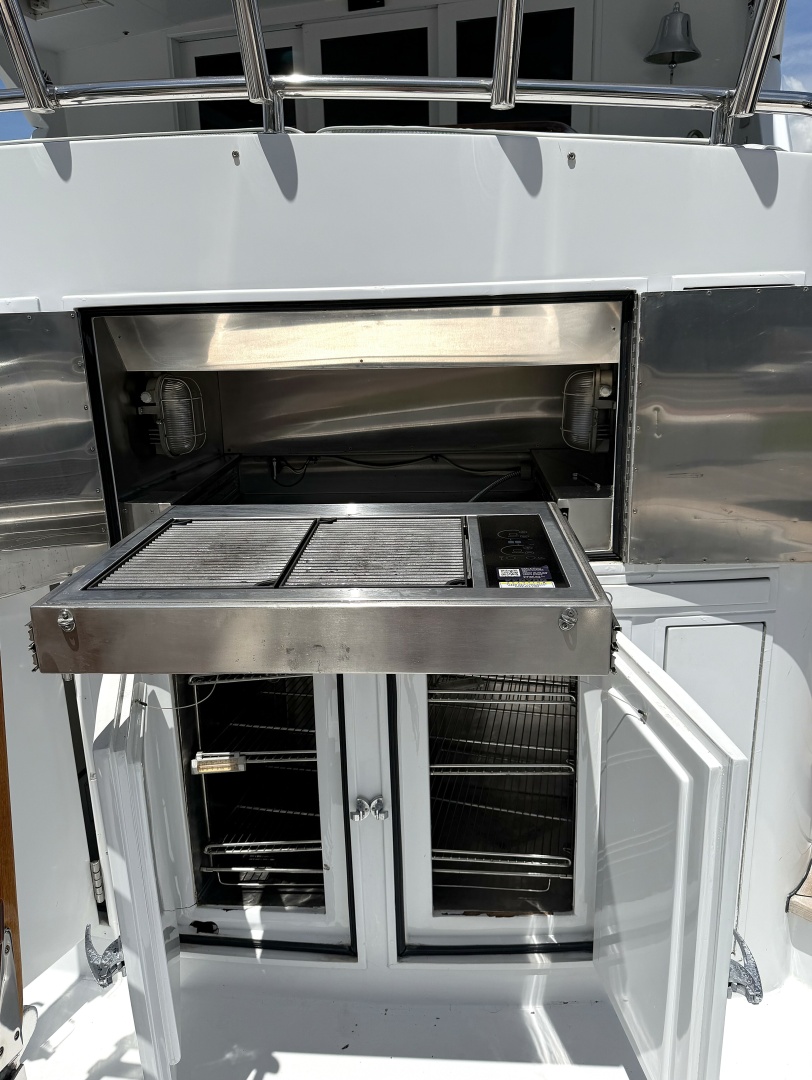

•   Pull-out electric grill

•   Teak coaming

•   Fiberglass non-skid deck - New 2023

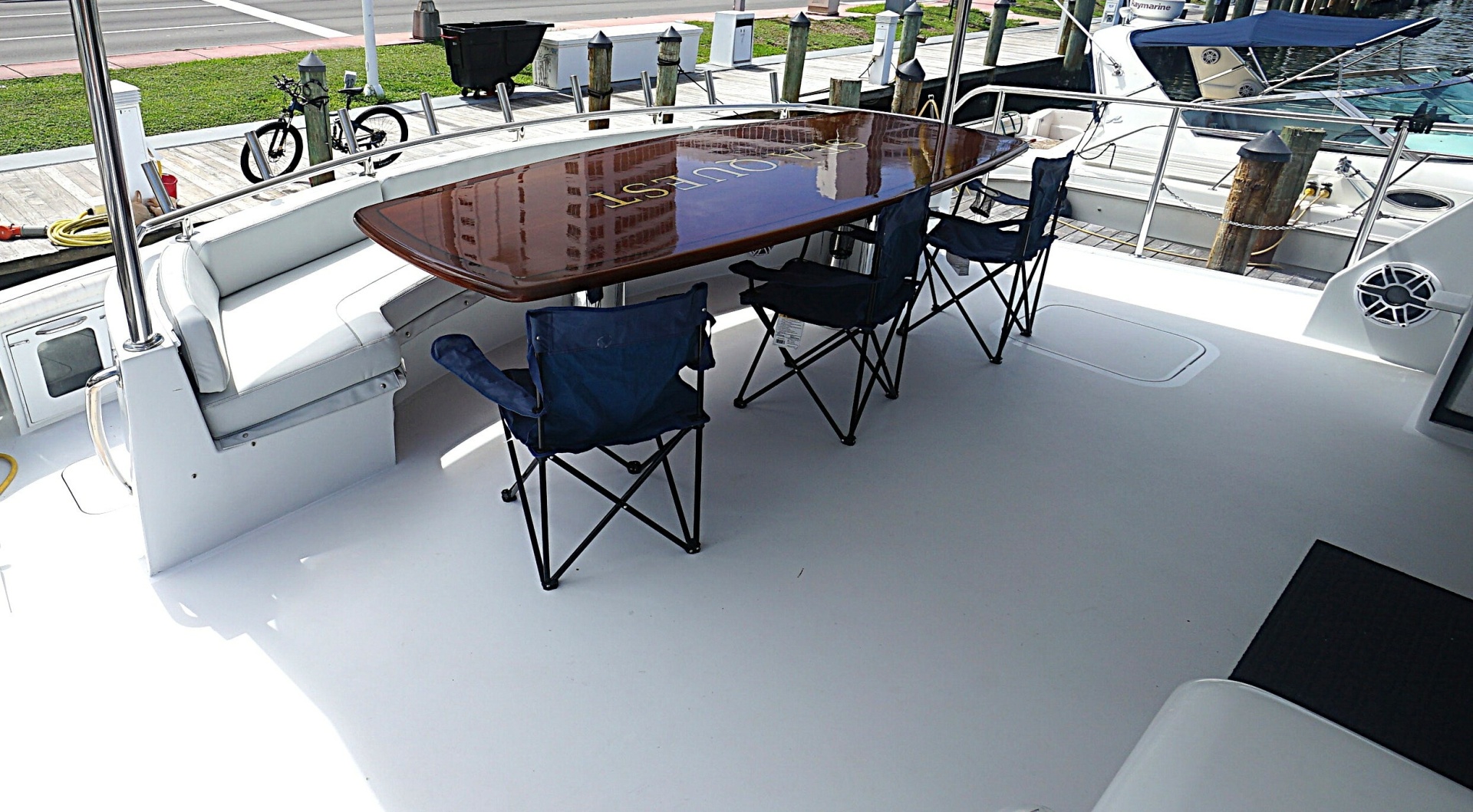

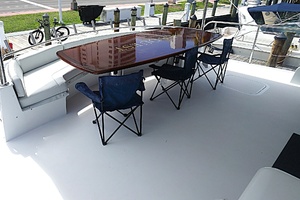

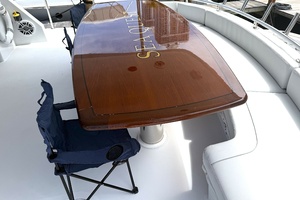

LOWER AFT DECK

•   U-Shaped bench seating with new cushions - 2026

•   Overhead speakers - 2026

•   (4) Folding chairs

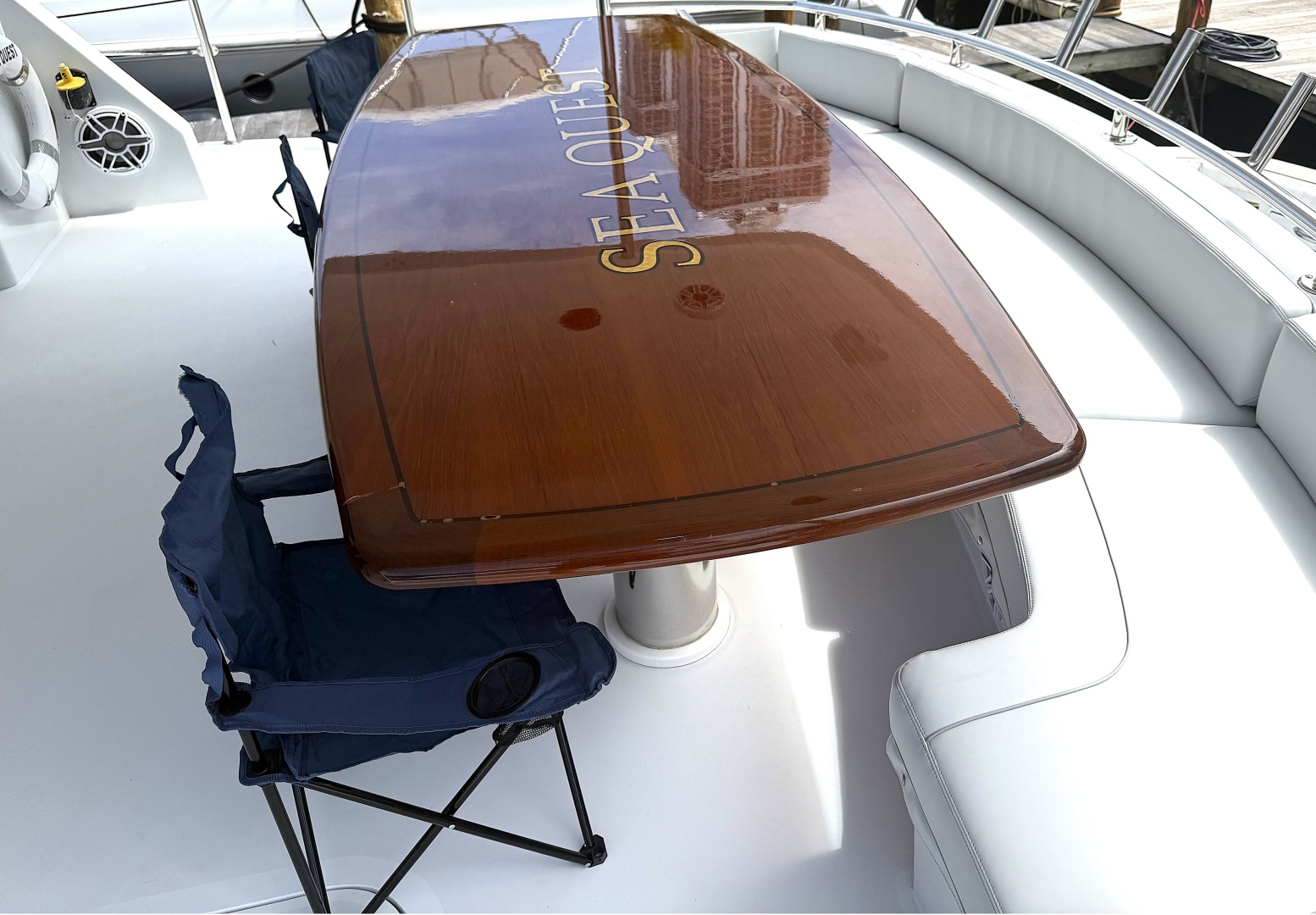

•   Murray Brothers hi-gloss bow-shaped teak table

•   New non-skid decks – January 2023

•   Fold-down ladder to bridge

•   Wet bar with sink and storage to starboard

•   CCTV security camera

•   Rocket launcher with (9) rod holders

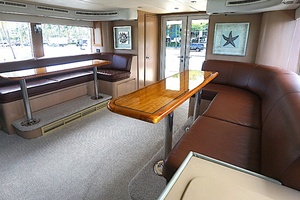

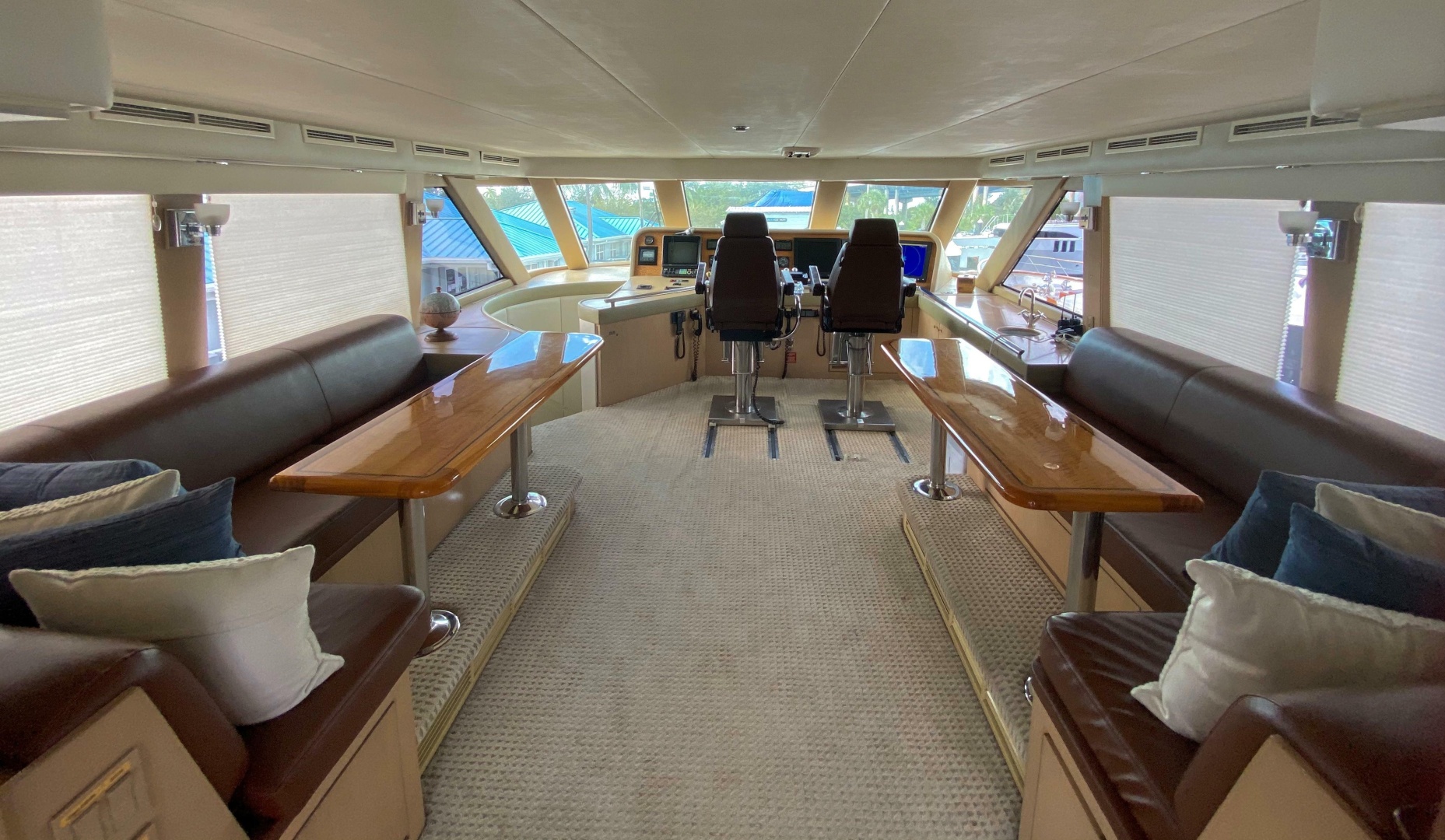

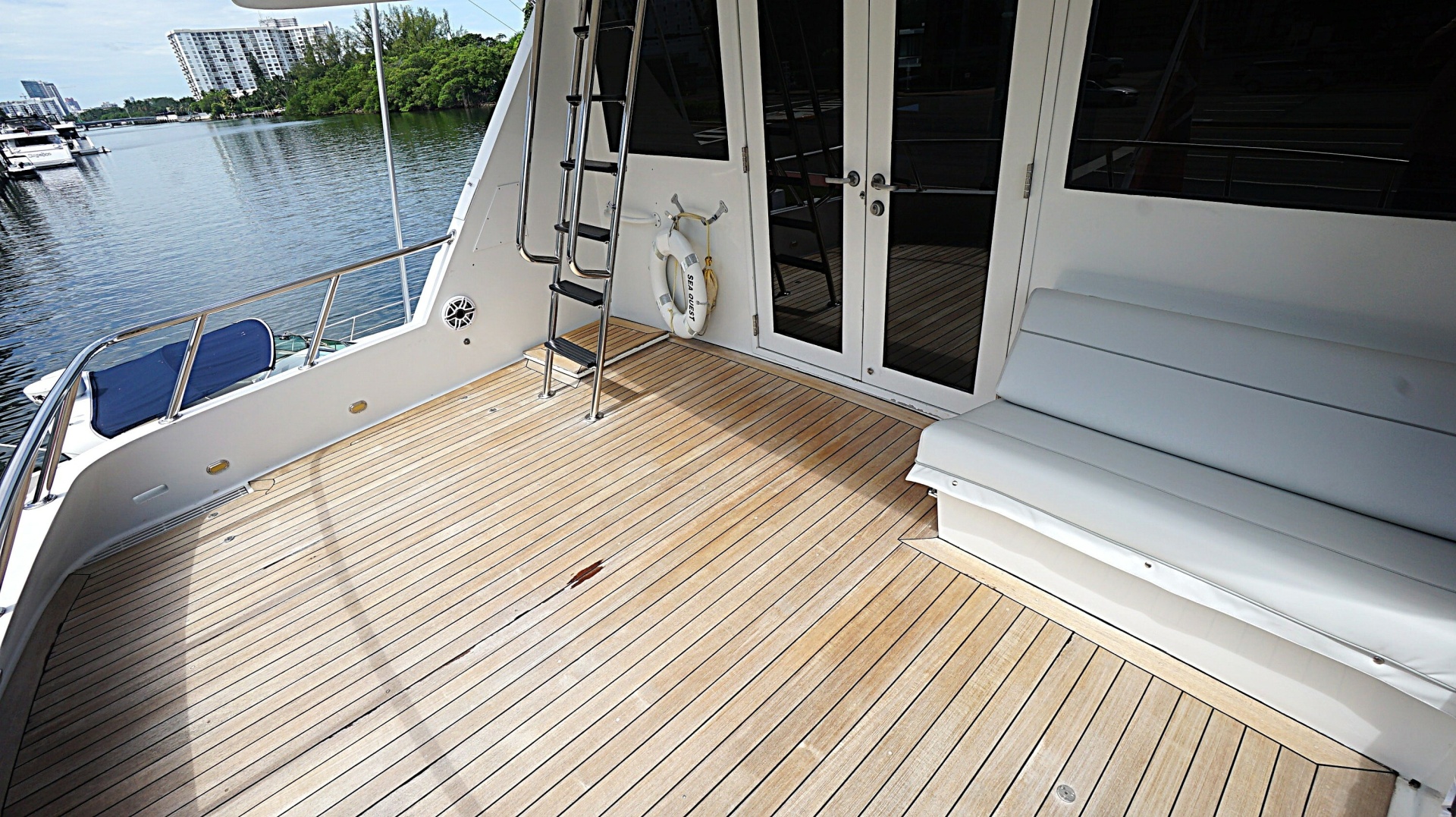

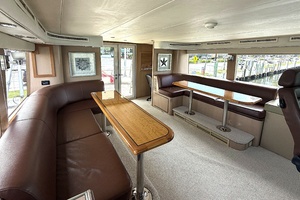

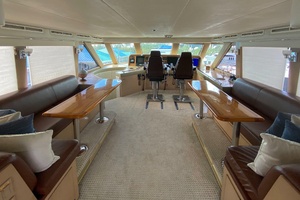

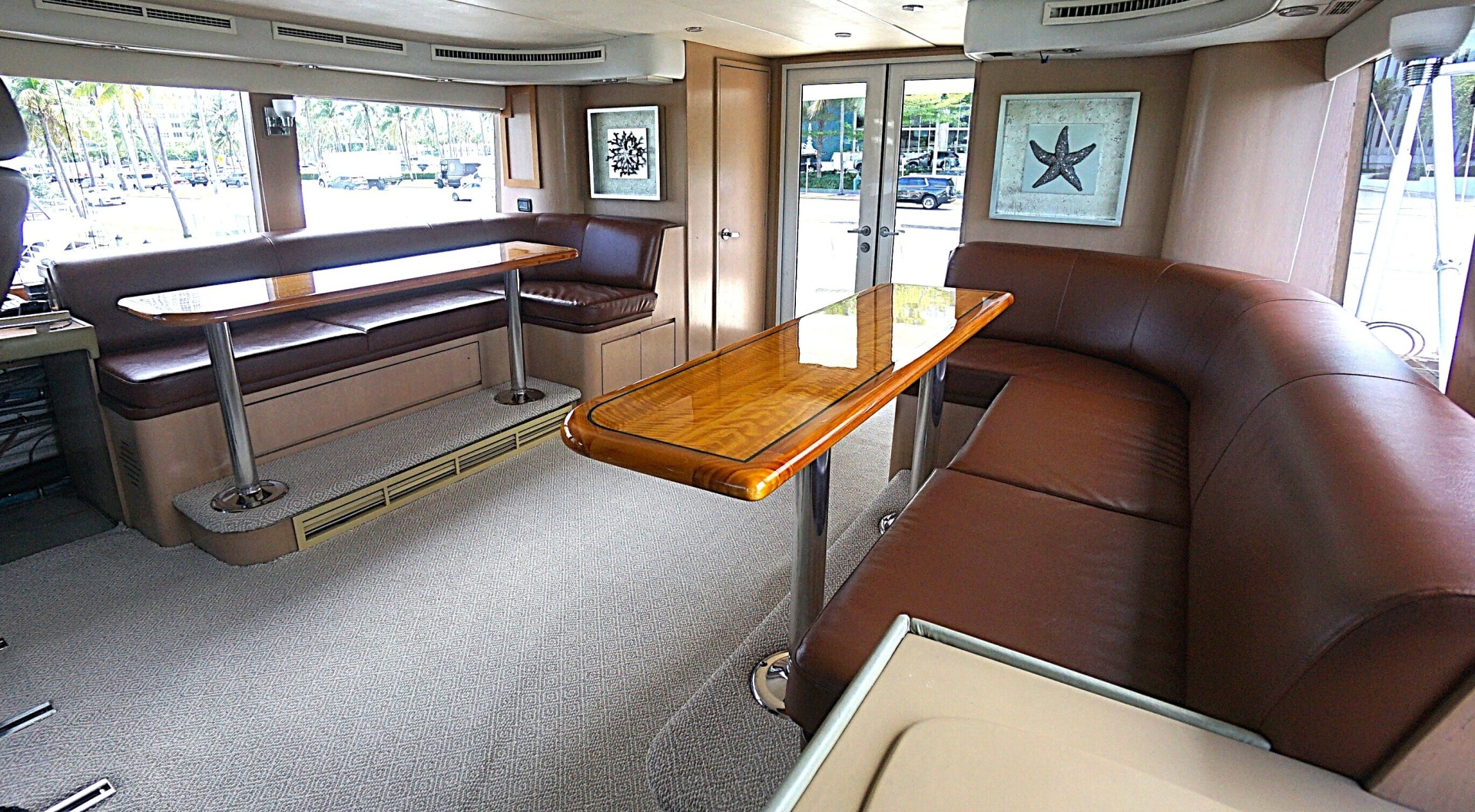

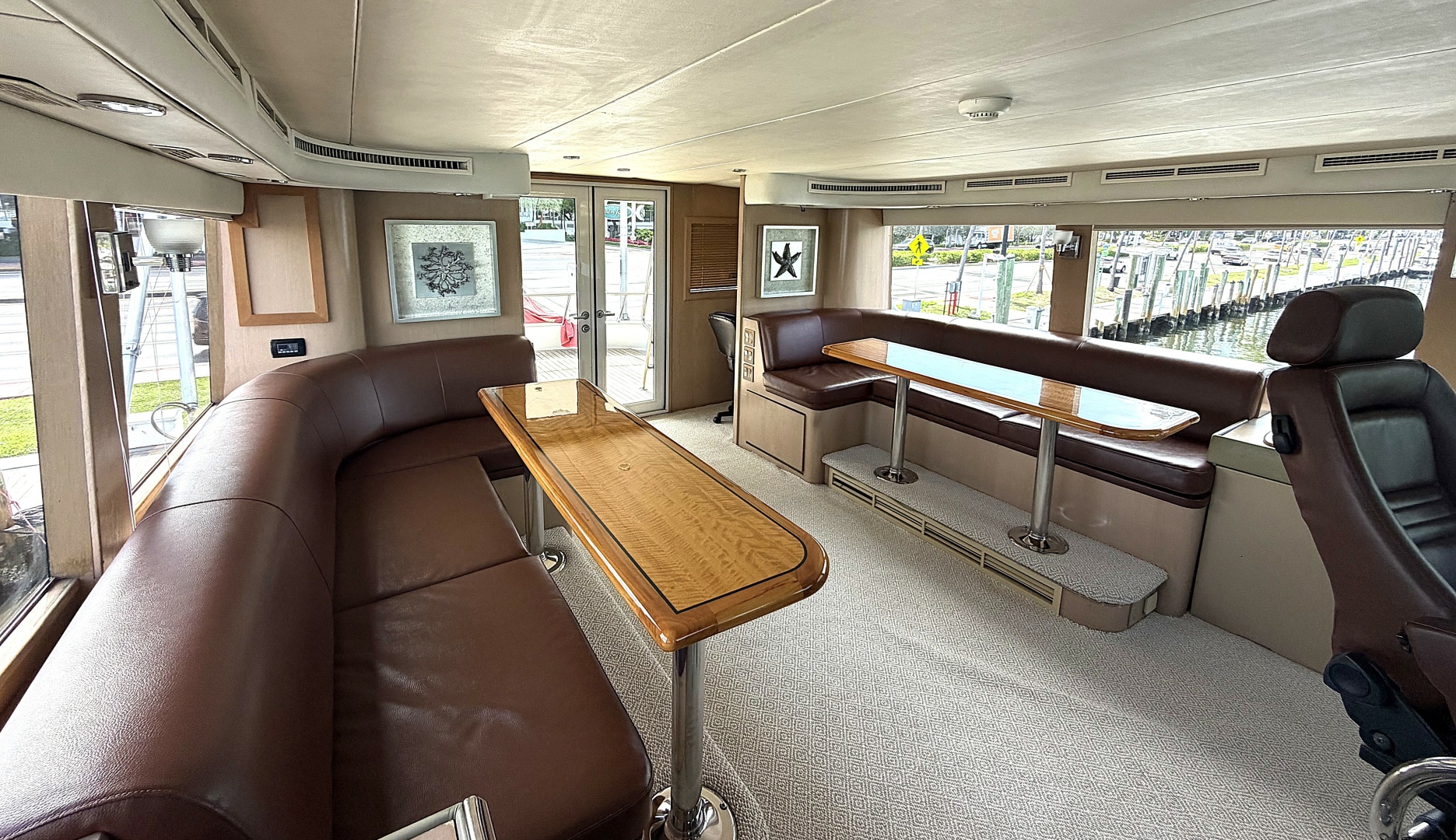

BRIDGE DECK / SKYLOUNGE

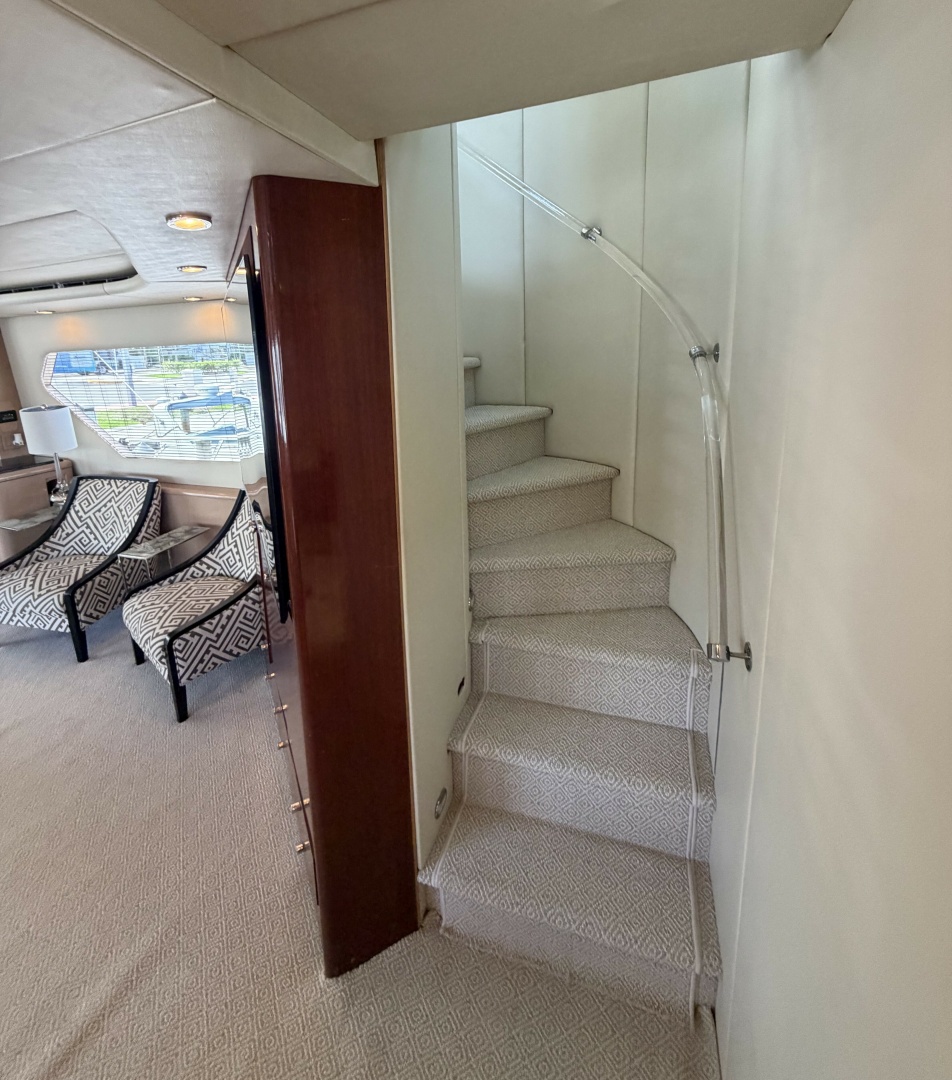

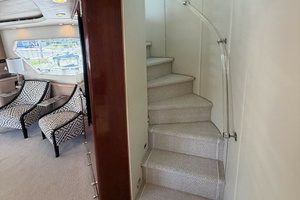

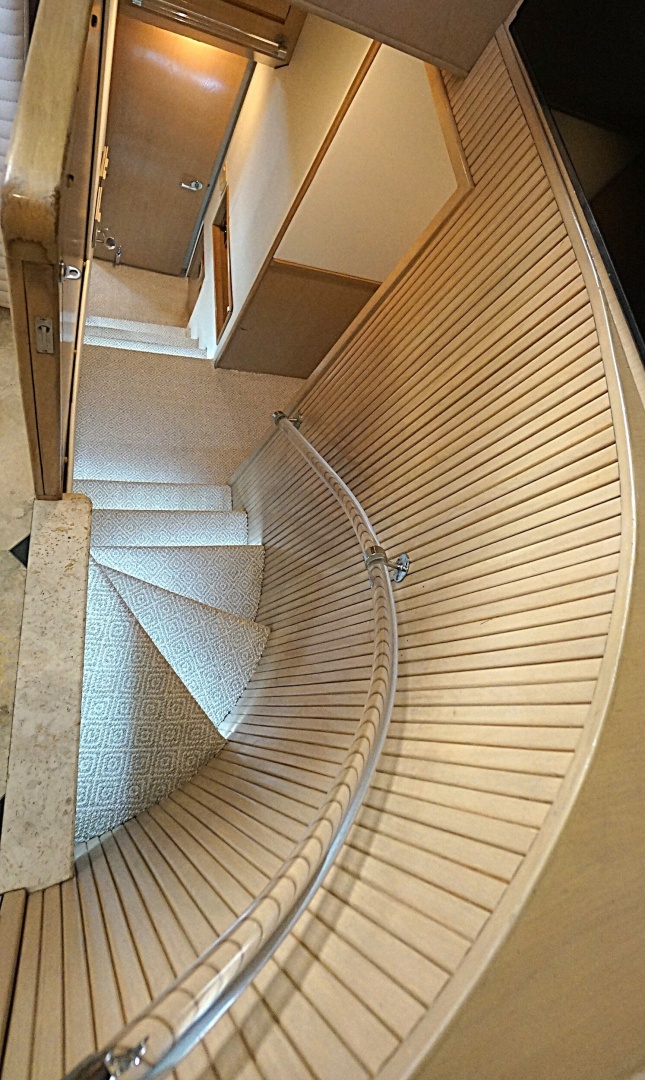

•   Curved interior staircase from Salon up to the enclosed Skylounge

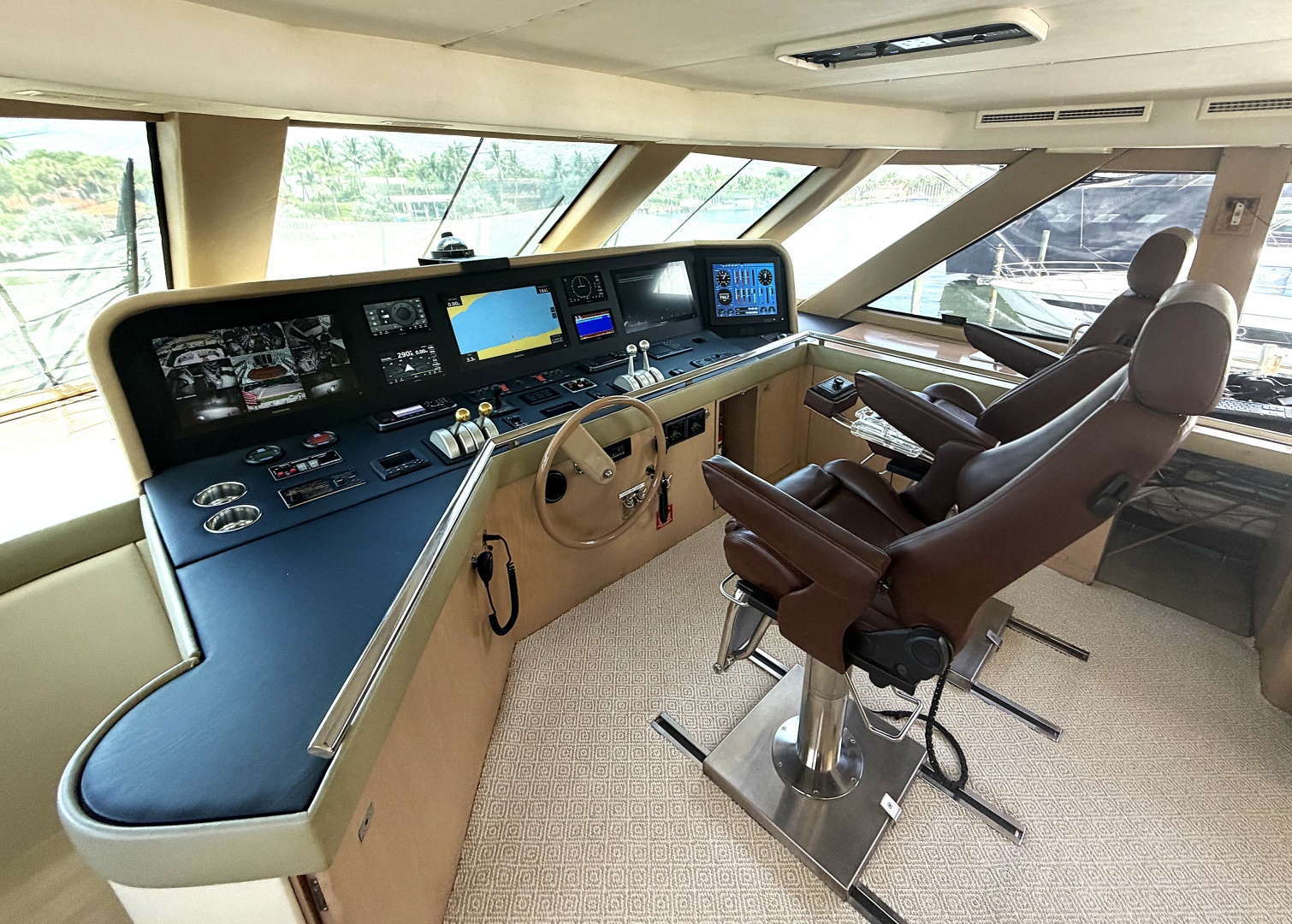

•   Full helm and navigation station, forward

•   Captain and companion leather helm seats

•   (2) Upholstered leatherette settees with raised tables, port and starboard

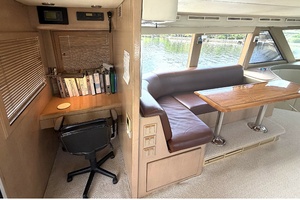

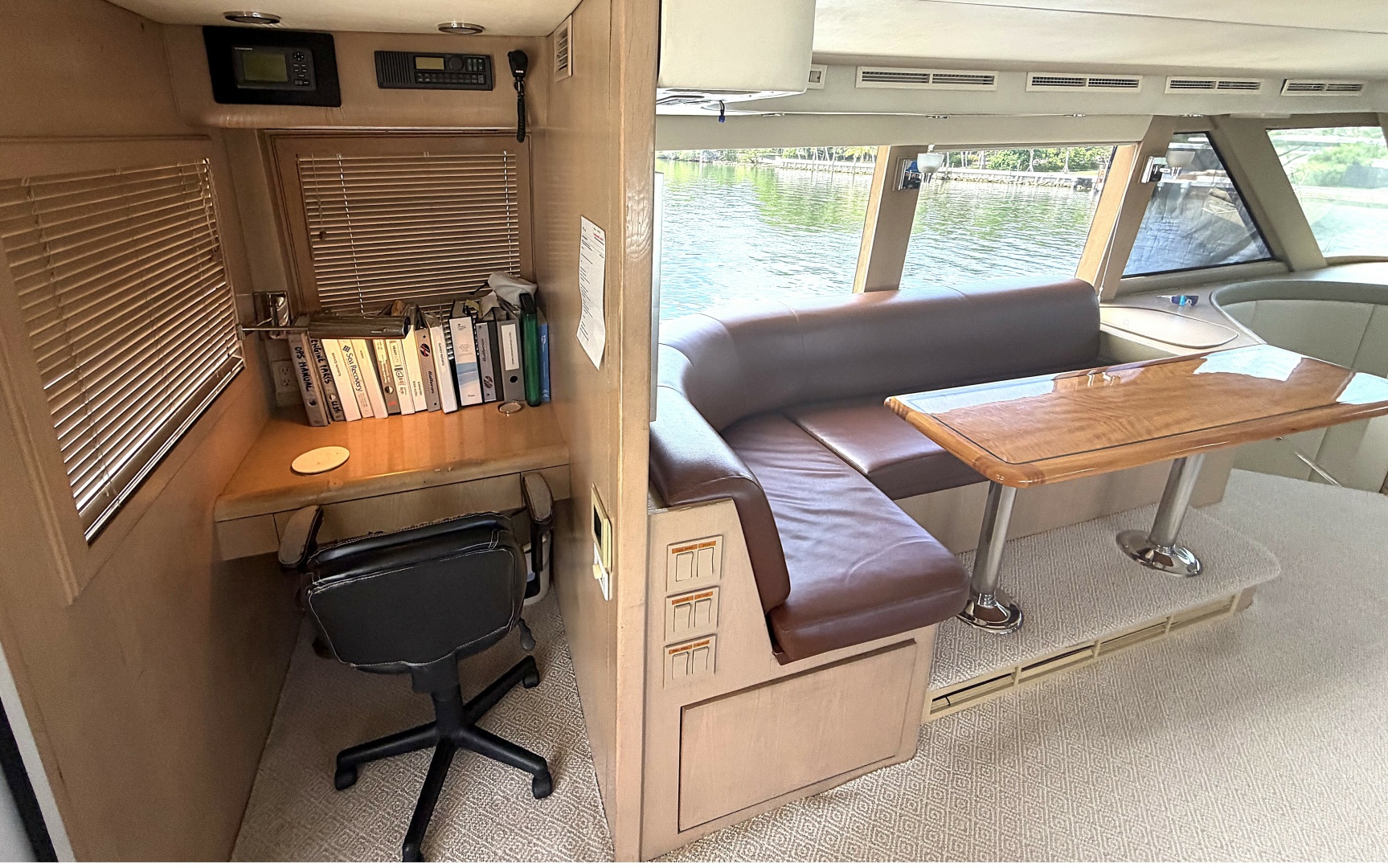

•   Captain's desk aft to port with chair, lamp, Icom VHF

•   Beige carpeting - 2016

•   Overhead soffit with lighting

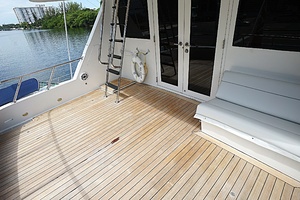

•   Double glass doors to the exterior Skylounge aft deck

•   Wet bar with sink and storage

•   On deck head with Corian vanity, mirror, wall covering, and Amtico flooring

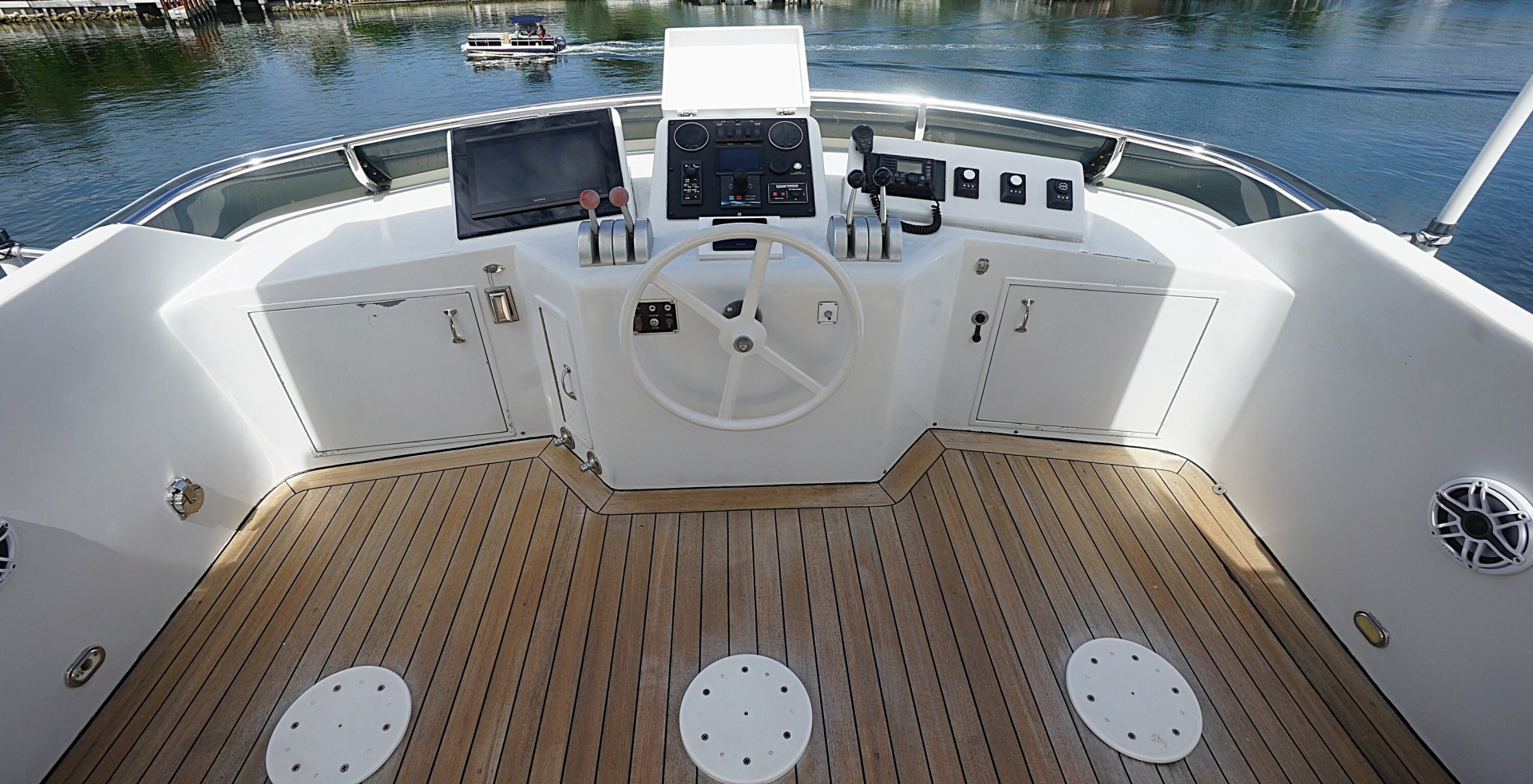

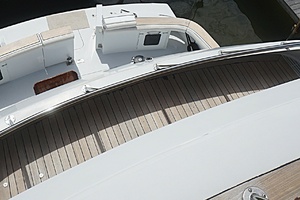

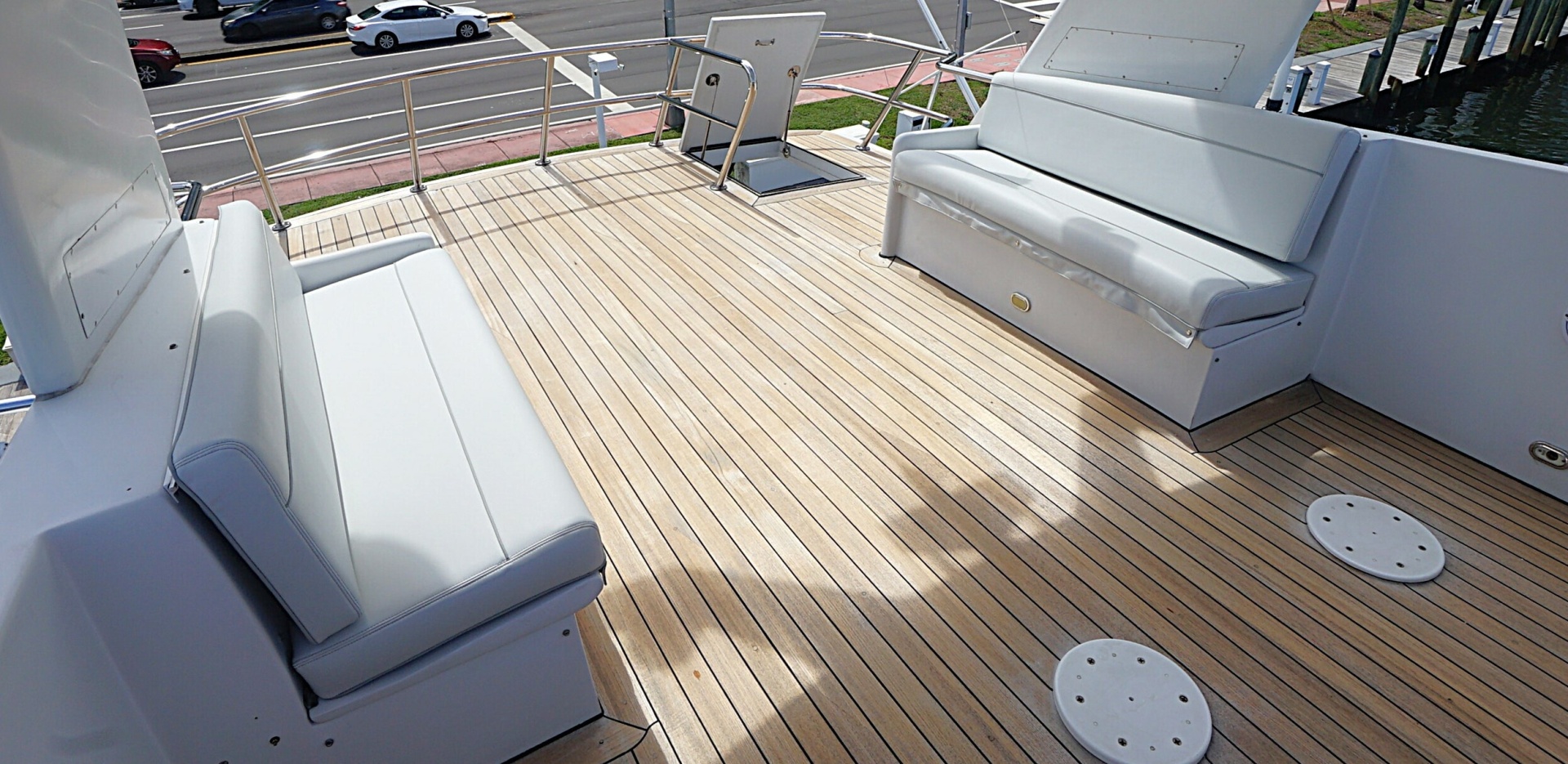

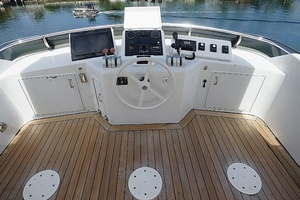

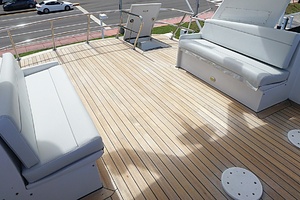

 FLYBRIDGE

•    Aft of the Skylounge through double glass doors to the Skylounge Aft Deck you will find the ladder up the Flybridge

•    Aft control station

•    Stainless steel ladder up to flybridge

•    Control station on flybridge with windscreen

•  Additional 2 sofas

•  Stainless steel rails and stanchions

•  Flybridge radar arch

OWNER

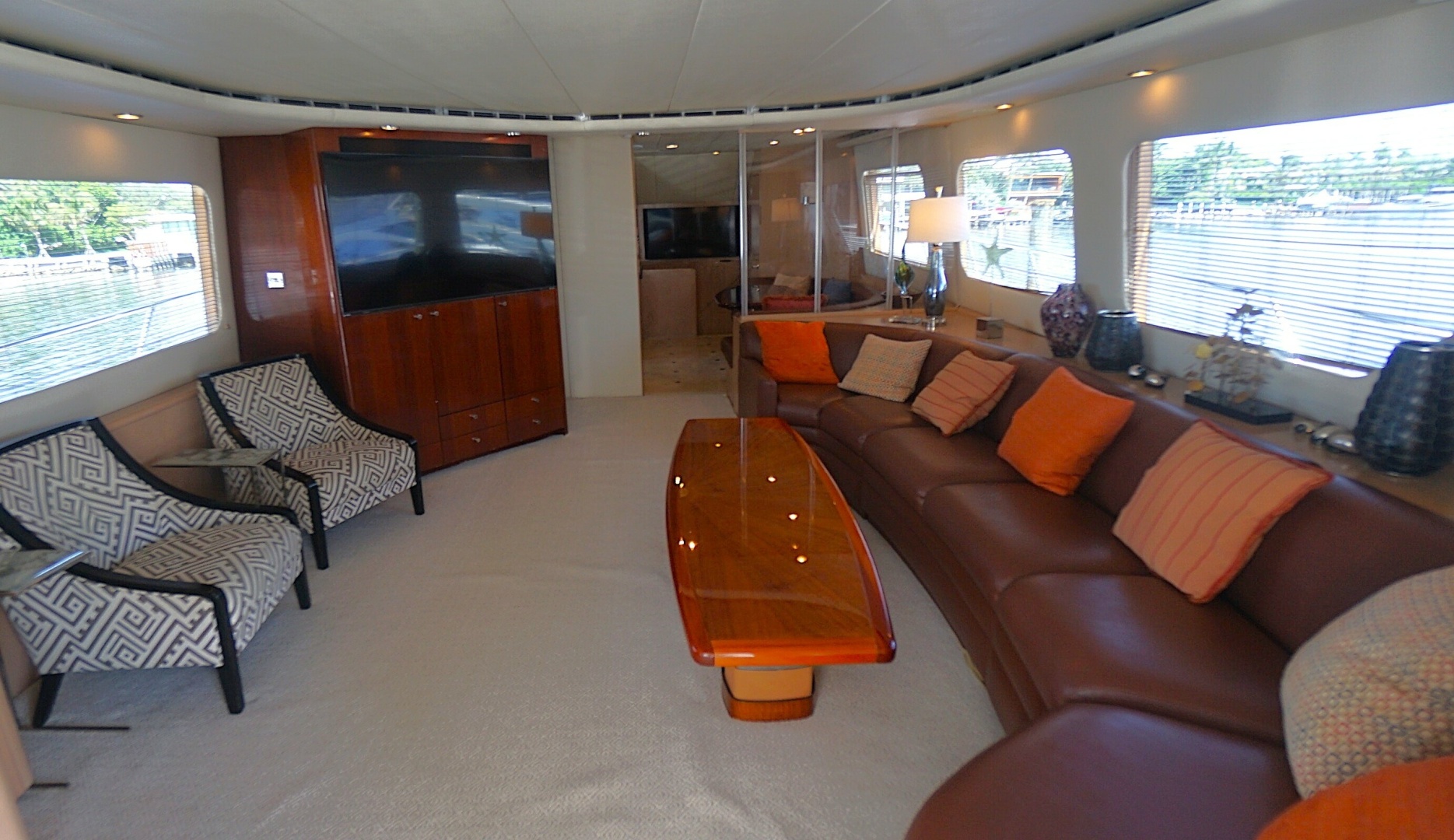

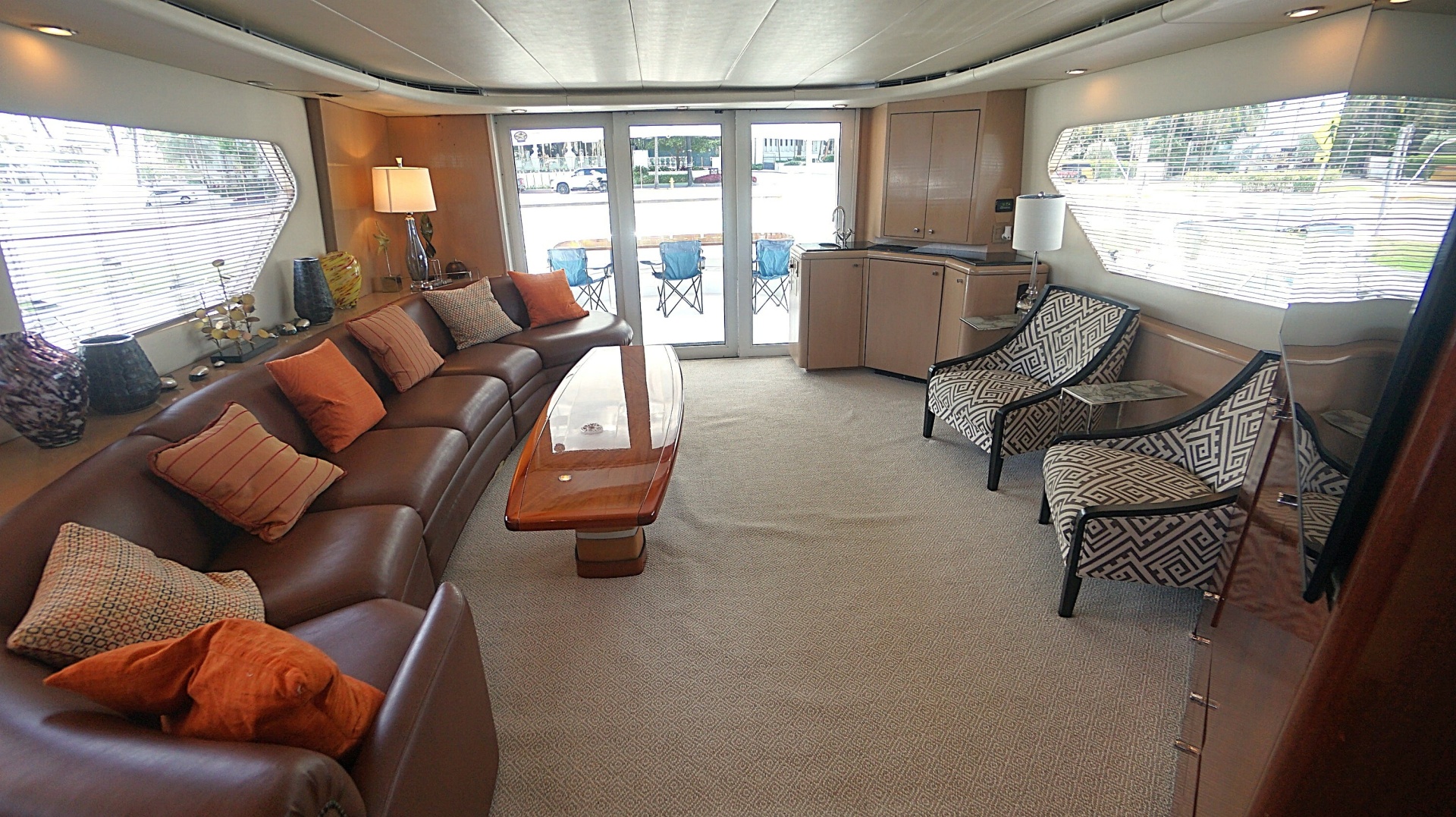

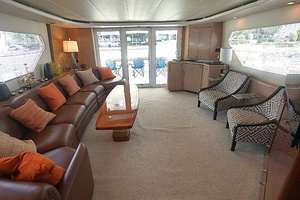

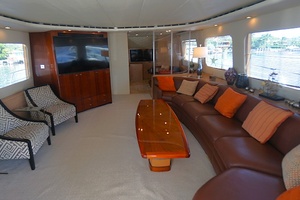

MAIN DECK SALON AND GALLEY

•   Large Salon

•    Oversized sofa

•    Large entertainment center

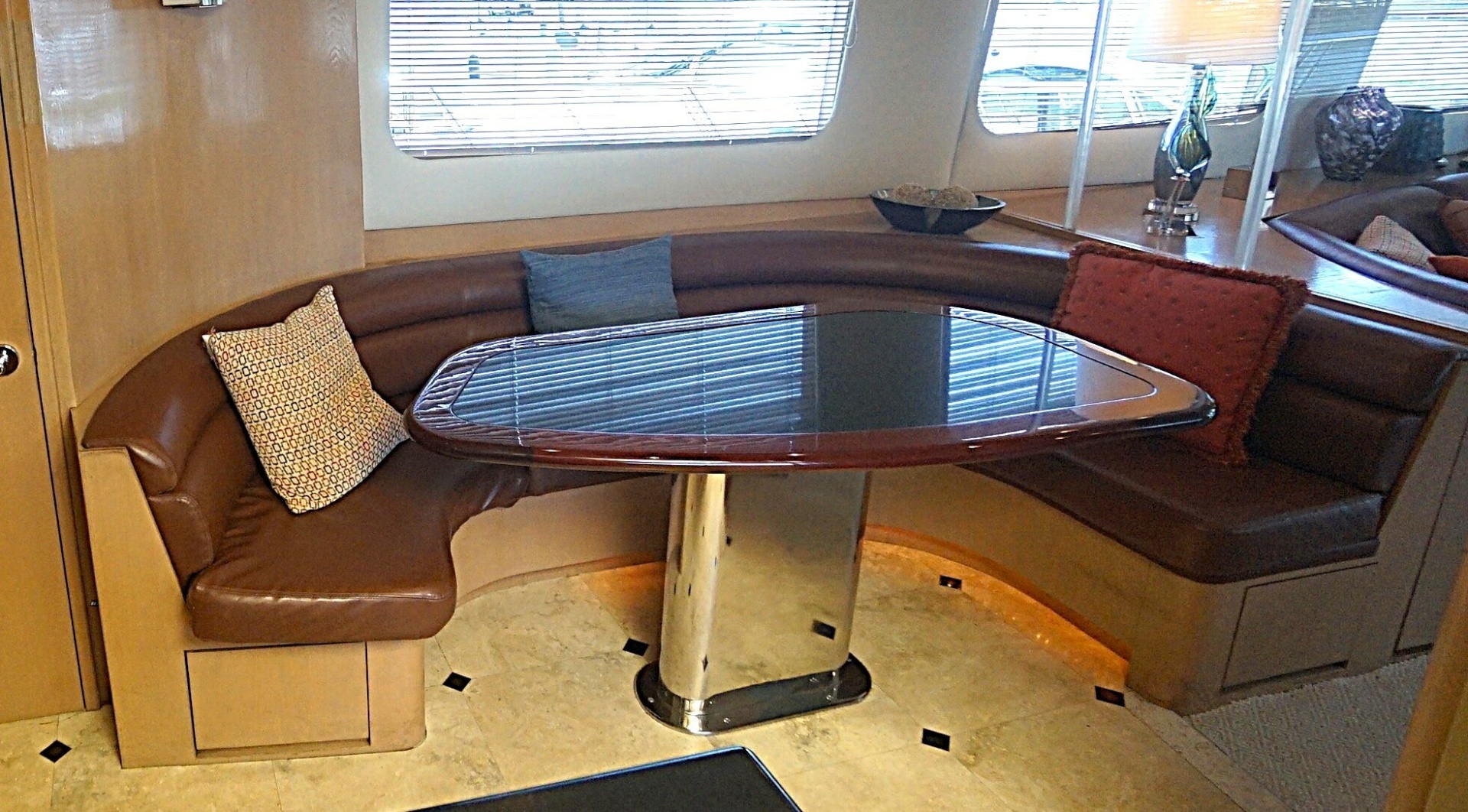

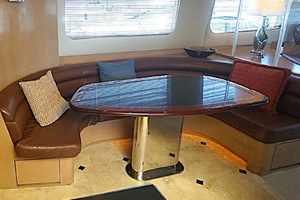

•    Dinette

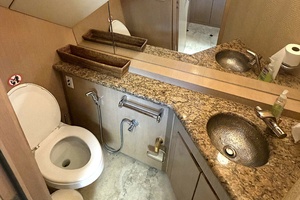

•    Day Head

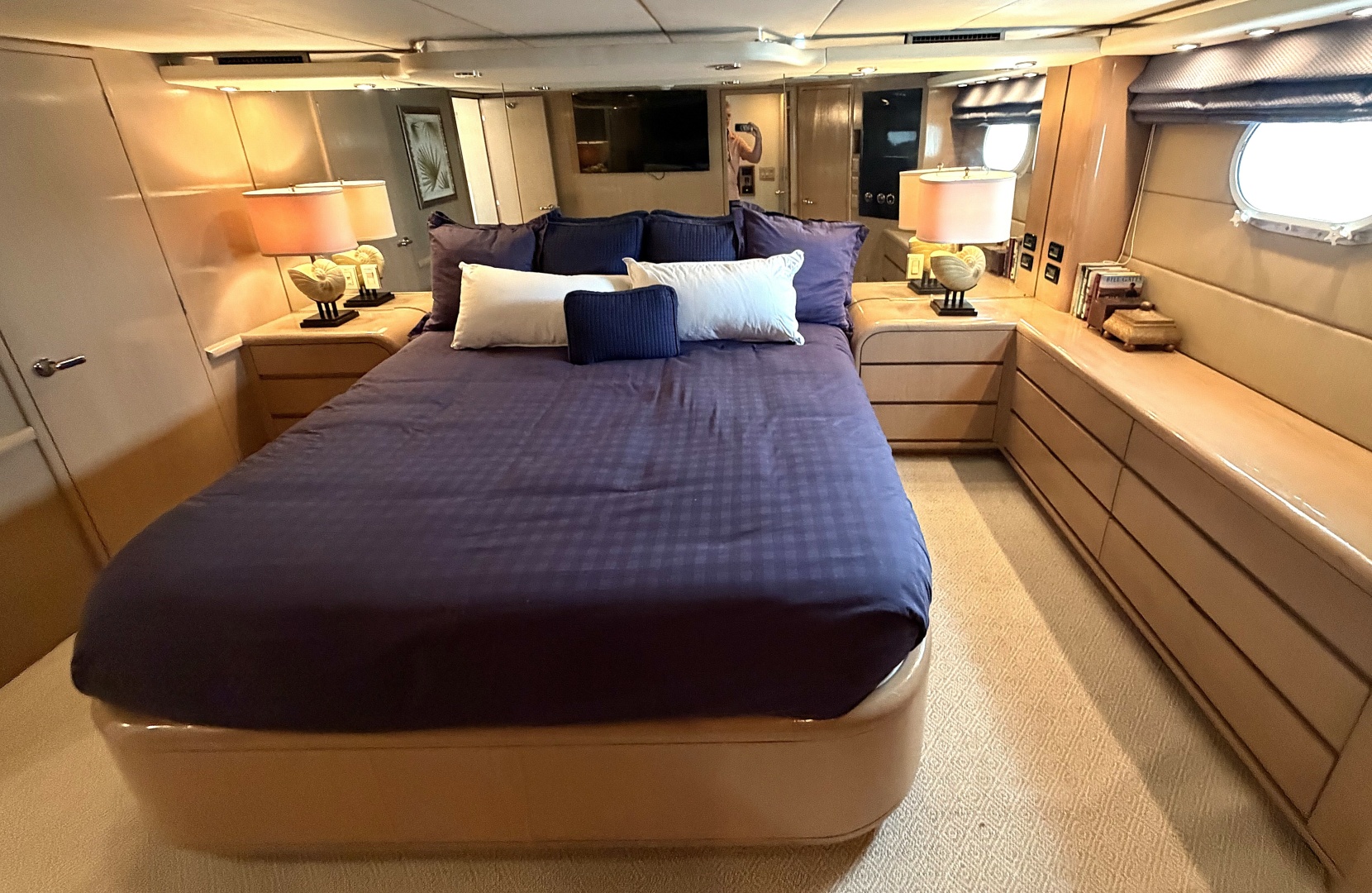

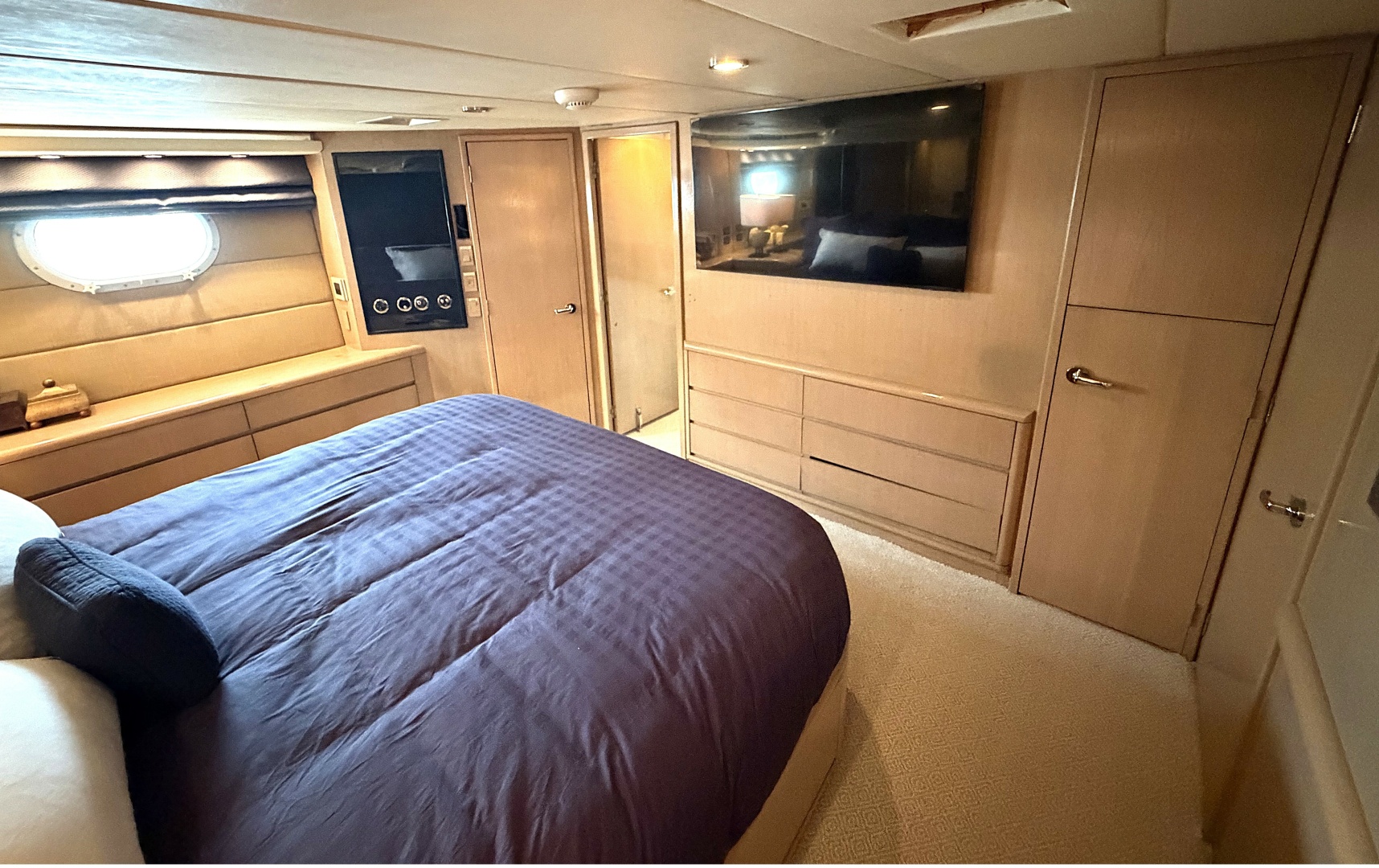

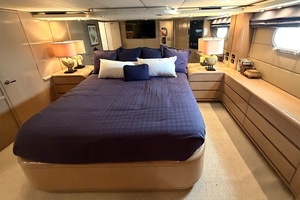

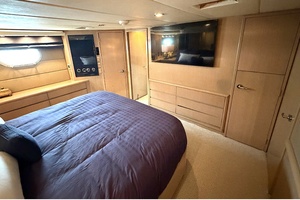

LOWER DECK MASTER STATEROOM

•   King-size berth with upholstered headboard and storage drawers below

•   (2) Built-in nightstands with (2) new shell lamps

•   Built-in dresser with ample drawer space

•   Zeno mattress

•   Mirrored bulkhead

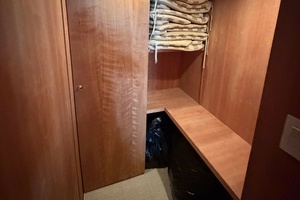

•   (2) Cedar-lined walk-in hanging lockers

•   Built-in safe in closet

•   Custom pleated Roman shades

•   CTM A/C controls

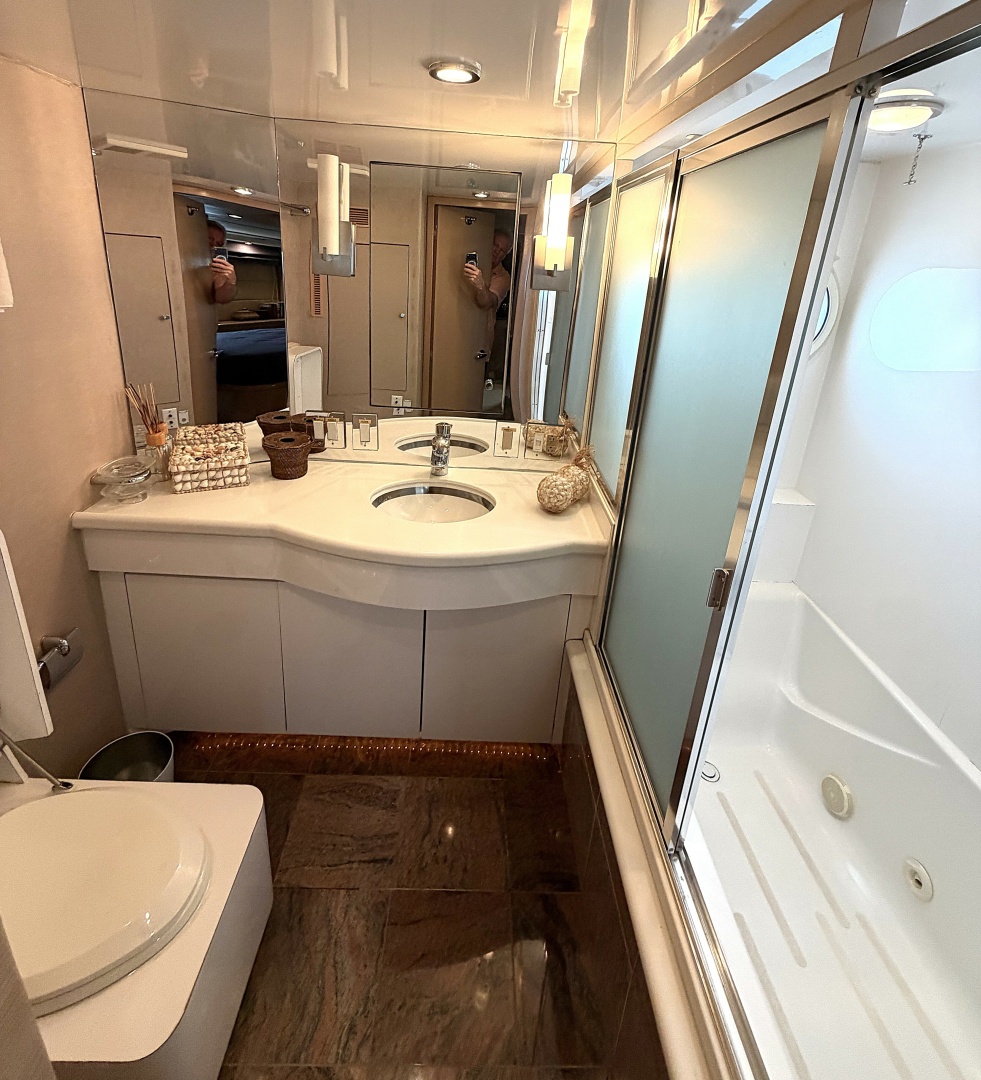

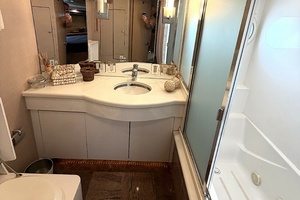

•   Private bath with marble flooring, Corian vanity top, Jacuzzi tub/shower enclosure, mirror, wallcovering and head enclosure

•   New Carpet - 2026

GUESTS

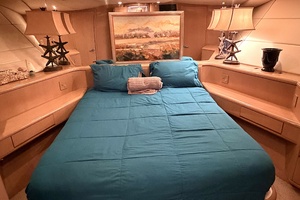

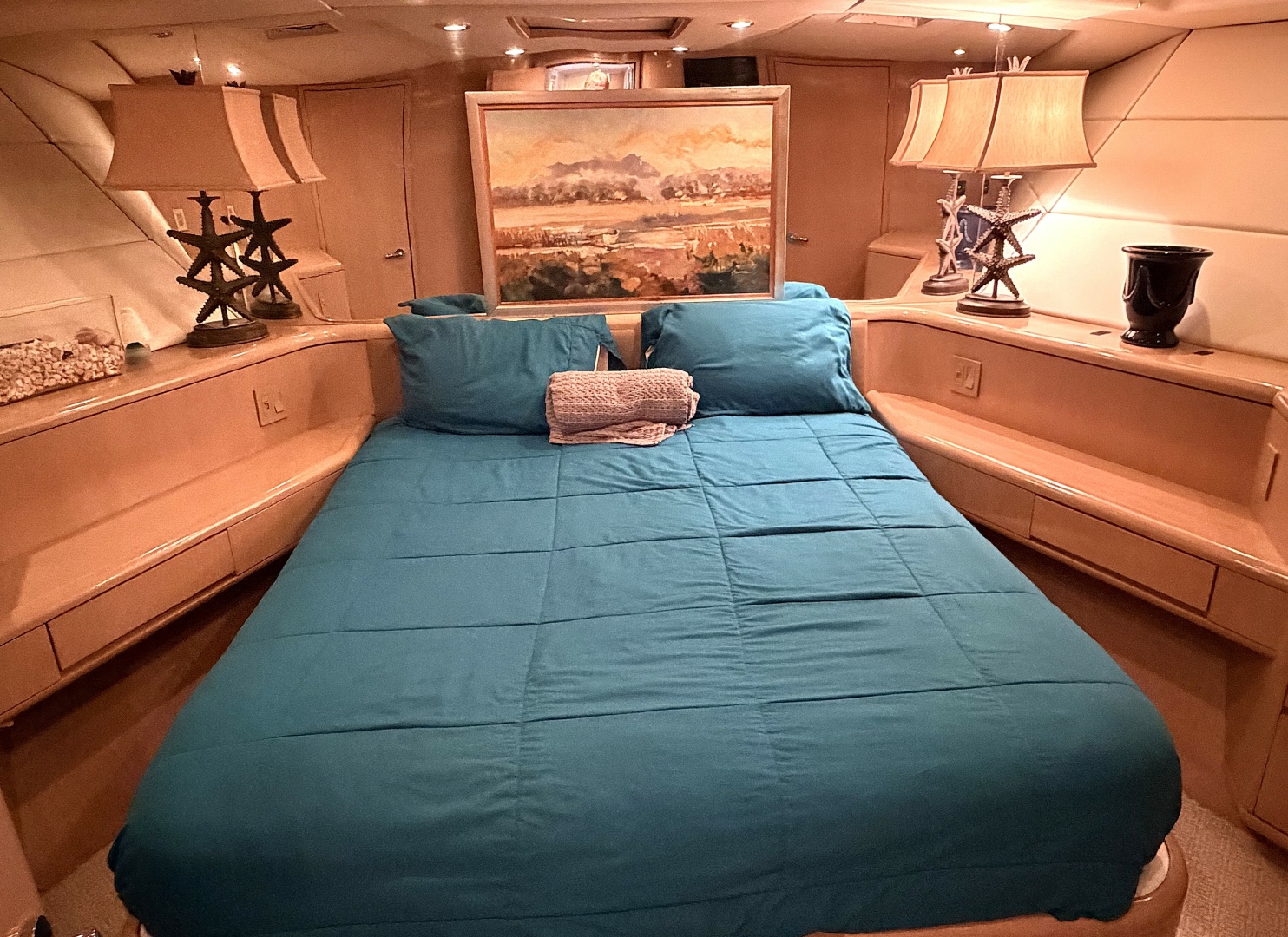

LOWER DECK VIP STATEROOM

•   Queen berth centerline with drawer storage below

•   Zeno mattress, comforter, shams and pillows

•   Mirrored bulkhead

•   (2) Starfish lamps

•   Built-in cabinets with drawer storage

•   Overhead lighting

•   Escape hatch

•   CTM A/C controls

•   New carpet - 2026

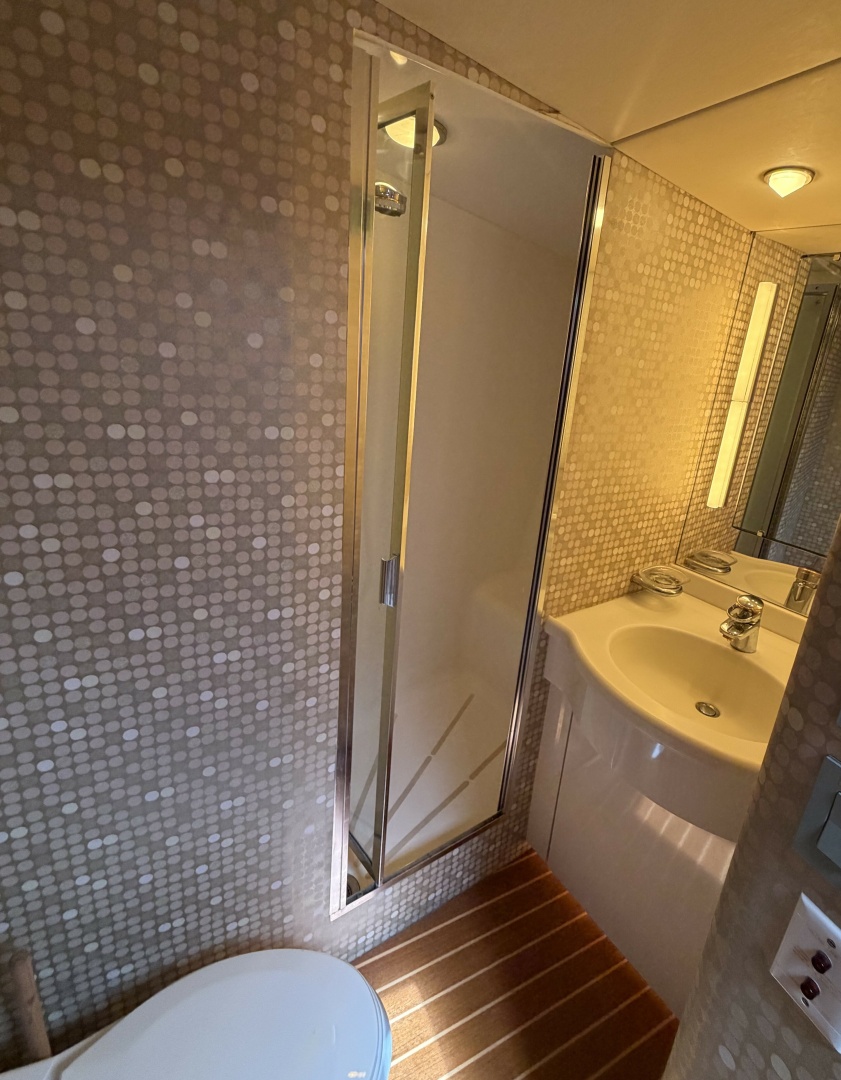

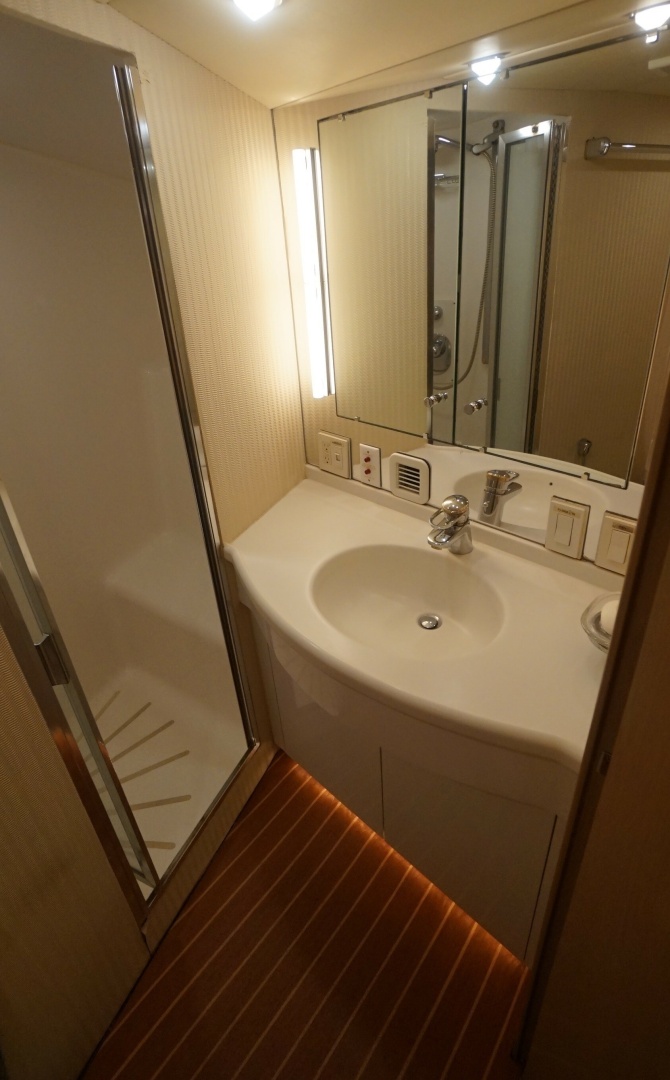

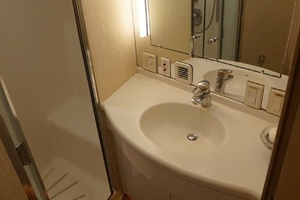

•   Private head with vanity, shower, wall

     covering, Amtico flooring

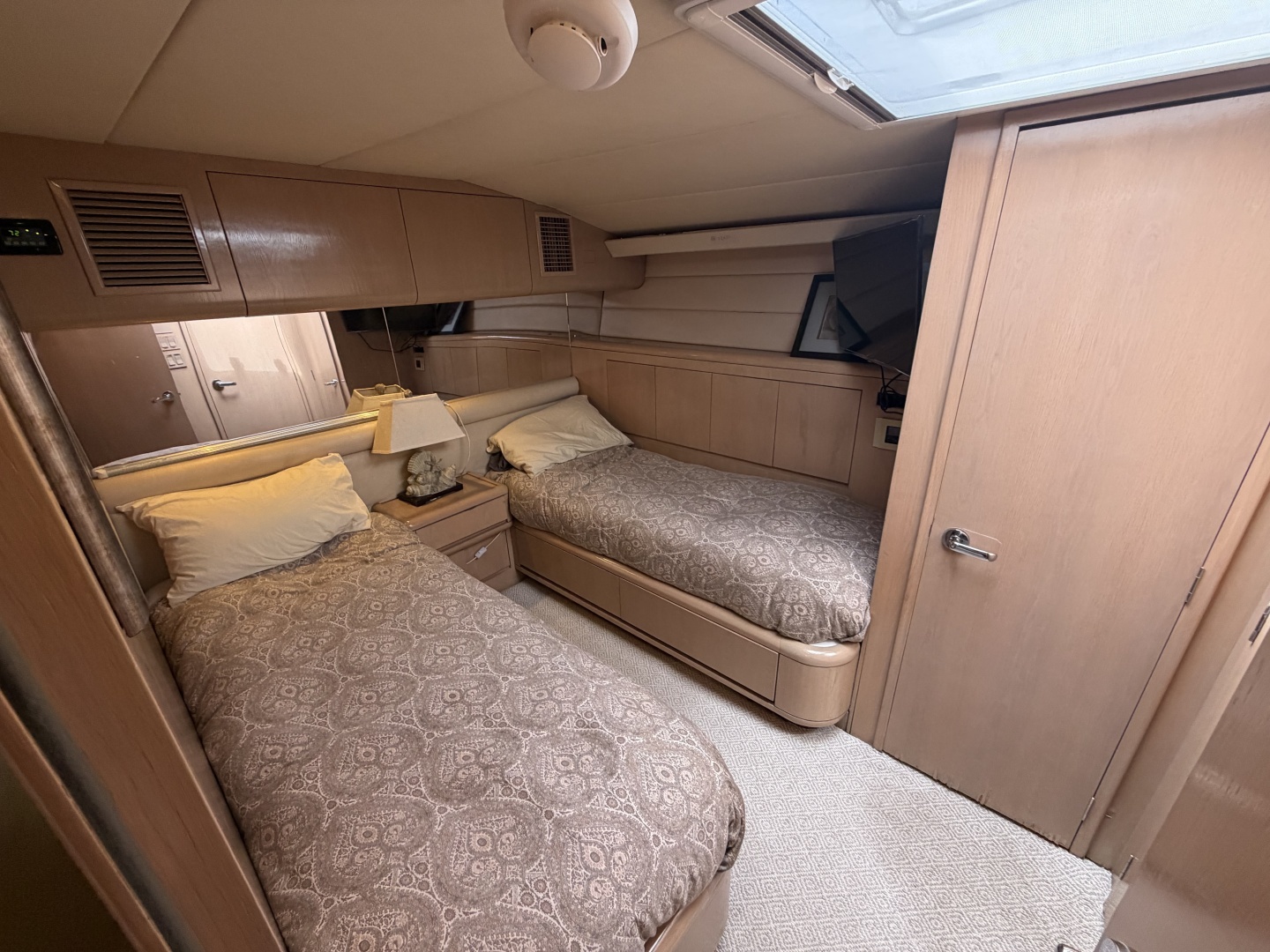

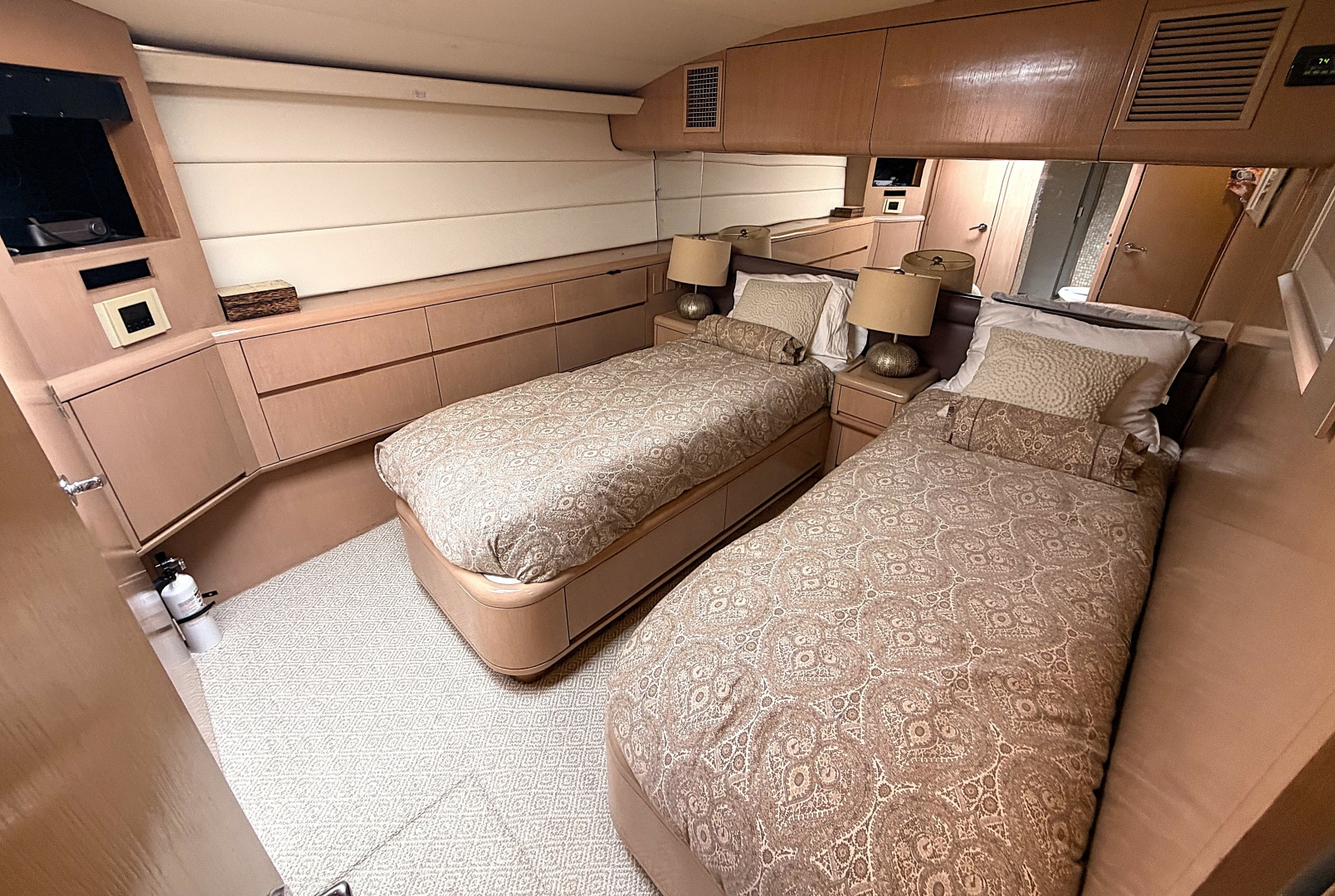

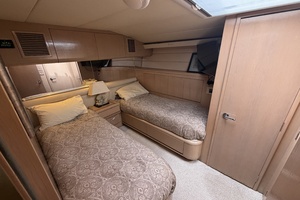

LOWER DECK (2) TWIN GUEST STATEROOMS

•   Port and Starboard

•   Twin berths in each stateroom slide together to convert into a double berth

•   Zeno mattress, comforter, shams, and pillows

•   Built-in dresser and nightstand

•   Mirrored bulkhead

•   New carpet - 2026

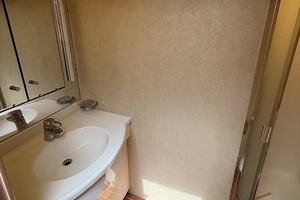

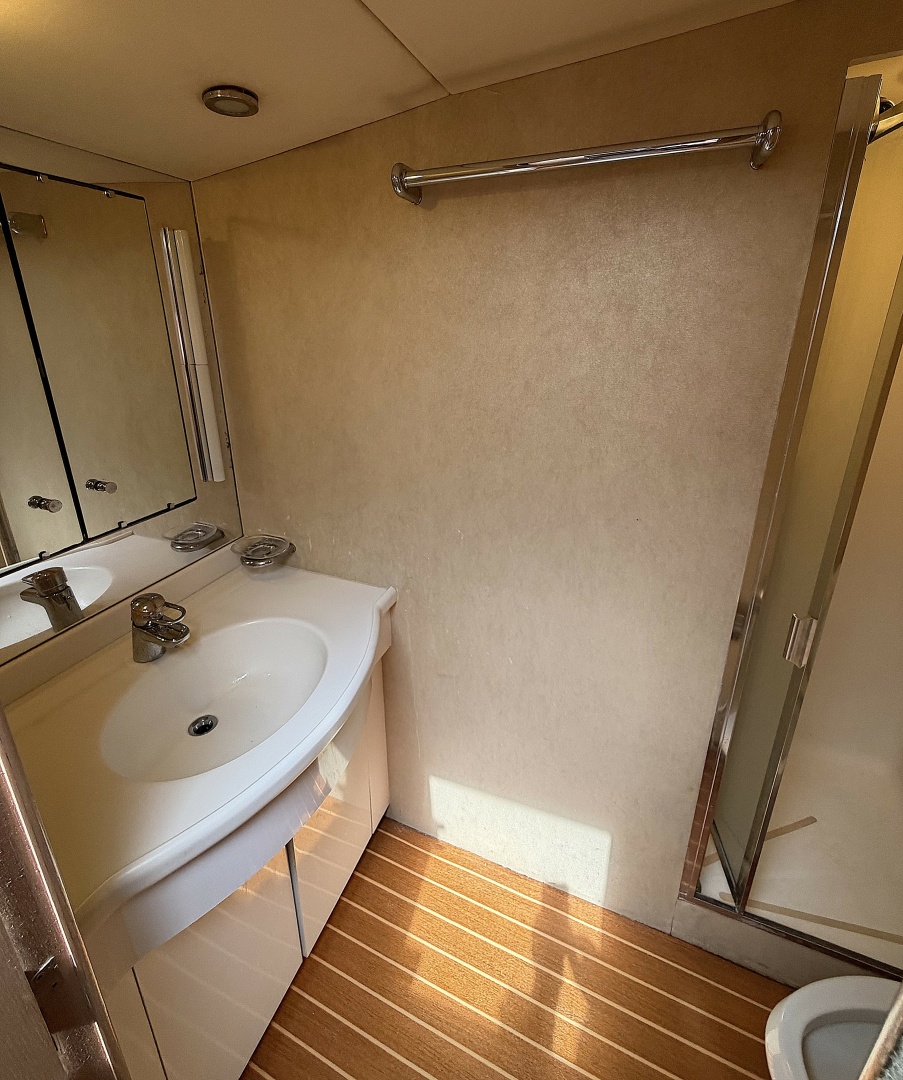

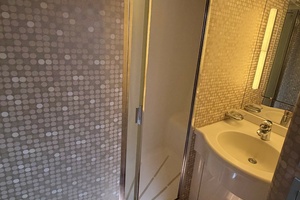

•   Private bath with vanity, shower, wall covering, and Amtico flooring

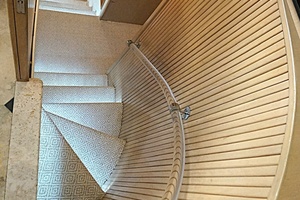

LOWER COMPANIONWAY

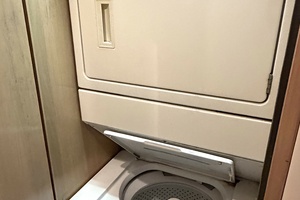

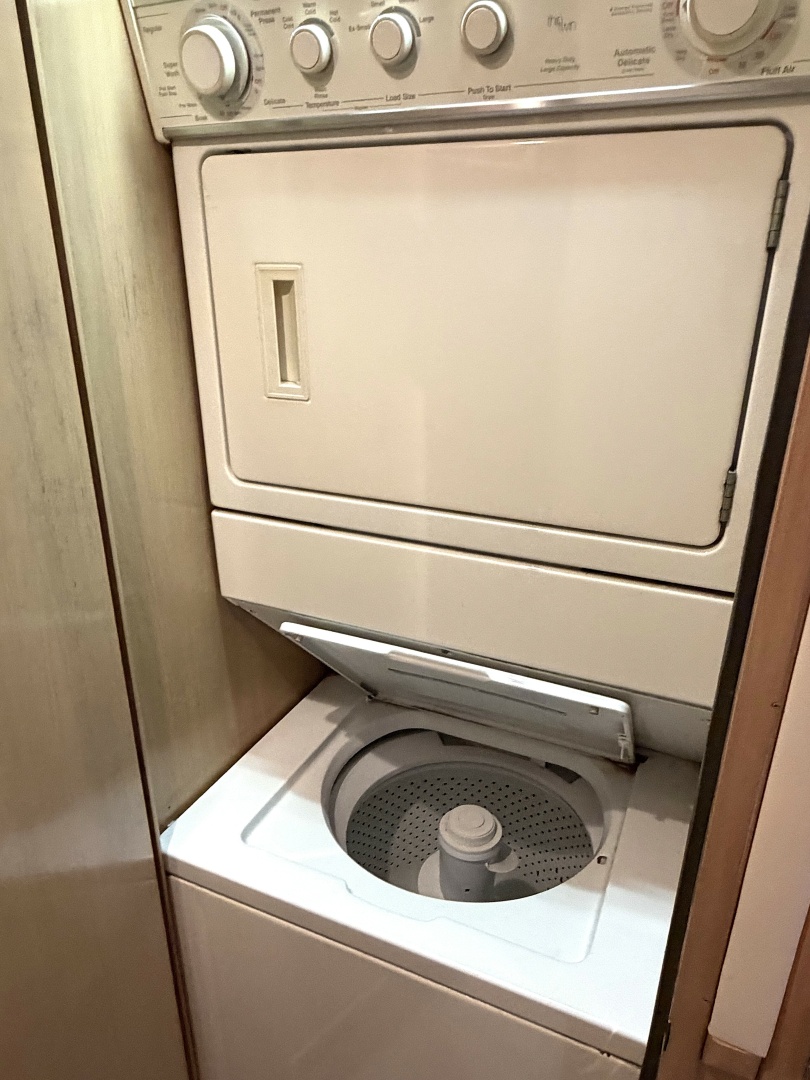

•       Thin twin stacked washer/dryer

•       Cedar-lined linen locker

•       New carpet - 2026

CREW

  • Cabin: Port side enclosed bunk beds with enclosed head

  • Crew Mess : L-shaped seating that can act as a bunk bed for a third crew member

2025/2026:

All new electronics - 2026

New carpet throughout - 2026

(3) New CTM CW-60 Hz A/C Compressors - 60,000 BTUs each

New air handles

All new CTM A/C controls

New upholstered wall panels in Hallway and Guest Staterooms

All new TVs

2020/2024:

Bottom painted and Propspeed applied– October 2024

All new smoke detectors – January 2024

New house batteries – January 2024

(3) new bow thruster joy sticks– January 2024

New exhaust system by Design Engineered Solutions (D.E.S) – $130,000 upgrade - February 2023

New exhaust spray rings by D'Angelo Exhaust – February 2023

New non-skid on the Aft Deck – January 2023

All new fans and damper controls in Engine Room – January 2023

(2) new isolation transformers – January 2023

Fire equipment updated by Fireline

New steering lines

New galley air handlers

New and rebuilt engine monitors and shutdown systems

Cockpit and Swim Platform teak decks removed and replaced with non-skid decks

All new thru-hull sea valves

Stabilizers serviced

New steering hoses and steering pump seals

Engines and generators fully serviced

2019:

Port side Delta-T fan replaced

New sea power converter

Port engine injectors cleaned and serviced

Furuno F170 AIS System installed

2018:

New electric fuel pump for the main generator

New heat exchanger for the port generator

New tachometer installed on the starboard main engine

Port main engine plate cooler cleaned

Port stabilizer potentiometer replaced

Starboard batteries replaced

Starboard battery charger replaced by Tess Electric

Stainless-steel braided hose to the mixer gauges replaced

New turbo ring installed on the starboard main engine by Metcalf Marine

New compensator installed on the starboard exhaust in the crew area

New temperature switches installed in the fiberglass exhaust pipes in the crew area

Starboard crossover pipe and stainless-steel crush ring installed by Metcalf Marine

Both generator heat exchangers cleaned

Port auxiliary gear control plug replaced by Tess Marine Electric

Crew toilet macerator pump relay replaced

Crew macerator pump rebuilt

 VIP toilet discharge line repaired

Starboard crossover pipe and mixer repaired

Turbo rings removed and refurbished

New thermostat installed in the crew area

Port crew bilge control box rebuilt

Bolts and gaskets replaced on both gearbox oil coolers

Starboard shore cord storage system control switch replaced

3” check valve replaced on the port main engine

Damaged cushion clamps replaced outboard of the port gearbox

New flush timer installed on the starboard guest toilet

Generator wood base replaced

Stabilizer hydraulic hoses replaced by Mendel Marine

Most steering system hoses replaced by Mendel Marine

Both main engine fuel coolers cleaned

Port main engine crossover removed by Metcalf Marine

New interior wall panels

New salon chairs and accent pillows

New davit motor

Davit repainted

 Various fresh and raw water pumps replaced

Cockpit bilge tanks cleaned

 Various paint touch-ups completed

Engine alignment performed

Propellers removed, balanced, and reinstalled

Shafts pulled, rebedded, and fitted with new shaft seals

Cockpit step halogen lighting converted to LED

Cockpit floodlight repaired

Cockpit grill lighting replaced with 230V bulbs

Shaft bearings replaced

 Rudder bearings replaced

Fuel booster pump replaced on the starboard generator

 Crew cabin bilge pump replaced

No. 1 Racor filter in the transfer system rebuilt

Engine room DC halogen lighting converted to LED

2017

Air-conditioning system serviced

New Shakespeare 390 SSB 23-foot antenna

New Shakespeare 5208-R VHF 23-foot antenna

New watermaker membranes

New water heater

New fire extinguishers and engine room fire suppression system

Partial interior refit in the main salon

Davit serviced and repaired

New stabilizer seals

New caulking around bridge windows

New bow hatches

New deck lighting throughout the main deck and cockpit

Engine room bilge tanks cleaned

Four (4) new 8D batteries installed on the port side

Port shore power converter rebuilt

Ballast replaced in the port inboard aft engine room fluorescent light

Engine room bilges professionally cleaned by MWM

Tender davit rebuilt by Signature Marine

Spray rail repairs completed

Crew quarters steps rebuilt

Battery condition meter replaced on Distribution Panel No. 2

2012

USD 1.6 million in upgrades, including:

New generators

Rebuilt engines

Vessel painted from waterline up

New interior

New appliances

Tenders: DL 17 Caribe with Yamaha 90 Hp, 2023

Exclusions include all of Owner's personal effects

"All speeds, capacities, consumption, etc. are approximate or estimated; measurements can also be approximate. Specifications are provided for information only and particulars herein obtained from sources believed to be correct, but are not guaranteed. Buyer should instruct his agent and/or surveyor to check all details for accuracy. Offered subject to prior sale, price and/or inventory change, or withdrawal from the market without notification."
