ACADIA
Yacht for Sale

Name: ACADIA
Brand: Maine Cat
SKU: 2836678
Price: 499000 USD

Length: 48′ 0″ / 14.63m | Builder: Maine Cat | Year: 2014

Home Yachts for Sale Catamaran Maine Cat ACADIA

ACADIA Yacht for Sale - 48 Maine Cat

Type: Motorboat

Category: Catamaran

Builder: Maine Cat

Model: P44

Condition: Used

Length: 48′ 0″ (14.63m)

Beam: 17′ 0″ (5.18m)

Engines: 2x Suzuki Model: 4-Stroke, 175hp

Draft: 3′ 0″ (0.91m)

Build Year: 2014

Location: Rockland, Maine, United States

Staterooms: 2

Sleeps: 6

PDF: PDF Brochure

Features: Air conditioning, Bow thruster, Galley, Stabilizers

Price: $499,000 USD

Contact Us For More Information

Detailed Information

Structure

Composite FRP utilizing vinylester and polyester resin with triaxial or biaxial fiberglass fabrics

100% Core-Cell Structural Core

Hull and Deck chemically joined with biaxial fiberglass tapes entire interior

All Bulkheads are composite Core-Cell cored

Bulkheads fiberglass taped to hull/deck

Molded-In Non-Skid two tone deck surfaces including cockpit sole

All Thru-Hull and Thru-Deck penetrations to have core removed within 1" of opening and back-filled with resin and glass mixture

Paint and Graphics

Sea Hawk epoxy barrier-coating system (Three Coats)

Two (2) Coats of Sea Hawk ablative premium bottom paint

Topsides and Wet Deck Awlgrip primed and painted with two topcoats - Color is Teal Gray

All Storage, Bilge, and Machinery Spaces to be painted white gelcoat

Interior

White Bulkheads with Cherry Trim

Headliners in the house are Bolta-Soft Vinyl over merantti plywood

Interior Topsides mid and forward and headliner in house covered with Bolta-Soft materials

Blind valence pocket on all salon windows in the house

Sunbrella Cushion Covers for the berths and cockpit cushions including

5" Laminated memory foam standard at Berths

Amtico commercial teak and holly on all interior floors and steps going below

Cabinet Hardware

All Draws and Doors have a Push Button locking mechanism

Doors to each cabin have bumpers, hooks, and eyes or some other suitable means to hold doors in open position

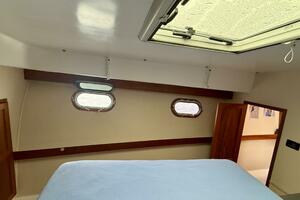

Master Cabin (Starboard Hull)

Headroom - 6'6" Minimum

Berth - 64" x 80" with walk around

Mattress is Laminated Memory Foam, 3" base plus 2" memory top

Cherry Bull Nose at foot of Berth to retain mattress in position

'Walk-In' Hanging Locker in forepeak with Louvered Vent and Key Lock

Hanging Locker/ Storage Closet in Hallway with return air grill for AirCon

Full Length Cherry Valence and Cherry Grab Rail, with lighted valence

Three (3) Drawers Under Berth

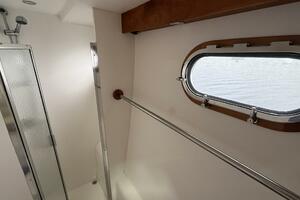

Master Head with Large Separate Shower Stall

Aquatex Shower Door and Gulper Discharge Pump

Techma Electric Toilet with Freshwater Flush

Granicoat Countertop Vanity with Oval Sink and Single Handle Faucet

S/S Double Towel Bar, Robe Hook, and Toilet Paper Dispenser

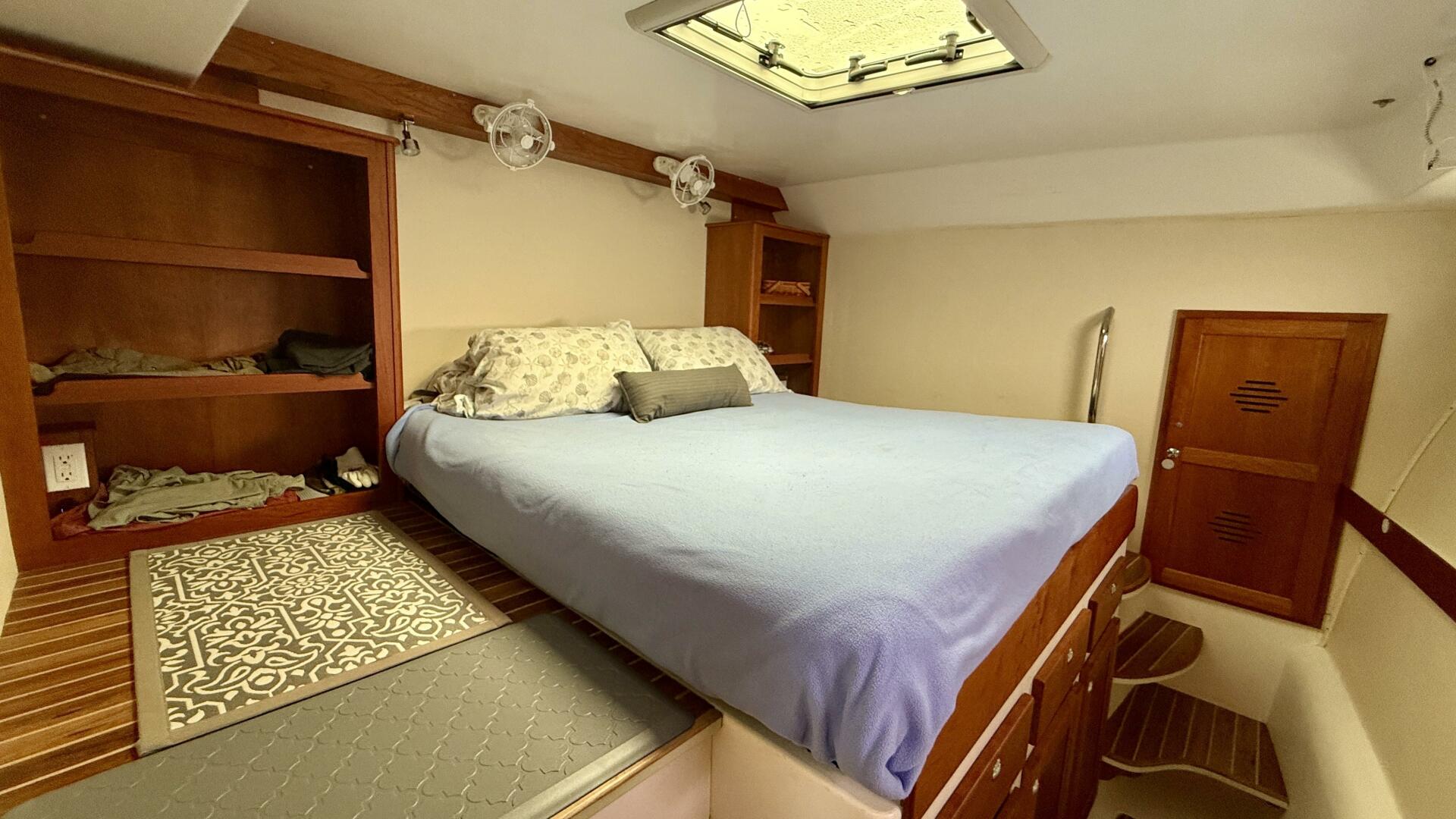

Guest Cabin Forward Port Hull

Headroom - 6'6" Minimum

Berth - 64" x 80" with Walk Around

Mattress is Laminated Memory Foam, 3" base plus 2" memory top

Cherry Bull Nose at foot of Outboard Edge of Berth to retain mattress in position

'Walk-In' Hanging Locker in forepeak with Louvered Vent and Key Lock

Hanging Locker/ Storage Closet in Hallway with return air grill for AirCon

Full Length Cherry Valence and Cherry Grab Rail, with Lighted Valence

Four (4) Deep Drawers Under Berth

Bookcase at Foot of Berth

Head with Large Separate Shower Stall

Aquatex Shower Door and Gulper Discharge Pump

Techma Electric Toilet with Freshwater Flush

Granicoat Countertop Vanity with Oval Sink and Single Handle Faucet

S/S Double Towel Bar, Robe Hook, and Toilet Paper Dispenser

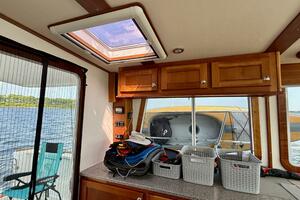

Galley

Galley-Up Arrangement on Bridge Deck Level with Upper Cabinets

Granicoat Composite Countertops

Double Bowl High Polish S/S Sink with Single Lever Faucet and Sprayer

Paneled Cherry Cabinet Doors, Varnished with Solid Frame

Scandvick SCA 10818 Soap Dispenser

Seagull IV Water Filter at Galley Sink

12v Stove/Oven/Broiler 'Seaward Princess Black Glass Front 3375-1002'

'Pantry' with Pull Out Draw below the Settee

Pilothouse

All Windows are by DSG and are operable and have screens (Except for 3 forward windshields)

Sole Elevated at Twin Helm Location for Better Visibility

The "U" Shaped Settee Starboard has an adjustable table, which converts to extra double berth

Cherry Bases w/ Storage Under

Helm

Helm Station with Tilting Wheel and Navigators Chart Table to Port

Three (3) Chart Drawers below the raised floor under the Helm Seat

Two (2) Adjustable Premium Helm Seats with Adjustable Height, Flip Up Arm, Seat Back and Head Rest Covered in Ultraleather

Chart Table on Dash with Large Storage Space under Port/Starboard Wing Cabinets

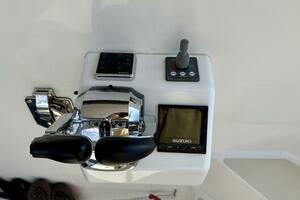

'Docking Helm Station' with Throttle/Shift Controls and Bow Thruster in Aft Cockpit Starboard Side with GMI 10 Depth Display

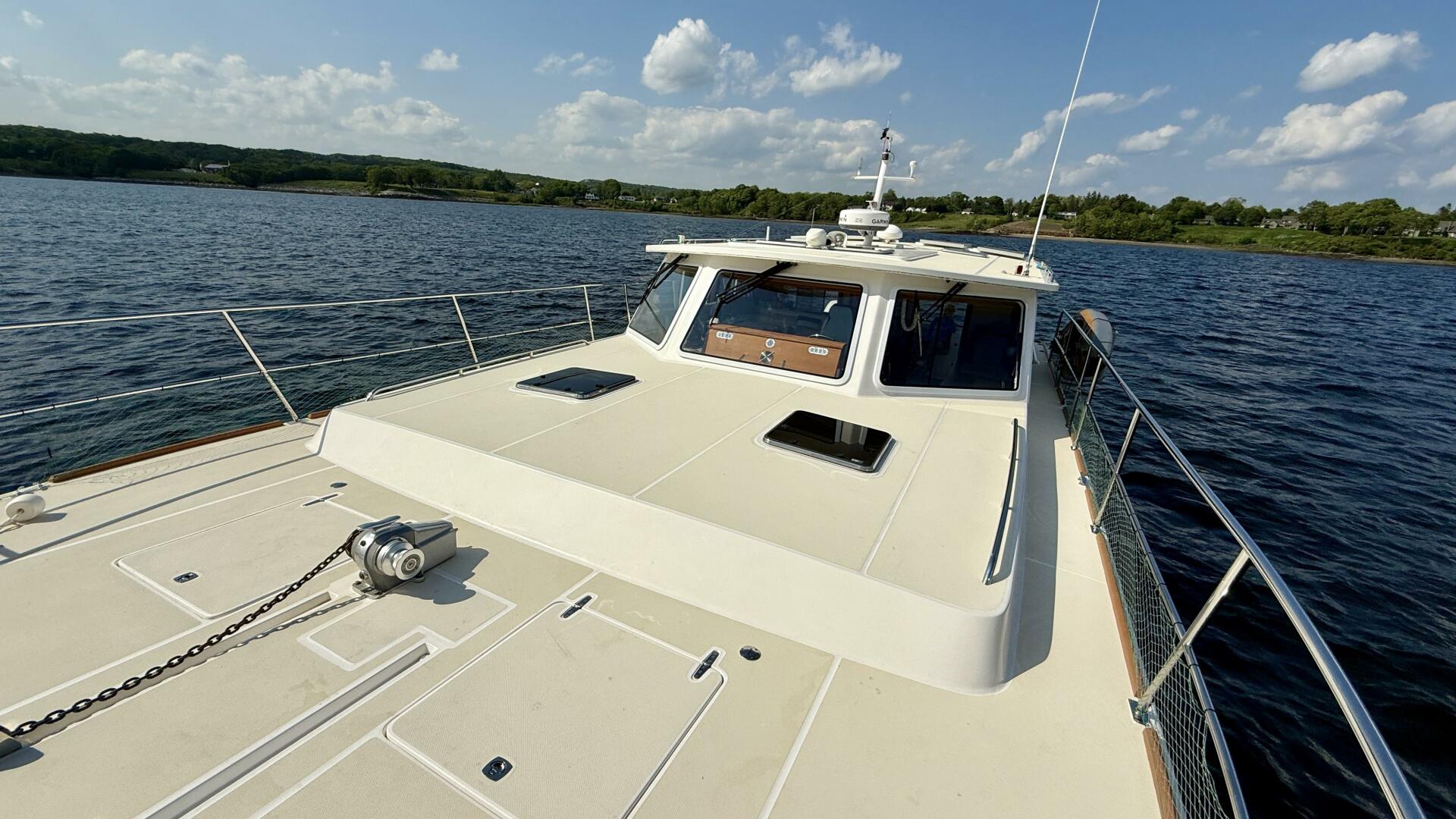

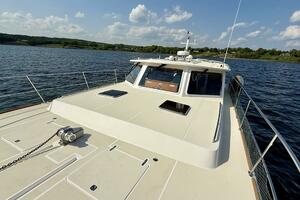

Rub Rails, Safety Rails, and Deck

Large Profile Exterior Rigid Vinyl Rub Rail with Stainless Steel Insert at Shear and 12' of Lower Aft Quarters

Custom 30" High Solid Deck Railings 1-1/4" Diameter, Intermediate 1" diameter S/S, Full Perimeter, Aft of House and Across Bow

Mid-Ships Sliding Rail Gates Port & Starboard

S/S 316L Grab Rails on Hardtop, Cabin Top, and Aft House

Swim/Boarding Platforms each side with 32" High SST Grab Rail

Overhead and Side Grab Rails at Both Stairs to Berths, and Grab Rails in Berths

Molded Fiberglass vertical grab rails in house at steps leading out of cockpit towards the bow and on the back of the house

Cockpit

Stern Opening Port and Stbd S/S Gates in Transom

Custom, Double Walled 4-Step Stern Swim Ladder Port in Covered Compartment

Elevated 'Back Porch' to extend across center Transom area for Dinghy Storage

Custom DSG Aluminum Framed Door (Includes Key Lock)

Bench with Cabinets on each end to store propane, and access Electric Jack Plate Controls

Flag Staff

Anchoring, Mooring Cleats and Hardware

Eight (8) Primary 12" Cast S/S Heavy-Duty Hollow Base Cleats (With FRP Backing Plates)

Four (4) each 11" Stainless Custom Chocks forward inboard and outboard

Double Ground Tackle includes 2 Bow Rollers

Rocna 55lb Anchor w/ 250' of 5/16" high strength Chain Rode with 150' of 5/8" Three-Strand

Custom Nylon Bridle which attaches to Chain

Fortress FX-37 Back-Up Anchor with 100' of Chain w/ 150' of 5/8" 8-Plait Nylon Rode

Lofrans Tigress Windlass with Local Controls and Remote Control from the Helm

Pad Eyes for bitter end of both Anchor Rodes

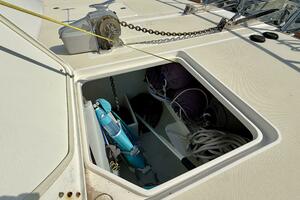

Forward Anchor Locker and 'Engine Room' Hatches

Two (2) Flush, water tight, fiberglass deck hatches over lockers with gaskets and dogs

Two (2) Flush, water tight, fiberglass engine room hatches with gaskets and dogs

Two (2) ladders for access to 'engine room' spaces

Doors, Hatches, Ports, and Windows

Six (6) Operable Windows in House by DSG

Eight (8) roughly 10" x 20" oval offshore rated Opening Port Lights w/ Screens

Four (4) Aluminum Framed Lewmar Pilot Sliding Hatches in House, with roller screen/shade, plus two (2) opening aft S/S Hatches, one over each berth, with roller screen/shade

Three (3) Operable Windscreens of Tempered Glass at Helm, all with Wipers and Washers, no screens

Diamond Sea Glaze Cockpit Door

Electrical

Northern Light 12v 60Hz M673L3 6KW Generator in Port Aft Sound Insulated Engine Room, with Factory Sound Enclosure w/ transfer switch, remote display, single Racor fuel/water separator, and separate Generator Set Starting Battery

Blue Sea Custom '360' Main Distribution Panel DC/AC with extra spare breakers with backlighting and DC.AC Volt and Amp Meters

Victron 3000/120 inverter, charger, and remote controller

Four (4) each 8D AGM, total 1020aH

Imtra LED Lights added to 4 closets below decks w/ switches

LED Navigational Lights

Remote Spot Light with controls at Helm

Compass with Switched Light

Six (6) LED Lights on dimmer in House with 2 LED Red/White Lights over Helm

Two (2) LED over mirrors in each head

Four (4) LED Aft Cockpit and Swim Platform courtesy lights

One (1) LED light in each Shower

One (1) LED 'work' light in each 'Engine Room'

Eight (8) Flush Recessed LED lights in Soffits below deck outboard

Four (4) each 110w Hardtop Mounted Solar Panels

Two (2) Solar Controllers with current and voltage display

Six (6) total 12 VDC Outlets in Engine Rooms, Galley, Nav Station, and Berths

Wire Sizing and Over Current Protection per ABYC Standards

All circuits numbered and labelled

Empty conduit paths from each ER to Forward Cabin

Glendinning CRM-50 Electrical Cable Reel

Twelve (12) total AC Power in each Head, Nav Station, Berth, ER's, Salon, Cockpit, and Two (2) at Galley and Microwave

DEI Fail Safe Max Galvanic Isolator, Rated at 50a

Bow Thruster

Sidepower SE60 Electric Bow Thruster with Two Control Stations

Electronics

Two (2) Garmin 7215 Chart Plotter w/ 4KW HD 48-Mile Radar, with charts from Maine to Bahamas, XM Weather Overlay, PC Interface, with XM Antenna

Smart 'Triducer' for Depth, Temp, and Boatspeed

Windspeed Transducer

One (1) Each Garmin GMI10 Display Head at Helm and Docking Station

Garmin GHP10 Hydraulic Autopilot, rate gyro compass. Protected below deck location integrated to GPS and Chart Plotter, GHS20 Display

Garmin Marine 300DSC Distress Integrated VHF to GPS Hailer and Foghorn to External Speaker plus GHS20 Wireless Remote Handset

Sony AM/FM/CD Stereo System, Wireless Remote Control complete with 4 Bose tuned waterproof speakers, MPS and XM Satellite Ready

Garmin AIS 600 Transceiver

Provide for SSB including Grounding Plate

Provisions for Two (2) Future Satellite Antennas on Rear of House with Wire Path to Helm

Refrigeration

One (1) Vitrifrigo DW210RFX 24v Two-Drawer Refrigerator

One (1) Vitrifrigo DW180DTX Two-Drawer Freezer

HVAC

Three (3) MarineAir Airco seawater source heat pumps totalling 30,000BTUH. Smart Starts on all Three Aircon units

One for Main Salon

One for Master Stateroom

One for Guest Stateroom

Eight (8) 12v Caframo Sirocco, Three-Speed Gimbal Fans

Hot Water Heaters

Quick B3 30 12SL 8-Gallon Hot Water Heaters with Engine Coils and 120v AC element and thermostatic mixing valve kit

Waste Management

All Seacocks are non-corrosive reinforced Marelon by Forespar

Two (2) each 30-gallon holding tanks with full union ball valve gravity drain

Deck mounted pump-out connection fittings

Tecma Electric Toilet shall have a 3-Way full union ball valve to divert waste to tank or directly overboard

Lavatory and Sink Drains pass through the hulls as high as possible above the standing water line

Fresh Water

80 Gallon Water Tank

All Plumbing to hot/cold faucets run in Sea-Tech Quick Connect 35 series Pex Tubing

Scandvik Faucets, Shower, Etc.

Hot/Cold Stern Shower on Port Swim Platform

Johnson Pump for Fresh Water Tank

Splendide Combo Washer/Dryer with Vented Dryer

Sea Water

Salt Water Wash Down Pump, located on Foredeck with Quick Disconnect Fitting

Salt Water Spray at Galley using Scandvik pull-out spray from deck wash system

One (1) Salt Water Intake for all seawater uses (except for generator/engines)

Johnson 2200 Series HD Automatic Bilge Pumps (4 Total)

Each Hull and 'Engine Rooms'

Propane

Two Propane Tanks

Trident 1230-1411 Propane Manifold, Solenoid Valve, and Fire Boy

Xientex LPG Propane Gas Fume Detector 551501 Two Channel Propane Fume Detector with MS-2 Sensor and SV-1 Solenoid Valve, test buttons for each channel

Additional Equipment

Kidde Fire Extinguishers, Flares, Four 50' Docklines, Lifesling, and 4 Fenders

Steelhead WD600 Hydraulic Dinghy Crane on Aft Flatform, Rigid Chocks, Dinghy Tie Down Straps

316L S/S Flush Rod Holders

Engraved Documentation Number Plaque
