DONA FRANCISCA
Yacht for Sale
Length: 172' 0"/52.43M
| Builder: Custom
| Year: 2014

dona francisca Yacht for Sale - 172'Custom
Contact Us For More Information
Detailed Information
MAIN FEATURES
Largest carbon fibre schooner in the world
Light and strong hull construction
Built to RINA certification

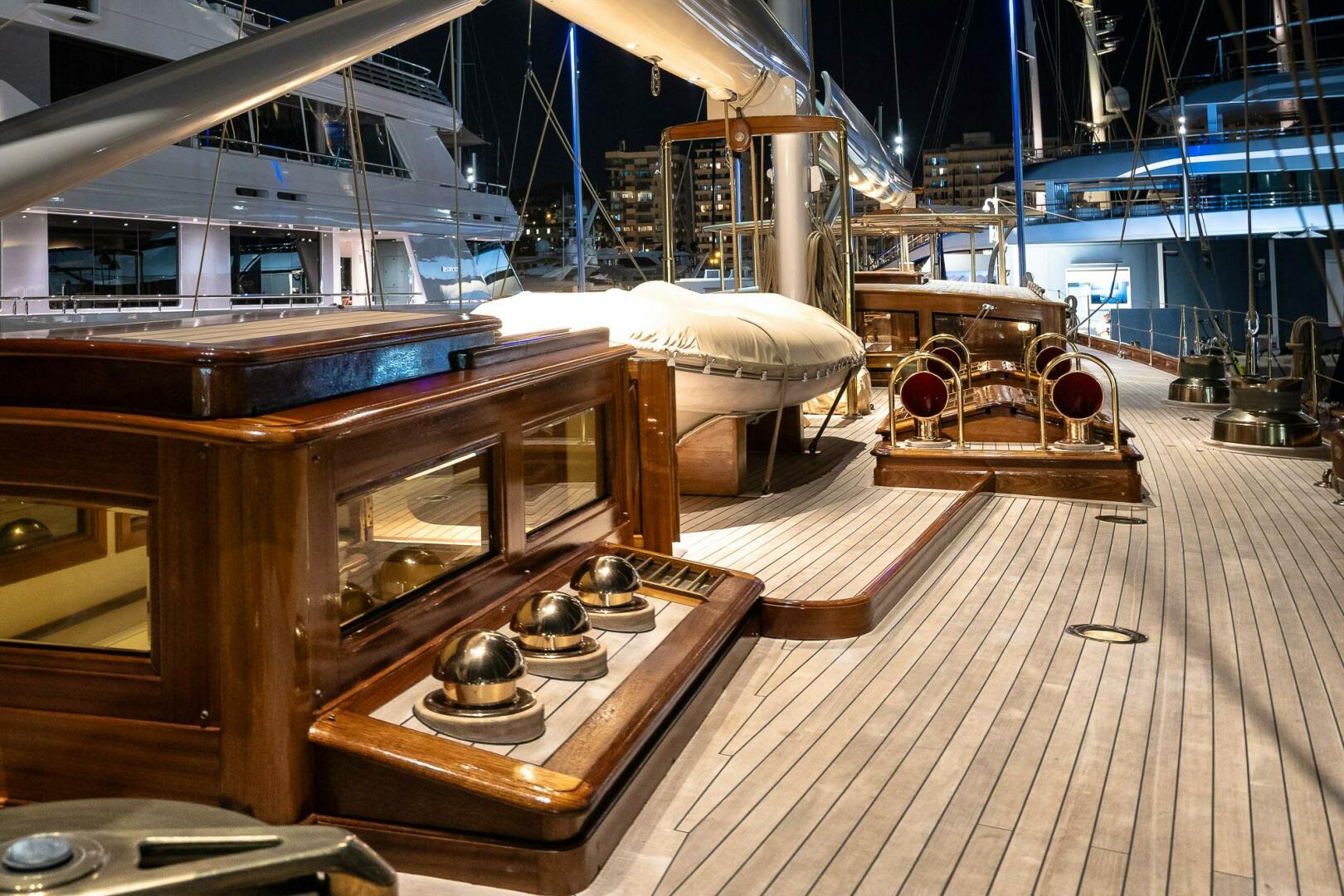

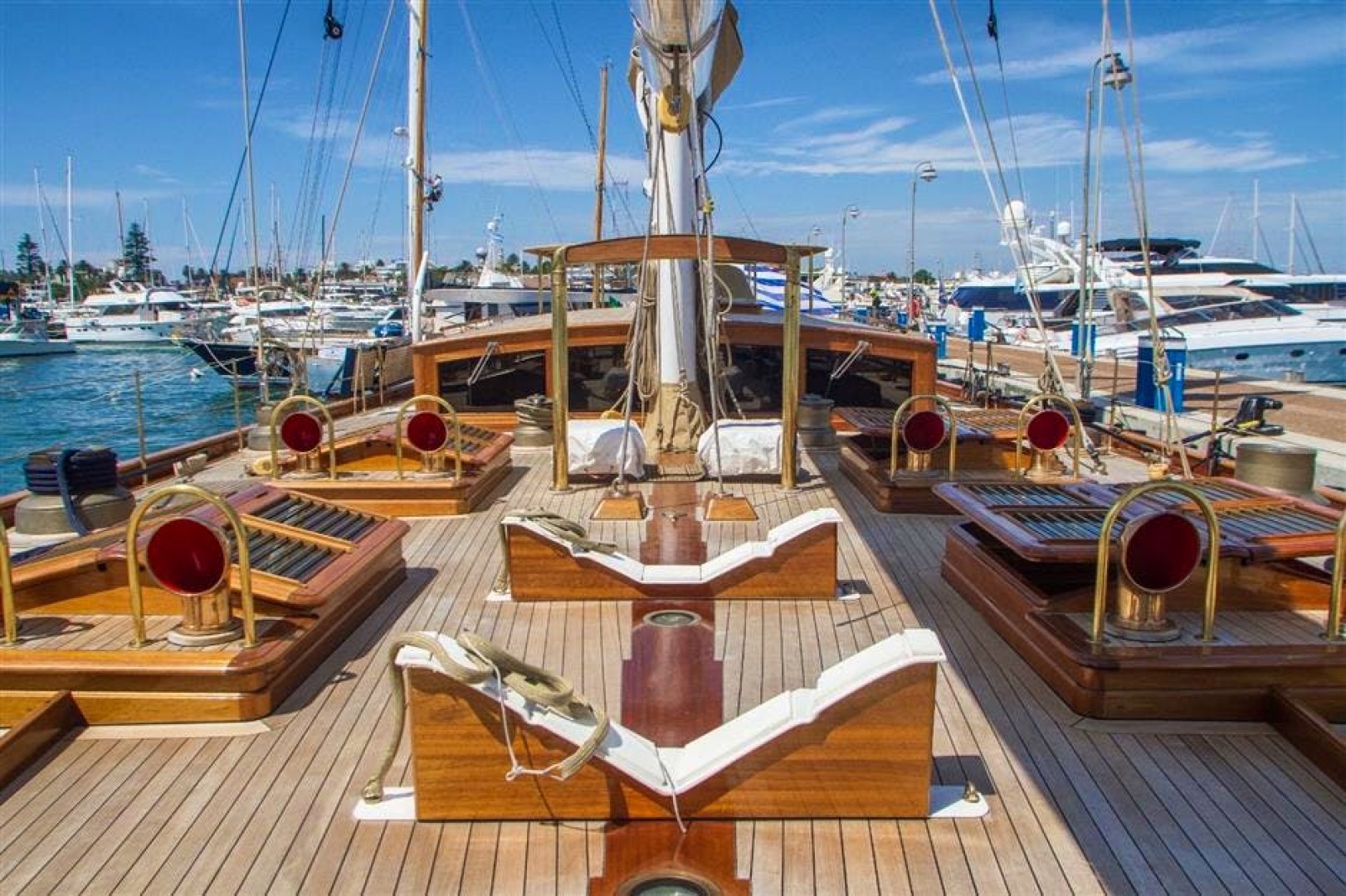

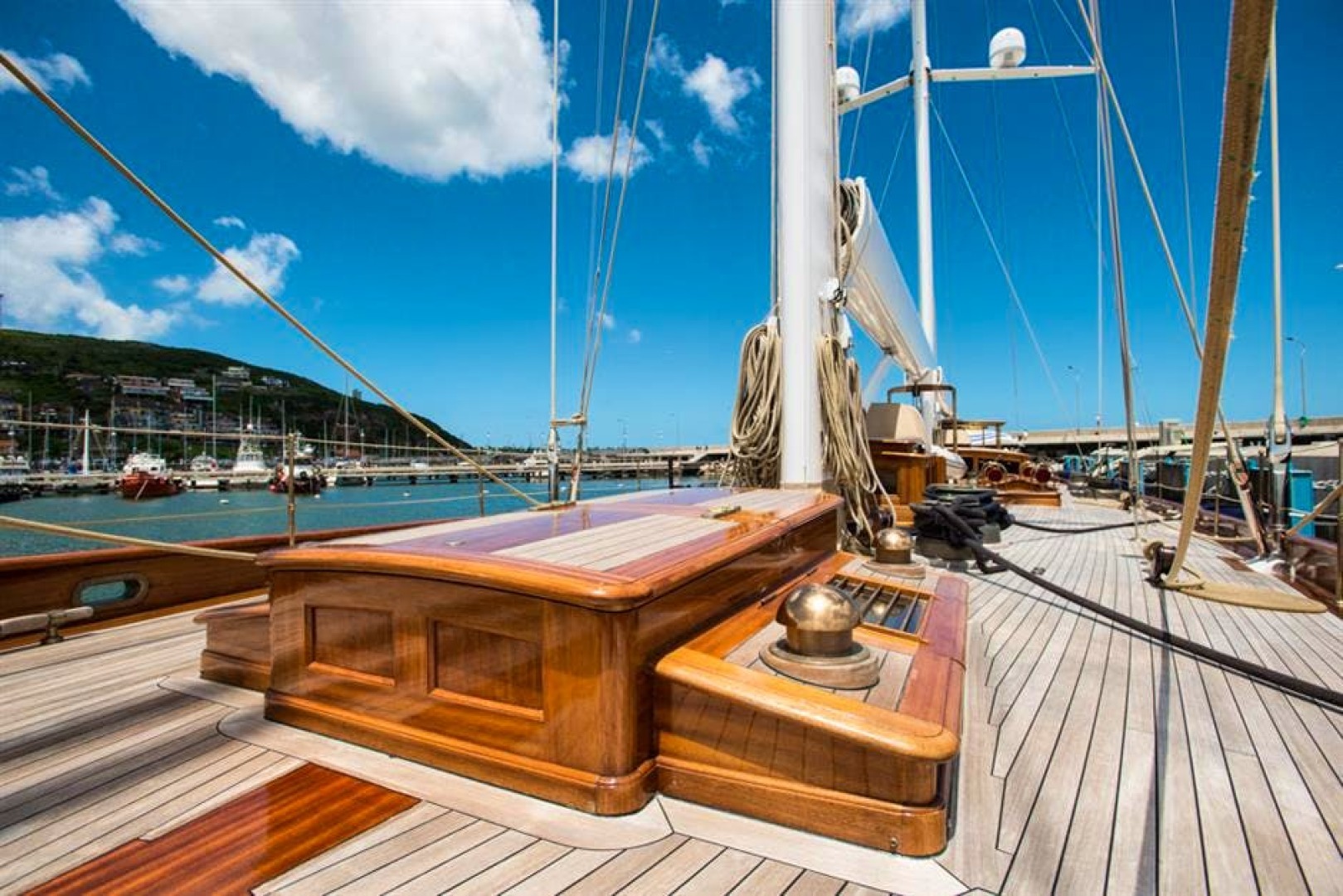

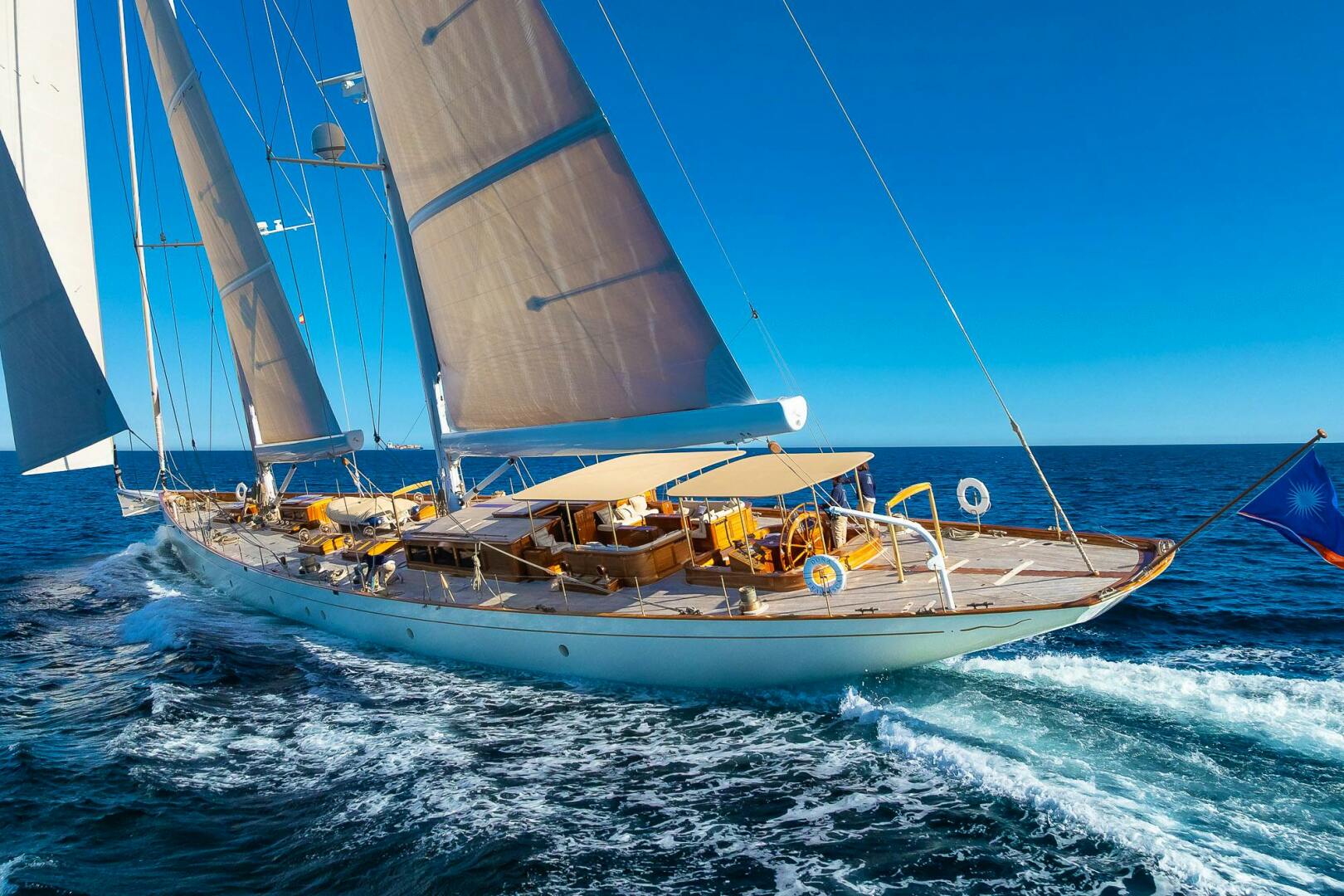

Teak decks
High-tech systems
Remarkable sailing performance
Shallow draft
Construction
Hull and deck built in a vacuum bag sandwich process utilizing rigid Pvc foam core and carbon fiber skins impregnated with epoxy resin.
Bulkheads and stringers built in strengthened carbon fiber.

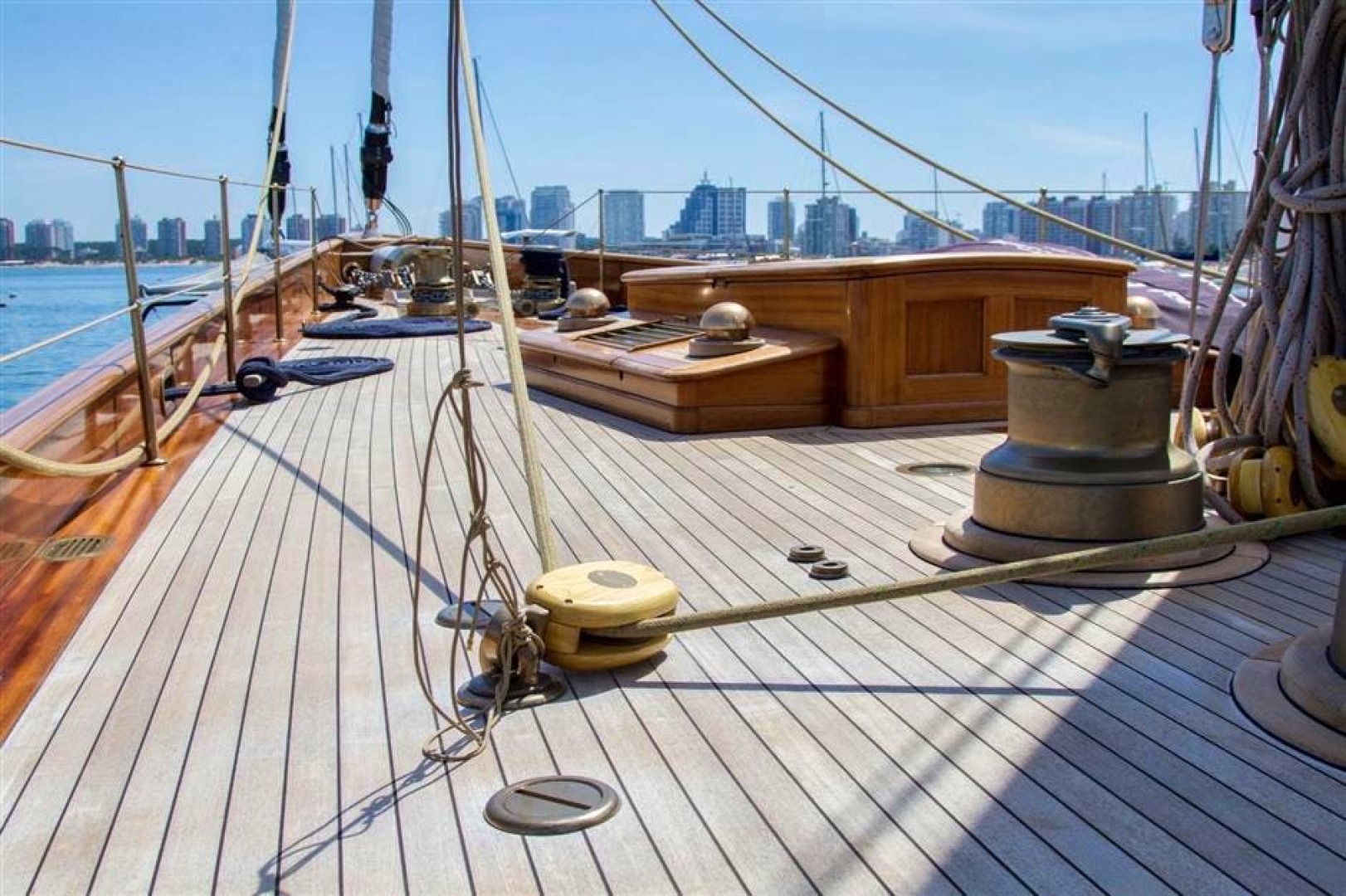

Deck finished in Burmese teak - 12mm thick.
Deck superstructures (cabin tops) finished in Mahogany.
The keel is an inverted "T" with a hollow body and a solid iron bulb, totaling 80T of ballast

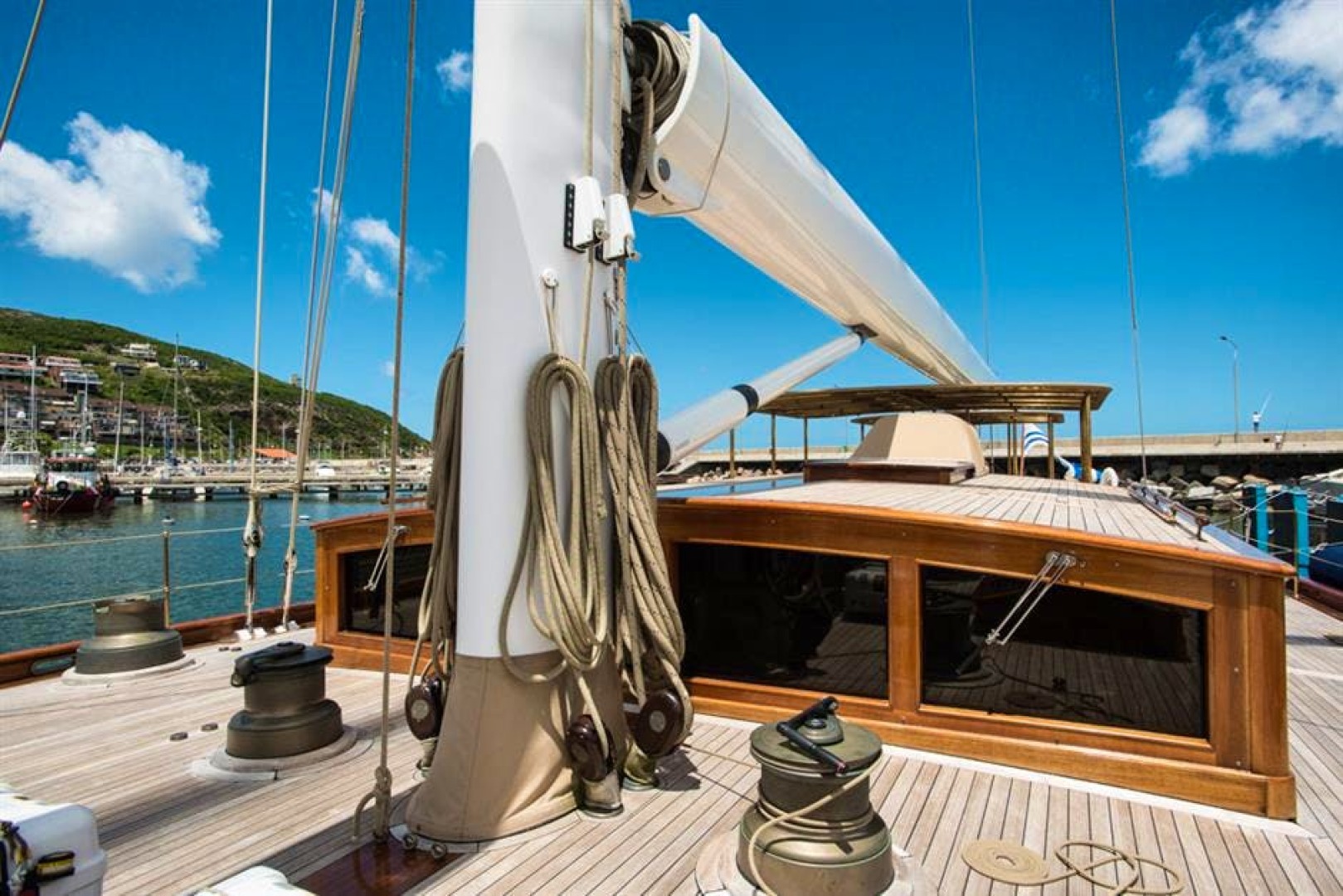

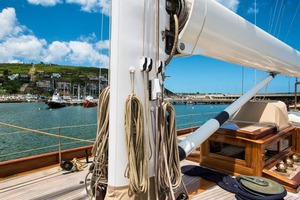

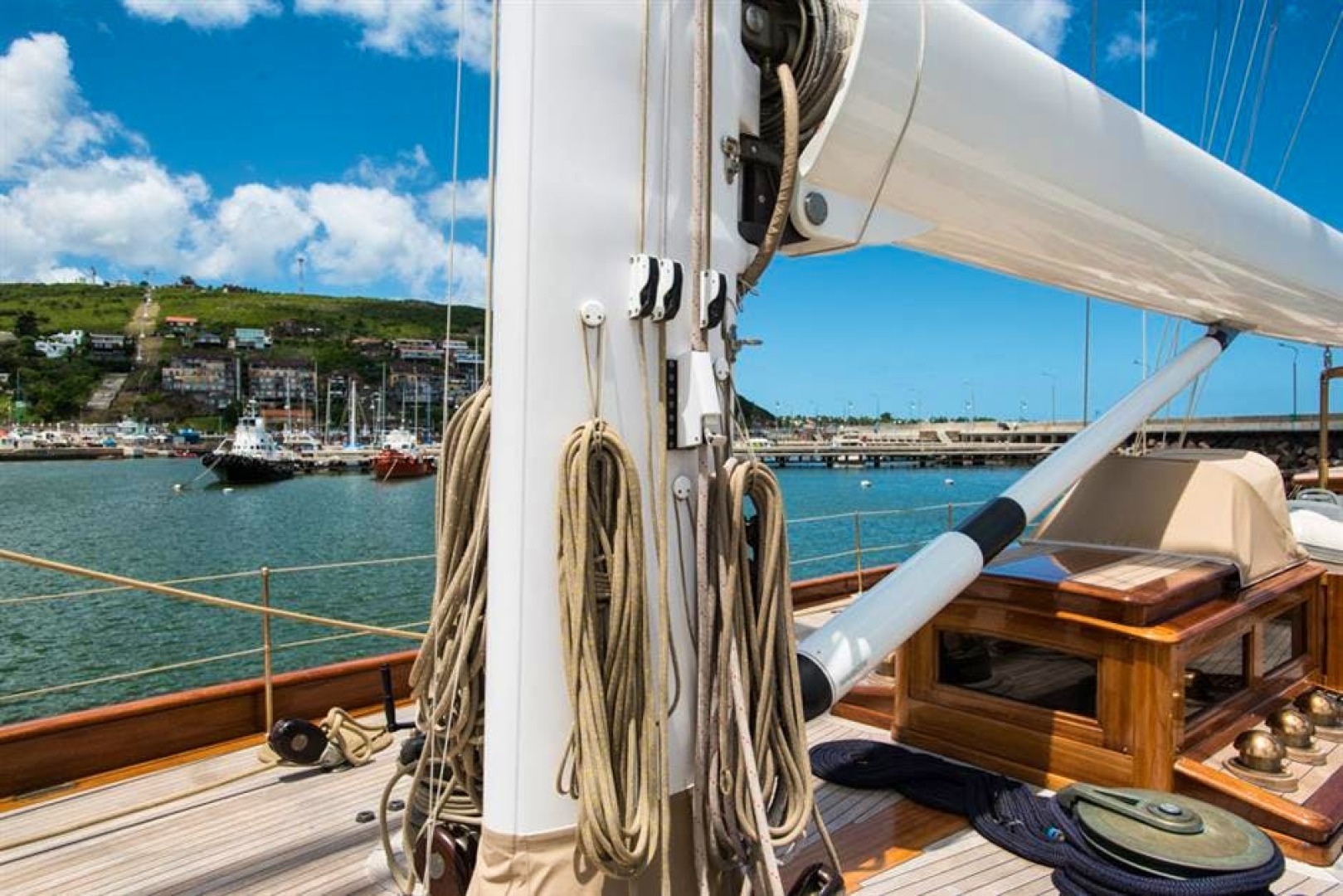

Carbon fiber mast and booms

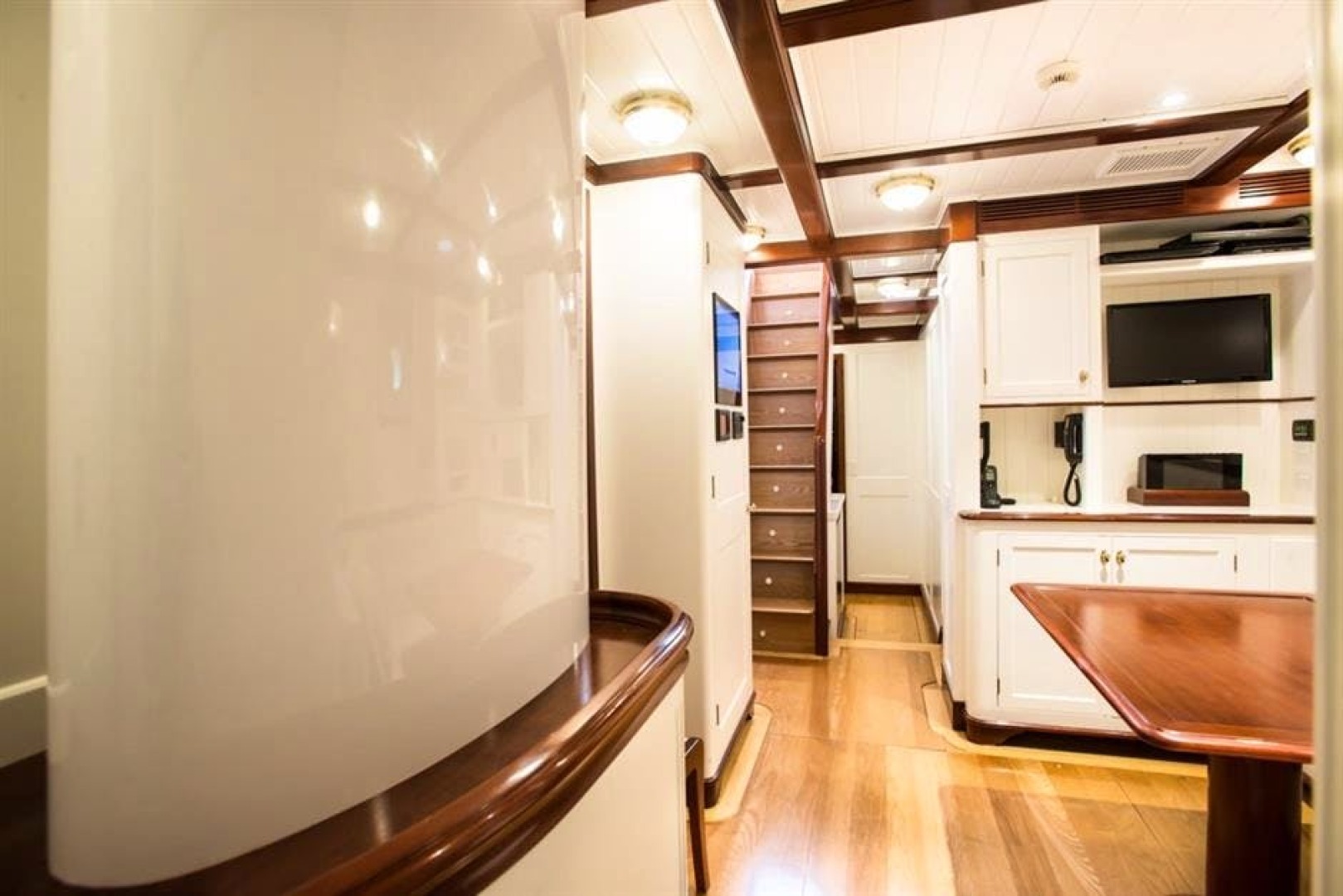

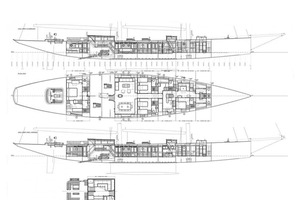

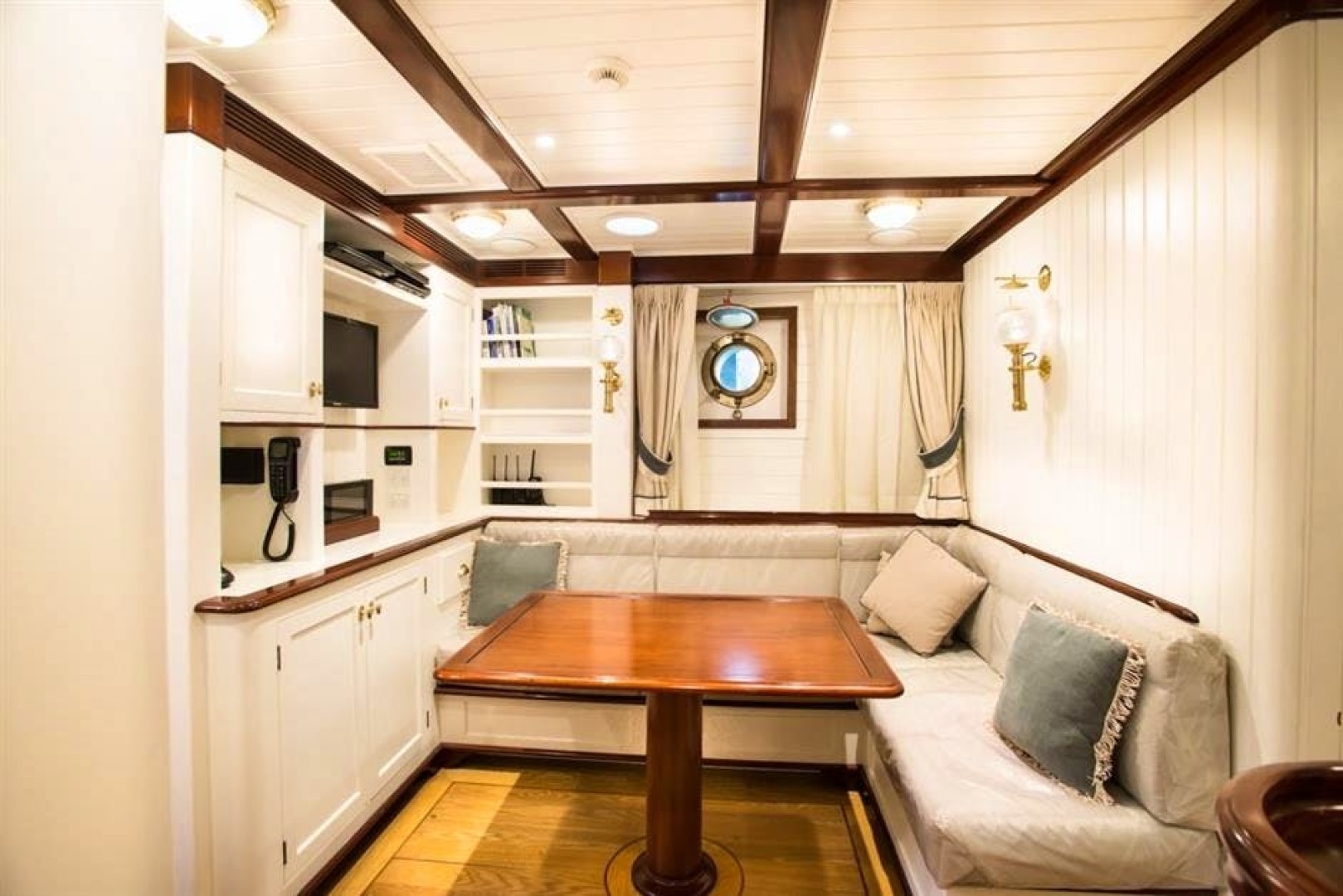

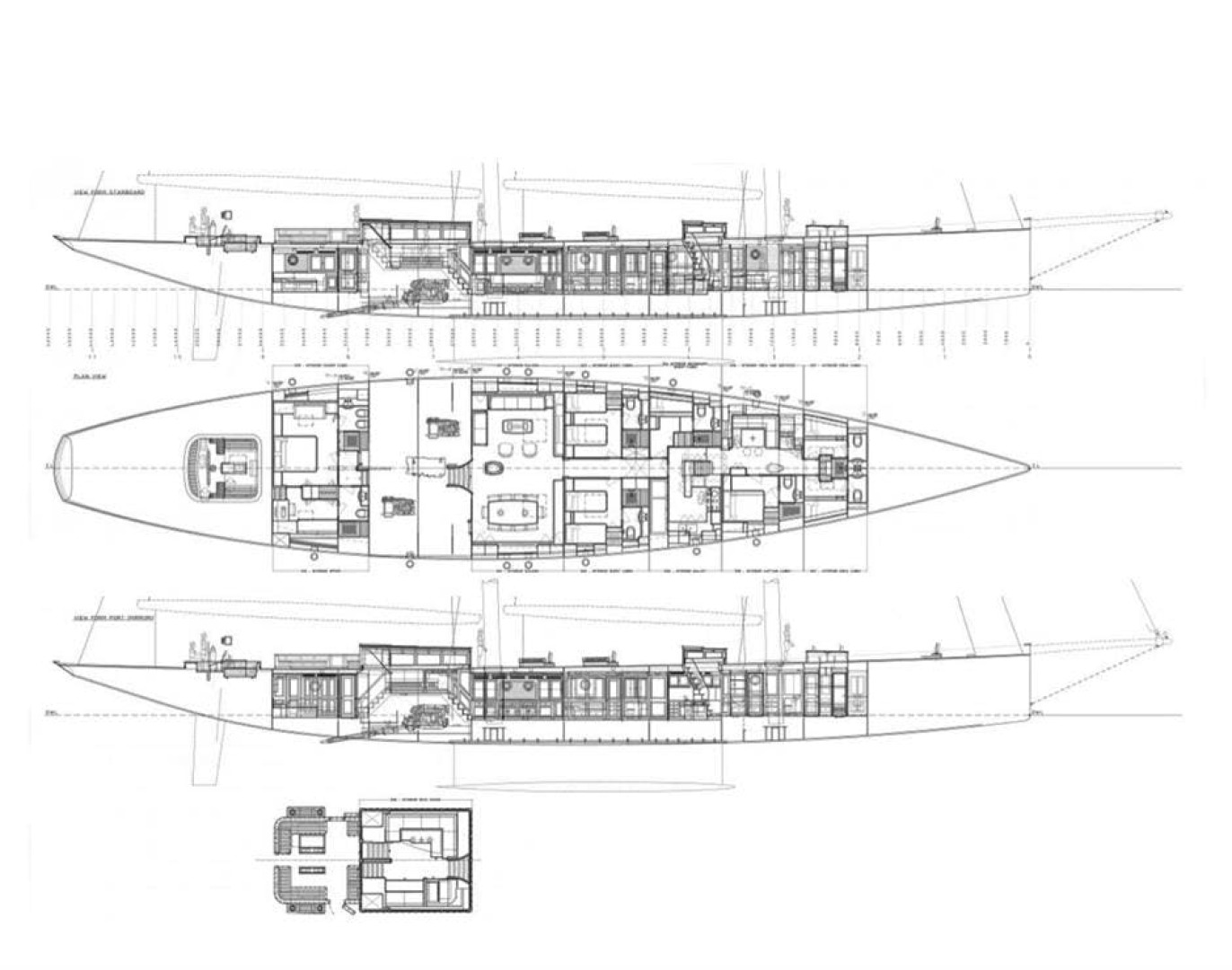

INTERIOR CONFIGURATION

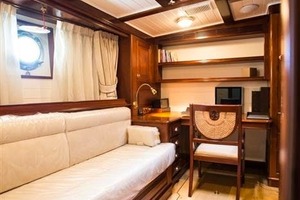

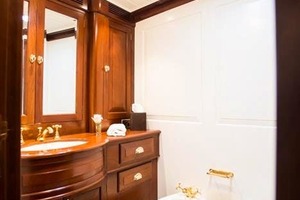

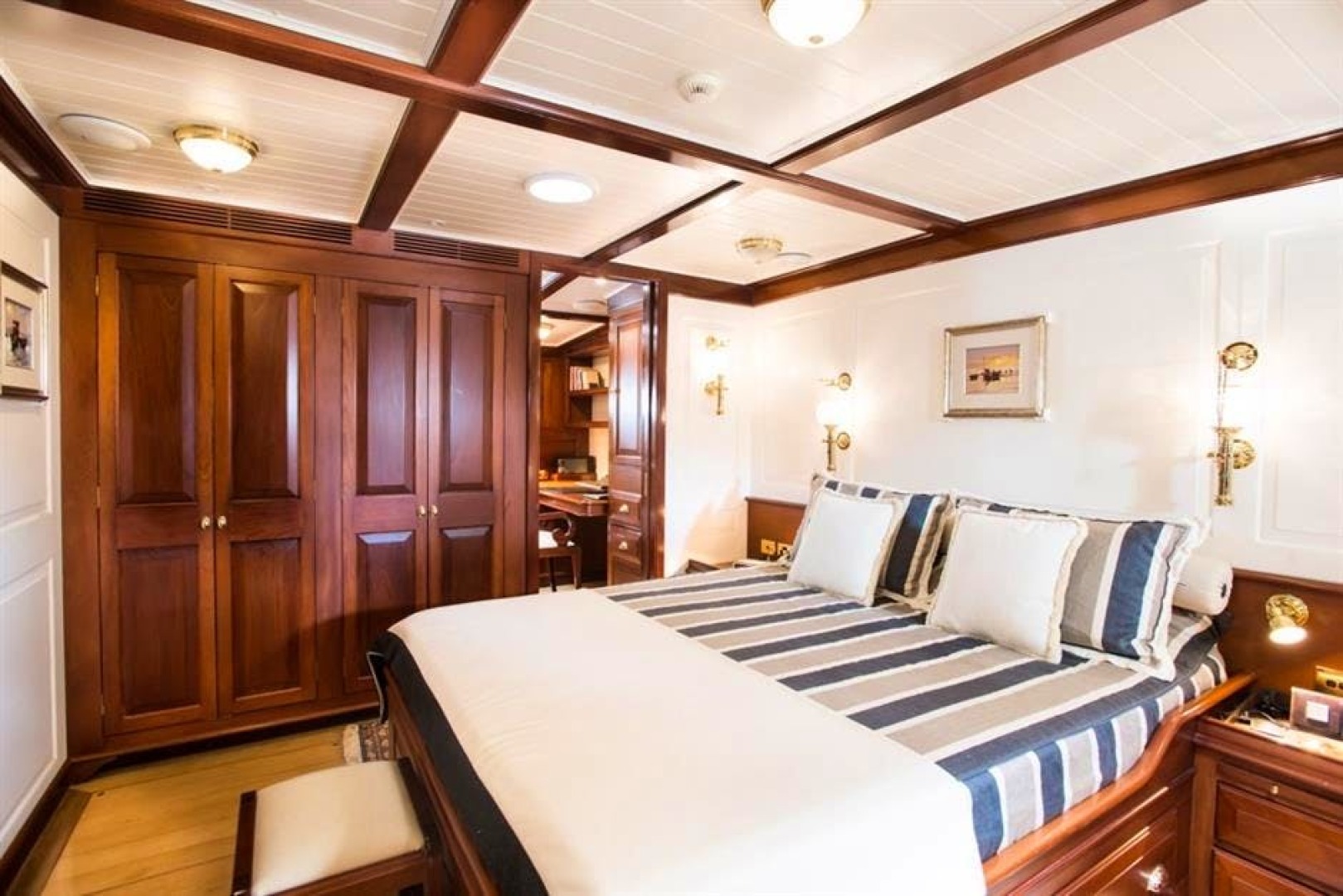

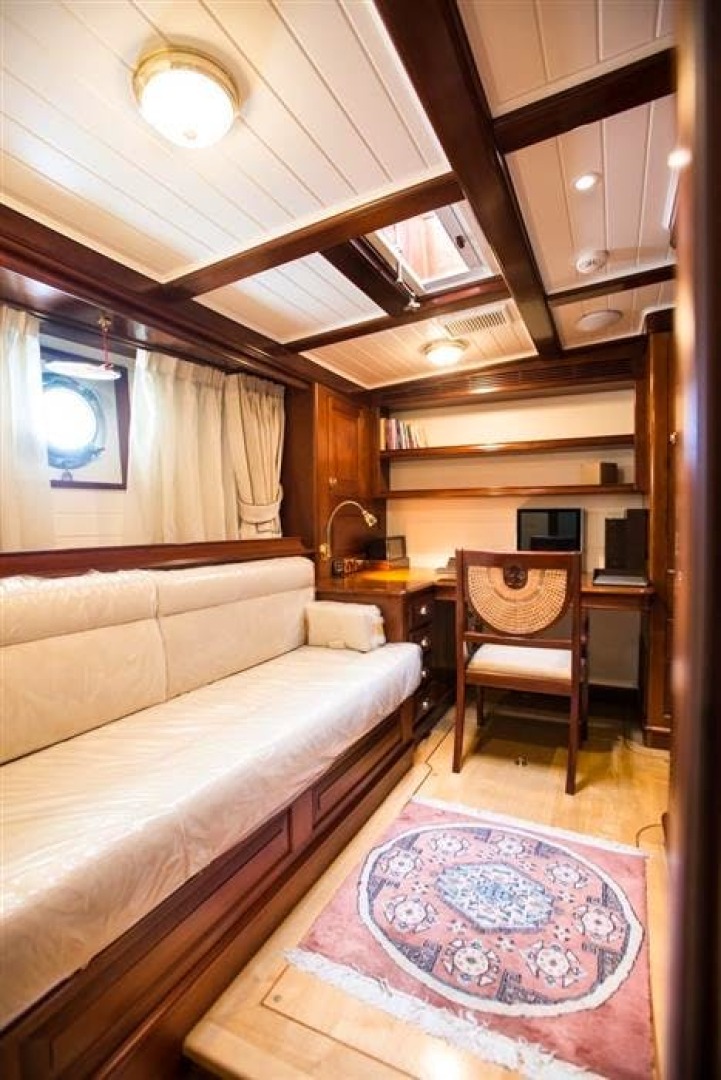

MASTER CABIN, occupying the total beam, with private bathroom and an office
with closet and a private bathroom.

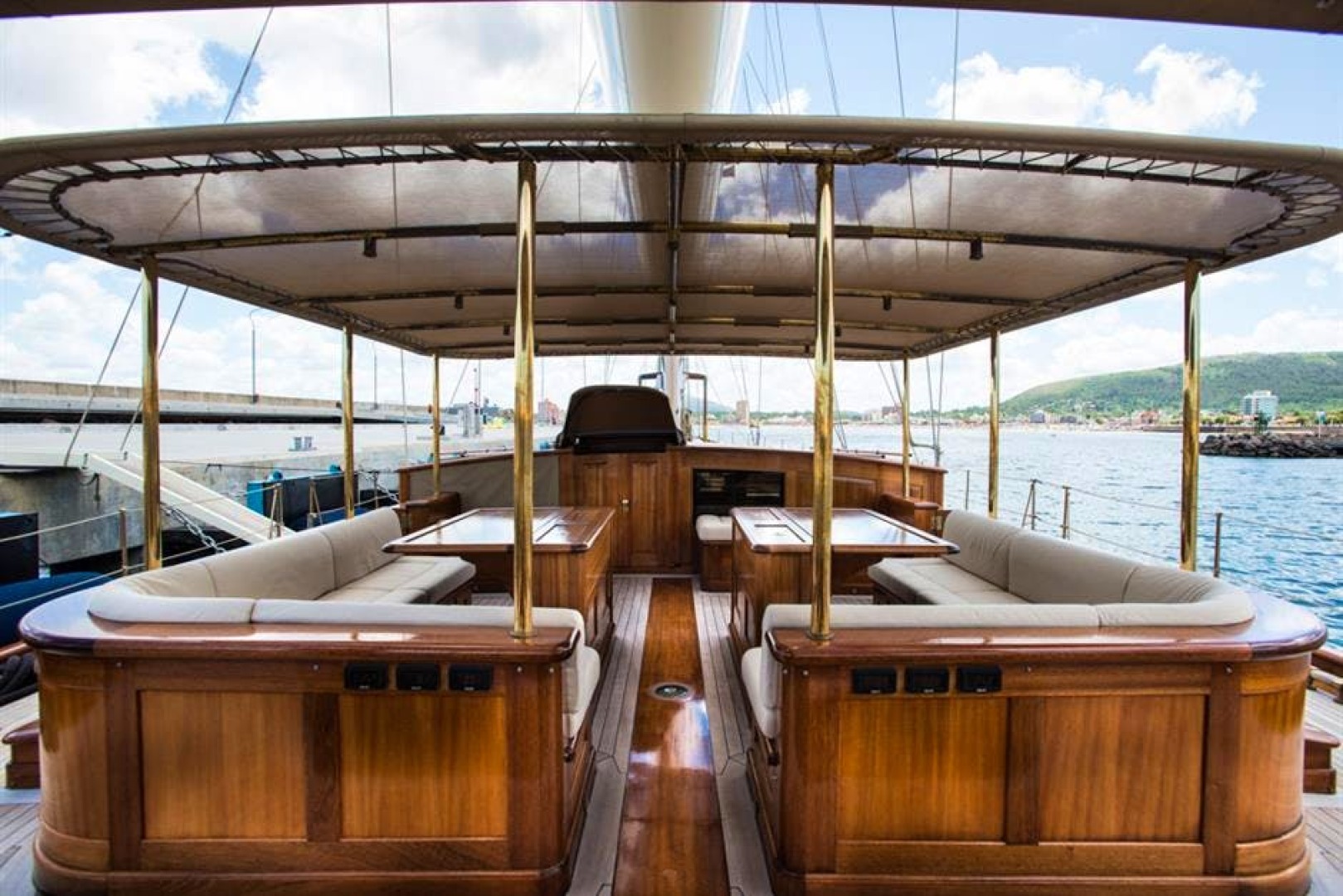

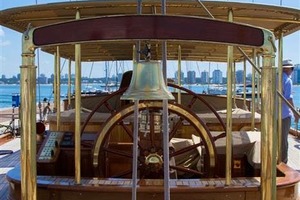

• CONTROL BRIDGE, with leather armchairs and mahogany table

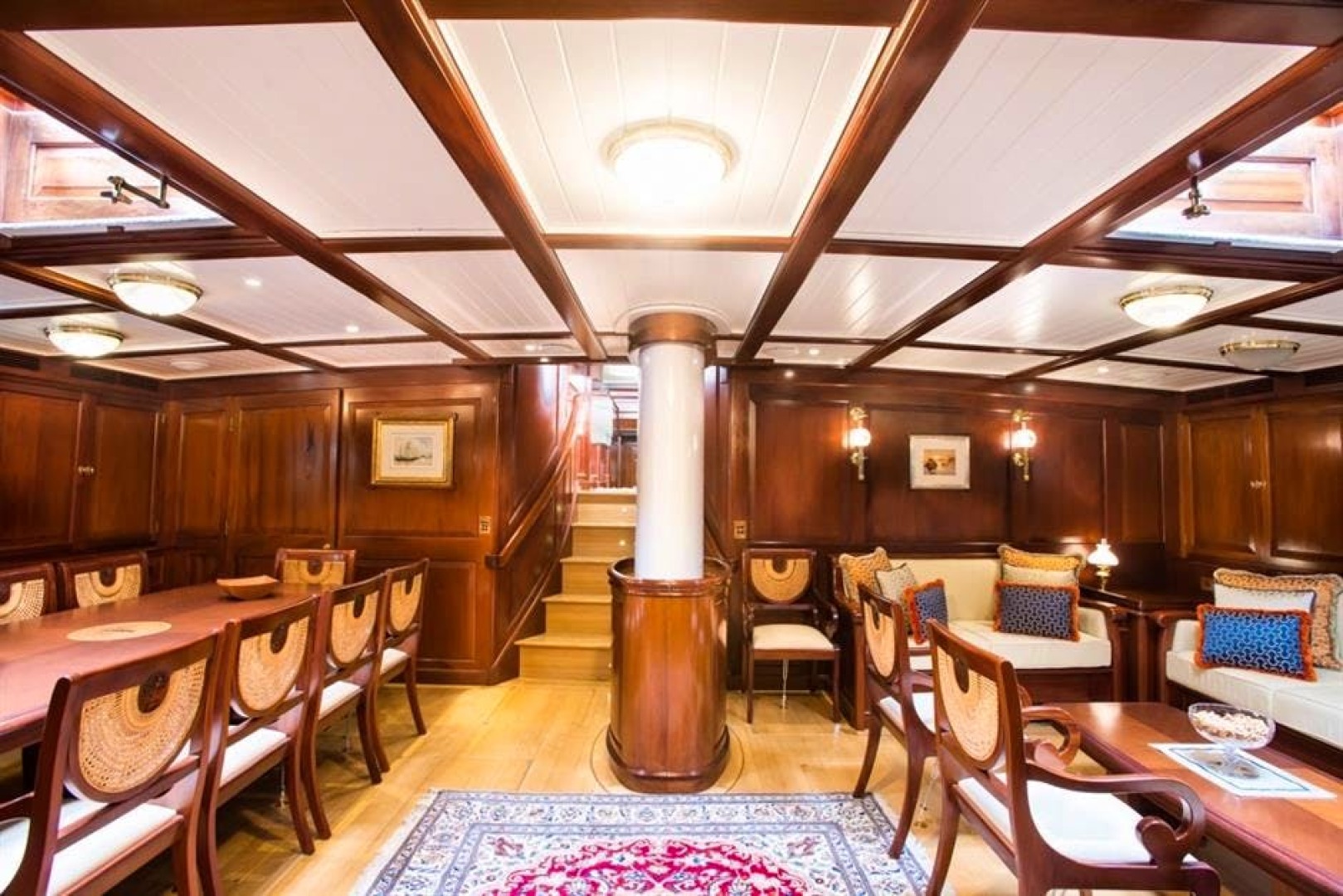

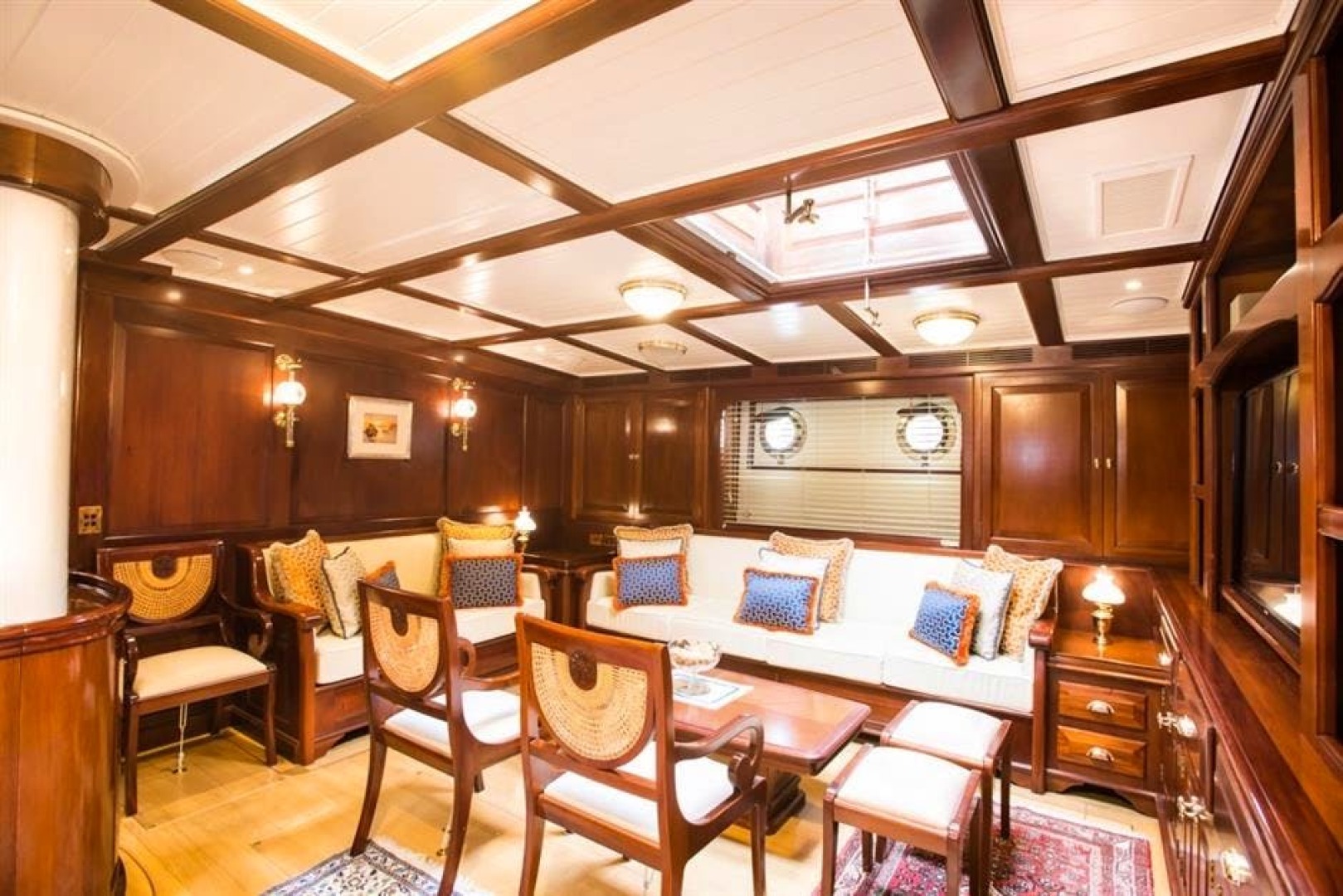

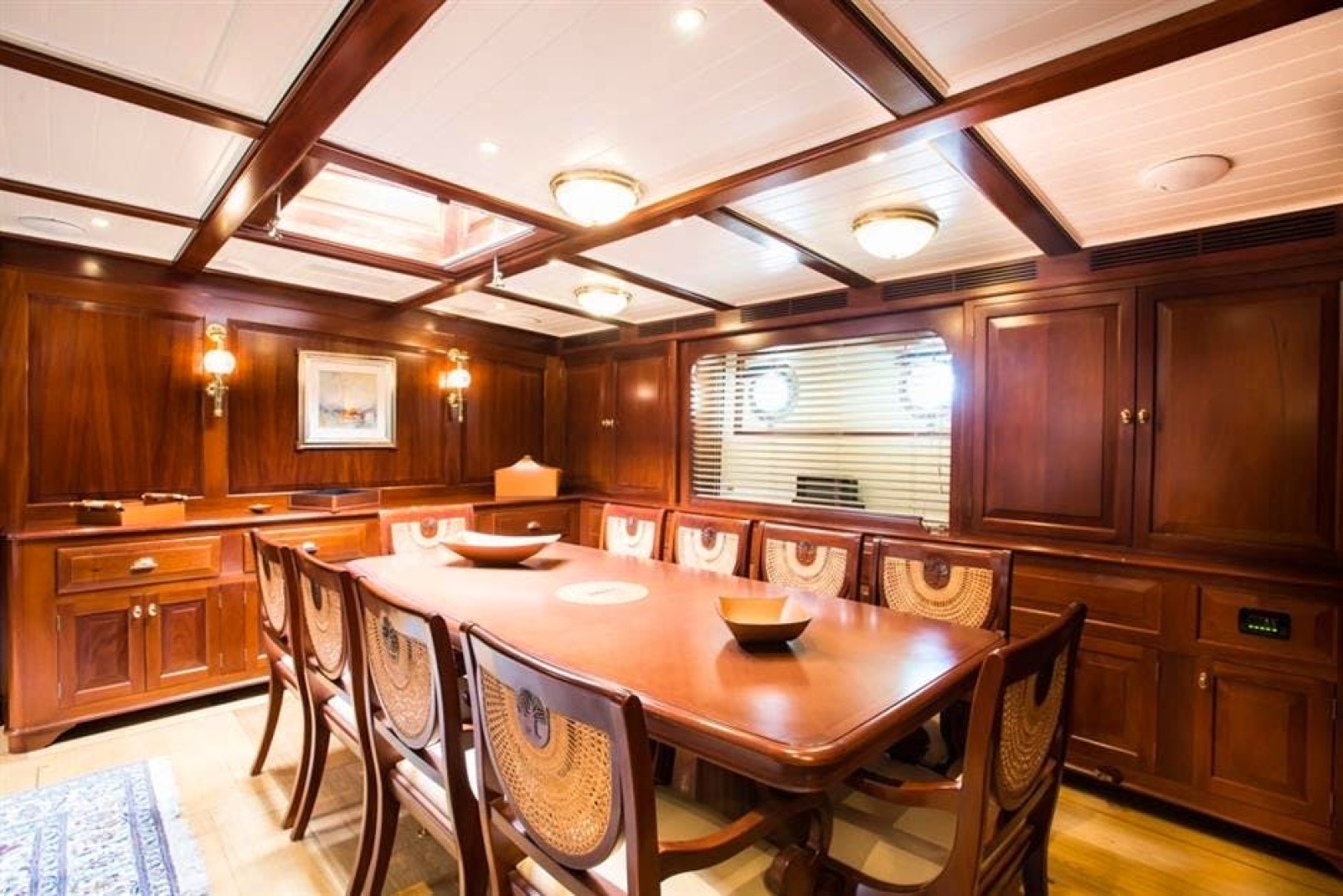

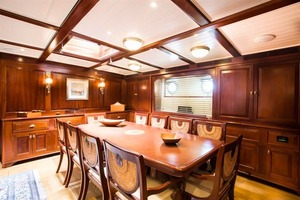

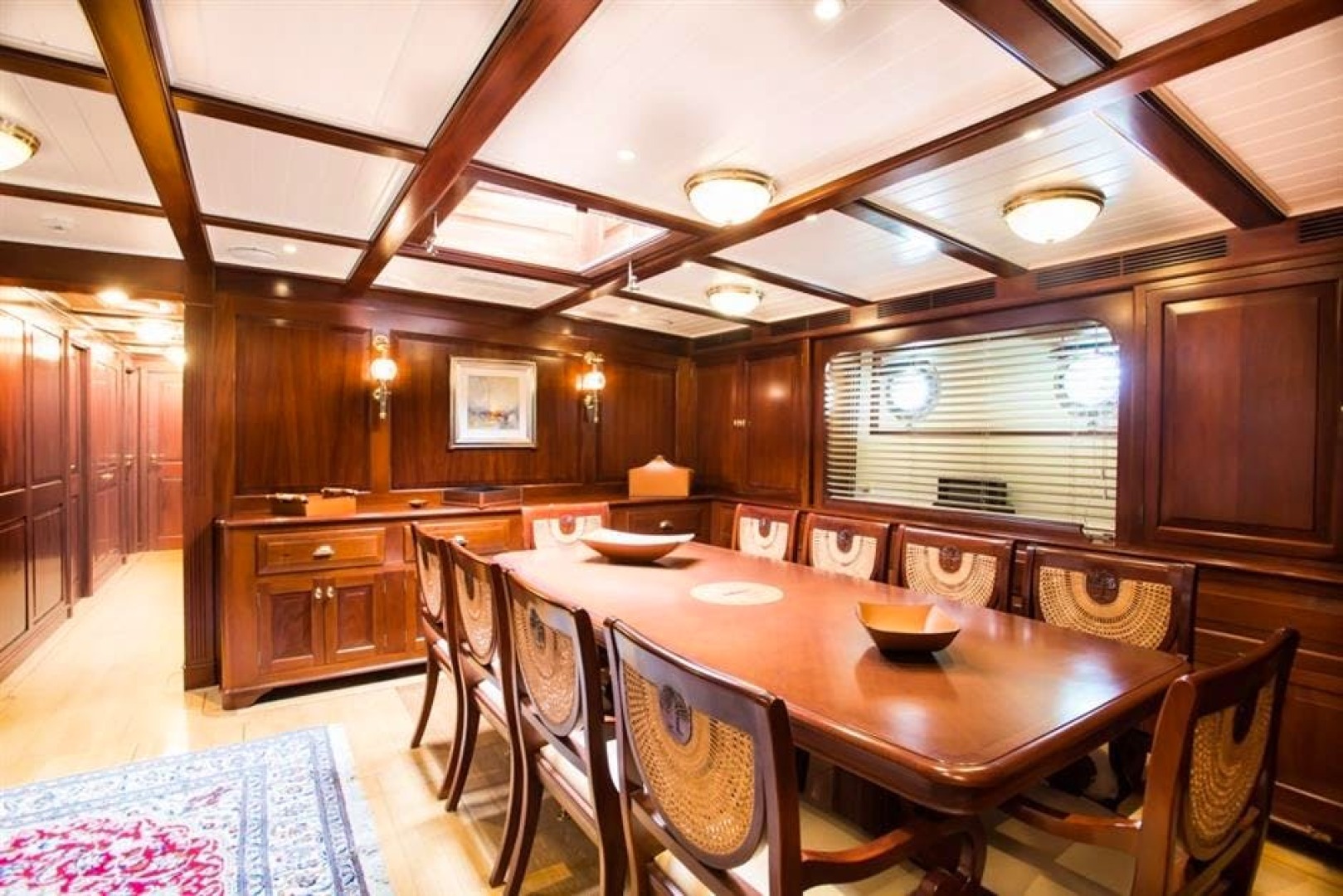

• LIVING AND DINING ROOM, occupying the maximum beam.

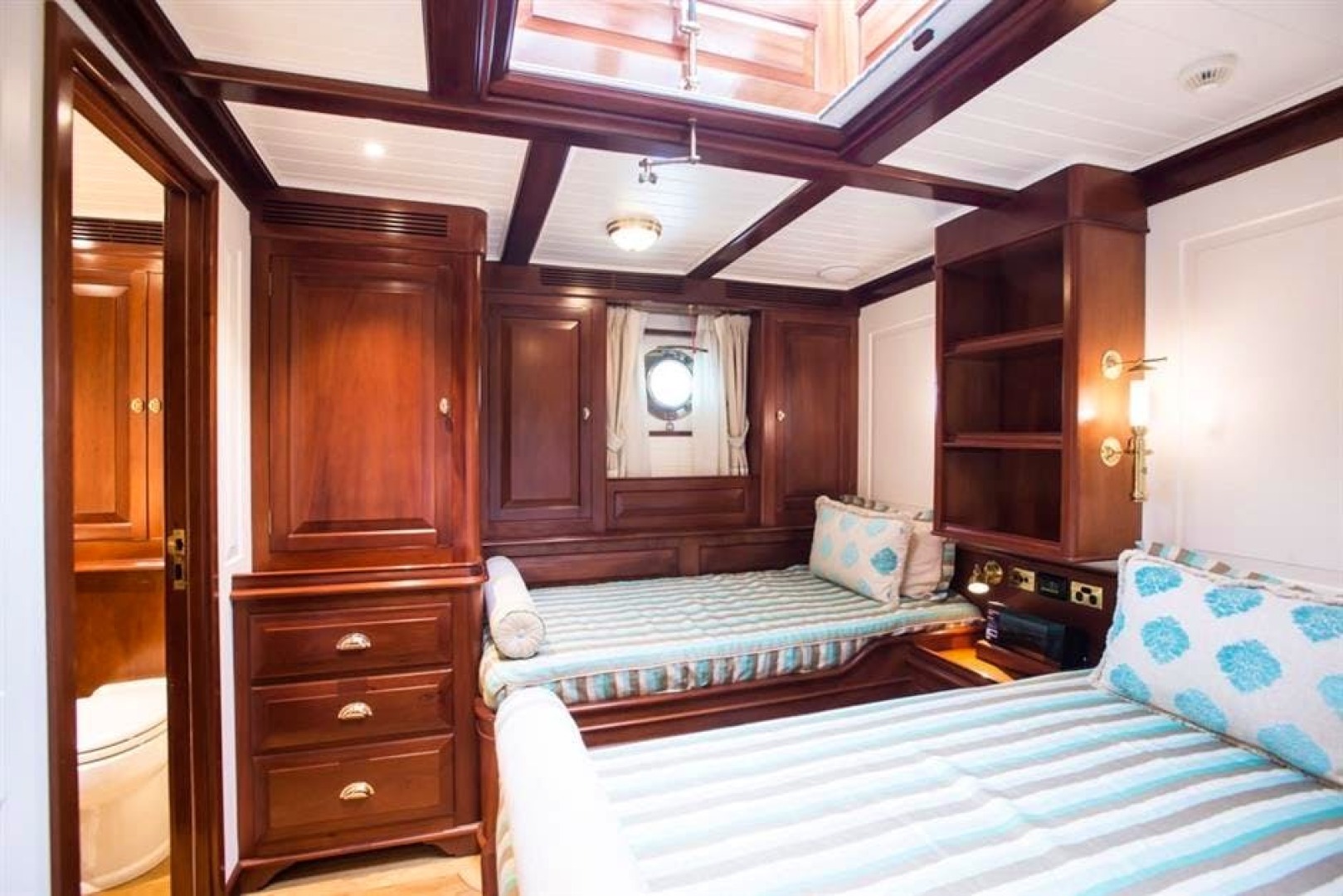

• GUEST CABIN, starboard side, 2 beds and private bathroom
• GUEST CABIN, starboard side, 2 beds and private bathroom

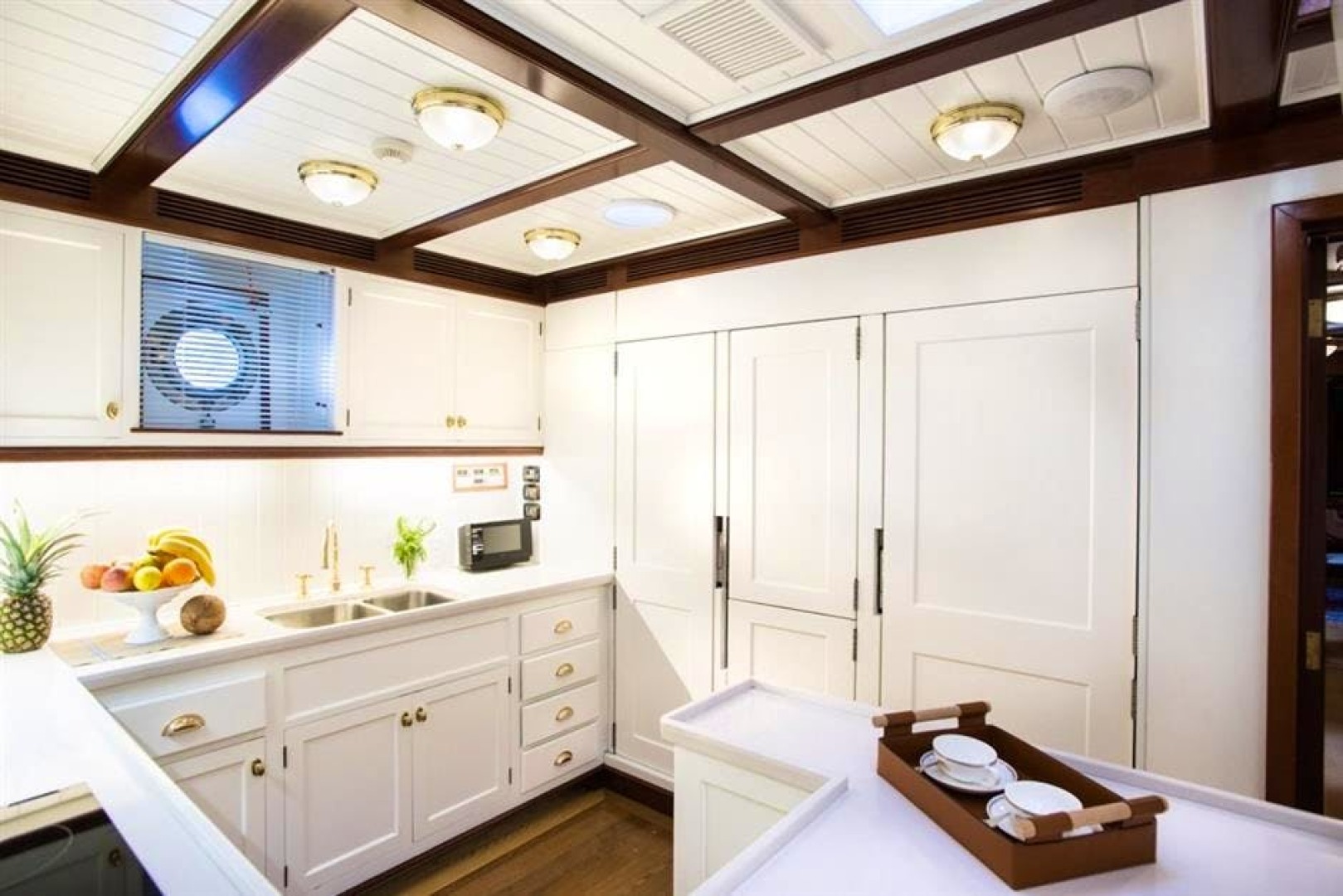

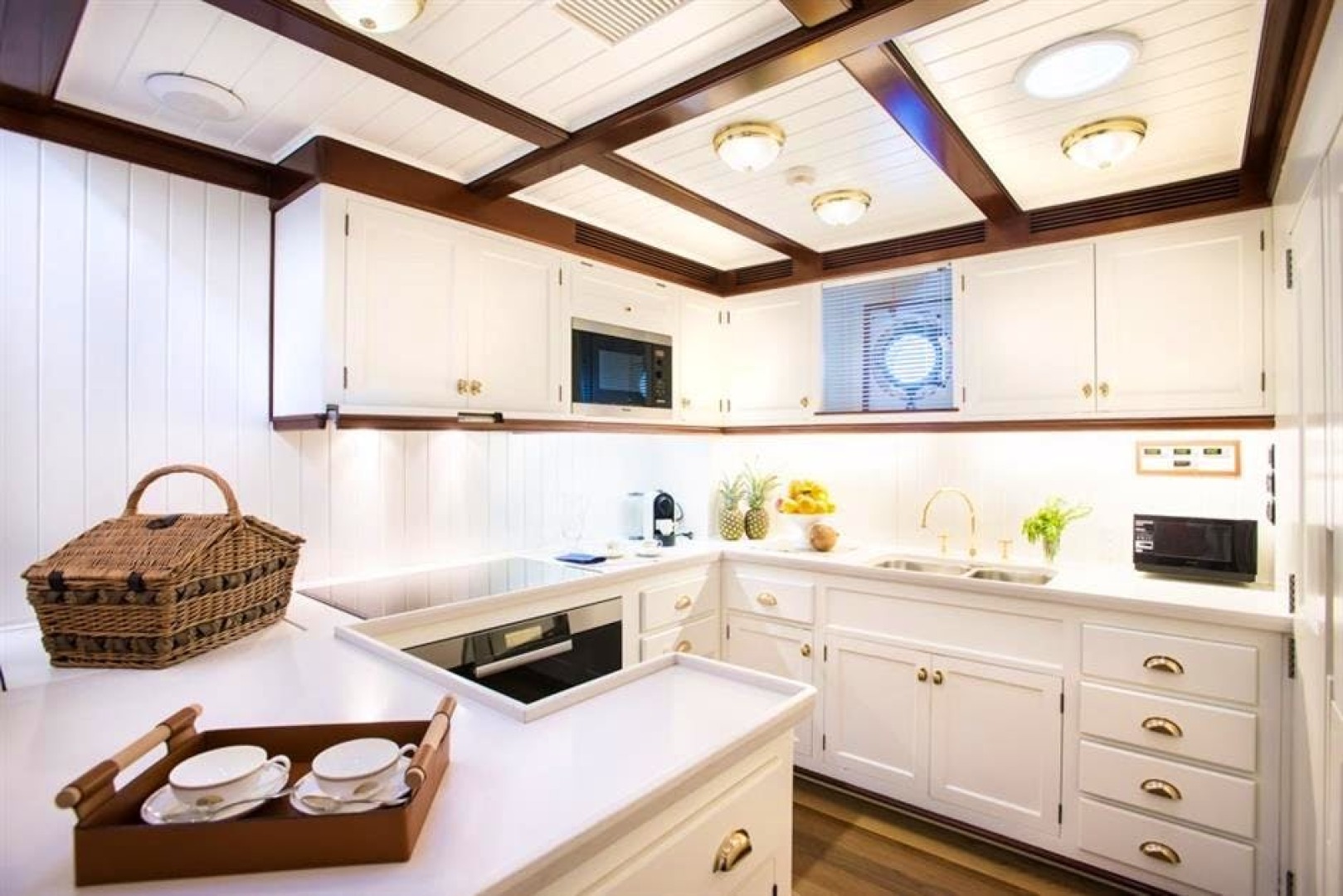

• GALLEY, 3 REFRIGERATORS, 2 FREEZERS, WINE STORAGE, DISHWASHERS,
MICROWAVE, OVEN, PORTABLE STOVES (all brand MIELE)
• CREW MESS, with navigation monitoring systems and camera circuit
• LAUNDRY, washing machine and an industrial dryer MIELE
• BERTH CAPTAIN, double bed with private bathroom

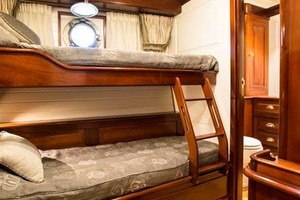

• MARINER CABIN 2, with 2 bunks each and private bathroom
SHAFT
The HUNDESTED, set of line of axis and crunk-box, consists of a system of a variable
transit of propeller to transmit the torque of the engine in an efficient way. The transit
control is obtained with a hydraulic bomb that activates a pinion, allowing a permanent
adjustment of the transit of the propeller according to the returns of the engine. –
• HUNDESTED CPG32
• POWER IN THE PROPELLER: 885 hp
• SPEED OF THE PROPELLER: 556 rpm
• RELATION: 396:1 - CLASSIFICATION: RINA
PROPELLER
• HUNDESTED VP 91/2 HP/HP
• DIAMETER: 1400 mm
• 4 SPADES constructed in alloy of Ni=Al-Bz
• Crow’s feet: schemed in Ni-Al-Bz
• AXIS: HINDESTED 1.4404 Diam ext 130 mm, Diam int, 40 mm
• SEAL AXIS: Hundested
• Hook Up: Hundested, customed made/Vulkan

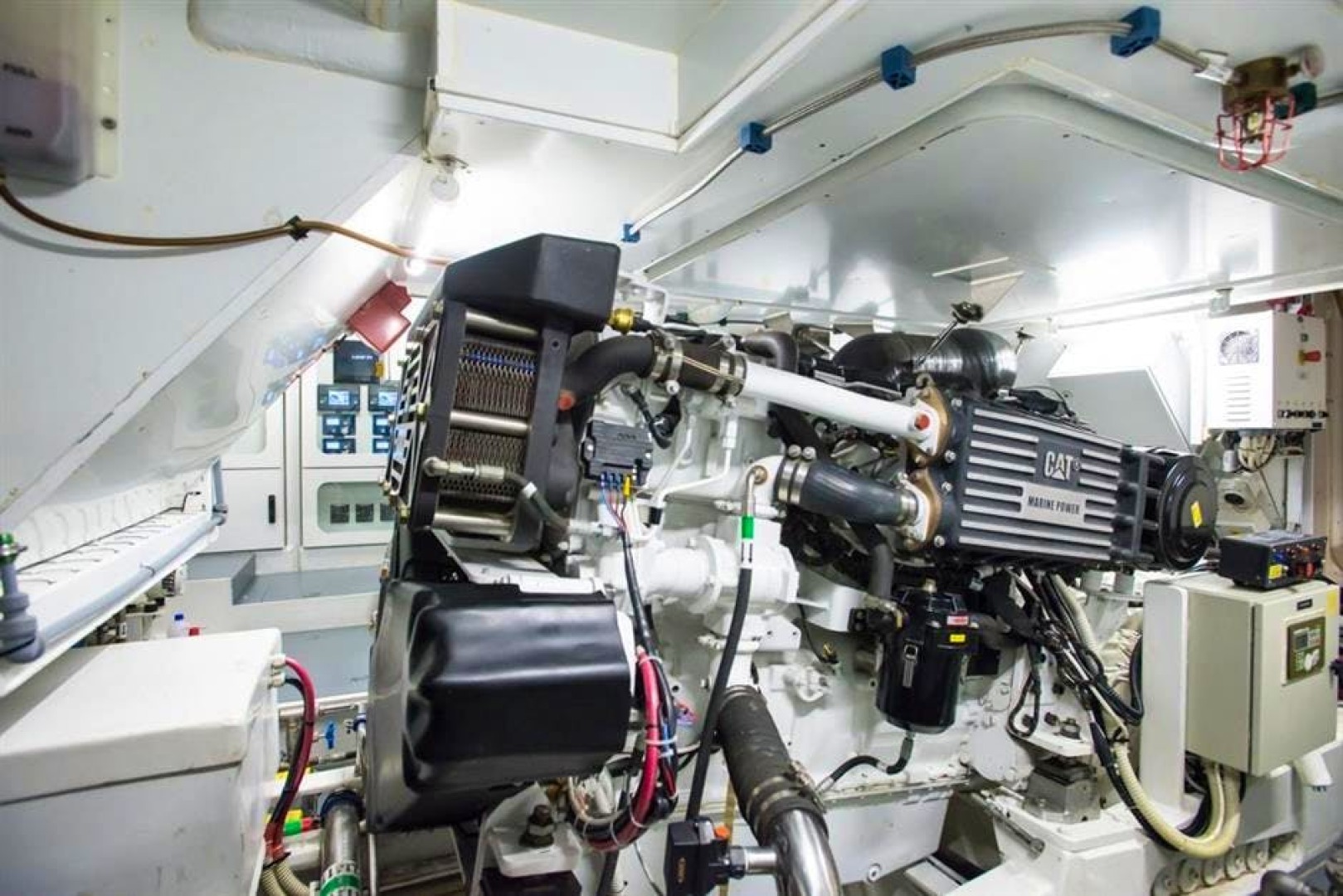

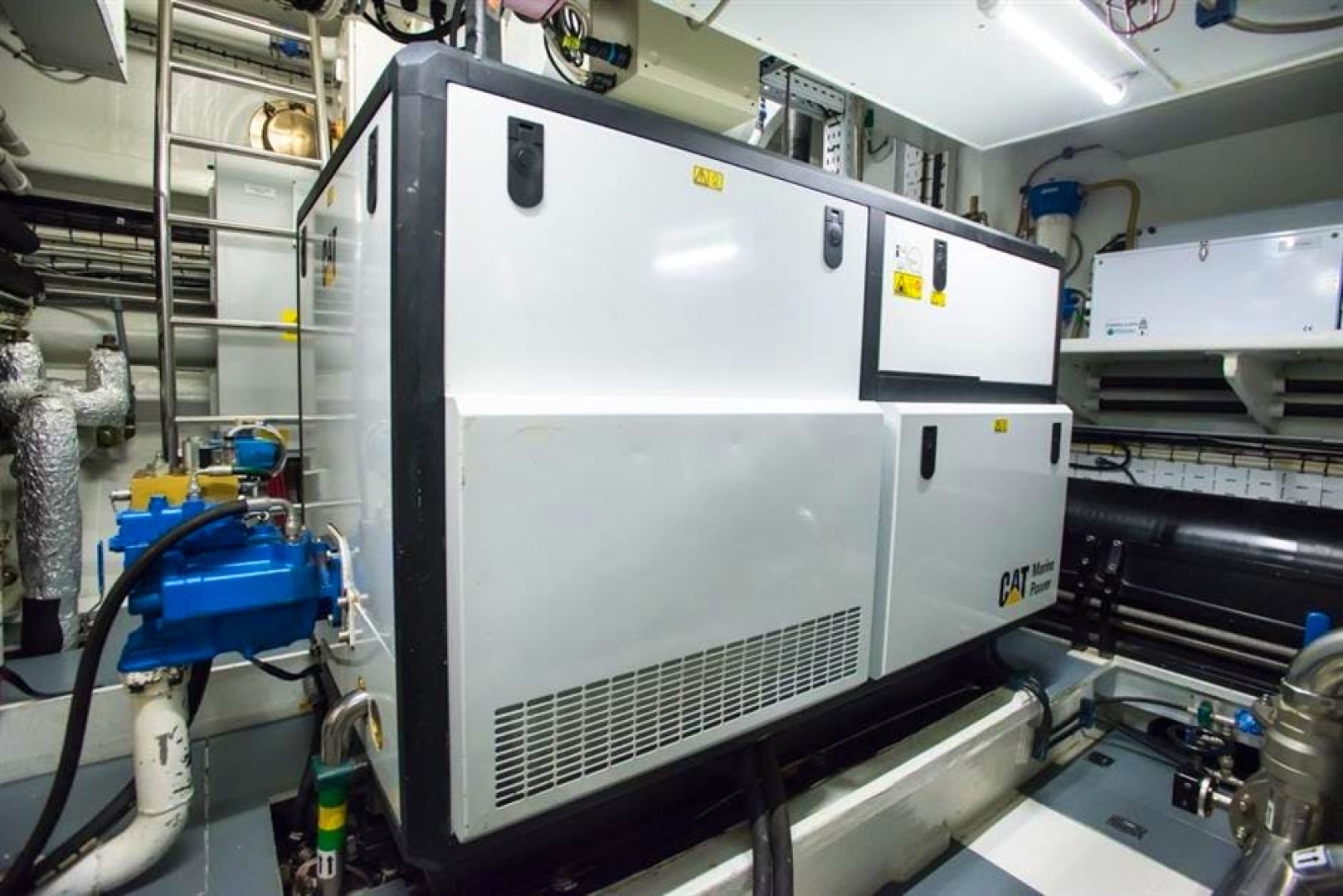

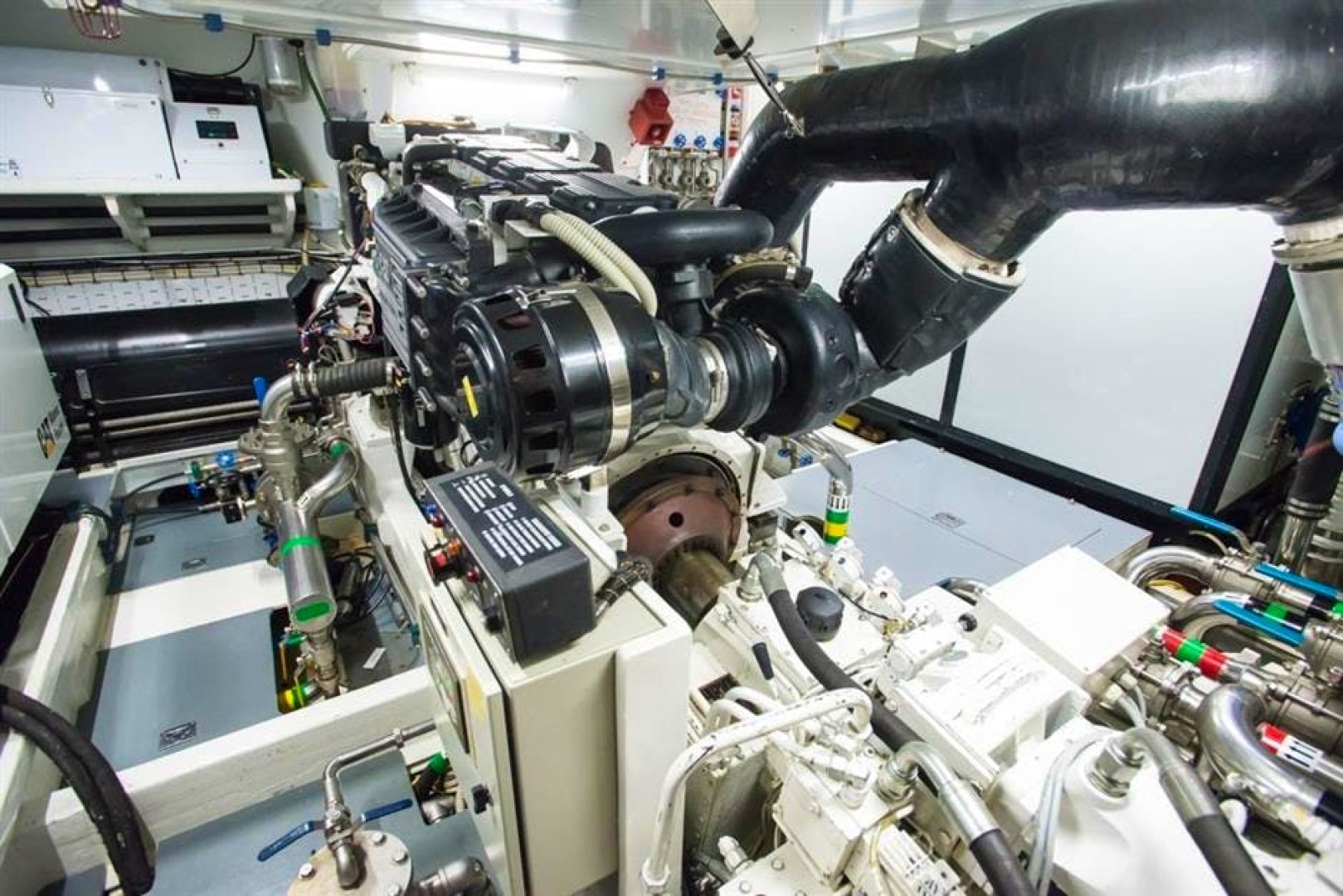

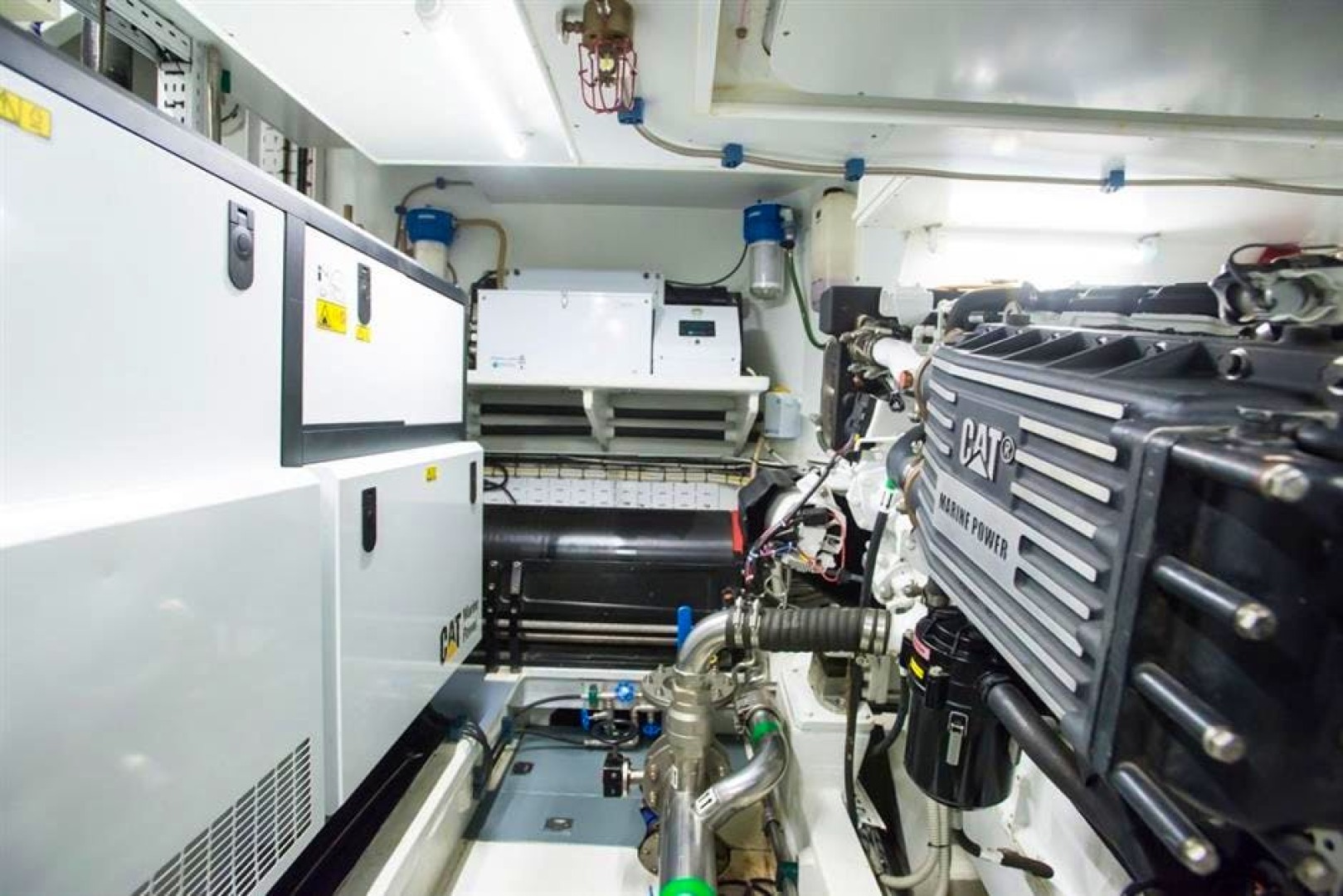

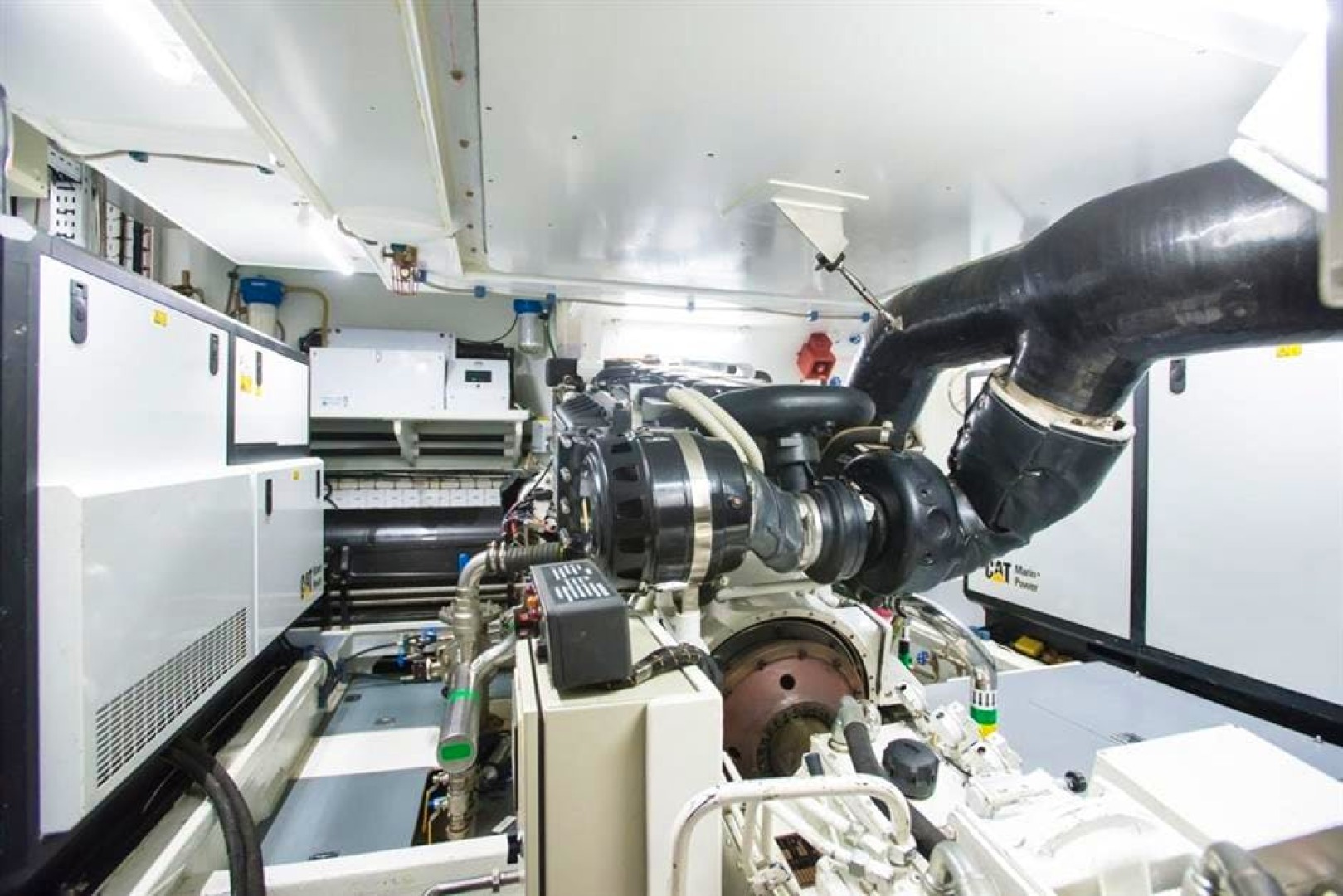

GENERATORS

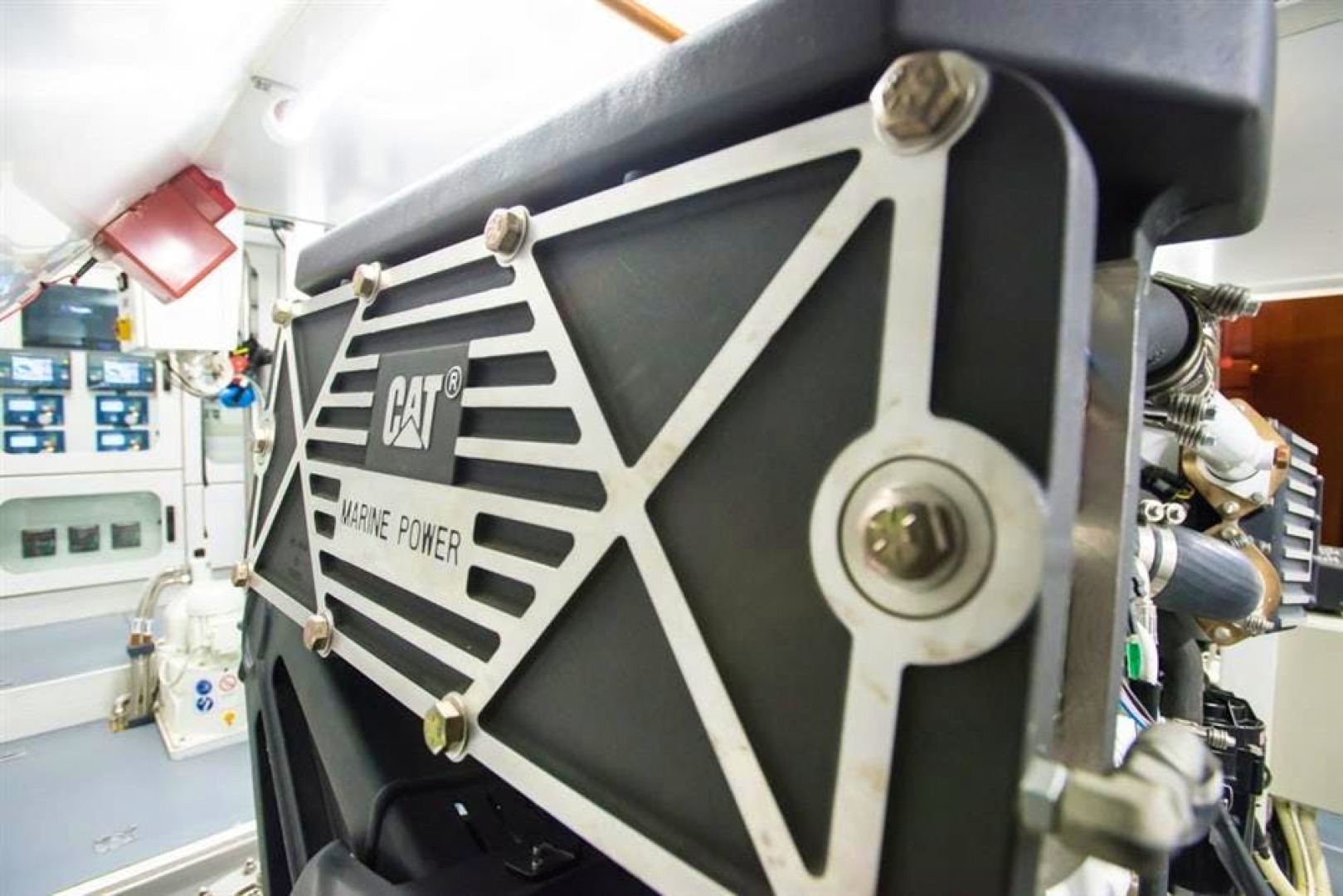

• CATERPILLAR C4
• 4,5 KW
• POWER 64 kva
• TENSION: 3 x 380
BOWTHRUSTER and STERNTHRUSTER
• MAX POWER R 600
• Promotes 100 HP
• SYSTEM: retractable hydraulic to piston
• PROPELLER: 4 spades
• Diameter of the turbine: 600 mm

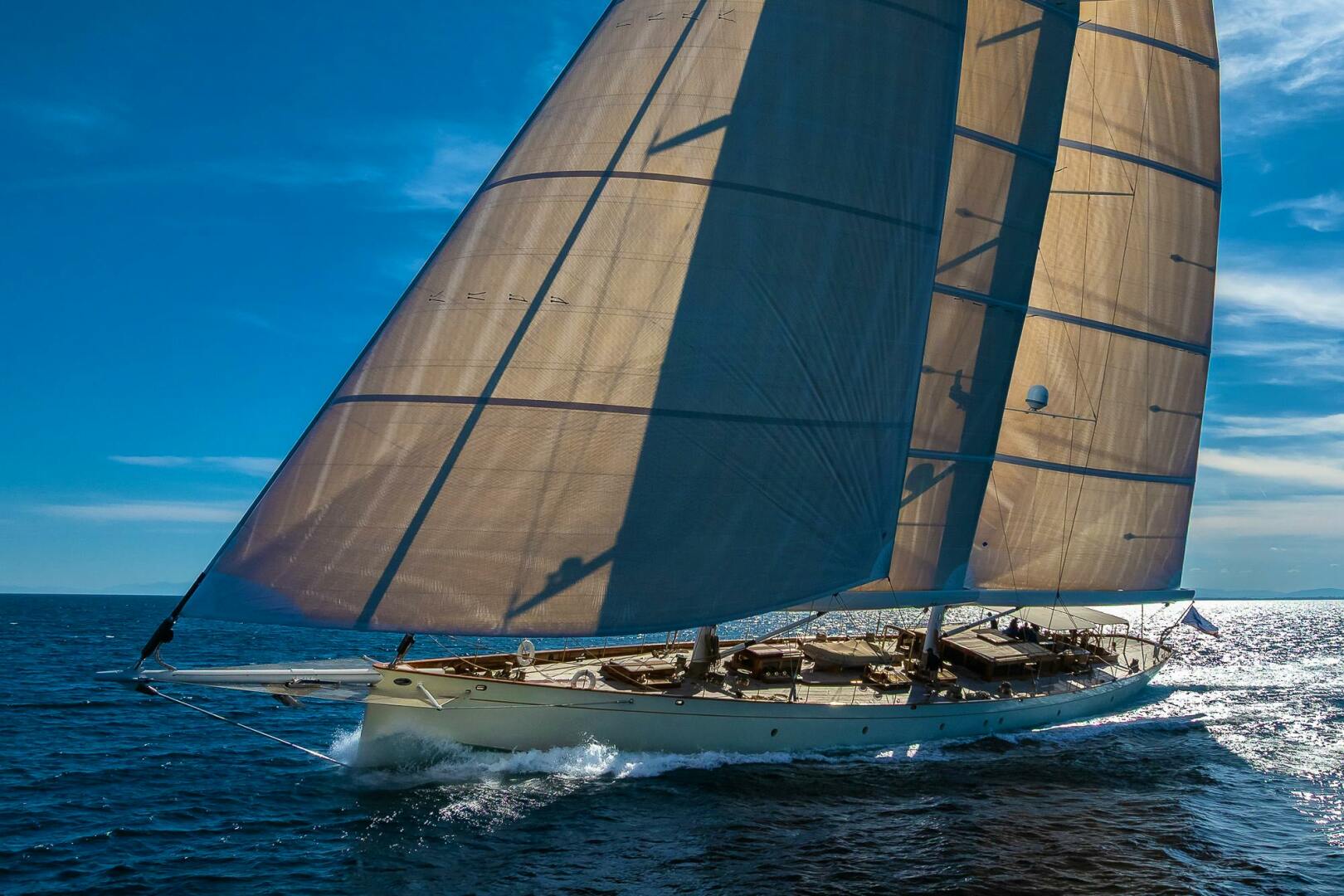

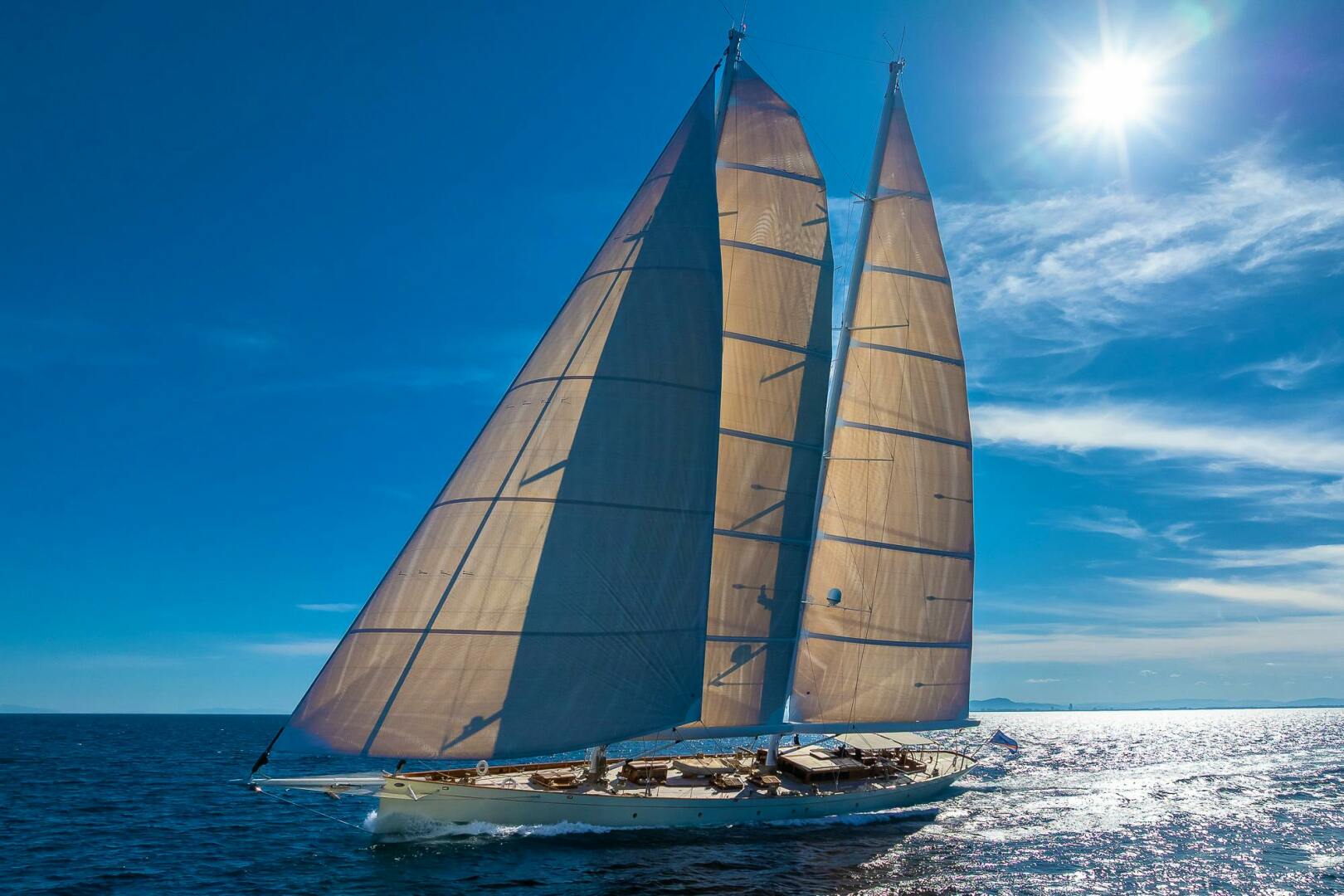

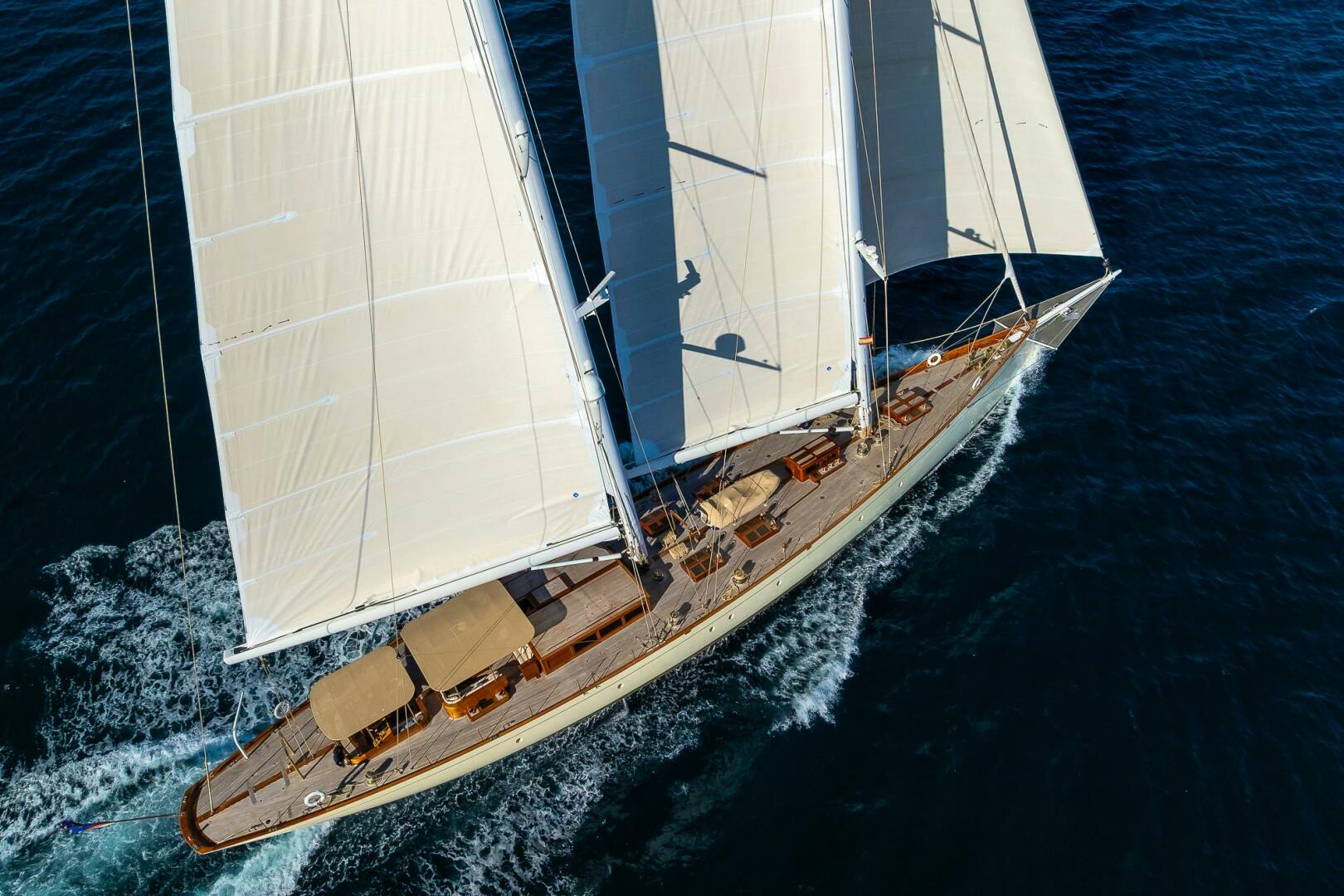

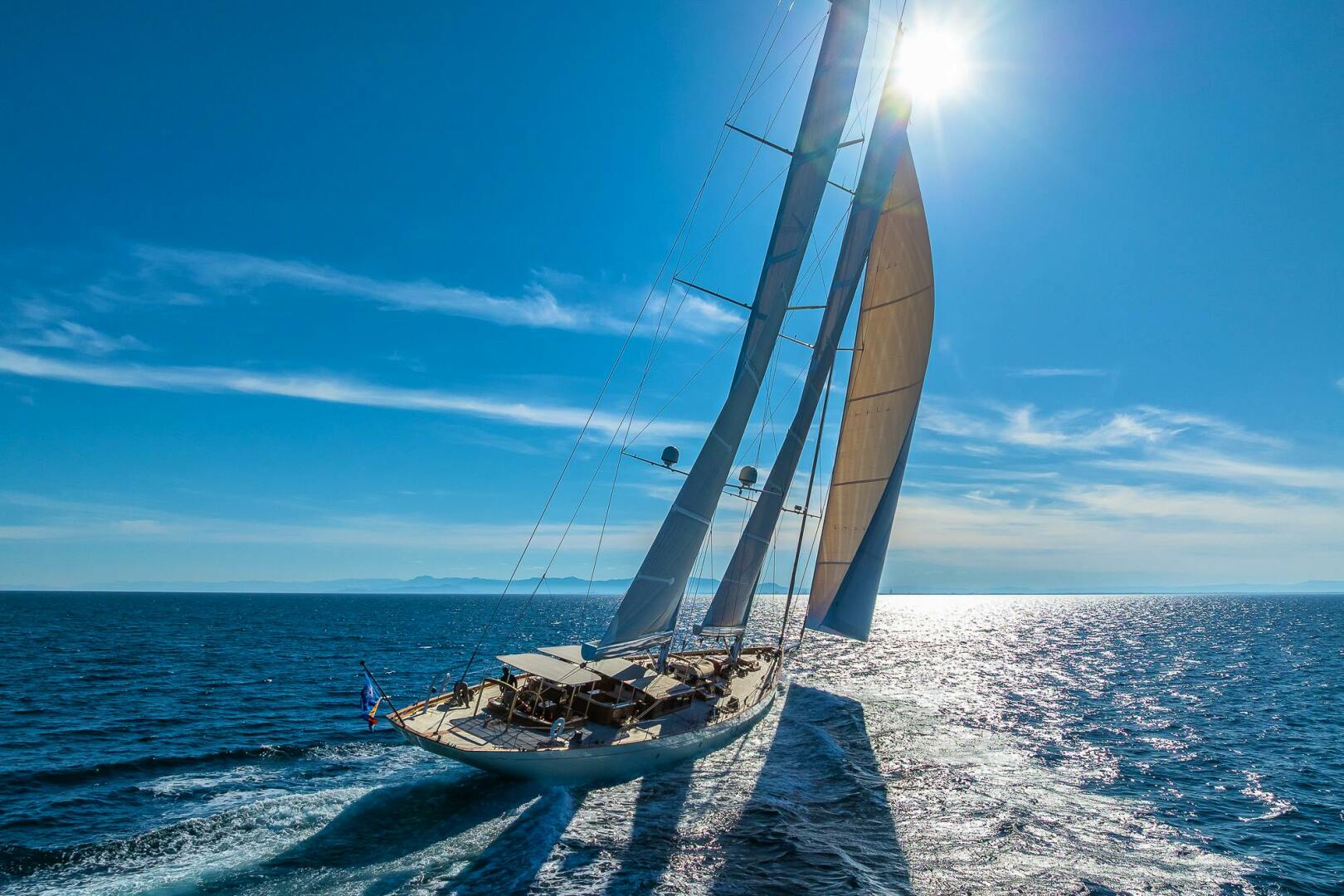

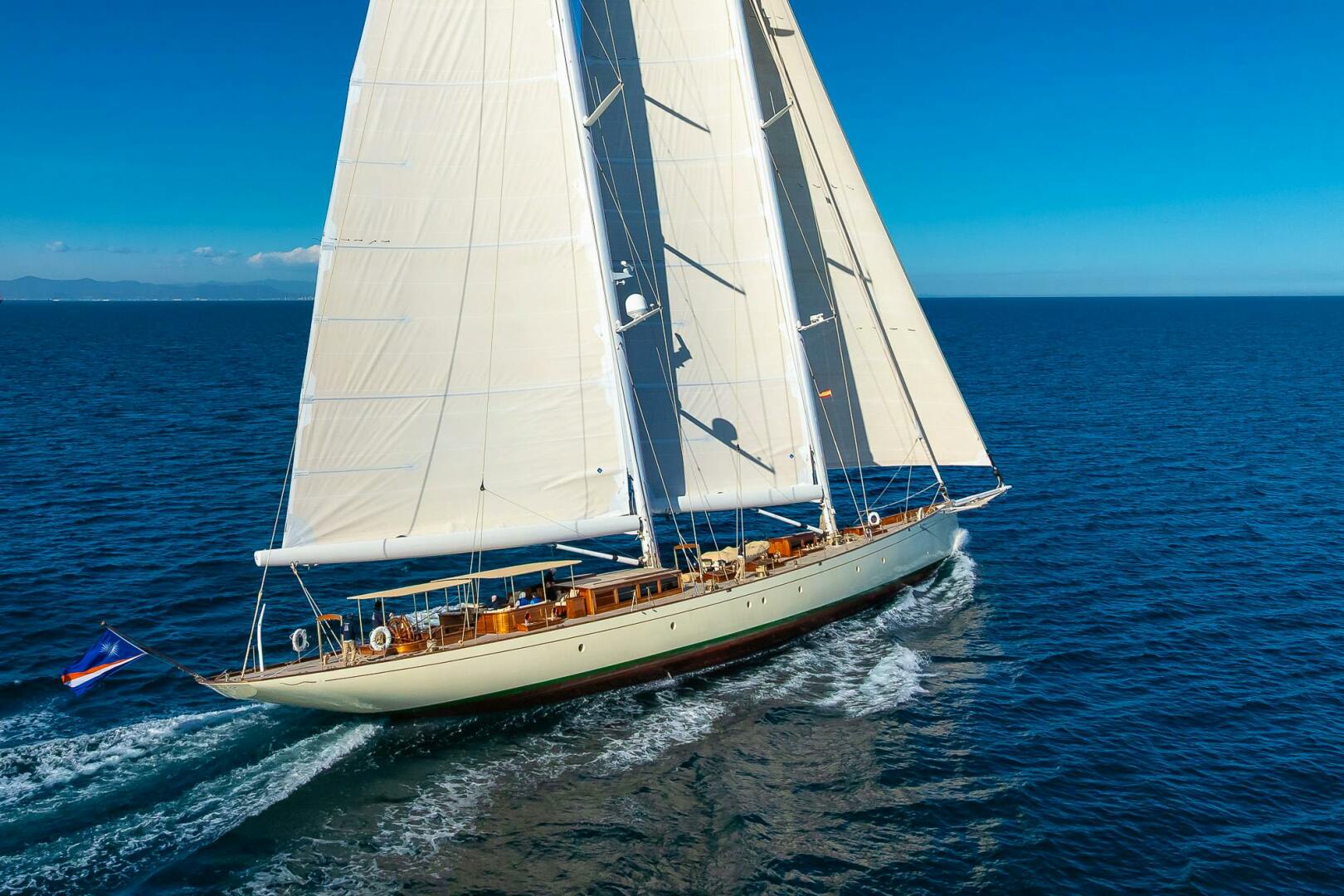

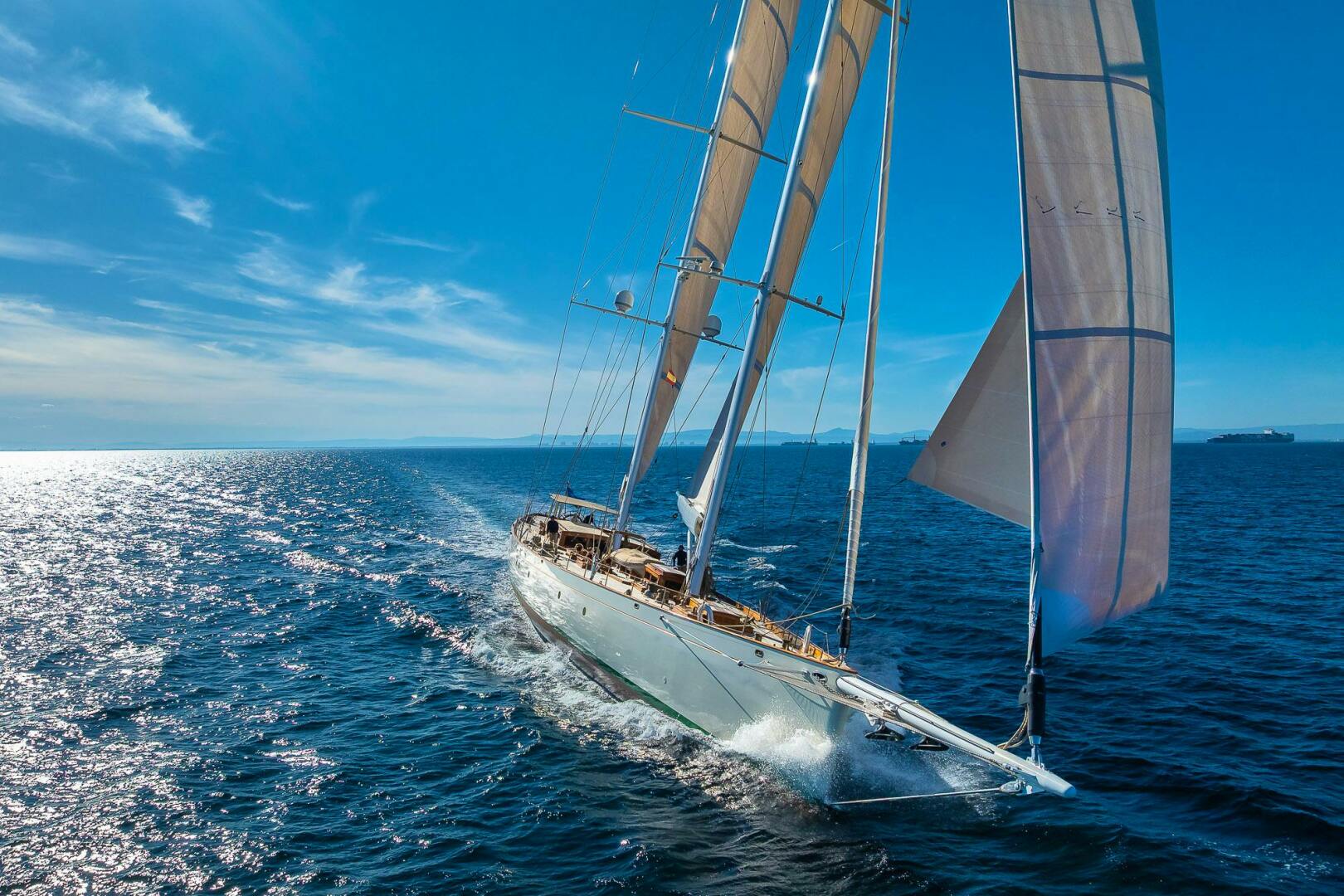

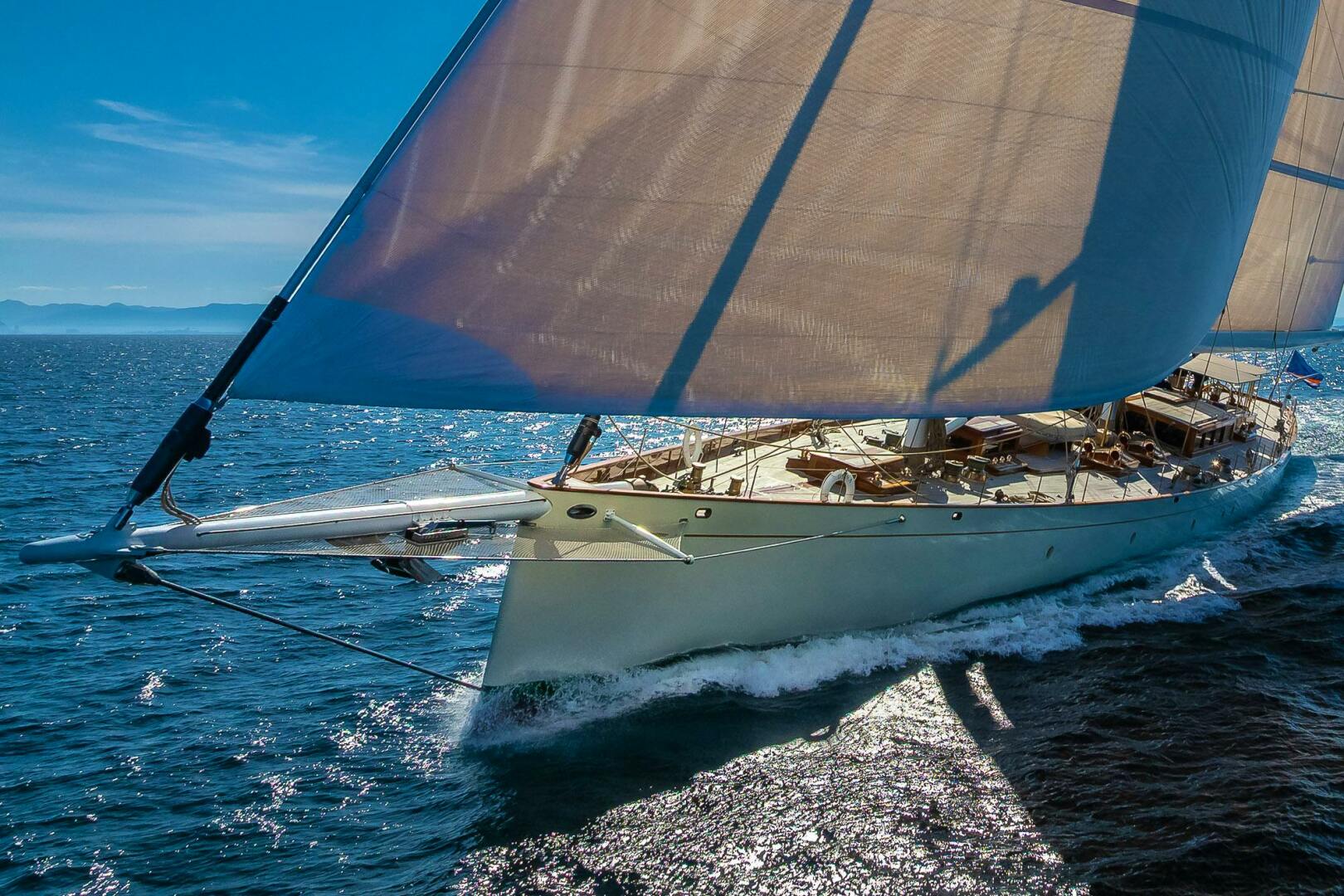

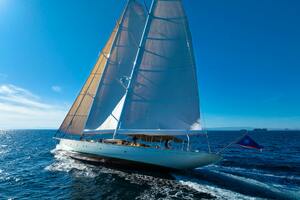

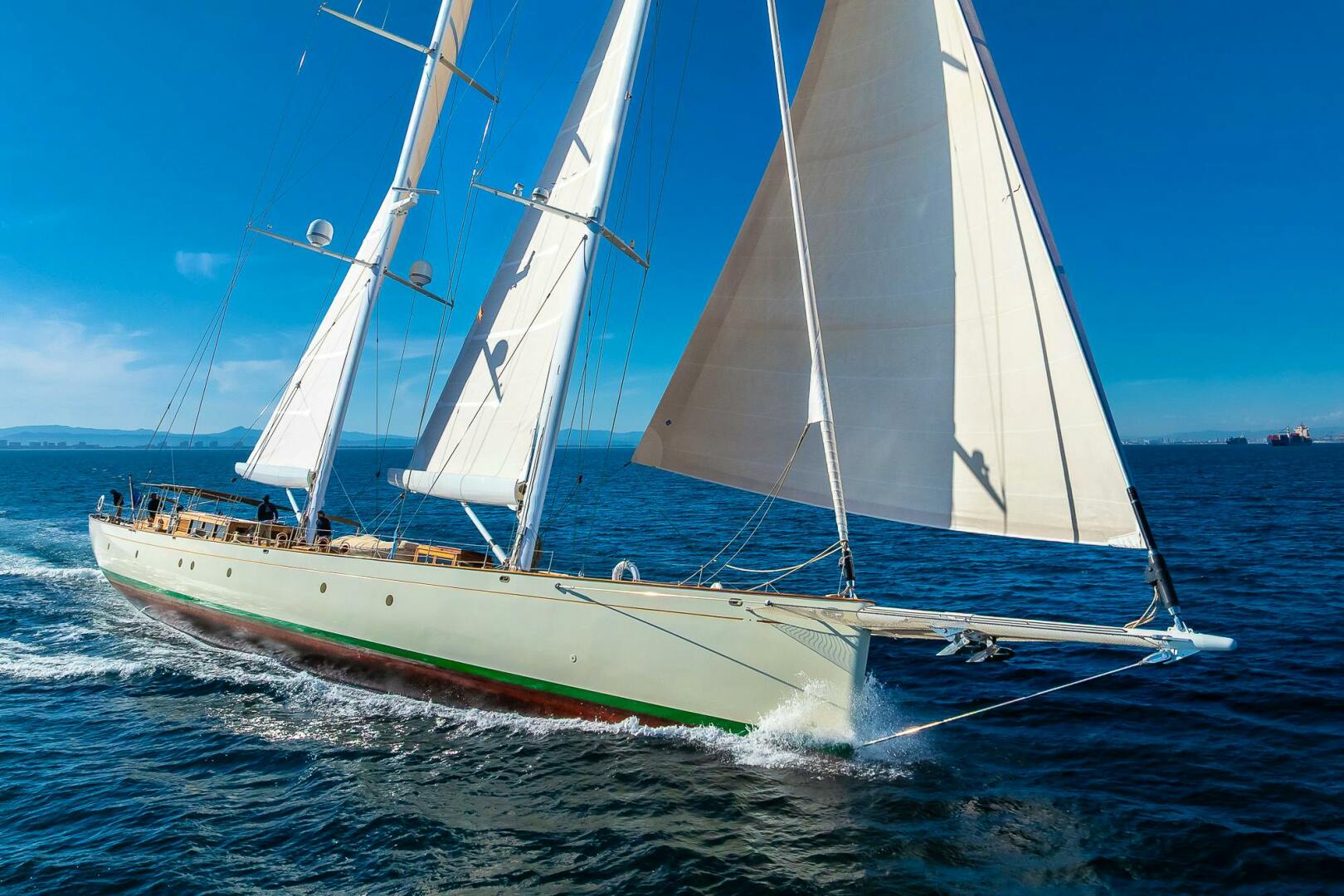

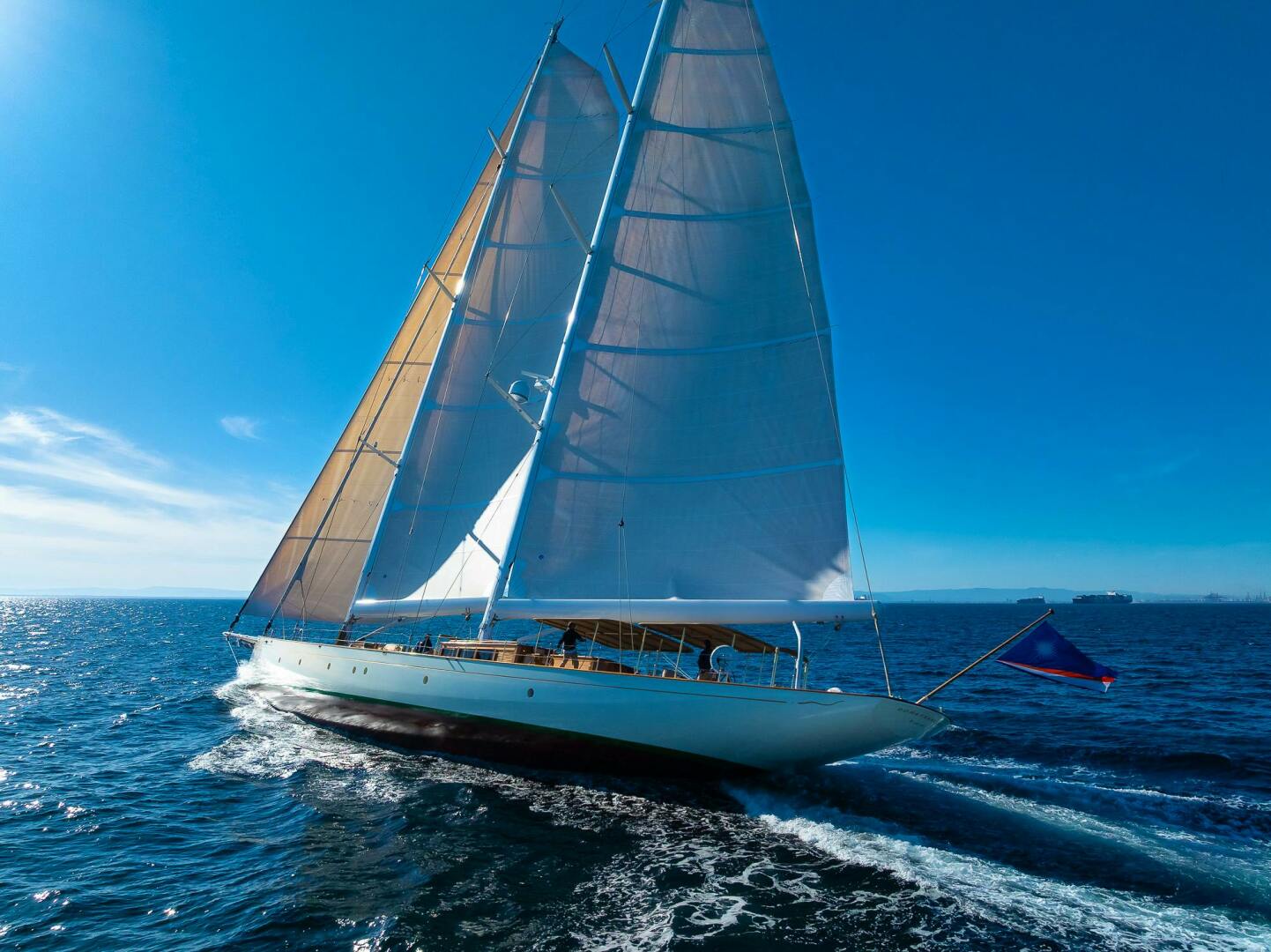

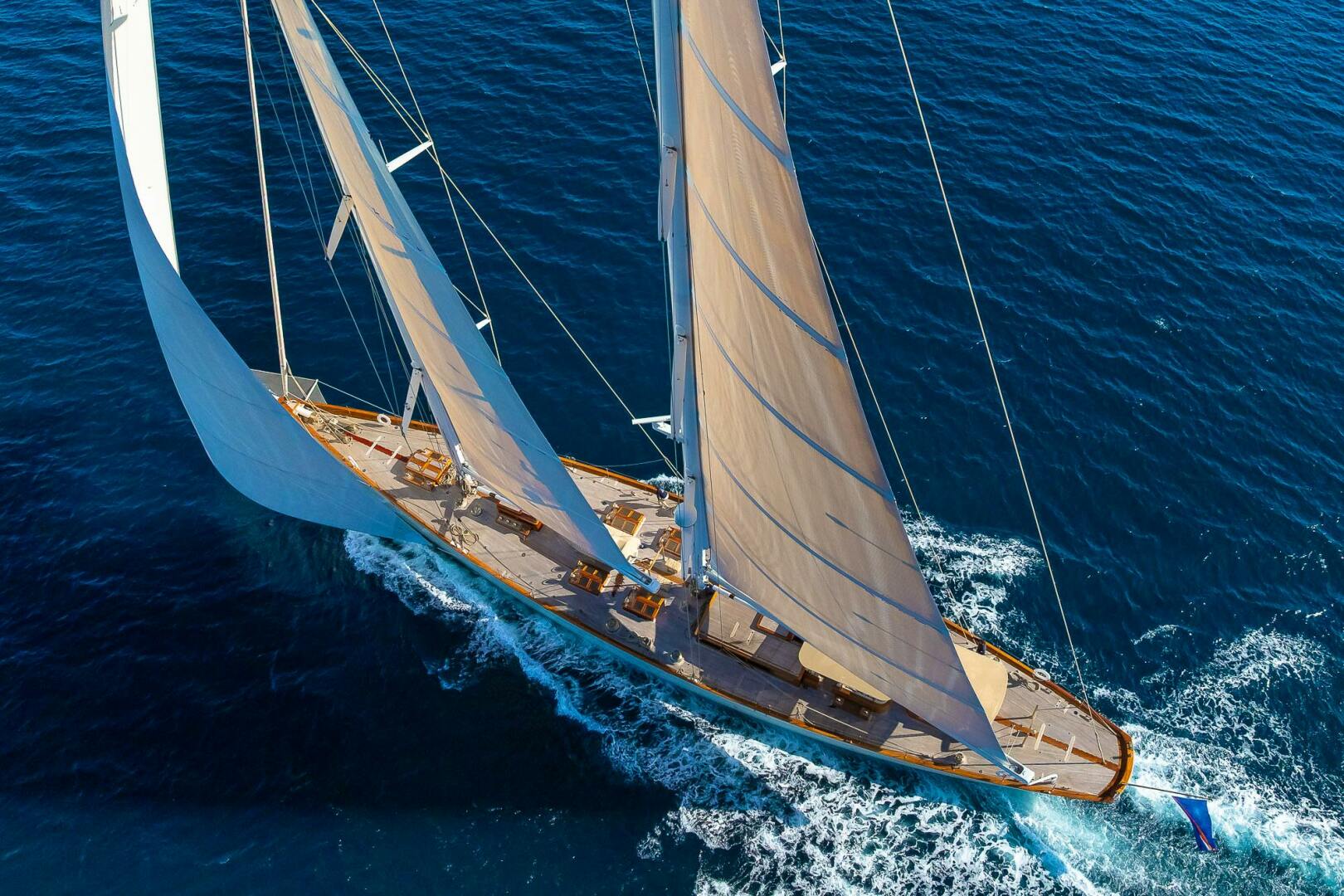

SAIL INVENTORY
Mast heights: Main Mast: 46,70m from deck - 48.90m from waterline, Foremast 42.83m from deck - 45.30m from waterline
Fore Mast - King Composite carbon fiber construction / Furling Boom
Main Mast - King Composite carbon fiber construction / Furling Boom
The total surface of the sails is approx. 1.126 square meters
The sail inventory includes: A full batten Main Sail, a full batten Schooner sail, a Storm sail, a Gennaker and two rolling Genoas.
• Main 407 m2
• Schooner 341 m2
• Genoa 3, 254 m2
• Genoa 1, 414 m2
• Headsail of storm 55 m2 - gennaker 1032 m2
DESALINATOR
• BRAND: SPECTRA FARALLON 2800
• Capacity: 2,800 gallons per day
BLACK and GREY WATER TREATMENT PLANT
CAPACITIES OF THE TANKS
• FUEL 2 x 3.635 liters -
• FUEL 2 x 4.335 liters
• DAILY FUEL TANK: 1057 liters
• DRINKABLE WATER 2 x 2.450 liters
• BLACK WATER 1.350 liters
• GREY WATER 2.800 liters
• OILY WATER 200 liters
• BILGE TANK 1.250 liters
BRIDGE NAVIGATION EQUIPMENT
• 2 Screens SIMRAD
• CONTROLLERS OP 40
• INTEGRAL SYSTEM B*G H 3000
• VHF SAILOR
• GPS SIMRAD
• AIS SIMRAD
• AUTOMATIC PILOT B*G
OWNERS OFFICE NAVIGATION EQUIPMENT
• 1 screen SIMRAD
• 1 controller OP 40
• INTEGRAL SYSTEM B*G H 3000
CREW MESS EQUIPMENT
• 1 screen SIMRAD
• 1 controller OP 40
• INTEGRAL SYSTEM B*G H 3000

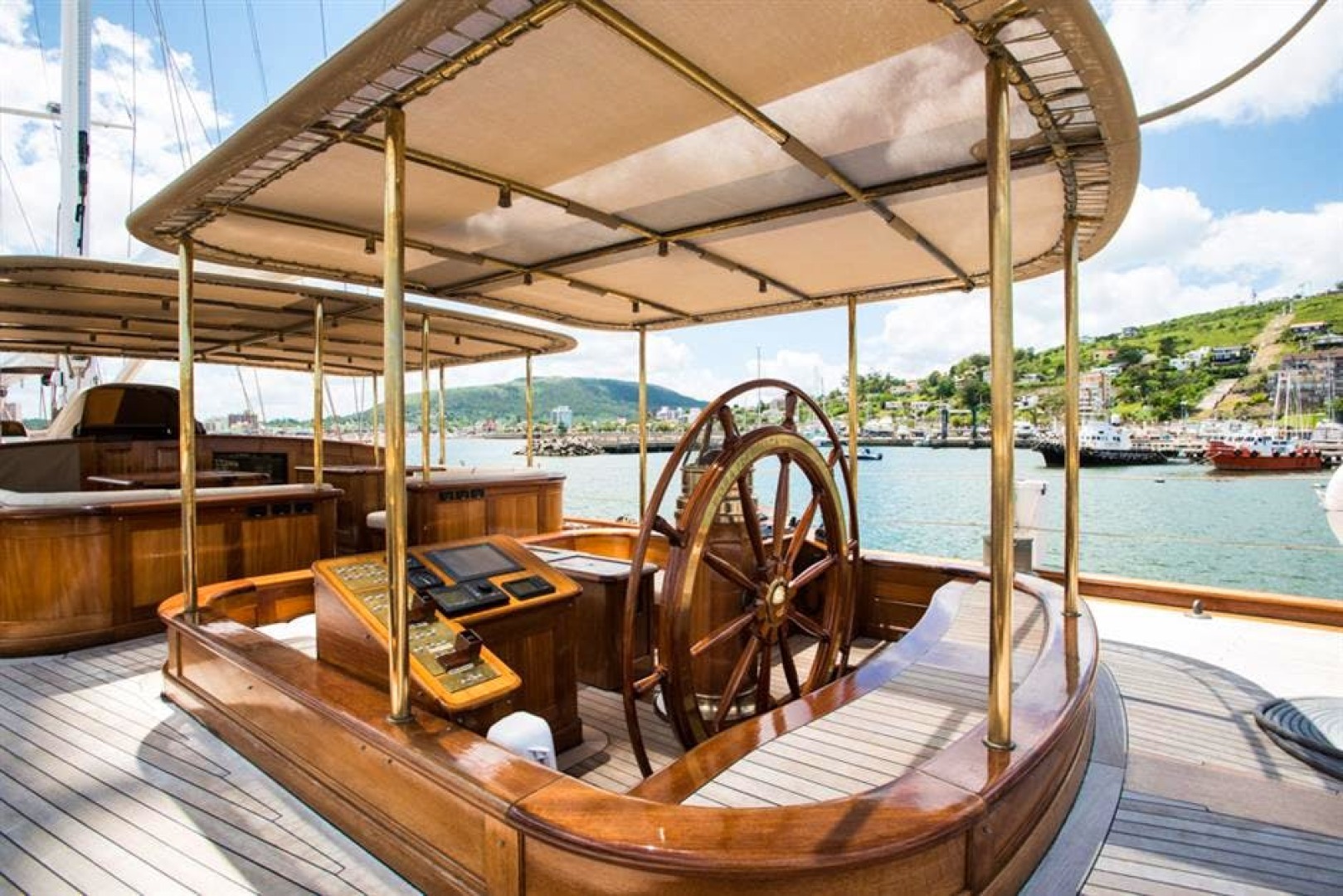

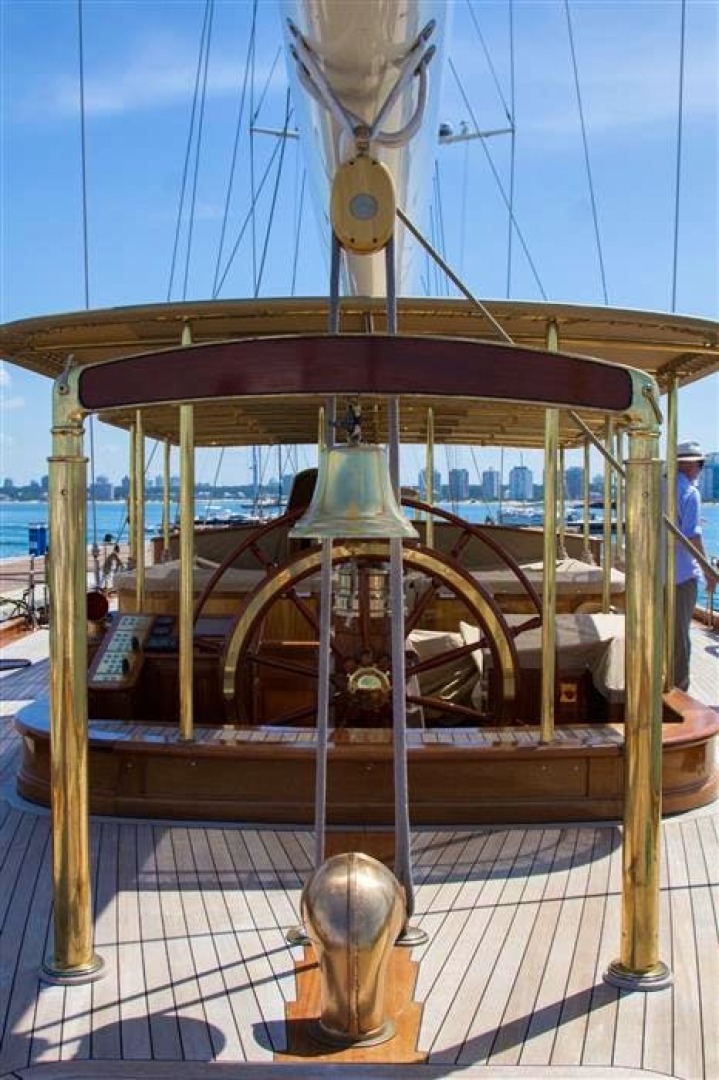

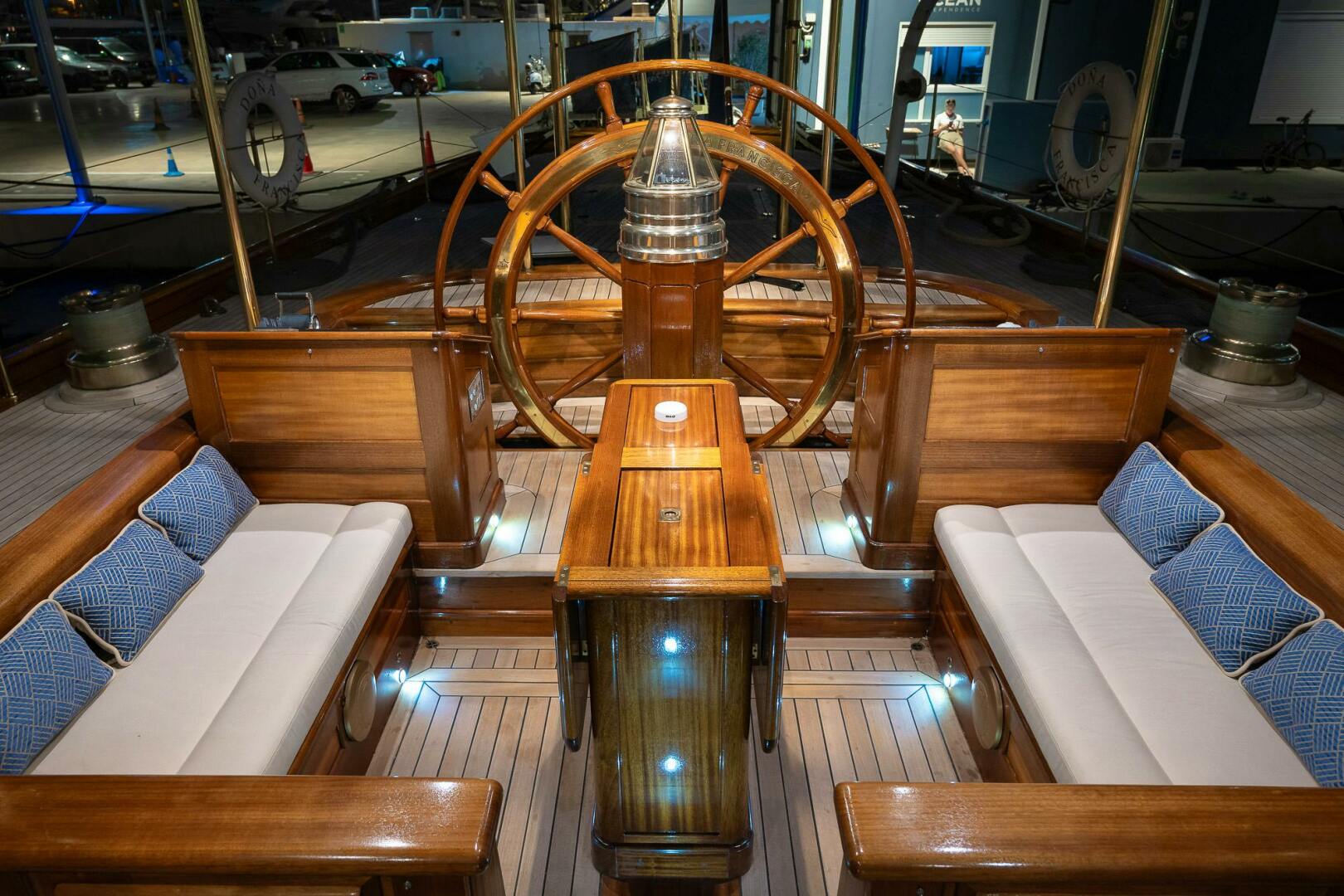

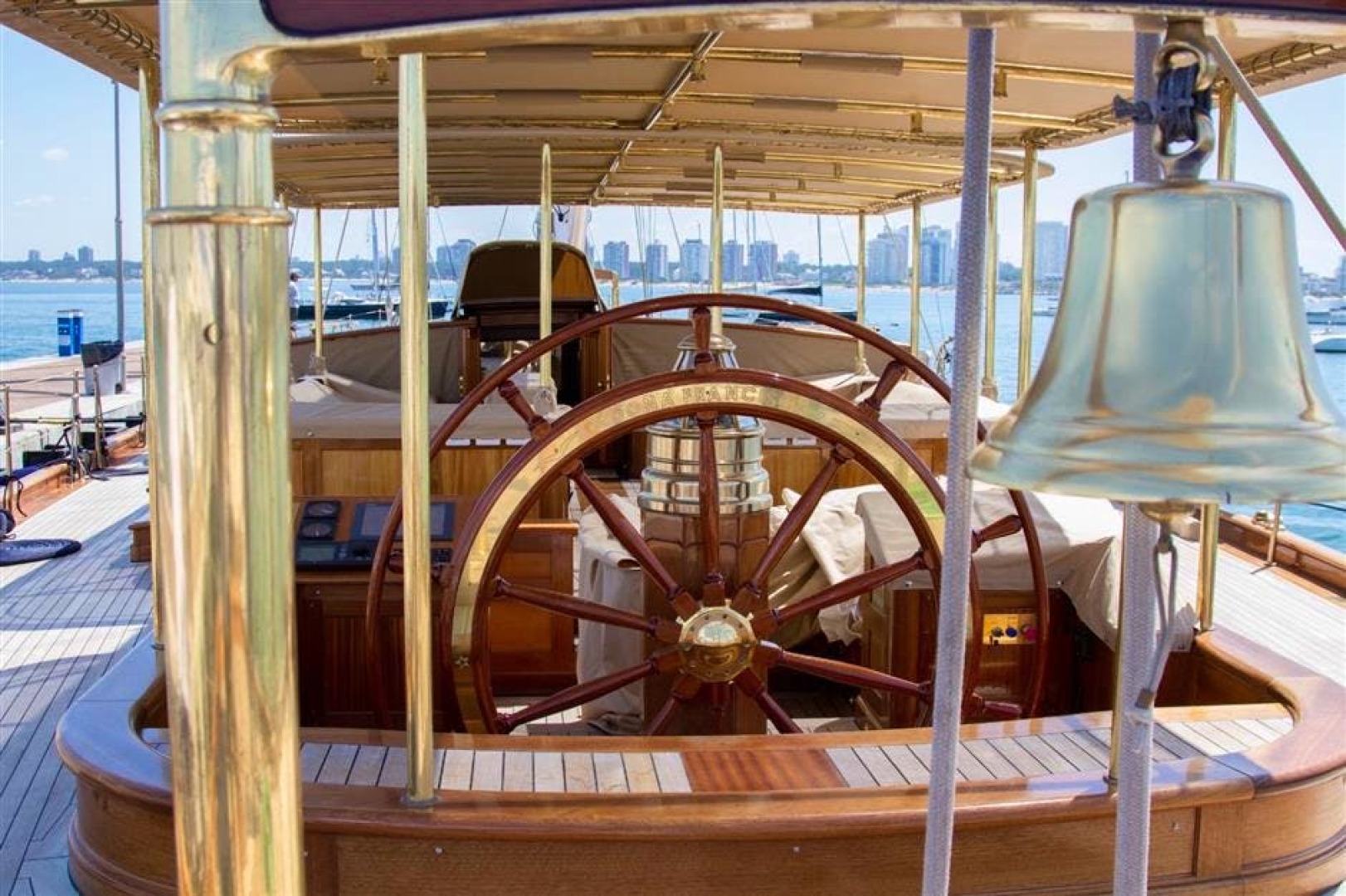

RUDDER EXTERIOR EQUIPMENT
• 1 screen SIMRAD
• 2 controller OP 40
• INTEGRAL SYSTEM B*G H 3000
• SCREEN control of hydraulic systems
• VHF SIMRAD - 6 monitors B*G
SAFETY
• Fire System: Fireboy remote manual or automatic shot
• CENTRAL of monitoring Fireboy
• 2 rafts lifeguard ZODIAC 8 pax each one, ISO 9550
• 1 Auxiliary tender boat AVON SEASPORT JET 430, 100 Hp with turbine
• 2 beacons EPIRP
• 1 Satellite telephone
• 1 transponder
• Water Supply System 24 v and 380
• Cervina monitoring station

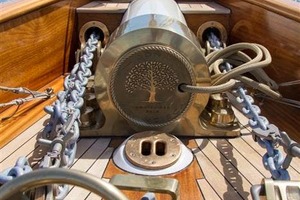

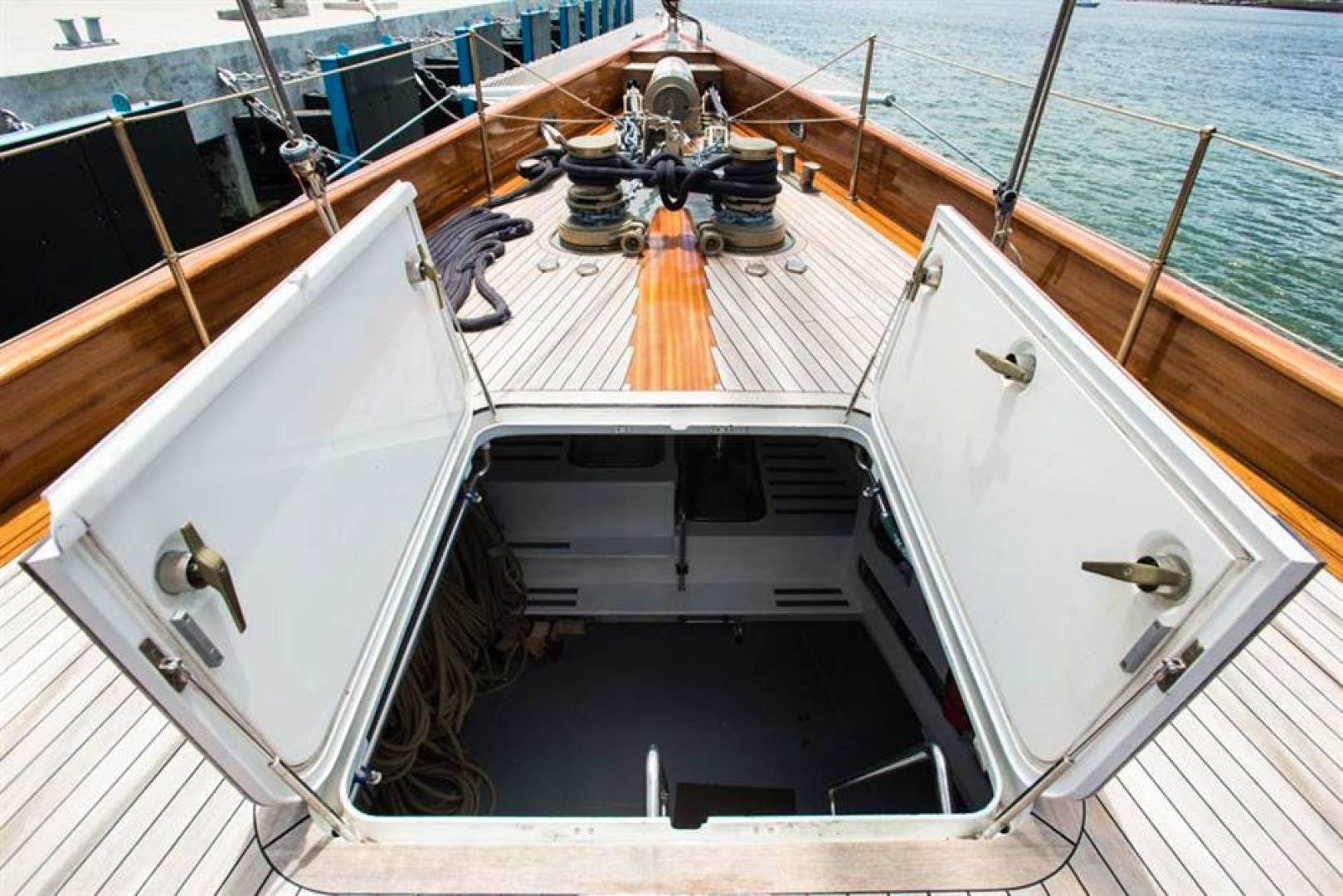

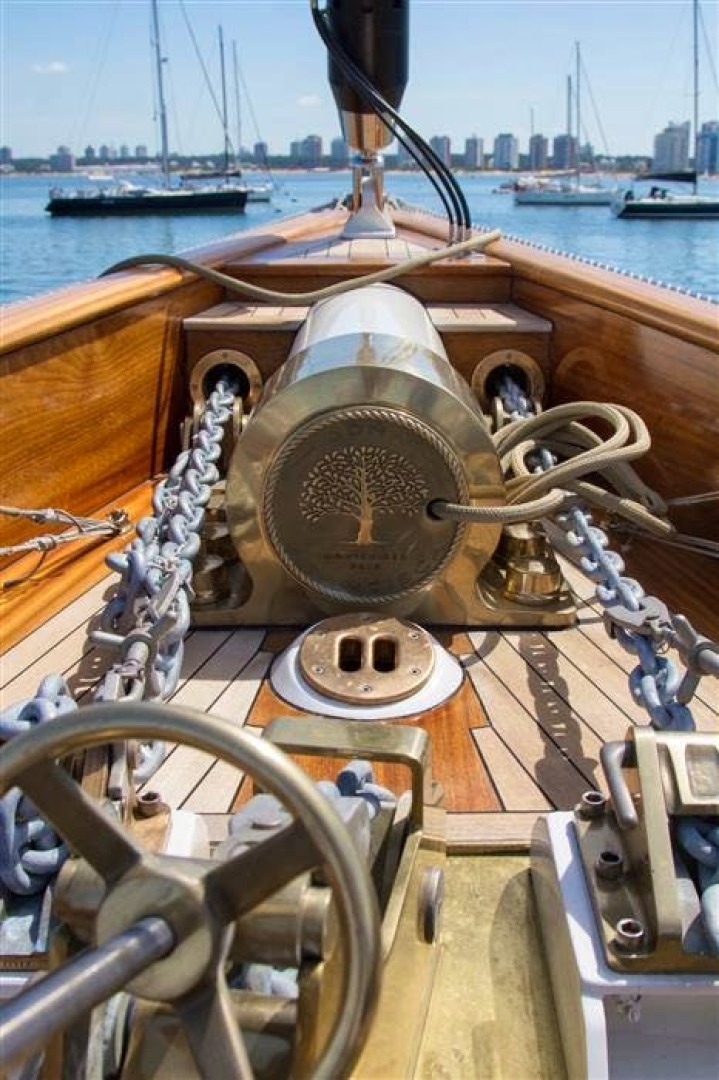

ANCHOR SYSTEM

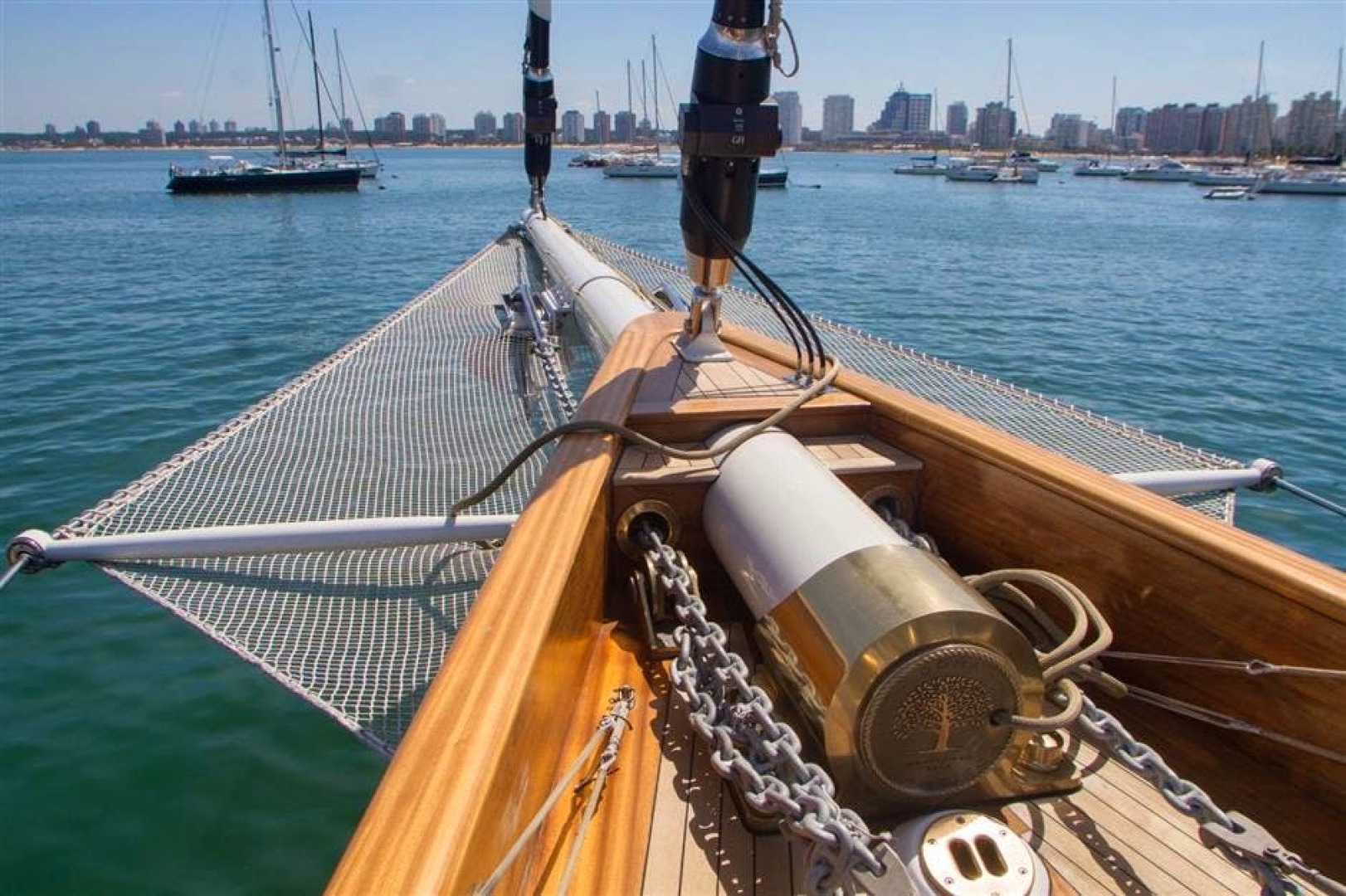

• 2 x ANCHOR CQR 182 kilos each one
• 1 ANCHOR type POOL ANCHOR of 280 kg

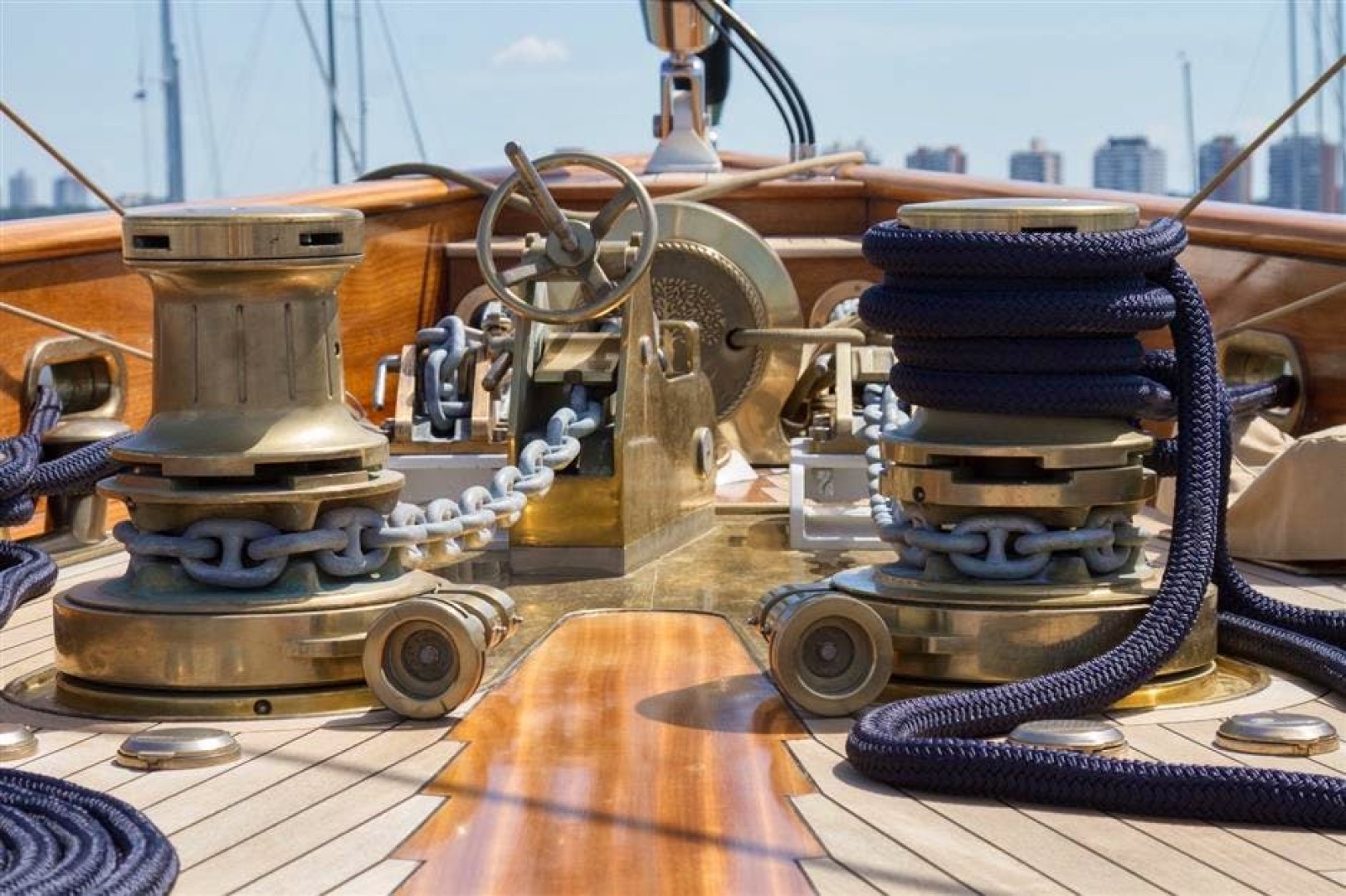

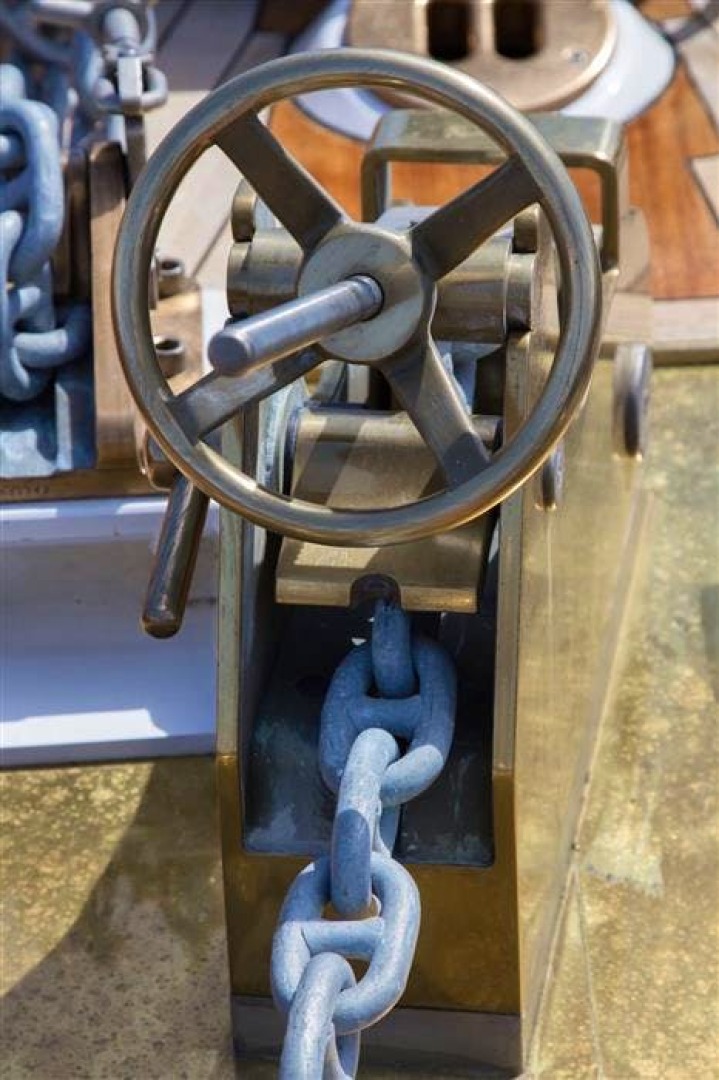

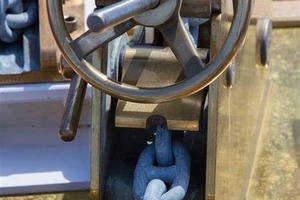

• MALACATES MUIR-VRC11000/VF185
• Chain break MUIR
CERTIFICATION
• RINA year 2023
• Certificate of Navigability - National Uruguayan Maritime Prefecture - updated
• Certificate of fire – updated
• URSEC's Certificate - radio communication equipment– updated
• Distinctive Sign – updated
• EPIRB -updated
• Certificate of extinguishers and systems – updated
• Certificate of life rafts -updated
