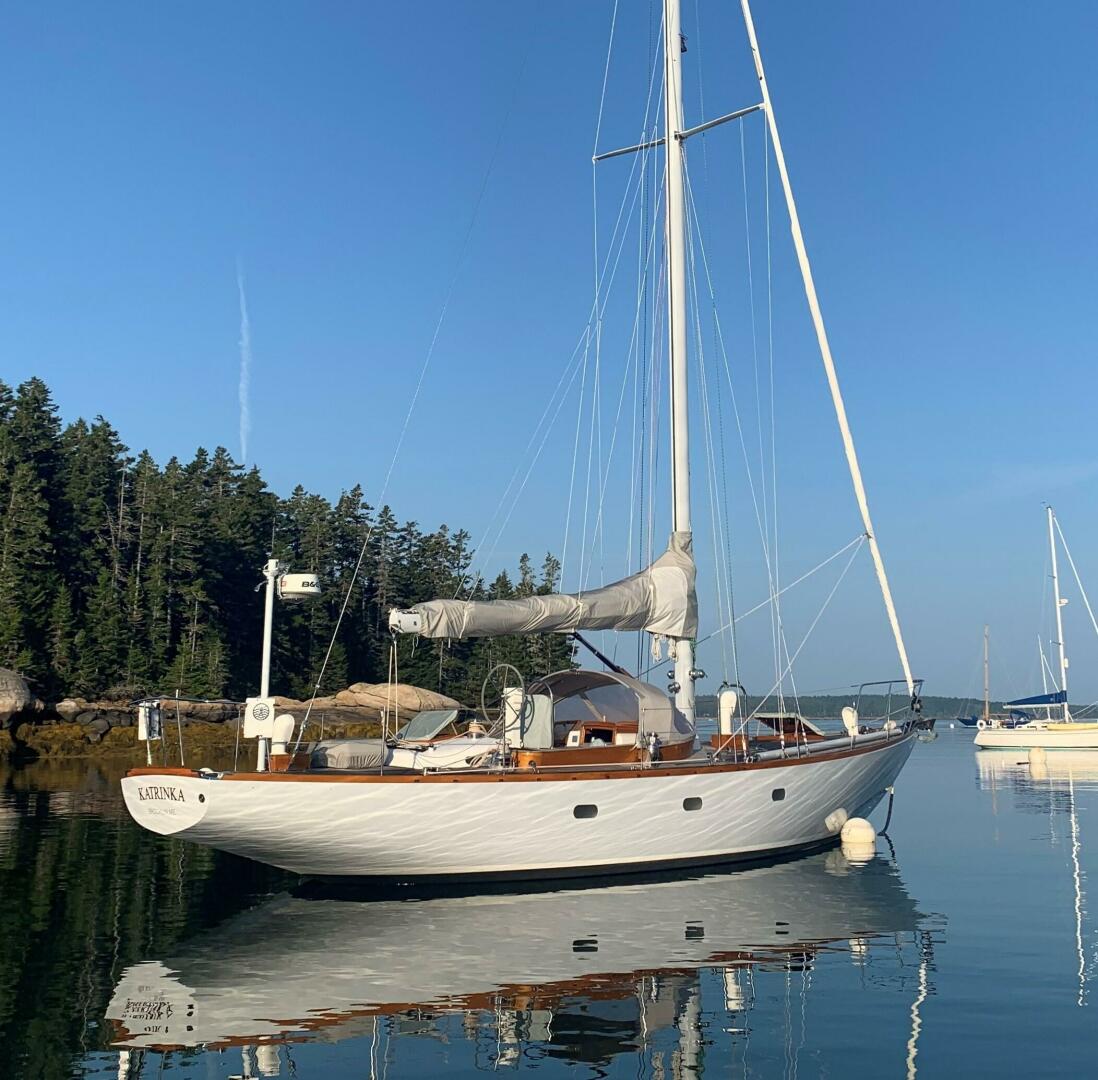

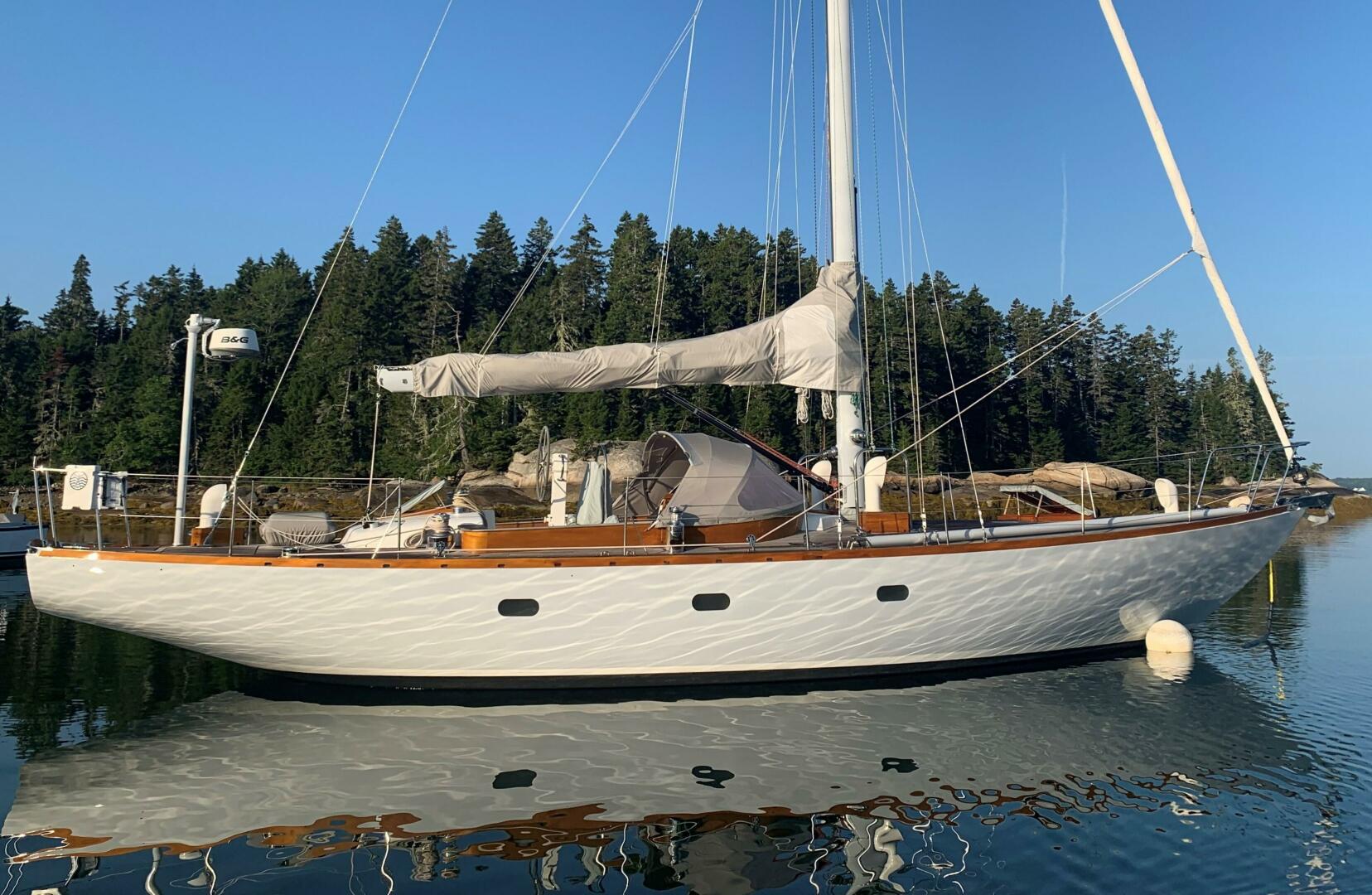

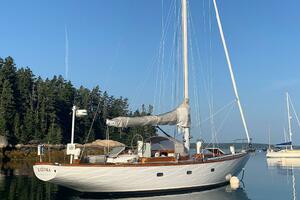

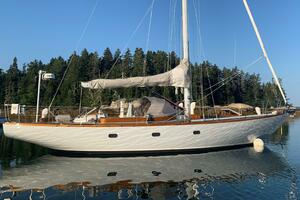

KATRINKA
Yacht for Sale
Length:
48′ 1″ / 14.66m
| Builder: Bristol
| Year: 1970 / 2008
KATRINKA Yacht for Sale - 48 Bristol
Contact Us For More Information
Detailed Information
Principle Dimensions and Information

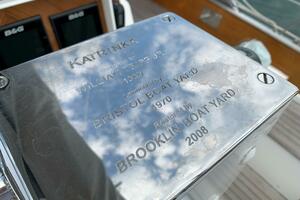

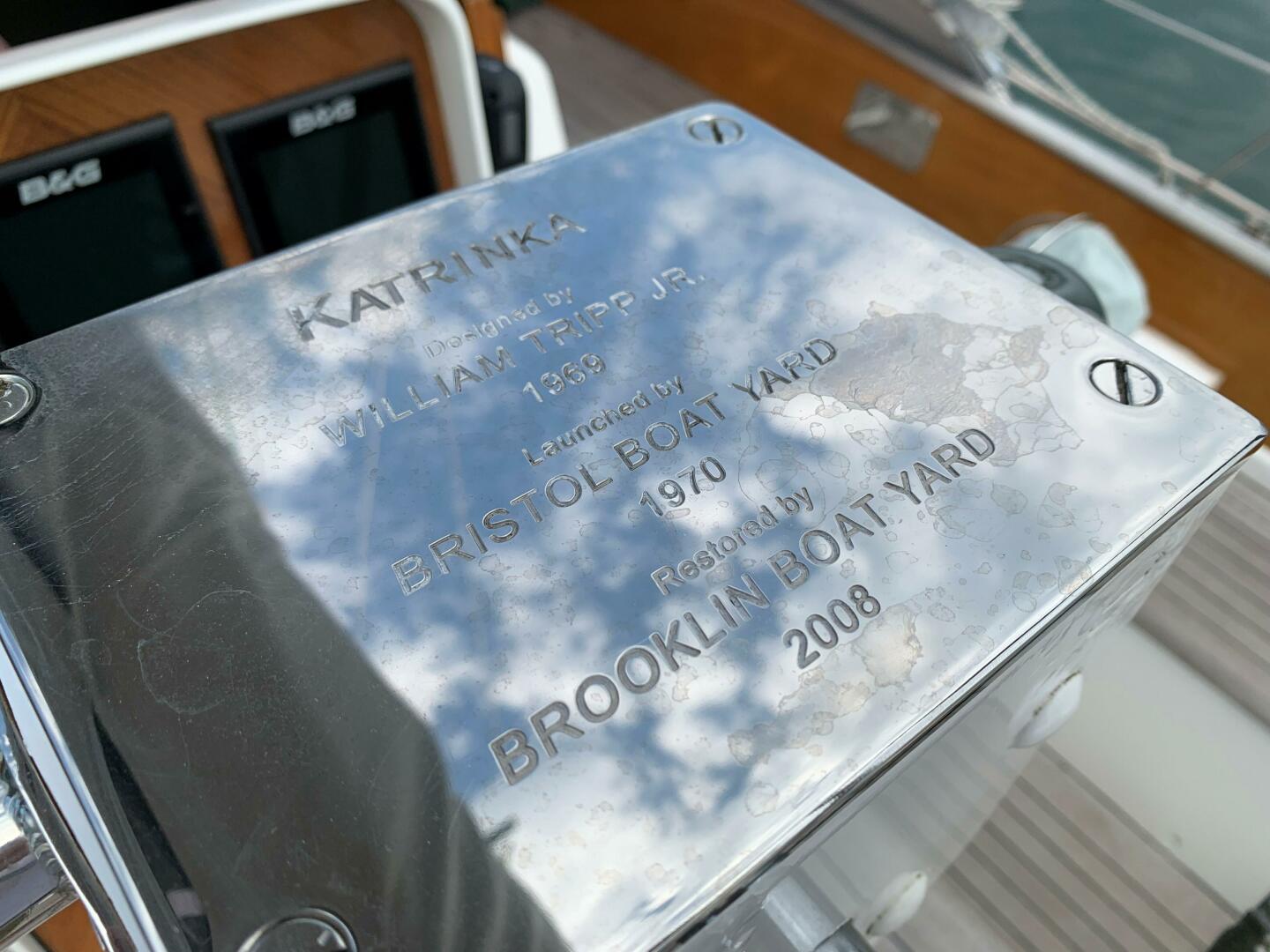

Designer: William Tripp, Jr. / 1969
Builder: Bristol Boat Company / 1970
Total Restoration: Brooklin Boat Yard / 2008
LOA: 48’, 1 ¼”
LWL: 32’, 0”
Beam: 13’, 6 ¼”
Minimum Draft: 4’, 7”
Maximum Draft: 11’, 0”
Displacement: 34,900 lbs.
Rig Type: Masthead Sloop
Auxiliary Propulsion: 2008 Nanni model 4.5 / 47.5 Horsepower /4-cylinder / freshwater-cooled diesel
Engine Hours: 1,111 Hours as of August 2025
Fuel Capacity: 80 Gallons
Fresh Water Capacity: 300 Gallons
Gray Water Capacity: 25 Gallons
Black Water Capacity: 50 Gallons (never used)
Hull and Deck Construction
Katrinka underwent a major / complete / total restoration in 2008. Her decks were removed (for repair) and to provide complete access to the hull interior. The hull interior was completely gutted with all / everything in the way of equipment, accommodations and structural components removed to make way for a complete new interior.
The hull interior then received an interior layer of closed cell foam and glass that worked to strengthen the hull structure but also provided insulative qualities to deaden the hollow sound of early fiberglass boats along with keeping the boat cooler in southern climes and warmer in the early spring and late fall of New England waters.
Once this improvement of the hull integrity was completed new floors, frames, bulkheads, partitions, systems and equipment were installed just as what would be done in the construction of a brand new boat.
Meanwhile the deck was also being completely restored. Wet balsa coring was removed and replaced with closed cell foam for the large expanses of the deck with solid composite blocking installed in areas where deck hardware would be installed.
The deck was joined to the hull by bedding and bolting the deck to a sizable sheer clamp and this joint was further strengthened by Teak toe rails also through-bolted to sheer clamp.
Once the cored fiberglass deck construction was in place the working deck areas were overlaid with a traditional teak deck was laid in the more modern fashion of vacuum-bagged & glued epoxy.
This reconstruction of the hull and deck of Katrinka combined with the rest of the restoration project has produced essentially a new vessel that can easily be sailing and providing owners with pride and joy for decades to come.
Interior Layout and Accommodations
The interior of Katrinka is designed to be a comfortable and highly usable space both for offshore passages or for quiet times at anchor in a secluded cove.
Special attention has been made to assure the spaces down below are light and airy with a white painted color scheme (trimmed in Teak) reflecting natural light from hull ports, overhead hatches and numerous deck prisms along with ventilation provided by opening hatches, well-placed dorades and fans in every cabin. Well-ventilated for keeping cool, Katrinka is also equipped with diesel-fired hot air heating allowing her owners comfortable cruises to higher latitudes extended use into the shoulders of the New England sailing season.
Safety and comfort is also a special consideration to the below decks areas as the current (and hopefully future) owner has kept up Katrinka’s reputation as a competitive ocean racing and long range cruising boat. To this end the interior design maximizes comfort for long term use (a rested sailor is a good sailor) and safety with features like ease of access to critical equipment, thru-hulls, etc. and positive locking mechanisms making sure that locker doors, drawers and cabin soles stay in place in the roughest of weather,

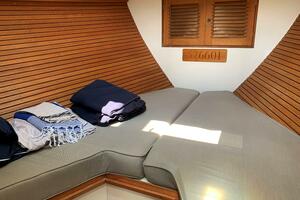

Forward Cabin
Access to chain locker through louvered doors in forward bulkhead
Next aft is forward sleeping cabin
Berthing space for two (2) persons in a V-berth configuration
Storage locker and drawers above and below vanity aft of starboard berth
Overhead, bulkheads and joinery fronts are painted White with varnished Teak trim
Interior hull sides are finished in varnished Teak sheathing
Natural light and ventilation by way of opening overhead hatch (with screen)
Artificial light provided by reading lights at the head of each berth and a general overhead light.
Floor level courtesy light.
Artificial ventilation by way of two well-placed fans
Cabin sole is Varnished Teak and Holly

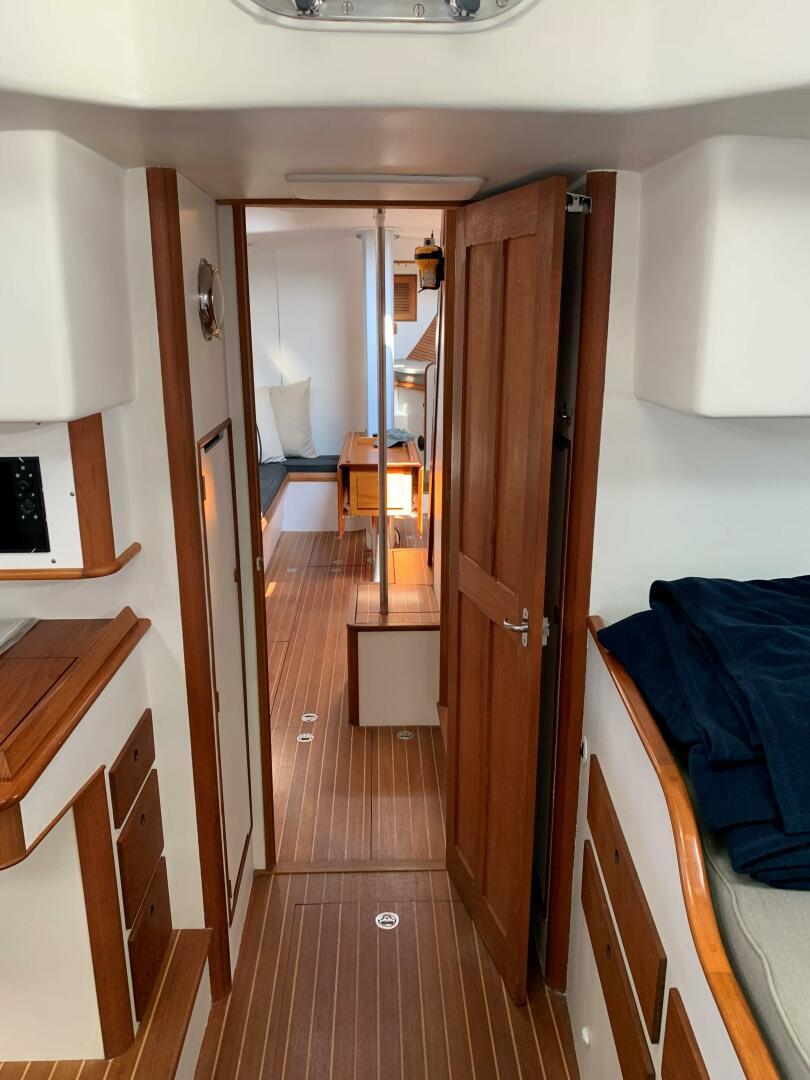

Passageway Aft
Immediately aft of the forward cabin is a passageway aft to the main saloon.
Cabin sole in passageway is varnished Teak and Holly
To port of the passageway is the forward head and opposite (to starboard) is a hanging locker with the door to this locker doing double-duty as a privacy door for the forward cabin.
The forward head area features Raritan manually operated marine toilet, storage areas above / outboard and below stainless steel counter tops with Teak fiddles, Teal trimmed mirror, stainless steel sink basin, handheld faucet / shower head, Teak and Holly cabin sole and Teak shower grate. Natural light provided to head area by deck prism along with artificial light from two (2) dome lights.

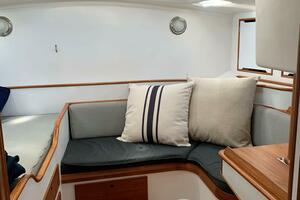

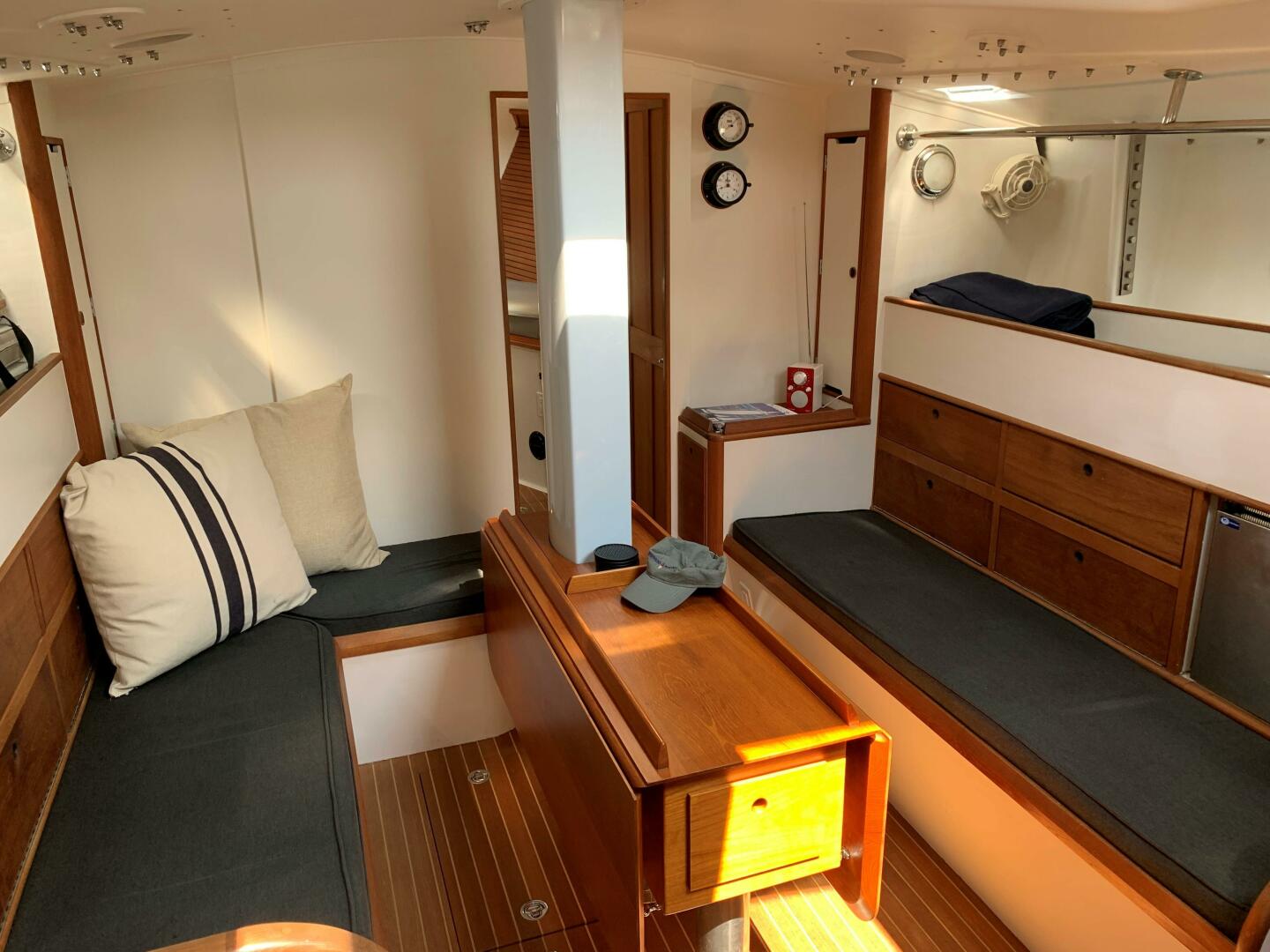

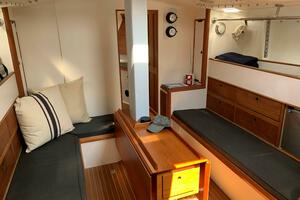

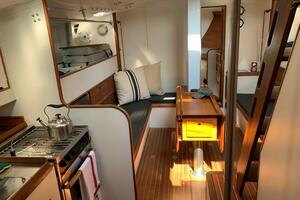

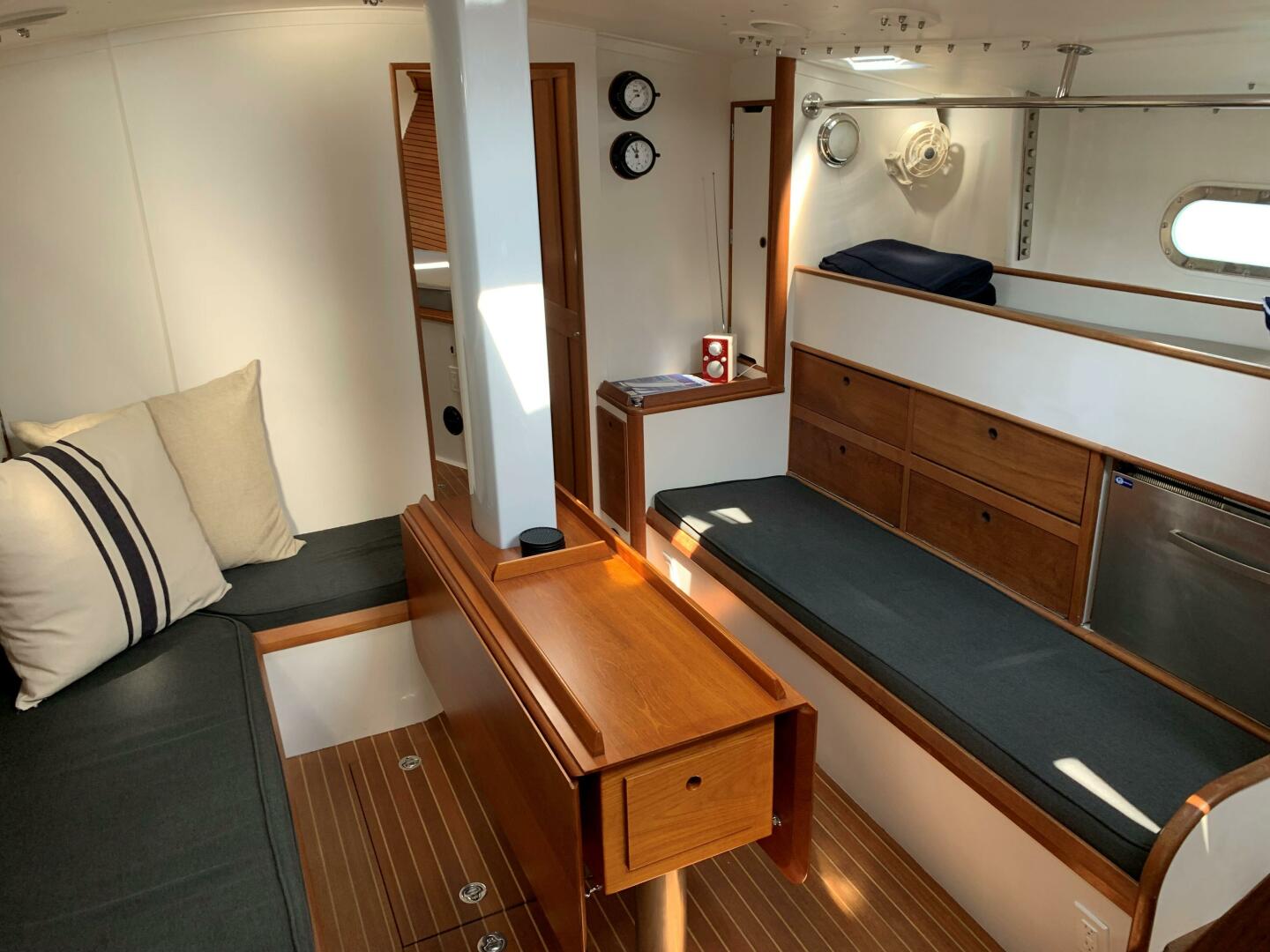

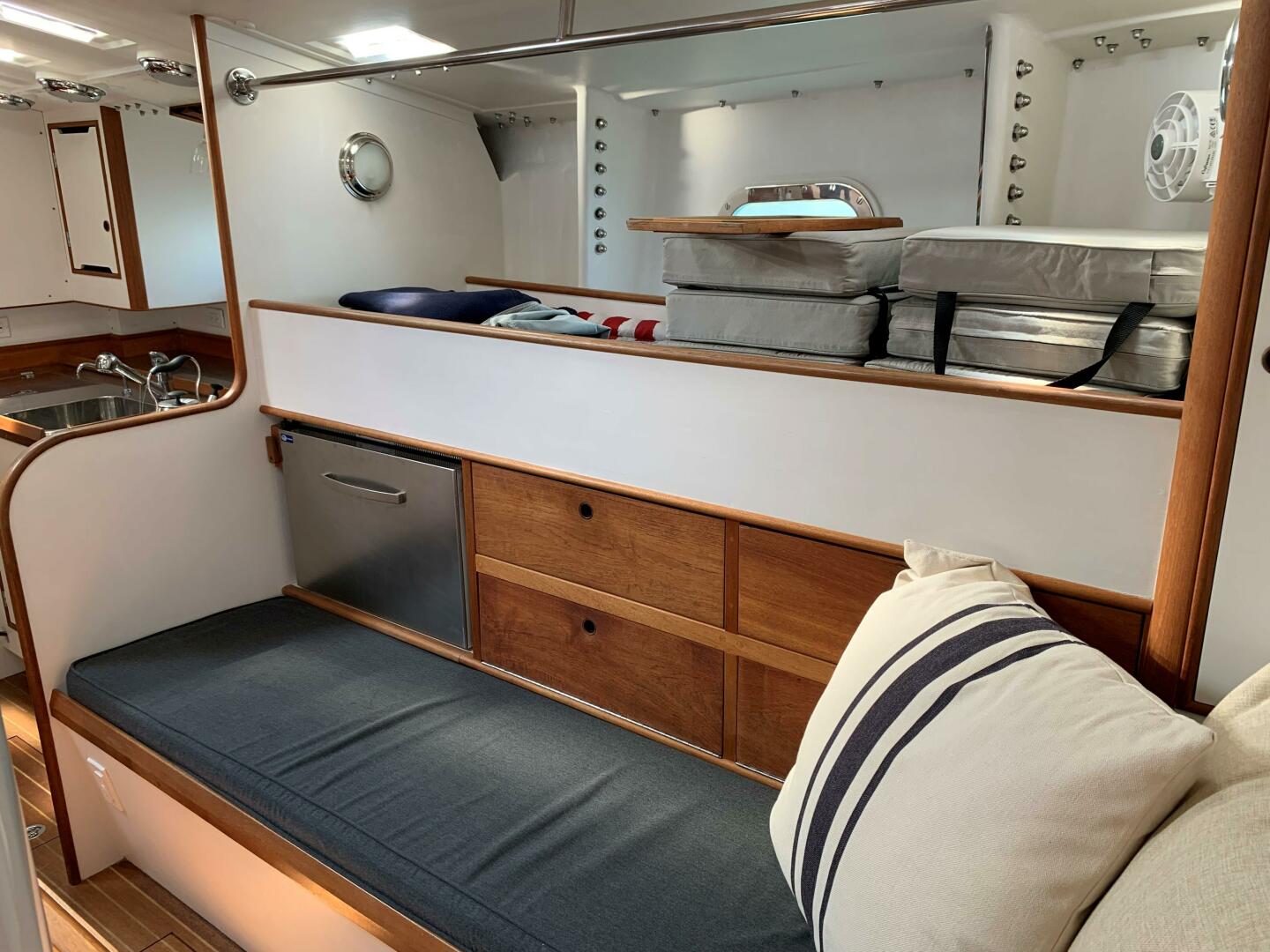

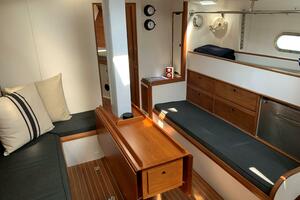

Main Saloon
Varnished Teak drop-leaf table with drawer storage on centerline of main saloon. Table is flanked by straight settee to starboard and L-shaped settee to port with pilot berths above and outboard of the settees both port and starboard and bin storage space outboard of the pilot berths. Additional storage space in deep drawers and locker under and forward of the pilot berths. Port and starboard under the pilot berths (aft end) are stainless steel Vitrifrigo drawer-style refrigerators.
Overhead hatch, fixed hull ports and deck prisms provide an amazing amount of natural light with reading and dome lights for after the sun goes down. Natural and artificial ventilation of the main saloon is more than adequately provided by dorade vents, opening hatch (with screen) and well-placed fans.
Main Companionway
Main Companionway is located starboard aft in the Main saloon. Exit / Entrance to the below decks area is by way of a companionway ladder with varnished teak rails and bare teak steps. The companionway ladder lands on the sound-insulated engine box with one more step down to the main saloon cabin sole.
Outboard of the companionway is a wet locker, courtesy lights at base of ladder and EPIRB mounted within reach of the upper companionway opening.

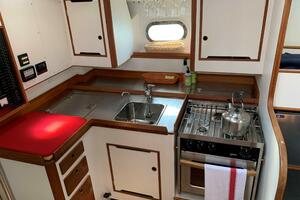

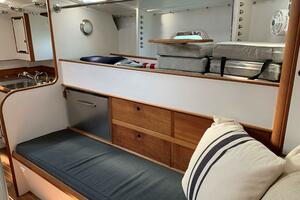

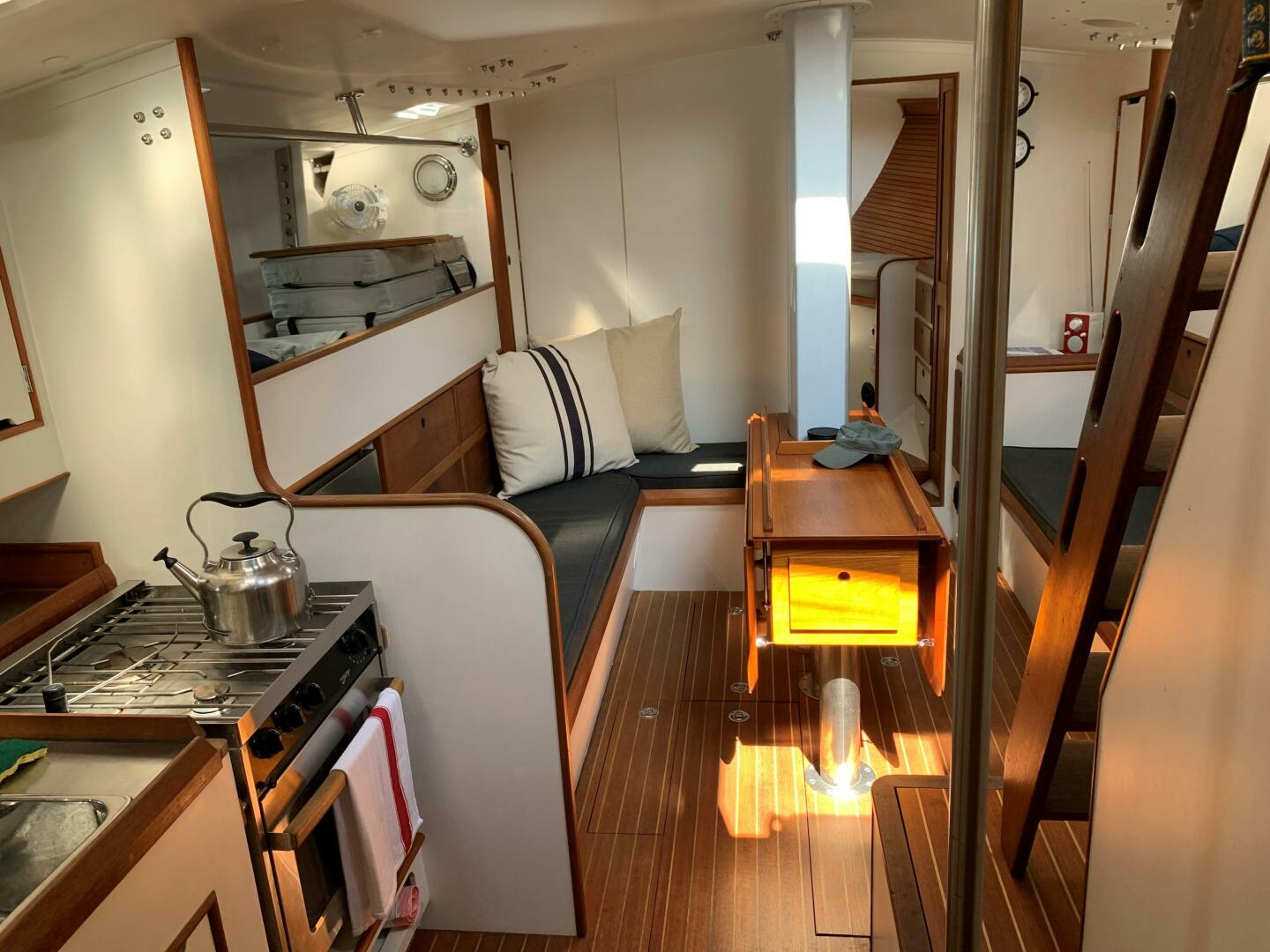

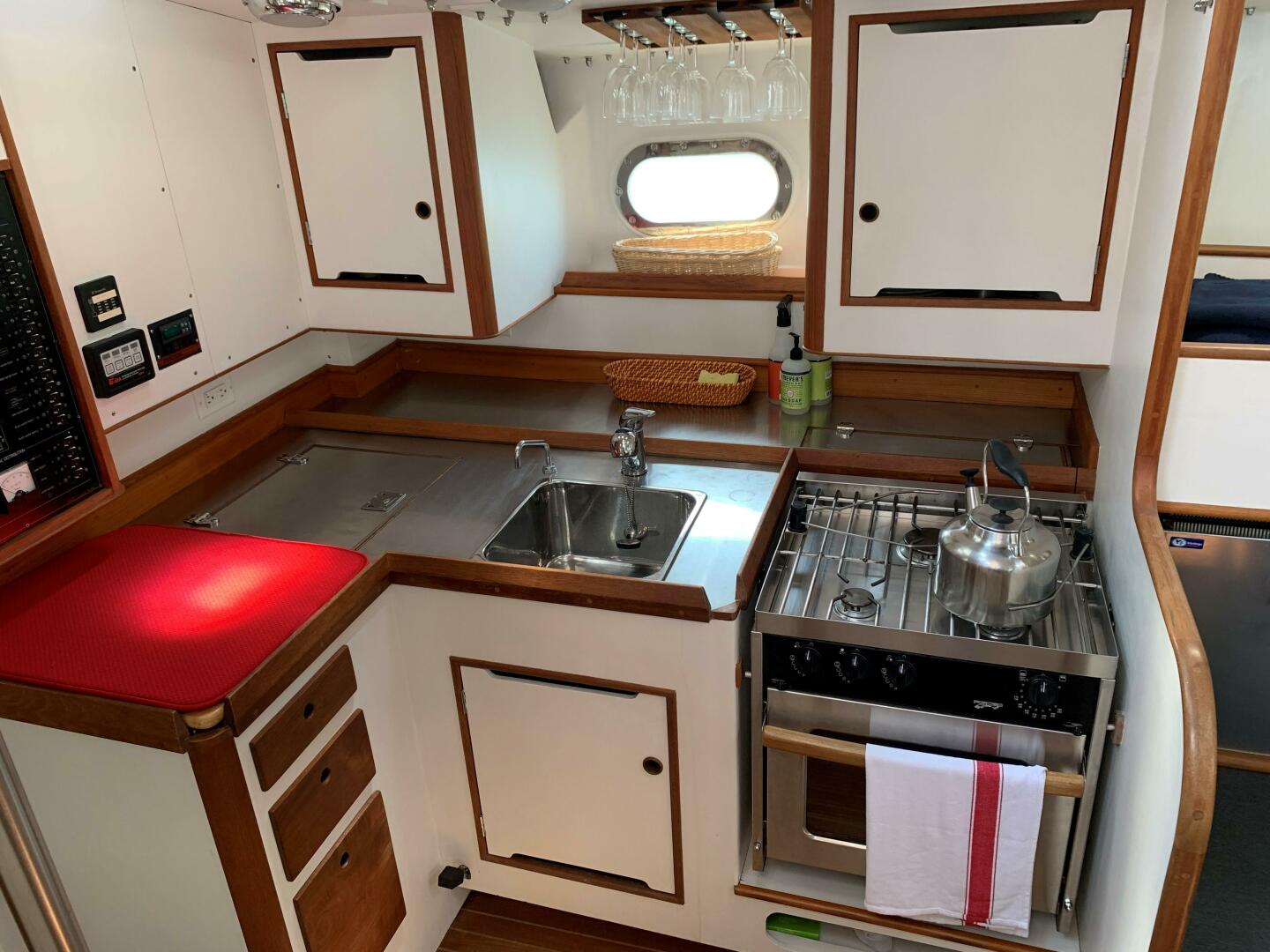

Galley Area
Galley is located aft of the main saloon and to port. This area is extremely well lighted with 3 deck prisms, 3 overhead dome lights, a fixed hull port light and an opening hatch directly above. Generous storage for dry goods, china, glasses, etc. in lockers, drawers and glass racks above and below the counter tops. Counter tops are of stainless steel with high teak fiddles to keep everything in its place. Cooking is done with a gimbaled Force Ten 3-burner stove and oven. Cold food storage is under-counter with large well-insulated, stainless steel ice box kept cool with Seafrost refrigeration. Single stainless steel sink basin supplied with hot and cold pressure water and manually provided (foot-pump) salt water.

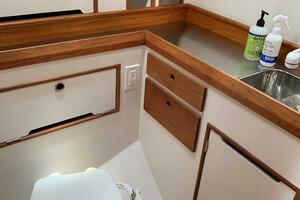

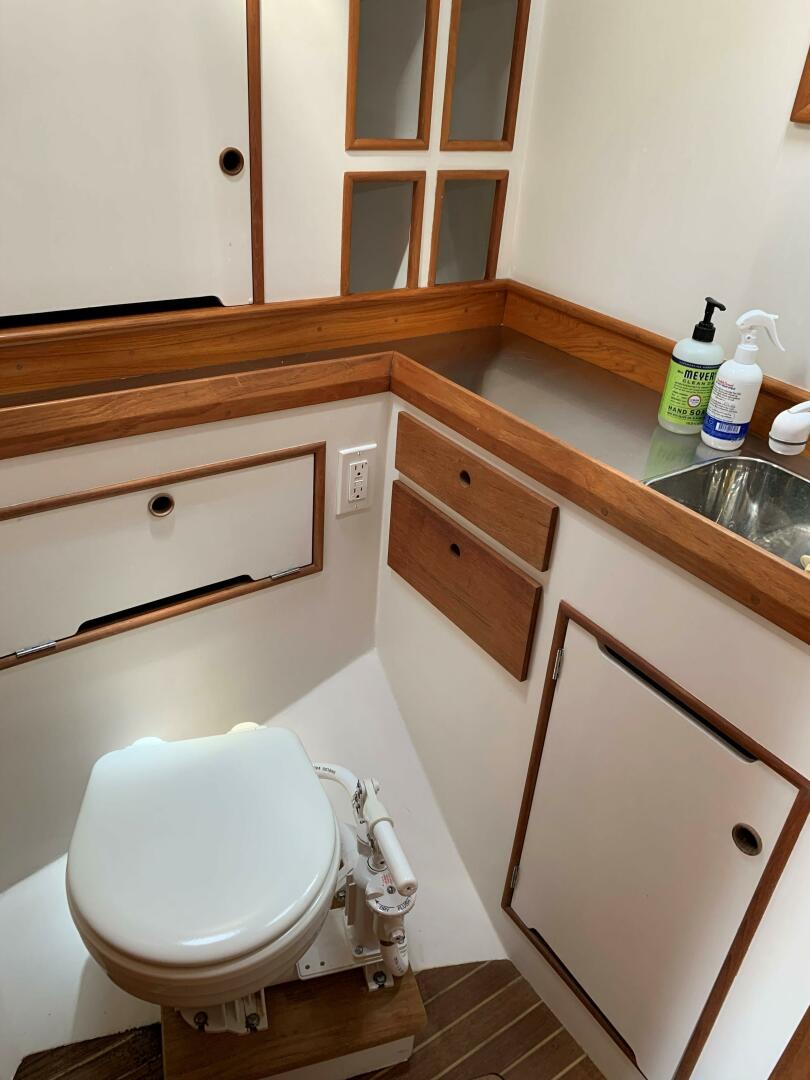

Aft Head Area
The aft head compartment is located opposite of the galley and aft of the main companionway. Like all the interior spaces, the aft head is very well lighted with 2 deck prisms overhead, a fixed hull port light and electrical lighting. Joinery fronts are white painted with varnished teak trim, counter tops are stainless steel and underfoot the cabin soles is Teak and Holly with a teak shower grate. Hot and cold pressure water provided by way of hand-held faucet / shower head and Raritan manually operated marine toilet.
Generous storage in lockers above and outboard of the toilet along with additional lockers and drawers under counter. Handy access to ft end of the engine compartment by way of sound-insulated doors under counter.

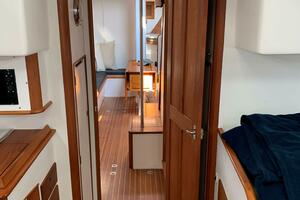

Passageway to Aft cabin
There are hanging lockers located to port and starboard of the passageway to the aft sleeping cabin. Very handy for storage of foul-weather gear these also house electrical and plumbing equipment and make for easy access to key components for maintenance purposes.

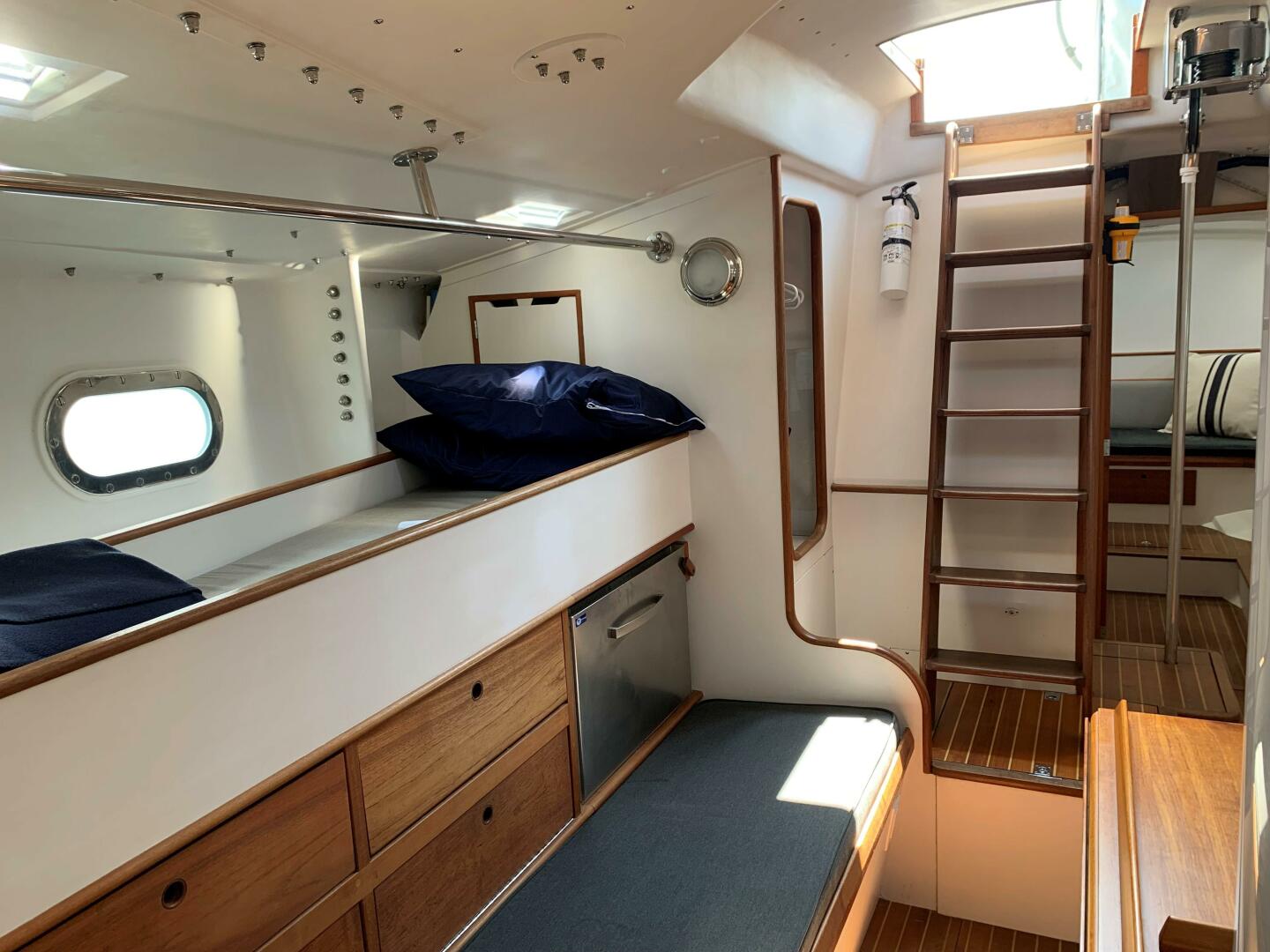

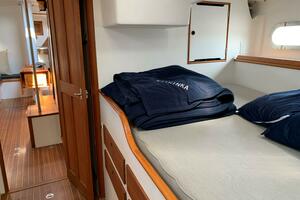

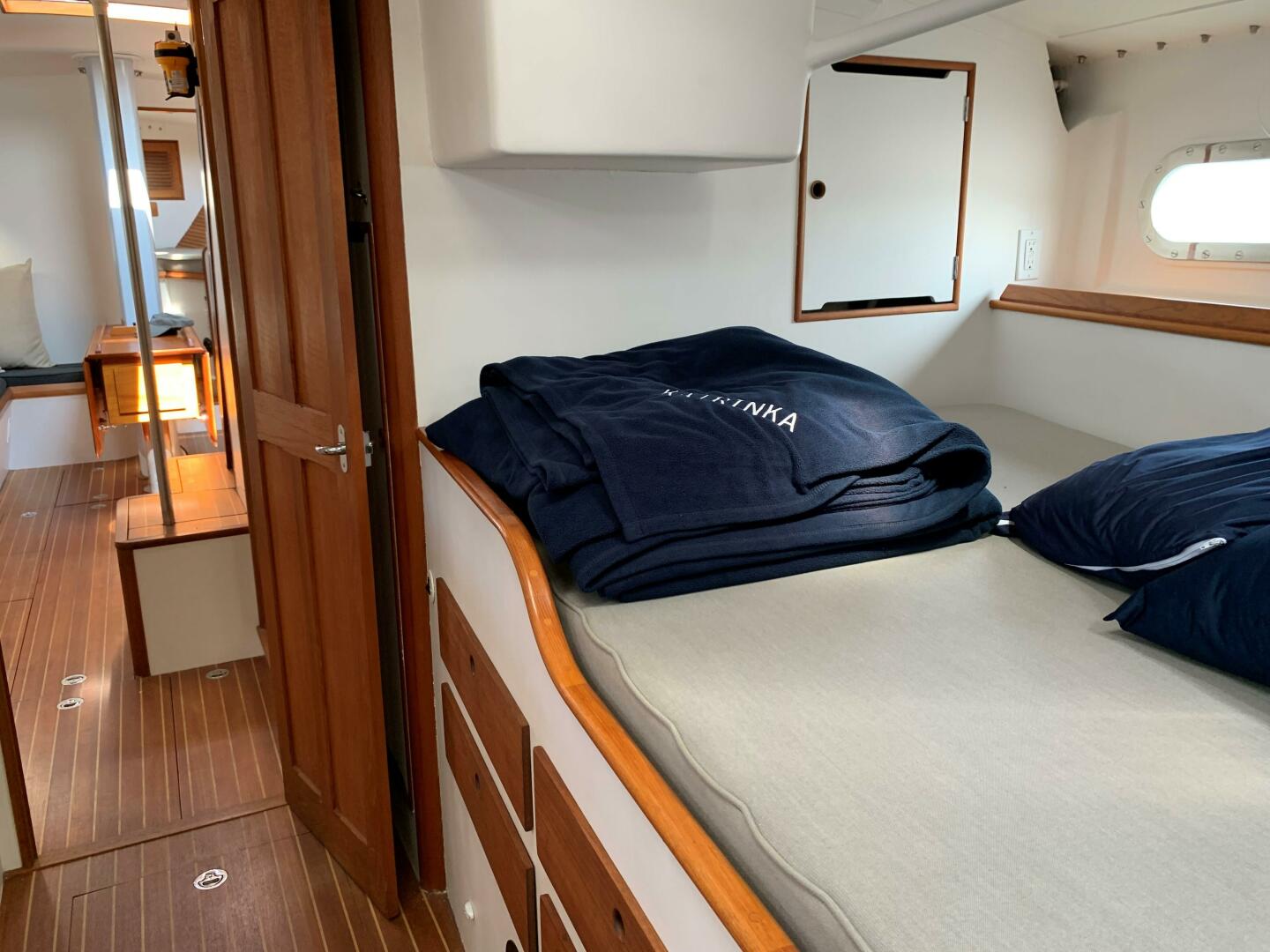

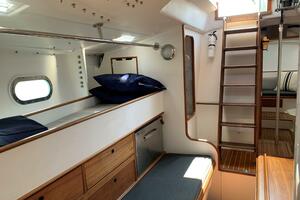

Aft Sleeping Cabin
As often mentioned in this description Katrinka’s interior spaces the aft sleeping cabin is quite well lighted by way of fixed hull portlights both port and starboard, opening port on center line (facing forward), an overhead opening hatch along with well-placed electrical lighting. The aft cabin is also well ventilated with the above mentioned opening port and hatch along with well-placed electrical fans and for cooler nights the aft cabin is heated as a zone of the diesel hot air heating system.
There is a true double berth (Pullman-style) to starboard with storage drawers under berth, storage lockers located forward and outboard and the fixed hull port right at eye level for early morning wake-up light. Opposite (to port) is a forward-facing navigation station / office space with full size chart desk with drawer storage under, navigational electronics displays forward, bookshelf for reference materials and an under-counter locker dedicated to storage of ship’s information and equipment manuals. Seating at the nav station is provided as a part of an L-shaped settee that wraps around the aft end of the cabin providing a perfect spot for quiet reading or donning a new dry pair of socks.

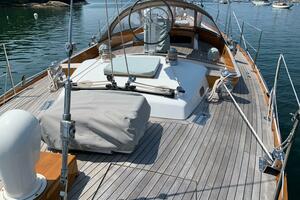

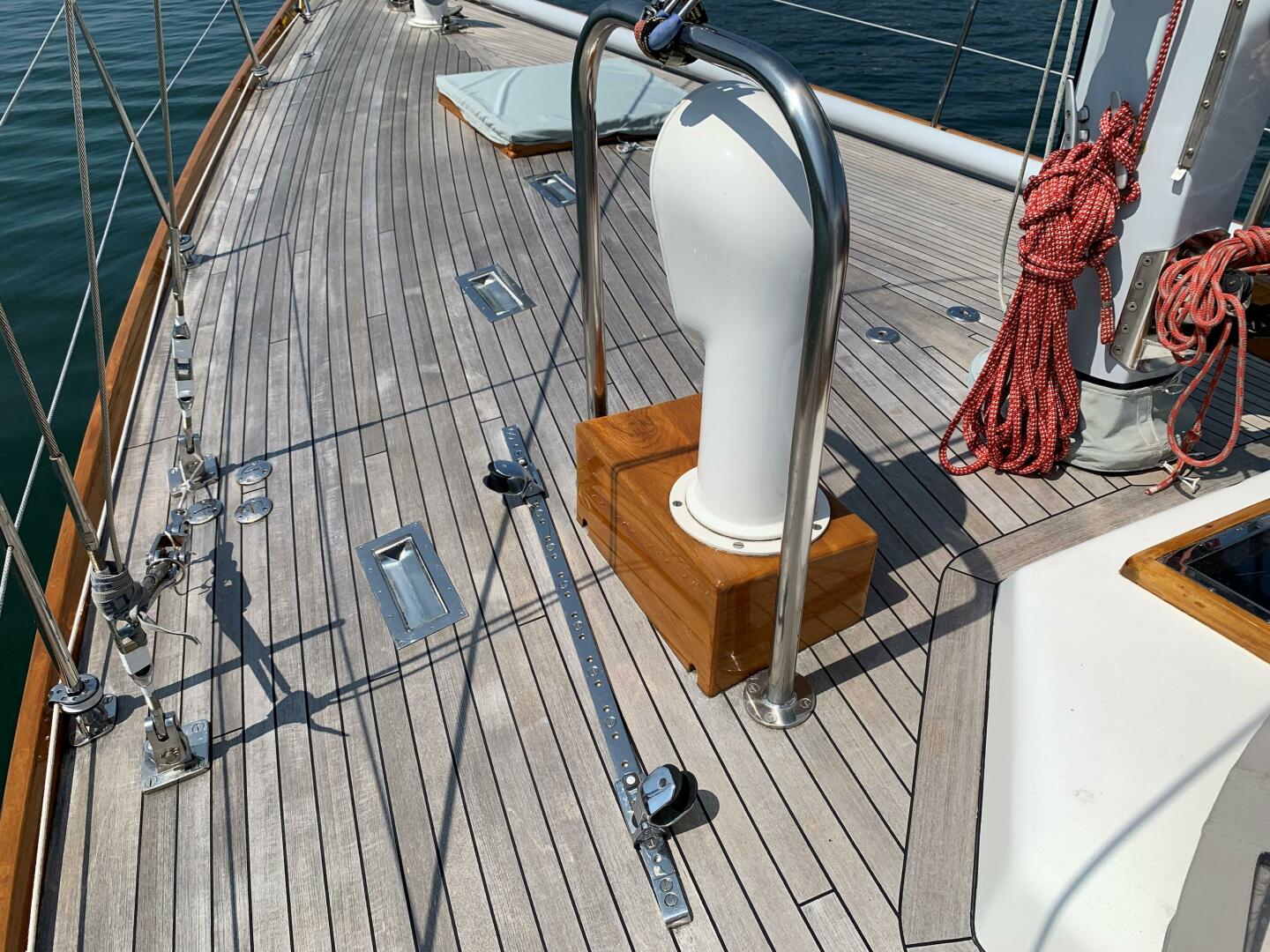

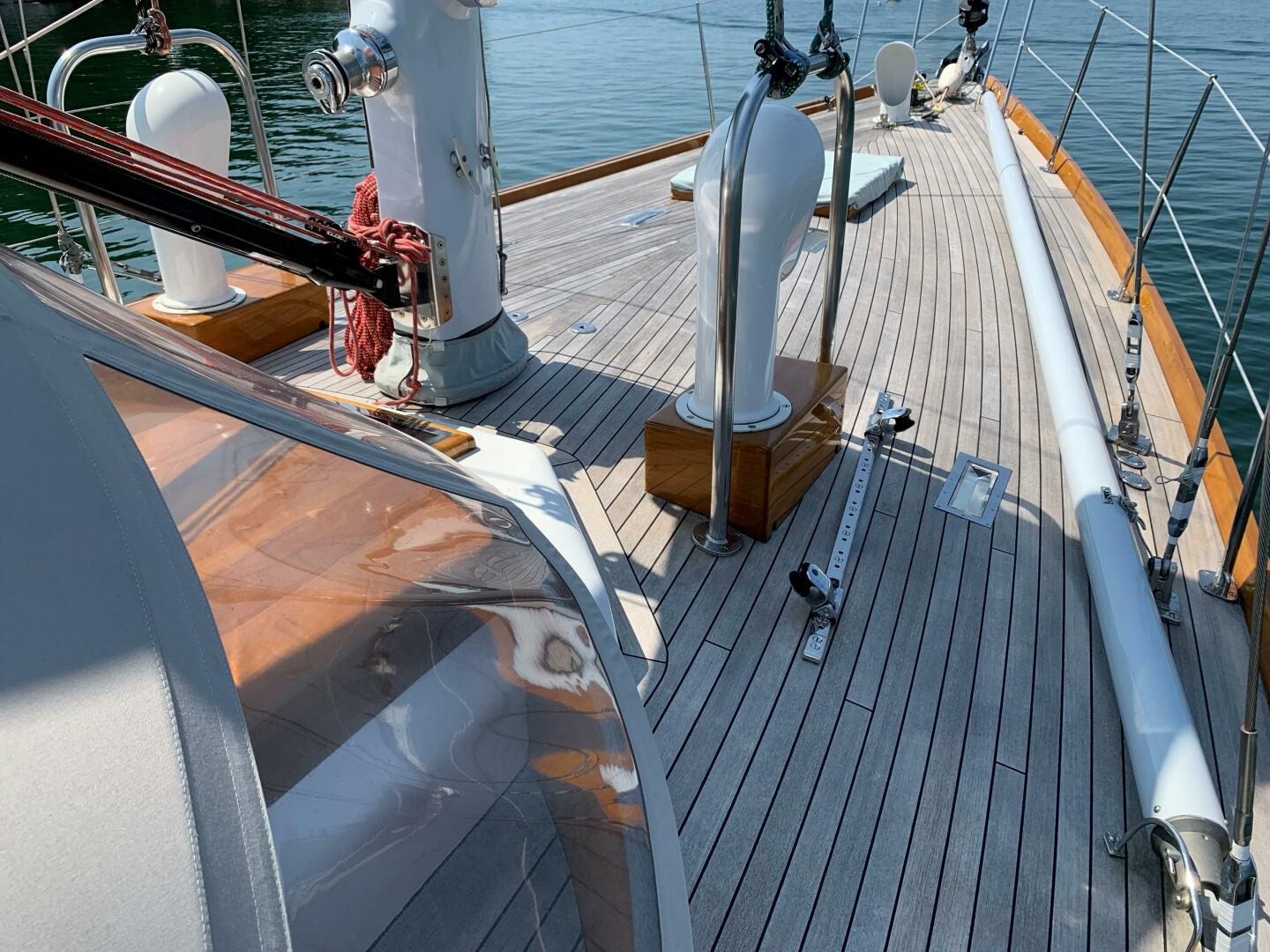

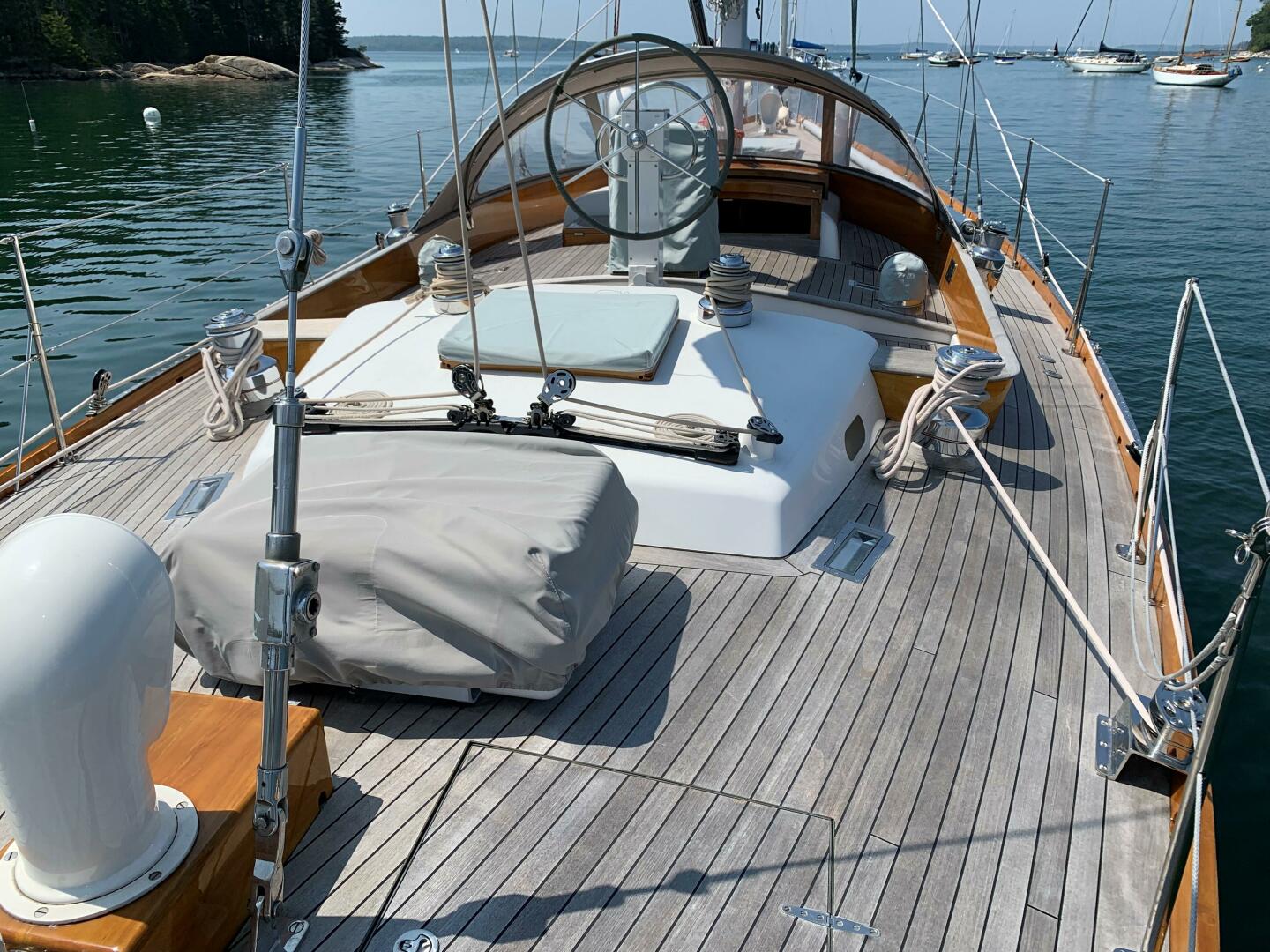

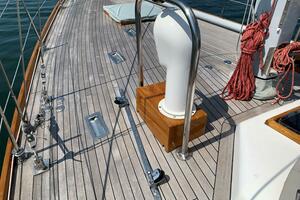

Deck Hardware and Features

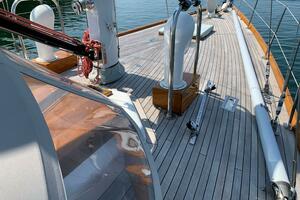

Teak Decking Systems Teak decks
Varnished Teak taff and toe rails
Varnished Teak dorade box with cowl center line aft
Varnished Teak dorade boxes port and starboard of mast
Dorade cowl (no box) centerline forward
Polished stainless steel stern rail
Polished ensign staff socket center line aft
Polished stainless steel lifeline stanchions
Polished stainless steel bow pulpit
Vectran (upper and lower) soft lifelines with opening gates port and starboard
Polished stainless steel chocks and cleats port and starboard aft
Below decks vented propane locker aft to port
Below decks storage locker aft to starboard
Painted aluminum radar post and deck shower (shower mixing valve in dorade box)
Under deck storage lockers port and starboard of radar post
Deck prisms with stainless steel covers
Varnished Teak opening hatches above aft and forward cabins
Varnished Teak skylight above main cabin
Varnished Teak companionway hatch
Stainless steel dorade guards port and starboard of mast
Stainless steel deck fills for water, waste and diesel port and starboard
Washdown hose bib port forward
Stainless steel spinnaker pole storage chocks starboard forward
Dorade vent on centerline above chain locker
Lemar low-profile windlass on centerline above chain locker
Polished stainless steel bow cleats and chocks
Custom double and anchor bow roller

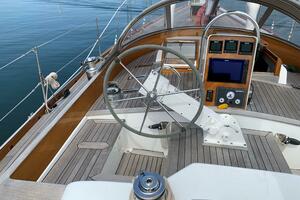

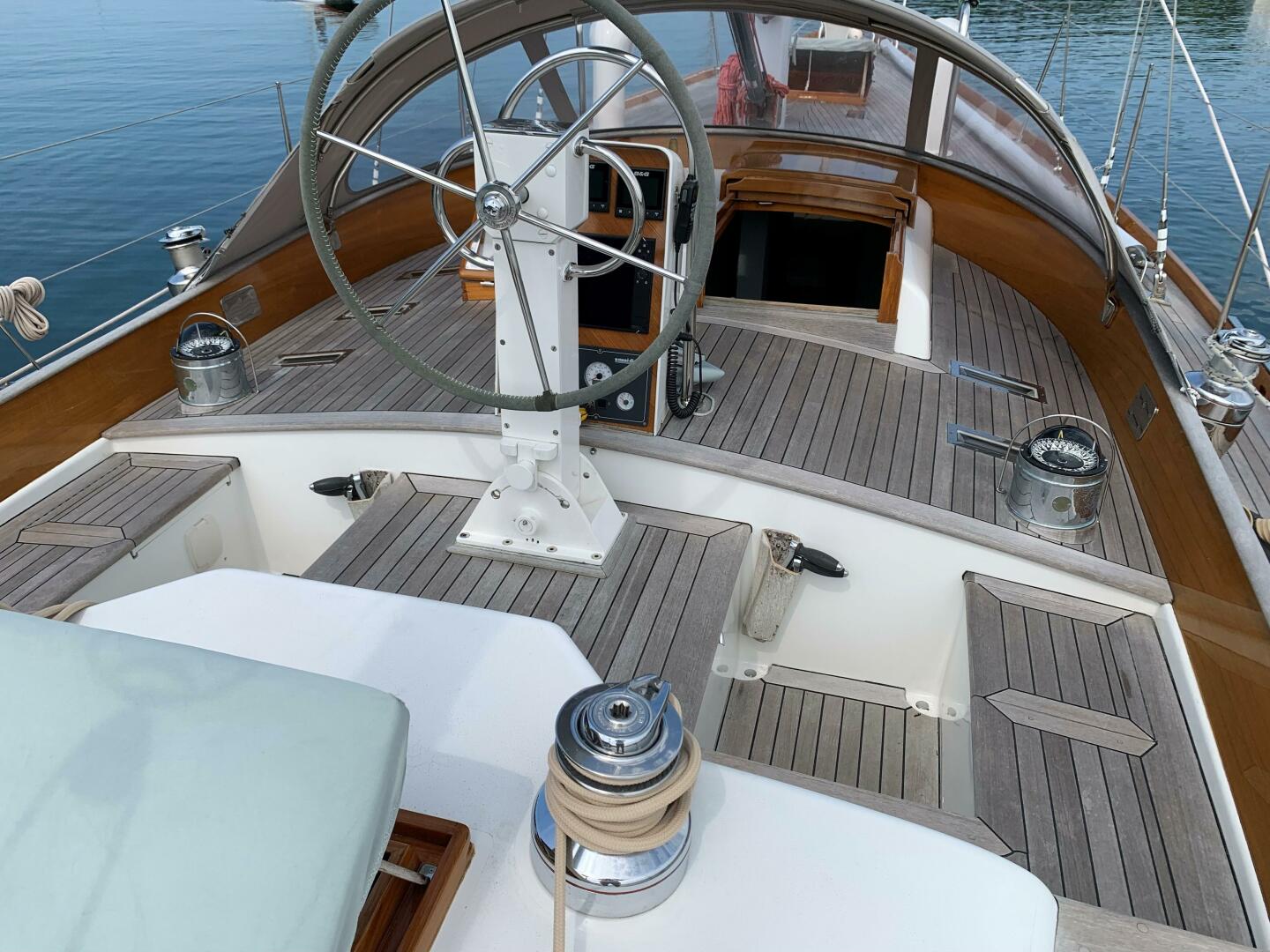

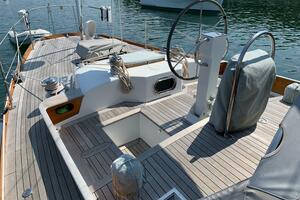

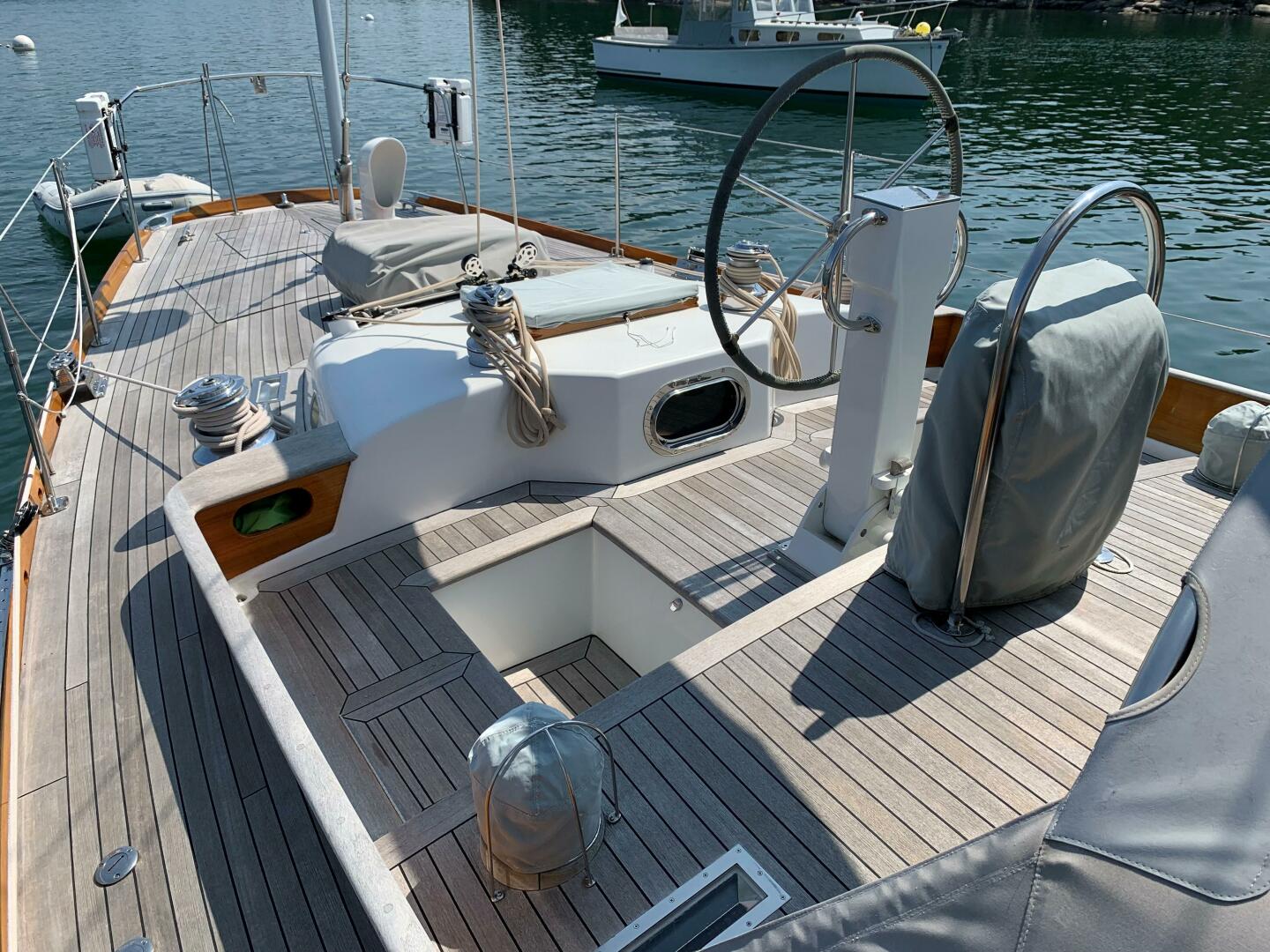

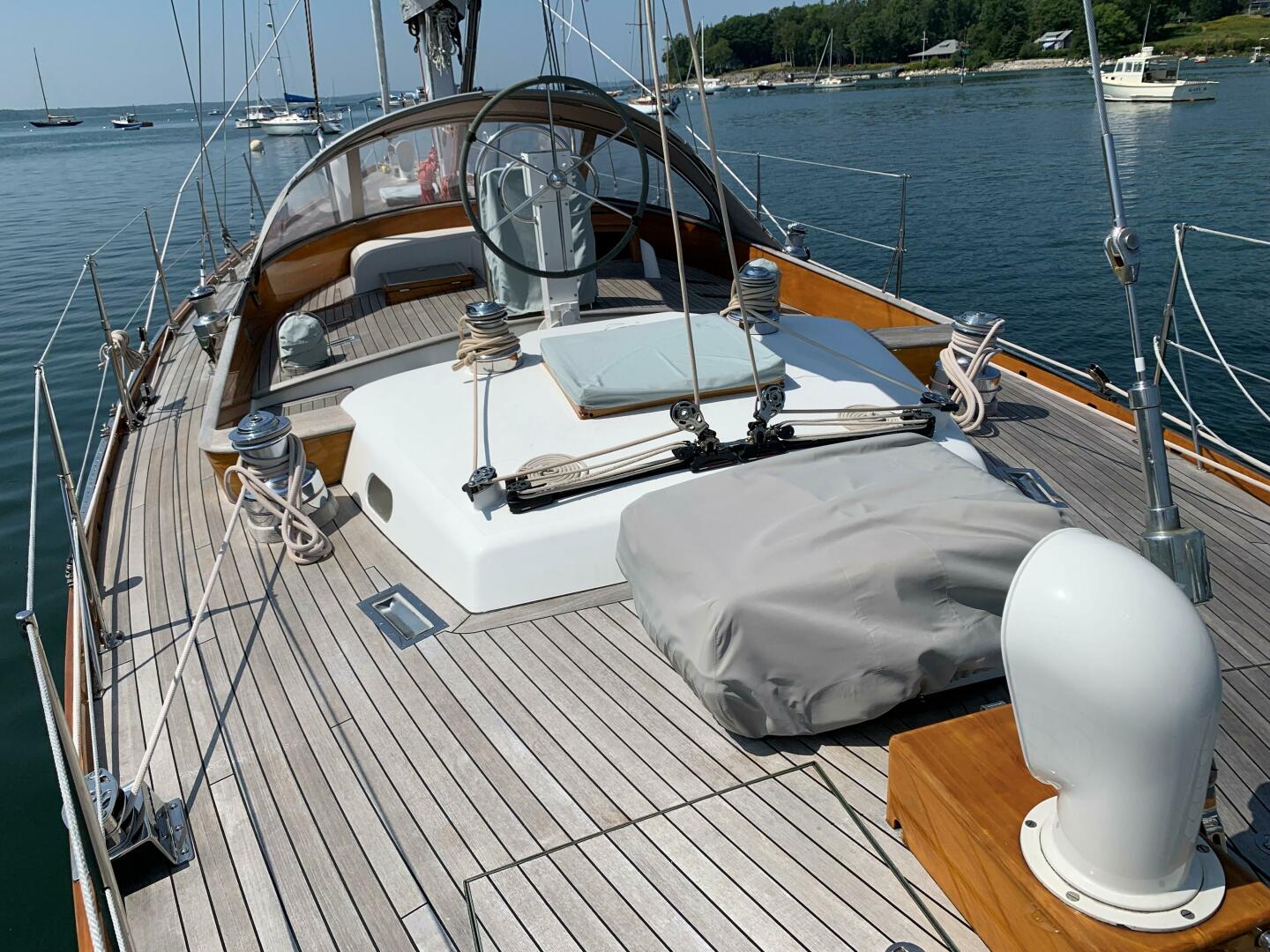

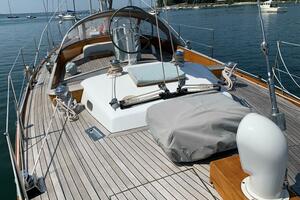

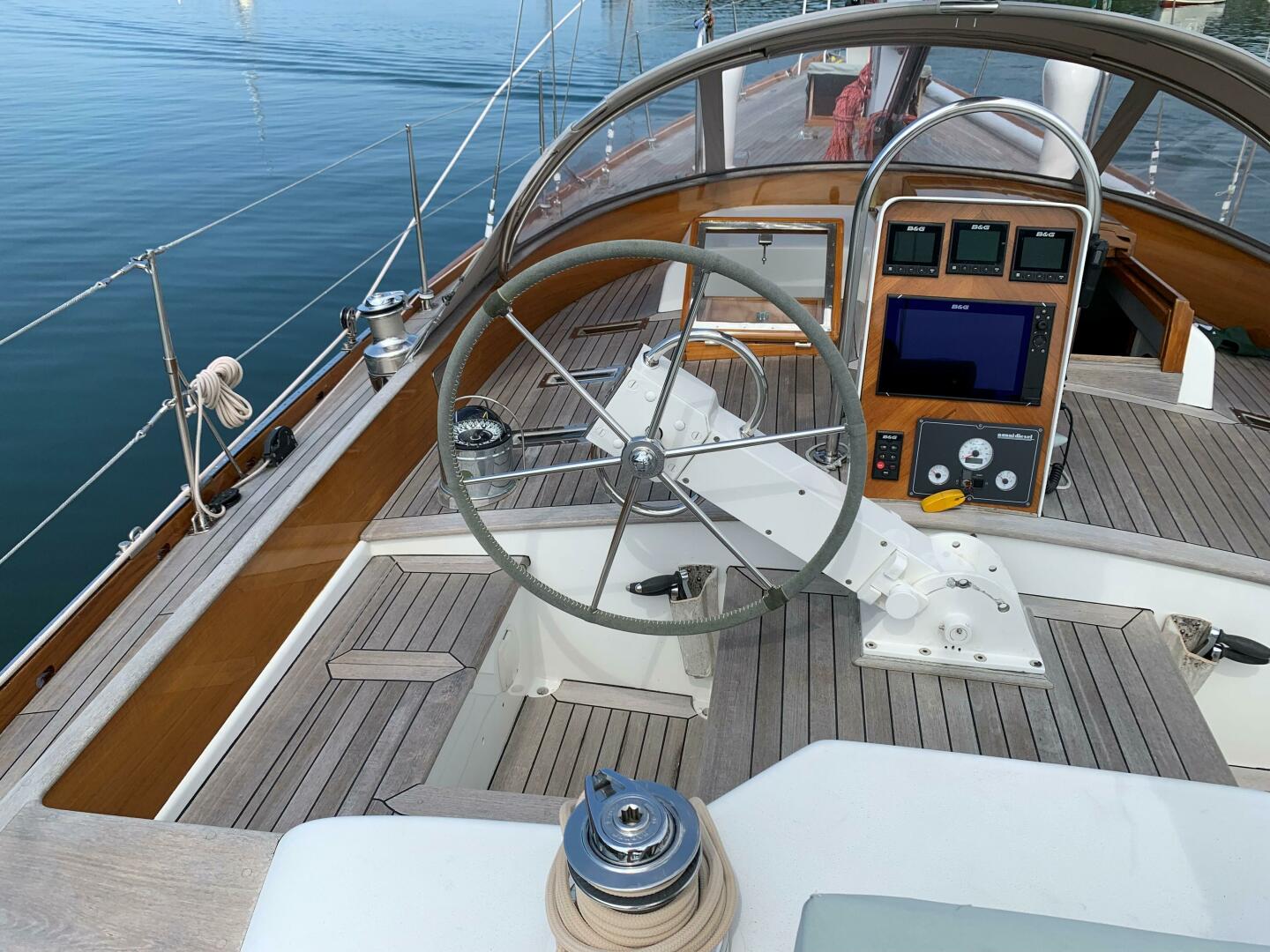

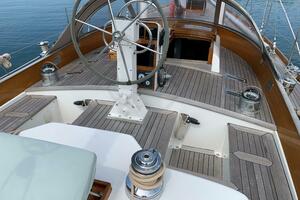

Cockpit Hardware and Features
Teak Decking Systems cockpit sole and locker tops.
Canvas and isinglass cockpit dodger with elk hide covered grab bar and stainless steel bows
Varnished Teak cockpit coaming
Varnished Teak sliding companionway hatch
Varnished Teak and glass opening hatch above galley
Centerboard winch to port of companionway opening
Harken primary sheet winches port and starboard cockpit coamings
Deck prisms with polished stainless steel covers
Helm compasses (2ea) port and starboard with stainless steel guards
Polished stainless steel guard for helm pod with electronics and engine ignition panel
Winch handle holders port and starboard
Adjustable 3-postion steering pedestal with elk hide covered stainless steel wheel
Small storage / seat lockers port and starboard helm
Spars and Rigging
Masthead sloop rig configuration
GMT Composites carbon fiber, single-spreader mast
GMT Composites carbon fiber boom
GMT Composites carbon fiber spinnaker pole
Stainless steel mast step
Stainless steel mast partners
Stainless steel chain plates & backstay tang
Staysail stay chain plate and tack fitting
Headstay fitting integral with custom stem iron / anchor roller
1x19 Stainless steel standing rigging (upper and lower shrouds, headstay, backstay and staysail stay
Removable stainless steel wire inner-forestay
Stainless steel turnbuckle adjusters
Running rigging (sheets and halyard all modern low-stretch line
Stainless steel threaded lead block deck plates port and starboard forward of mast
Sail Handling and Sail Trim Equipment
Harken roller-furling headstay
Manually adjustable backstay
Harken vang
Mainsail lazy-jacks
Harken adjustable main sheet traveler with sheet lock-offs
Harken spinnaker pole adjustable car / track system on mast
Harken stainless steel double foot / turning blocks port and starboard
Stainless steel tracks for Genoa, jib and staysail with Schaefer stainless steel with adjustable cars and turning blocks
Jib-furling line fairleads at port stanchion bases
Harken fore guy stand-up block forward on center line
Stem iron drilled for asymmetrical spinnaker tack line fairlead
Stainless steel winch handles (4ea)
Lewmar Titan floating winch handle (1ea)
Primary Sheet Winches: Harken stainless stee, 2-speed, self-tailing #70.2 (1 pr. / outboard aft cabin)
Secondary Sheet Winches: Harken stainless steel, 2-speed, self-tailing #48 (1 pr. / cockpit)
Main Sheet Winches: Harken stainless steel, 2-speed, self-tailing #48 (1 pr. / aft cabin top
Reefing Winch: Harken stainless steel, 2-speed, self-tailing #40 (1ea / mast)
Halyard Winches: Harken stainless steel, 2-speed, self-tailing #44 (2ea / port and starboard mast)
Lewmar halyard rope clutches port and starboard on mast
Halyard cleats (4ea. mast)
Sails and Canvas
Mainsail: North Sails Ldi / 2023
Genoa 112%: North Sails Ldi / 2023
Working Jib 110%: Doyle Sailmakers / 2012
Staysail : Doyle Sailmakers / 2018
Staysail: Doyle Sailmakers / 2008
Drifter 150%: Doyle Sailmakers / 2010
Genoa Staysail: Doyle Sailmakers / 2012
Asymmetrical Spinnaker: Doyle Sailmakers / 2012
Symmetrical / Triradial Spinnaker: Doyle Sailmakers / 2011
Jib Top (high cut genoa): Doyle Sailmakers / 2008
Yankee (high cut genoa): Doyle Sailmakers / 2012
Blade Jib (high cut): Doyle Sailmakers / 2009
Storm Jib: Doyle Sailmakers / 2009
Storm Trysail: Doyle Sailmakers / 2009
Mainsail cover
Cockpit dodger
Hatch covers
Compass overs
Engine panel and electronics pod cover
Custom “Katrinka” pillows and blankets
Interior cushions

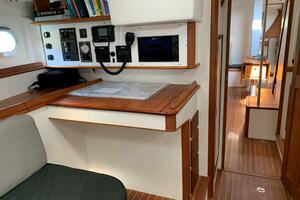

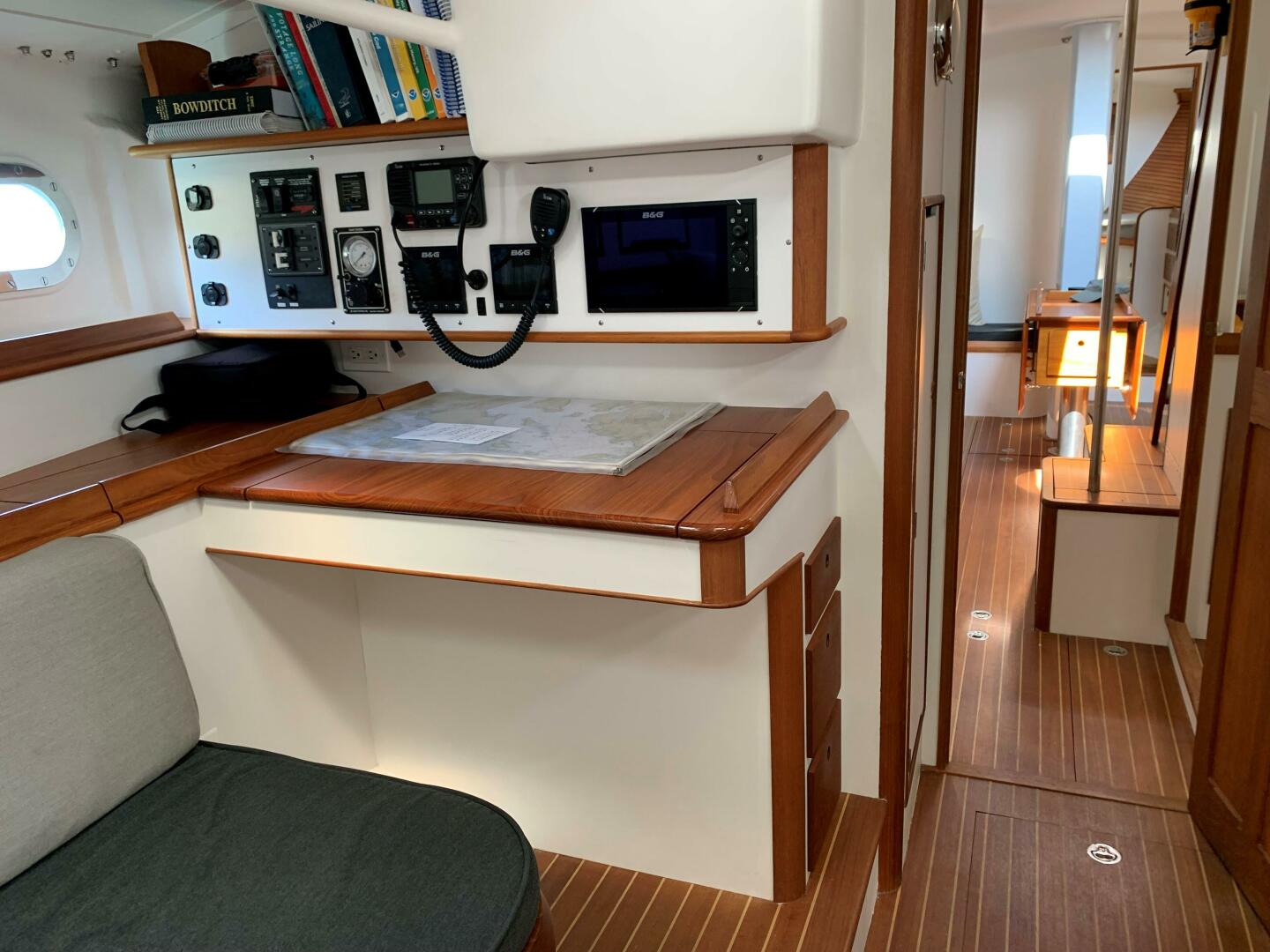

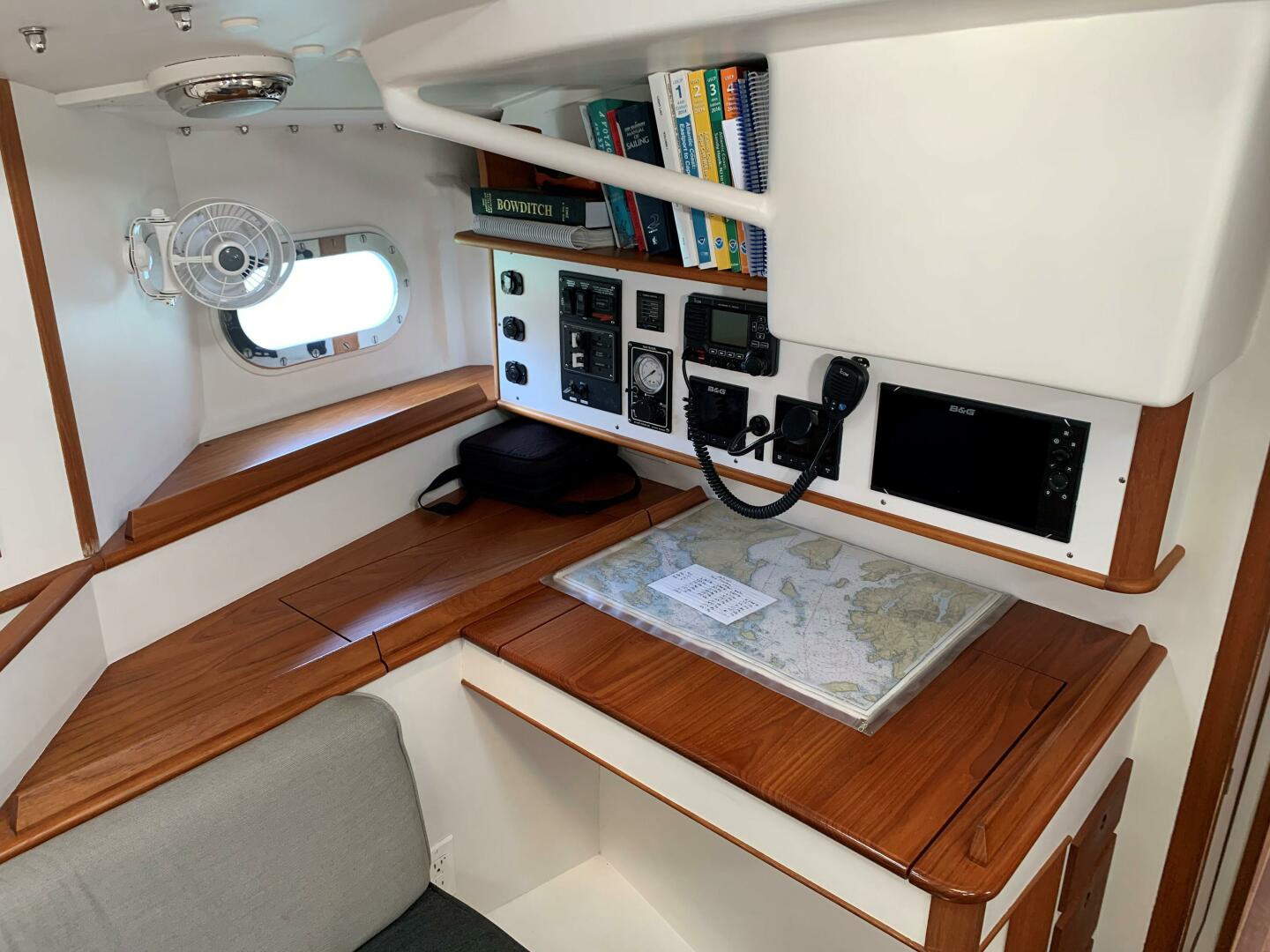

Electronics and Navigational Equipment
Danforth Constellation helm compasses (2ea) port and starboard helm station locations
Wheems and Plath Ship’s Clock
Wheems and Plath Barometer

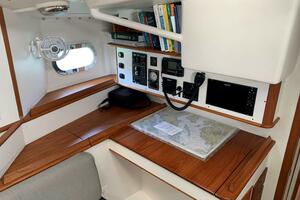

Icom IC-M506 VHF radio (navigation station location
Icom Command Mic remote VHF radio mic (helm station location)
B&G sailing instrument displays at navigation station (2ea) and helm location (3ea)
B&G GPS chart plotter / radar multi-function displays (E80 / navigation station and E120 / helm locations)

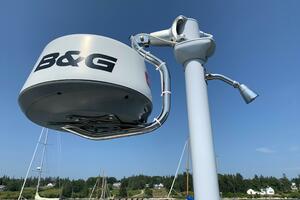

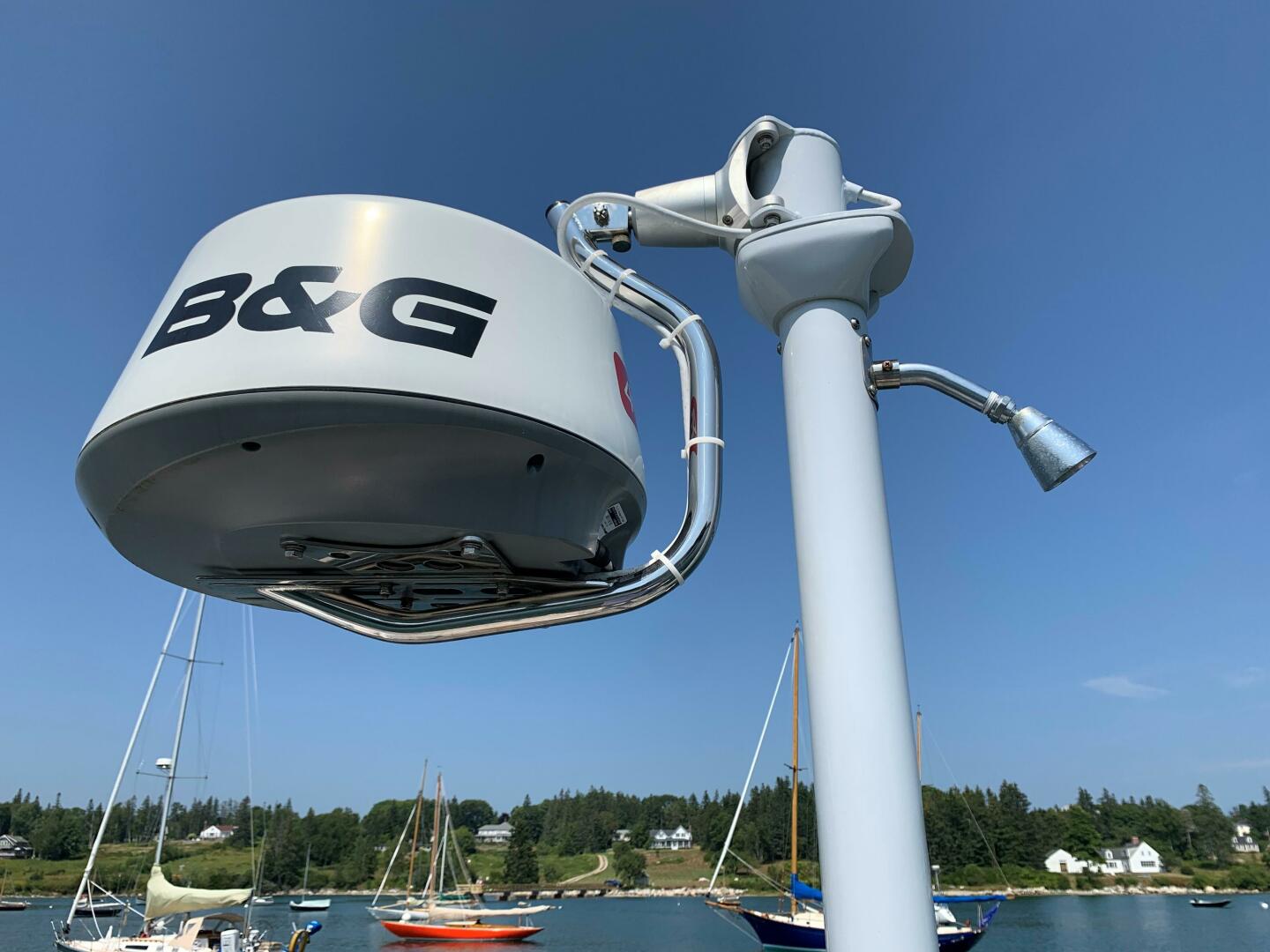

Note: B&G 4G Broadband Radome mounted on past with Questus self-leveling bracket
B&G Autopilot (helm location)
Auxiliary Propulsion and Fuel Systems
2008 Nanni 4-cylinder/ freshwater-cooled / 47.5 horse power / diesel engine
Engine Hours: 1,111 hours as of August 2025
Nanni ignition panel with Tachometer and engine status gauges
Teleflex engine control (throttle and transmission)
Stainless steel 1” propellor shaft
Aqua-Drive coupling
Shaft pillow bearing
PSS shaft seal
4-Blade feathering propellor
Groco raw water strainer
Parker / Racor Fuel Filter
Steering and Boat Handling Equipment
Elk hide covered Edson stainless steel destroyer wheel
Custom adjustable 3-position (port, starboard and center line) steering pedestal
Chain and cable steering linkage
Edson bronze steering quadrant
Stainless steel rudder post and FRP rudder fabrication
Max-Power bow thruster
B&G Autopilot
Emergency tiller
Electrical Systems and Equipment
12-Volt DC ship’s systems
Lifeline AGM GPL 8DL marine batteries
Separate battery banks for ship’s lighting and engine start
Rotary style battery selector switches for lighting and engine start
DC main switch on circuit panel
MMES Custom Panels circuit panel for 12-Volt DC and 110-Volt AC systems
110-Volt DC shore power and generator systems
Blue Seas main AC selector switch
AC circuits controlled at MMES Custom Panels circuit
Northern Lights generator
Northern Lights ignition and status panel
Generator Hours: 420 Hours as of August 2025
30 Amp shore power cord
Victron Energy Isolation Transformer
Freshwater Plumbing and Sanitation Systems
Freshwater Capacity: 300 Gallons
Pressure hot and cold water supplied to galley and head areas
Manual saltwater at galley
Engine supplied and electrically supplied hot water
Stainless steel sink basins in galley and head areas
Shower capabilities in head areas
On deck “rinse-off” hot and cold pressure water shower on aft deck
Raritan manually operated marine toilets in head areas
Marine toilets plumbed for discharge directly overboard, discharge to blackwater tanks, deck pump out and pump out from blackwater tanks overboard in permitted waters
Black Water Capacity: 25 Gallons (never used)
Gray Water Capacity: 25 Gallons
Ground Tackle Systems and Equipment
Double-roller stainless steel bow anchor roller
Bruce anchor with appropriate chain and rode
Lewmar low profile windlass with foot controls
Pressure salt water anchor wash-down plumbing
Dewatering Equipment
Whale Gusher manual bilge pump and handle (cockpit)
Edson high capacity manual bilge pump and handle (below galley cabin sole)
Electric / automatic bilge pumps
Safety Equipment
Fire Extinguisher 1 forward cabin
Bolt cutters
Thru-hull plugs
ACR signal lights (2)
MOM-8 man-over-board modules on stern rail port and starboard
Type IV PFD / life ring (1ea) aft cockpit locker
Vented propane locker aft
Webbing jack-lines
MOB throw rope
Emergency tiller
Additional Equipment
Dock lines and fenders
Telescoping aluminum boat hook
Rope and Teak boarding ladder
Buckets and brushes
Misc. cleaning supplies
Webasto diesel fired hot air cabin heater
