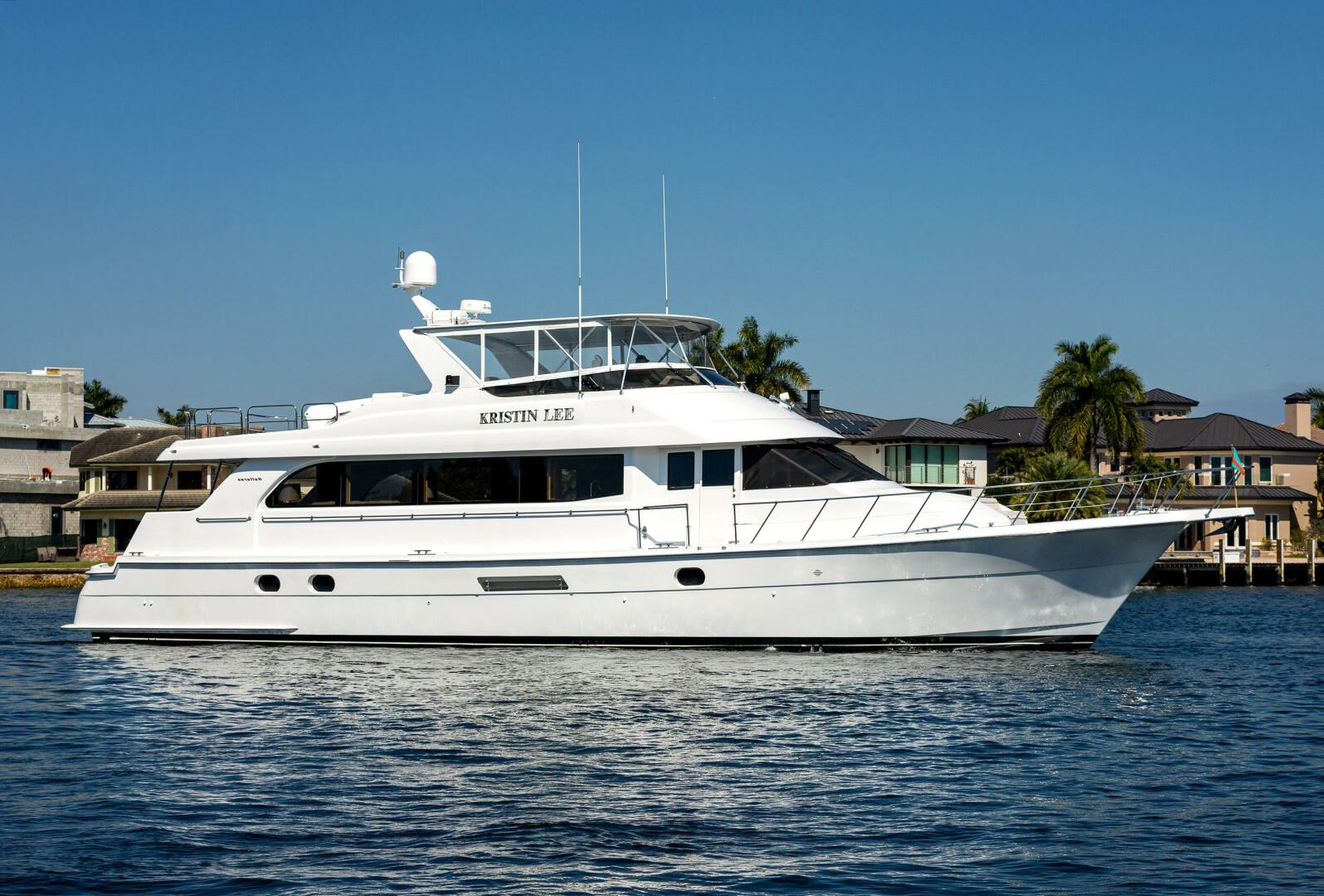

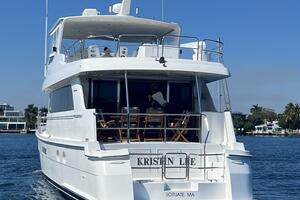

KRISTIN LEE
Yacht for Sale

Main Engines

• Engine Type: (2) Caterpillar 3412E @ 1,400 Hp each

• Stbd. Serial #: 9KS00485

• Stbd. Hours: 2,718 (02/12/2026) – Original

• Port Serial #: 9KS00486

• Port Hours: 675 (02/12/2026) since rebuilt by Southshore Marine Diesel (December 16, 2016)

• Gearboxes for Main Engines: ZF

• Drive: Direct inboard

Generators & Electricity

• Generators: (2) Onan Generators 23 Kw model 23MDK8V

• Fwd. Generator Serial #: C120319380

• Fwd. Generator Hrs.: 5,294 (02/12/2026)

• Aft Generator Serial #: C12031976

• Aft Generator Hrs.: 2,892 ( 02/12/2026)

• Output: 120/240 Volts

• Generator Fuel Consumption: 3 gallons per hour (11.56 liters per hour)

• Shore Power: 240 Volts AC 60Hz with 2 50 Amp cords

• Batteries: (2) 24VDC Battery panels and switches

• Separators: Racor water separators for each generator

Air Conditioning

• Type: (7) Dometic Cruisair 230 volt, 60Hz

• Controls: SMX digital

• Air hangles: Salon, Galley and Master stateroom - Replaced in 2025

• Compressors: Salon, Galley, Bow, Midship, and VIP Guest stateroom – Replaced in 2024

Other Machinery

• Watermakers: (1) By Watermaker Inc. 1,250 GPD (4,732 LPD)

• Trim Tabs/Stabilizers: Yes/Gyro Gale fin stabilizers- ABT tac stabilizer control – Servided in 2023

• Bow Thruster: Hydraulic American bow thruster

• Steering System: Power hydraulic

• Fuel Separator & Filtration: Dual racors fuel water separators for each engine

• Fresh Water System: Headhunter Mach 5 fresh water pump

• Bilge Water Filtration: (7) Bilge Pumps

• (3) Rule 2000, 24 volt Bilge Pumps with floatswitches

Communication Systems

• VHF: (2) Icom IC-M604

Navigation Systems

• Radar: (2) New 8616 Garmin radars at Flybridge (2020)

       (2) New 8616 Garmin radars at Helm (2026)

• GPS:  (4) Garmin GPS map 5208 chartplotter

          (2) New 8616 Garmin - Flybridge (2020)

          (2) New 8616 Garmin - Helm (2026)

• Magnetic Compass: 4” Ritchie PowerDamp Compass

• Auto Pilot: Simrad AP 25

• Depth Sounder: Furuno RD 30

• Wind/Speed Log: Furuno RD 30 speed

      B & G HS 2000 speed

Entertainment System

a. Video Equipment

• TVs: (5)

b. Audio Equipment

• Stereo’s: Fusion MS-VD 755 stereo – 2020

     Aft deck speakers

     JL Audio speakers - Flybridge

Main Galley Equipment

Cooking Equipment:

• Frigidaire 4-burner stove – New 2020

• Whirlpool gold oven – New 2020

• Sharp carousel microwave / convection oven New 2020

Refrigeration/Freezer:

• Whirlpool / Whirlpool

Dishwasher:

• Kitchen Aid - 2020

Other:

• Garbage disposal

• All new granite counter tops – 2020

Additional Galley Equipment

Cooking Equipment:

• Custom Kenyon electric grill – 2020 - Flybridge

Refrigeration/Freezer:

• New refrigerator – 2020 - Flybridge bar

Other:

• Custom stainless steel grill install flush mounted in fiberglass

• True refrigerator drawers – 20120 - Aft Deck

• Maxx ice machine – 2020 – Aft Deck

Laundry Equipment

• Whirlpool Washer and Dryer

Anchor Windlass System:

• Maxwell 3500 lbs. 24 Volt

Anchors:

• Fortress FX85 on the bow roller

Anchor Chain:

• Bow pulpit with anchor shut

• Galvanized chain and approximately 1” stranded nylon line

Swimming Platform:

• Integrated swim platform with ladder

Other:

• Glendinning cable master (port and starboard) shore cable system

• Boarding 3-step ladder

• Fresh water washdown bow, flybridge and cockpit

• Spray rails

• Dockside water inlet

• Phone / TV dock cable

• (1) 12 Volt DC electric air horn

• Bow rail and handrails stainless steel

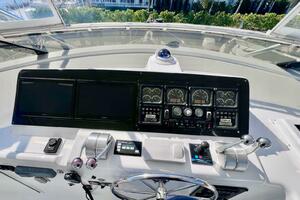

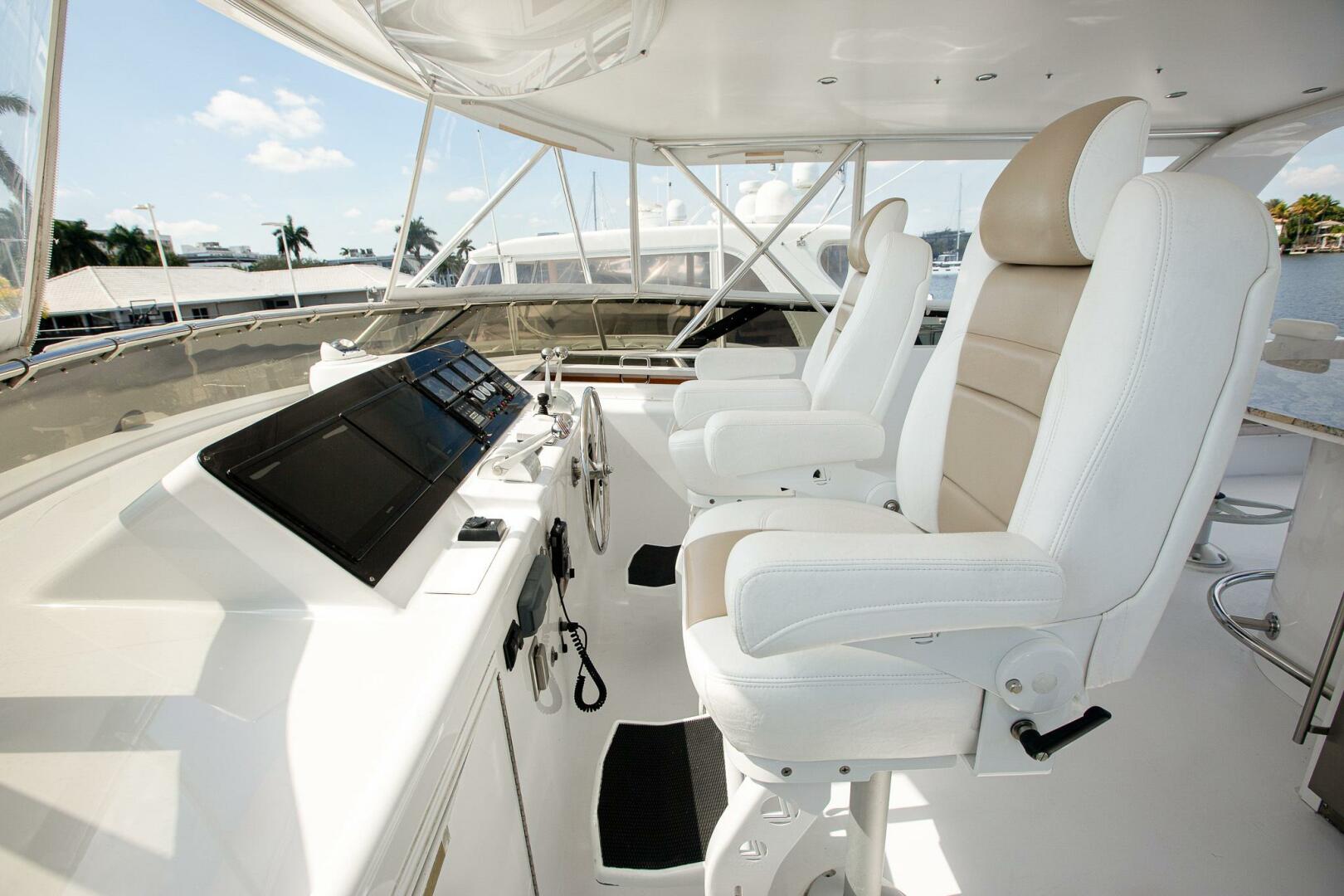

FLRYBRIDGE DECK EQUIPMENT

• Hardtop with Isinglass enclosure

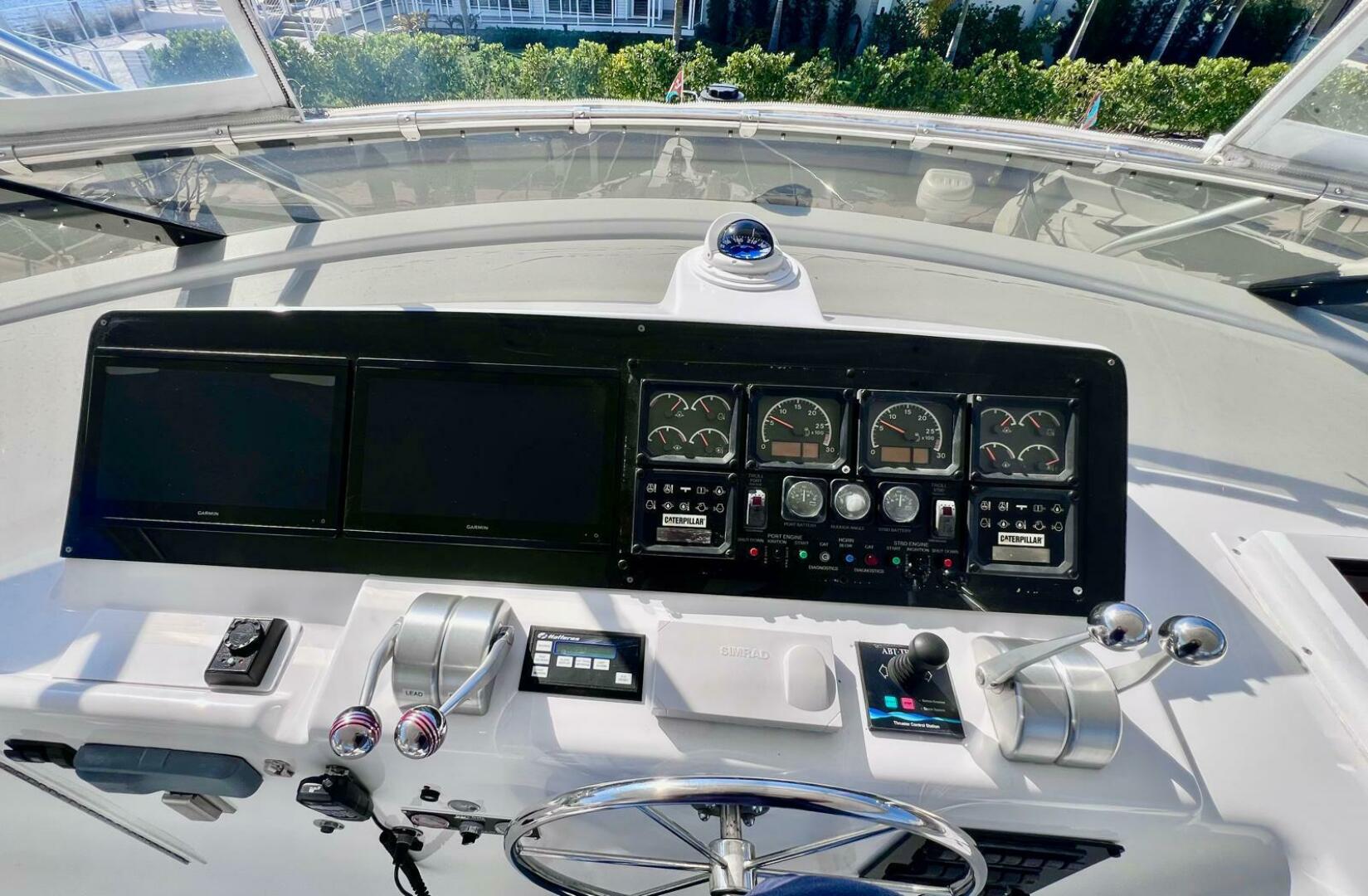

• Complete helm station with switches and electronics

• Navigation lights

• Compass

• Caterpillar displays

• Instrument gauges for Caterpillars

• Electronic engine gauges

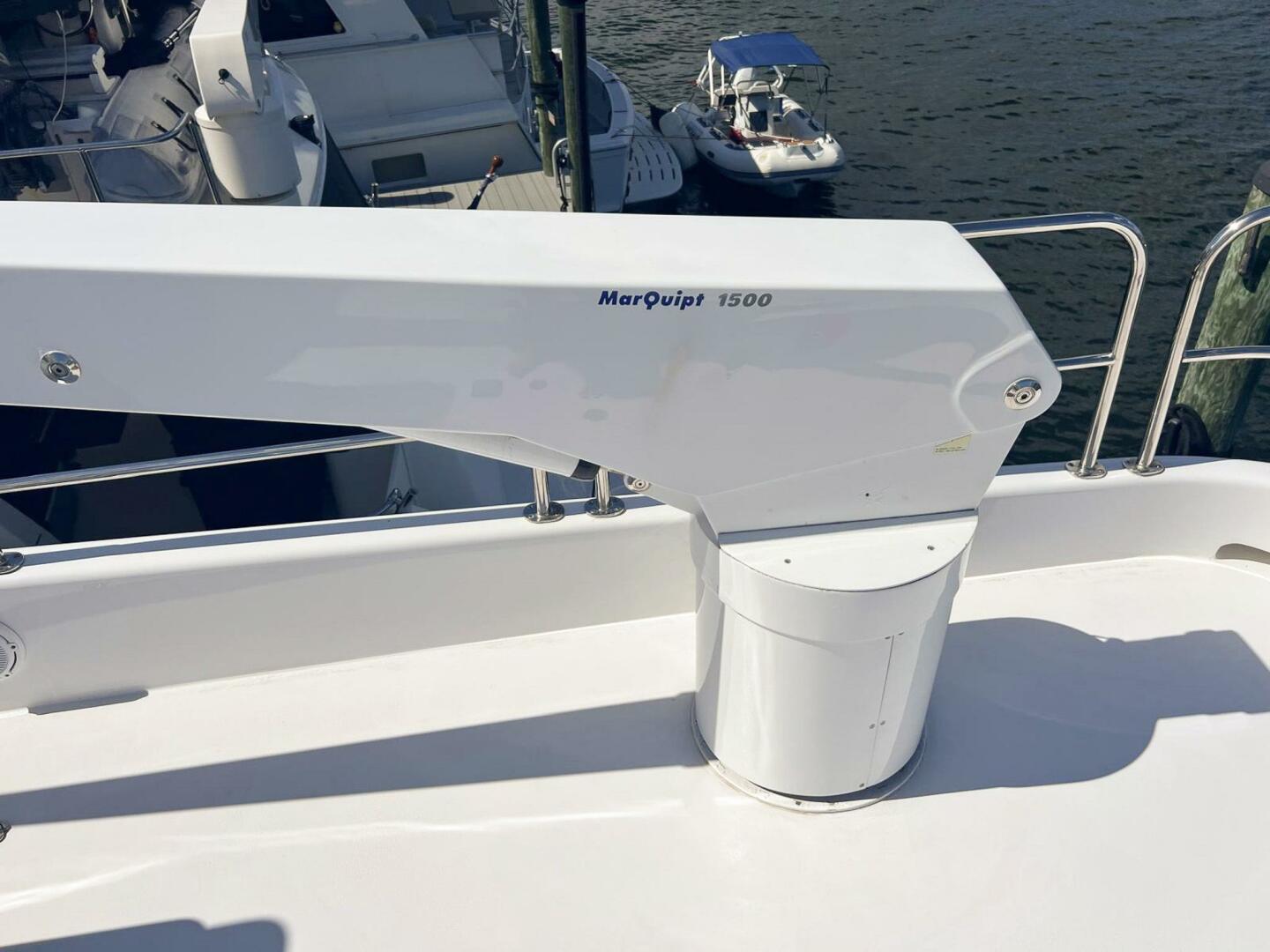

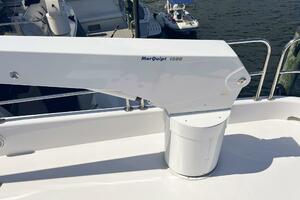

• 1500 lbs. Marquip davit with electro-hydraulic rotation

• Radar arch with overhead lights

• Bow thruster control

• Search light: ACR electronic RCL-100 with URP-102 remote controller

• All new seating with Lebroc custom seats:

• 2 Captains (2020)

• 4 Bar (2020)

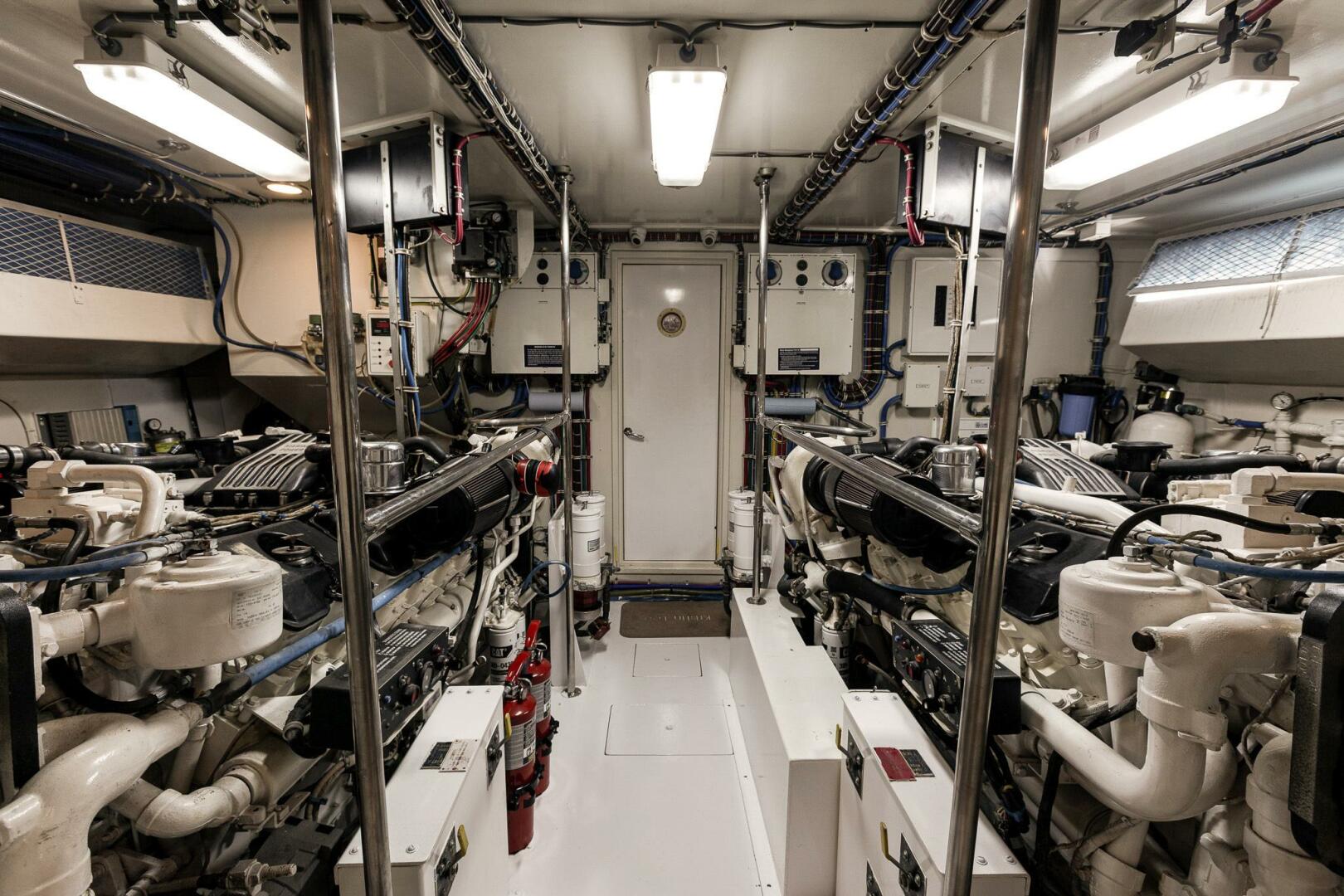

ENGINE ROOM EQUIPMENT

• Engine synchronizer

• Electrical fuel priming pumps

• Fresh water expansion tank

• Raw water pump

• Wash down pump

• Cold water / hot water Manifold

• DC / AC lights

• Water heater

• 120 / 240 AC electrical panels and breakers

• 24VDC electrical panels and breakers

• Large tool box

• GFCI outlets

• (4) Batteries for engines and fire retardant boxes

• Mastervolt battery charger

• Caterpillar analog gauges and panels

• Macerator pump

• Engine room blowers

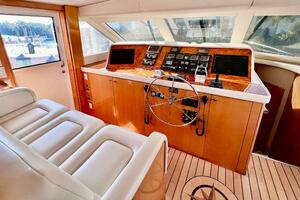

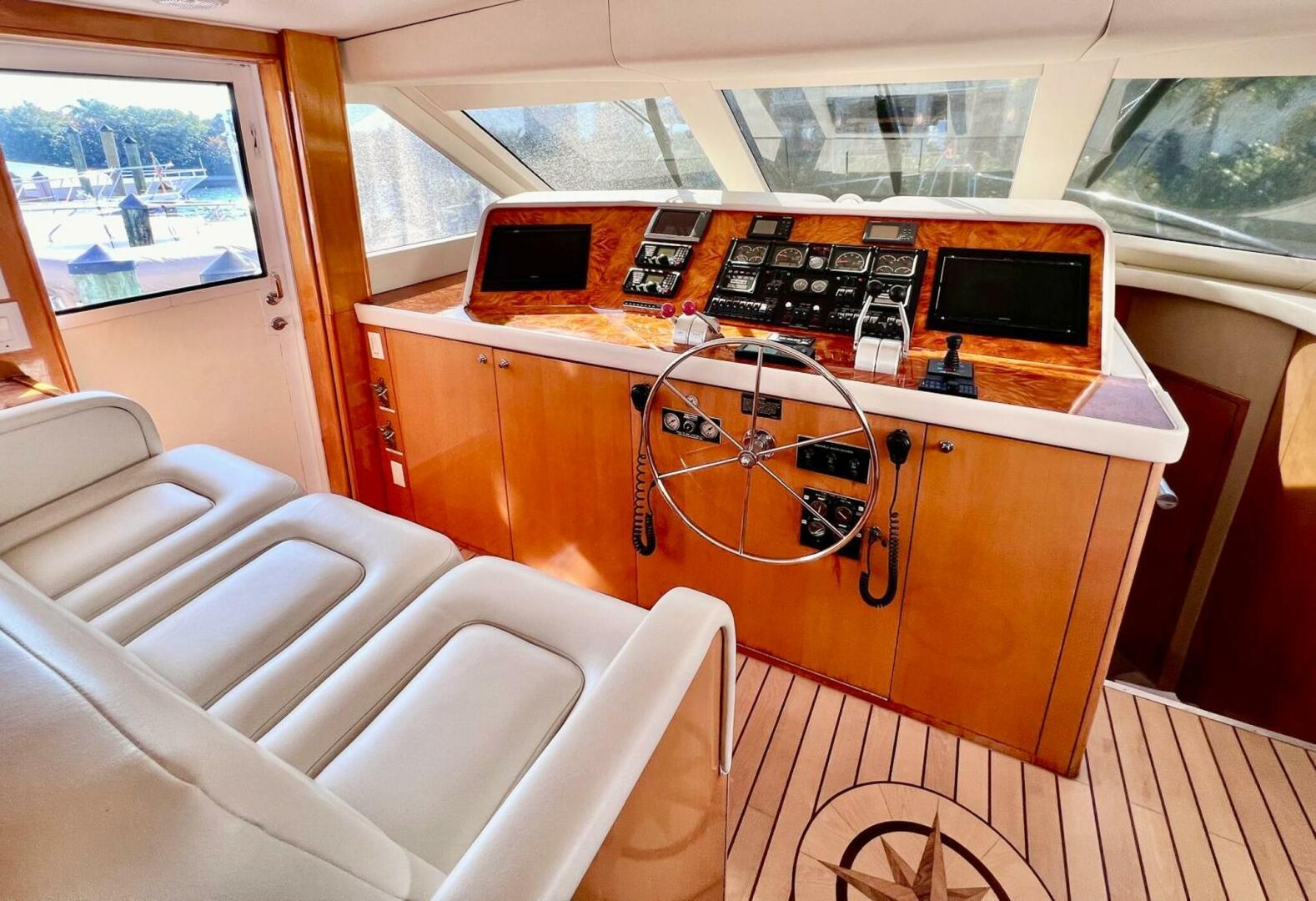

PILOTHOUSE EQUIPMENT

• (2) 8616 Garmin – New 2026

• American bow thruster control

• Hatteras systems monitor

• (4) Fuel gauges

• Electrical switchboard

• SMX air conditioning controls

UTILITY ROOM EQUIPMENT



• Located forward with easy access hatch and collapsible ladder

• Sull air ES - 6 compressor

• Hot / cold water manifold

• Port and starboard shoreline lsoboost transformers

• (7) Crusair air conditioning compressors

• Fresh water expansion tank

• Fire suppression system

• Hydraulic system connected to aft generator

• Overhead lights

Security Equipment

• CCTV System: Engine room and side deck cameras

• Cameras: (2) Engine room & (2) Helm doors

• Monitors: Thru Garmins

Fire Fighting Equipment

• Fire Control System: Fire suppression system – Engine Room -September 2025

• Fire Extinguishers: (8) Type ABC-1 2.5 lb. Dry Chemical - September 2025

• Alarms: Audible/visual engine alarms at the Helms

Safety Equipment

•  Life Rafts: (1) For 8 people

•  Other Throwable Flotation Device: (1) Type IV cushion

•  Life Jackets: (12)

•  EPIRBS: Yes

•  Flares: Yes

•  Medical Equipment: None

GENERAL

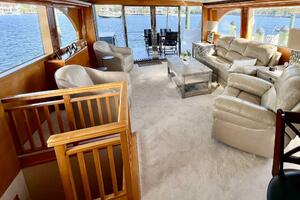

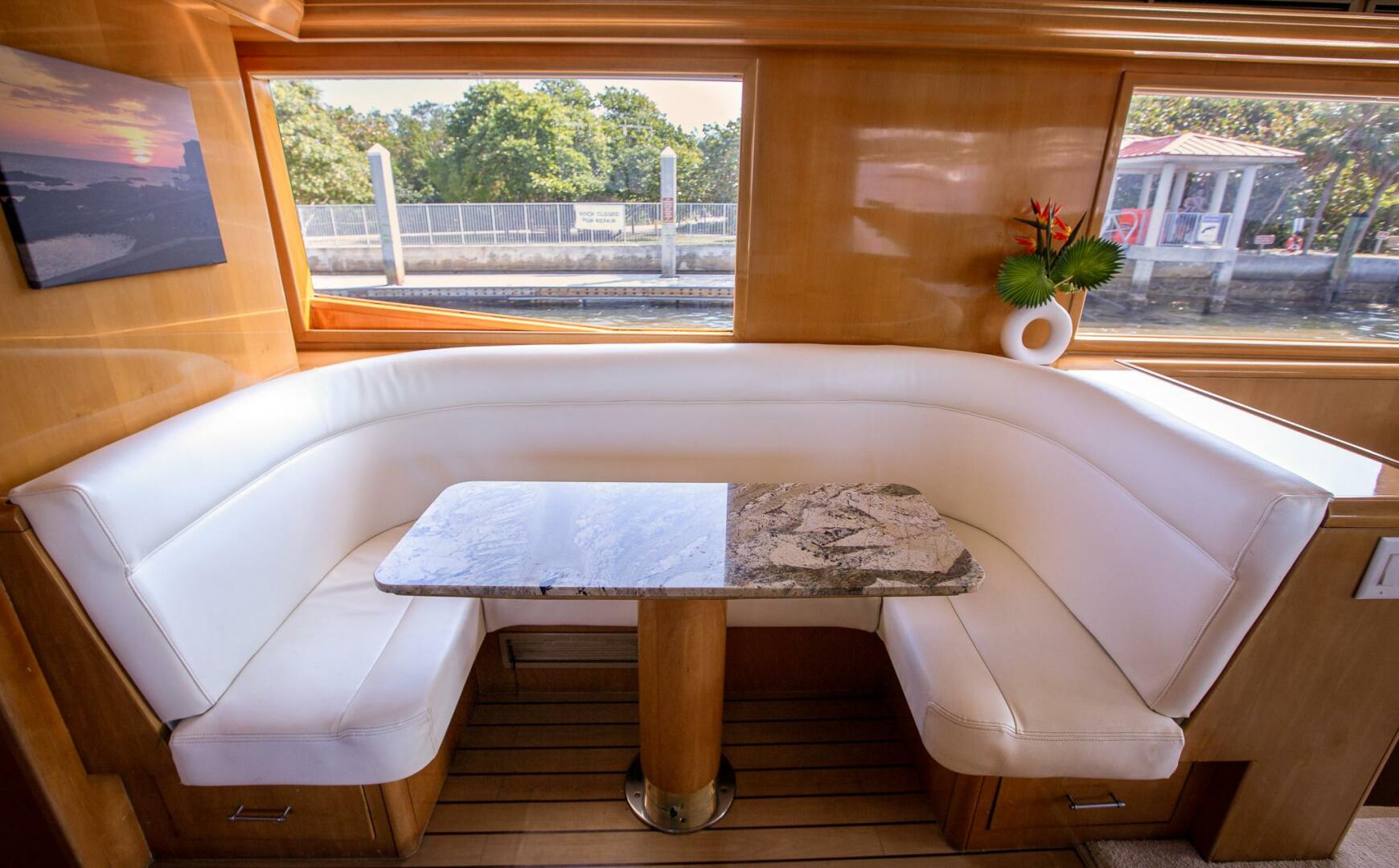

Salon/Dining Area

• Maplewood throughout with dark in-lay mullions

• Carpeting

• Sofa

• (2) Occasional chairs

• Entertainment center with pop-up TV system

• Custom shades

• New headline

• LED lights

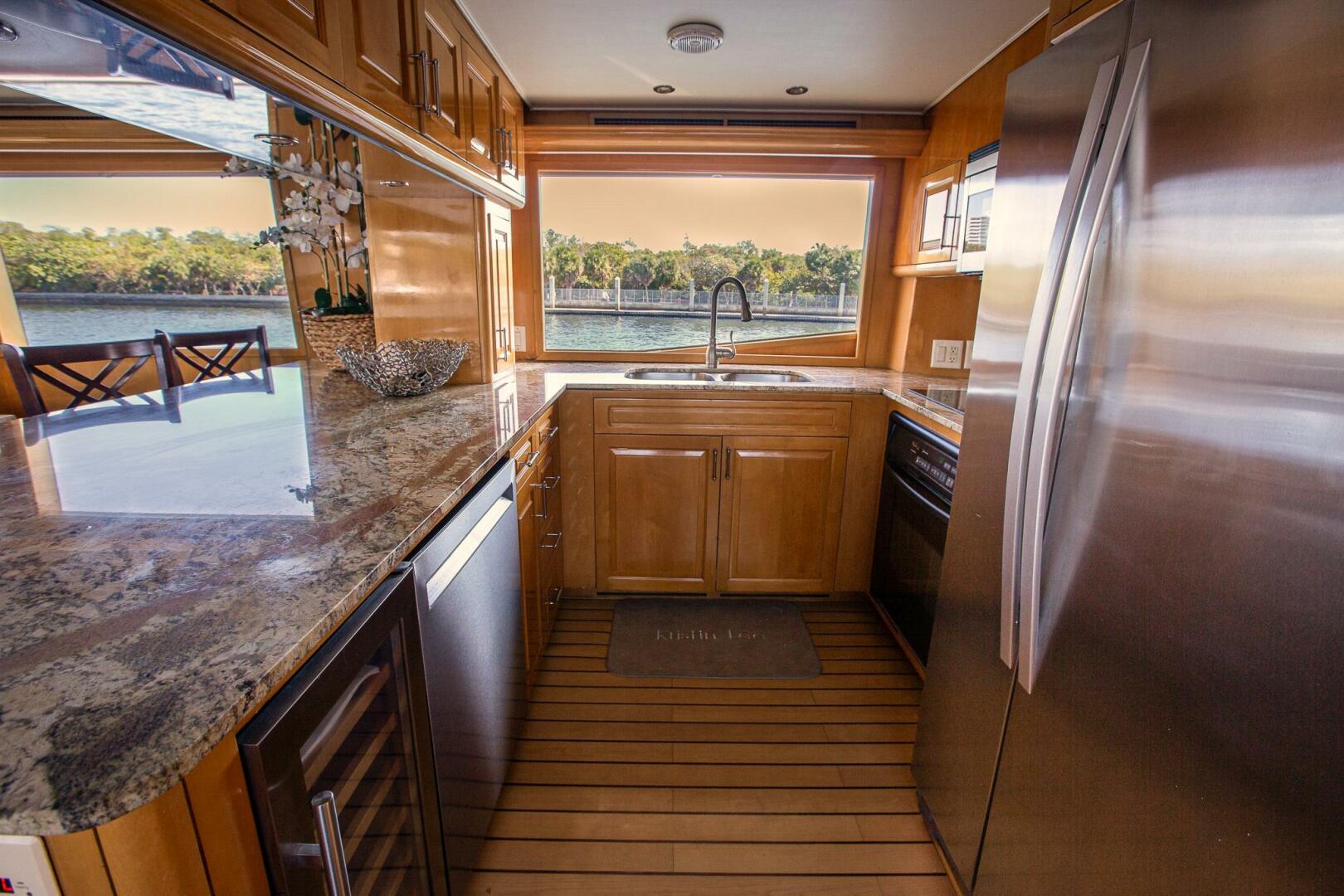

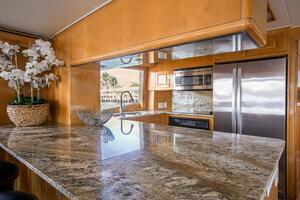

Galley

•  Oversized granite countertop

•  (4) High-back stools at counter

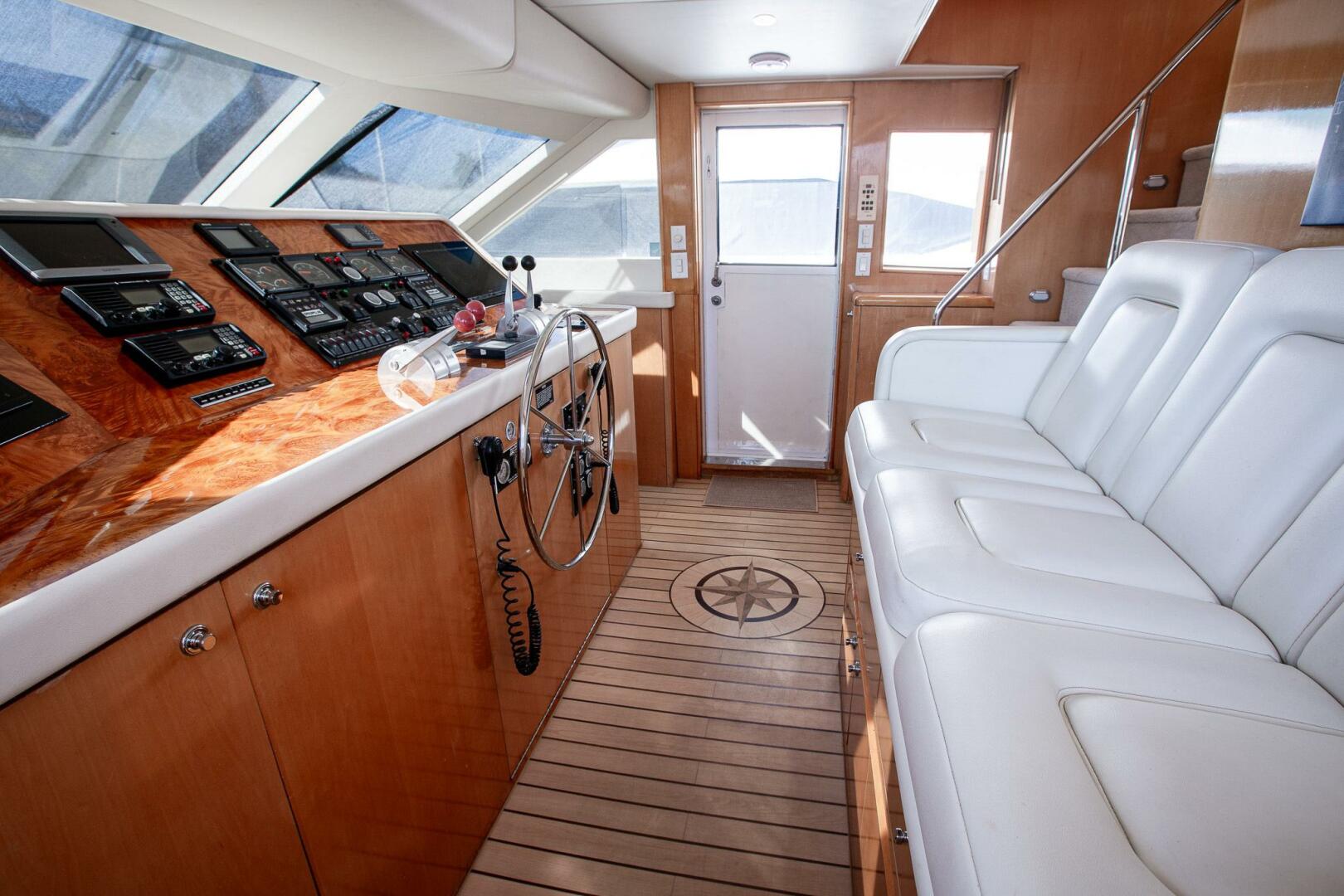

Pilothouse

• Port and starboard sliding doors

• Custom leather seats for two with chart flats storage and drawers

• Staircase to flybridge with storage below

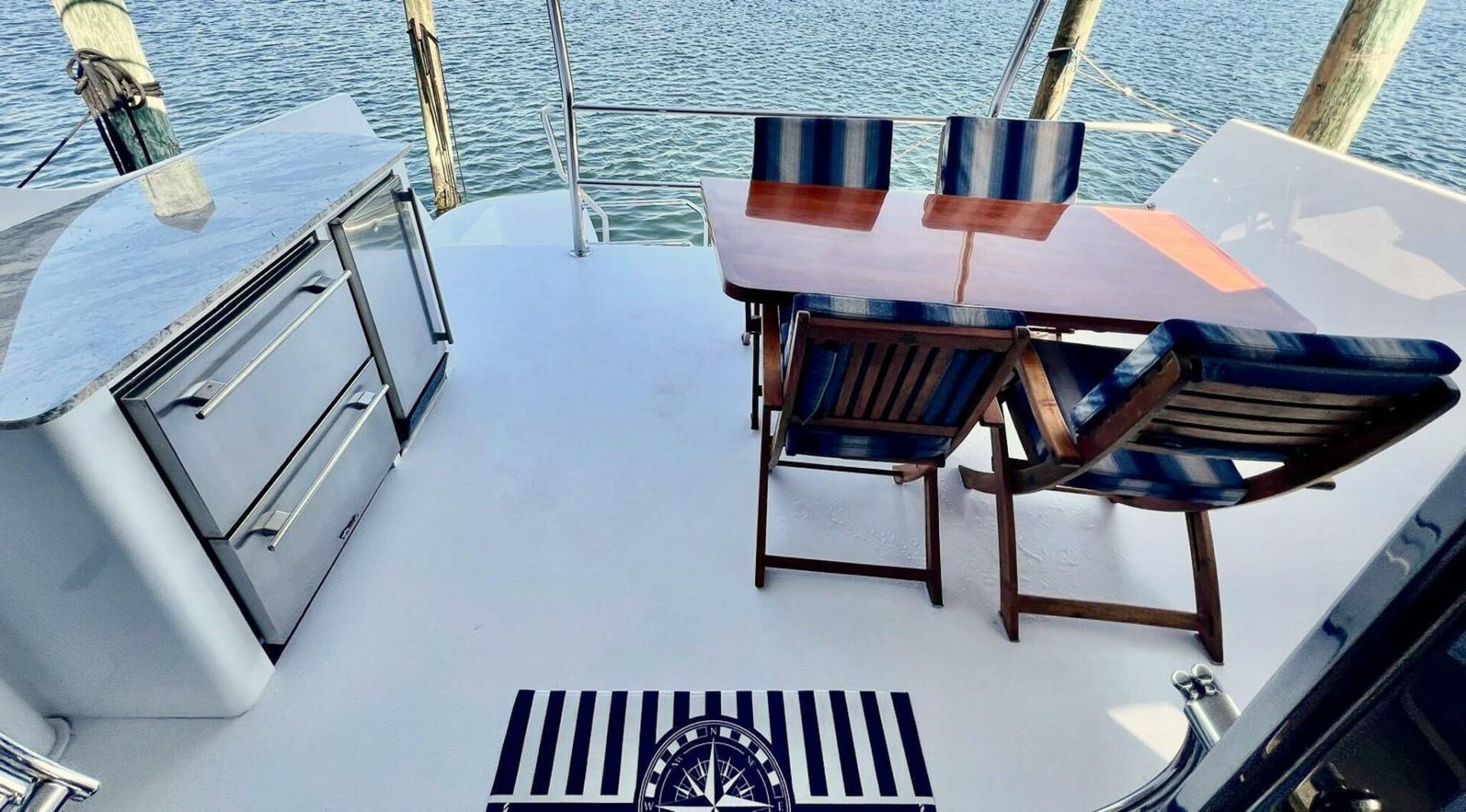

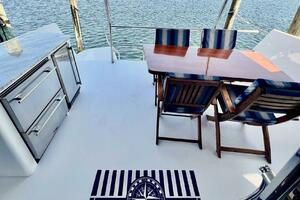

Aft Deck / Cockpit

• Extended att deck with table

• Cockpit storage cabinets

• Spiral staircase down to cockpit

• Courtesy lights

• Integrated swim platform with ladder

• Aft deck teak table seats (4) people - (Refinished 01/2021)

• Aft deck speakers

• Two large cockpit storage for fenders, ropes, and water toys

• Overhead lights

• Hand held shower

• Custom bar with granite top – 2020

• True refrigerator drawers – 2020

• Maxx ice machine – 2020

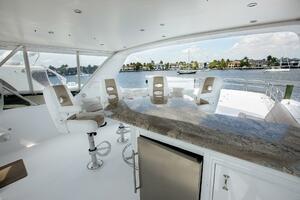

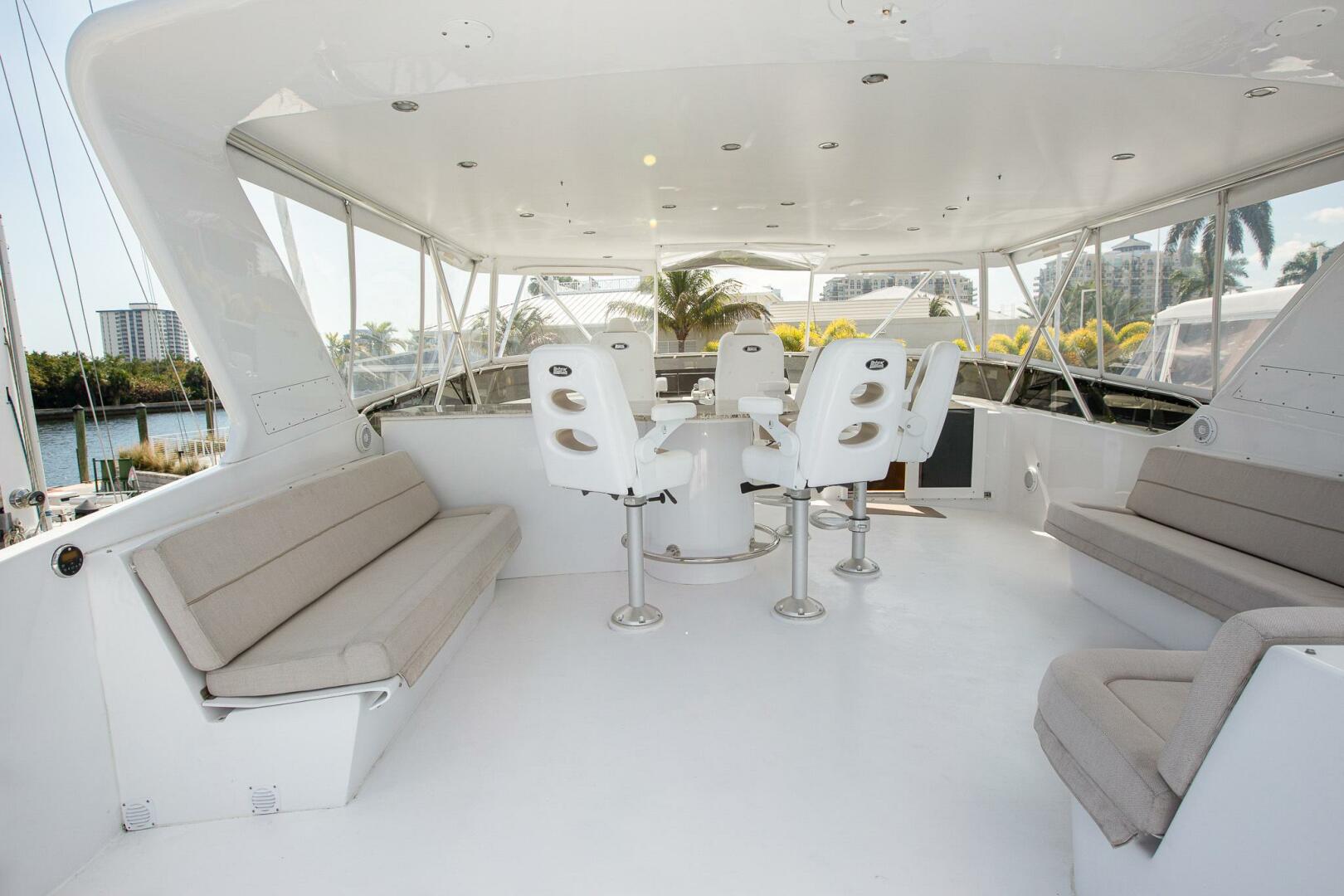

Flybridge

• (4) High-back stools, sink, refrigerator, storage cabinets

• Granite countertops

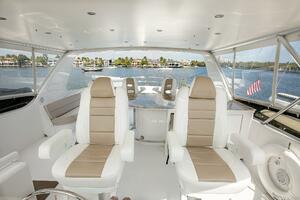

• (2) Custom Llebroc pilot chairs – 2020

• All new cushions - 2020

• Hardtop

• Custom jacuzzi to port side

• Huge bar with refrigerator - 2020

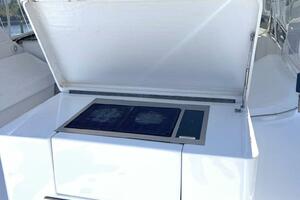

• Custom Kenyon grill – 2020

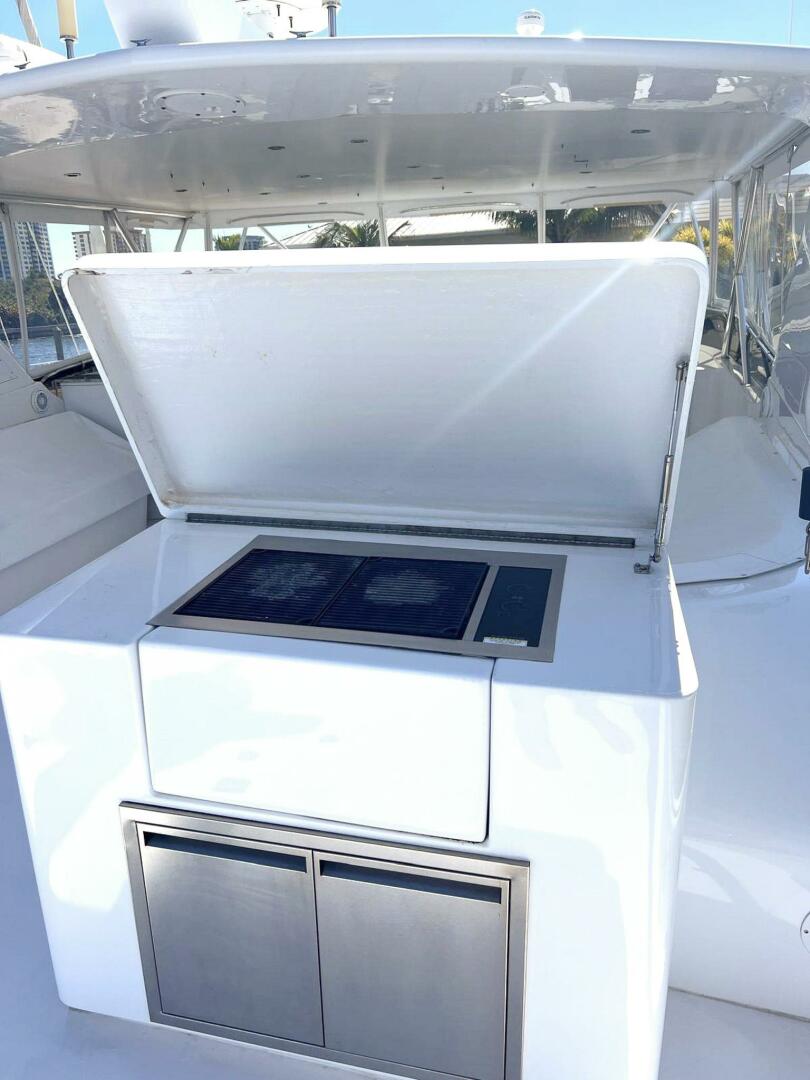

• Custom stainless-steel grill installed flush-mounted in fiberglass

• JL audio speakers

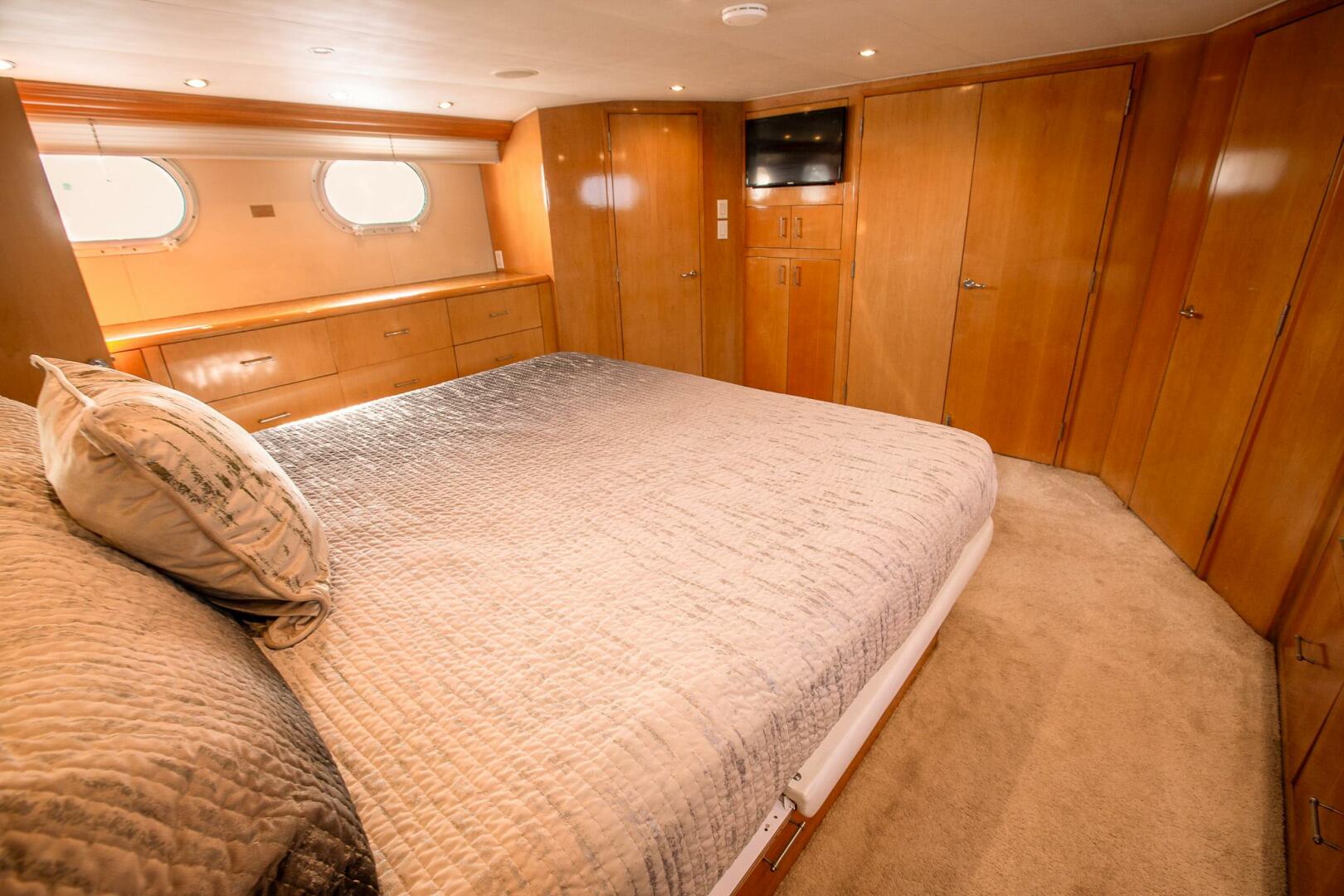

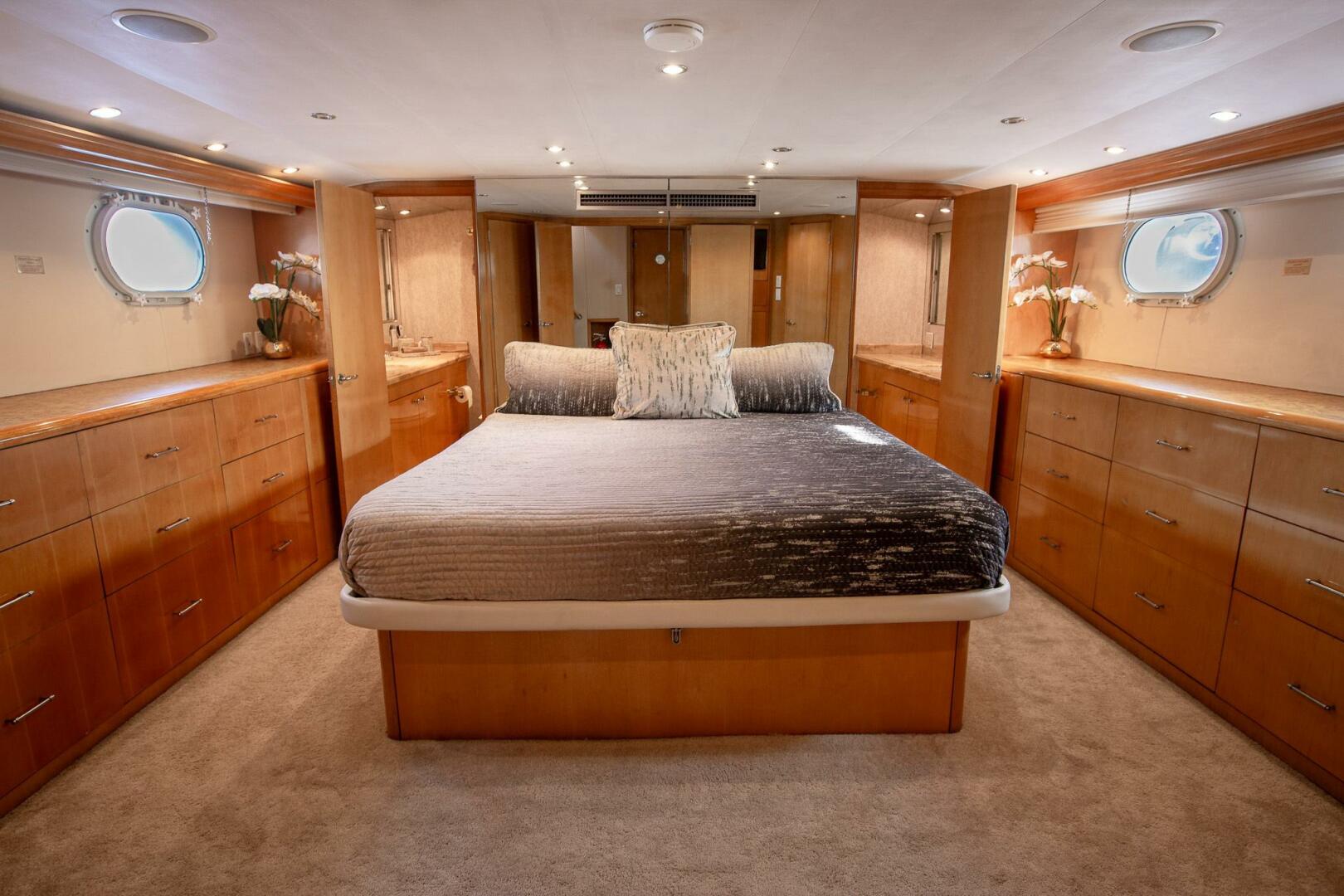

OWNER

• Private access from stairwell in salon

• King size berth

• Walk-in cedar-lined wardrobe with arched door and authomatic light – port side

• Hanging cedar-lined closet - starboard side

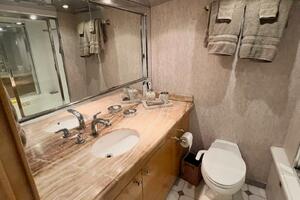

• Private his and hers bath with hot tub, marble countertops

• Tub with shower, sliding doors, whirlpool jets and automatic sump pump

GUESTS

VIP Stateroom:

• Located amidships forward of engine room access

• Queen size berth

• Built in dressers and night stands

• TV and stereo

• Two cedar-lined hanging closets

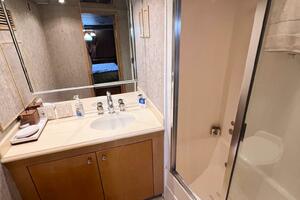

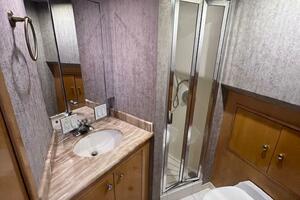

• Private head with marble countertops, shower stall and hot tub with jets

VIP Stateroom Forward:

• Located in the bow

• Queen size berth

• Built in dressers and night stands

• TV and stereo system

• Cedar-lined hanging locker

• Over head hatch

• Access to anchor locker

• Private access to head

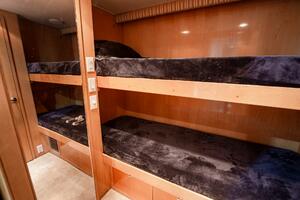

Twin Guest Stateroom or Crew Cabin:

• Located forward to port side

• Twin bunk beds

• Cedar-lined hanging locker

• TV

• Private head with shower

2025:

• Boottom Paint / Propspeed - December

• New salon and stairs carpet -December

• Entire vessel waxed

• All new batteries – Early 2025

2020/REFIT:

• Complete exterior paint job

• New oil coilers

• New alternators

• New port starter

• New headliner

• New granite

2019:



• New headliner

• (2) off-white occasional chairs

• New custom Hi-Lo 50' Samsung TV

• New blinds

• New LED lighting

- Exclusions include all of Owner's personal effects -
