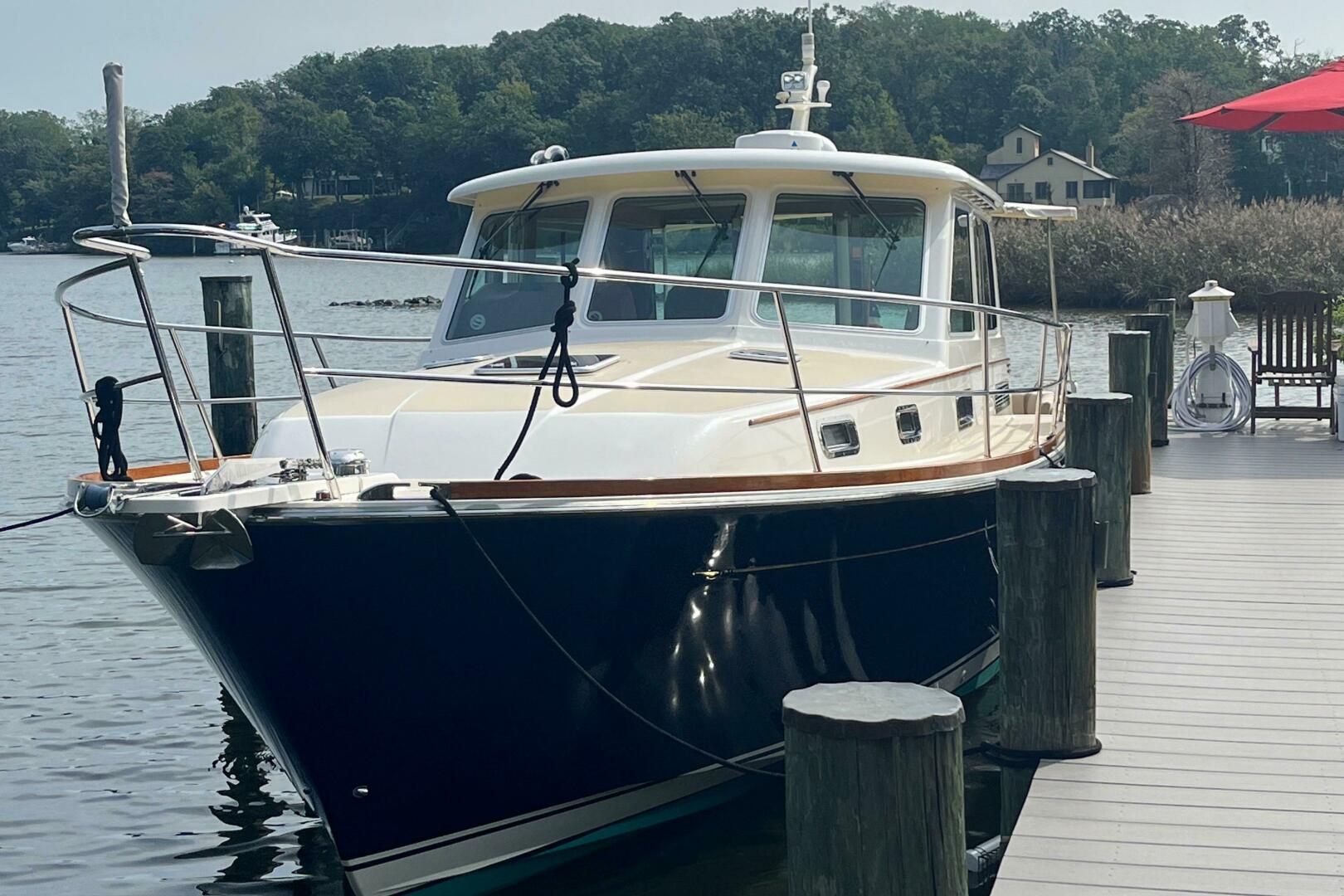

SUNDOG
Yacht for Sale

Steering System

• Joystick Control

Hull

• Modified Deep “V” Planing hull design, with shallow pod drive
• tunnels
• 16º deadrise at transom, 23º deadrise amidships
• ISO NPG white gelcoat w/vinylester back-up resin
• Bottom, topsides and transom vacuum-infused biaxial E-glass
• with Airex C70 foam core
• Stringer system biaxial E-glass with foam core
• Bulkheads vacuum-bagged biaxial E-glass with polypropylene
• honeycomb core
• Molded E-glass swim platform with molded-in anti-skid surface
• Hull side rubbing strakes
• PVC rub rail with stainless steel cap
• Painted (IMRON) double boot top
• Gold recessed cove stripe

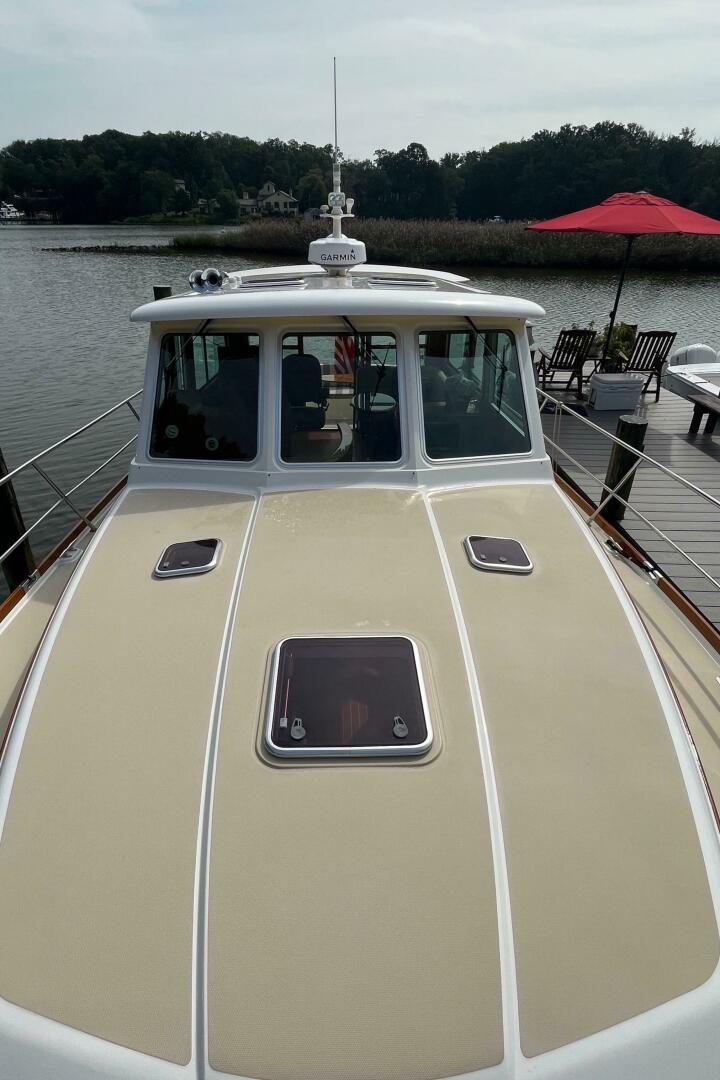

Deck and Hard Top

• ISO NPG gelcoat
• Vacuum-infused biaxial E-glass with balsa core
• Molded-in anti-skid deck surfaces

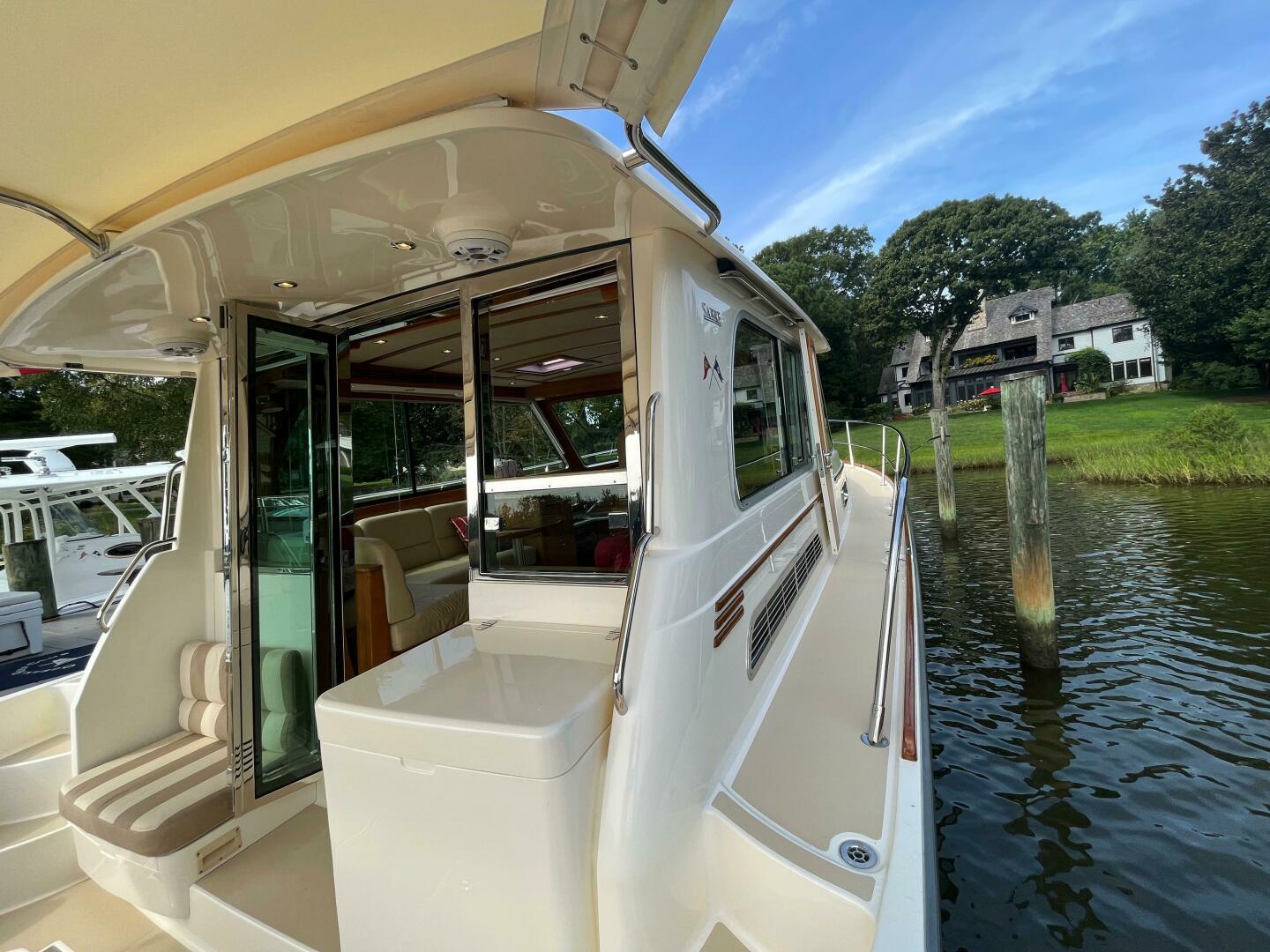

• Stainless steel sliding aft salon door
• Sliding windows in salon on cabin sides
• Top hinged windows in salon aft bulkhead
• Hinged access door to side deck at helm
• Flush, outward opening, transom door with latch
• Anchor locker with slam latch

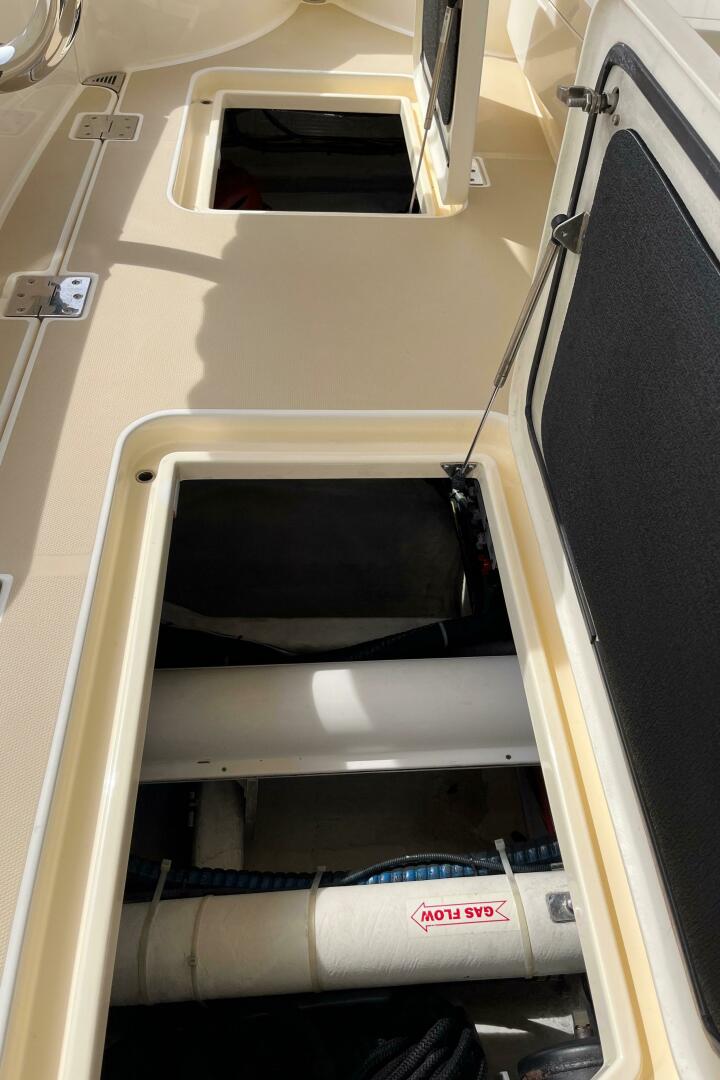

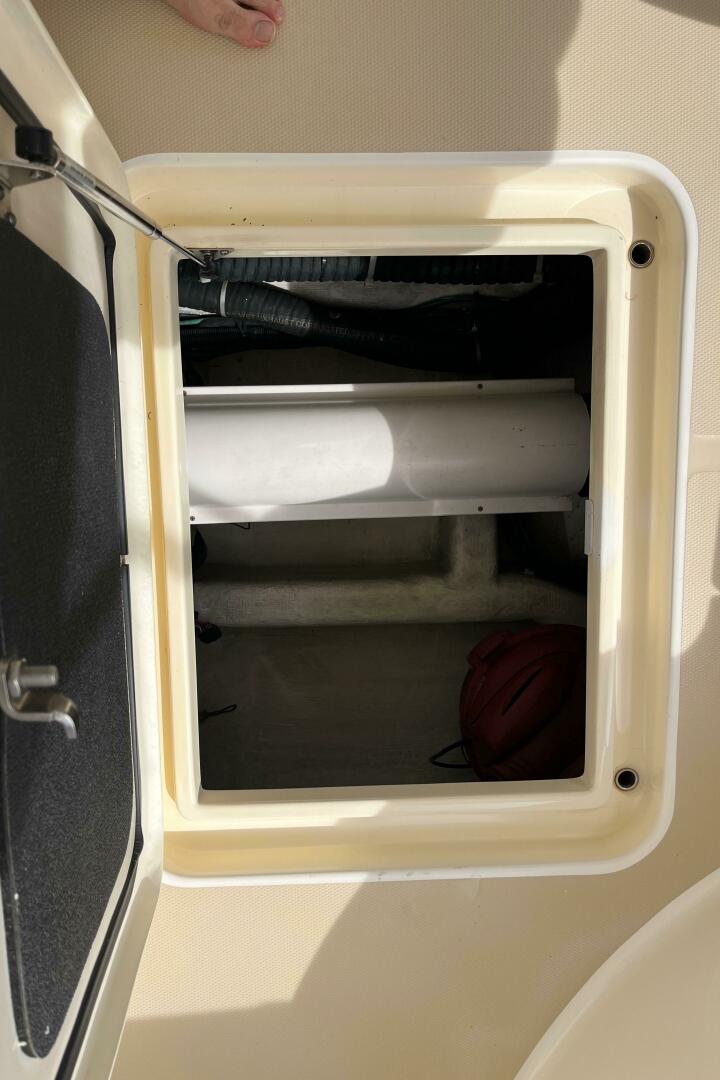

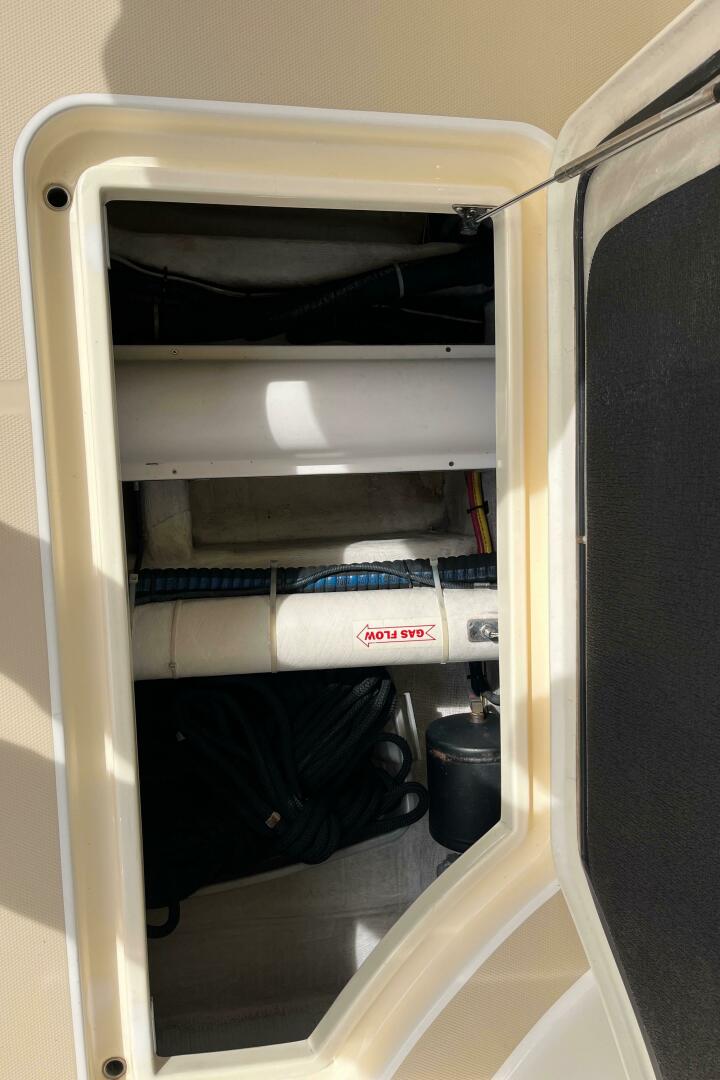

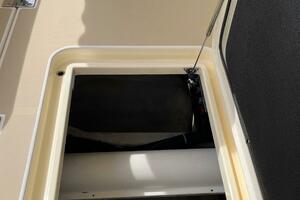

• Lazarette hatch with gas struts and compression latches
• Hand rails at each corner on cockpit coaming

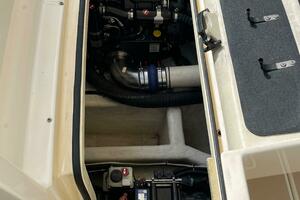

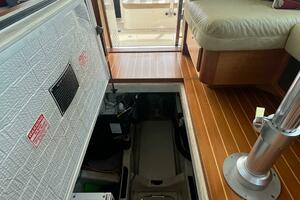

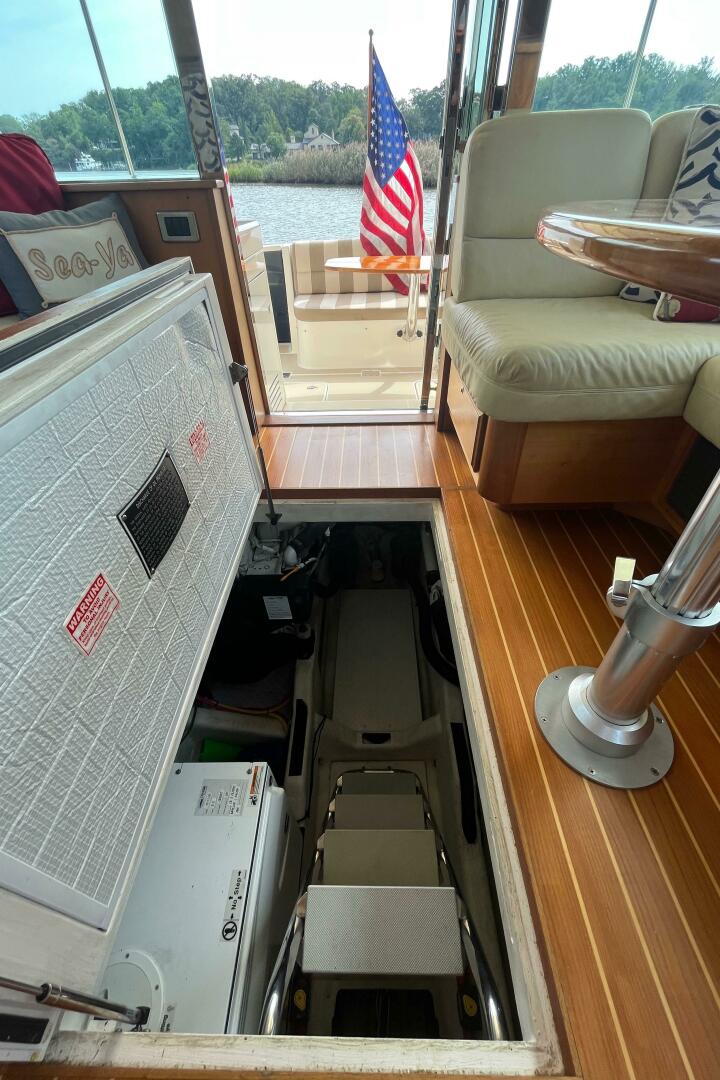

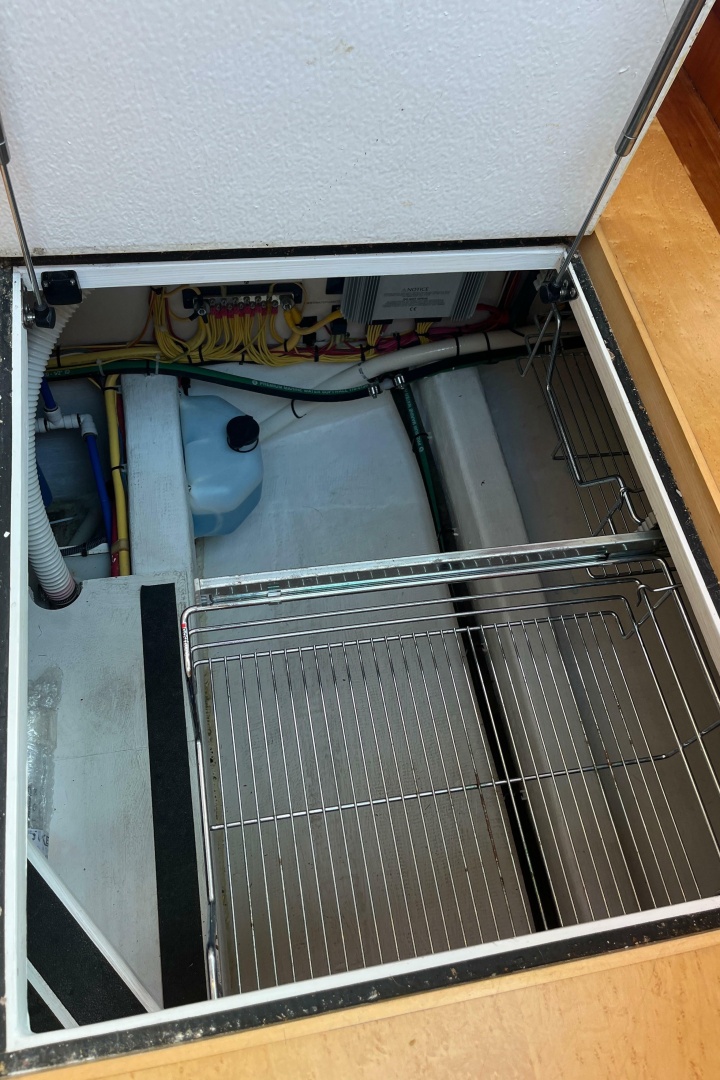

• Large engine room hatch in main salon with compression latch

Deck Hardware

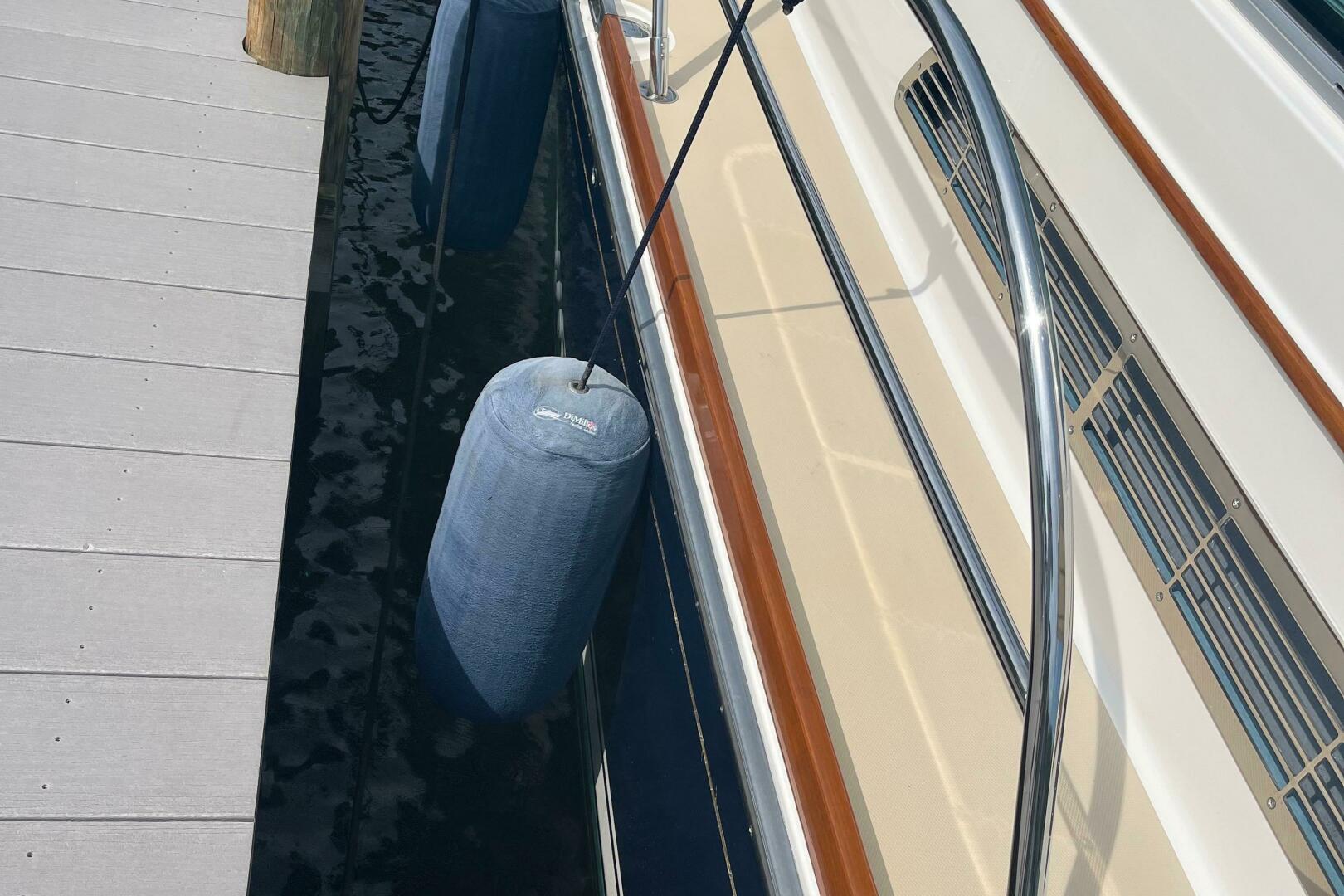

• 1 1/4" Diameter type 316 stainless steel perimeter rail system
• (6) 12” Stainless steel cleats (2 fwd, 4 mid ship, 2 in aft cockpit)
• (1) 10” Stainless steel cleat to starboard of windlass as anchor

rode tie off

• (2) Custom cast stainless steel mid-rail line chocks
• (2) Custom cast stainless steel skene chocks forward
• (4) Cast stainless steel hawse pipes in transom and hull sides

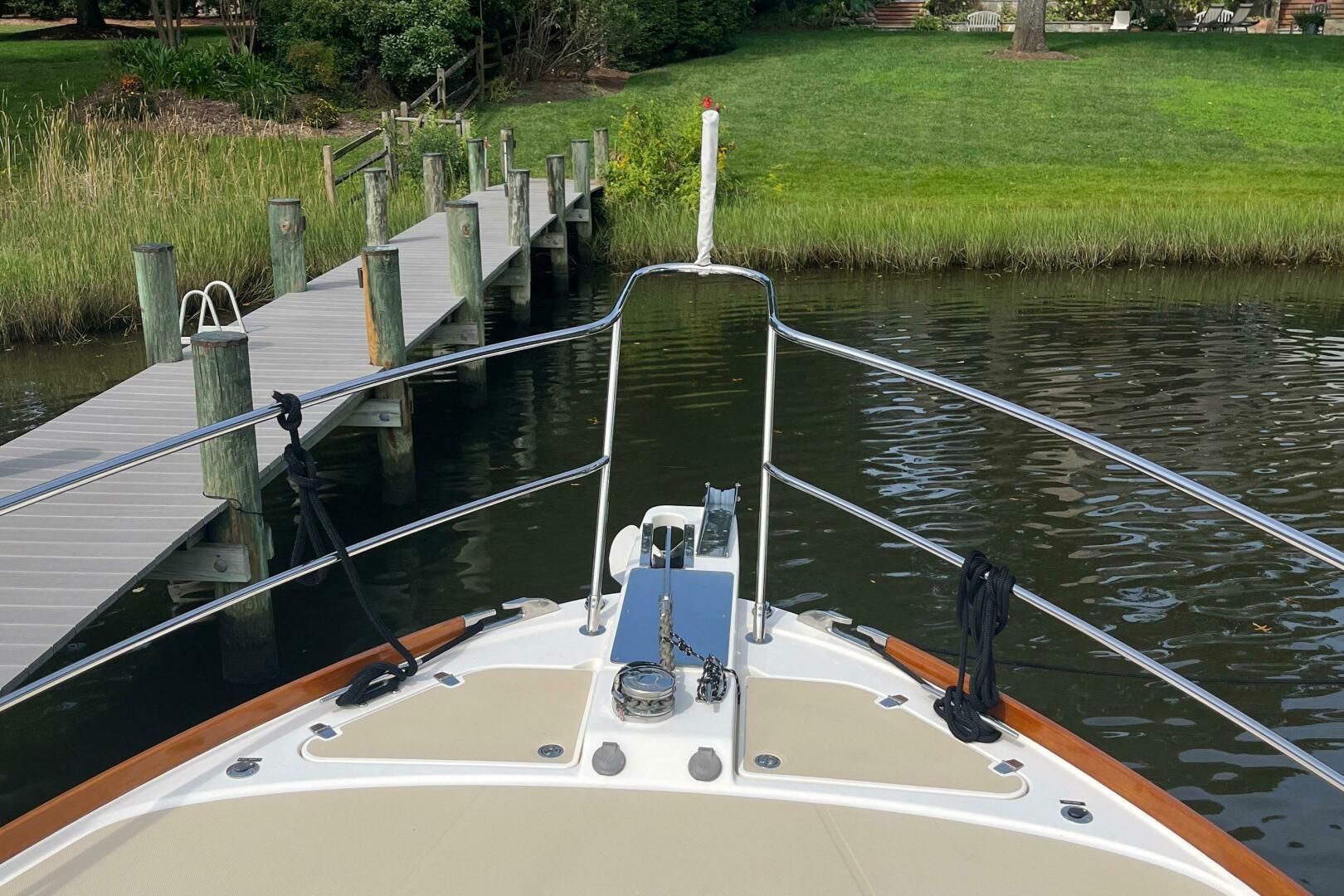

• Fiberglass bow pulpit with dual anchor roller for 35# CQR or
• Delta anchor and “lunch hook”
• Anchor windlass, electric rope-chain type
• Flag staff and socket on taffrail
• Burgee staff on bow pulpit

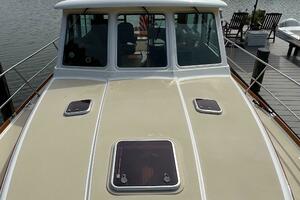

• (3) Lewmar Low Profile polished aluminum hatches w/screens
• (6) Custom stainless steel opening port lights
• Teak toe rails
• Teak cabin side eye-brow
• Custom cast stainless steel “SABRE” medallion

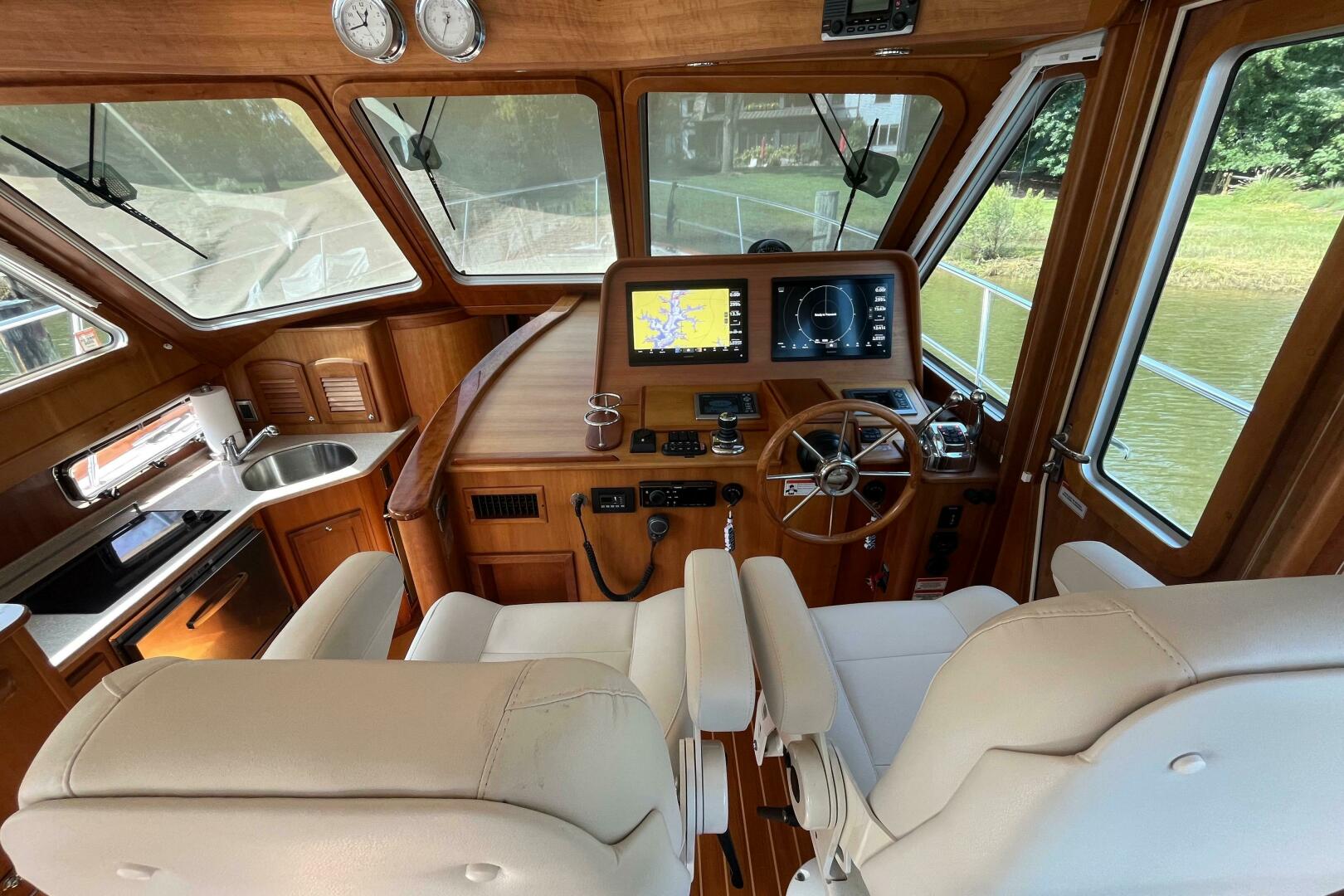

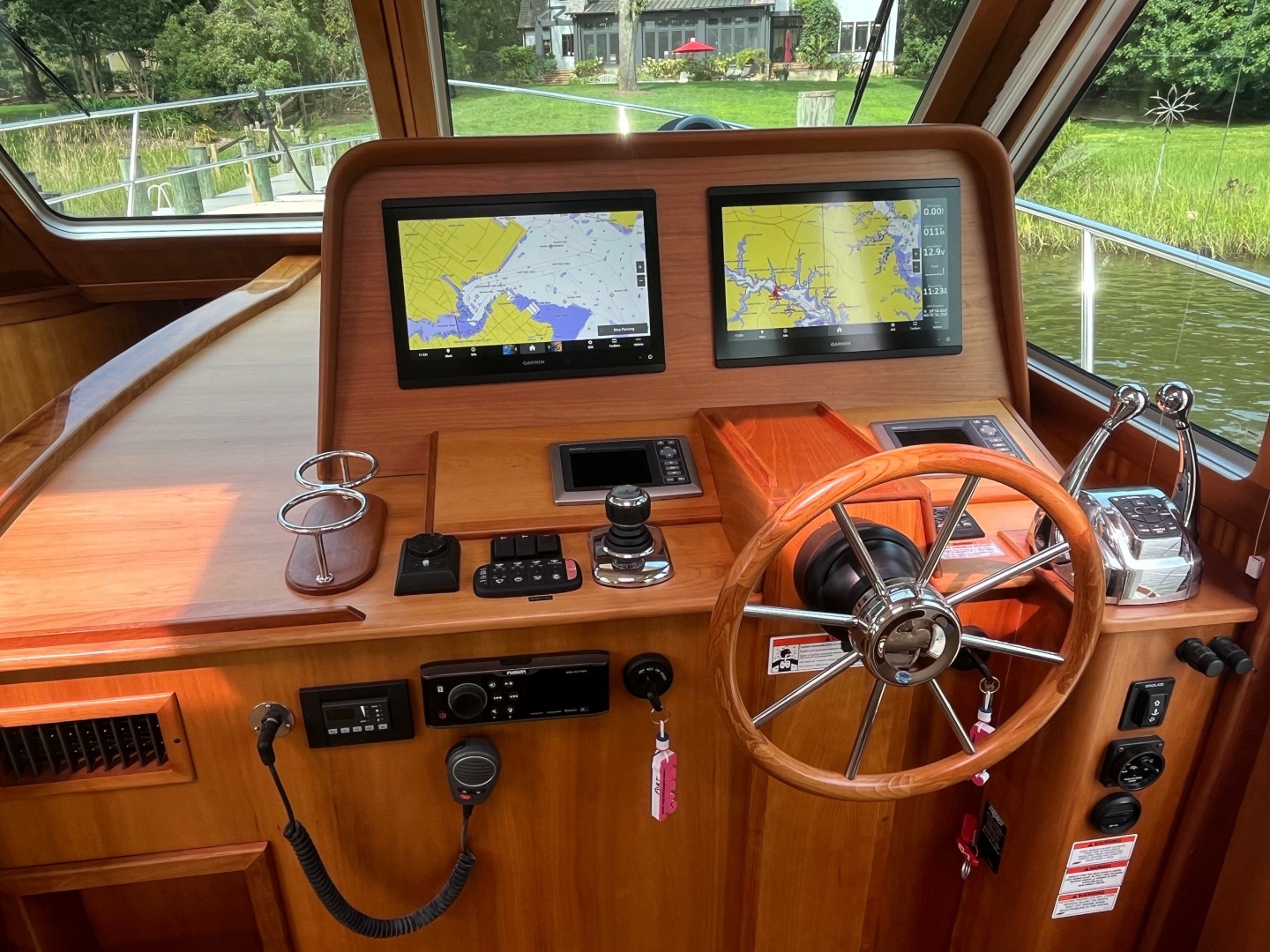

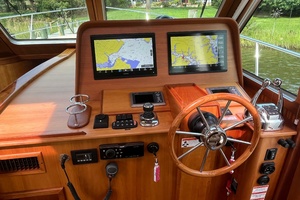

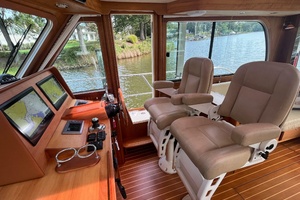

Helm

• Cummins DTS single lever electronic controls
• One Cummins Smart Craft display (engine data, tank levels,
• vessel data, alarms)
• Triple windshield wipers with washers
• Ritchie Compass
• Switch controls for horn, running lights, anchor light, engine

room blower and optional equipment

• Stazo 400mm custom teak steering wheel with tilt helm and
• Sabre logo
• (2) Stidd N-series single helm seats w/Ultraleather fabric

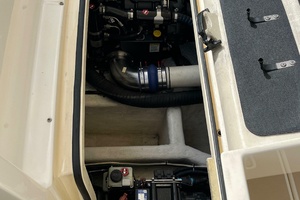

Mechanical

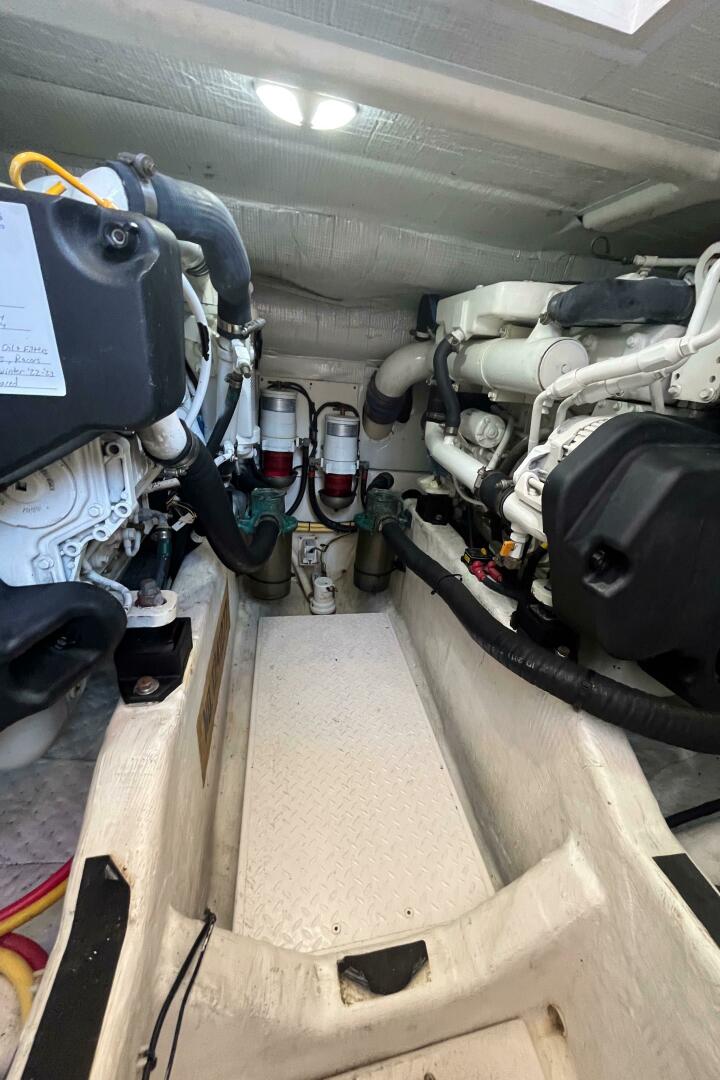

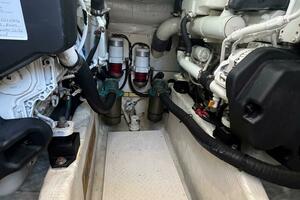

• Twin Cummins QSB 5.9l 380hp electronic, fresh water-cooled
• engines

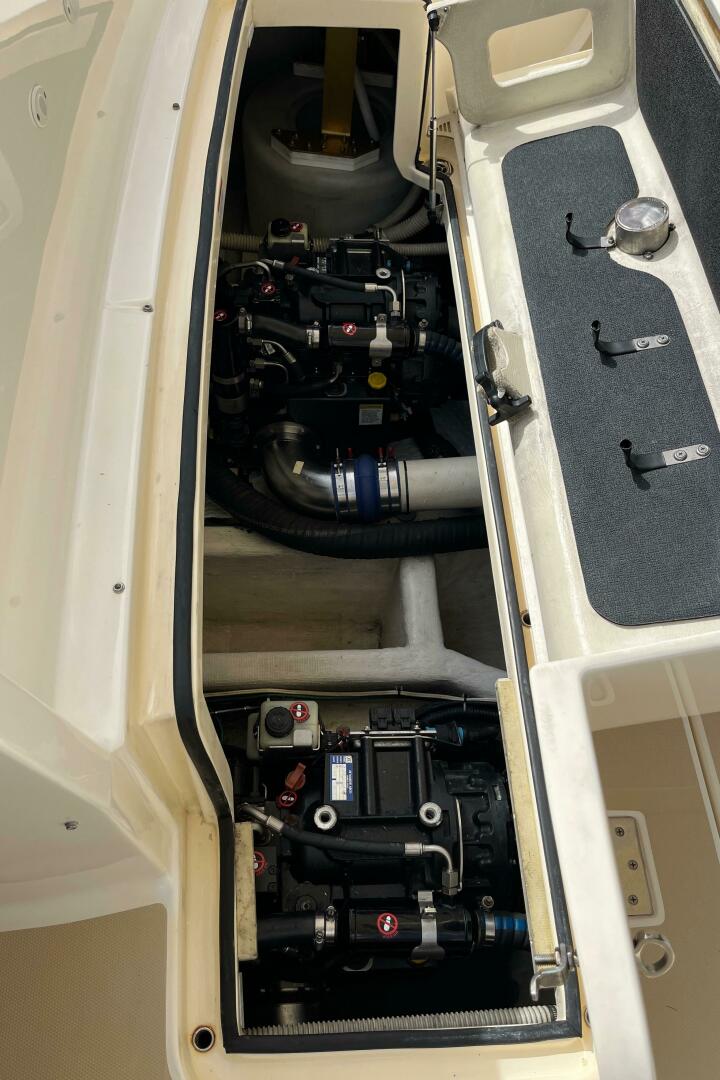

• Twin CMD Zeus 3500 pod drives, with integrated steering and
• trim tabs.
• 120A, 12V alternators each engine
• (2) Exhaust by-pass mufflers
• Engine room blower
• Engine room vent ducts
• Engine room floor with FRP antiskid
• White gelcoated engine room
• Mylar face foam noise barrier

Fuel

• (2) 190 gal diesel fuel tanks port and starboard
• Racor fuel filters with water in fuel probes
• (2) 2” “Diesel” deck fill plates

Steering and Trim System

• CMD helm, with joystick
• Trim tabs integrated in CMD Zeus pod drives
• Autopilot integrated in CMD Zeus system
• GPS receiver included
• “Skyhook” GPS position hold system

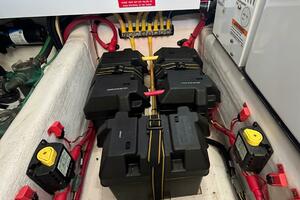

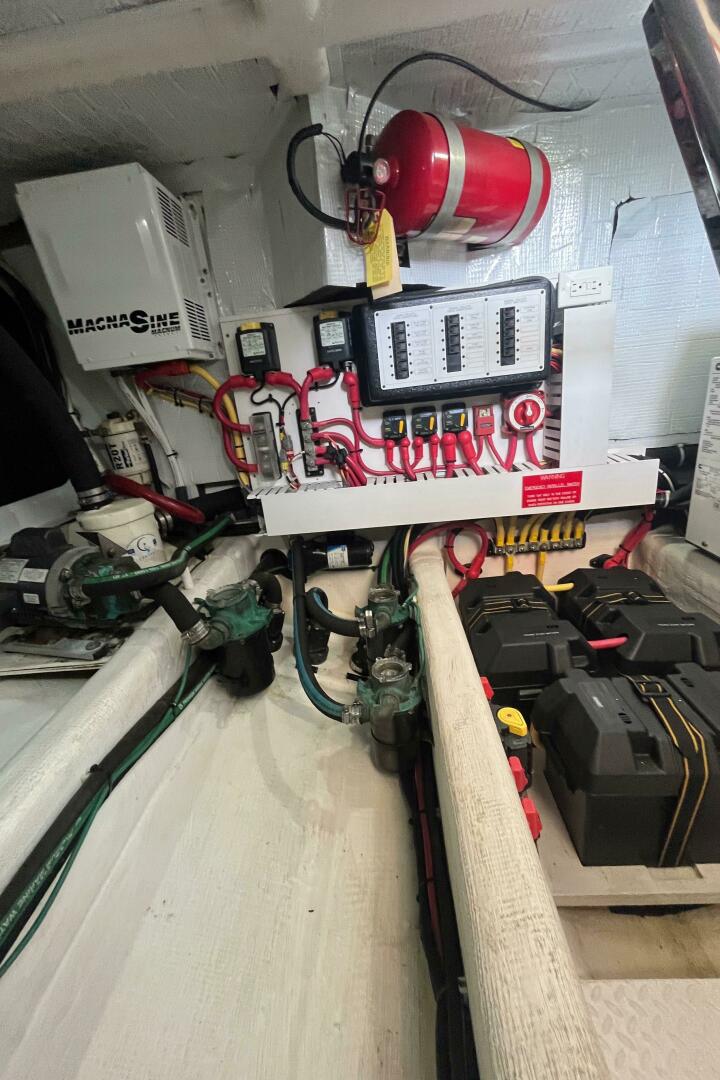

• 12VDC System

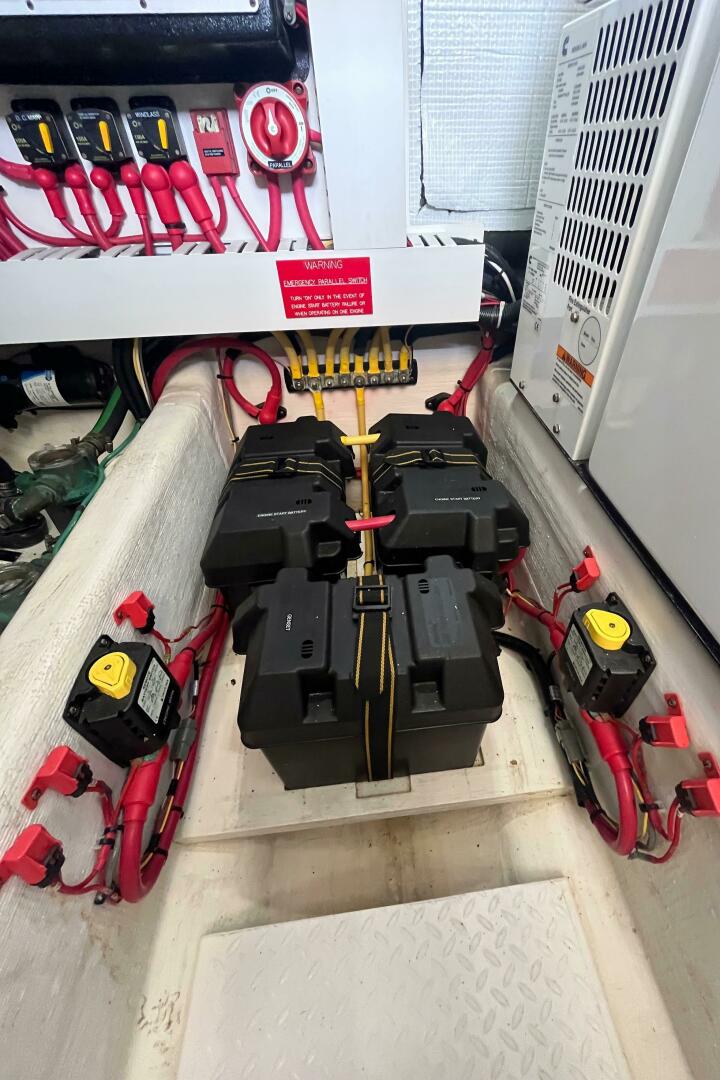

• Two AGM Group 31 dedicated engine start batteries
• Two AGM 4D deep cycle ship's service batteries
• One AGM Group 24 generator start battery
• Remote control battery switches with controls at helm
• Manual emergency battery crossover switch

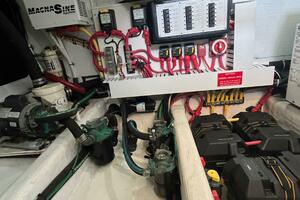

• Illuminated main circuit breaker distribution on bulkhead

opposite galley

• Digital battery monitor
• Lighting:
• Danish cabin reading lights
• High output LED lights in the overhead
• Halogen bar lighting in appropriate locations
• Fluorescent engine room lighting
• Cockpit courtesy lights
• Marine-grade, tinned wire throughout

12VAC System

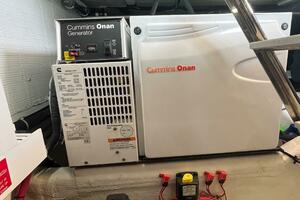

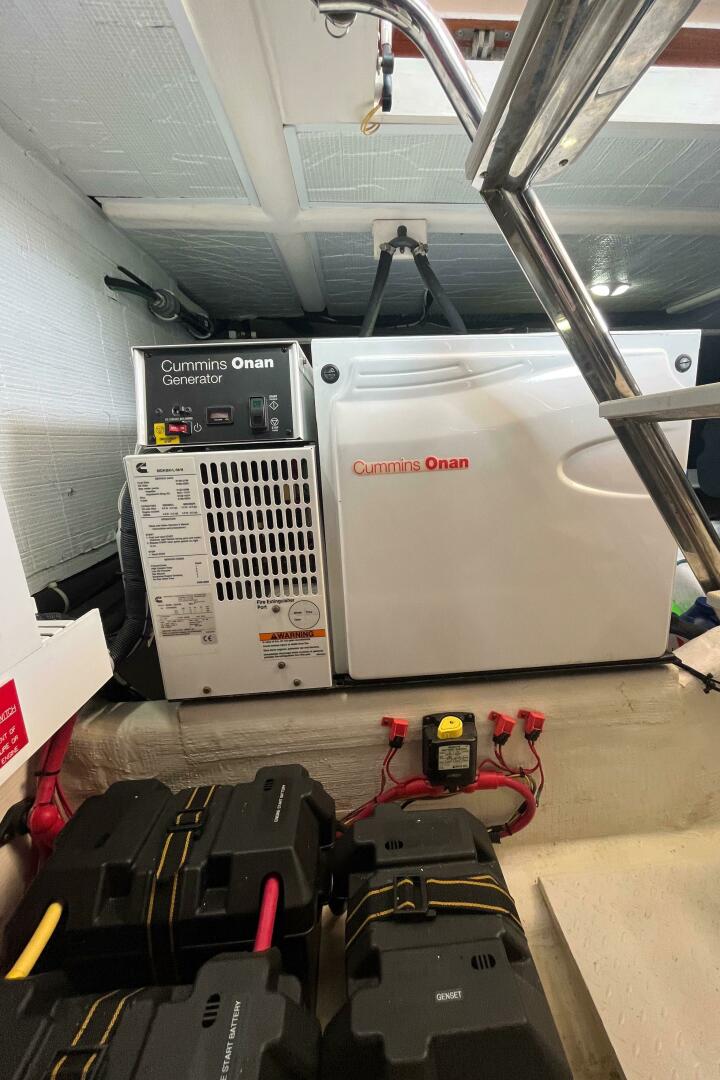

• Onan 9.0 kw generator including:
• Interface to Cummins Vessel View display
• Dedicated start battery.
• Water lift muffler
• Cooling water intake strainer
• Sound shield.
• Transfer switch.
• (2) 30A AC shore power inlets and (2) 50 ft. cords
• Fail safe galvanic isolator

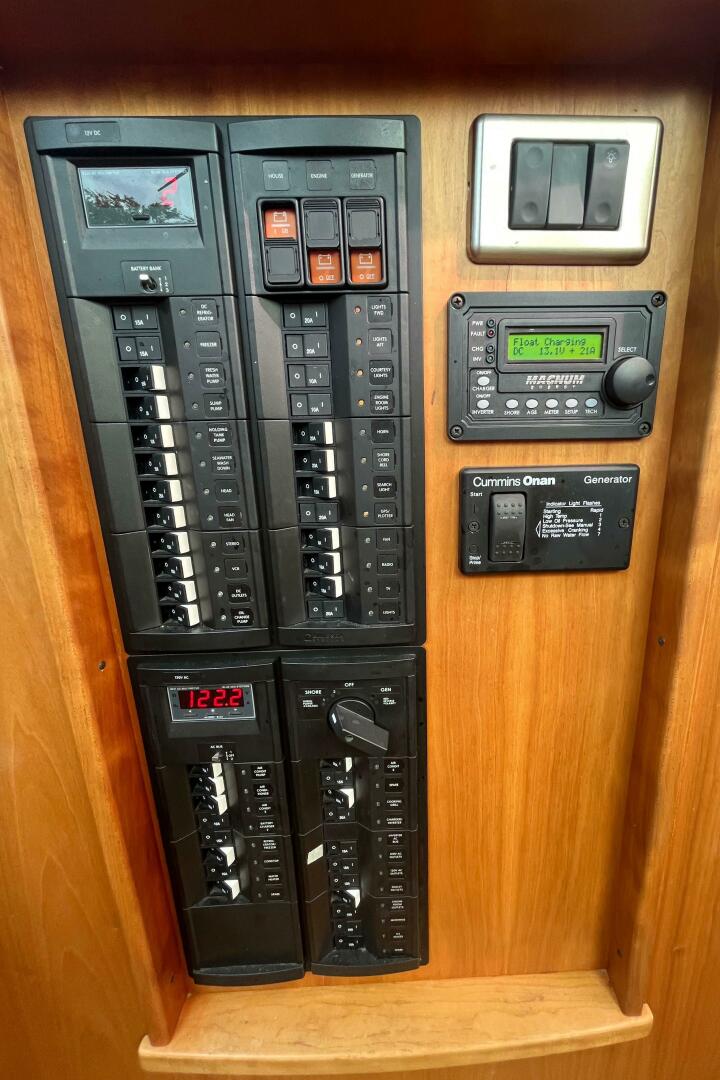

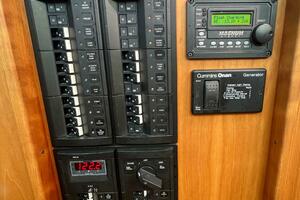

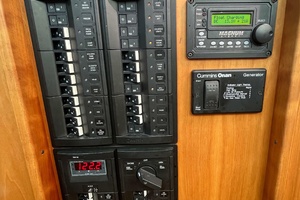

• Illuminated main circuit breaker distribution panel
• Digital AC system monitor
• (1) 120V outlet in each cabin and (1) in engine room
• All galley and head receptacles are GFI protected
• Additional outlets positioned in locations appropriate for

entertainment systems in main and forward cabin

• 50amp, 3-bank battery charger
• Reverse cycle heat/ air conditioning in (3) zones.

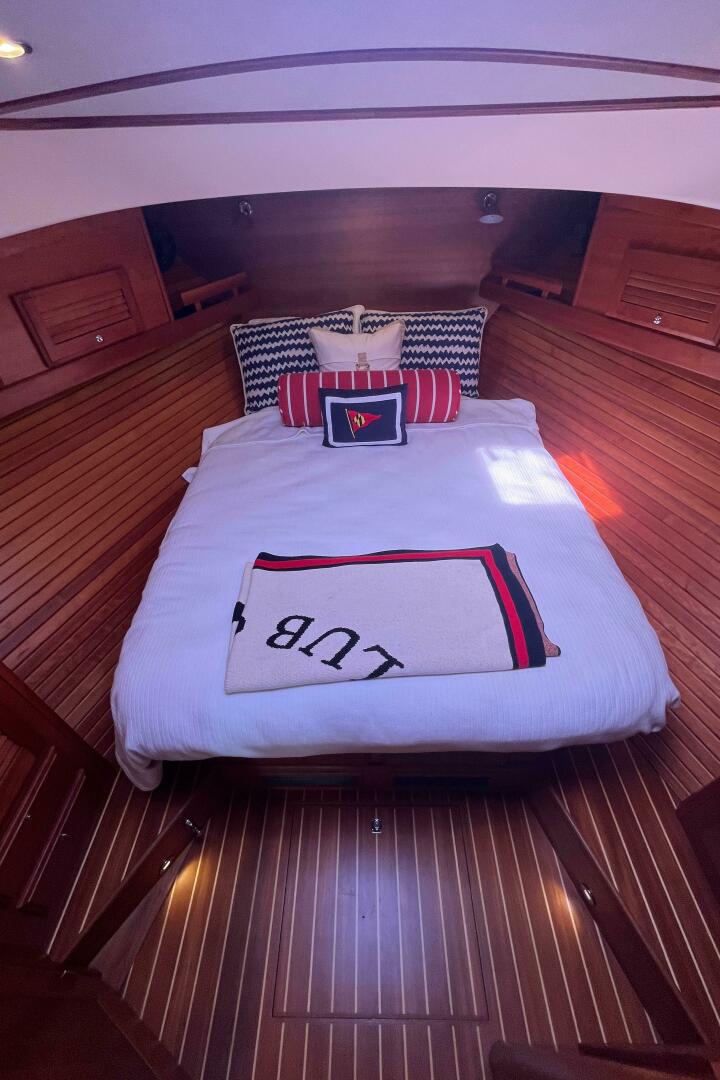

Owner's Stateroom

• Spacious Island Berth layout with 5" cushion. ¾” laminated trim.
• Cherry hull ceilings.
• (2) Drawers under berth. A/C return grills under drawers.
• (2) drawers in bureau w/locker w/shelf above and single louvered

door

• Upper enclosed shelves with storage behind. Locker face to have
• (2) louvered doors.
• Recessed shelf with fiddle on starboard main bulkhead with 19”

flat screen TV and DVD player.

• Large cedar lined hanging locker to port, with louvered door,

shelf and hangar pole.

• Open shelf above port hanging locker
• Teak and holly sole
• Sound deadening soft headliner panels
• Pocket door to forward

stateroom

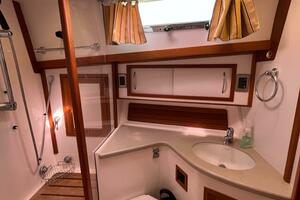

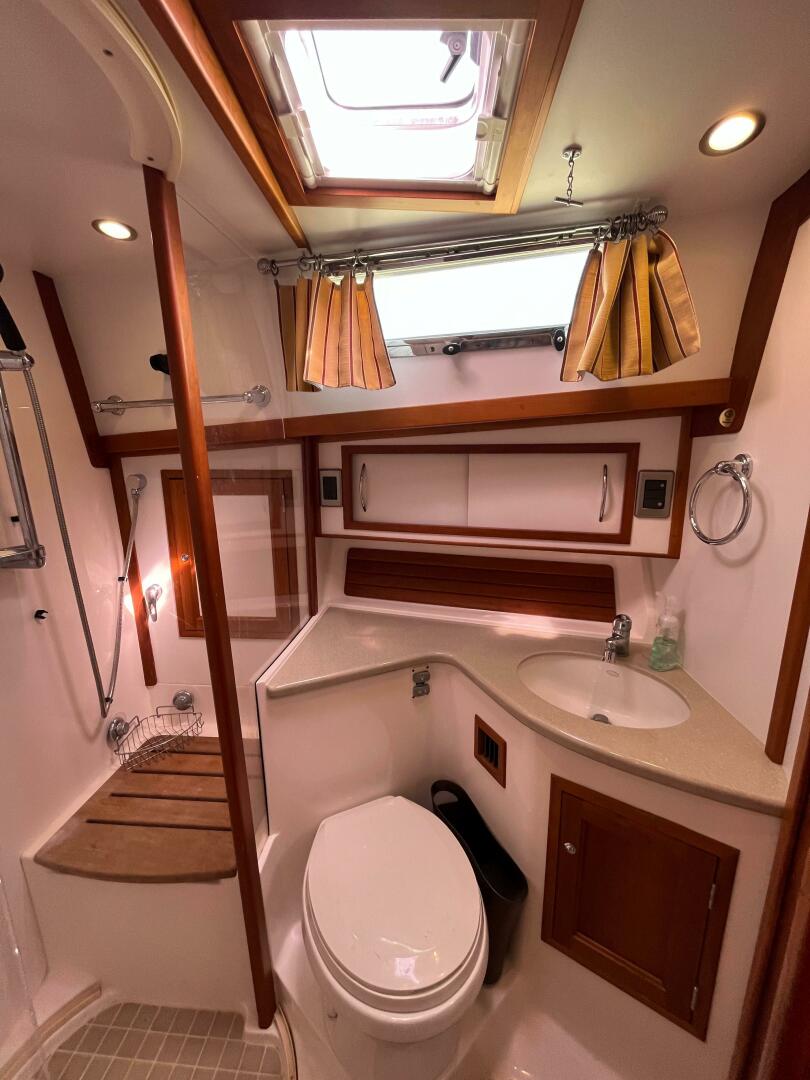

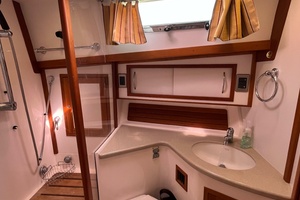

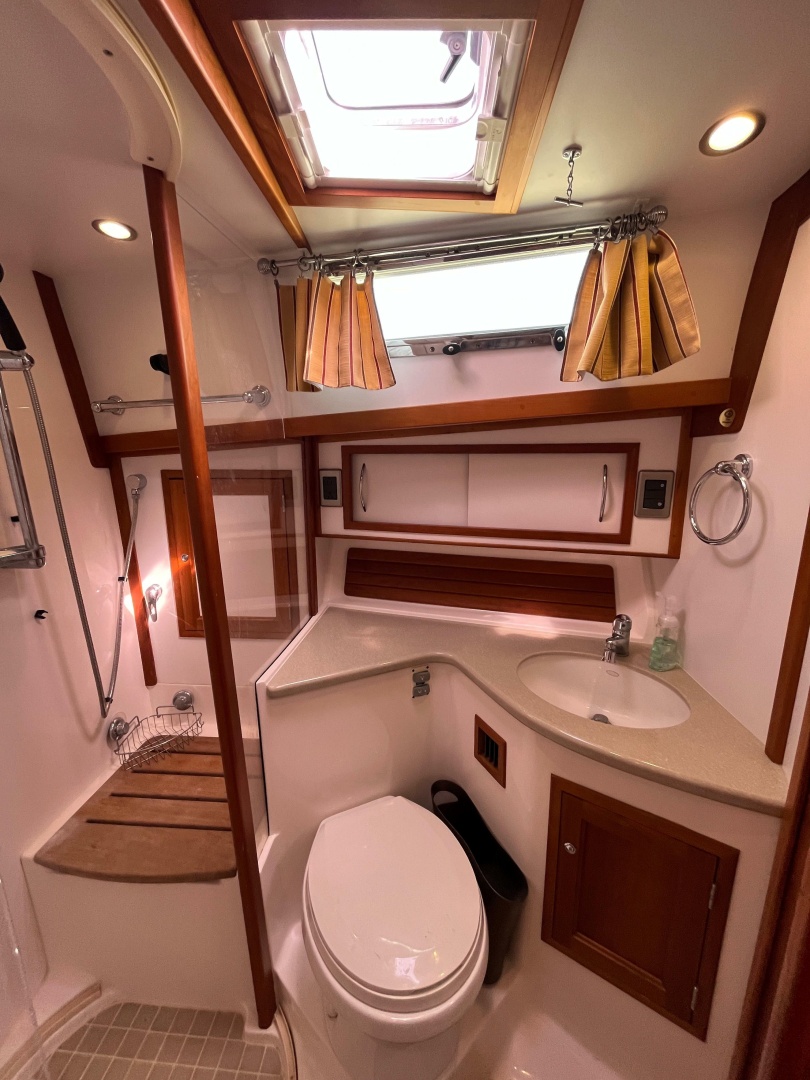

Head

• Stainless steel under mount oval sink.
• Circular shower stall with seat and locker outboard.
• Hot and cold pressure water
• Electric shower sump pump.
• Storage lockers.
• Solid surface vanity top with bull nose.
• Towel bar.
• Wood trimmed mirror over sink.
• Ventilation blower.

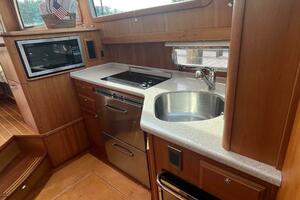

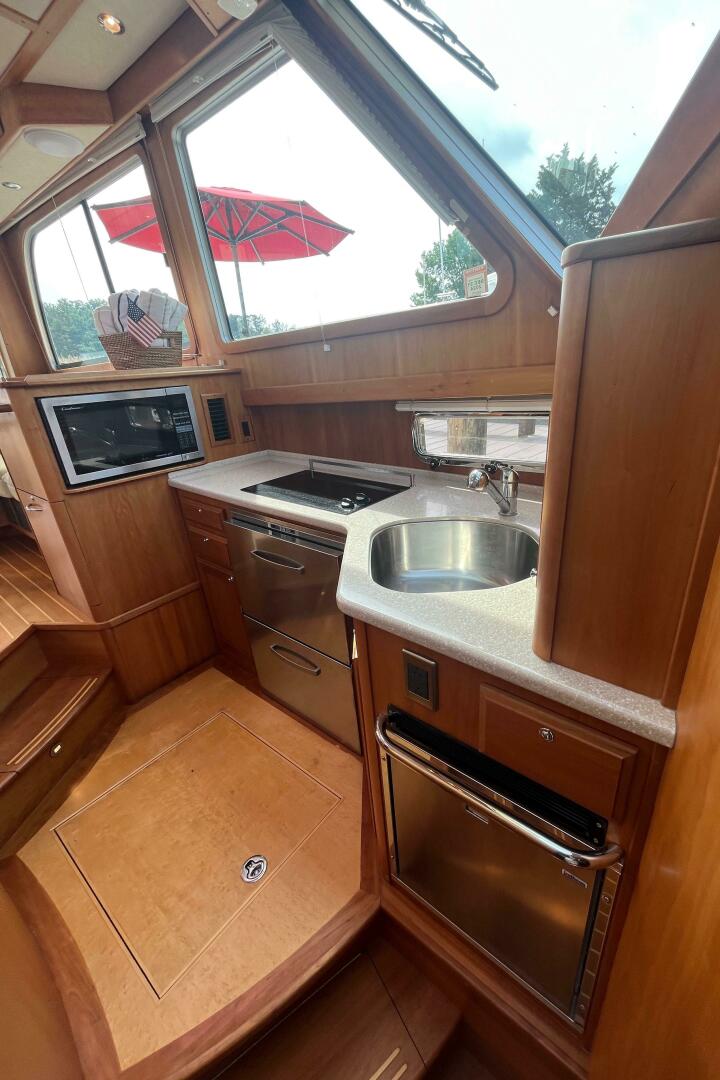

Galley

• Mid level galley.
• Solid surface galley counter top.
• Stainless steel under mount sink with Scandvik faucet
• Vitrifrigo 2-drawer Refrigeration with stainless steel doors
• Isotherm 1-drawer Freezer with stainless steel door
• Two burner touch control electric cook top.
• Convection microwave with stainless steel door above aft

counter.

• Cabinet with two louvered doors on forward bulkhead.
• Drawers and storage lockers below counter.
• Built-in waste basket.
• Large drawer under microwave opens athwartships

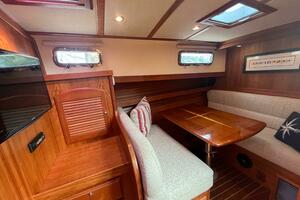

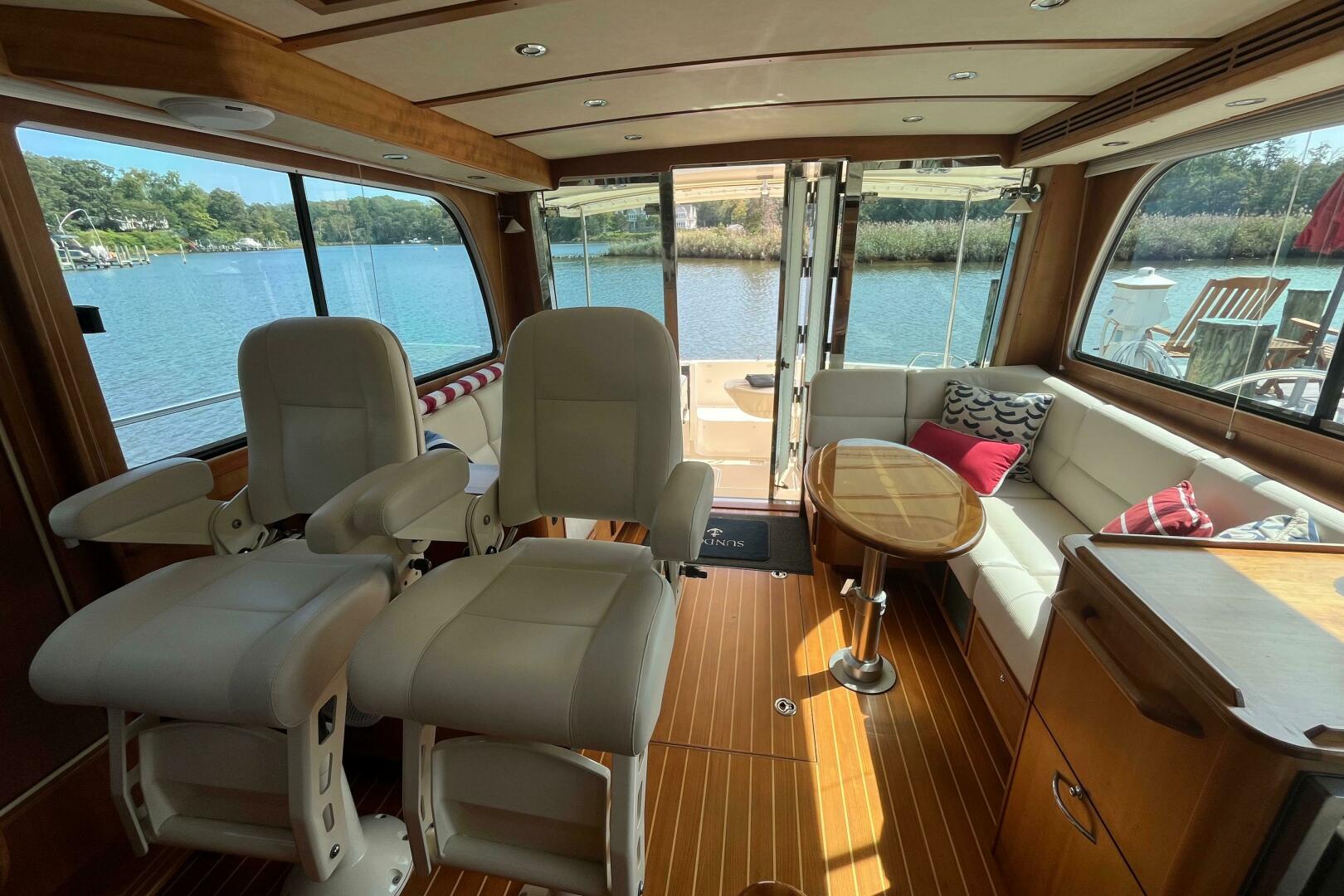

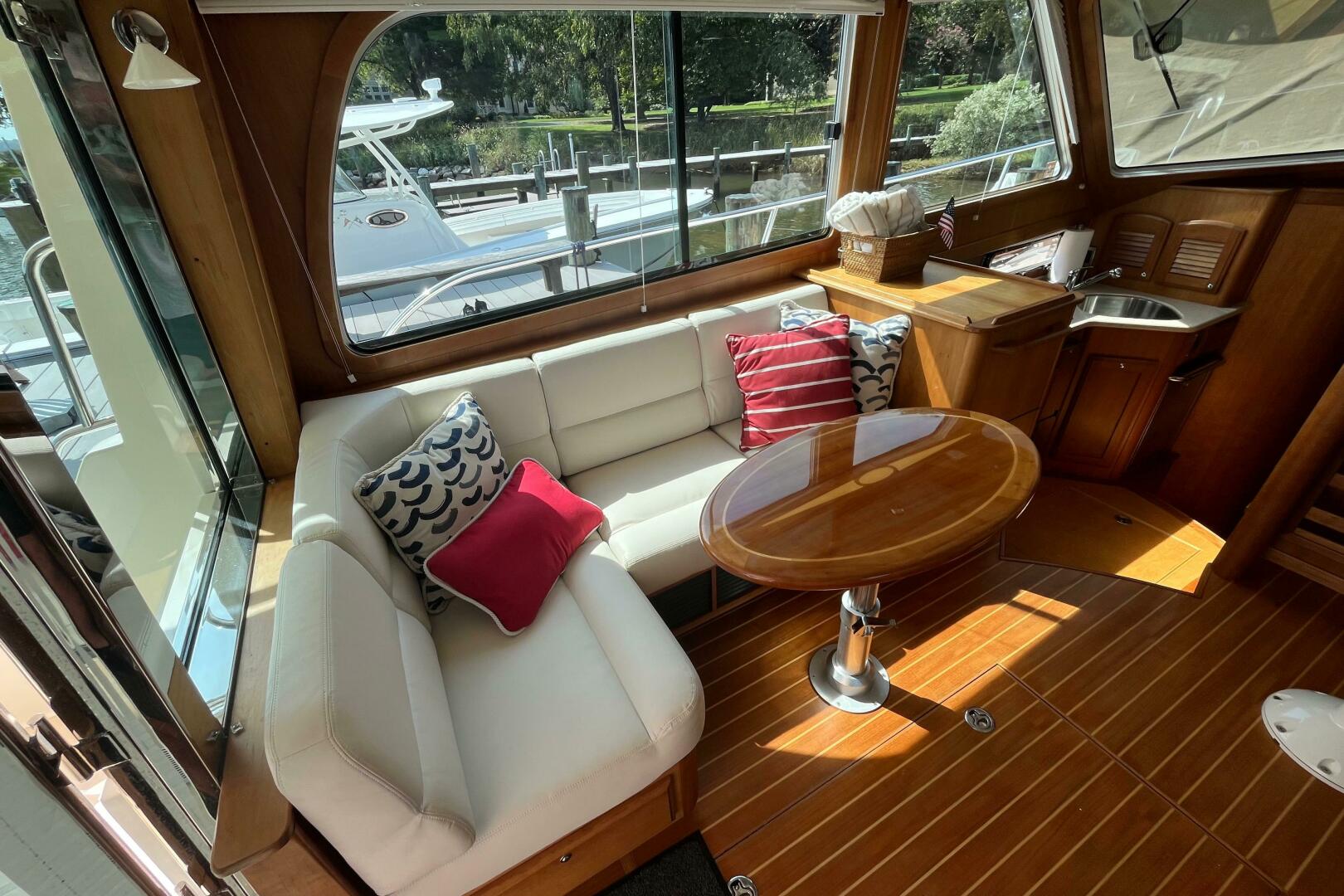

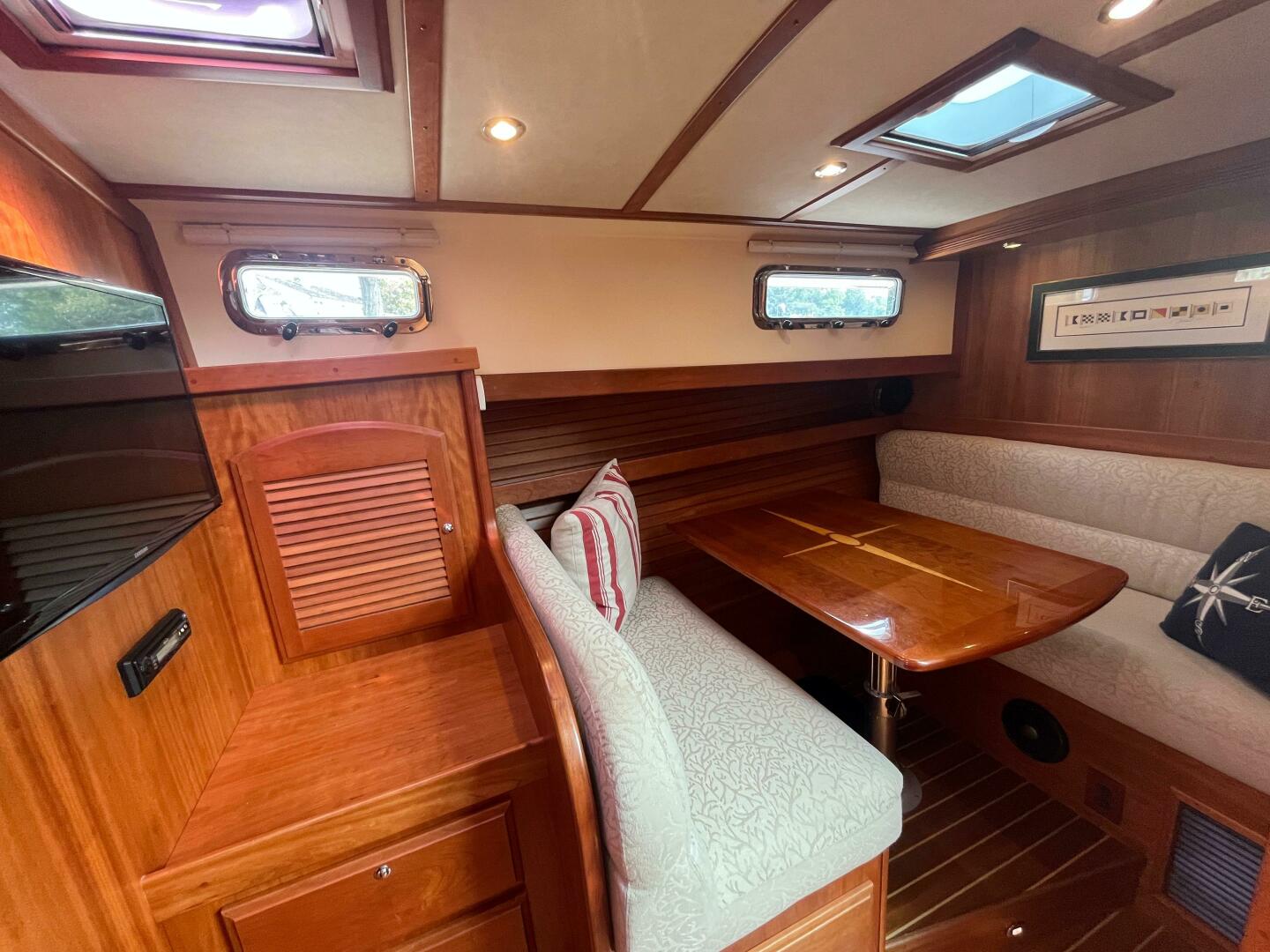

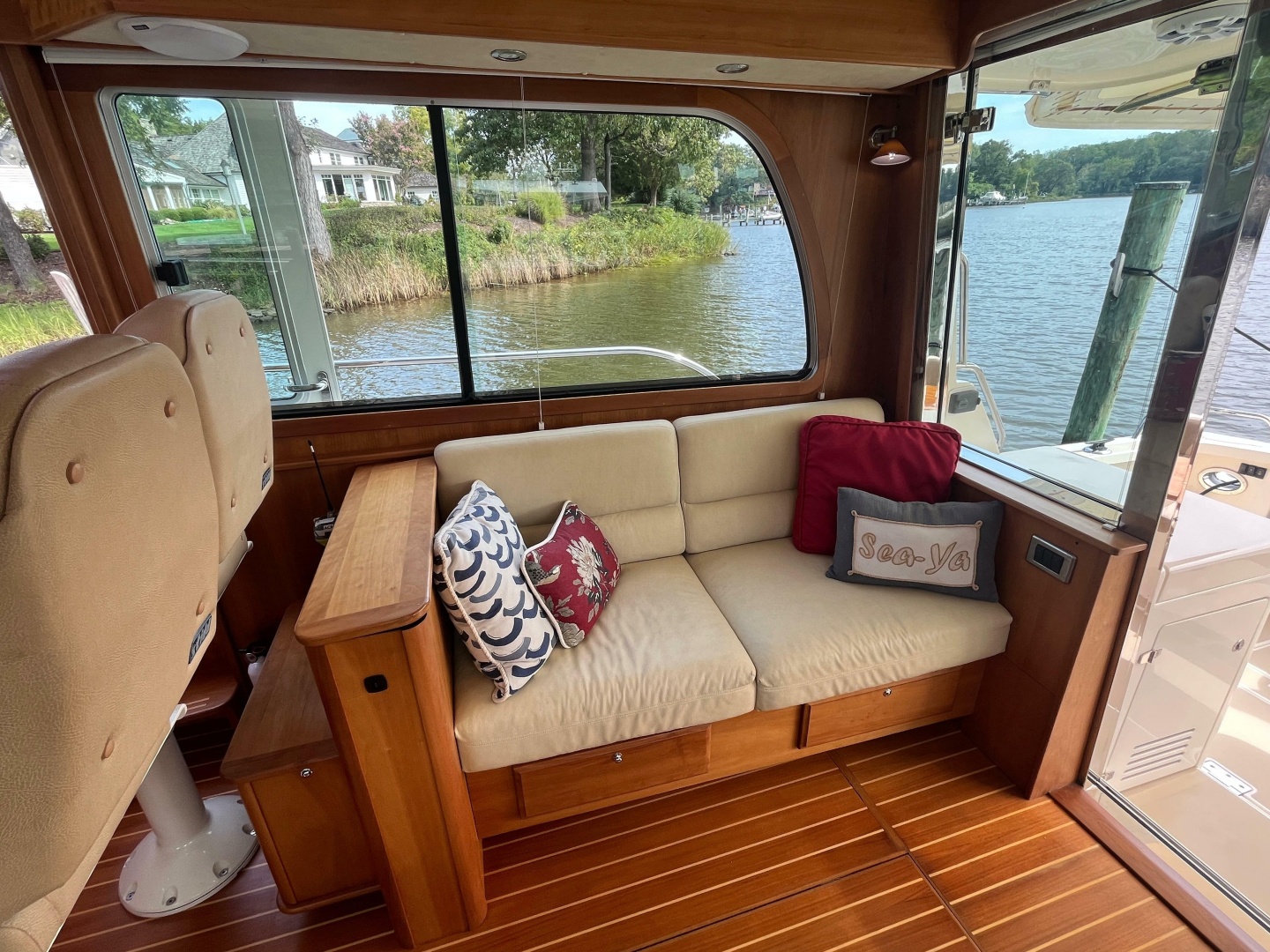

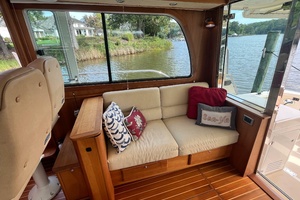

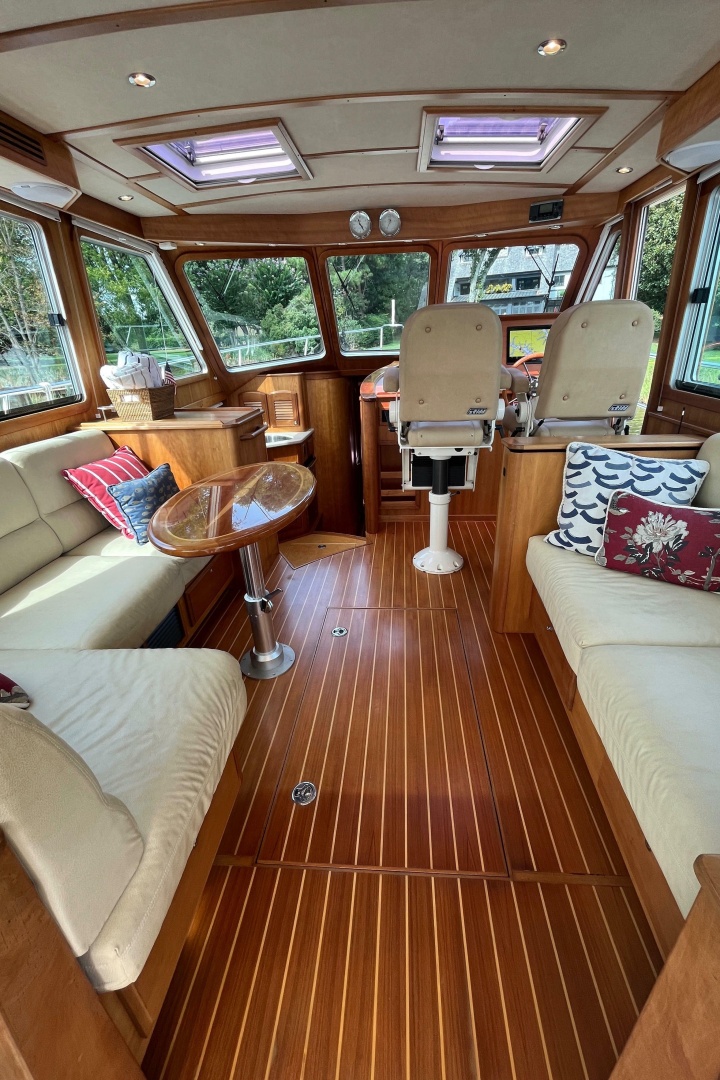

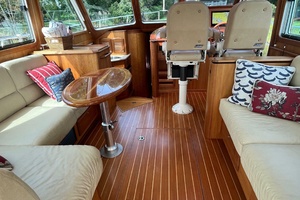

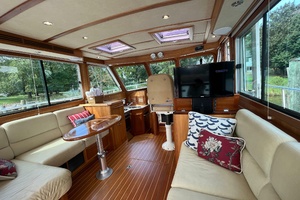

Salon

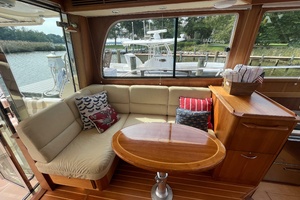

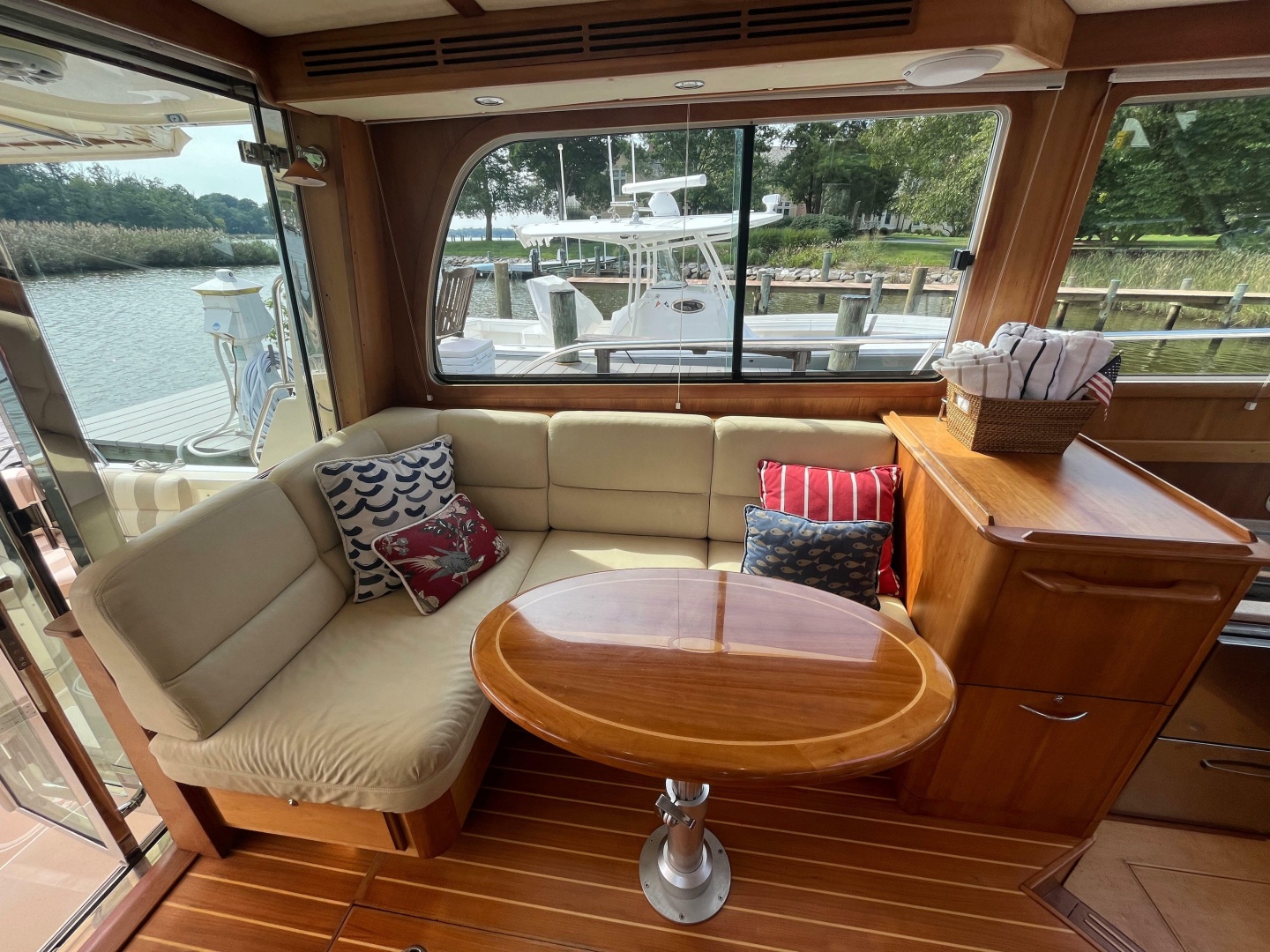

• “L” settee to port, 5” foam cushions, with storage and Sabre
• tool drawer under. Sunbrella fabric seat coverings
• High Gloss finished folding table with hi-low pedestal, lowers

to coffee table height

• End table to starboard with 24” flat screen LED TV on lift with
• DVD player (installed at dash)
• Bottle storage locker below helm seats
• Sound deadening, soft headliner panels

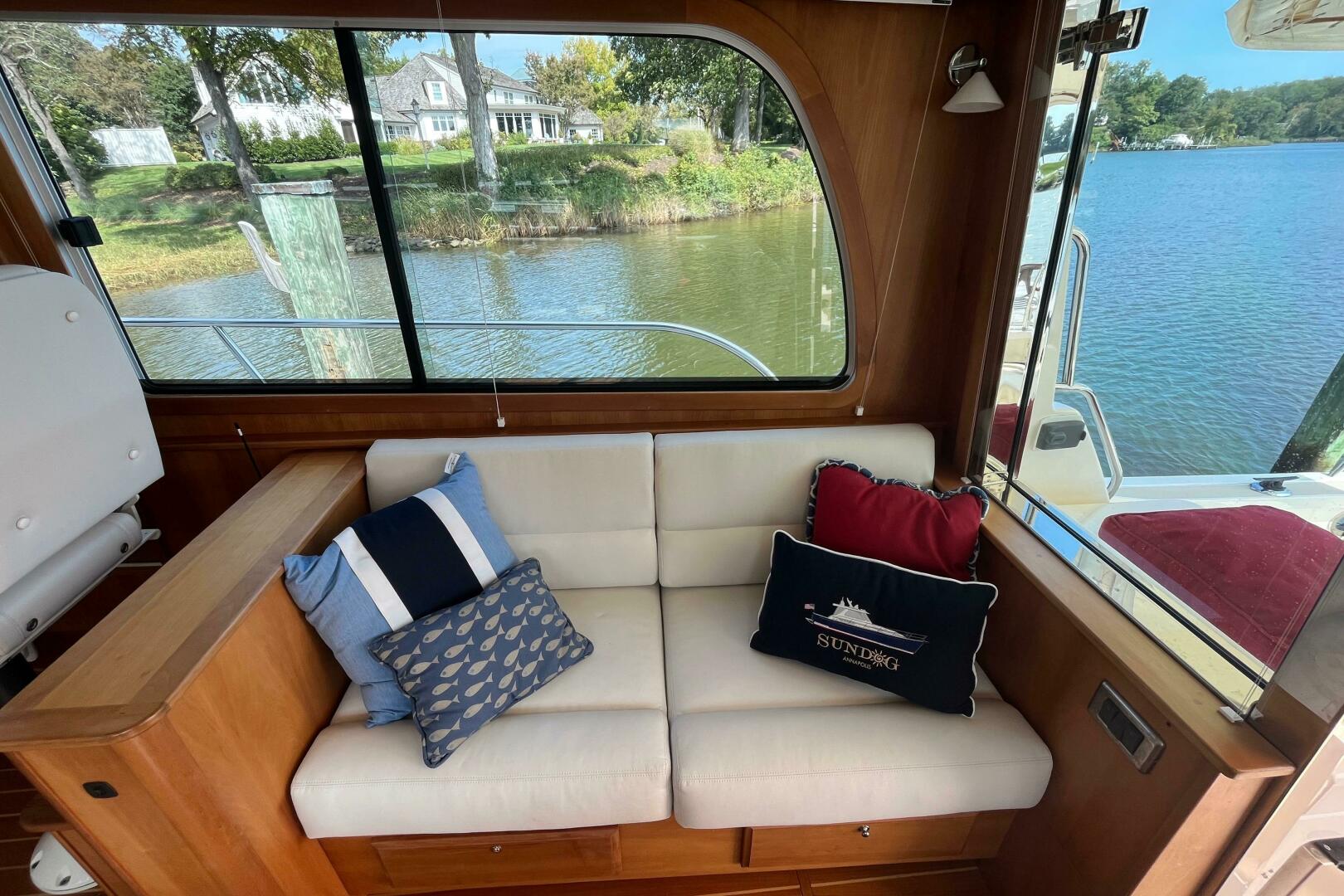

• Settee to starboard with drop down storage under

Decor

• Varnished cherry interior finish
• - Screens on all opening ports
• Ocean Air screen/blinds on deck hatches
• Ocean Air blinds on side windows and side door (not windshield)
• Optional fabric and drapery selections
• Dovetailed maple drawer boxes

Fresh water system

• Water capacity 140 gals
• Stainless steel, 11 gal. hot water heater, operates on 110-VAC or

engine heat

• Temperature control valve on hot water supply
• Hot and cold water pressure system 12V
• Fresh water spigot in engine room
• Optional Cockpit shower, hot and cold
• Optional Fresh water wash down in anchor locker

Waste and Safety

• WASTE
• Polyethylene holding tank with 60 gallon capacity
• Jabsco Quiet Flush fresh water MSD
• Diaphragm waste pump on holding tank
• SAFETY
• Fire extinguishers, (4) at 2 1/2 lbs
• Marelon sea valves on all thru-hull fittings below waterline
• Bonding system to safeguard against galvanic corrosion
• Automatic fire extinguishing discharge system in engine space
• with override
• (3) Automatic 12V electric bilge pumps
• (3) high water switches and alarm

Factory Options

• Electric sunroof with sunscreen in lieu of standard 2 hatches
• FRP molded mast with separate platform for radar pedestal
• Upgrade mast to accommodate
• Additional 12V DC outlet in forward cabin
• Additional dimmer switch in galley, forward cabin and dinette
• Dark Hull Color-Flag Blue
• Anti-skid color-Beige
• Dinette in second cabin converts to double berth
• Accord shades on opening ports
• Ultraleather upholstery in main salon
• Reverso oil change system
• Kahlenberg dual chrome horns
• Searchlight mounted on hard top mast (dual beam)
• Hot and cold transom shower
• Single Seagull water purifier on galley cold water
• Single Seagull water purifier on ice maker
• Shore water inlet

Custom options

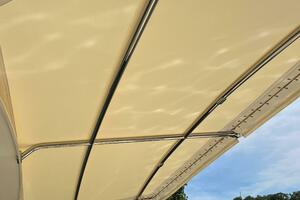

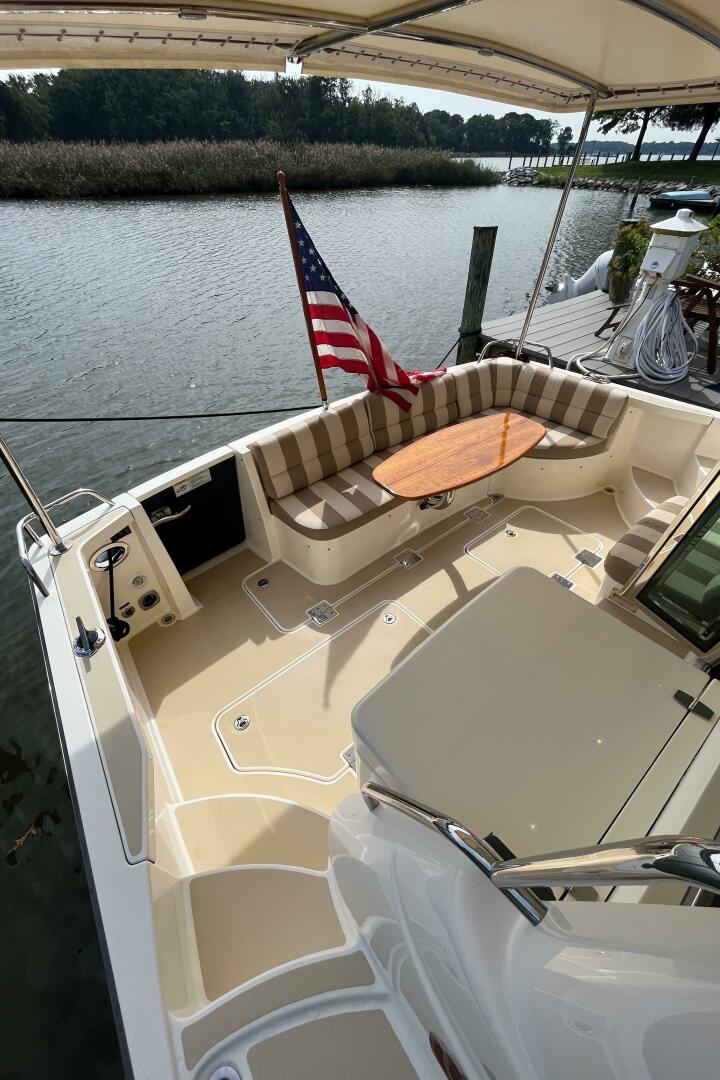

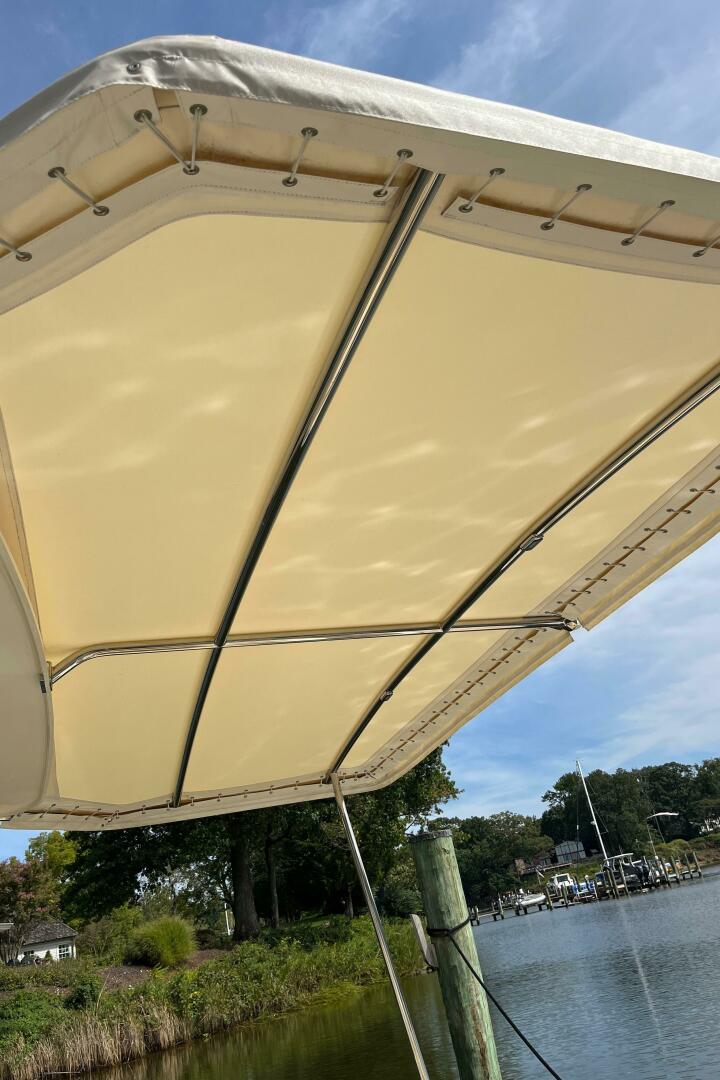

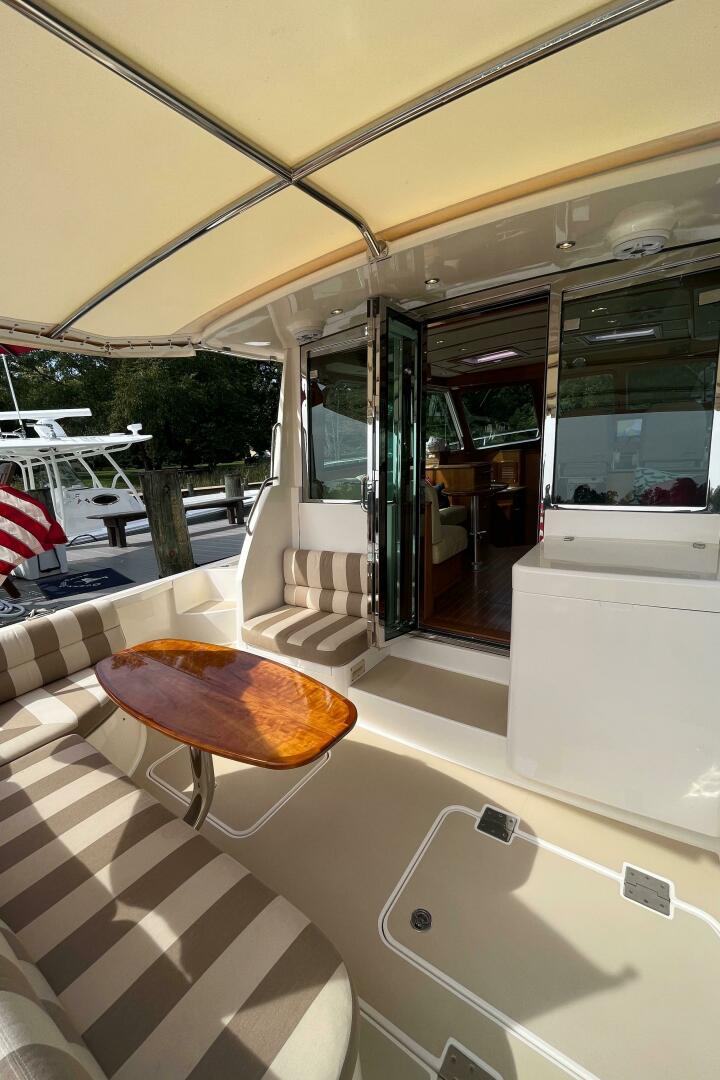

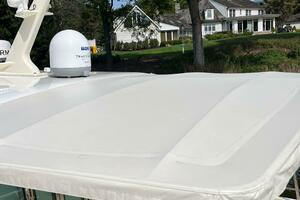

• Custom Fixed Canvas Cockpit Shade System
• Custom bar in dinette area: Icemaker installed in lieu of drawer in forward cabinet with glass and liquor storage in locker and Corian Witch Hazel countertop
• Bulkhead cut back to open up dinette to galley with Sailcloth S/B curtain
• Mirror size increased in head above sink
• Mirror on upper and lower panel of door between head and forward cabin
• Cherry towel bars on head door to companionway, upper and lower
• Cherry tambour cabinets in lieu of standard white
• Pre-wire for washer/dryer in engine room and add platform
• Ocean Air Skysol group 2 shades in main salon in lieu of standard
• Custom Corian choices
• Upgrade main salon TV to the 26" with built in DVD player
• 2 Burnewiin rod holders
• Cockpit seat covers port and starboard aft facing and forward facing L shape seat
• Custom mattress

Electronics

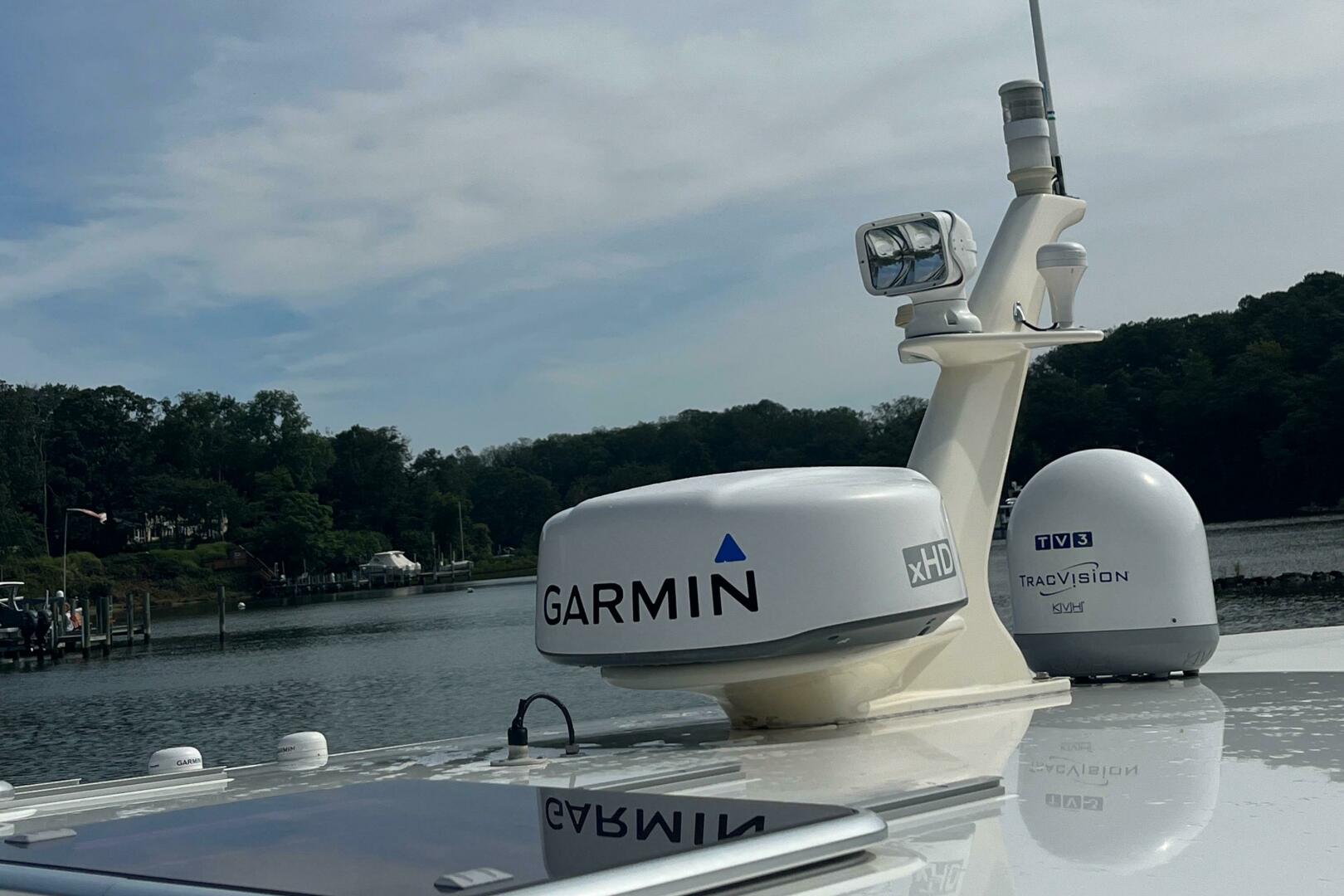

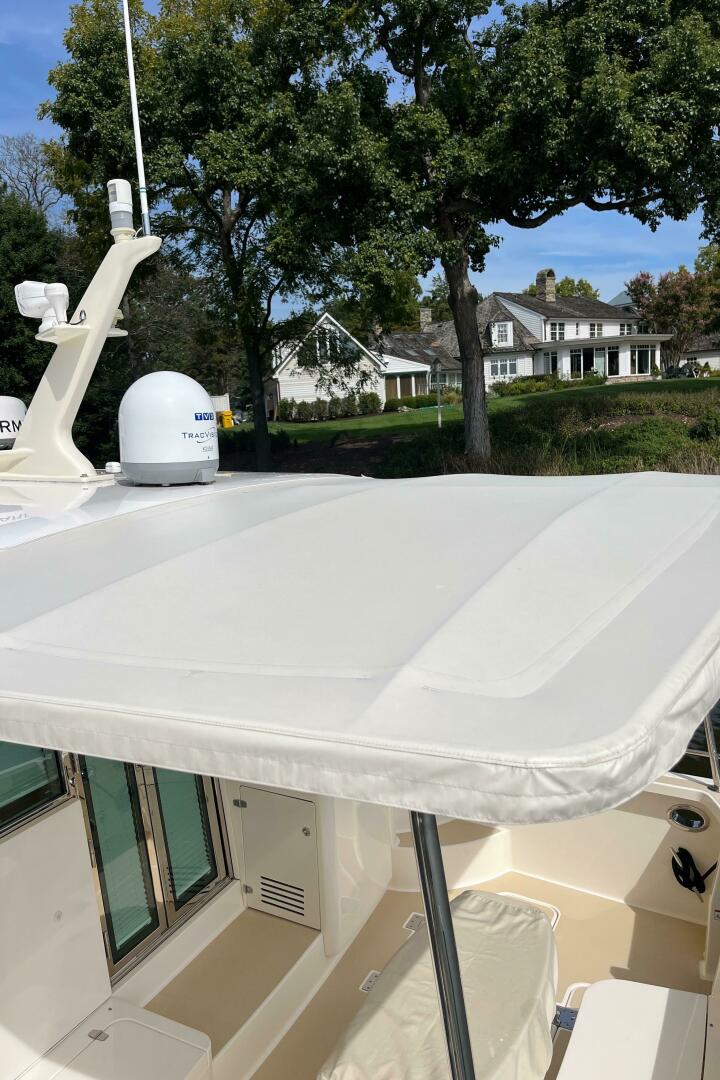

• (2) New 15" Garmin multifunction electronics displays with 4 Kw open array, GPS, Black Box for depth/sounder and radio. KVH M1 Sat Dome with 2 receivers and dummy dome, New Fusion stereo with separate zone control
