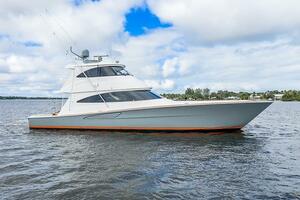

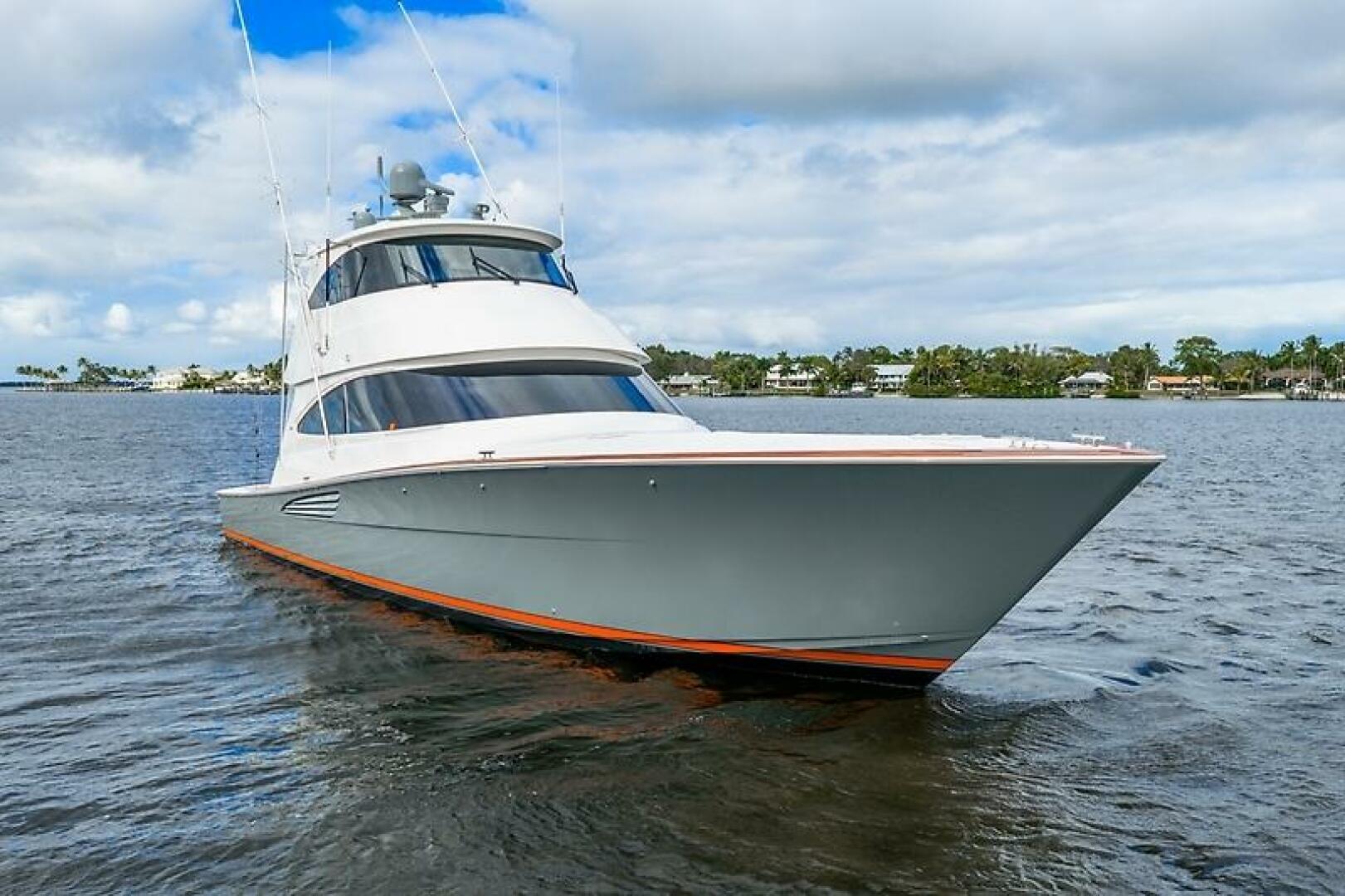

UNBRIDLED
Yacht for Sale

• Refit in 2015
• Detailed refurbishment in 2018

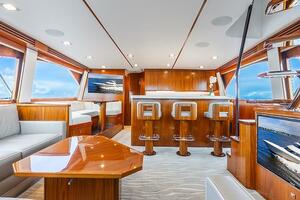

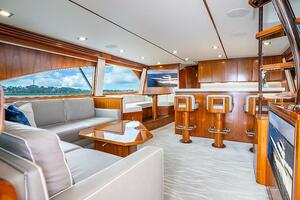

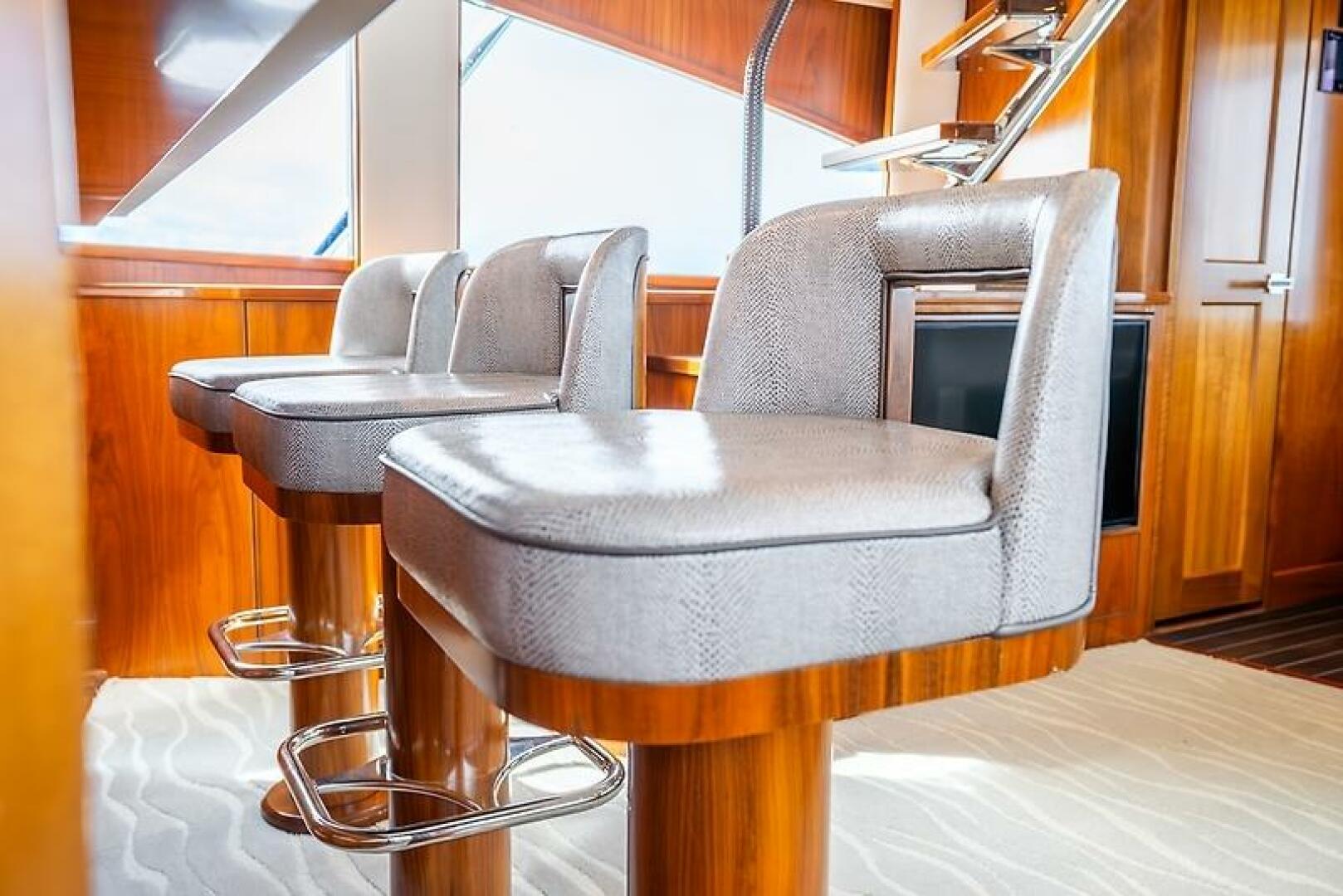

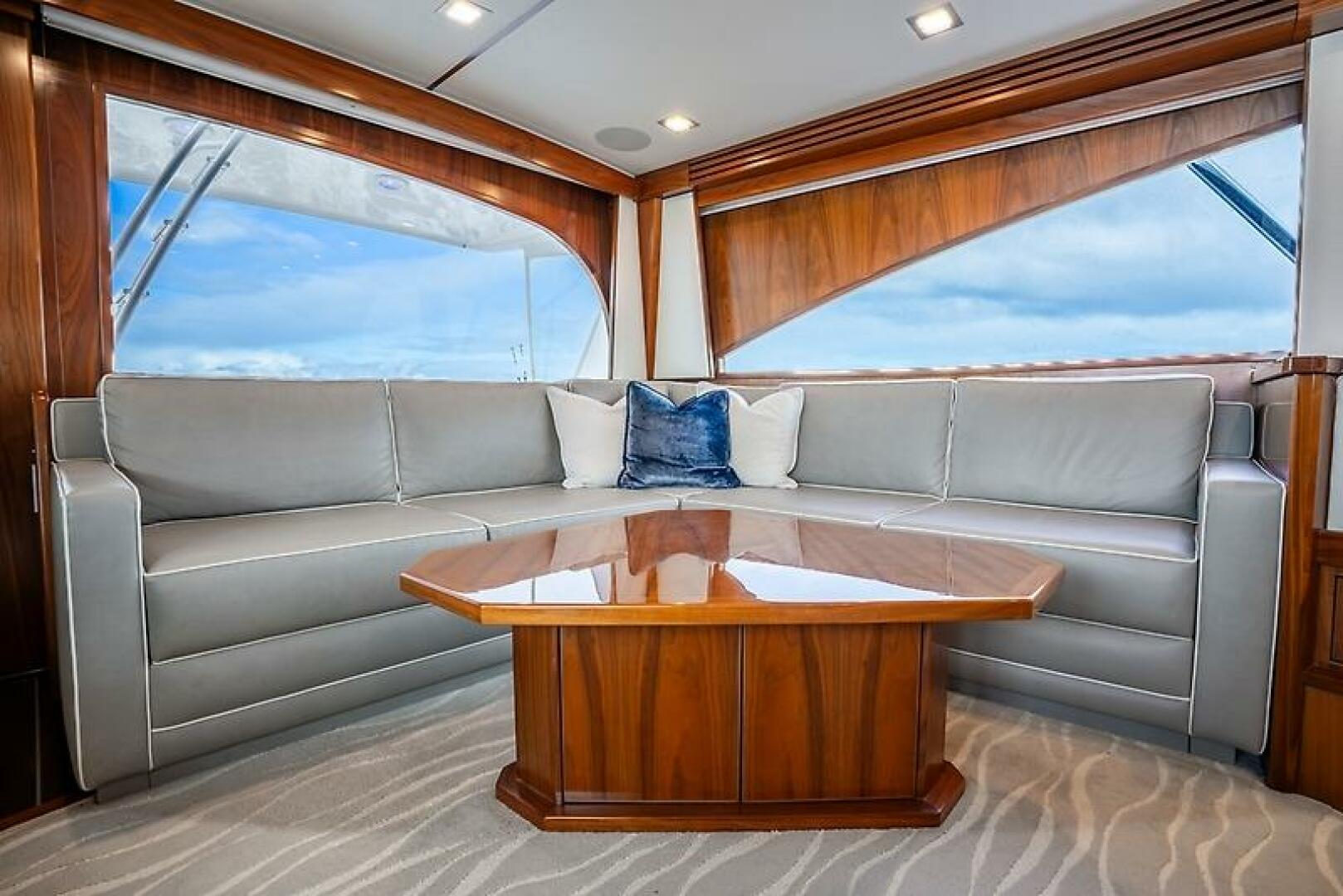

The stylish salon area opens to a theater with surround sound, a large u-shaped couch, and a bar area with further seating.

• Elite 60’ TV

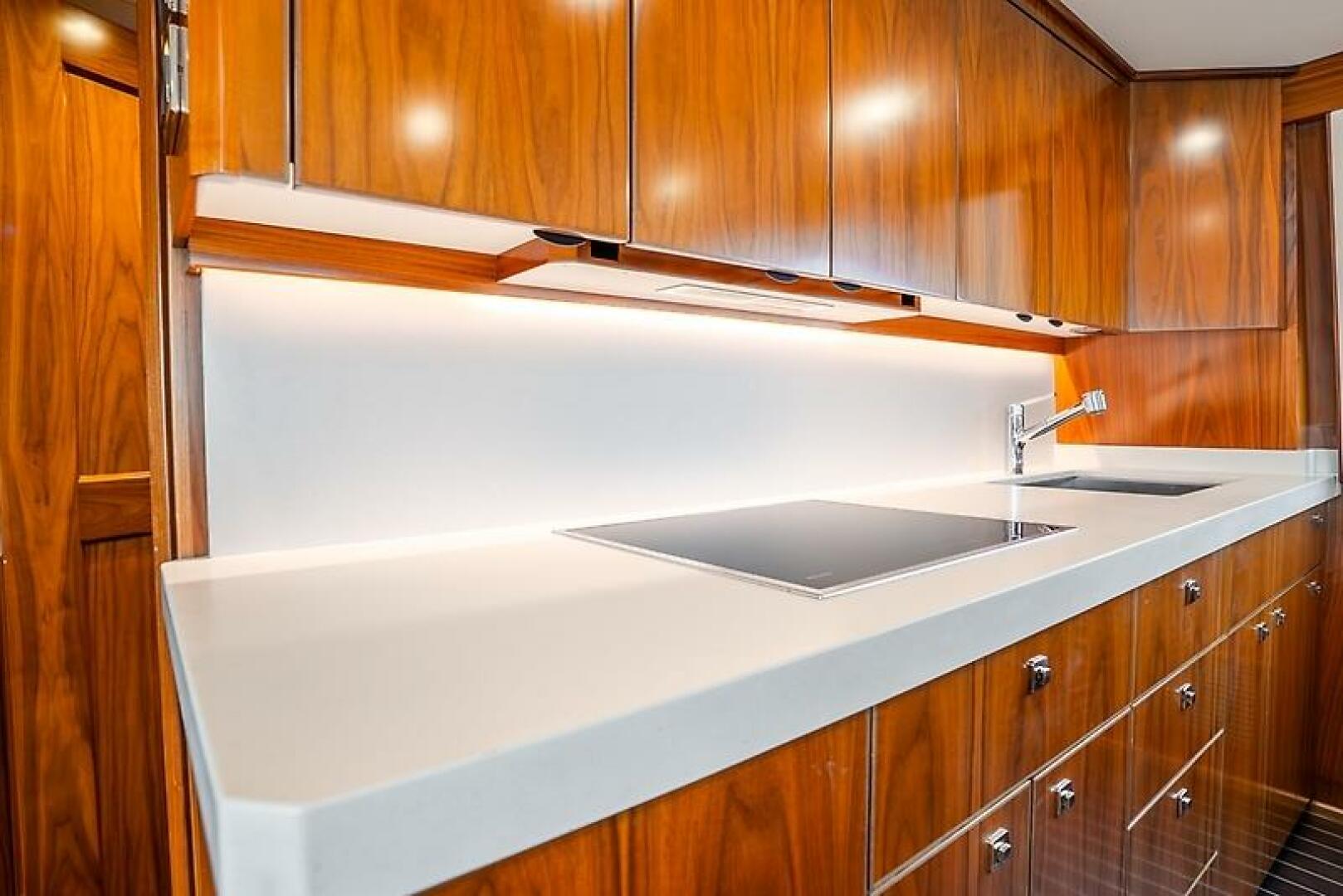

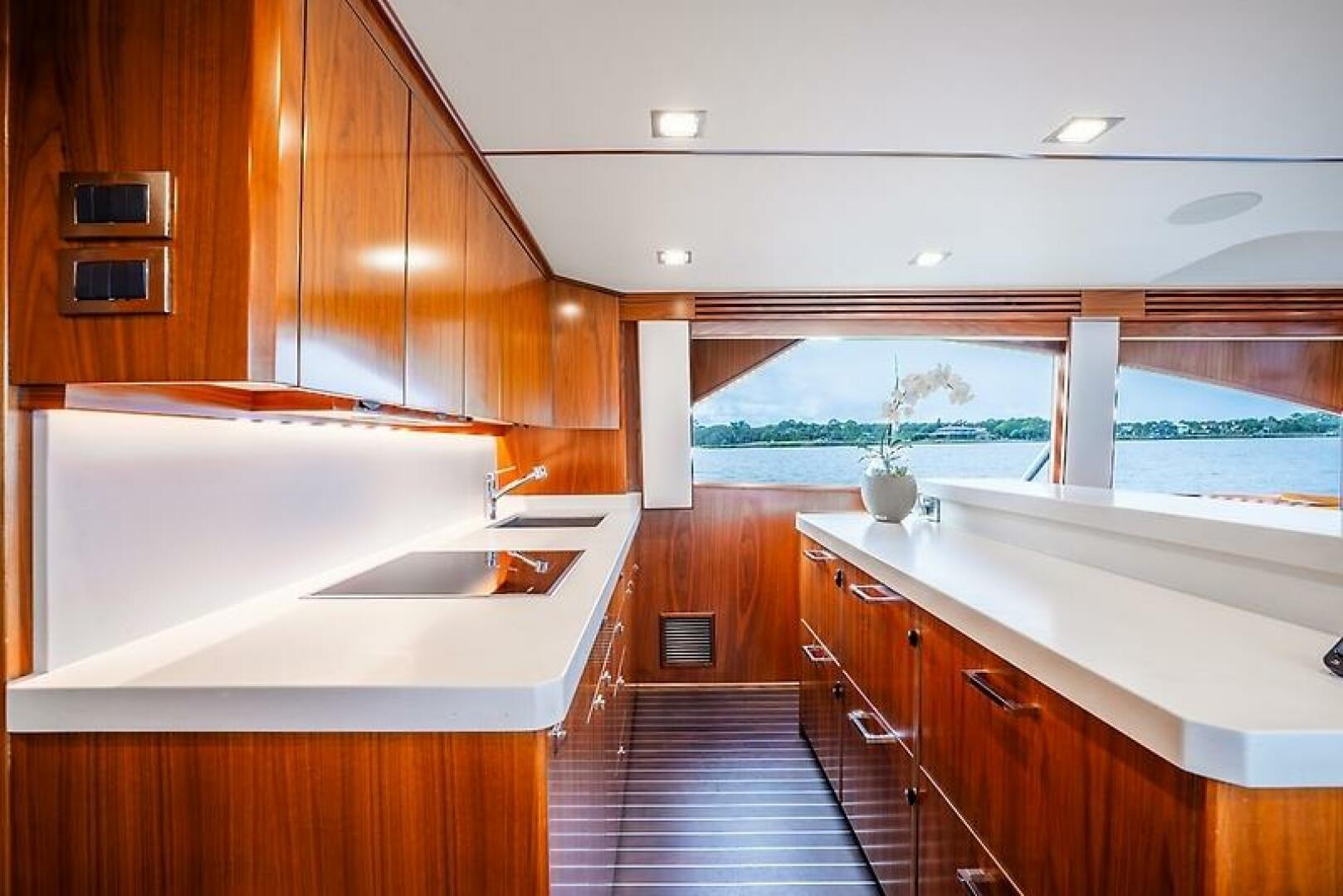

Unbridled’s country-style galley is a favorite with guests who like to watch the chef prepare a custom-designed menu.

• Maytag convection oven
• Kitchen Aid 5‐burner ceramic cook top
• Maytag convection microwave, stainless steel
• Miele professional dishwasher
• Frigidaire SS trash compactor
• Custom range hood: Zline (2021)
• Built‐in Cospolich custom freezer/refrigerator (forward galley bulkhead)
• LG refrigerator/freezer side by side (galley)
• Jura E8 coffee machine
• Ace incinerator
• TV with a satellite decoder box

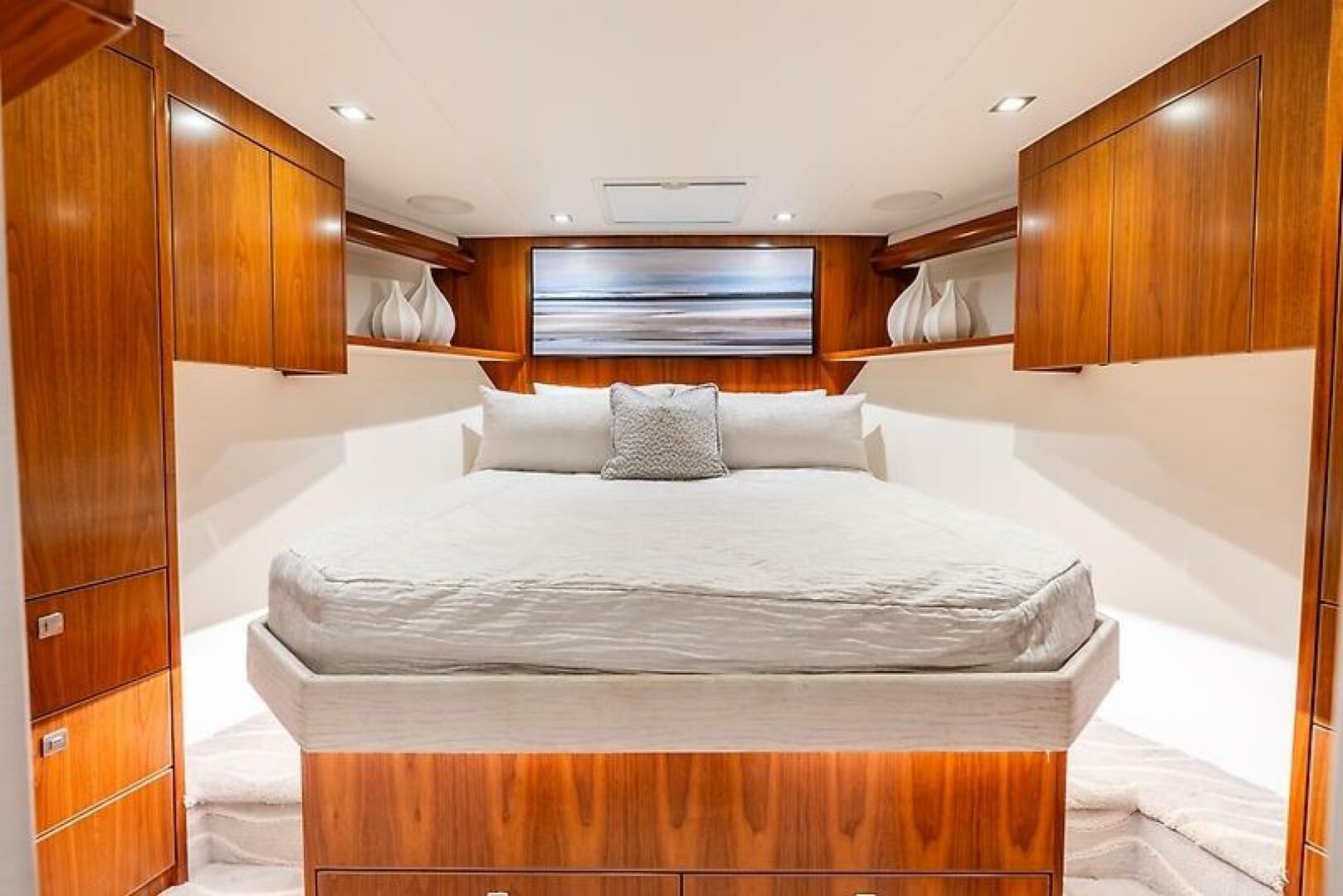

Four guest cabins, including a magnificent master cabin, accommodate up to 8 guests in extreme comfort. The master cabin takes up the full width of the yacht, featuring a king-sized bed and a marble-clad bathroom. Two further cabins have queen-sized beds and the large fourth cabin has twin beds. All cabins are below deck and are ensuite with Apple TV, iPad controls, and individual climate control.

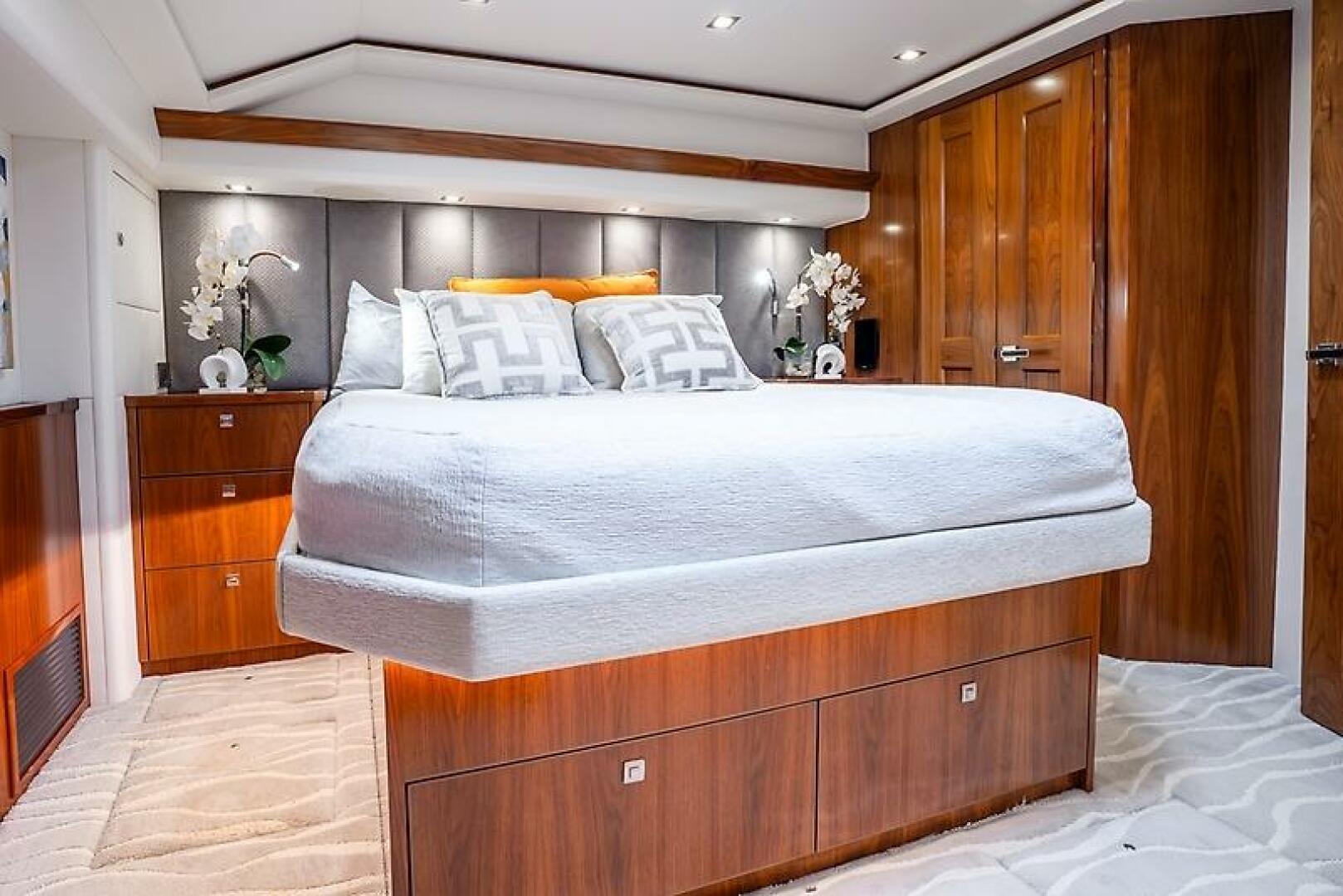

Master Stateroom

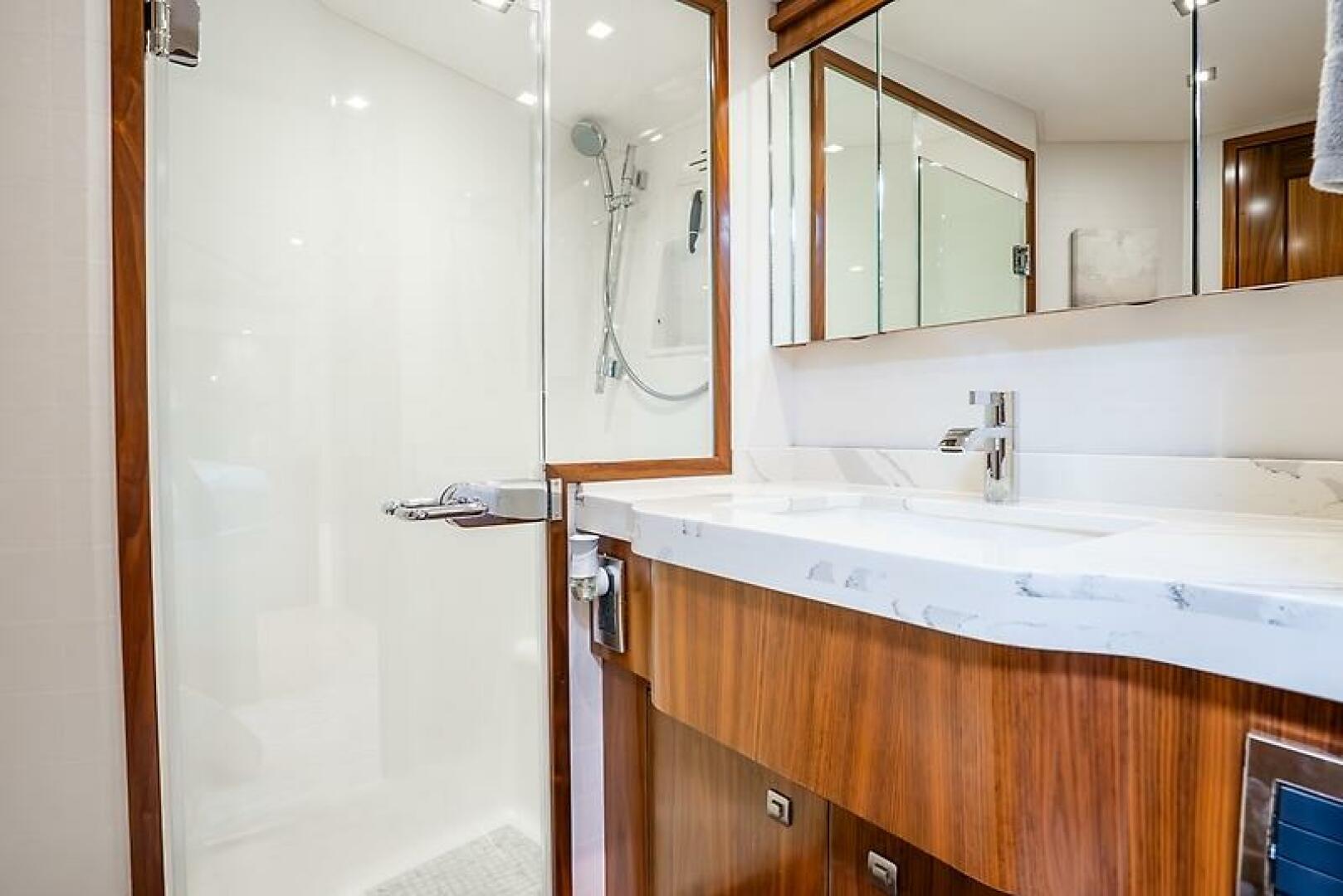

Located below deck amidships, accessed via the guest foyer. Full-beam with King bed. His and hers closets. Full beam bathroom with bidet and large walk-in shower. Shower has two large shower heads, one is a rainfall and one is a waterfall.

• 50" Panasonic flat screen TV/Apple TVs
• Minibar and wine fridge

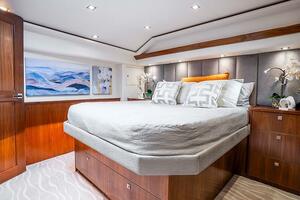

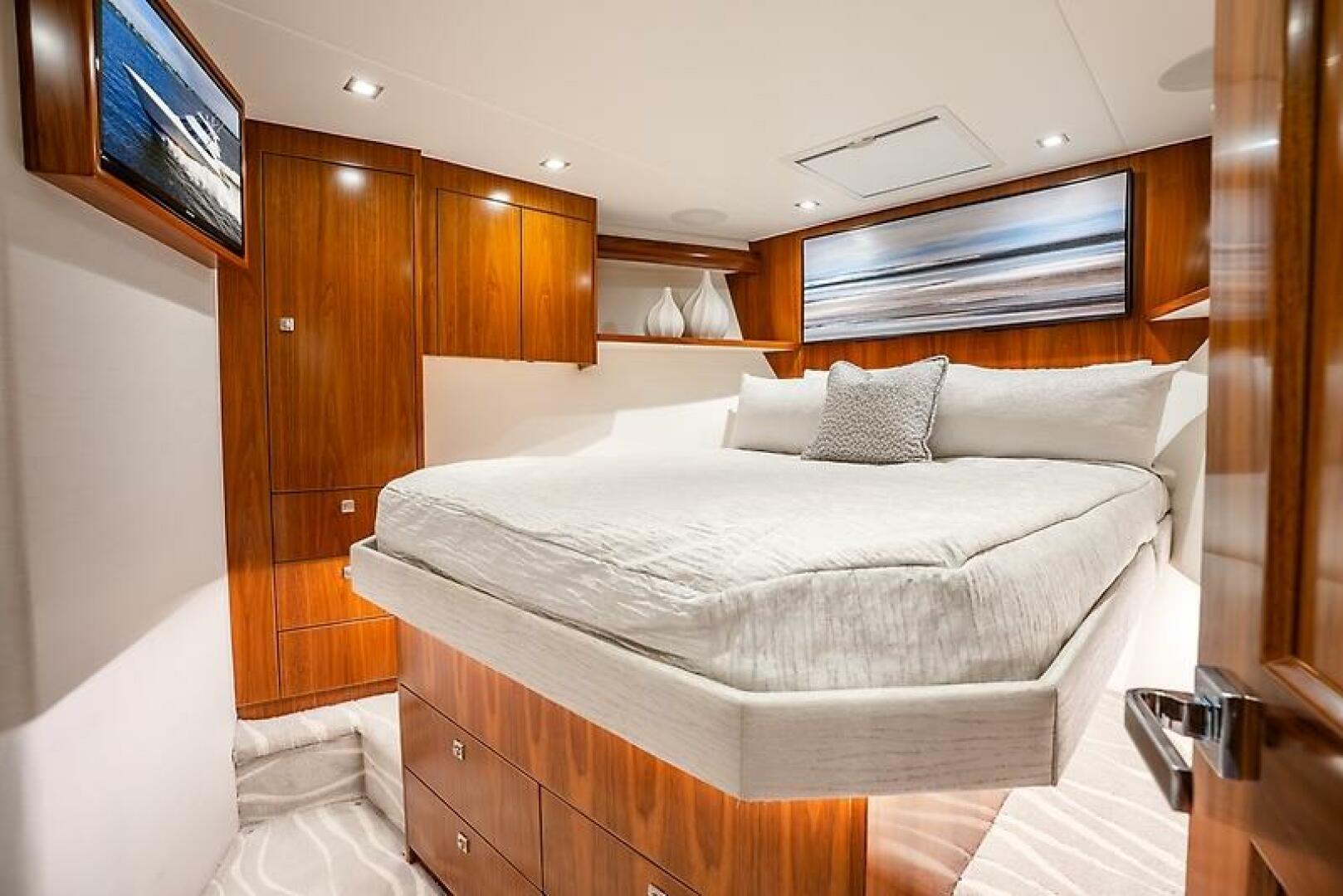

Queen Stateroom #1

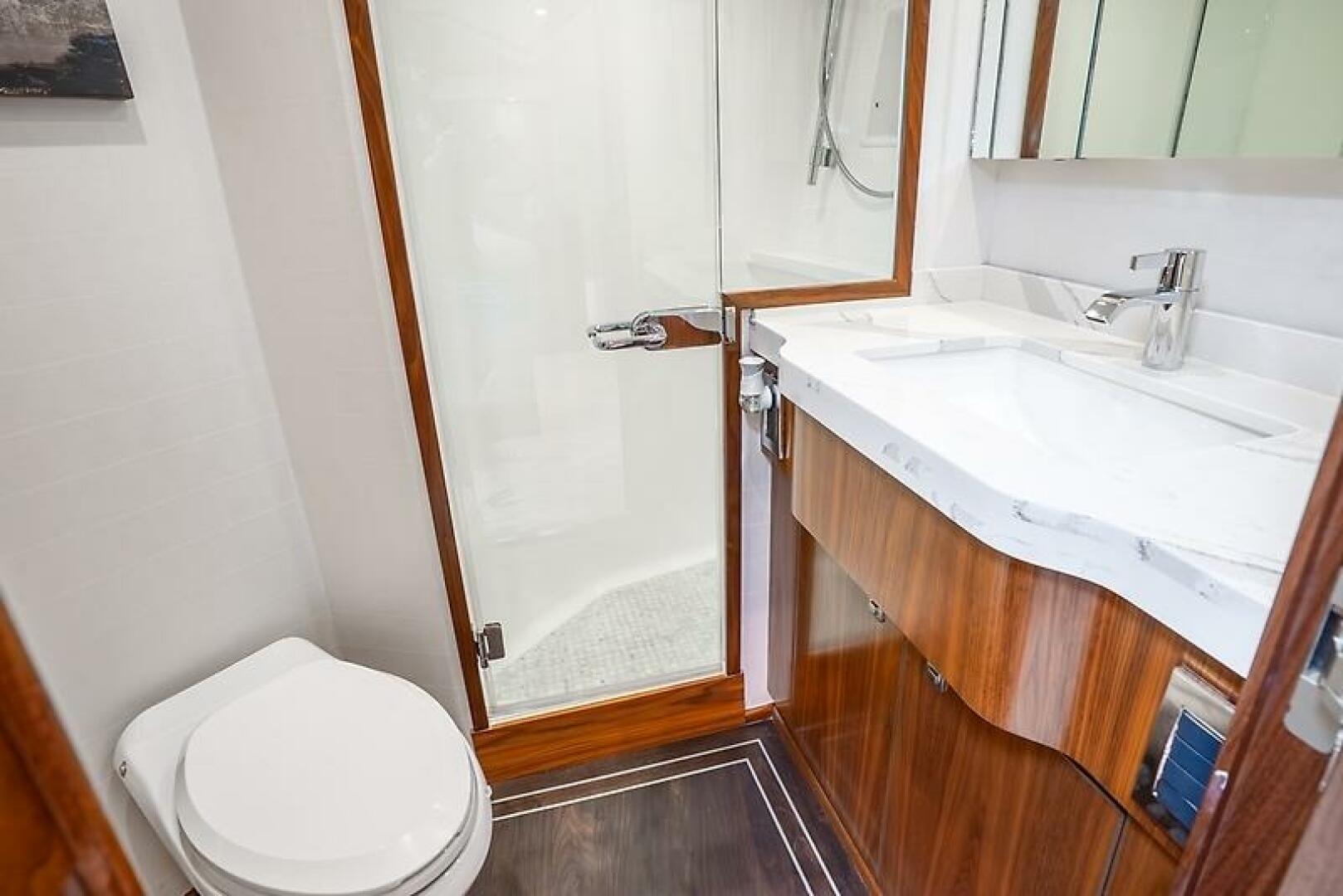

Queen bed with ensuite head and shower. Accessed forward via the country kitchen.

• Samsung 32‘ with Apple TV

Queen Stateroom #2

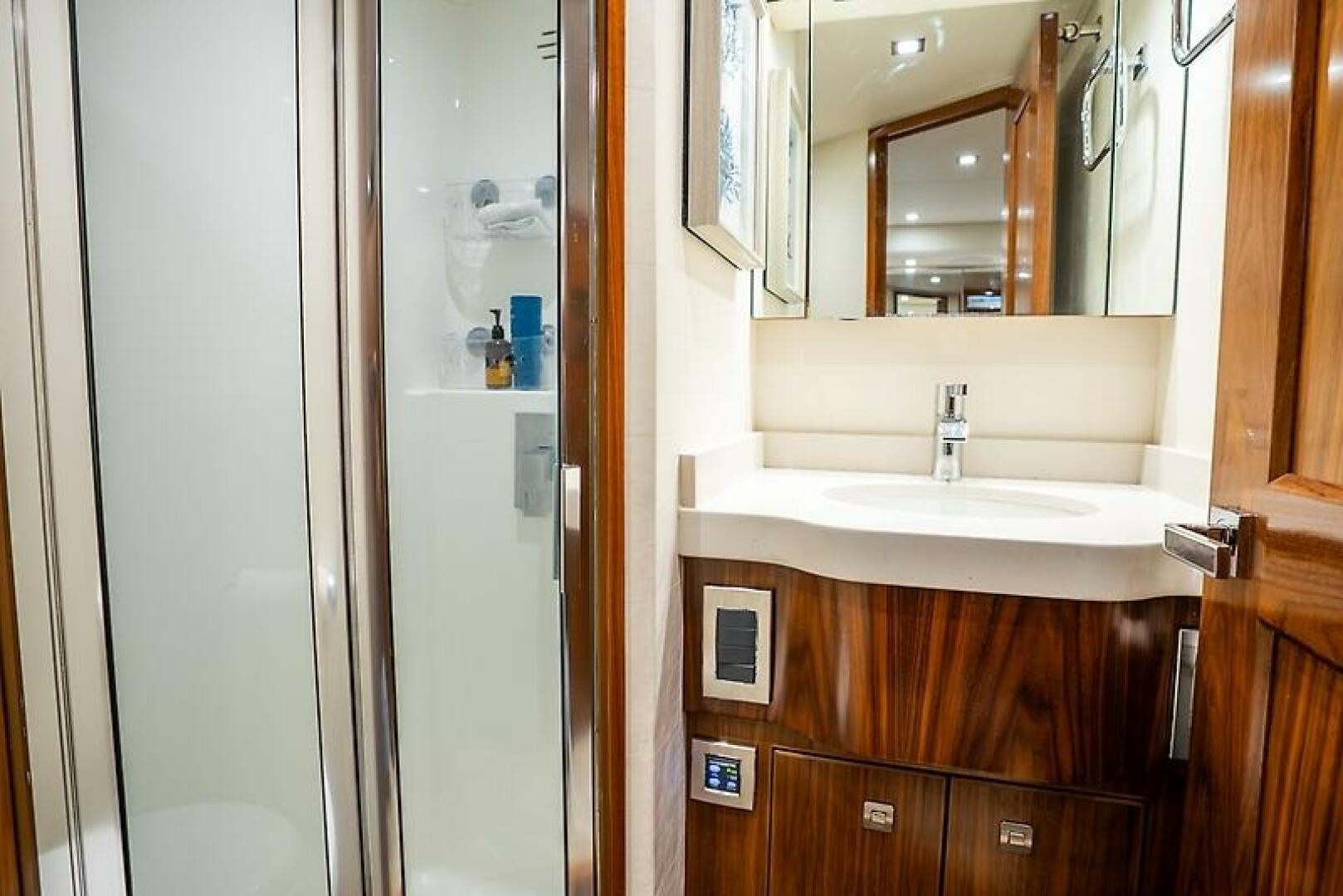

Queen bed with ensuite bathroom with shower. Located below deck, aft.

• Samsung 32‘ with Apple TV

Twin Guest Stateroom

Twin beds with ensuite bathroom. Located below deck, aft.

• Sharp 19’ with Apple TV

Crew Cabins:

3 cabins to accommodate up to 5 crew

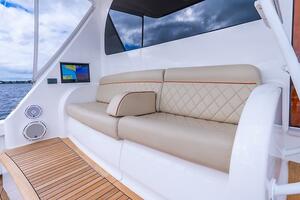

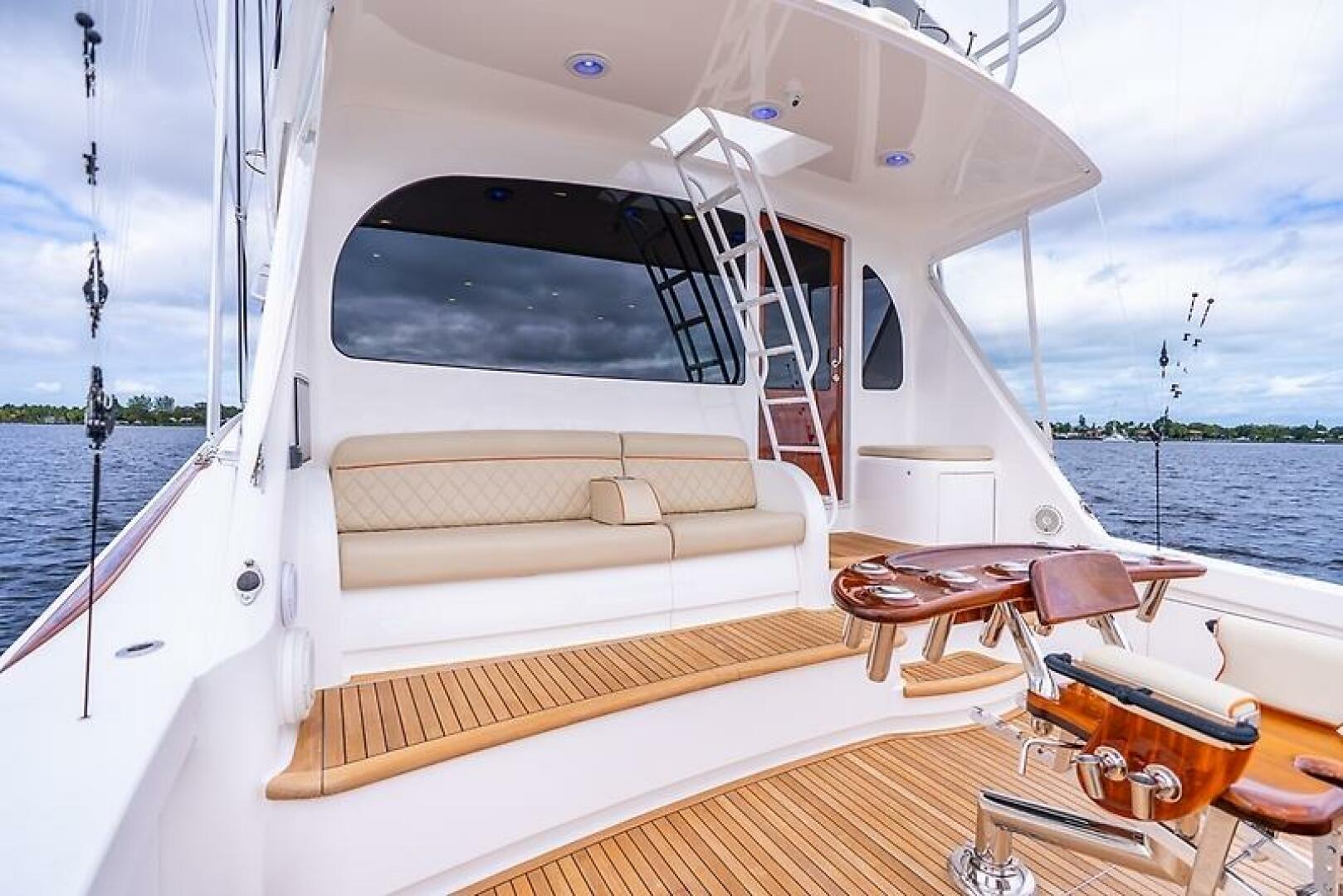

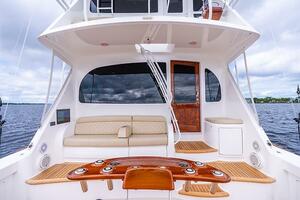

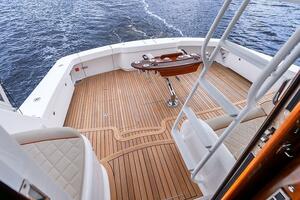

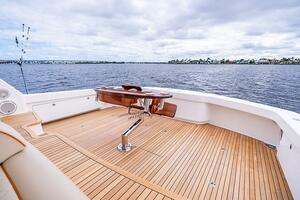

The main aft deck is used for outdoor dining, as well as being a good vantage point for the jet-ski launchpad from the stern. Two staircases take you to the upper flybridge which has a further shaded dining area with BBQ and fabulous views whilst relaxing at anchor.

The upper flybridge also features a bar, lounge area, and Jacuzzi for cocktails under the stars. There are sun loungers and several viewing seats which are a perfect hangout when the yacht is underway. The bow is another lovely spot for some peace and quiet with a comfortable sunpad and optional shade from the Bimini cover.

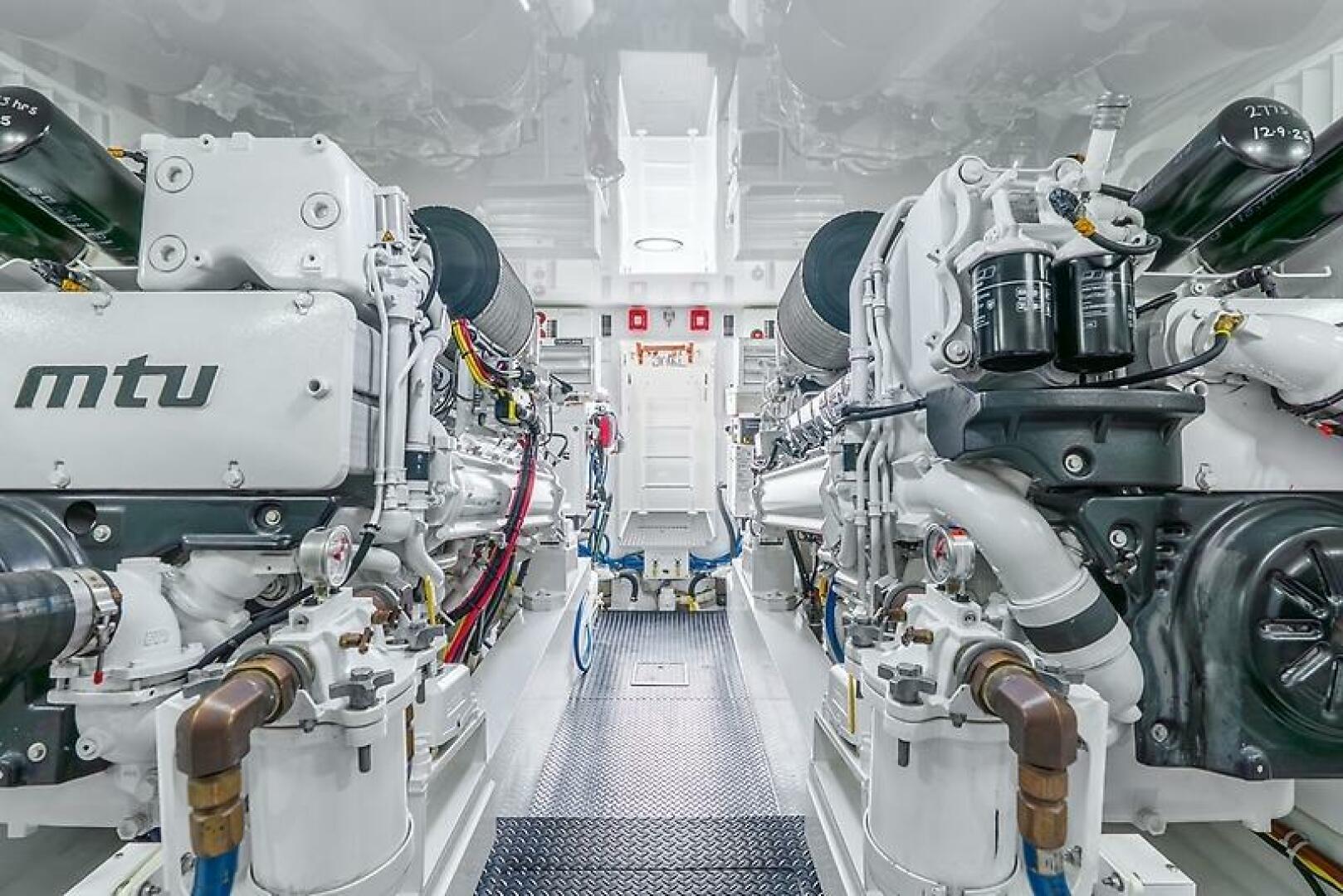

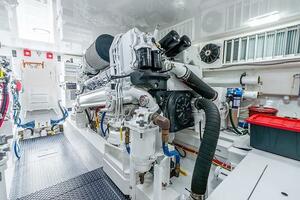

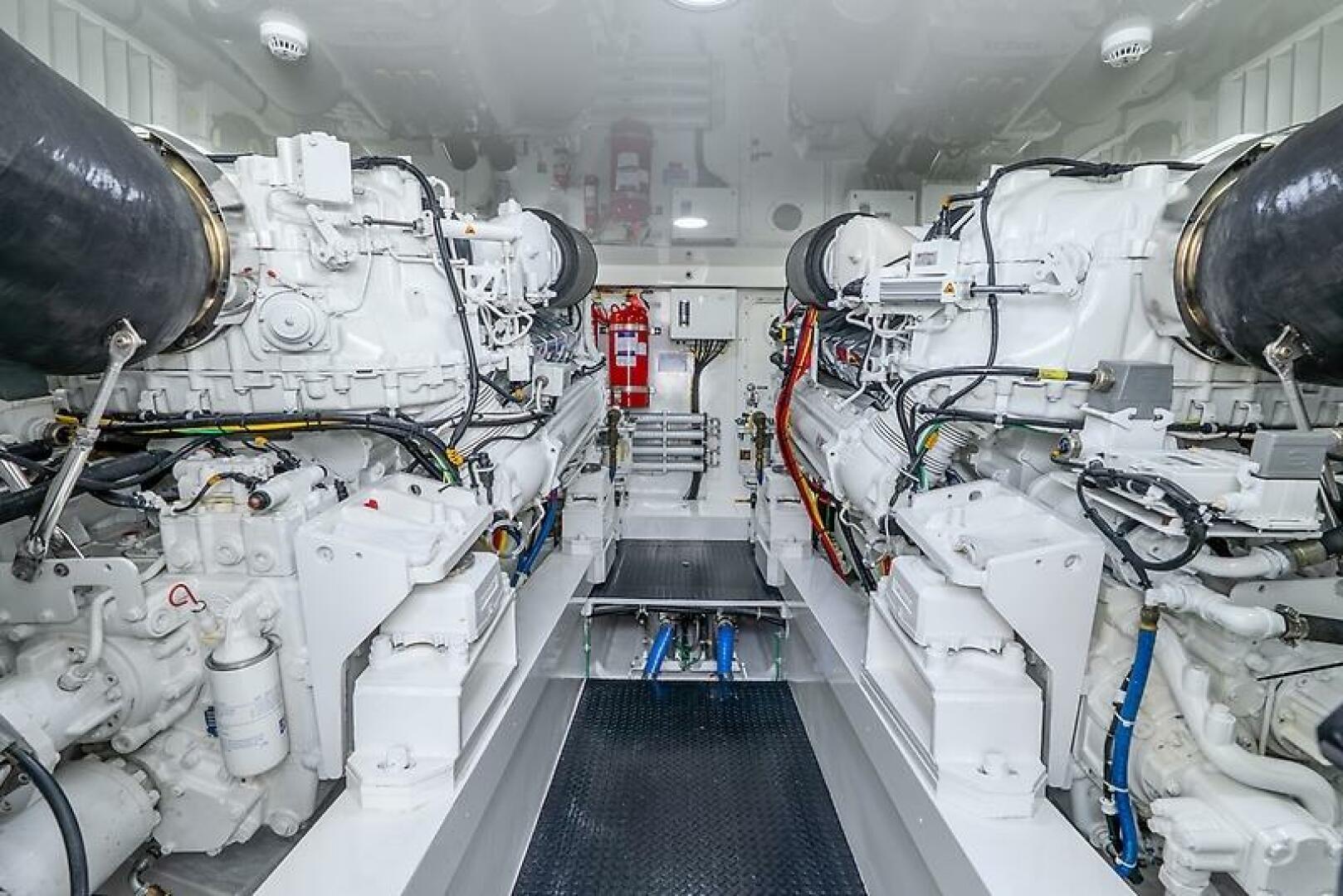

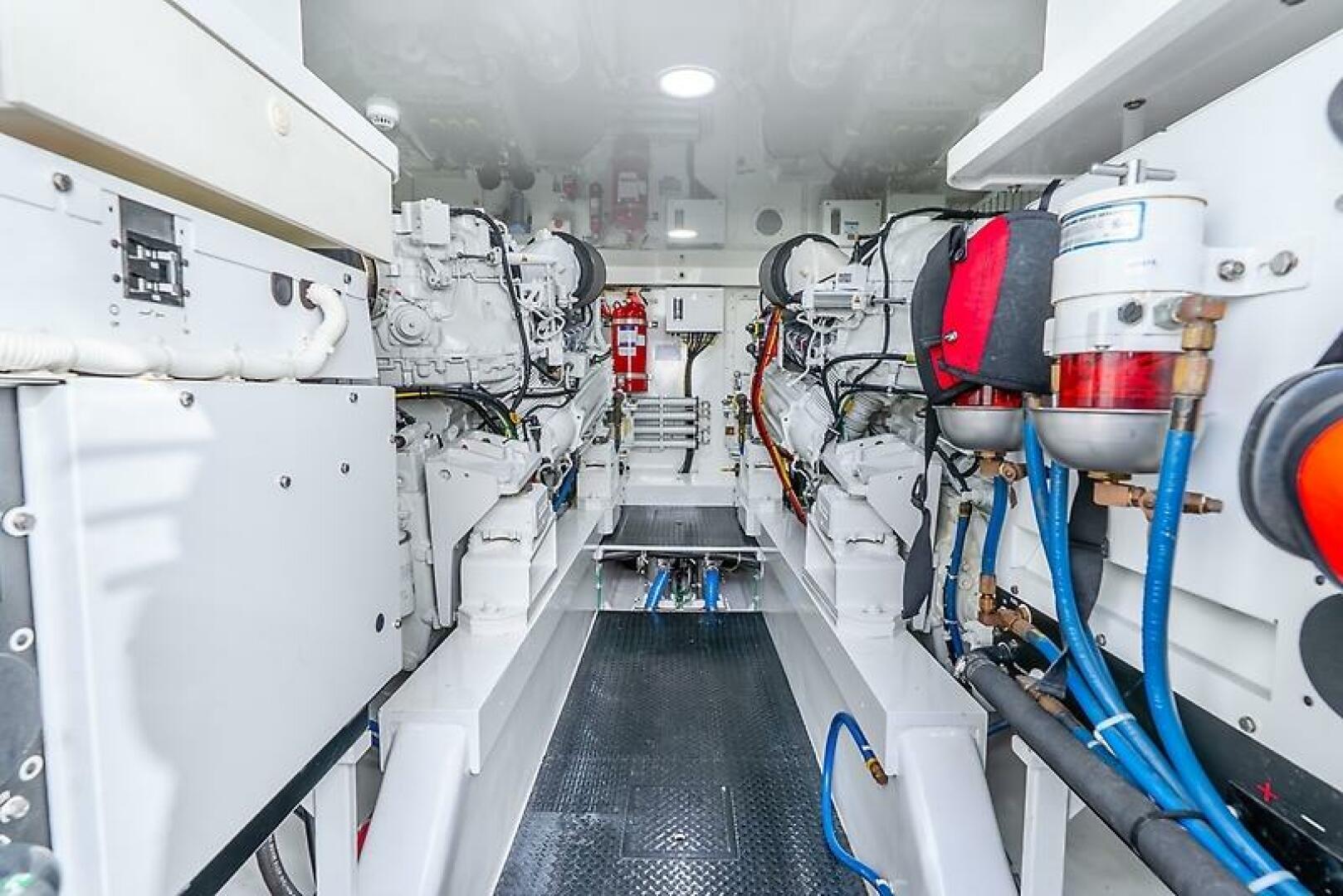

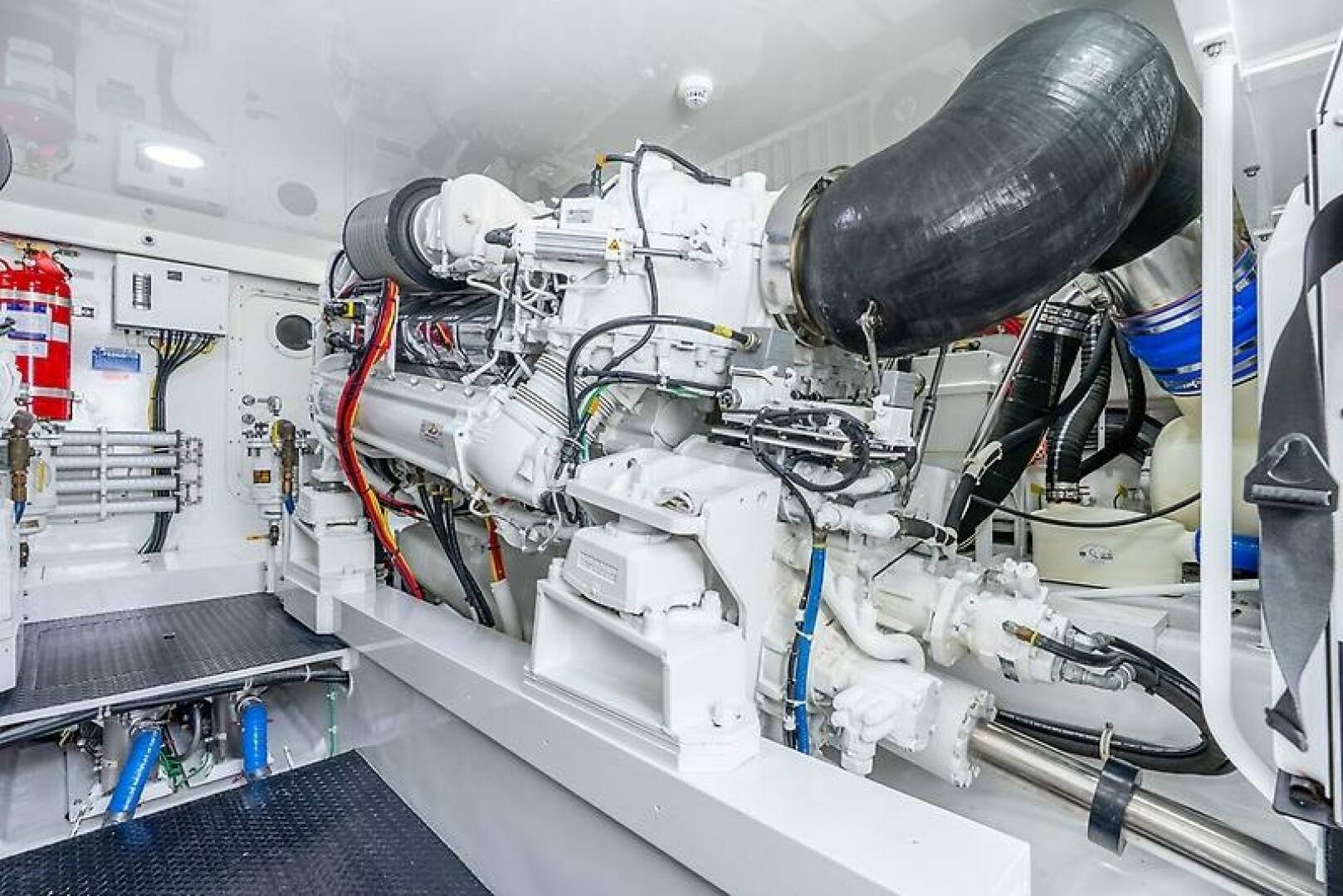

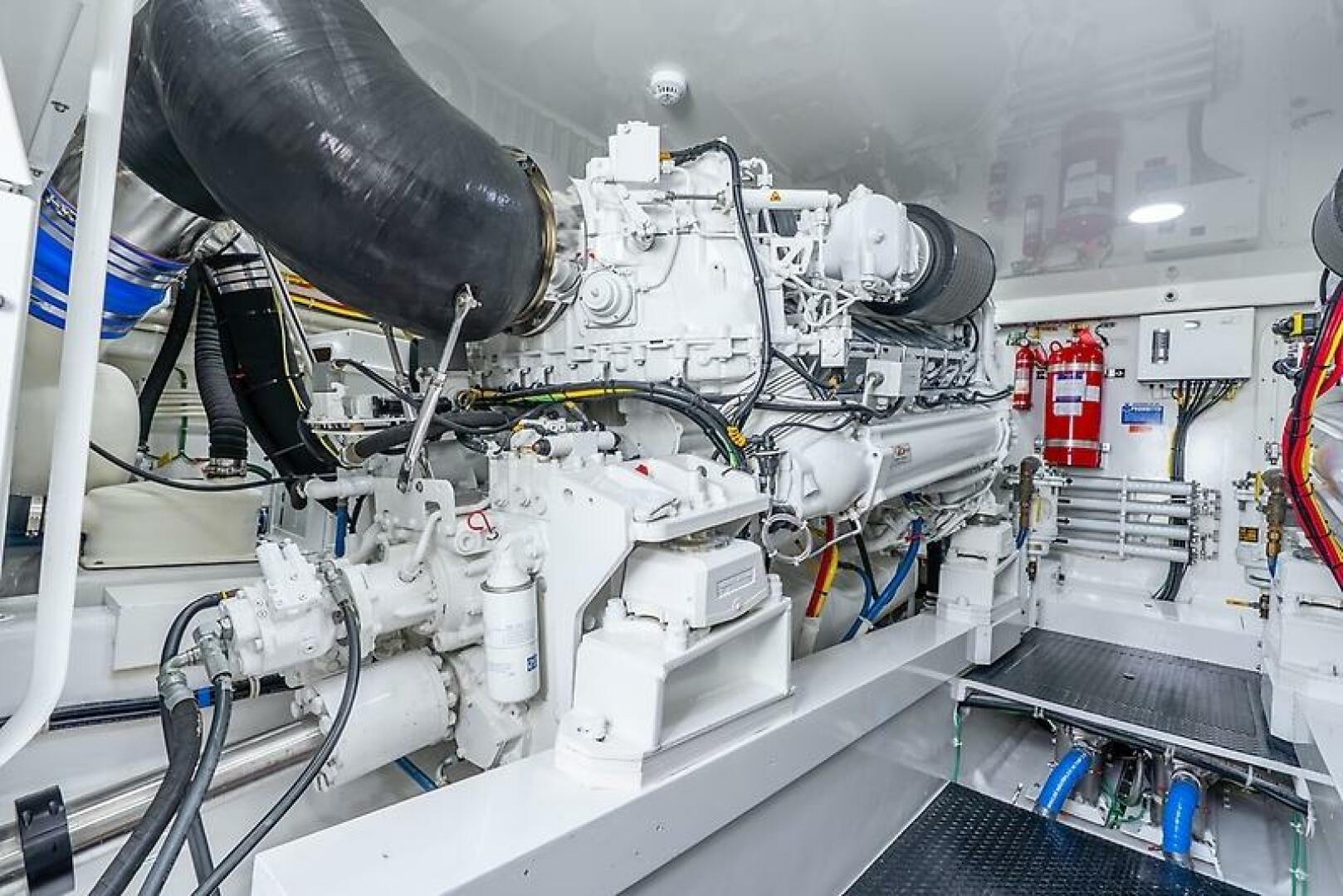

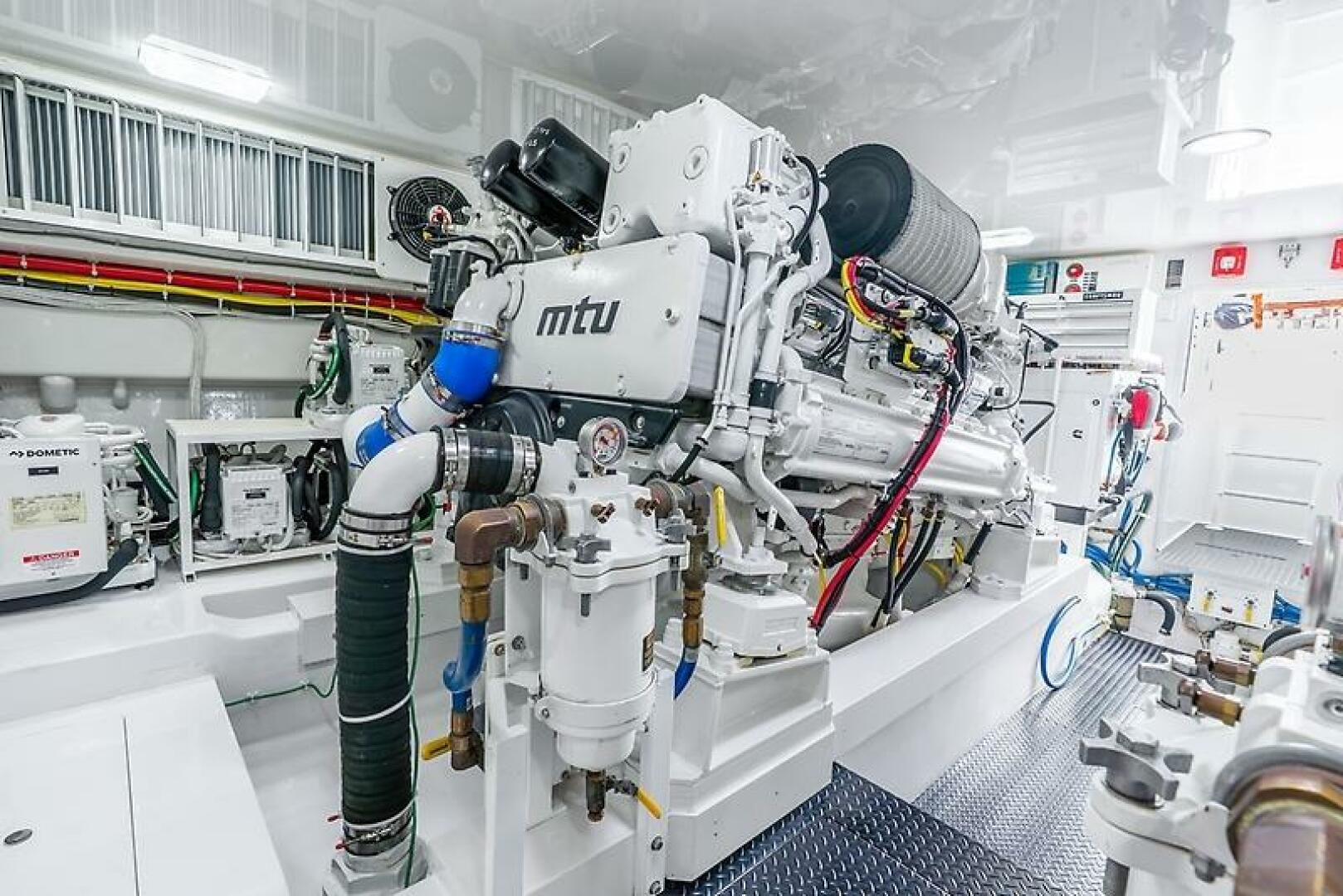

Engine Type:

• (2) MTU 12V396, @ 1,940 Hp each
• Gearboxes for Main Engines:
• (2) ZF BW455
• Drive: Props:
• Lips 48" x 481/ (2) 5 Blade Osborne 48"
• Rudders:
• (2) 5" Aquamet 22 stock with 9.3 sq. ft. stainless steel blades

Generators:

• (2) Northern Lights 55Kw
• Output: 120/220
• Generator Fuel Consumption:2 gallons per hour

Shore Power:

• 140’ 2/3 100A cables
• (2) 240/208 100amp shore cords on Glendinning (Second Reel added 2105)

Batteries:

• (6) Northern Light AGM slim line batteries total 2400ah
• (2) trace 4024 inverter/charger for house bank
• (2) 8D start batteries for port engine and port generator
• (2) 8D start batteries for starboard engine and starboard generators
• Victron Battery Charger 3 bank 60A just added for Start Battery system, also tied into house bank as a backup system
• (3) SG27 gel cell emergency batteries.
• Charging by engine alternators and Sentry 24 volts 40-amp charger

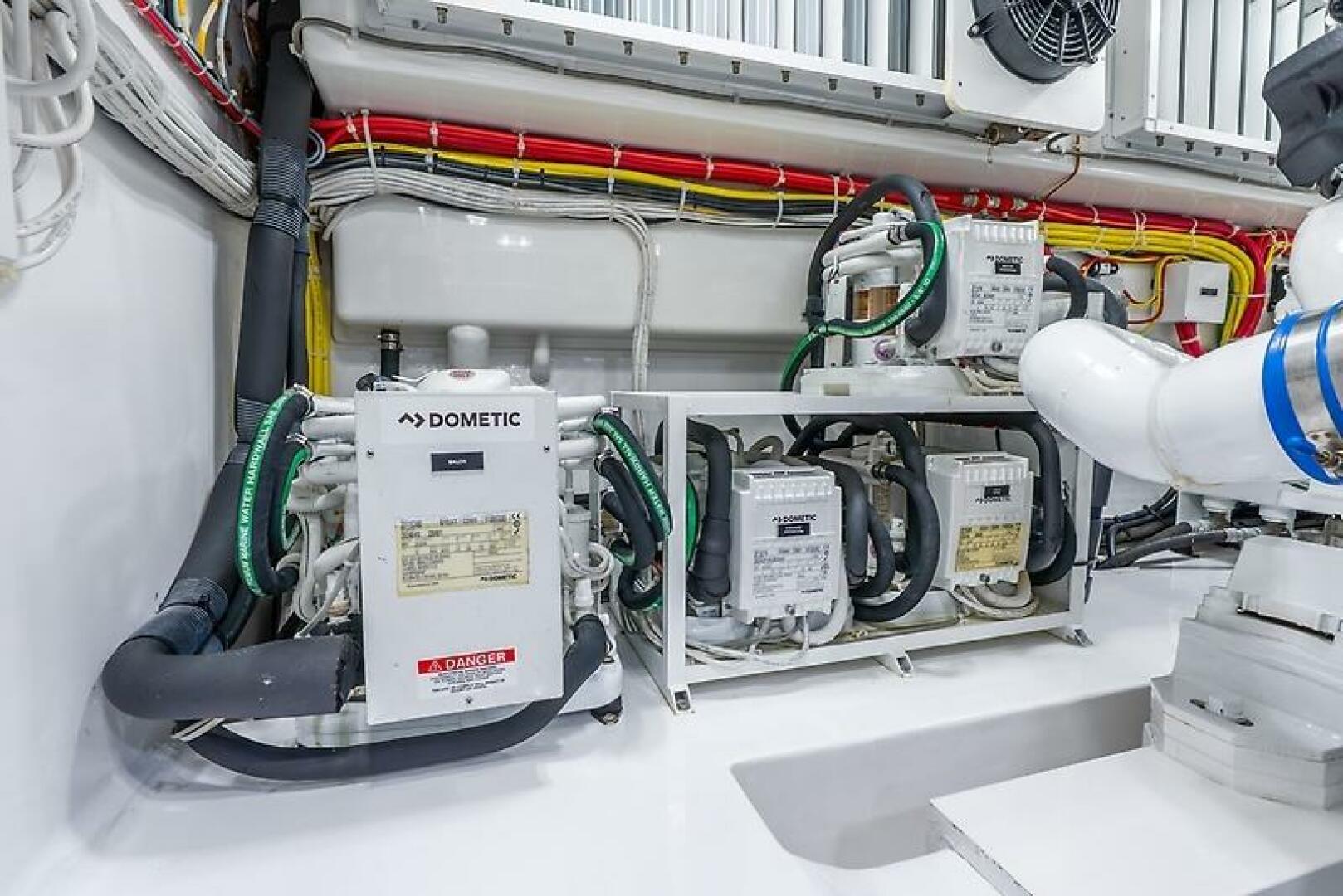

Air Conditioning:

• Marine Air Systems 216,000 btu
• (3) 5-ton chillers (2 in 2021, 1 in 2016, plus 12 fan coil units)
• Engine room air conditioned control room

Watermakers:

• (2) Horizon Seafari reverse osmosis 1,500 gal/day

Trim Tabs/Stabilizers:

• Naiad 353 with Koopnautic control unit & 12’ blades

Bow Thruster:

• 16” 50hp hydraulic driven American thruster

Steering System:

• Kobelt hydraulic system (main engine or electric pump)

Fuel Separator & Filtration:

• Alfa Laval MMB 203S‐13 fuel centrifuge
• Fuel filers: (3) Racor 79 1000 MAV on each main engine
• Racor 900 MA on each generator
• Flomax five fuel transfer pump (Alfa Laval can also be used)

Sewage System:

• USCG waste treatment system (2010) 350 US gallons holding

Fresh Water System:

• (2) Headhunter multistage with high flow strainer
• (2) Headhunter accumulator (PT-102)

Bilge Water Filtration:

• Flomax five fuel transfer pump

Bilge Alarms:

• (6) high level bilge alarms
• Both high and low bilge alarms show on panel in the wheelhouse
• High level alarm is audible through vessel ER and wheelhouse

Other:

• Campbell Hausfeld 20-gallon VT629003AJ air compressor
• Brownies Yacht Pro series AM252 Bauer dive tank compressor
• (2) 40-gallon heaters feeding the hot water loop (2019)
• 15-gallon heater in line with loop (2022)

SATcom:

• Fleet 77 (Nera)
• Mini M (Nera)
• Westinghouse skycell
• MCM3 SeaTel
• (7) satellite decoder boxes, all accessed from a central location

Telephone System:

• Panasonic TRW848 12 lines and intercom
• (2) desk units

SSB:

• Furuno

VHF:

• Furuno
• (2) Standard Horizon (2021)

Cellular Phone System:

• (5) wireless units

Intercom: Yes

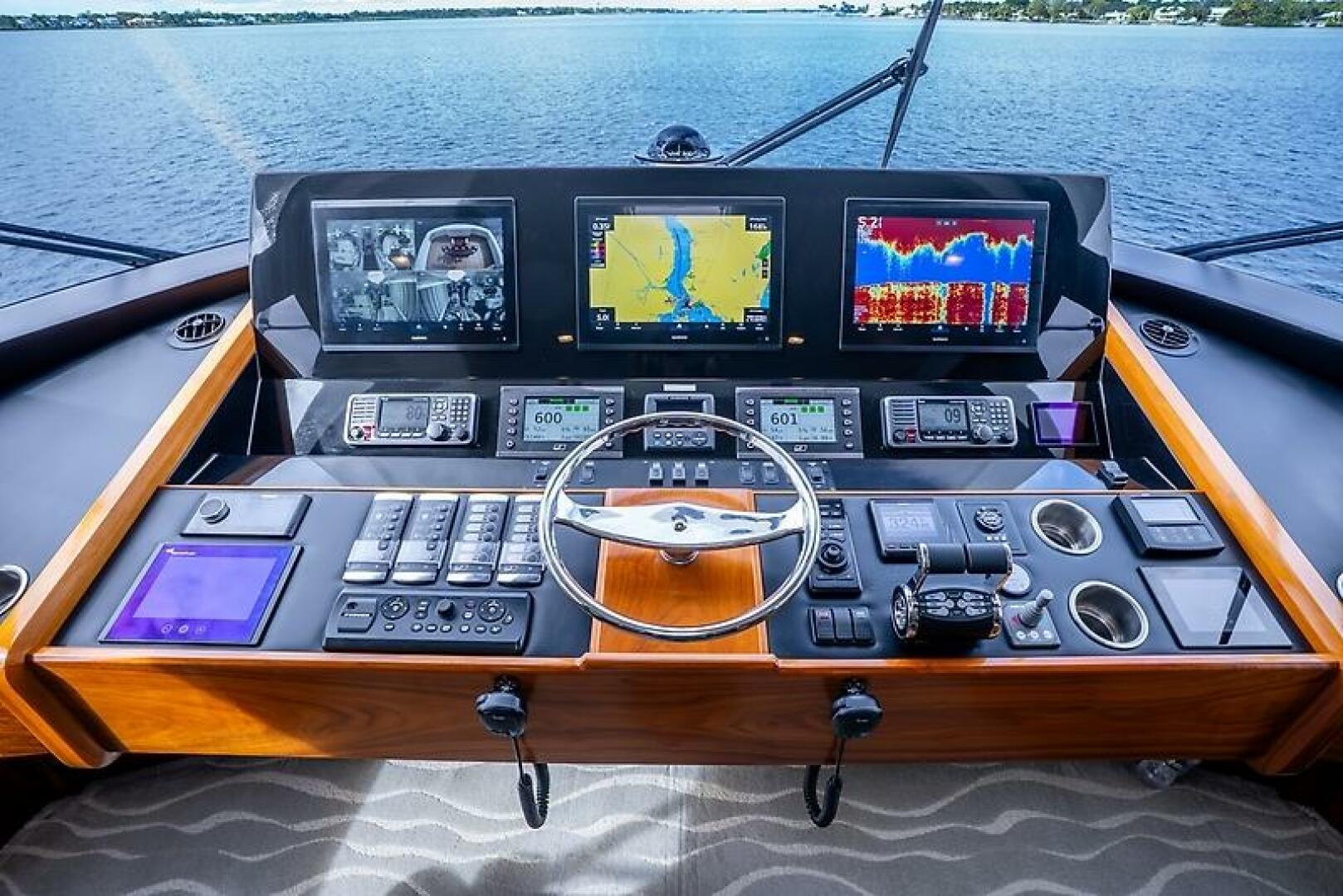

Radar:

• Furuno 2117BB, 72 mile
• Furuno 1944CBB, 48 mile

Compass:

• Furuno satellite compass
• Richie fluxgate compass
• Robertson fluxgate compass

Auto Pilot:

• Robertson AP9 MK3

Depth Sounder:

• Furuno FCV-292 – wheelhouse
• Brookes and Gatehouse
• Furuno FCV 582 fishfinder - flybridge

GPS:

• Furuno GPS Navigator GP 150

Weather FAX:

• Furuno Fax-207 – has Navtex board installed

Ships Computer:

• PC in wheelhouse custom for navigation only

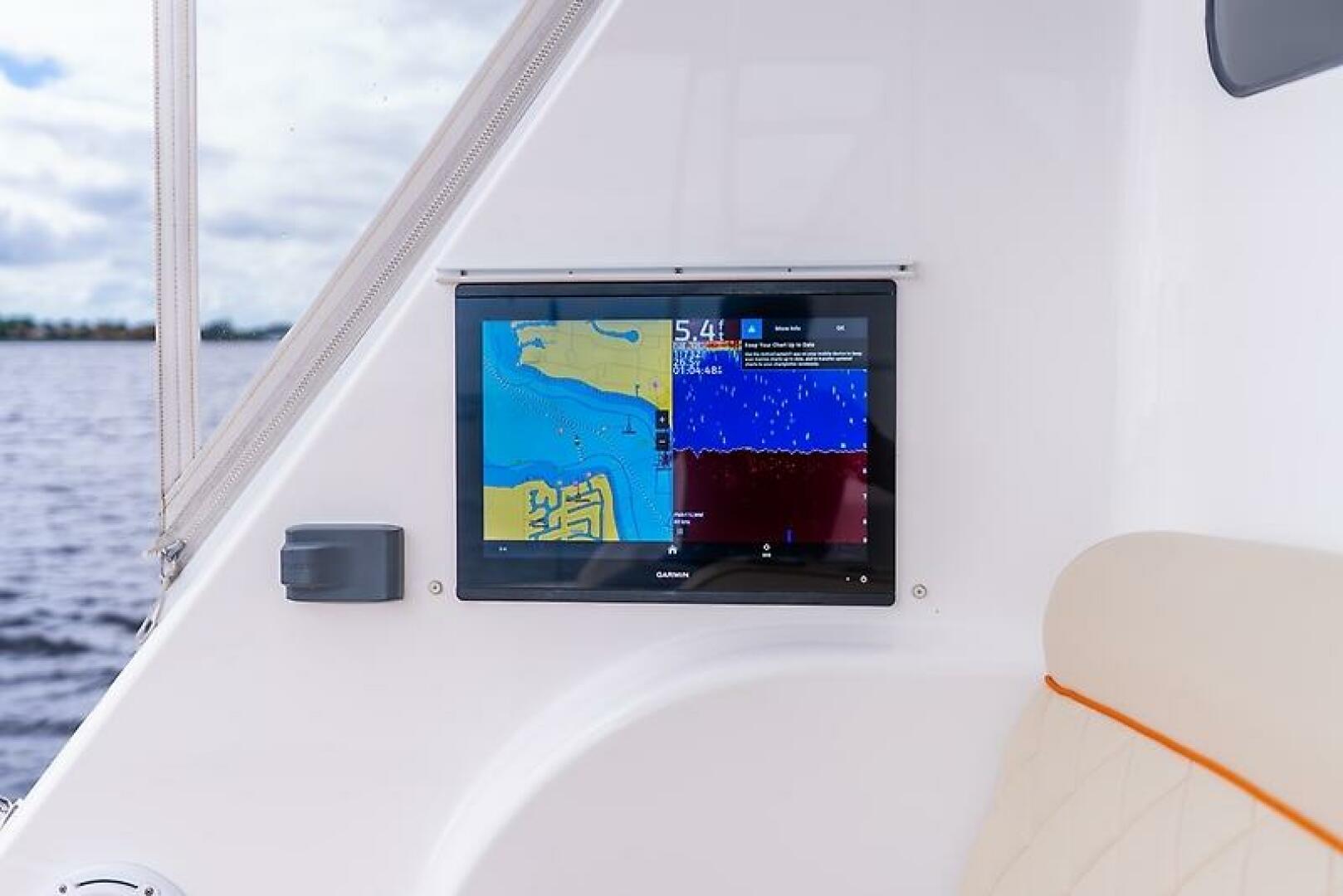

Chart Plotter:

• Nobletec Admiral (2015)

Wind/Speed Log:

• Airmar Weathercastor 3.005

Whistle Controller:

• Kahlenberg M-511A

Lights:

• Aqua signal nav lights
• (2) ACR RCL 100D 24vdc spotlights - handheld, plug-in spot on bow

• SAT-TV SeaTel dish for Direct TV,
• SeaTel dish for GLA or extended Direct TV coverage.
• Hi-Fi and Wi-Fi system throughout guest areas.
• All stateroom TVs have their own DVDs, and iPad controlled Airplay system
• iPad control for Crestron Audio and lighting system (7 in total)
• Apple TVs added to all guest rooms with movies and music loaded

Televisions:

• Salon: Elite 60‘
• Master: Panasonic 50’
• VIP: Samsung 32‘
• Next to VIP: Samsung 32’
• Galley: Samsung 23’
• Queen: Sharp 19’
• Twin: Sharp 19’

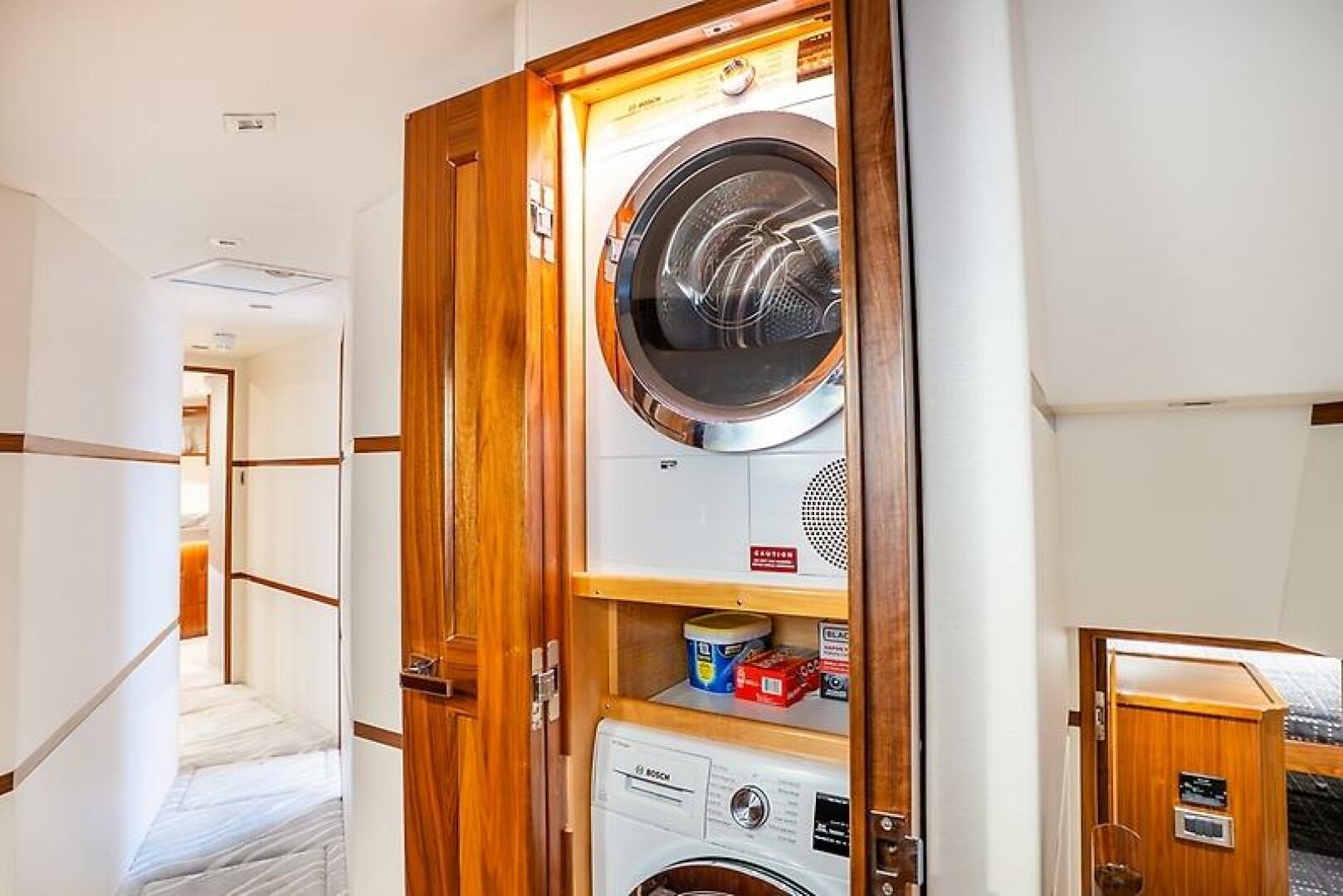

• Miele Touch Tronic washer/dryer stackable
• Electrolux washer/dryer stackable

• 32’ 2004 Boston Whaler tender
• (2) 2014 Sea-Doo GTI 155 wave runners
• (2) Kite Surfers
• (1) Kayak
• Fly Board System
• (2) BIC 11’6” Paddleboards
• 6‐person inflatable cabana
• Inflatable beach tent
• Seadoo Sea-Scooter

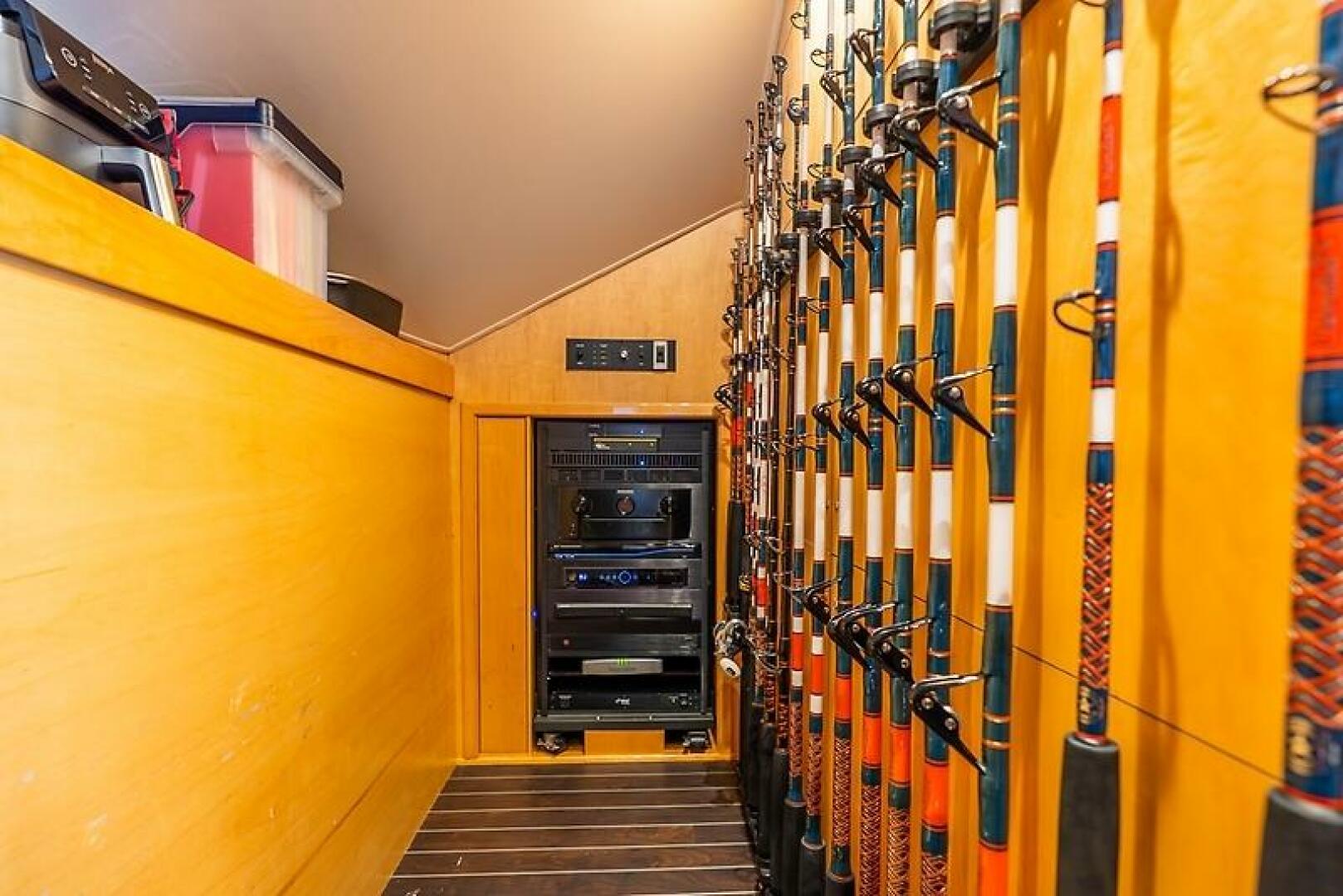

• Full trolling and inshore fishing setup with a deep drop reel
• (7) sets of dive equipment and snorkeling equipment
• Dive compressor
• Custom inflatable Jet ski dock

• ABS certified hull by Westport
• 5‐person Hot Springs hot tub

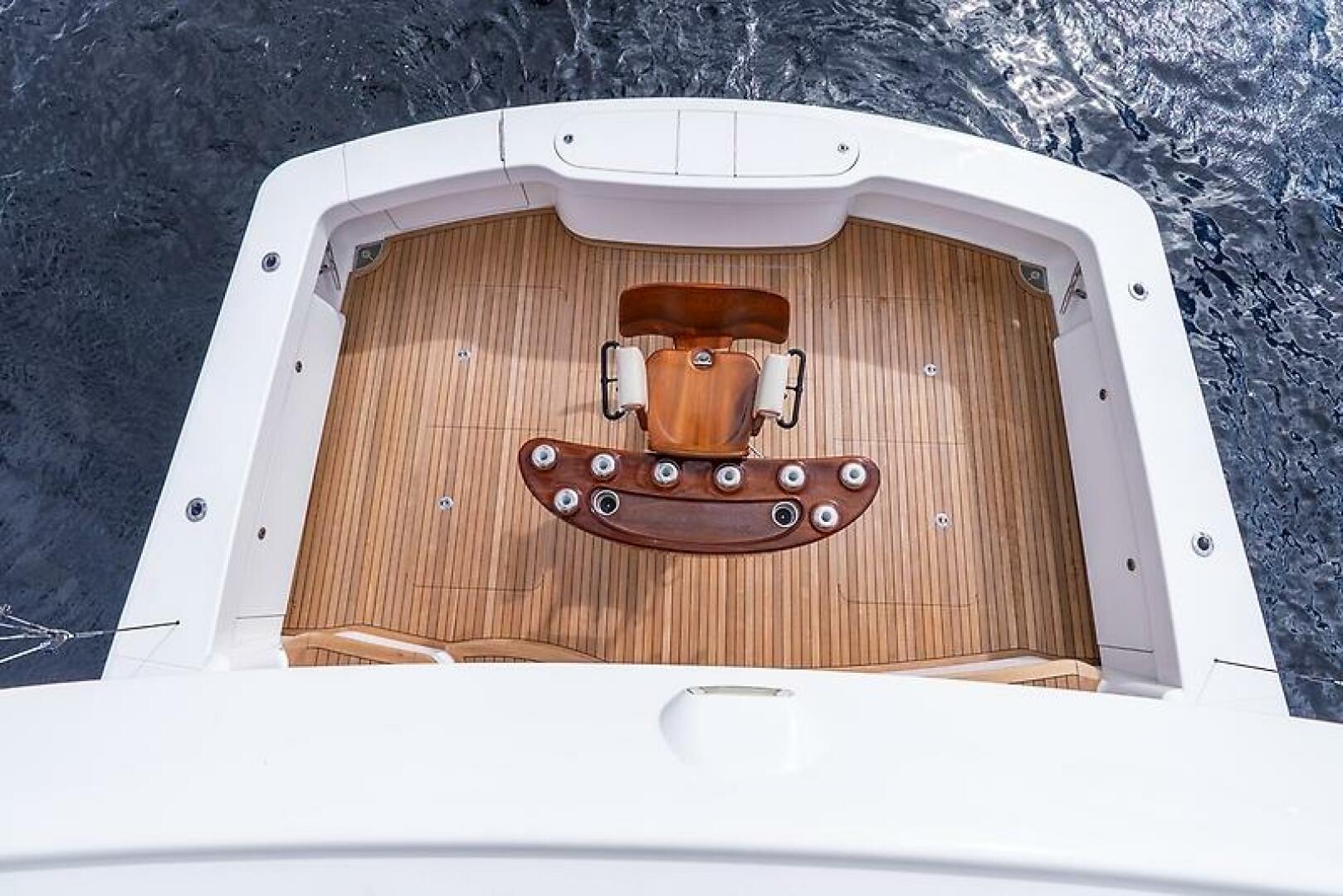

• Swim platform & aft deck teak deck systems
• (2) Maxwell 4500 hydraulically driven
• (2) Custom devil claw and double dog system custom splash
• guards created.
• (2) Poole 3961b self stowing anchors fit up into stainless steel pockets

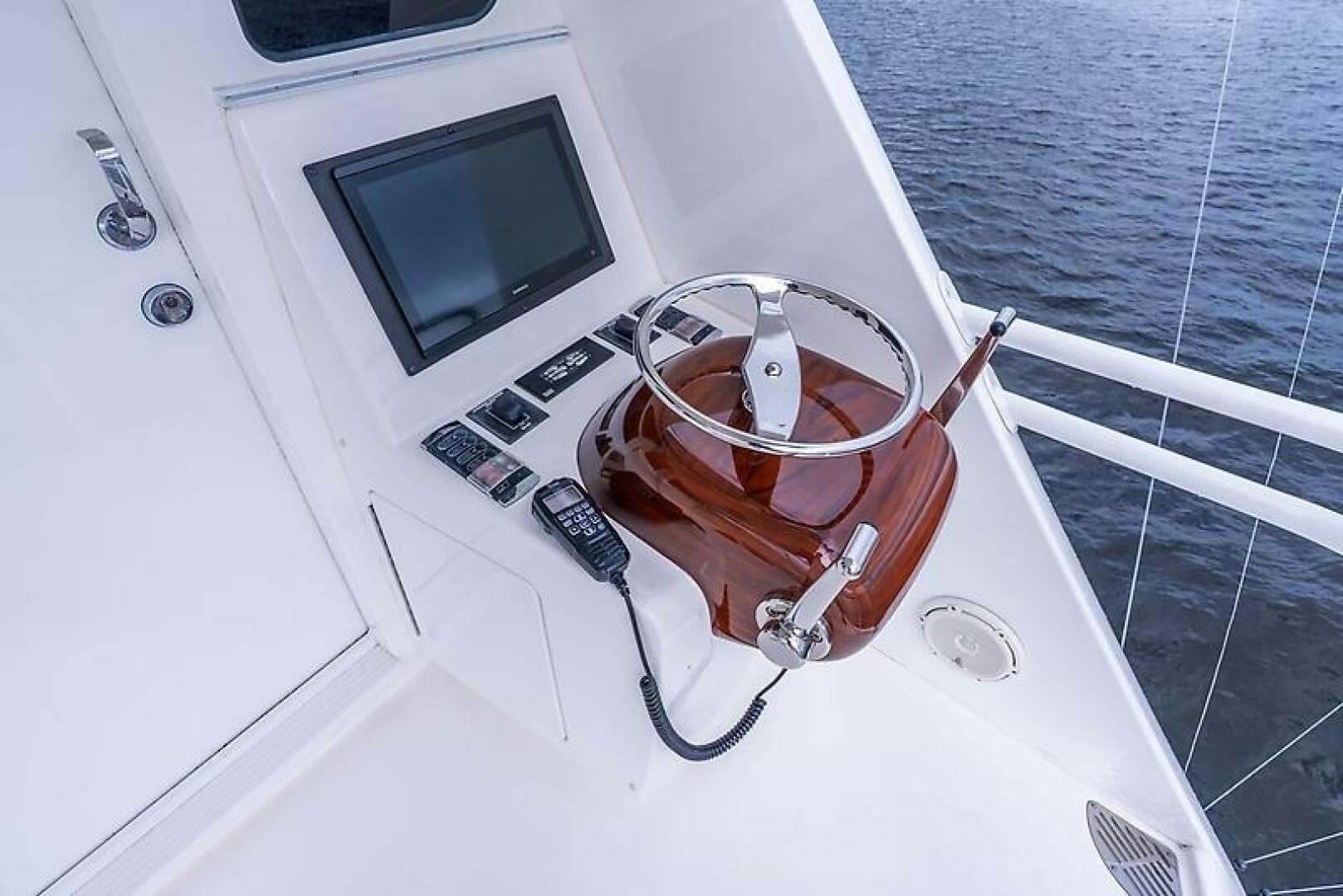

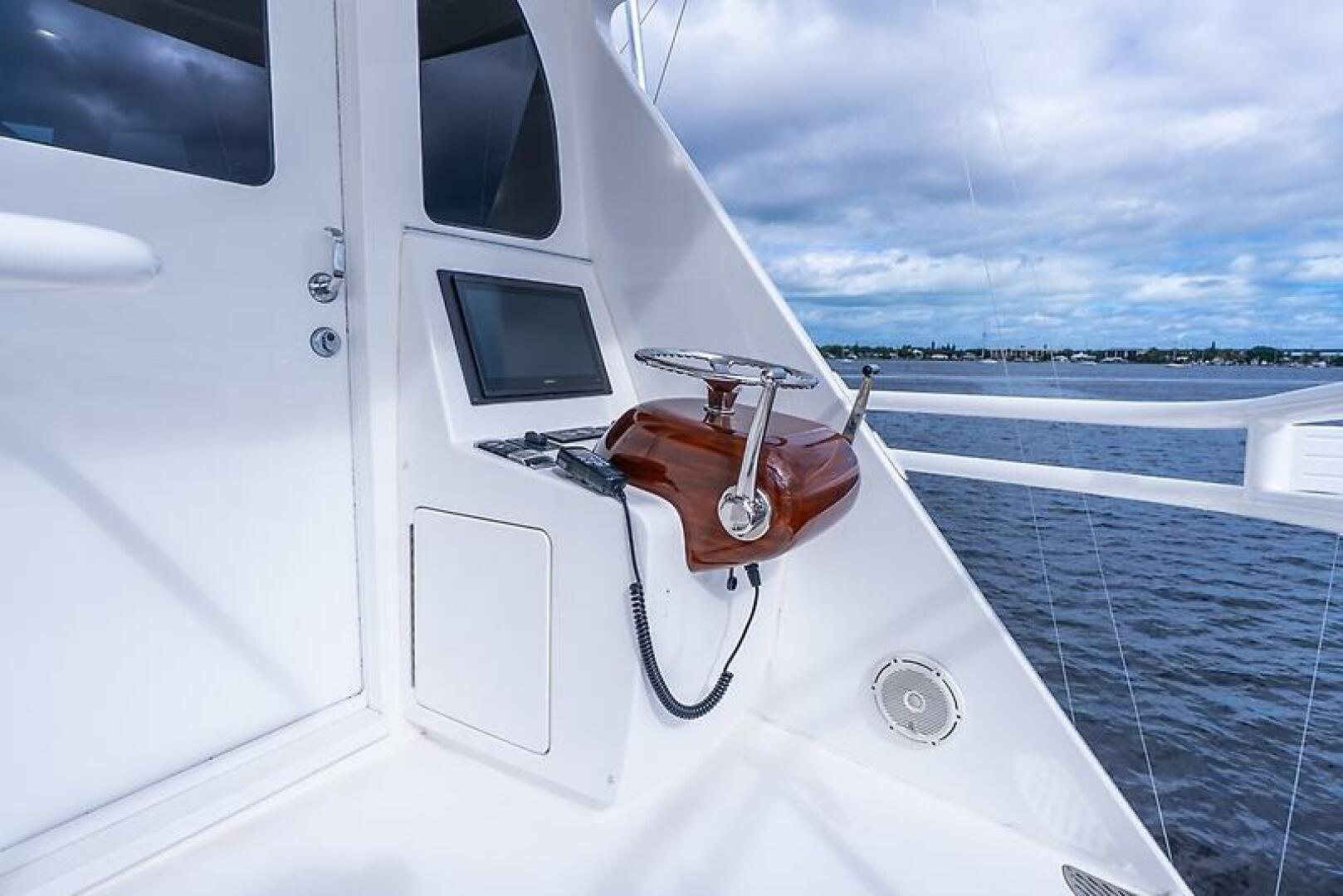

• Pneumatically operated, fold‐out bridge wing stations on the
• flybridge
• (2) 350 feet of 5/8 galvanized high test chain (G4 Link) ground tackle.
• (2) Maxwell 3500 warping capstans on aft swim platform
• Nautical structures EZ2500‐FB davit‐2500 lbs. with 14' boom

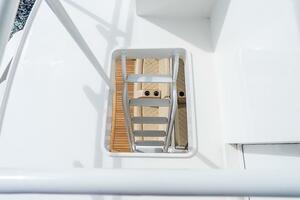

• Self‐stowing ladder under the swim platform, swim ladder pneumatically controlled

CCTV System:

• Elbex EX S 125

Cameras:

• Aft deck engine room (2) Elbex side cameras monitored
• FLIR night vision camera monitored from the pilothouse

Monitors:

• (4) Viotek monitors
• Dell monitor
