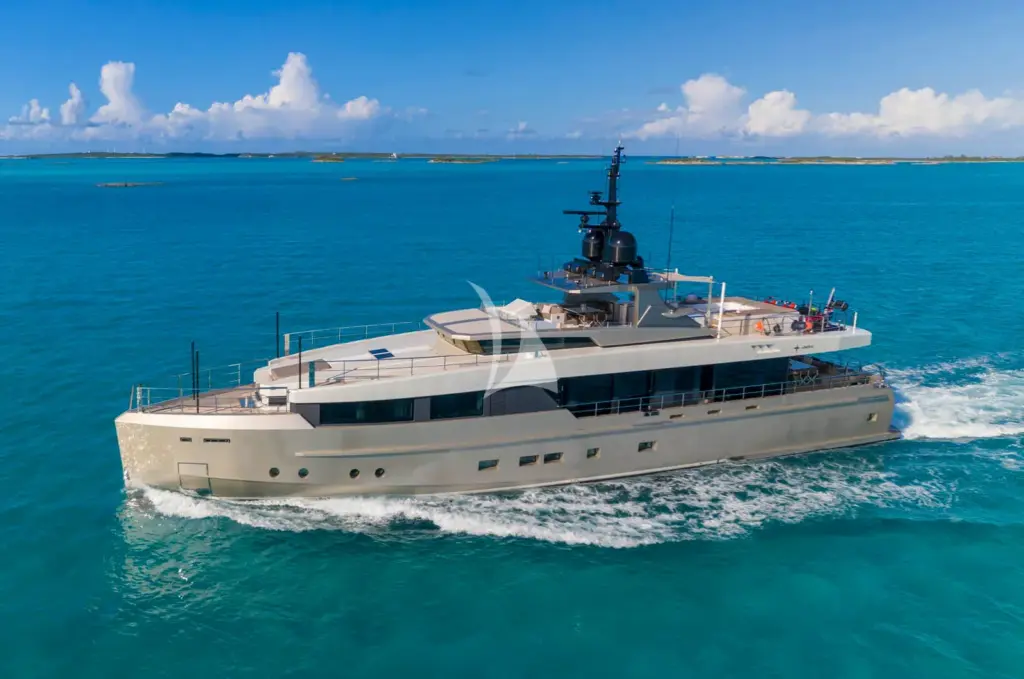

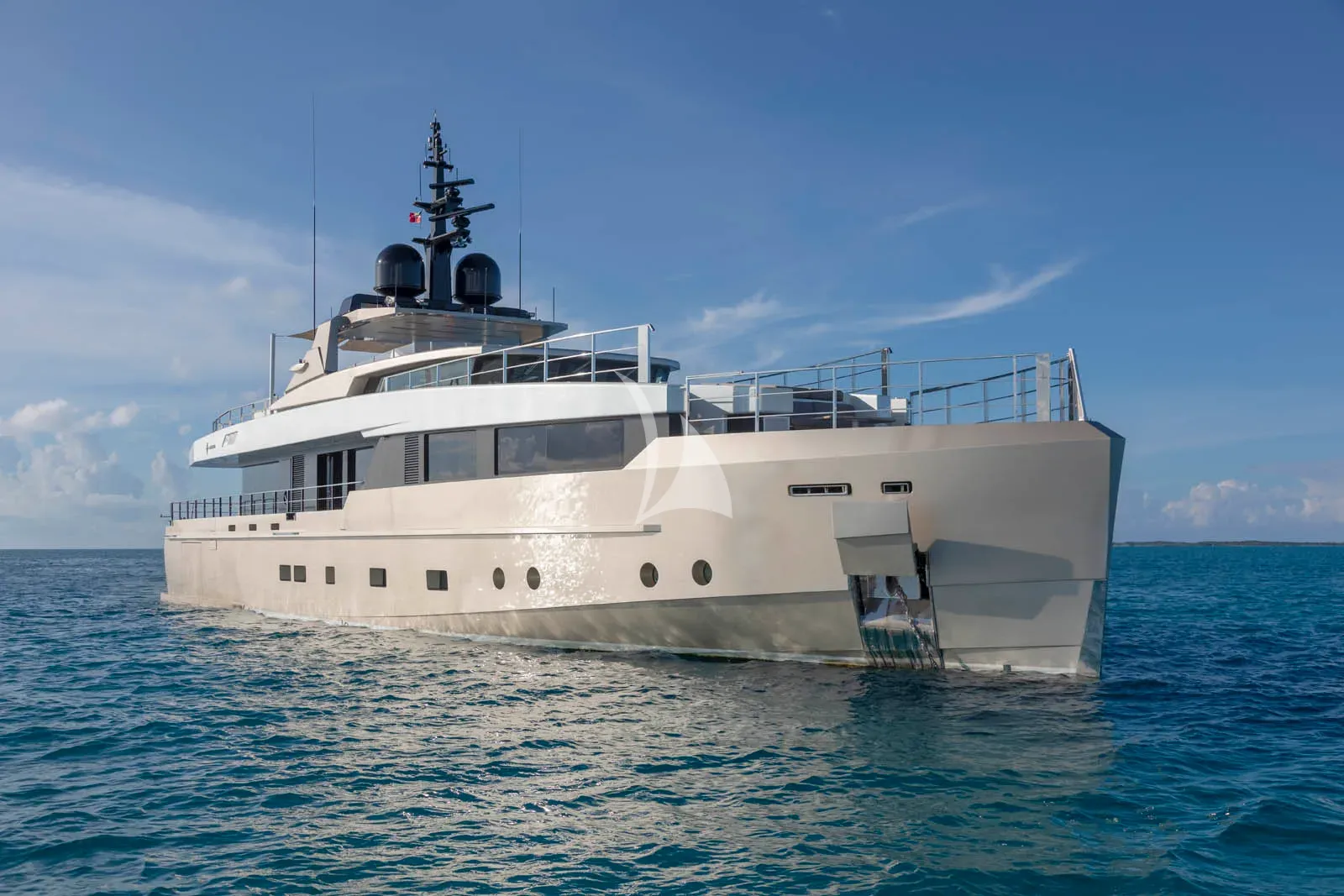

Yacht for Charter

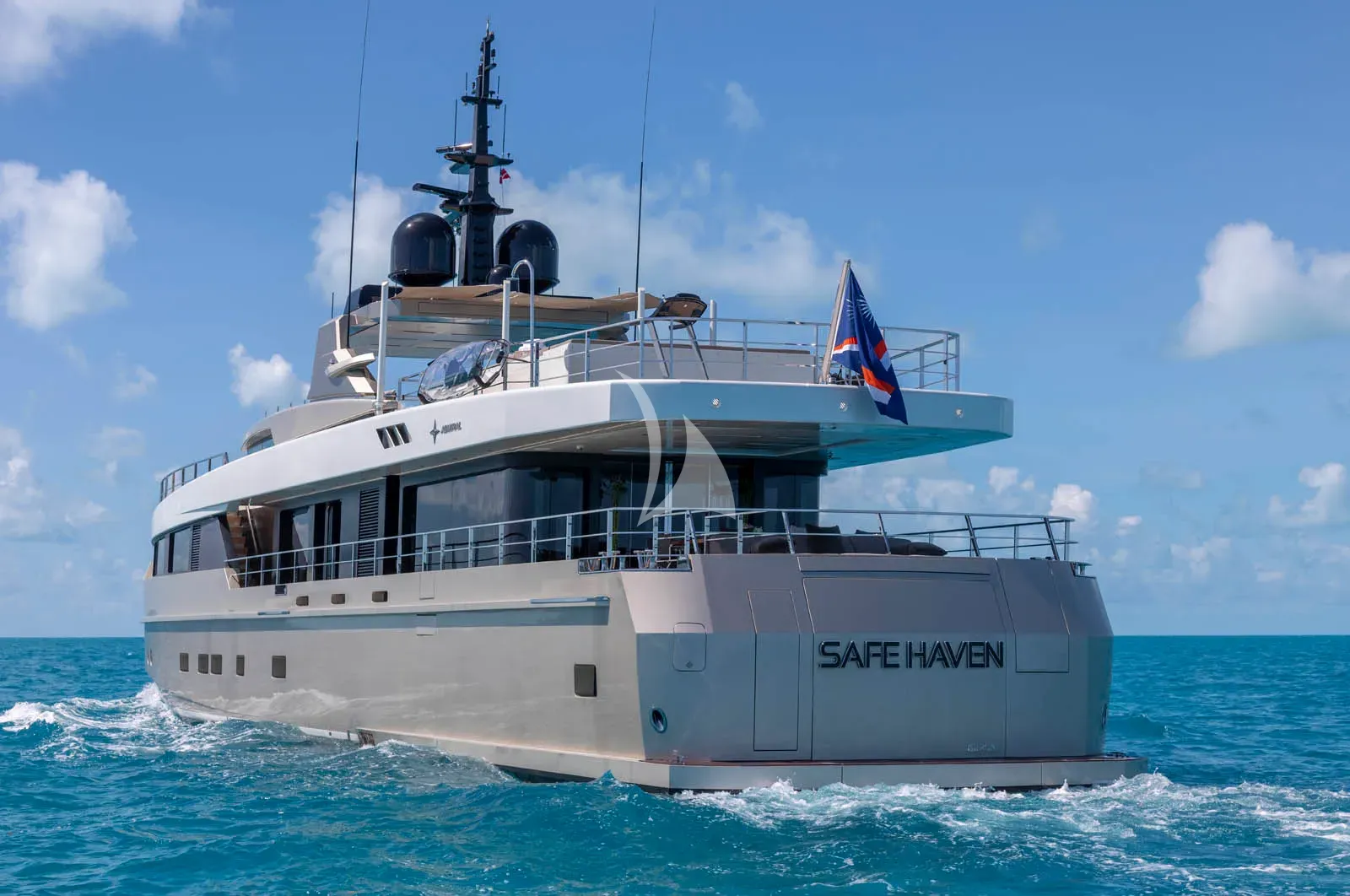

SAFE HAVEN
9637
122' 11" (37.49m)
| Builder: Admiral
| Year: 2015 /2023

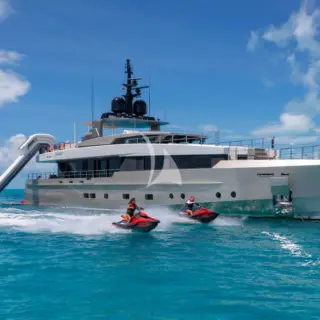

Yacht Charter SAFE HAVEN By Admiral
Length
122' 11" (37.49m)
Beam
25' 5" (7.77m)
Draft
5' 10" (1.80m)
Year Built
2015
Builder
Admiral
Designer
Luca Dini / Admiral ‘Centro Stile’
Staterooms
5
Sleeps
11
Refit
2023
Cruising Speed
16 knots
Flag
Marshall Islands
Engines
ENGINES 2 x 1,925hp (1417 kW) Caterpillar C32
ACERT, Diesel
ENGINE HOURS July 2018
Port: 1,640 / Stbd: 1,639 hours
Extended Warranty Platinum Coverage
until 9/21/2019 or 2,500 hours
GEARBOX ZF 3000, 3361 / Ratio: 3.5:1, Centa
gearbox couplings
PROPULSION 2400 mm single stainless steel propeller
shafts fitted through aft port strut
PROPELLERS Cutlass bearing Nibral 5blade Detra P5
1330 mm
RUDDERS Spade type positioned slightly outboard
centre shaft line, 1150 mm x 720 mm
GENERATORS 2 x 65kW, 60 Hz, Kohler Diesel
GENERATOR HOURS Port: 4,427 / Stbd: 4,678 hours
July 2018
STABILISERS CMC 960 mm x 1630 mm fins (3 x 5)
AIR CONDITIONING Tropical Air Conditioning package
Chilled water with reverse cycle
reheating for fresh water loop
2 x Condaria 240,000 btu PCWM/FCL
60004,
4 x Compressors each bank, 8 total
Dual seawater pumps and dual chilled
water pumps
2 x Make up air units
2 x Microchillers for ASEA shore
converters & A/V cooling equipment
E.R. VENTILATION 2 x forced air in & 2 x forced extraction,
Fire dampeners fitted
ELECTRICITY 400V, 3phase, 100 amp AC and 24V DC
USA Electric Spec
BATTERIES D/C System: 5 x battery boards,
24V (gel)
MAIN ENGINE START 2 x 15 amp charger each bank, 240 AH
total
GENERATOR START Each with 15 amp charger, 140 AH total
SHIP’S SERVICE 4 x gel batteries with 100 amp charger,
420 AH
EMERGENCY 4 x gel batteries
RADIO GMDSS 4 x gel batteries with 25 amp chargers,
240 AH
SHORE POWER Single shore cord connects shore to the
ASEA converters, Model AC54VHE
3 P/N 604487
CONVERTERS 2 x 54KVA ASEA
1 x 100 amp shore power inlet
DISTRIBUTOR Furuno professional NMEA
Maretron interface & conning display
WATER MAKERS 2 x Semar 7,900 litres/day with pre-filters
FUEL SEPARATORS Westfalia
Locations
Europe
PDF:
PDF Brochure
From:
€133,000 plus expenses
Contact Us For More Information
Toys

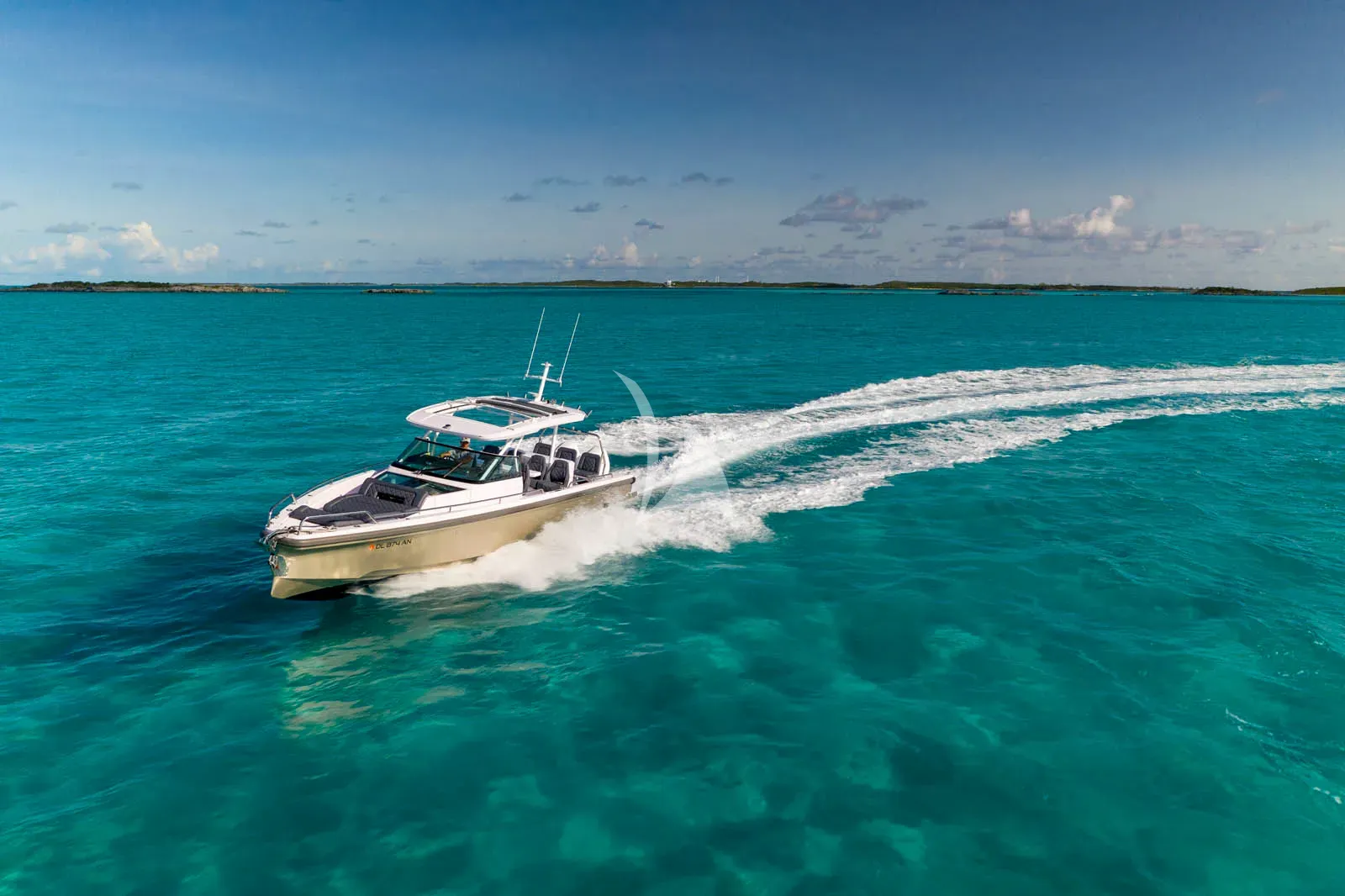

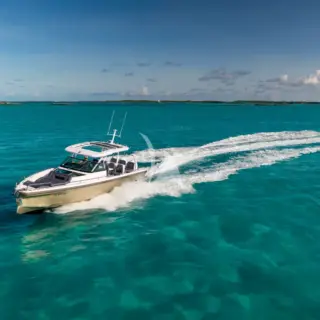

Axopar 37 2023 chase tender (8 guests)

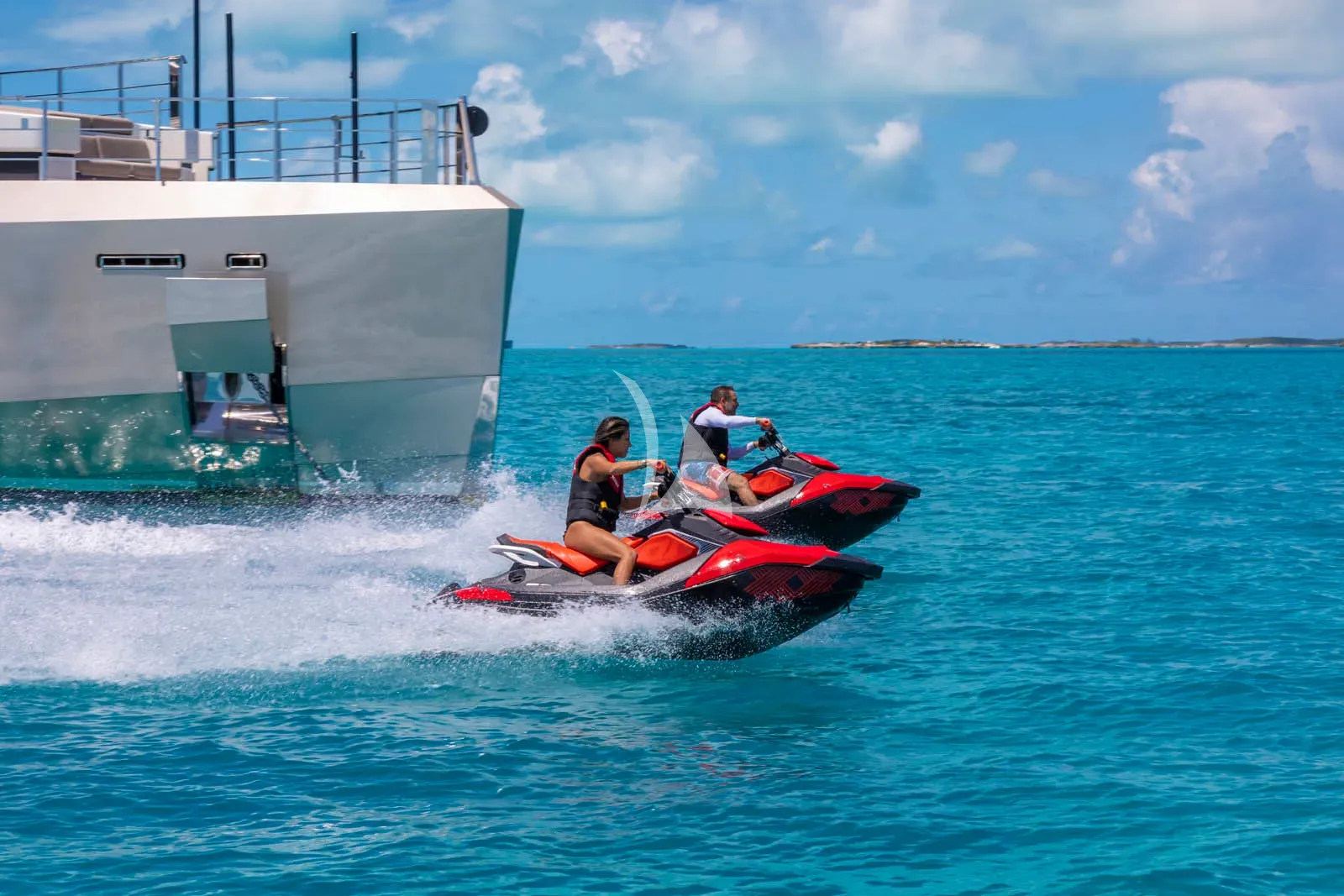

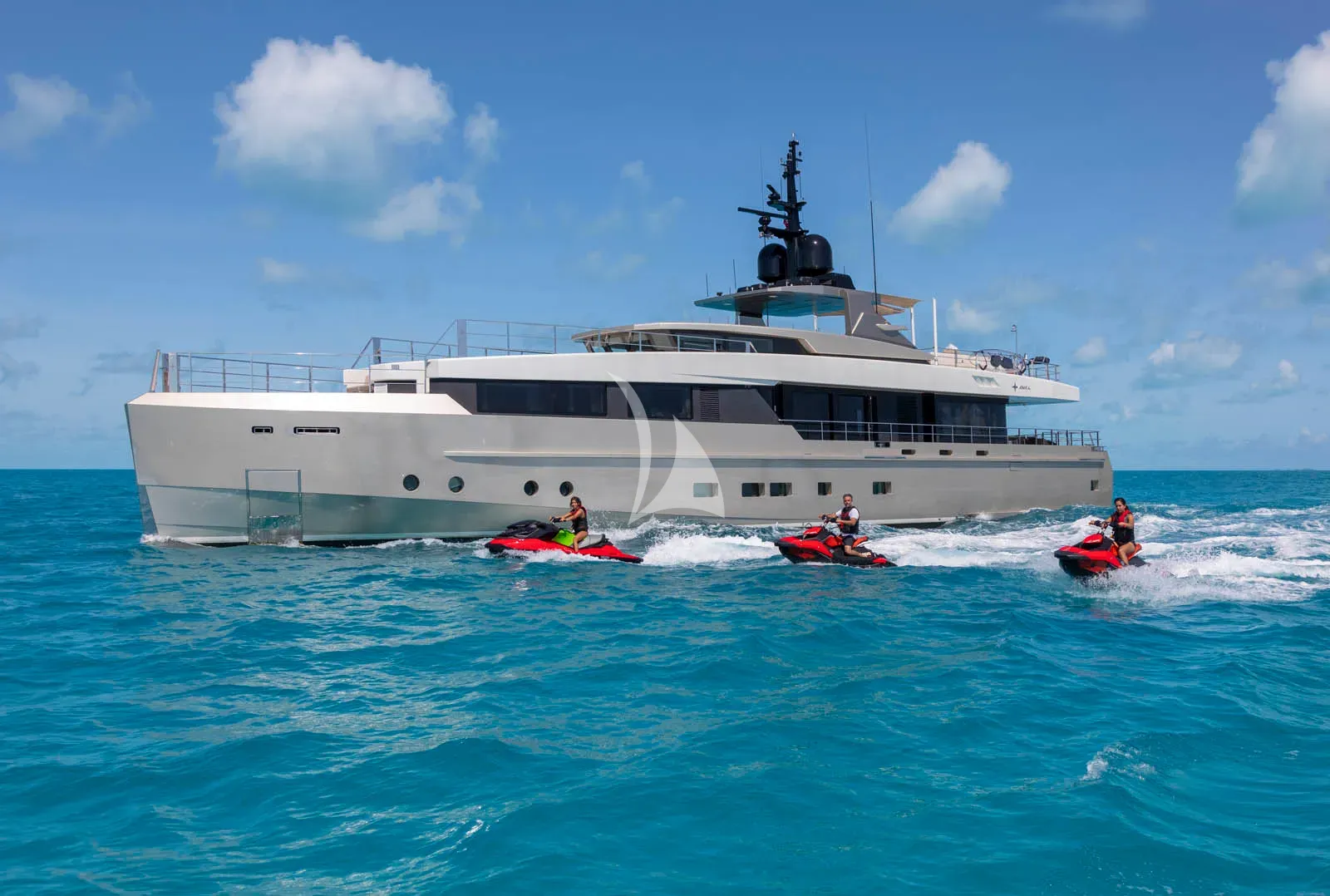

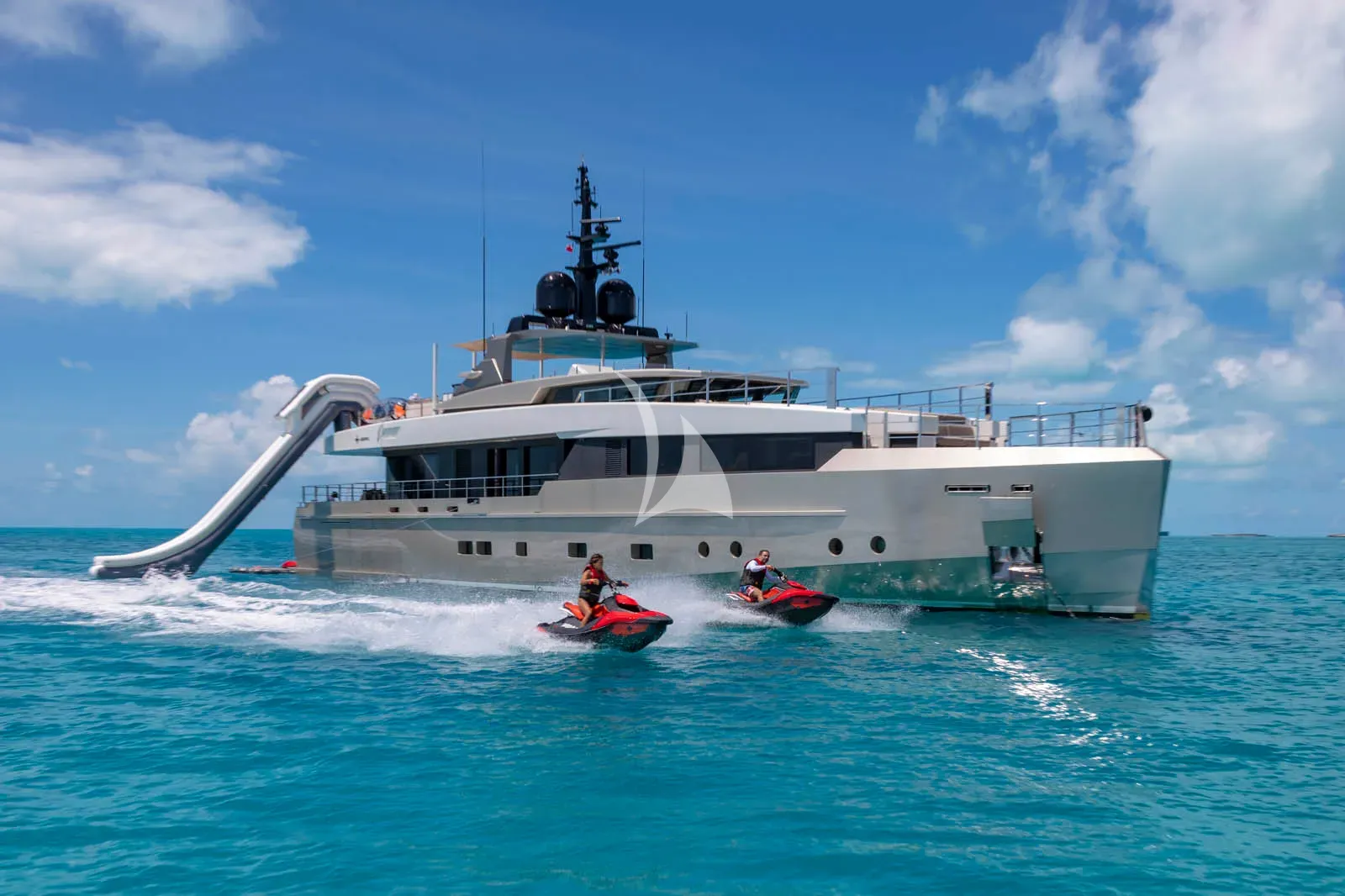

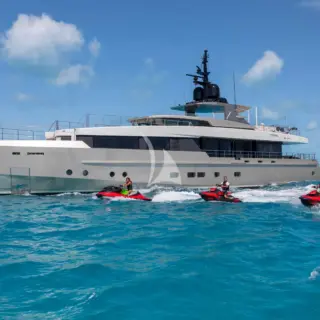

2 x Yamaha Jet Blasters 2024
2 x Seabobs
2 x Inflatable stand up paddleboards
2 x Inflatable kayaks
2 x Efoil Lift gen 4
Wakeboards (adults and kids)
Waterskis (adults and kids)

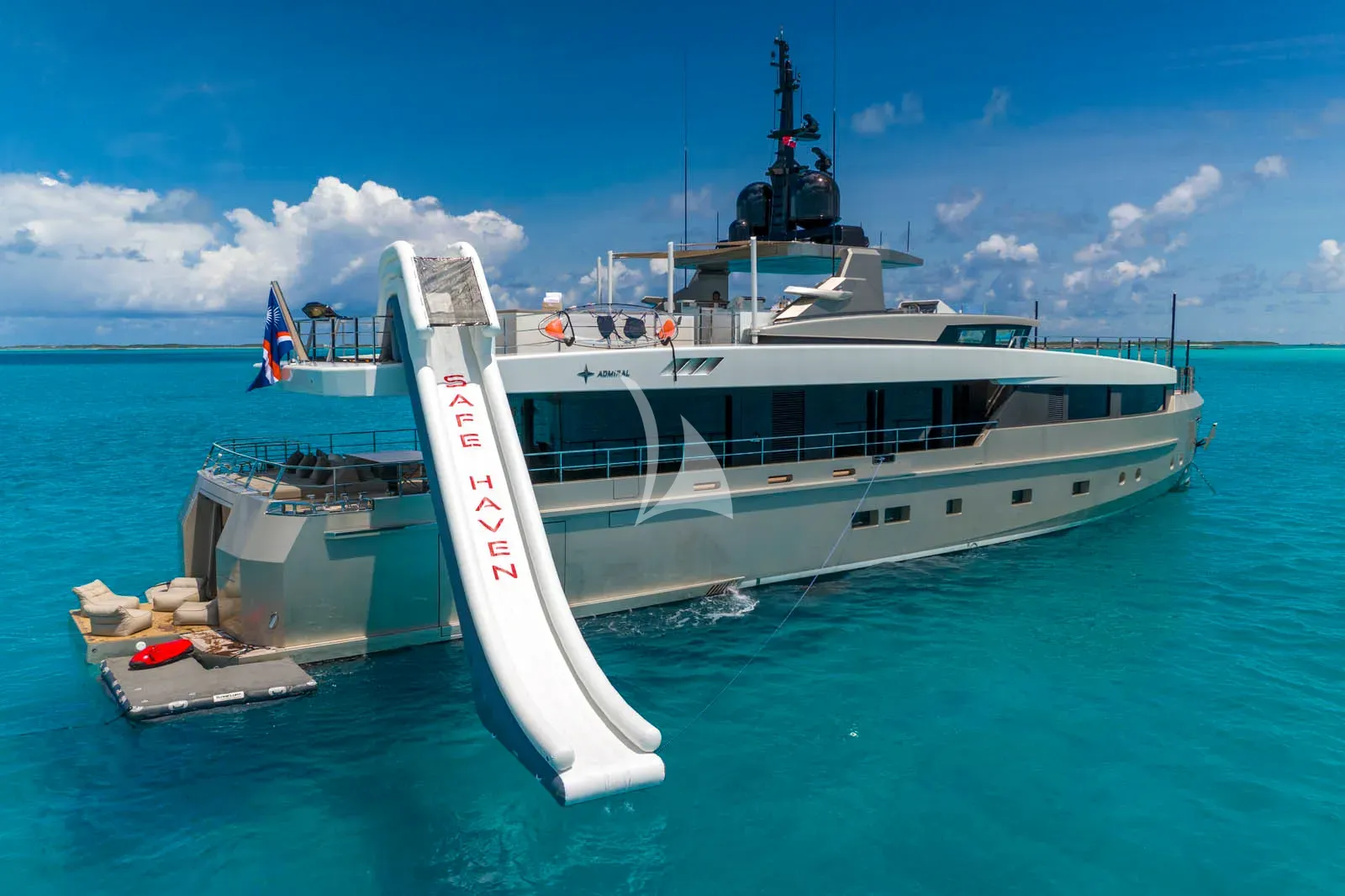

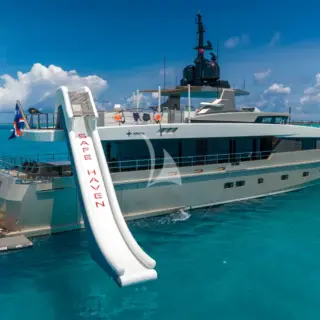

Inflatable slide from sundeck
Inflatable towables
Inflatable beach club platform
Jellyfish pool
Inflatable kids pool
Snorkeling gear
