105 RAISED PILOTHOUSE
Yacht for Sale

Length: 104' 0"/31.70M | Builder: Hatteras | Year: 2021
105 Raised Pilothouse Yacht for Sale

105 raised pilothouse Yacht for Sale - 104'Hatteras

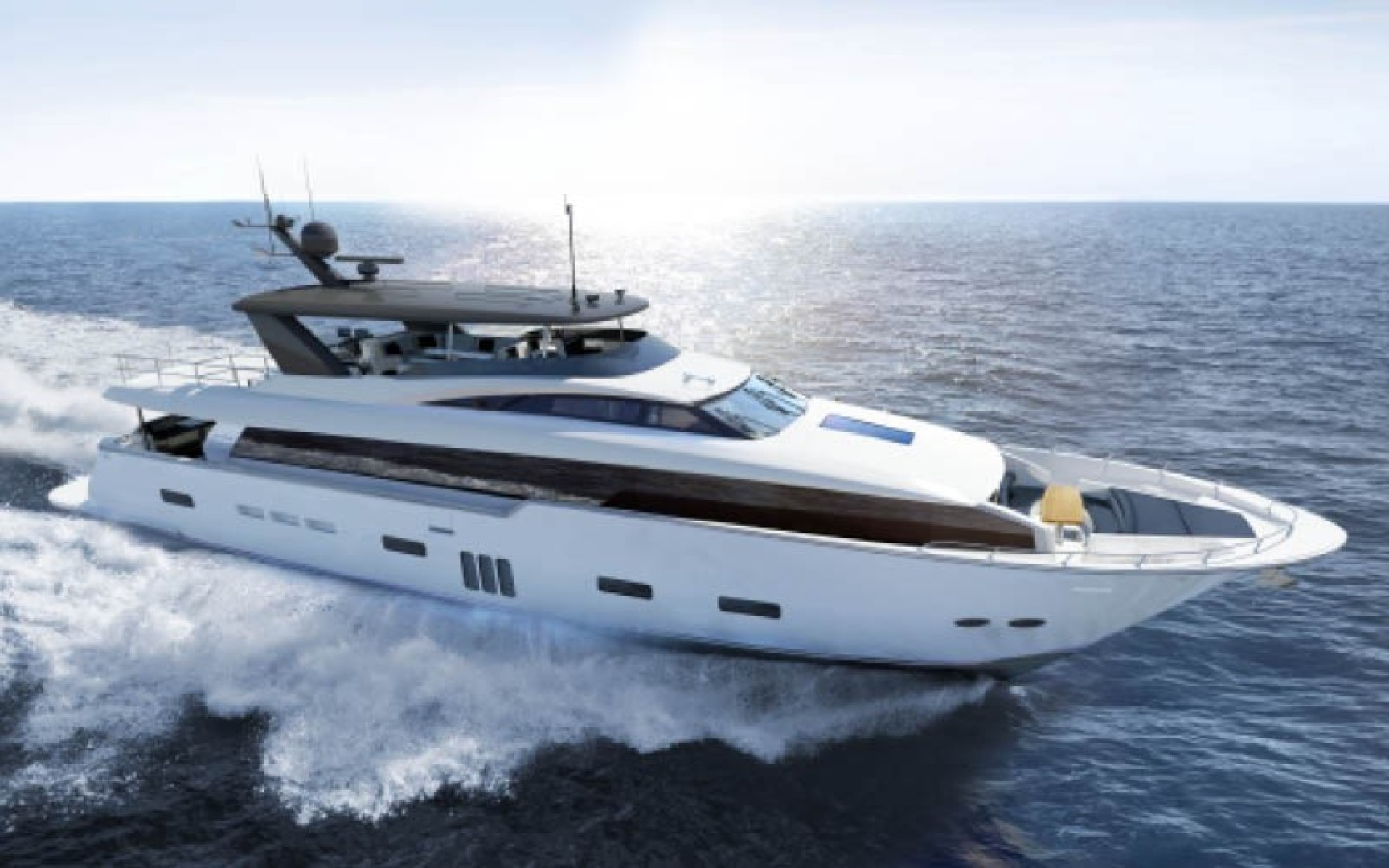

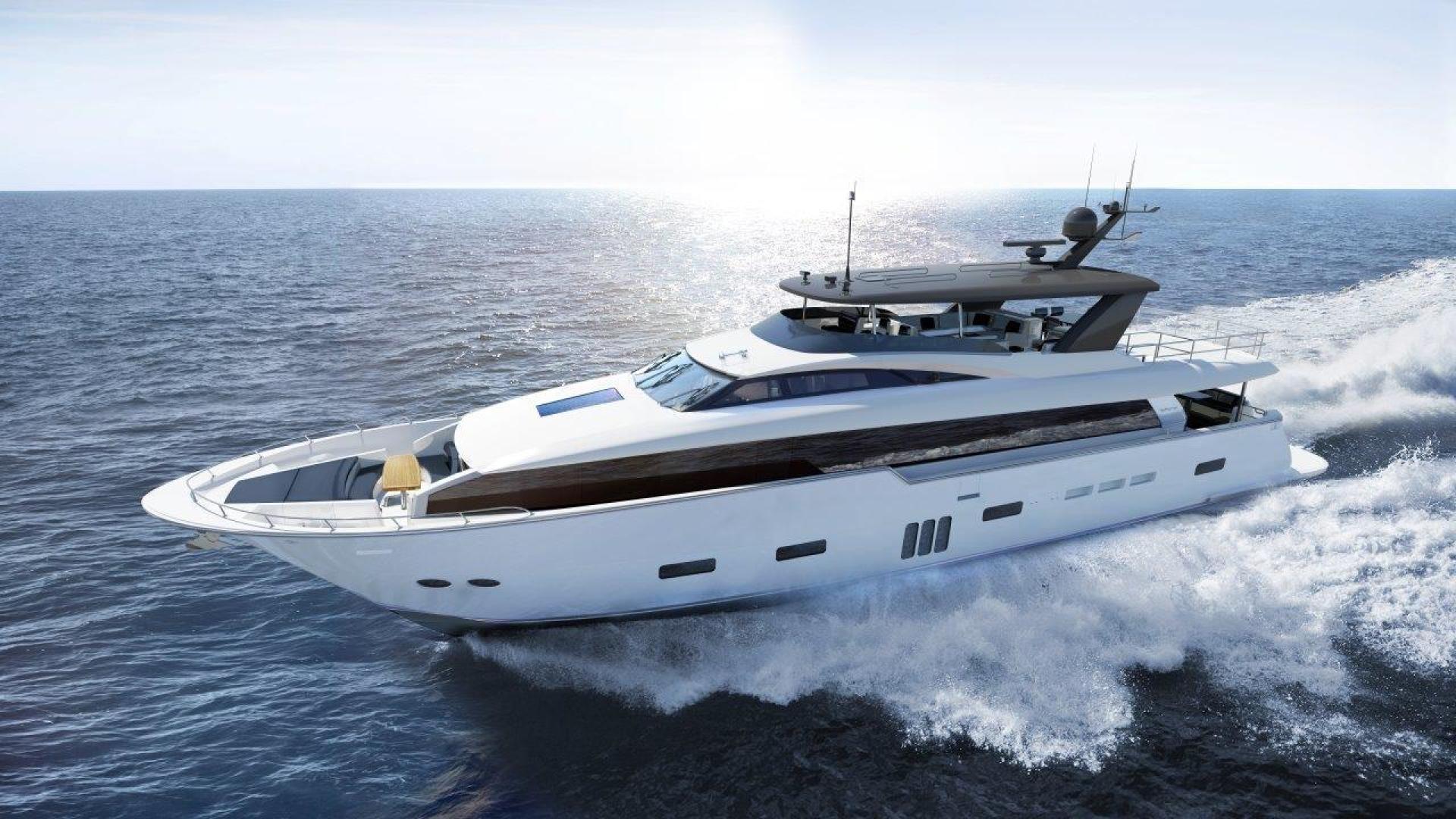

The new 105 Raised Pilothouse is the next evolution of the Hatteras style and exquisitely appointed details. The new 105RPH features a larger bow area with seating, the largest aft deck in her class and amenities typically reserved for larger vessels. The 105RPH is the ultimate statement yacht. The exterior spaces are abundant as the breathtaking views that will surround you. Inside, the 105 Raised Pilothouse continues to over-deliver with an incredible light-filled salon and galley featuring panoramic windows and signature skylights. With the ability to incorporate countless custom touches that reflect your personal style, the 105 Raised Pilothouse becomes the ultimate statement for those who share our passion for celebrating a life without limits. Call us today to order your new Hatteras!

Type: Motorboat
Category: Motor Yacht
Condition: New
Length: 104' 0"/31.70M
Beam: 22' 6"/6.86M
Builder: Hatteras
Draft: 6' 2"/1.88M
Year: 2021
Location: Seattle
Staterooms: 4
Price: Price On Application
Salon Dining Room
Galley
Galley
Master Stateroom
Master Stateroom
Master Head
Master Head
Guest Stateroom
Guest Stateroom
Upper Helm
Upper Helm
General Arrangement
General Arrangement

Contact Us For More Information

Preferred method of contact:

Detailed Information



Wood Finishes / Wall Covering:
• Fabric headliner installed on track system throughout

Flooring:
• MY tier 3 flooring includes - engineered hardwood flooring in galley, dining, salon, and day head teak flooring in raised pilothouse carpet in all staterooms tile flooring in master head and guest heads engineered vinyl flooring in crew heads (flooringtier upgrades available at Hatteras Design Center)

Integrated Interior Furnishings:
• Stone countertop center island with four detached bar stools and storage stone pedestal table with dinette seating andample storage in galley
• Sculptured drop soffit, centrally located over dining table, made from wood, stainless, and mirror. Fitted with contemporarylight fixture and discreet LED rope light
• Service bar with stone top and backsplash in companionway
• King-sized berth with storage underneath, upholstered headboard and base, nightstands, and two dressers in masterstateroom
• Queen sized tapered berth with storage underneath, upholstered headboard and base, nightstands, armoire in bowstateroom
• Twin berths with upholstered headboards and bases, with nightstand in starboard stateroom
• Twin berths that convert to a queen with upholstered headboard, nightstand in port stateroom
• Cedar lined storage areas inall staterooms
• Over/under crew stateroom, double berth captain stateroom, with upholstered berth faces, hanging lockers, dresser andnightstands in crew quarters
• Lounge seating with solid surface dinette table in crew lounge
• Elevated L-shaped lounge, stone tables with stainless steel pedestal, and adjustable helm chair in Raised Pilot House
• Towel bar, towel ring, and tissue holder accessories in all heads
• Full-length mirror in all staterooms

Furniture:
• Salon: L-shaped sofa, armchairs (2) cocktail table (allowance)
• Dining: formal dining table and 8 chairs (allowance)
• Buffet cabinet in salon/dining room

Interior Lighting:
• LED lighting throughout, dimmable in master stateroom, bow stateroom, salon, galley, and Pilot House
• Lighted stairways

Mattresses:
• System 5 premium mattress in master stateroom
• System 3 premium mattress in all guest staterooms excluding crew
• Talalay latex mattress in crew quarters

Design Features:
• Companionway access hatches to all bilges
• Elegantly decorated MY tier 3 interior fabrics, linens, bedding, wallcoverings, stone, tile, and countertops (tier upgradeselected at Hatteras Design Center)
• Fixed frameless windows with tinted safety glass and privacy blinds in salon
• Portlights with privacy blinds or blackout panels in staterooms
• Skylight in galley with dimmable smart glass

Exterior Furniture:
• Four armless collapsible chairs on aft deck

Integrated Exterior Furniture:
• Teak table with cover, molded bench seating with cushions on aft deck
• Modular fiberglass furniture (5 pieces) including cabinets and/or lounges with cushions in a custom-designed layout, twoadjustable helm chairs on flybridge
• Lounge seat on bow deck

Exterior Engineering:
• Electric salon door
• Pantograph door port side
• Stainless steel sliding door to starboard side deck
• Pantograph bustle door
• Painted aluminum radar mast
• Open air flybridge
• Sliding door at bridge deck to pilot house
• Aft deck access door to crew quarters

Exterior Hardware and Anchoring System:
• Polished stainless steel railings on bow, side decks and flybridge
• Polished stainless steel grab rails and stanchions
• Stainless steel deck fills for fuel, water, and waste pump out
• Dual air horns
• Stainless steel gates from aft deck to swim platform
• Bulwark gates port and starboard
• Stainless steel reboarding ladder
• Dual polished anchors with 350 feet of chain each
• Dual hydraulic anchor windlasses with controls at anchor and helm stations
• Dual chain stops
• 4 stainless steel horn hawsers and 4 fixed polished stainless steel cleats
• Two polished stainless steel pop-up cleats on swim platform
• Solid stainless steel rub rail

Exterior Lighting:
• Overhead tricolor LED lights
• Low level courtesy LED white lights
• Two transom LED underwater lights

Interior Appliances:
• Upright 48” refrigerator with freezer and icemaker, four-burner ceramic cooktop, Microwave/convection oven, dishwasher, wine cooler, sink with garbage disposal in galley
• Wet bar with refrigerator, icemaker, and bottle and glass storage in salon
• Washer and dryer in companionway

Exterior Appliances:
• Wet bar with solid surface countertop, sink, refrigerator, icemaker and three barstools, large electric grill on flybridge

Crew Appliances:
• Abbreviated galley including microwave/convection oven, refrigerator, sink and storage, washer and dryer in crew quarters


Propulsion / Fuel Systems / Hull Design and Performance:
• Twin Caterpillar® C-32A 1,800 BHP diesel engines with digital engine monitoring
• Resin-infused foam core with solid fiberglass hull bottom; resulting in stronger and lighter construction, backed by Hatteras 10 year hull warranty
• Hull and super structure painted with a premium polyurethane coating for increased durability and improved cosmetic finish
• Ablative polymer/copper based anti-fouling bottom paint
• Molded fiberglass longitudinal stringers with steel engine beds
• Finished engine room and bilges for improved cosmetics
• Fuel water separator/filters with electric priming pumps
• Fuel transfer system with integrated pump protection and full tank shut of switch
• Oil changing system for engines, generators and gears
• Fiberglass fuel tanks constructed with fire-retardant resin and bronze fittings
• Hatteras integrated engine room air intake demister system
• Bronze rudders with manganese bronze dripless rudder seals
• Alloy 22 high strength propeller shafts tapered with round keys for reduced stress concentrations at propeller and coupling ends
• Manganese bronze struts and engine coupling
• Nibral high performance 8 blade propellers for smooth ride and improved efficiency
• Noise reducing generator exhaust water separator
• Fin stabilizer system
• Hydraulic 55 HP bow thruster

Engine Room Systems:
• FM200 fire extinguisher system with automatic and manual controls
• 24VDC bilge and sump pump systems
• High volume emergency bilge pump
• All underwater through hull valves are bronze/chrome through-bolted with electrical bonding throughout
• Electric power assisted steering
• AC compressed air system with air line and regulator with accessory connection
• Two AC ventilation fans
• DC ventilation blower

Air Conditioning:
• HVAC controls located in Pilot House, galley, and all staterooms
• Interior chilled water air conditioning, (3) 5-ton, with reverse-cycle heating and soft starting AC compressors
• Recirculating fans in all heads

Water Systems:
• Freshwater wash down outlet on swim platform, bow deck, aft deck, and flybridge
• Fresh water swim shower on swim platform
• Shower with door in all lower level heads
• AC fresh water pump
• Centralized freshwater manifolds with shutoffs
•(2) 50 gallon & (1) 30 gallon 240 volt water heaters
• 820 gallon fiberglass water tank
• 420 gallon fiberglass holding tank with deck plate and 24V overboard discharge pump
• Holding tank 3/4 full indicator light in all heads
• Freshwater toilets in all heads
• Dockside water connection with pressure regulator

Electrical Systems:
• 240V, 100A retractable shore cords with wireless remote control (2)
• 100A polarization transformers with boost function (2)
• AGM 24 volt heavy duty marine battery banks mounted in fire retardant fiberglass boxes (2)
• Automatic battery charger (2)
• Automatic battery paralleling system with switch on helm console
• Battery control panel with fuses and isolation switches located in engine room
• AC and DC distribution panels with magnetic circuit breakers
• DC electronics panel with magnetic circuit breakers on flybridge
• Smoke detectors located in all staterooms, salon, galley, crew’s lounge and electronics Locker
• CO detectors located in all staterooms, salon, galley and crew’s lounge
• USB charging ports in all staterooms, salon, galley and crew’s lounge
• Two 40KW generators
• Accessible AC outlets with ground fault protection throughout

System Monitoring and Yacht Management:
• Computer controlled Ethernet monitoring system with LCD touch screen display providing visual and audible signals for engines, gears, generators, high bilge water, fire warning in engine compartment, fire extinguisher discharge in engine compartment, AC power loss, smoke detectors, tank level indication, low battery voltage, battery charger failure, bilge pump control and run indication, holding tank pump control and run indication, and carbon monoxide detectors. A history log is maintained for critical alarms and trends may be set up to view parameters with respect to time
• Control station with all necessary switches, clutch and throttle controls (electronic) with emergency back up and engine synchronization, back-up controls, power assisted steering, lighted compass

Entertainment Equipment:
• Independent audio video system in each stateroom including: LED televisions, Bluetooth, DC AM/FM radios and CD players
•Fully integrated audio video system in main interior and exterior living spaces to include: LED TV and Blu-Ray (salon), stereo speakers and remote stereo display, and Bluetooth
• Omni-directional TV antenna

China, Crystal and Flatware:
• Formal china, crystal and flatware with integrated storage; service for 8 (additional place settings and glassware options are available at the Hatteras Design Center)

Supply Items:
• Stern staffs with ensign
• Braided nylon mooring lines (6)
• Fenders (4)
• Life jackets (12)
• Life ring (2)
• Cordless portable vacuum w/mounting brackets (2)
• Allowance for navigational electronics such as radar, depth sounder, automatic identification system, GPS/plotter, VHF radios, hailer horns, and autopilot (see supplement)
• Flare gun with flares
• Fog bell
• First aid kit Portable “drychem” fire extinguishers in compliance with USCG and ABYC standards
• Vessel supply items (details in supplement)


• 1 year world wide warranty: see Express Limited Warranty for details
